Army M24 Build Thread

[TurdFerguson]

What would be the purpose of the threaded holes? Surely they didn’t thread holes into every long action receiver just for the relatively small numbers of M24 receivers they made.

open sights and in the m24's case backups. a lot of older 700's made before scopes were the norm were drilled and tapped.



[ValveTech]

open sights and in the m24's case backups. a lot of older 700's made before scopes were the norm were drilled and tapped.

Did they have provisions for a front sight as well?



[TurdFerguson]

Did they have provisions for a front sight as well?

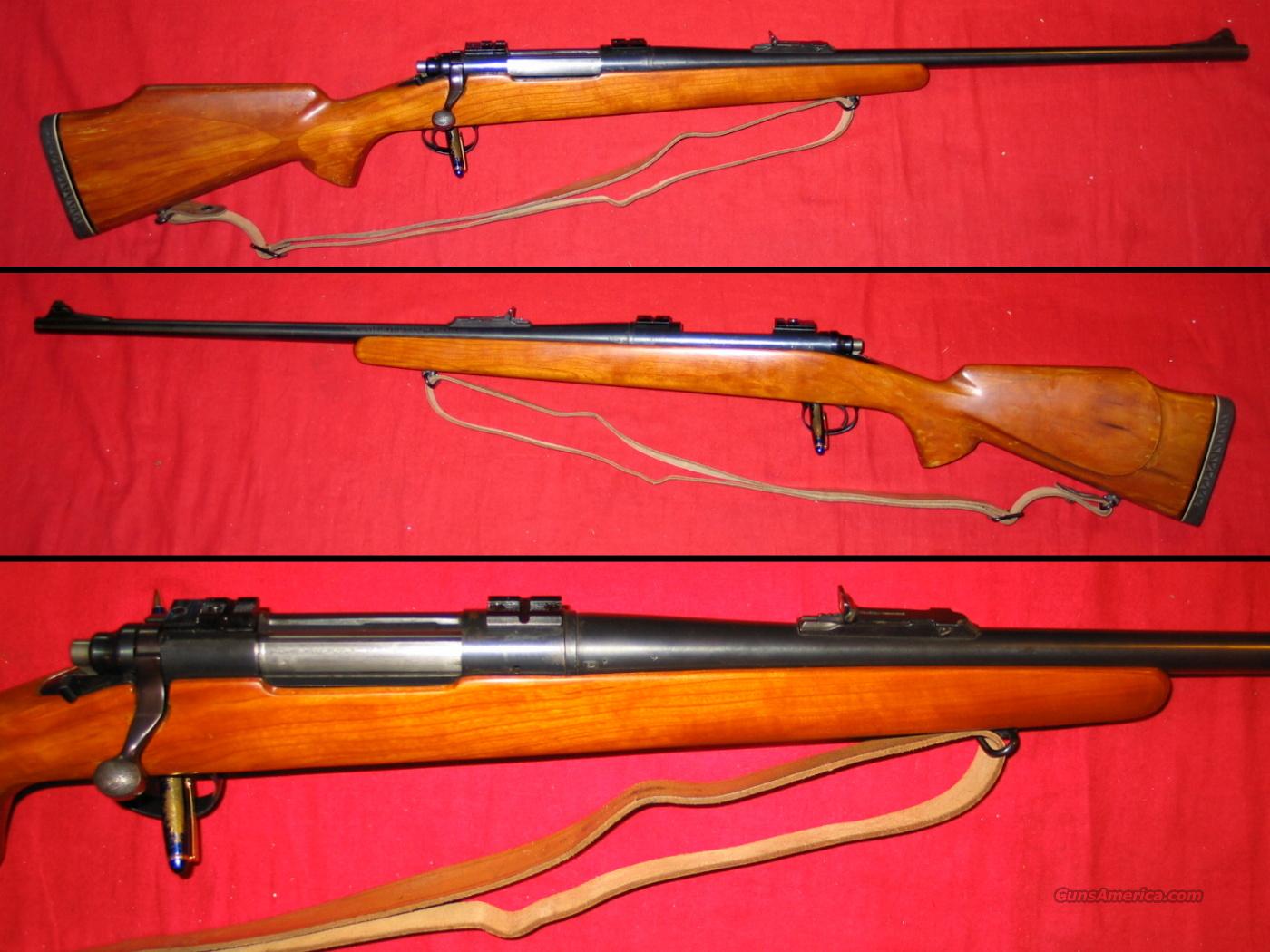

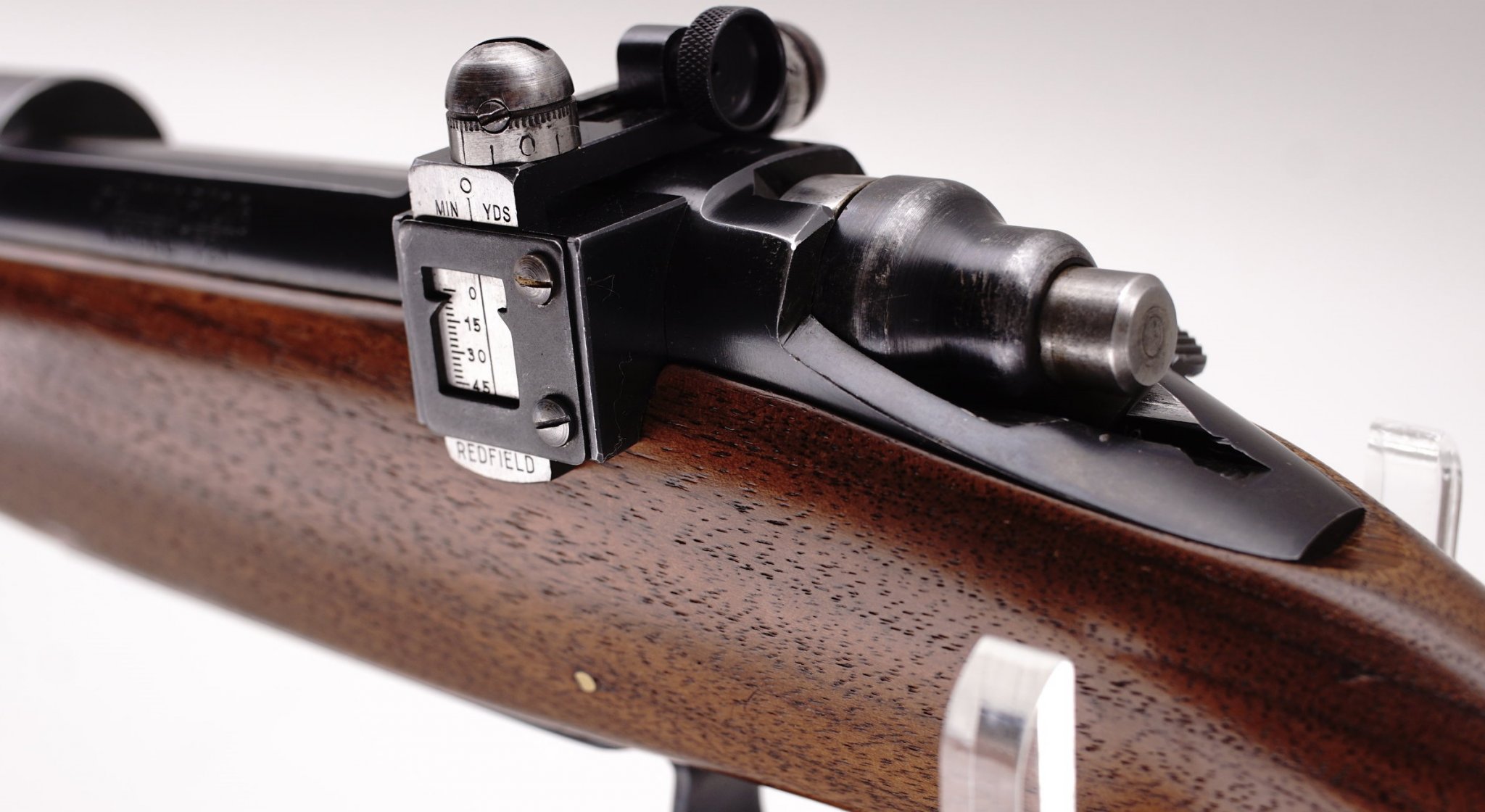

Yes. Look at any hunting rifle from the 40-70's. My grand father had a similar Peep on a sporterized 03.

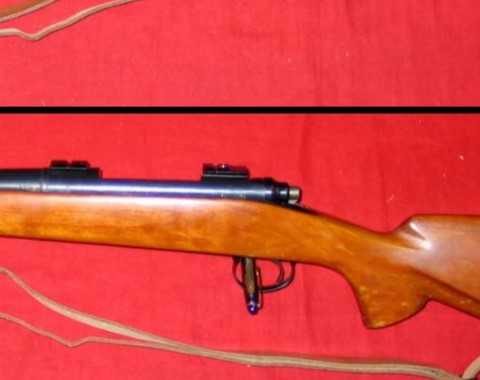

Blurry zoom but shows the screws.



[Phil McGrath]

Did they have provisions for a front sight as well?

In the case of the M24, yes there is a provision for mounting a front sight.



[Haney]

What would be the purpose of the threaded holes? Surely they didn’t thread holes into every long action receiver just for the relatively small numbers of M24 receivers they made.

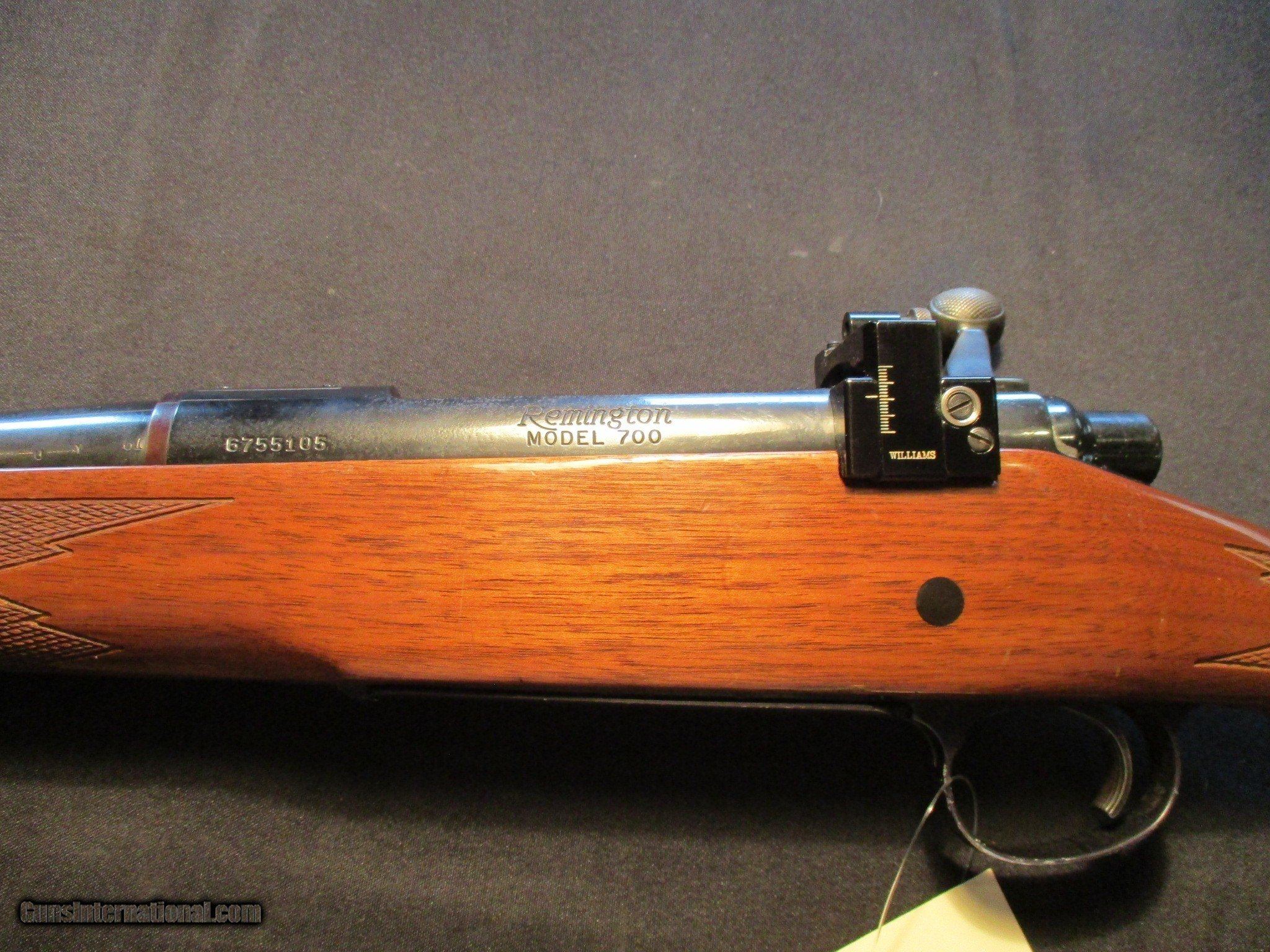

Williams version .



[lockedandloaded]

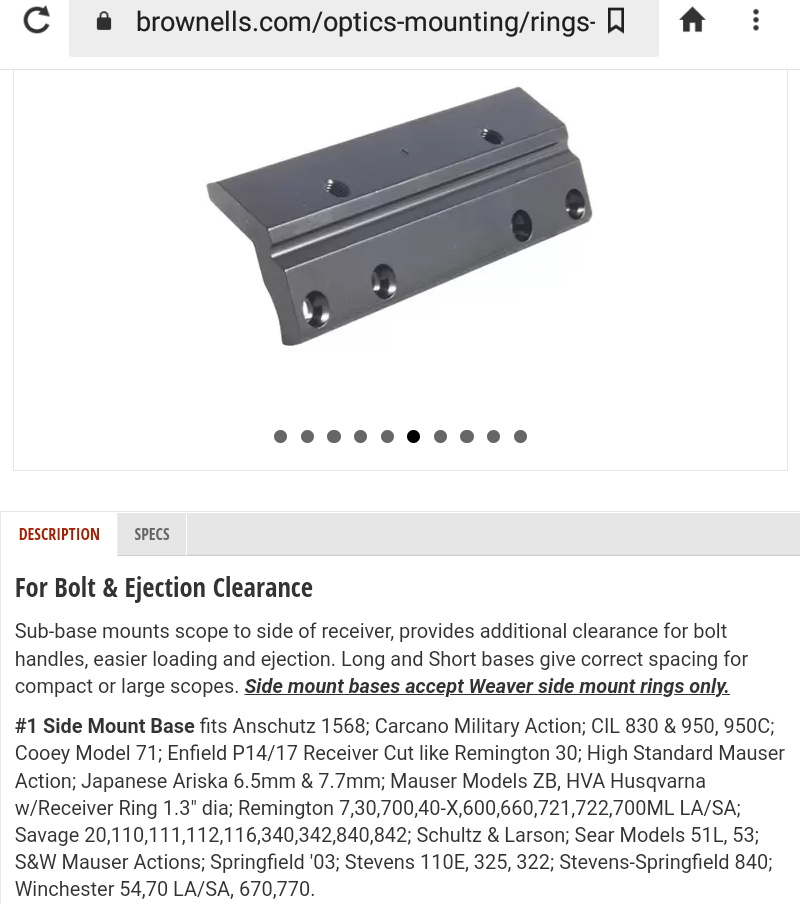

There are bases made for side mounting scopes



[jdbaum123]

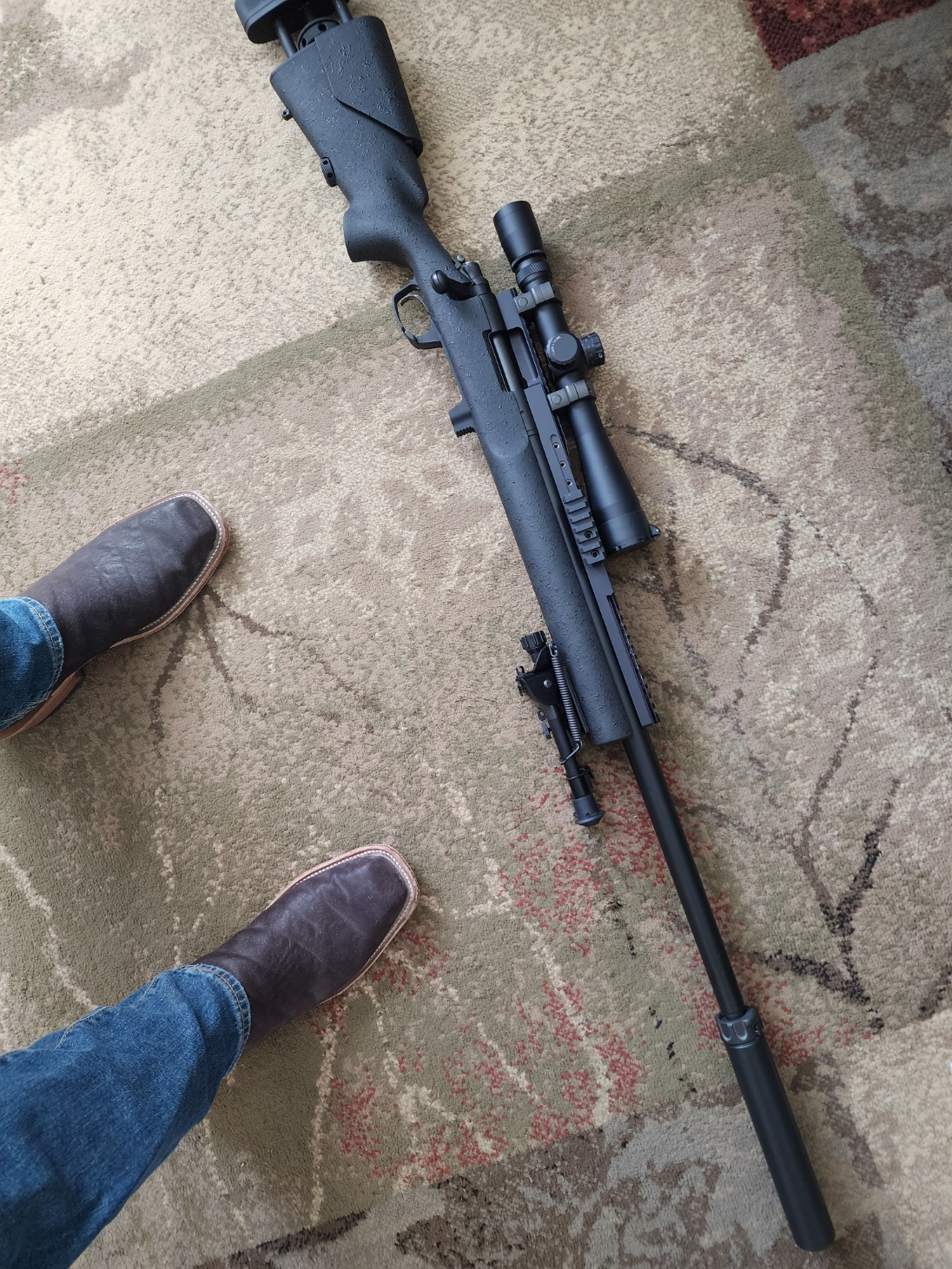

Finally finished up the my short action m24 build. Picked up the barreled action from ilikebmxbikes, has all the m24 markings on the barrel but was threaded from factory and is a short action so kind of a cool oddity from the liquidation. Now just trying to figure out whether or not to try to build out my other m24/xm2010 action or to sell for a different project lol



[deltawiskey]

Finally finished up the my short action m24 build. Picked up the barreled action from ilikebmxbikes, has all the m24 markings on the barrel but was threaded from factory and is a short action so kind of a cool oddity from the liquidation. Now just trying to figure out whether or not to try to build out my other m24/xm2010 action or to sell for a different project lol

View attachment 8048410

View attachment 8048420

That turned out really great!
DW



[TurdFerguson]

Finally finished up the my short action m24 build. Picked up the barreled action from ilikebmxbikes, has all the m24 markings on the barrel but was threaded from factory and is a short action so kind of a cool oddity from the liquidation. Now just trying to figure out whether or not to try to build out my other m24/xm2010 action or to sell for a different project lol

View attachment 8048410

View attachment 8048420

Dude just build it out. Do it.



[TurdFerguson]

Whats the going rate on Remington MARs rails now?



[Whaburt]

Whats the going rate on Remington MARs rails now?

Century Arms has surplus ones for $500



[TurdFerguson]

Century Arms has surplus ones for $500

Those are all short action aren't they?



[deltawiskey]

Looks like $330

https://www.gunbroker.com/item/965818923



[Whaburt]

Those are all short action aren't they?

They have both long and short. LA is 0MOA and SA is 20MOA



[MT Mulie]

Sometimes you get lucky with what you find in a pawn shop.



[shlouf]

Whats the going rate on Remington MARs rails now?

I’ve got a LA 20MOA if that’s what you’re after. Would rather trade if you have anything interesting. Shoot me a pm.



[shlouf]

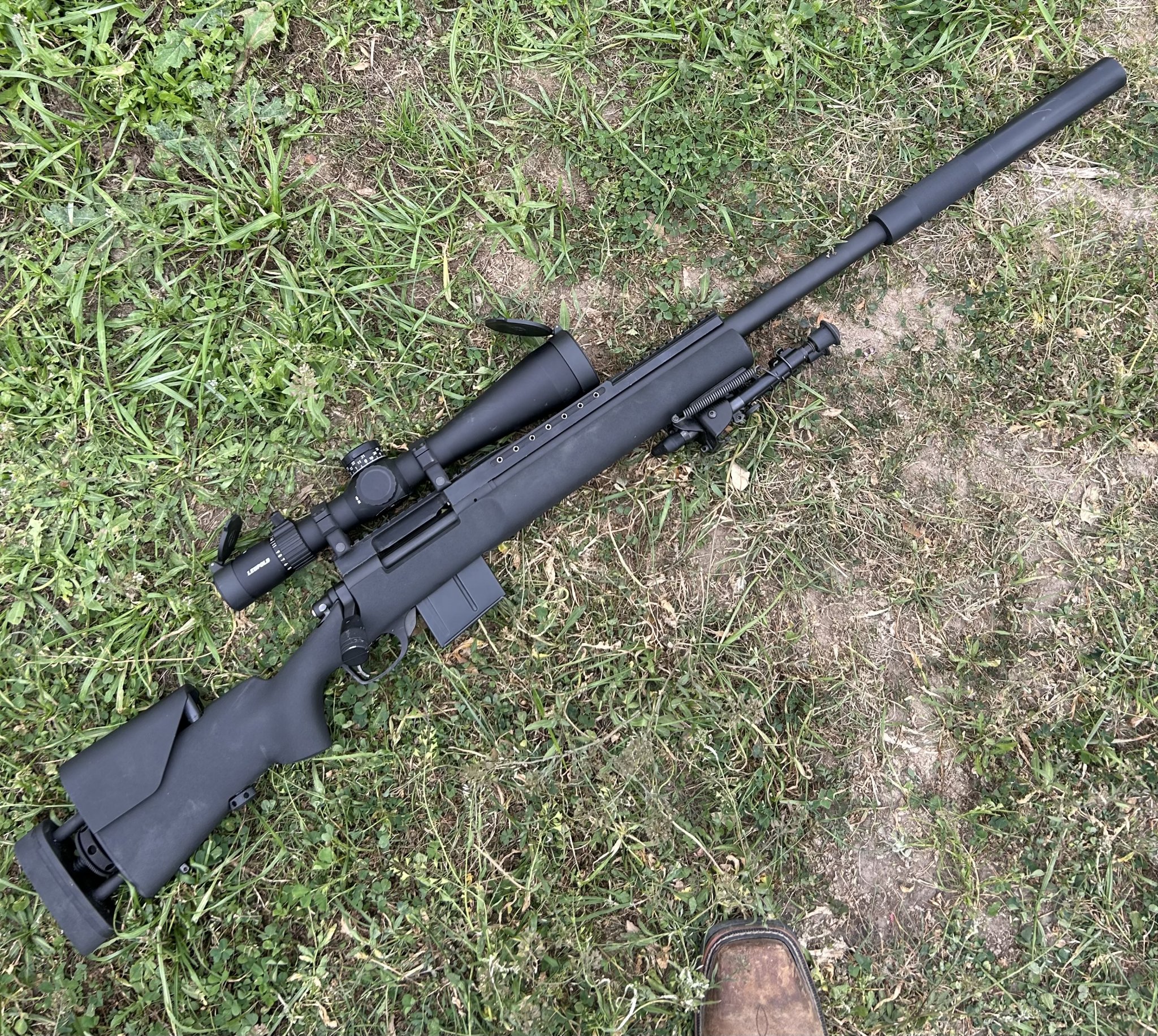

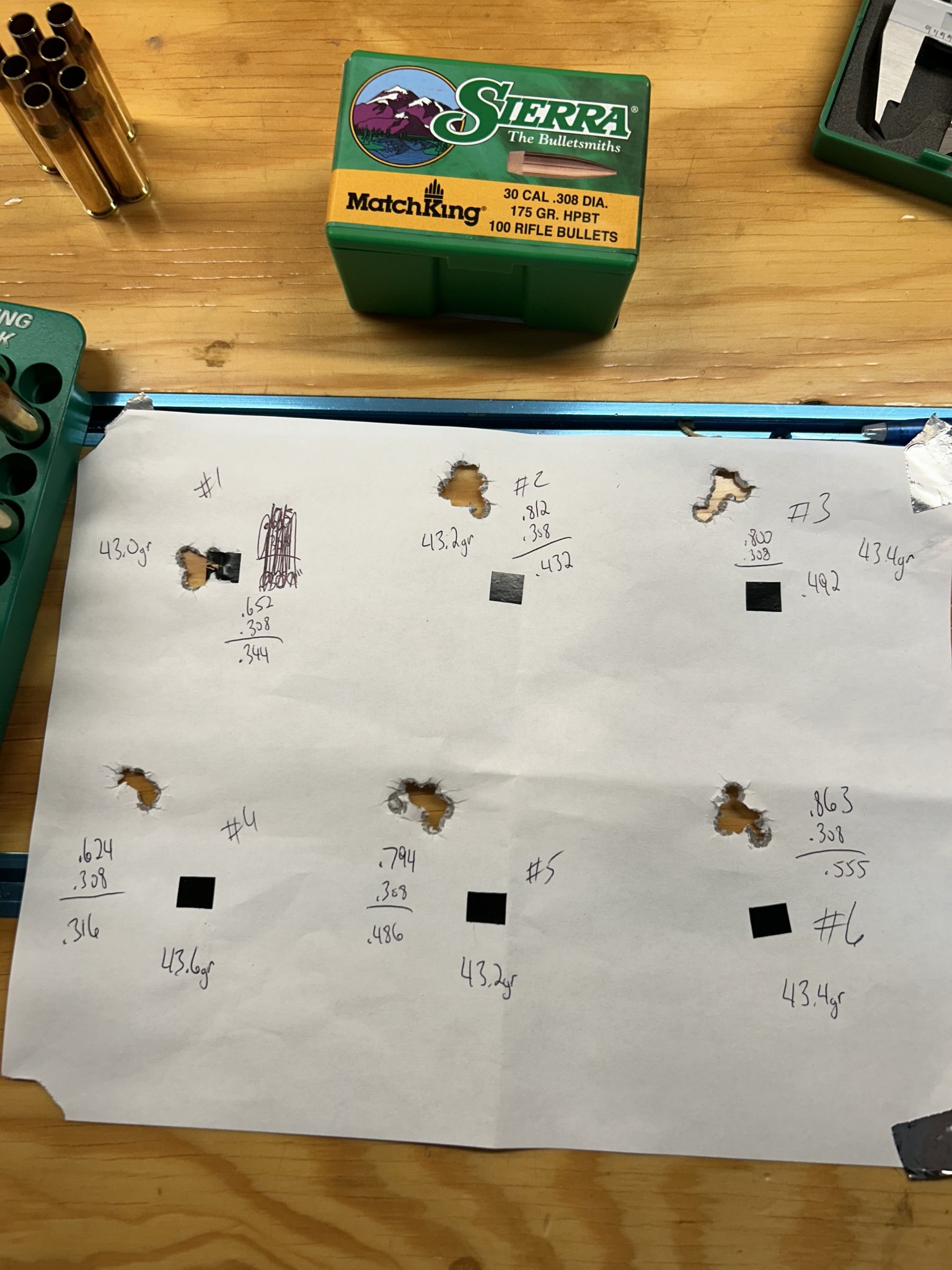

Threw the 5-25 mk5 on for some extra mag while working on load development. Couldn’t get 178 eld-x to shoot as good as I’d like, but haven’t given up yet. Varget and 175 smks is just easy mode though.



[Master Gunny]

Threw the 5-25 mk5 on for some extra mag while working on load development. Couldn’t get 178 eld-x to shoot as good as I’d like, but haven’t given up yet. Varget and 175 smks is just easy mode though.

View attachment 8053592View attachment 8053591

Congratulations. Great shoot and such a bad ass M24A2



[shlouf]

SOLD - HS precision M24 La

M24 long action stock unused m24/m40 bbl channel purchased for a project that has changed directions 500 shipped

www.snipershide.com

M24 stock with the correct thin buttpad on the px for anyone looking



[Smitty192]

Congratulations. Great shoot and such a bad ass M24A2

One of the coolest rifles on this thread.



[NoNATS]

I'm seeing a fair amount of actions, barrels, and triggers around. is there a preferred bolt, or a good place to get them?



[Master Gunny]

There is a new stock, trigger, and bottom metal on flea bay..



[Shawn M]

I was looking for a m24 stock and trigger guard with no luck. Not sure where I can find any



[deltawiskey]

There is one on Ebay:

Model 700 m24 rifle stock bottom metal | eBay

Find many great new & used options and get the best deals for Model 700 m24 rifle stock bottom metal at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[Shawn M]

Thank you for the info.



[ODCMP]

What rings were used on the XM2010? I understand that they were Badger Ordnance 4 screw rings, and I assume they were steel. What specific model and height were used?



[R.J.H.]

If this is the wrong place to ask this please let me know and I'll delete: What's the current value of an RR prefix M24? Clean re-pro stock, not a return stock.



[shlouf]

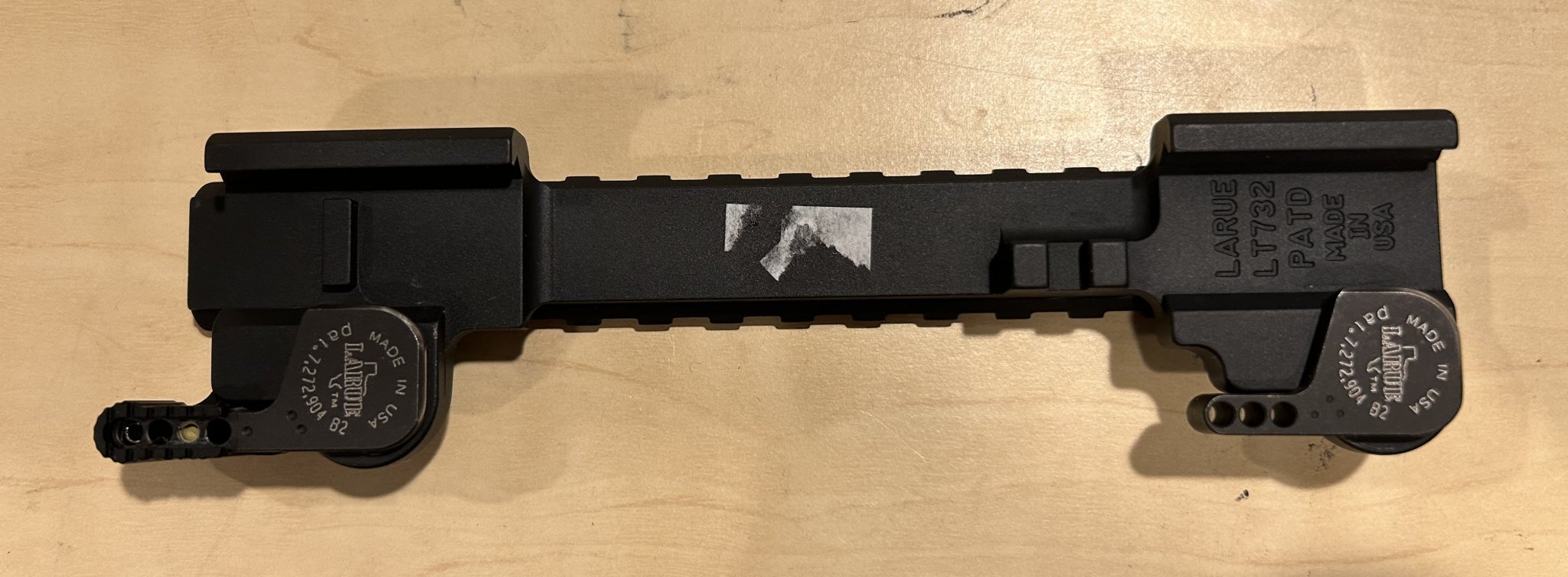

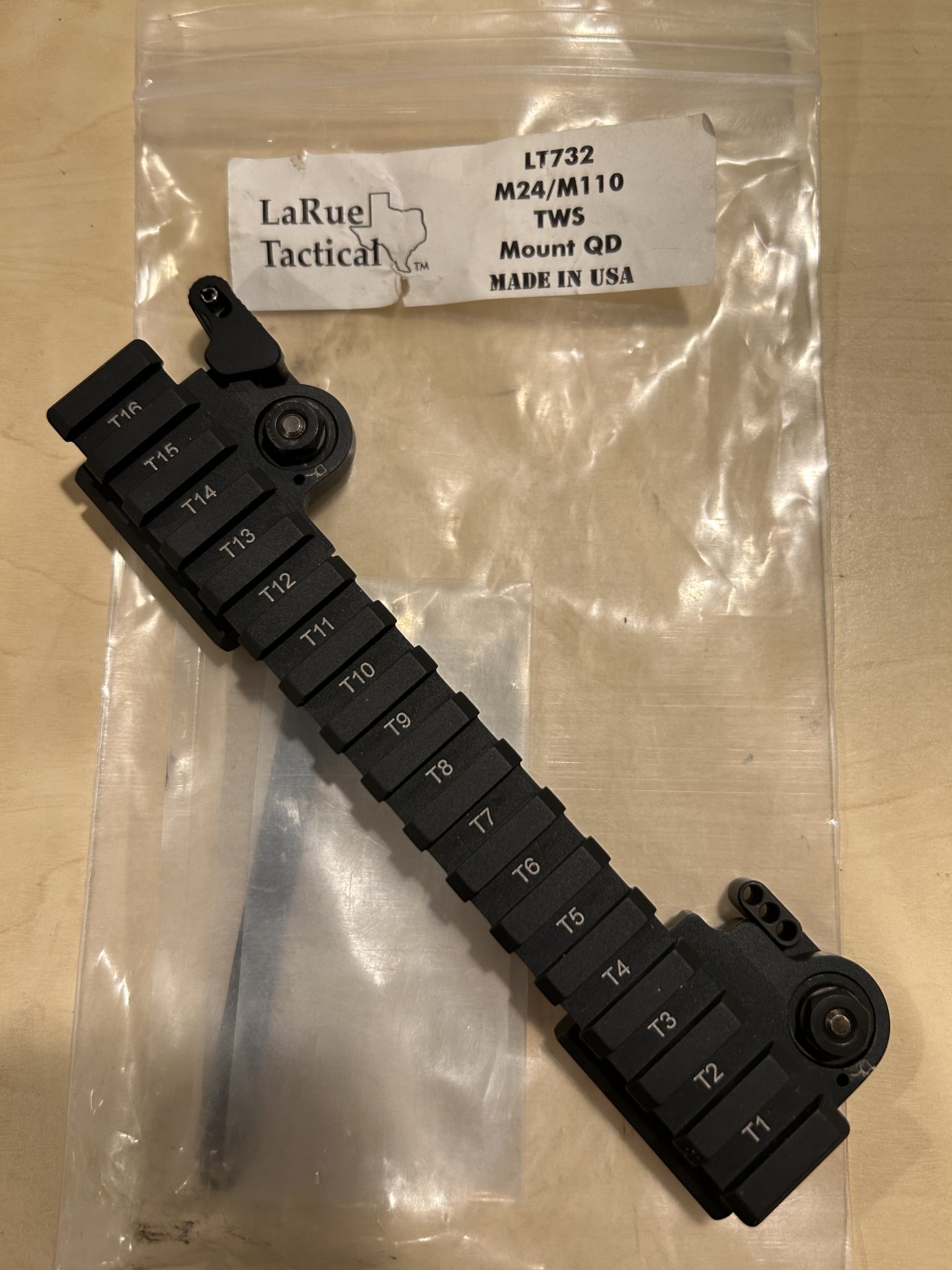

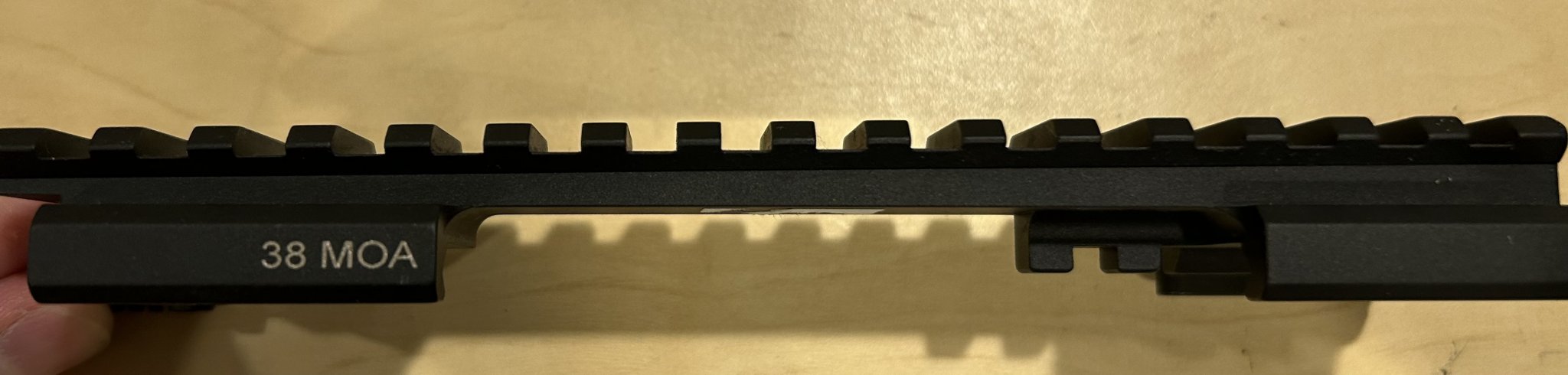

Anyone know what this is? Came across it randomly and no other info I could find on the web about it.

LaRue Tactical M24/M110 QD Mount LT732 | PK Firearms

LaRue Tactical M24/M110 QD Mount LT732 Quick Disconnect Mount Adjustment tool Included 38 MOA Built in Made in USA By LaRue Tactical

pkfirearms.com



[JTM20]

I picked up one of those, I’ve been meaning to ask Larue for info.



[shlouf]

Yeah I’m thinking about grabbing one for the hell of it too



[TurdFerguson]

What model MDT Chassis are the Israelis using on their modernized m24's? Is it a specialized ESS?



[RWSGunsmithing]

It was a special stock that they made just for them and unfortunately they don't have any available. I asked about them making another run and they said they had no plans to make anymore and in order to get them to make run of them it would require an order of 100 pcs.



[JTM20]

All Larue would tell me is that it’s a contract item that isnt available to the general public. Unless someone else knows more it’ll remain a mystery.



[Shawn M]

Anyone knows where to find m24A1 or A2 stocks?



[EM_556]

Does anyone have a lead on where to find a M24 front sight base or have one for sale?



[molonlave]

Looking for some info about an alleged M24 barrel I recently purchased. After looking it over, I was surprised to note that the muzzle end did not appear to have two threaded holes for the front sight mount. Barrel is stamped 7.62 nato and has the remington proof marks in the typical locations. Is there a definitive way to determine if this is in fact an M24 barrel? Is there a way to determine which serial number range receiver would be appropriate for this barrel (i.e. C, E, G, RR , etc)?



[mjh30]

Looking for some info about an alleged M24 barrel I recently purchased. After looking it over, I was surprised to note that the muzzle end did not appear to have two threaded holes for the front sight mount. Barrel is stamped 7.62 nato and has the remington proof marks in the typical locations. Is there a definitive way to determine if this is in fact an M24 barrel? Is there a way to determine which serial number range receiver would be appropriate for this barrel (i.e. C, E, G, RR , etc)?

No month and year stamps I presume



[molonlave]

Correct, no month and year stamps.



[Makeshift Mando]

Anyone knows where to find m24A1 or A2 stocks?

you can buy them from H-S Precision.



[physhphude]

Looking for some info about an alleged M24 barrel I recently purchased. After looking it over, I was surprised to note that the muzzle end did not appear to have two threaded holes for the front sight mount. Barrel is stamped 7.62 nato and has the remington proof marks in the typical locations. Is there a definitive way to determine if this is in fact an M24 barrel? Is there a way to determine which serial number range receiver would be appropriate for this barrel (i.e. C, E, G, RR , etc)?

The front sight holes would not be made until after the barrel has been fitted to an action I would think. Because the timing would be off.

Proof marks would indicate it was off a completed rifle though.

From what I’ve gathered, the original mil contract barrels were stainless. The recent barrels (for commercial, foreign mil, etc) were carbon steel and did not have drilled front sight holes on the in the white actions that came from Remington.

What finish is on the barrel? Is it remtuff, cerakote or white?



[molonlave]

The front sight holes would not be made until after the barrel has been fitted to an action I would think. Because the timing would be off.

Proof marks would indicate it was off a completed rifle though.

From what I’ve gathered, the original mil contract barrels were stainless. The recent barrels (for commercial, foreign mil, etc) were carbon steel and did not have drilled front sight holes on the in the white actions that came from Remington.

What finish is on the barrel? Is it remtuff, cerakote or white?

Thank you for the info. I'll be able to look at the barrel closer on Fri. I'll post some pics and answer your questions.



[EM_556]

Does anyone have a lead on where to find a M24 front sight base or have one for sale?

Any help from anyone?



[kb1]

If your looking for Redfield bases, maybe Outback gun parts. Brownells has bases, but they wouldn't be correct.
P&L bases



[USNavy06]

I had a M118LR turret for mine and it had a NSN and a Leupold part number though I couldn't tell you what it was. I even had a black M2 turret for M118LR for the FDE M110 scope, again it had a Leupold part number and wasn't a custom turret.

Looks like for the black M3 M118LR turret is:
NSN 1005-01-627-0884
Cage code 35848
Leupold part# 63394



[ValveTech]

Looks like for the black M3 M118LR turret is:
NSN 1005-01-627-0884
Cage code 35848
Leupold part# 63394

I’m looking for one of these, if anyone has an extra or knows where to get one.



[ludelefortrie]

Looking for an OK Weber front sight for my M24 project and a Flash hider.

Any help would be appreciated.

Thanks,
Lu



[mjh30]

Looking for an OK Weber front sight for my M24 project and a Flash hider.

Any help would be appreciated.

Thanks,
Lu

I believe the front sight came from RPA, although I am not sure which model. With regards the actual flash hider, I for one have never seen one for sale that actually fits the larger front sight base used by the RPA.



[ludelefortrie]

I believe the front sight came from RPA, although I am not sure which model. With regards the actual flash hider, I for one have never seen one for sale that actually fits the larger front sight base used by the RPA.

The Redfield
version of the flash hider would be fine, the difference is the lock ring which is taller.



[wyosniper]

I been following this thread for awhile, can someone post the specs and some build information on the m24a2? Seems like the information on building this rifle is harder to find information on. One of my questions I have did they rebarrel the m24a2 or did they reprofile the existing one?



[mjh30]

The Redfield
version of the flash hider would be fine, the difference is the lock ring which is taller.

Ya that's correct, anyways I don't often see the correct height for the front Redfield sight base for sale. But you could try Steve Earle.

Steve Earle Products
