Let's See Some .260 Rem/6.5 CM Builds/Specs Picture Thread!!!

Here is mine.

Surgeon 6.5CM in a XLR chassis. Chassis and scope painted by ShortBus.






DAMN! That is one mean looking rig!

Nothing special, just something that materialized from a 700P donor rifle.





AAC 260Rem 1/8 twist finished at 20" by LongRifles Inc
EGW HD Base
Vortex/Seekins low 30mm rings
Vortex Viper HS 5-15
PTG DBM
HS Precision Stock

One of these days I'm going to get to finish load development for it.

Last edited:
thespecialist

Is it a .260 Rem or 6.5 CM?

Mine started off from a SPS Donner too, even though not nearly as custom as Many of these rigs on the Thread but it is still Very Special to me. I like your Clean Look, got everything you need, and nothing you don't. Great Rifle Sir!

Last edited:
thespecialist

Is it a .260 Rem or 6.5 CM?

Mine started off from a SPS Donner too, even though not nearly as custom as Many of these rigs on the Thread but it is still Very Special to me. I like your Clean Look, got everything you need, and nothing you don't. Great Rifle Sir!

260, I edited the post to add that. It's my budget rig, built to do whatever I need it to at the moment. Right now I must need it to collect dust in the safe, because that's what it's doing :D

  • S.A.C. .260
  • Alpha 11 short action
  • APA bottom metal
  • AW mag fed
  • Manners T5A Stock
  • 4 flush cups
  • Bartlein 1/8 twist barrel finished @ 26" w/ Surefire Brake.
  • APA Bolt knob
  • Badger EFR
  • Timney 510U trigger
  • Tab Gear Sling
  • 3-21x50 G2DMR
  • Badger Rings
  • Vortex Level
  • harris BRM-S bipod
  • Incoming AAC Cyclone.


The barrel that is on it is in .260 Rem., 1-8.3 twist, 24" finish, modified Rem. Varmint contour with a +2" on the breech length, Melonited.
Defiance bottom metal (just upgraded by MOON the man)
Badger M2008 action
McMillan stock
USO scope

Spare barrel on the floor is the .308win.
Surefire brake

Later, Frank
Bartlein Barrels


Last edited:
The barrel that is on it is in .260 Rem., 1-8.3 twist, 24" finish, Melonited.
Defiance bottom metal (just upgraded by MOON the man)
Badger M2008 action
McMillan stock
USO scope

Spare barrel on the floor is the .308win.
Surefire brake

Later, Frank
Bartlein Barrels


BY FAR ONE OF MY ALL TIME FAVORITE ACTIONS!!! Can't wait to see the next Gen to come out soon, Love the All Black Looks Sick!

Lets see if the attachment thing works (Pic from the OPPS Shoot for the Green, 2nd pic from another match last year)

260
Stiller Tac 30
Brux Barrel 1-8.5 M40 Contour at 25" Screwed on by Chad DIxon
KMW Sentinel Stock (30% Red, 30% White, 30% Blue = Merica!!)
TBAC 30P1 Suppressor
Steiner 5-25
Atlas
TIS sling
CG Jackson Trigger

Have just over 1200 rounds on barrel. It has NEVER been cleaned. Shoots better every time I take it out.


Attachments

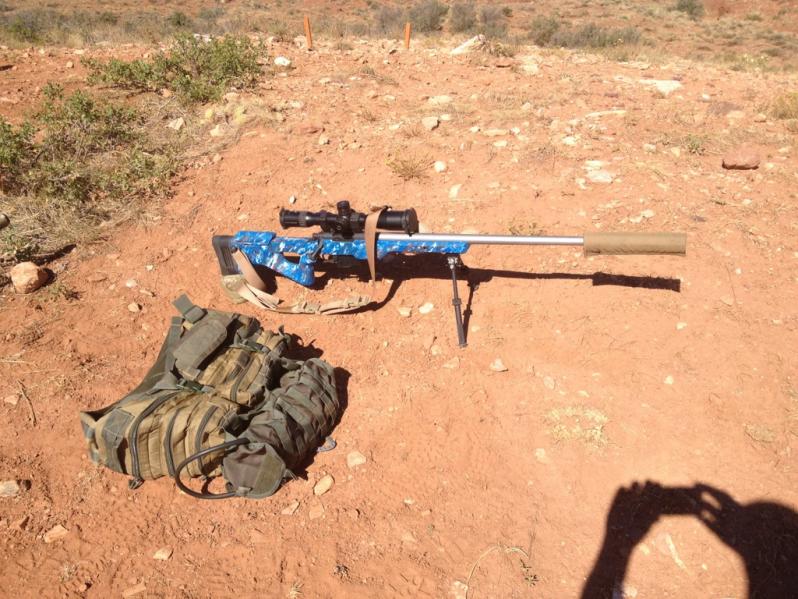

  • 2013 Opps Shoot Green CB - Woodward OK.jpg
    2013 Opps Shoot Green CB - Woodward OK.jpg
    20.1 KB · Views: 30
  • IMG_8881.jpg
    97.8 KB · Views: 32
Surgeon
Obermeyer @ 22"
McM A3
YHM for the can.... simple
<a href="http://s301.photobucket.com/user/gatoraz/media/Surgeon260r.jpg.html" target="_blank"><img src="http://i301.photobucket.com/albums/nn69/gatoraz/Surgeon260r.jpg" border="0" alt=" photo Surgeon260r.jpg"/></a>

... and the first 5 rds (flyer was the first..my bad)


Last edited:
Built by Aaron Roberts at Robert's Precision Rifles

Stiller TAC-30 short action 20 MOA rail
Manners T4A stock w/ Manners Mini Chassis
26" Rock barrel. M24 contour. 1:8.5 twist. Threaded 5/8-24
Rifle Basix trigger






Here's my humble contribution:

Chambered by Peerless Rifle Co.
Trued R700 action and Holland's recoil lug
Krieger Med. Palma cut to 24" and CSR brake
Manners T2 with Triad stock pack
PTG bottom metal
Timney trigger
Nightforce 20moa base, Seekins 34mm low rings
Bushnell 3.5-21 DMR G2


Here is my work in progress.
Stiller TAC30 action
Bartlein 28" Heavy Varmit Contour, 5R 1x8
Chambered in 260 Remington
XLR Stock
Timney tactical trigger (about 8 oz)
Precision Armament M41 brake
GGG Bi-Pod
Vortex 4x16 Viper PST (temporary)
To Do:
Blast the barrel, paint
Vortex Viper PST 6x24x50 FFP with rings

not a very good pic but one of my 260's



GAP built
templar
22" bartlien GAP countour
flat timney
KMW stock

absolute laser

i have a 260 barrel for this as well


and the gun on the right is a 22" benchmark built k98 mauser 260 with a timney


Nice rigs BigJoe29! What barrel contour and diameter (Breech end to muzzle) is the barrel on the Mauser action?

Started life as a Rem700 SPS Tact in .308. Just had the action trued and Krieger barrel chambered in .260 and installed by NW Actionworks. Only has 130ish rounds through it, 142SMK's at 2820 FPS, and has proven to be plenty accurate from 100-1300 yards thus far. Absolutely zero complaints.



5 shot group last night.

Remington 700 SPS action, blueprinted, bolt knob installed
Krieger M24 contour 5R 1:8 twist, threaded 5/8x24 with thread protecter, finished at 23" (22" from the front of the recoil lug)
Tubb recoil lug
Chambered in 260 using PT&G "tight match" reamer with .060 free bore to get 140 VLD's near the lands using AICS mags
McMillan A3 with molded desert camo, 90% carbon shell, pillar bedded with Badger pillars and DevCon
Timney trigger set at 2.5 pounds
PT&G bottom metal, AICS mags
TPS 20 MOA steel base with recoil lug, 8X40 screws, bedded with DevCon
Leupold Mark 6 3-18x44, TMR reticle, TPS 34 mm Rings
Metal parts cerakoted in coyote tan
Harris 6-9 and 9-13
Machine work done by Mike Badella of B&M Gunworks in Madera, Ca.
Bedding, scope mounting, trigger install done by myself

Group in this pic was shot at 1,000 yards.
Load is as follows:
140 Berger VLD
46.4 grains of RL22
CCI BR-2 primers
Remington 260 brass
.010 from lands
Averaging 2845 over chrono with very low ES and SD, but dope says its 2875

364 rounds down the tube to date....

Last edited:
Well, here's my specs:

6.5 Creedmore
Rem 700 Short action, from Bugholes
26" threaded Barrel from Southern Precision
Leup 6.5-20x50 MK4 ERT
XLR Chassis
TPS med height steel rings (can slide about 2 sheets of paper between the bell and the handguard)
Badger Ord 20MoA base

After a few rounds, its shooting an easy half MoA. Mild recoil. Can't wait to stretch its legs at 500+

A few pics:







6.5 Creed
Defiance Action
Bartlein 8.5 twist M40, 24" (140 Amax @ 2,850 fps, 120 Amax @ 2,970 fps)
SAS brake (Arbiter suppressor SOON!)
Timney trigger at 2 lbs
Spuhr mount
SWFA 5-20HD
Harris BRMS bipod with podloc

So there has been A LOT of Great .260 Rem and 6.5 Creedmoor Builds lately. I've been searching for a dedicated Picture/Build thread but didn't find one, so I'm hoping we can start one. With Pictures/Specs/Builder/Load Info if possible.

Here's mine.

This was my First Ever Bolt Action Rifle started life as a Remington 700 Short Action SPS Sporter Pencil Barrel .308.

Specs Are:
Remington .260 Shilen Select Match Barrel 24" Fluted 1 in 8 Twist
Bushnell HDMR 3.5-21x50mm G2DMR Ret (First Gen 5 Mil/Rev)
Seekins Precision 34mm Low Rings
Weaver Tactical 20MOA Base
Factory Tuned Trigger
Choate Tactical Stock with Adjustable Length of Pull
(Fully Bedded the Entire Length/Fore end all the way down the Barrel Channel) Also Replaced the Sling Swivel with QD Cups to use TAB Gear Sling with QD Connect, this is actually the closest stock I can find that "feels" like my TRG22 Stock which I like a lot.
Badger Bottom Metal Cerakoted OD Green with 10 round Alpha Mags
KRG Bolt Lift in OD Green to match the Bottom Metal.
Harris S 6-9 Bipod to finish off.

Here's some Pics, Let's see Yours!













I just recently getting into Reloading so I don't have a load cooked up for it yet. But with Black Hills and Lapua 142 Match Ammo Her best group was .371, so far less than 300 Rounds down the tube.
Is the bbl free floated? Wondering because of the bedding.

Is the bbl free floated? Wondering because of the bedding.

Yes the Barrel is still Free Floated. The Choate Stock isn't the best but I like it's ergonomics for personal reasons (Feels close to my TRG22). But to strengthen it further some material was taken out of the barrel channel then completely bedded. It is very solid and yet still very light weight compare to many high end stock/chassis.

I wanted this to be a comp gun so I made sure to keep it simple and light. It worked out pretty good and didn't cost me a arm and a leg either. Thanks!

HOG.

Sorry for the hazy photos, but that was about our visibility this morning!


photo (2) by 911bagman, on Flickr


photo (3) by 911bagman, on Flickr

Specs:
RWS Built
Surgeon 591 with 24" M40 contour Bartlein (deep flutes)
Big Chubby Brake
Timney 510
Vortex Razor EBR2B
APO Saber Forsst Mod 0 Chassis (KMW Sentinel on order...if you haven't seen my 500 WTB ads, it's something I've wanted for a long time and did not want to have to wait...I just spoke with Mr. Cross yesterday, and it looks like I'll be waiting!)

I actually really like the Saber Forsst. It is extremely comfortable to shoot.

This morning was my first time shooting this beauty (couldn't find any powder...imagine that). At 300, I put 5 just inside of an inch, and another couple of groups where the 5 were just outside of an inch. It was gusting 15-22mph too, and I am by no means even remotely decent at LR shooting. So, for me, this was outstanding!

I know all of these builders on here build some excellent systems, but I can only attest to RWS's work. RW Snyder builds some siiiiiiiiiick shit!
