I've heard everything from 9" to 16" of barrel length for max bullet speed with different types of 22LR ammo. I would estimate about 12" of bullet travel for match ammo.
-
Having trouble using the site?
Contact support
My thoughts on 22lr barrel length...
- Thread starter jbell
- Start date
Yeah 16” - 18” are the most common numbers thrown out there.
Some notes on crosswind sensitivity for 22LR rimfire:
As was formulated by DeDion in 1859, air drag causes wind drift "downwind" across the target which is proportional to the actual time-of-flight with air drag minus the hypothetical time-of-flight to the target at the undiminished launch speed. Rimfire match 22LR bullets have very low ballistic coefficients (i.e., high coefficients of drag) relative to Very Low Drag (VLD) rifle bullets. The coefficient of air drag is greatest in the transonic speed range for all bullets, especially for 22LR match bullets. The transonic speed range is from Mach 0.8 to Mach 1.2 for any non-VLD bullets. The "speed of sound," Mach 1.0, is 1116.45 fps for sea-level ICAO-standard air at 59 degrees Fahrenheit and varies primarily with the square root of the absolute temperature (T + 459.67 degrees F) of the ambient air. Thus, Mach 0.8 is 893 fps at 59 degrees F in that standard atmosphere, and 911 fps at 80 degrees, etc.
Actually, the highest airspeed at which no "sonic crack" will be heard from firing a 22LR match bullet is at about Mach 0.75. That "crack" indicates that some portion of the airflow around the rather blunt 22LR bullet exceeds Mach 1.0. That Mach 0.75 airspeed would be 837 fps at 59 degrees. As airspeed falls below this critical transonic value, the subsonic coefficient of drag drops dramatically from about 0.4 (+) down to about 0.1 at Mach 0.70. [The lowest possible subsonic drag coefficient is about 0.03 for an elongated "teardrop" shape.] The 22LR match bullet is an excellent subsonic bullet design and flies serenely to great distance with very little loss in forward speed (and very little crosswind sensitivity). The whole trick is firing them below Mach 0.75 in that day's ambient air temperature. Available 22LR match ammo needs at least a 30-inch barrel to approach this low muzzle speed, and still needs a hot summer day when the speed of sound is relatively high. Perhaps a shorter barrel could be made to accomplish this feat reliably by venting some of the propellant gasses away within the first 10 inches of bullet travel.
As was formulated by DeDion in 1859, air drag causes wind drift "downwind" across the target which is proportional to the actual time-of-flight with air drag minus the hypothetical time-of-flight to the target at the undiminished launch speed. Rimfire match 22LR bullets have very low ballistic coefficients (i.e., high coefficients of drag) relative to Very Low Drag (VLD) rifle bullets. The coefficient of air drag is greatest in the transonic speed range for all bullets, especially for 22LR match bullets. The transonic speed range is from Mach 0.8 to Mach 1.2 for any non-VLD bullets. The "speed of sound," Mach 1.0, is 1116.45 fps for sea-level ICAO-standard air at 59 degrees Fahrenheit and varies primarily with the square root of the absolute temperature (T + 459.67 degrees F) of the ambient air. Thus, Mach 0.8 is 893 fps at 59 degrees F in that standard atmosphere, and 911 fps at 80 degrees, etc.
Actually, the highest airspeed at which no "sonic crack" will be heard from firing a 22LR match bullet is at about Mach 0.75. That "crack" indicates that some portion of the airflow around the rather blunt 22LR bullet exceeds Mach 1.0. That Mach 0.75 airspeed would be 837 fps at 59 degrees. As airspeed falls below this critical transonic value, the subsonic coefficient of drag drops dramatically from about 0.4 (+) down to about 0.1 at Mach 0.70. [The lowest possible subsonic drag coefficient is about 0.03 for an elongated "teardrop" shape.] The 22LR match bullet is an excellent subsonic bullet design and flies serenely to great distance with very little loss in forward speed (and very little crosswind sensitivity). The whole trick is firing them below Mach 0.75 in that day's ambient air temperature. Available 22LR match ammo needs at least a 30-inch barrel to approach this low muzzle speed, and still needs a hot summer day when the speed of sound is relatively high. Perhaps a shorter barrel could be made to accomplish this feat reliably by venting some of the propellant gasses away within the first 10 inches of bullet travel.
Last edited:
@Jim Boatright
Would you say this is similar to a boat coming off plane where the bow can become unsettled on the horizon. Not necessarily unstable, but a bit of instability during the transition.
Stability likely isnt the right word.
Would you say this is similar to a boat coming off plane where the bow can become unsettled on the horizon. Not necessarily unstable, but a bit of instability during the transition.
Stability likely isnt the right word.
Yes, that is a pretty good analogy. Transonic flight through air is often described as "turbulent" for planes as well as bullets. Long-nosed supersonic rifle bullets tend to become unstable when they fall into the transonic speed range even though their gyroscopic stability is very high (Sg > 5.0) at that point in their flight. Air drag shifts from being proportional to the 1.5 power of airspeed in supersonic flight to being proportional to the square of subsonic airspeed. This is similar to planing over the water surface versus plowing at hull displacement speeds through the water. The stern wave swamping your transom causes the instability. I suppose that hypersonic flight above about Mach 5 could be analogous to hydrofoiling with the hull above the water surface. Those transitions with speed changes are much more gradual and stable, however.
Last edited:
I have a Winchester model 75 which has a 28" barrel, and an adjustable barrel band near the end of the stock. Supposedly you can adjust the tension to tune for the ammo you are shooting. I haven't messed with it much yet, though.
Were there very many rifles made this way? How effective is it really?
Were there very many rifles made this way? How effective is it really?
Last edited:
The are a few, Remington used them in some variants. I have tried them but always found best results with them backed off
Yes popular, but that doesn't equate to optimum speed generated for the barrel length. My sons rimx with a 22" green mtn barrel exceeds manufactures stated velocity by a bit, and a friend of his that has the same setup is fast also, both 1:16", Barrel length is not the only thing that affects velocity. You really don't know until you do some shooting.
Mike
Got me wondering is there is a correlation between good or bad accuracy and whether the slug has passed Mach 1 and slowed back below Mach 1 before exiting the muzzle? (Thinking my old prone rifles w/28” barrels).
With the 22lr, my only worry about muzzle velocity, is how much it differs shot by shot.
It can be 1052 fps, or 1300 fps, as long as it's consistent. It's mv spread that burns my biscuits.
The greater the difference in mv, the worse the the vertical difference in point of impact.
I don't care if it's with an 18 inch barrel or 28 inch barrel, mv spread ruins results.
Spend a few years shooting every box of rimfire across a chronograph, recording the data,
it gets real easy to correlate point of impact to the displayed muzzle velocity.
It can be 1052 fps, or 1300 fps, as long as it's consistent. It's mv spread that burns my biscuits.
The greater the difference in mv, the worse the the vertical difference in point of impact.
I don't care if it's with an 18 inch barrel or 28 inch barrel, mv spread ruins results.
Spend a few years shooting every box of rimfire across a chronograph, recording the data,
it gets real easy to correlate point of impact to the displayed muzzle velocity.
Last edited:
I totally agree. What's the big deal with maximum mv. So what if you loose a few feet per second. Maximum mv doesn't translate into maximum accuracy. It is consistency you need for accuracy no matter what speed. If I had to choose between a 16.5 in barrel and a 30 in " actually I don't like either lengths" I would choose the 30. 16.5 is barely long enough for a complete powder burn and with a 16t you barely have one revolution of the bullet before it exits the crown. There is something to be said for stabilizing a bullet before it exits the barrel.
From my experience(2 Green Mountain’s on my RimX and a friends on a CZ457) Green Mountain barrels are on the fast side. Mines a 22” now and really contemplating going to a 24” GM for better balance and see if I can squeeze a tad bit more accuracy out of it. My 22” shoots most Center X 1090fps-1105fps depending on lot and time of year.
I want to chime in on the bbl length discussion. I shoot with a group of marksmen who put on a "Outlaw" bench rest match each week that is limited to repeating 22lr rifles shot from sandbags. A good bit of freedom is allowed for mods but the rifles range from box stock to highly modified. No custom match rigs however as would be seen in unlimited ARA competition. The skill level of this group of about 16 is stellar and there are 3-4 past ARA national champions on the line every week and at least 4-6 other shooters who are capable of winning on a given day. For example we shot an IRL 50y card the other day and one of the guys scored a 249 with 12x and was in 6th place. Winchester 52's are a common winner in this match. These are 28" bbl. Anchutz 64 and 54 rifles usually make up 3-4 of the competition and are also capable of winning. I think their bbl is of similar length. My 1413 Super Match is a 27.5" bbl but as a single shot is normally excluded from this match (lucky for them), lol.
A mixed bag of shorter Tikka T1X, CZ457, VuDoo, Sako Quad, and other rifles grace the line from time to time. Their bbl lengths range from 16" to about 24". Some like the CZ are available is 16.5, 20.5 and 24 inch lengths, I think. Or something close to that. I shoot rifles in this match that range from 20", 22", 24" and 28". They all shoot well. The 20" Bergara carbon is the least accurate and is really not a contender, in this match. The 22" Sako with Lilja bbl is a hard competitor that is capable of winning but is usually about a 3rd to 4th place gun. It is equipped for long range PRS and is not scoped for bench rest and this does handicap it ever so slightly. The 24" CZ 457 VPT is my factory gun and is not good enough for this match but is only a fraction behind the Sako. I have three Winchester 52's. One had the bbl cut to 22 and 3/4" length. It used to be a regular winner in this match 4-5 years ago. But about 3yrs ago about half the competitors all bought Winchester 52's. When I really want to win, I bring one of the 28" bbl 52's. I do not always win, but I can with those rifles and rarely can with the others. I shot this past week with my Sako and was 2nd on two cards and about 10th on the other three. 1st thru 3rd on the last three were all Win 52's with 28 bbl. I saw at least three perfect scores on ARA and IR50 cards and one on the IR50/50 which is much harder to clean. I think the longer bbls are slower and also allow for the hot gases to cool and expand a little more and as a result might produce slightly more consistent muzzle velocity within the limit of the ammo. We are all using Lapua and Eley ammo with occasional RWS shooters. Nobody else has a product that can win.
As for the transonic discussion. I also shoot long range rimfire PRS out to about 400y. This is with the Sako. It has a nice 6-24x FFP MIL optic and is a good rifle for that game. The muzzle velocity for my ammo in the 22" bbl is running from 1048 to about 1060 fps depending on lot and temp. I am using CenterX with this one. On a bench at 50y it can shoot 1/4" c-c groups. The muzzle velocity is in the transonic range and even out to 400y, it is still on the tail end of that. If you position with the sun at your back, and conditions are right, you can often see the bullet as it arcs to the tgt like a pitchers curve ball. They all wobble badly, regardless of rifle used. If you search for slow mo film of 22lr bullets in flight, you can see this better. Makes me marvel that we ever hit what we aim at. We shoot year round and it is common to see accuracy diminished at colder temps. Part of this could be due to the muzzle velocity is deeper into that transonic zone. I often wonder if the 16" bbl rifles are going supersonic just a little?
A mixed bag of shorter Tikka T1X, CZ457, VuDoo, Sako Quad, and other rifles grace the line from time to time. Their bbl lengths range from 16" to about 24". Some like the CZ are available is 16.5, 20.5 and 24 inch lengths, I think. Or something close to that. I shoot rifles in this match that range from 20", 22", 24" and 28". They all shoot well. The 20" Bergara carbon is the least accurate and is really not a contender, in this match. The 22" Sako with Lilja bbl is a hard competitor that is capable of winning but is usually about a 3rd to 4th place gun. It is equipped for long range PRS and is not scoped for bench rest and this does handicap it ever so slightly. The 24" CZ 457 VPT is my factory gun and is not good enough for this match but is only a fraction behind the Sako. I have three Winchester 52's. One had the bbl cut to 22 and 3/4" length. It used to be a regular winner in this match 4-5 years ago. But about 3yrs ago about half the competitors all bought Winchester 52's. When I really want to win, I bring one of the 28" bbl 52's. I do not always win, but I can with those rifles and rarely can with the others. I shot this past week with my Sako and was 2nd on two cards and about 10th on the other three. 1st thru 3rd on the last three were all Win 52's with 28 bbl. I saw at least three perfect scores on ARA and IR50 cards and one on the IR50/50 which is much harder to clean. I think the longer bbls are slower and also allow for the hot gases to cool and expand a little more and as a result might produce slightly more consistent muzzle velocity within the limit of the ammo. We are all using Lapua and Eley ammo with occasional RWS shooters. Nobody else has a product that can win.
As for the transonic discussion. I also shoot long range rimfire PRS out to about 400y. This is with the Sako. It has a nice 6-24x FFP MIL optic and is a good rifle for that game. The muzzle velocity for my ammo in the 22" bbl is running from 1048 to about 1060 fps depending on lot and temp. I am using CenterX with this one. On a bench at 50y it can shoot 1/4" c-c groups. The muzzle velocity is in the transonic range and even out to 400y, it is still on the tail end of that. If you position with the sun at your back, and conditions are right, you can often see the bullet as it arcs to the tgt like a pitchers curve ball. They all wobble badly, regardless of rifle used. If you search for slow mo film of 22lr bullets in flight, you can see this better. Makes me marvel that we ever hit what we aim at. We shoot year round and it is common to see accuracy diminished at colder temps. Part of this could be due to the muzzle velocity is deeper into that transonic zone. I often wonder if the 16" bbl rifles are going supersonic just a little?

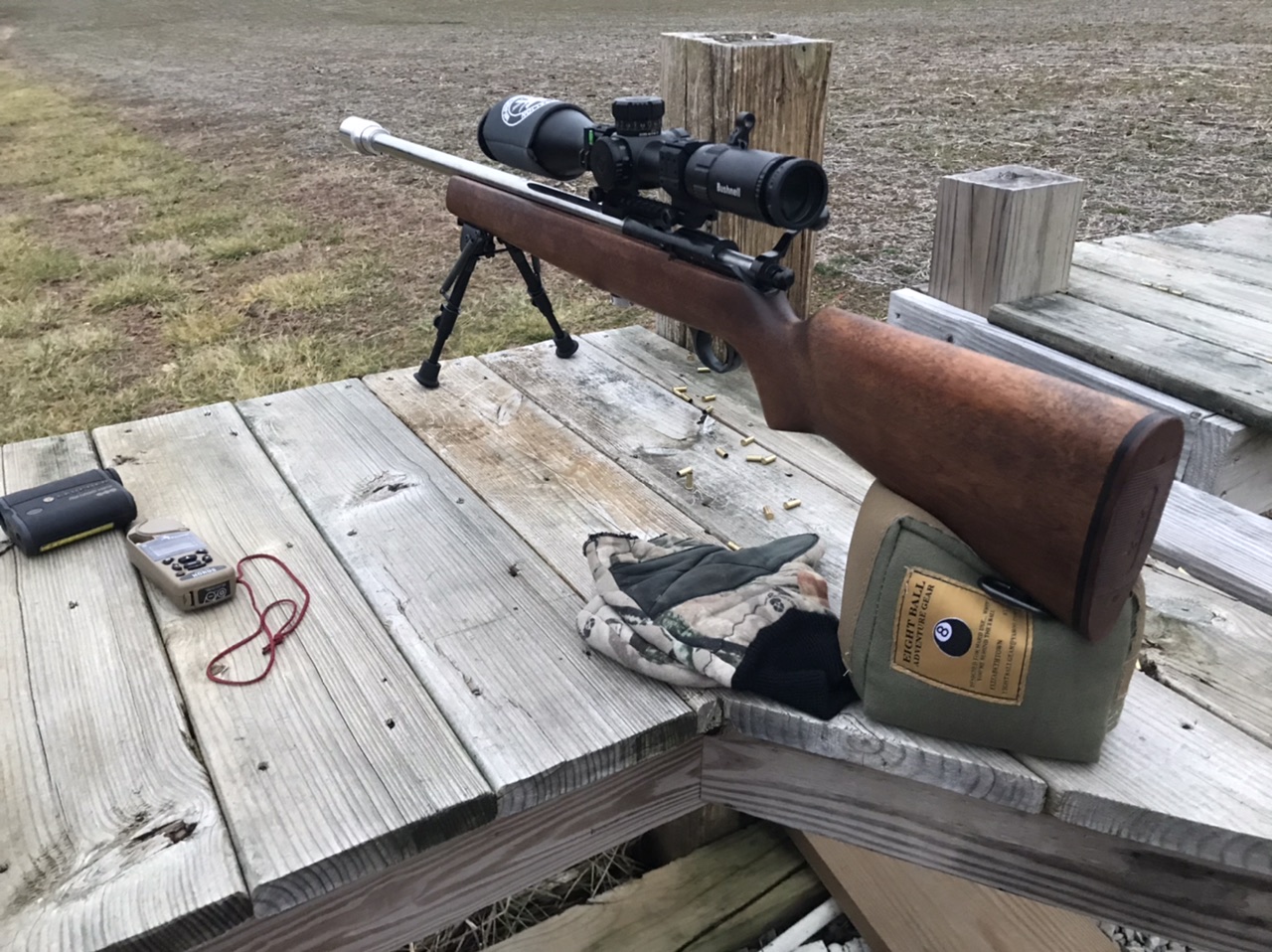

Here it is, I purchased it second hand from a guy in Indiana. It was built by Mark Penrod. It’s my first/only rifle with a tuner and I do think it helps. When tuned, I think it improves groups .1 - .2” If I could improve one thing on the rifle it’d be the trigger. I’m pretty sure it’s a Shilen barrel. I shoot it regularly out to 250 yards.
Let me know if you have any questions.
Nice , people have done or have had done the pin relocation like the win52 c/d kenyon mod , where the pivot pin on the trigger is moved up giving better mechanical advantage and lowering trigger pull
I have three Kenyon worked triggers. My two 52 C rifles and my 52E all have Kenyon worked triggers. He would tell you a trigger he worked the pin re-location on was just as smooth as the complete triggers he turned out. I had the privilege of talking to him a couple of times.
Get on the internet and search "Secrets of the Houston Warehouse" you may find the answer you are looking for. Good luck.
IIRC the guy from the Houston warehouse said that 21.75-inch barrels were most accurate for IBS/NBRSA short-range centerfire benchrest (Sporter and HV classes). That article was much discussed in Precision Shooting Magazine during the 1990's when I started writing articles for them.
What is interesting to me is the dovetail with 22" minimum being a requirement for fast twist .22 LR from @RAVAGE88 hints on that.
Could the correlation be a “golden ratio” of how many calibers long the barrel is? Regardless of caliber?
(Edited to add:
Assuming a .223 groove diameter/ 22” long barrel would be 98.654 calibers long.
With that as a multiplier, a .308 barrel would be 30.385”
Do barrels in that caliber and length perform better?
Using the above math I’d get 26.084” barrel for the 6.5 Creedmoor.
Does one barrel length stand out for that round?
(Edited to add:
Assuming a .223 groove diameter/ 22” long barrel would be 98.654 calibers long.
With that as a multiplier, a .308 barrel would be 30.385”
Do barrels in that caliber and length perform better?
Using the above math I’d get 26.084” barrel for the 6.5 Creedmoor.
Does one barrel length stand out for that round?
Last edited:
I have @jbell old 360.
Small sample, but, a brick of SK RM that timed in the 50-70fps range for ES in my sons 360 22” Kukri Ace. Timed in the sub 40fps ES range over several sessions in the 26” BM barrel.
Accuracy was in the .4s for average @50 yds out of his 22” barrel. Dropped into the .3s @50yds in jbells old gun.
Have yet to time a lot of CX or SK ammo that averaged above the mid 30fps range on ES out of the 26” BM barrel.
Small sample, but, a brick of SK RM that timed in the 50-70fps range for ES in my sons 360 22” Kukri Ace. Timed in the sub 40fps ES range over several sessions in the 26” BM barrel.
Accuracy was in the .4s for average @50 yds out of his 22” barrel. Dropped into the .3s @50yds in jbells old gun.
Have yet to time a lot of CX or SK ammo that averaged above the mid 30fps range on ES out of the 26” BM barrel.
awesome write up. which 52's do the best there? C? or even an E? I have an E that is redic accurate...
thats for centerfire. No rimfire was tested. IIRC.
I do believe in longer barrels as well. 24min to 28. Just got another proof prefit 26" long inthe mail for my rimX I havnt tested yet. Quite excited to get it mounted.
FYI OP - that single digit sd is legit. and as mentioned you can almost tell where a bullet will impact pending velocity.
As Irish said, letting the gasses cool might be onto something....
DT
Thanks for this great and informative thread! On the top of p. 156 of "The Art of Rimfire Accuracy," Bill Calfee writes that shorter barrels (under 17") are more dependent on the quality of the ammo since the bullet leaves the barrel while combustion is still happening. On the other hand, the last 10" inches of a longer well-made barrel "allows the bullet to coast or to smooth out during the last part of its travel down the bore." Bill states that he can't prove this, but he certainly knows a LOT about rimfire accuracy so I pay attention to what he says!
There may be a physical explanation. If we assume that there are fluctuations in burn rate during combustion but that the total amount of energy in the burn stays roughly the same, it could be good to let all the combustion finish before the bullet leaves the barrel. This assumes that the same amount (all?) of the powder burns each time, but just not at the same rate. For example, if the some rounds burn fast at first and then slow down while others burn slower earlier and then faster later, a bullet fired from a short barrel in the first case (fast then slow burn) might get a bigger impulse (integral of force on the bullet over time in barrel) than a bullet fired from the second case (slow then fast burn) if the bullet leaves before the combustion finishes. We would need to look at the combustion curves to verify this. On the other hand, if lots of people measure smaller SD and ES with longer barrels, that's a pretty convincing argument as well.
There may be a physical explanation. If we assume that there are fluctuations in burn rate during combustion but that the total amount of energy in the burn stays roughly the same, it could be good to let all the combustion finish before the bullet leaves the barrel. This assumes that the same amount (all?) of the powder burns each time, but just not at the same rate. For example, if the some rounds burn fast at first and then slow down while others burn slower earlier and then faster later, a bullet fired from a short barrel in the first case (fast then slow burn) might get a bigger impulse (integral of force on the bullet over time in barrel) than a bullet fired from the second case (slow then fast burn) if the bullet leaves before the combustion finishes. We would need to look at the combustion curves to verify this. On the other hand, if lots of people measure smaller SD and ES with longer barrels, that's a pretty convincing argument as well.
A larger variation in chamber pressure will have a larger variation in muzzle pressure in a shorter barrel than a longer one. That’s part of the puzzle. I’ve tested this over tons of rifles and I also believe longer barrels are more forgiving with ammo than shorter ones. I posted a barrel chop test for my copper bullets and included some lead in the testing as well. There was a visible trend
I feel like we need some like MDT to do this test, since they love doing weird stuff in the name of science.
Interior Ballistics: One approach to minimizing the variation in muzzle exit speeds for groups of shots is to make sure that your bullets obturate the bore completely as soon as they engrave the rifling into their bullet shanks. We routinely saw extreme spreads of 2-4 fps in 5-shot group testing my turned copper 338 Lapua Magnum Ultra Low Drag (ULD) bullets after I had them base drilled (at 0.45-caliber). This internally ported gas pressure allowed the gas sealing ring/driving band toward the rear of the ULD bullet design to expand enough at peak base pressure to seal the pressure expanded bore effectively [like a skirted Minie ball]. It also worked better with barrels rifled with gas sealing as a design goal. I was using very fast (6-inch) twist rifling in Gary Schneider's P5 button-rifled test barrel and 5.5-inch twist in Bartlein's 5R cut-rifled test barrel. A problem with firing centerfire cold-rolled (H02) copper bullets is creating excessively high bullet engravement force. This is largely controlled by using a polished 1.5-degree throat leading into the rifling. The OD of the driving band of these hard copper bullets needs to be tightly controlled to within +/-0.0001 inch for consistency in required engraving force. By abrasively polishing the throat and obturating the bore completely, copper fouling was eliminated and bore cleaning was greatly simplified. We fired abrasive impregnated bullets for throat smoothing and bore polishing and frequently checked results using a bore scope.
European made DIN or CIP rimfire barrels usually have slightly tighter bores than US made SAAMI spec barrels. Tighter at the muzzle is good. A tight spot just ahead of the chamber is really bad. Slug your barrel to find out how it was made. NECO pressure fire lapping (NECONOS.COM) can readily cure that early tight spot issue which is frequently encountered even with hand-lapped match barrel blanks. Just check your progress frequently by slugging, bore-scoping, and test firing. You may never fire a more accurate group than you will with 800-grit abrasive polishing.
It might well be that an internally tapered barrel of 20-24 inches length can show the same type of reduced ammo sensitivity as a 28-inch prone rifle barrel. This could be caused by providing more barrel friction due to continually squeezing down the soft lead rimfire bullet. I would try an internal taper of about 0.0002-inch end to end.
European made DIN or CIP rimfire barrels usually have slightly tighter bores than US made SAAMI spec barrels. Tighter at the muzzle is good. A tight spot just ahead of the chamber is really bad. Slug your barrel to find out how it was made. NECO pressure fire lapping (NECONOS.COM) can readily cure that early tight spot issue which is frequently encountered even with hand-lapped match barrel blanks. Just check your progress frequently by slugging, bore-scoping, and test firing. You may never fire a more accurate group than you will with 800-grit abrasive polishing.
It might well be that an internally tapered barrel of 20-24 inches length can show the same type of reduced ammo sensitivity as a 28-inch prone rifle barrel. This could be caused by providing more barrel friction due to continually squeezing down the soft lead rimfire bullet. I would try an internal taper of about 0.0002-inch end to end.
