New 6mm Advanced Rifle Cartridge

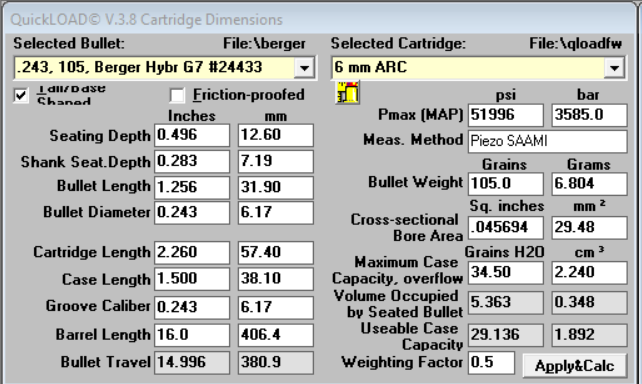

I just got the latest QL Data Update - it's in there now

  • Like
Reactions: SWFShooter
The brass to order for reloading is the "Starline 6.5 Grendel Brass"? Why 1k instead of 500? Would you ever use more than 500 at a time? I'm just getting into reloading, and am trying to figure out best practices.
I've shot and converted this brass before. It works great for me. I'm basically dumping 223 loading for this round. I have local friends that load this round. Starline has this on backorder. I think it's gonna be the new 6.5 CM for the AR-15 so demand will be there.

  • Like
Reactions: RMB
i recieved my arm or ally brass yesterday and it converted perfectly. ive always had great luck with arm or ally with ship times.

I also worked on some of my load development with my faxon 14.5" 6arc setup i use to night hunt. Ive been shooting the hornady black 105's all season with great luck. I chose the load on these that best matched the factory ammo (that shot great in this barrel) and loaded them to be super reliable, and are surprisingly pretty fur friendly. They have proven flat enough i can aim on fur out to 300 "ish" with a 50yd zero

Currently building a 16" setup so i can compare speeds with the same loads and help contribute to some barrel length calculations.

here is the data i landed on so far for 103g ELDX and 90g ELDX. I tried both varget and CFE with CFE providing much higher velocities. i may load a few boxes of varget just for the below zero nights we may be hunting.

1x hornady case
14.5" faxon heavy profile
mid length gas-unsuppressed
CCI BR4
1.70 O-Give (matches factory hornady black)
stone cold reliable piece in all weather conditions so far

VARGET 90g ELD-X
27.8-2450
28.0-2465 - best SD
28.2-2496

VARGET 103g ELD-X
26.0-2260
26.2-2300

CFE 90g ELD-X
30.0-2663
30.2-2700 - best SD
30.4-2710

CFE 103g ELD-X
26.8-2290
27.0-2320

I was focusing on the 90's for those tests and am pretty happy with how the 2700fps loads shoot. Going to work up some hotter 103s for distance shooting when I finish the 16" gun
Just a tip - the 90gr TGK is a little different profile than the ELDX and can be pushed another 100 fps faster from my 19” barrel (maybe ~80 fps faster from your 14.5”?). It can be seated farther out without getting into the lands, providing more powder capacity, and the shorter bearing surface contributes as well.

The guy who got me interested in these two bullets said he had poor results on coyotes with the TGK but also said the ELDX wasn’t any better. I haven’t used them on meat or fur yet, just long distance steel and they work great for that.

i'll definitely snag some of those once i see some available. these heavier bullets at these speeds seem to be slamming dogs no matter what as long as shot placement is decent. I think the 105g BTHP i used most of the winter had a lot of pass thru's but it was very difficult to find a hole

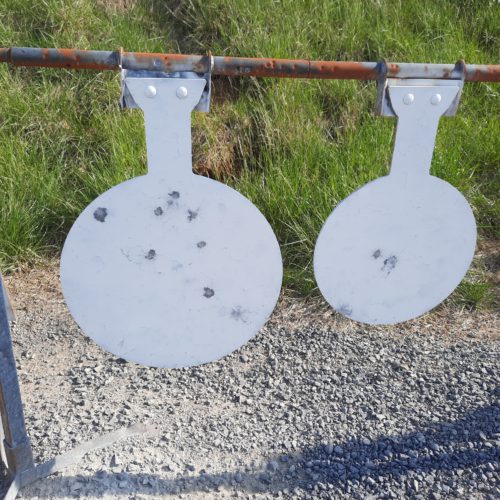

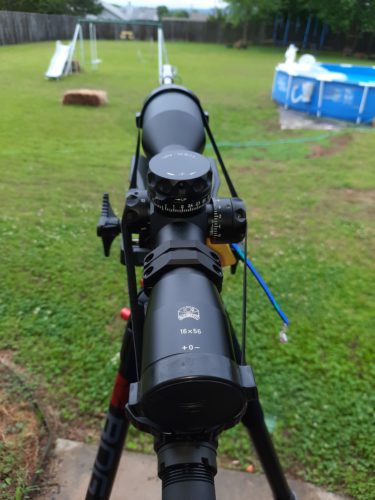

Shot 1k groups yesterday. The Valdada fixed made it possible/easy. Once I got dialed in at 600 I just used holds and no dialing!!!
Shot my sporter Eddystone and the CZ pistols too, it was a great day. The glass on this thing lets you see hits at 1k then listen for the ding.

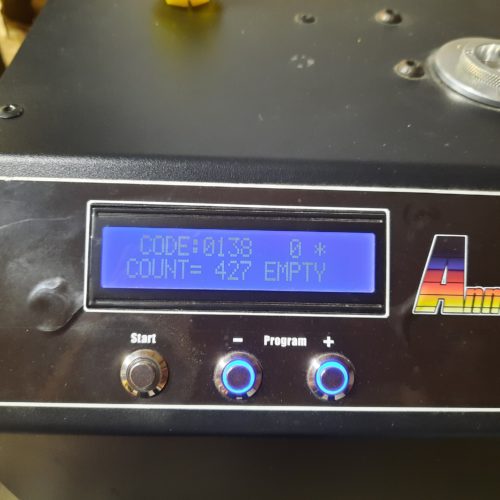

At the end of the day I annealed 427 pieces of brass and I have 1k more on the way - again, goodbye 223...


Attachments

  • 1kGroup_2_5_15_21.jpg
    140.8 KB · Views: 123

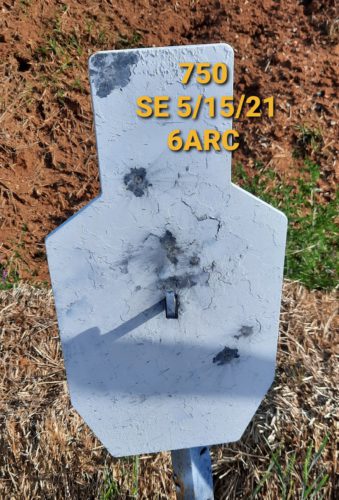

  • 750Target.jpg
    56.2 KB · Views: 120

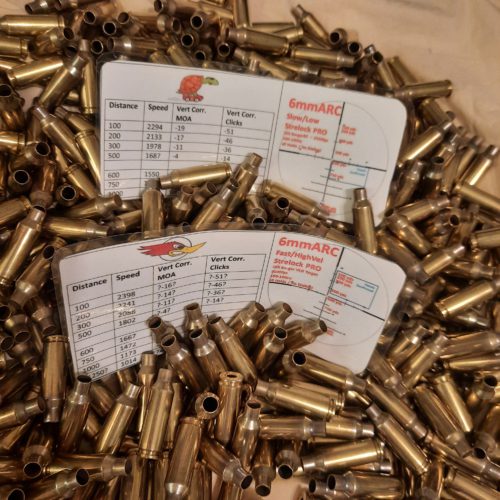

  • loadCards.jpg
    123.5 KB · Views: 130
  • annealing427.jpg
    78.4 KB · Views: 127

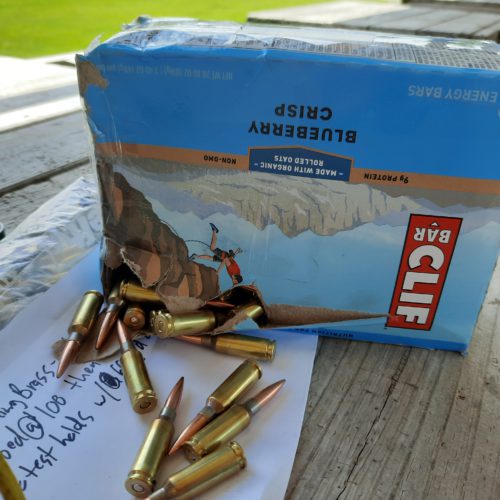

  • cliffBarAmmo.jpg
    94 KB · Views: 141
  • valdadaBoreSited.jpg
    99.1 KB · Views: 136
  • Like
Reactions: godofthunder
Starting a 6ARC build, my first AR build. I’ve received the upper, lower (SLR), trigger (TT), stock (PRS Gen 3), charging handle (Radian Raptor SD-SL), and other various small parts. I did just get in my 6ARC die (SAC).

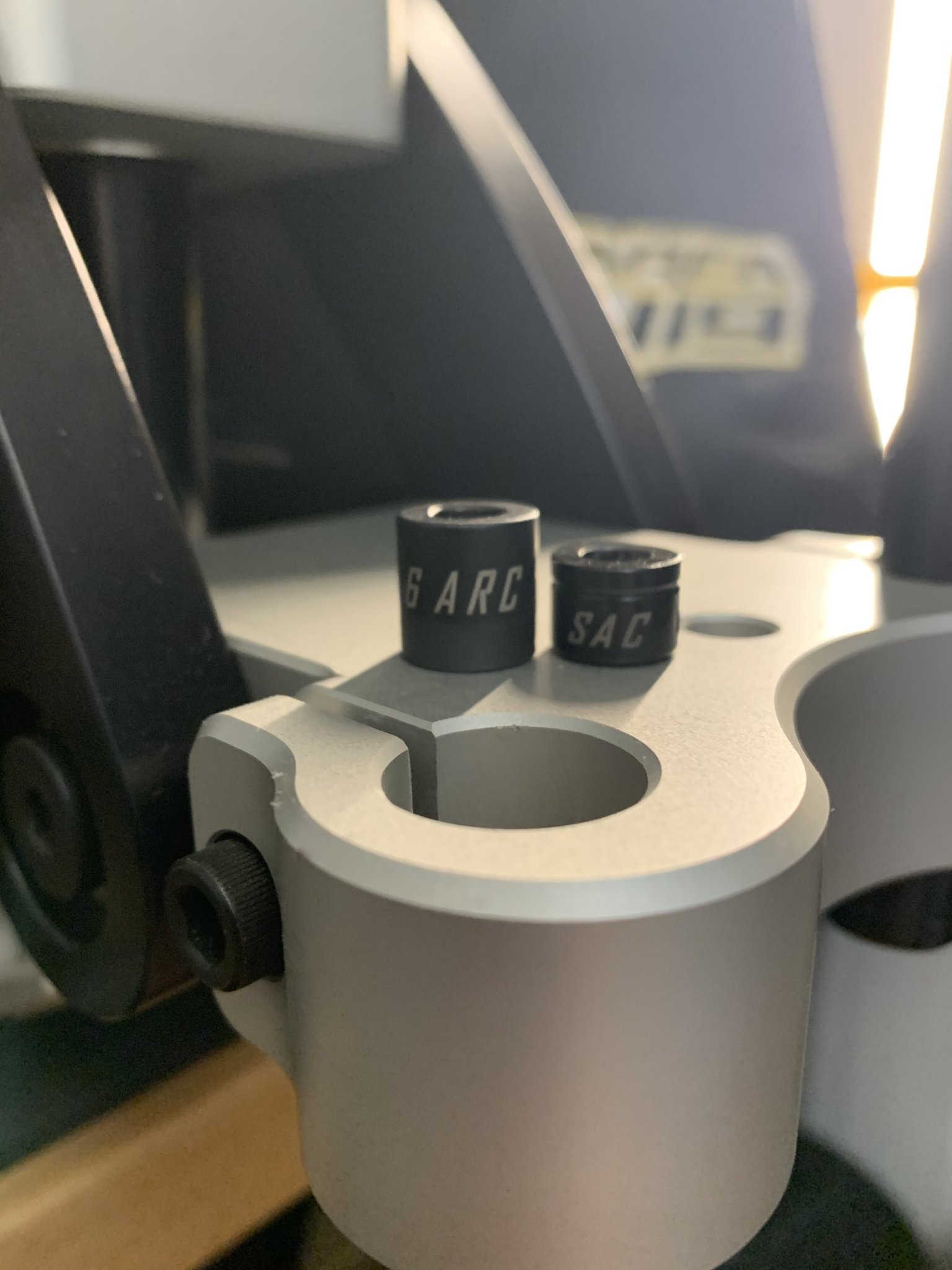

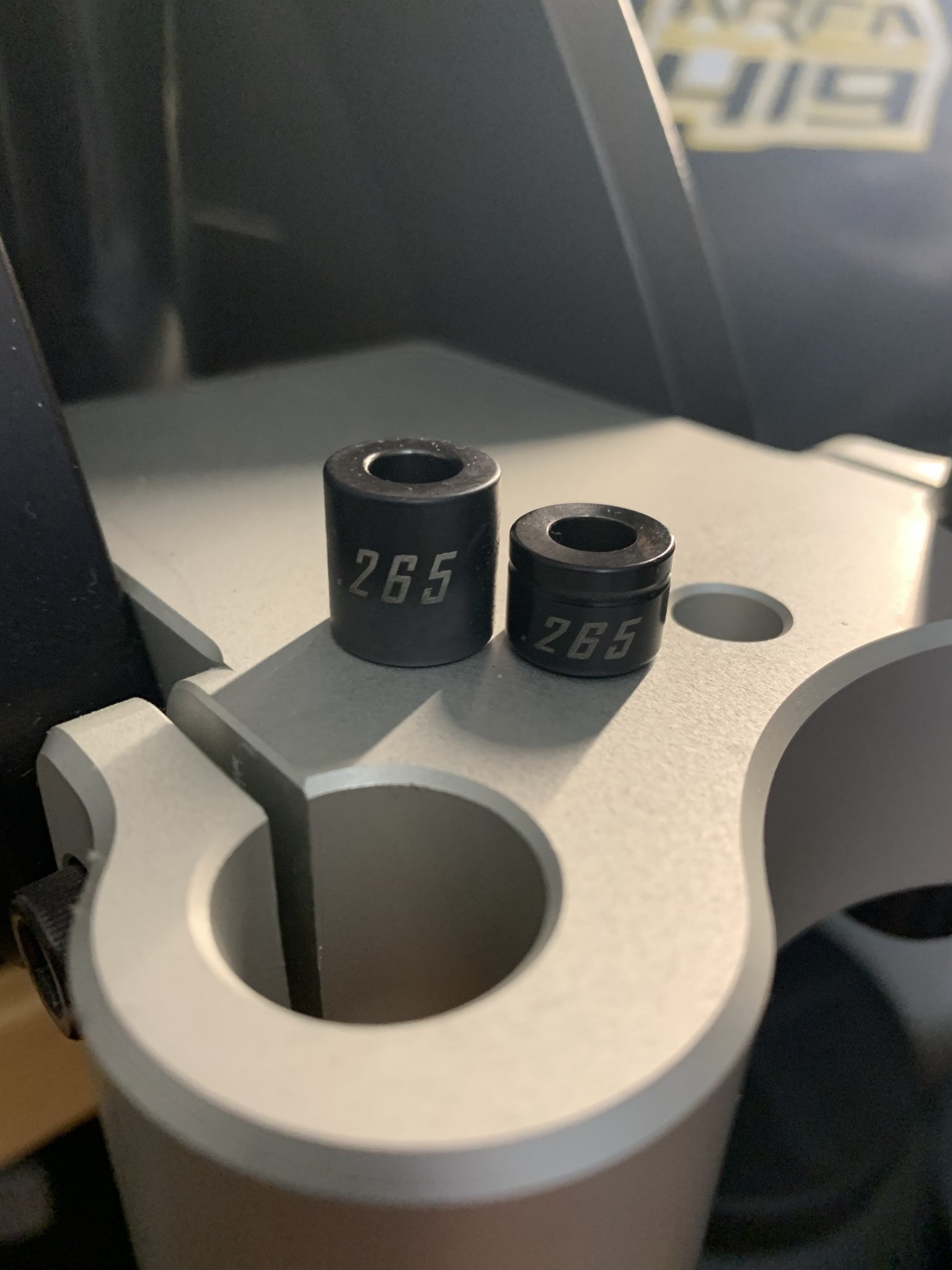

I compared the .265 bushing in SAC 6ARC die vs. the standard .265 bushing in the attached photos.

I’ve really been looking for either Lapua or Starline 6.5 Grendel brass. Maybe June will be my lucky month.

Still needing to place an order for my barrel and hand guard. Can’t decide if mine going with a 24” or an 18”? I will be using a TB Ultra 9 in 6.5 can with it. Mainly for LR shooting and possibly try it out in a 1-day PRS.

I wish I could find a hand guard with in a built in Arca rail. Otherwise I’ll need to get an Area 419 Arca to add on too.

Any recommendations on hand guards or barrels? Leaning towards a Bartlein in their 400 material.

Starting a 6ARC build, my first AR build. I’ve received the upper, lower (SLR), trigger (TT), stock (PRS Gen 3), charging handle (Radian Raptor SD-SL), and other various small parts. I did just get in my 6ARC die (SAC).

I compared the .265 bushing in SAC 6ARC die vs. the standard .265 bushing in the attached photos.

I’ve really been looking for either Lapua or Starline 6.5 Grendel brass. Maybe June will be my lucky month.

Still needing to place an order for my barrel and hand guard. Can’t decide if mine going with a 24” or an 18”? I will be using a TB Ultra 9 in 6.5 can with it. Mainly for LR shooting and possibly try it out in a 1-day PRS.

I wish I could find a hand guard with in a built in Arca rail. Otherwise I’ll need to get an Area 419 Arca to add on too.

Any recommendations on hand guards or barrels? Leaning towards a Bartlein in their 400 material.
View attachment 7632245
View attachment 7632246
Catalyst Arms has an Arca handguard, Geissele makes one as well if I'm not mistaken

Starting a 6ARC build, my first AR build. I’ve received the upper, lower (SLR), trigger (TT), stock (PRS Gen 3), charging handle (Radian Raptor SD-SL), and other various small parts. I did just get in my 6ARC die (SAC).

I compared the .265 bushing in SAC 6ARC die vs. the standard .265 bushing in the attached photos.

I’ve really been looking for either Lapua or Starline 6.5 Grendel brass. Maybe June will be my lucky month.

Still needing to place an order for my barrel and hand guard. Can’t decide if mine going with a 24” or an 18”? I will be using a TB Ultra 9 in 6.5 can with it. Mainly for LR shooting and possibly try it out in a 1-day PRS.

I wish I could find a hand guard with in a built in Arca rail. Otherwise I’ll need to get an Area 419 Arca to add on too.

Any recommendations on hand guards or barrels? Leaning towards a Bartlein in their 400 material.
View attachment 7632245
View attachment 7632246
Sgt. of Arms have the ARCA Handguards on hand: https://www.sgtofarms.com/product-page/sgt-of-arms-ar-15-17-5-arca-handguard

Shot my first 600 match yesterday. I was last against a stack of bolt guns that cost more than my daily driver. This weekend is a timed 100-1000 match that would be a great match for the rifle (all holds no dialing), but I'll most likely be teaching the 6 yr old how to shoot 22 for the first time so priorities...
I did convert another 500 Grendle cases between rounds and finished fire forming the others I had made. With the jammed fireforms at 2500 I was able to hit the 4" swingers and 6" swingers at 500 yds after the match. Rifle and bolt getting a deep cleaning now.
Shipping all my old 223 brass out today! gooooooodbye!!!!

  • Like
Reactions: fifdynutz
Starting a 6ARC build, my first AR build. I’ve received the upper, lower (SLR), trigger (TT), stock (PRS Gen 3), charging handle (Radian Raptor SD-SL), and other various small parts. I did just get in my 6ARC die (SAC).

I compared the .265 bushing in SAC 6ARC die vs. the standard .265 bushing in the attached photos.

I’ve really been looking for either Lapua or Starline 6.5 Grendel brass. Maybe June will be my lucky month.

Still needing to place an order for my barrel and hand guard. Can’t decide if mine going with a 24” or an 18”? I will be using a TB Ultra 9 in 6.5 can with it. Mainly for LR shooting and possibly try it out in a 1-day PRS.

I wish I could find a hand guard with in a built in Arca rail. Otherwise I’ll need to get an Area 419 Arca to add on too.

Any recommendations on hand guards or barrels? Leaning towards a Bartlein in their 400 material.
SView attachment 7632245N
View attachment 7632246
Sounds like you are off to a great build.

I am very very happy with my Rock Creek 22”. If I do my job I get .4-.5 moa consistently.
Can’t go wrong with Bartlein either IMO. I will probably go that route with my next one for the cut rifling. Paul Craddock told me the barrel life in the 6mm ARC is about 40% more with the cut rifling over button. I decided on the RC for costs because at the time I wasn't sure (after my 224 Valkyrie experience) about the 6mm ARC - I am now. Love it.
As to length, others seem to be happy with their 18”. I reach the 1200 plate with my 22” in hand-loads (109g Berger). Haven’t tried that far with the factory 108 ELD’s. I don’t shoot suppressed.
If you are going past 1000, probably will want the extra inches.
Good Luck!

  • Like
Reactions: Kpchurch
So... I got bored today and cleaned the bolt and pulled the extractor and ejector. It was pretty dirty, but the Lucas Bore cleaner worked great! Disassembled the bolt and removed the extractor and ejector.

Confirmed easy lockup with bolt you could see/feel the lugs move easily. My first time doing this with a dis-assembled bolt in an AR. So please confirm/correct my test before I go and trim all my new cases.

Dropped a freshly converted brass (NEW Starline Grendel sized to 6ARC BUT no trimming yet len is 1.515”) down the bore and tried to chamber and it would not lockup (as expected).

SAMMI Spec is 1.490” so betting it is somewhere in between.
  • 1.513” will NOT lockup
  • 1.5105” will lockup.
  • 1.508” will lockup- fairly easily.
Soo… a little bit of work leads to a trim length that is WAY longer than 1.488”. That’s 20 thou longer than what I have been trimming to. Is there any advantage of leaving the trim long? Less brass growth is what I’m thinking, but there may be cons as well, like if one is just a hair too long it won’t chamber for example. Is it better to just stay short? How short?

I'm leaning toward 1.508" as a new Max trim for this chamber. What are the chances this will affect my group size or velocity? I'm thinking changes will be minimal but will run a test batch this weekend to make sure.

Thx to whoever suggested/mentioned this test - I think it was in relation to shoulder bump/chambering, but trim len seems to be closely related/testable in this situation.

If brass grows and interferes with the front of the chamber you're basically turning the Barrel into a taper crimp die while also removing necessary clearance. You'll spike pressure and velocity pretty bad. I usually have .010 minimum from the front of the chamber for trim clearance.

  • Like
Reactions: LRBuck and Tx_Aggie
Yes, I do remember this from early reloading days of 30-06. TY for that reminder. I was thinking more in terms of more neck tension but that is a good point. In terms of brass growth, it seem to me that it comes more from bumping shoulder too much as opposed to trimming brass down too much. I don't want to stray off topic so I will just trim to 1.508" - 0.010" = 1.498" and call it there. Thx!

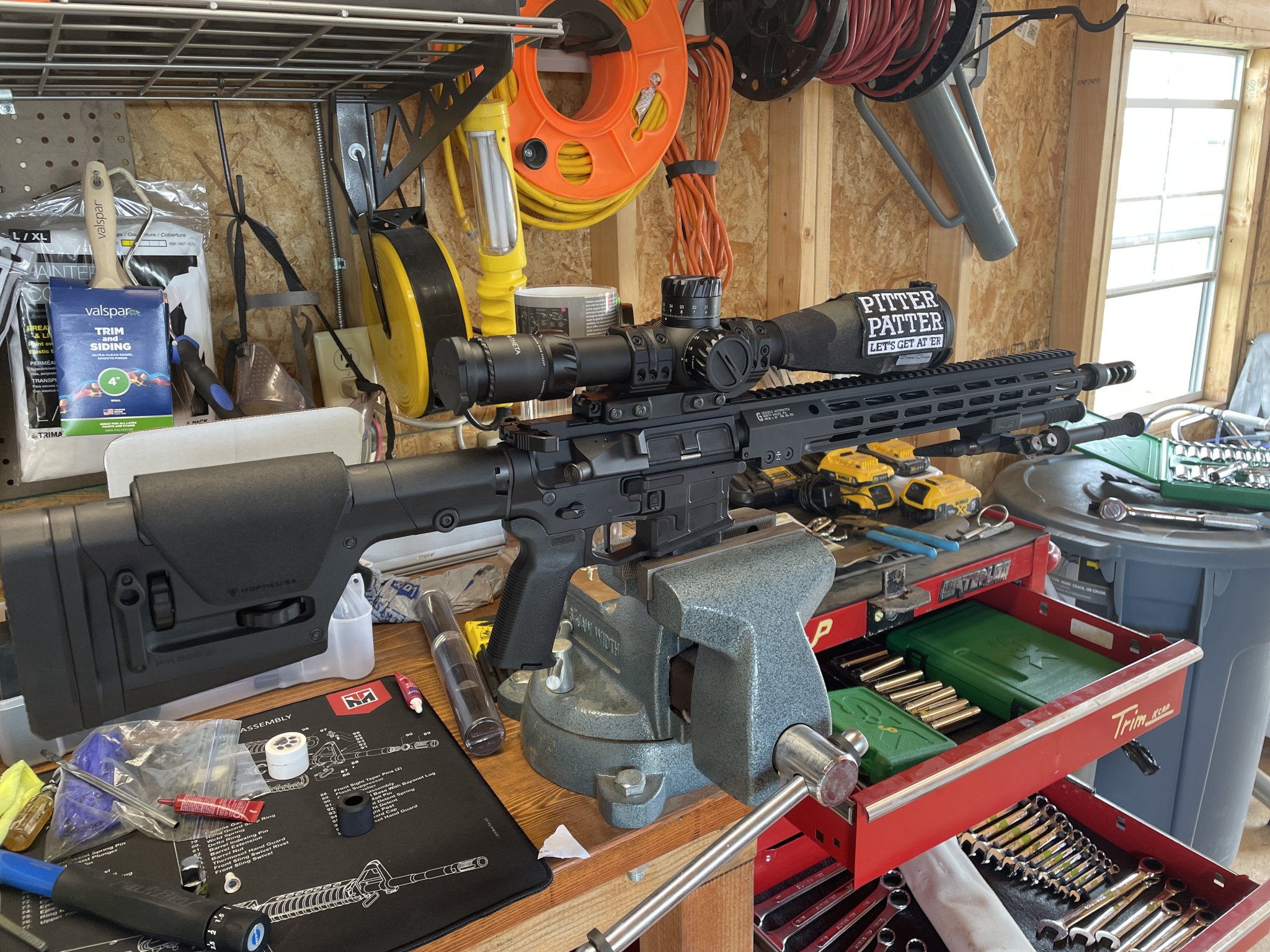

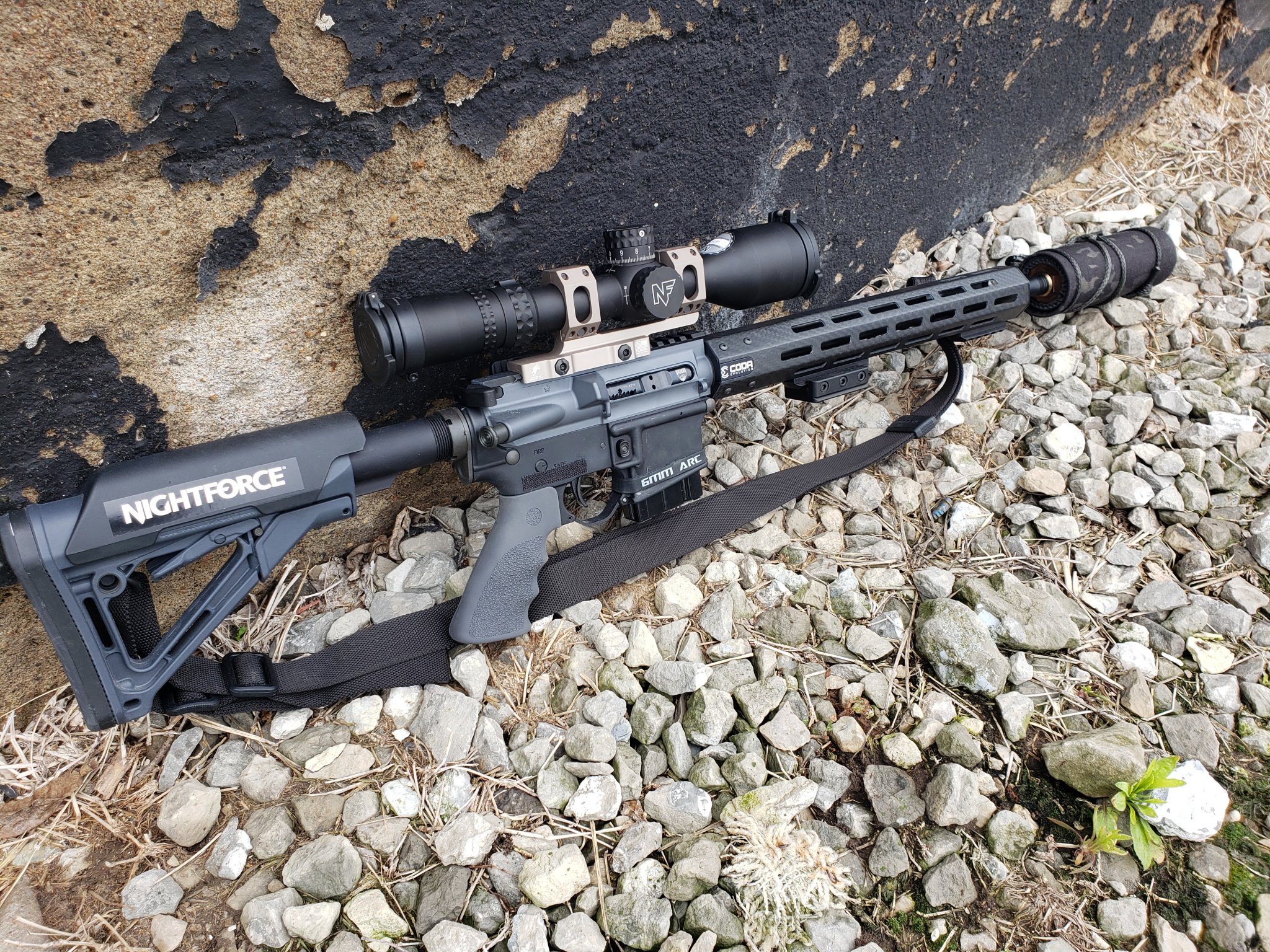

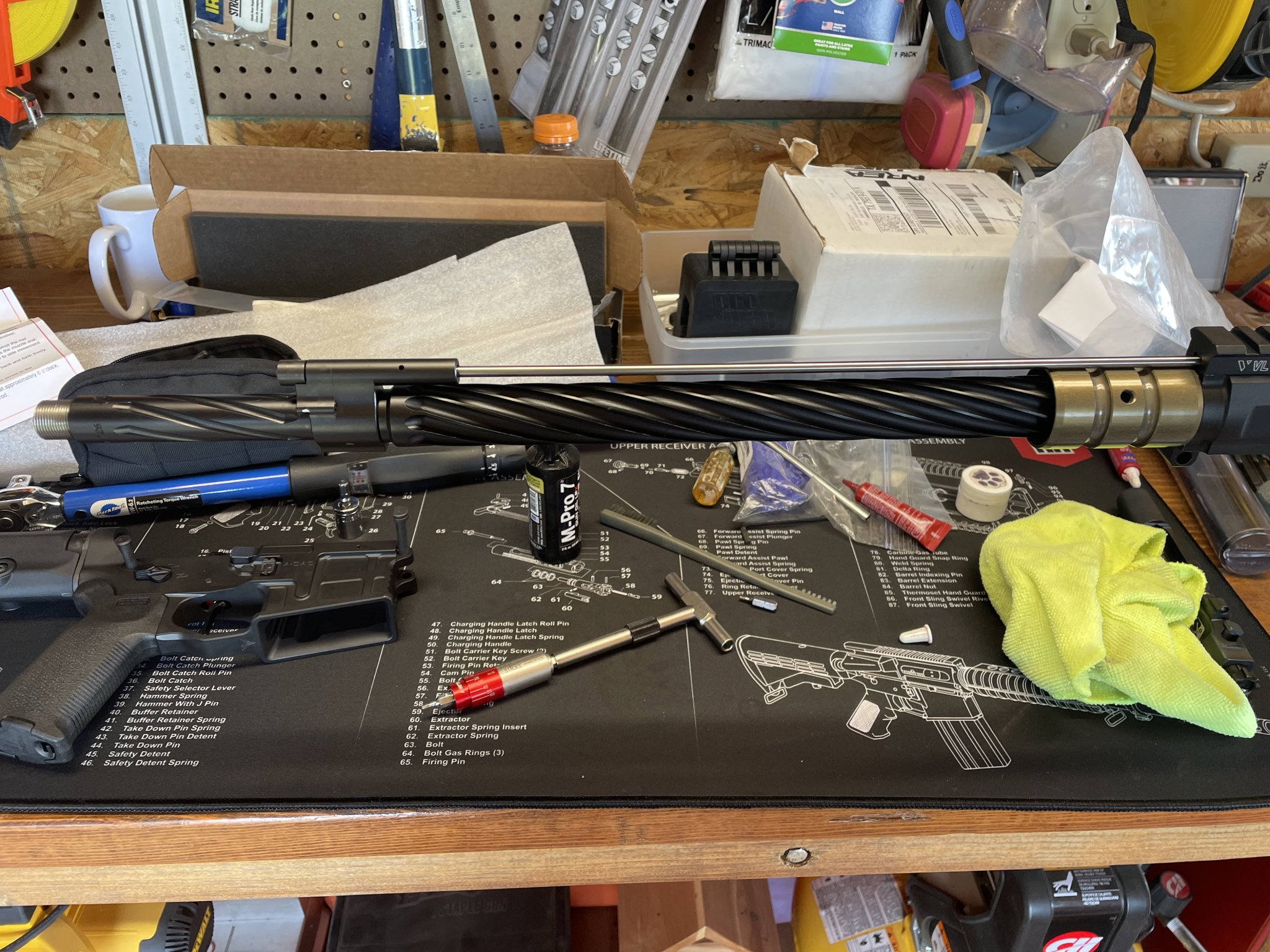

Finally got my barrel from Paul craddock. He’s a great guy to do business with. So threw the build together and off the range to dial in the gas system. I’ve got too many projects going hence the mess.


Attachments

  • 8F14D09D-FC7F-47E3-9DF0-7CD2B3621680.jpeg
    595.8 KB · Views: 159
  • 5764583E-063D-47C7-8BF3-61249B465986.jpeg
    665.4 KB · Views: 159

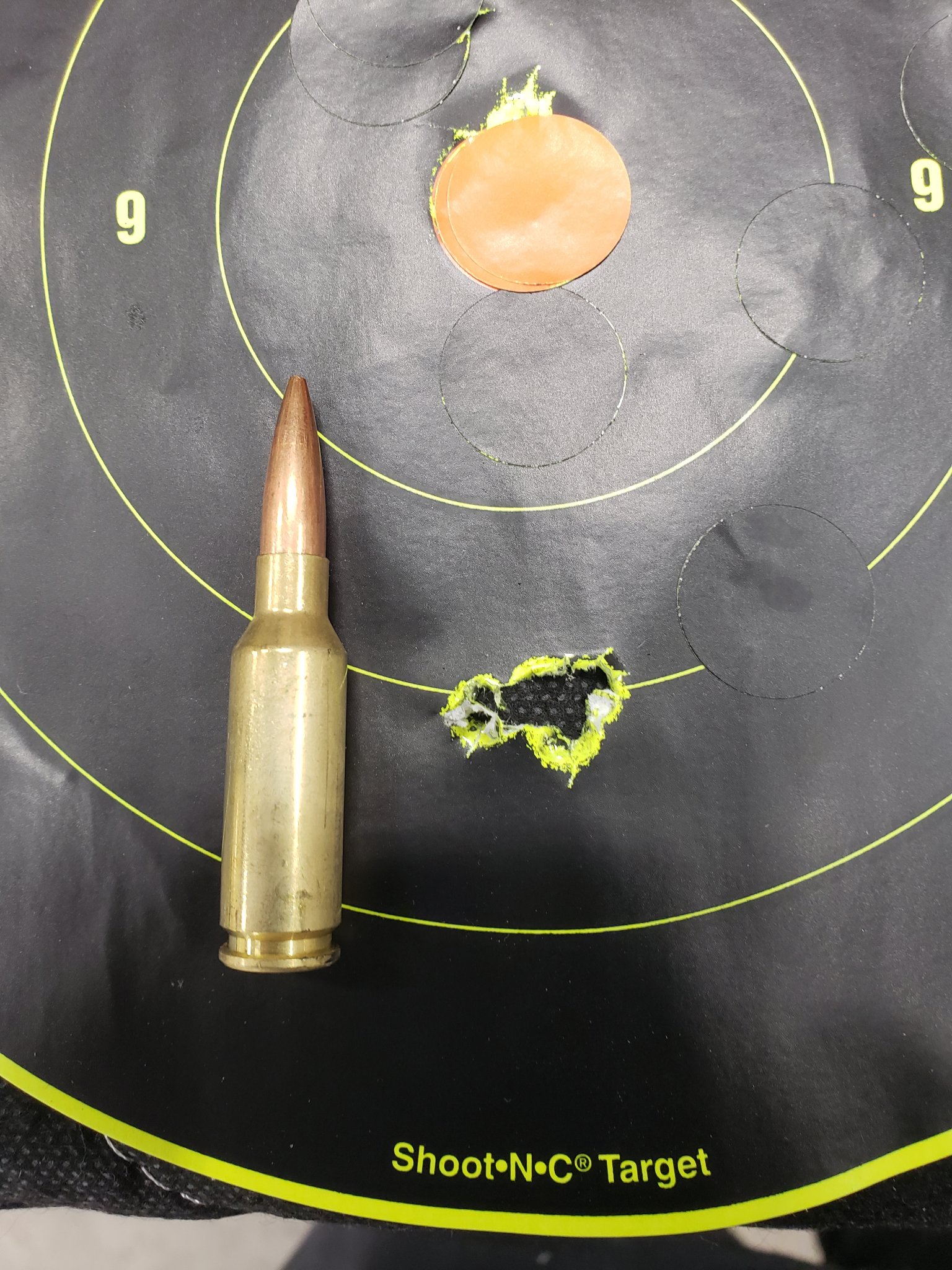

Finally took the new 6ARC AR out to shoot some 5 shoot groups at 100 yards with different loads. Was going to take the PPC but it was too windy so took the AR instead. I think it shot OK. Used Leverevolution from 29 to 30.3 grains and 80 grain Bart's with 0.005 jump. No pressure signs so might go higher next time.




Last edited:
Finally took the new 6ARC AR out to shoot some 5 shoot groups at 100 yards with different loads. Was going to take the PPC but it was too windy so took the AR instead. I think it shot OK. Used Leverevolution from 29 to 30.3 grains and 80 grain Bart's with 0.005 jump. No pressure signs so might go higher next time.

Really nice shooting there.

Question: 80 grain Bart's - could you give us the details on this bullet???

thanks.

Really nice shooting there.

Question: 80 grain Bart's - could you give us the details on this bullet???

thanks.
Thanks. It's a boattail I usually shoot with my 6BR. I bought some 108 Bergers but the freeborn on this barrel seems too short for them so I loaded the 80s.


  • Like
Reactions: skyrep and jbailey

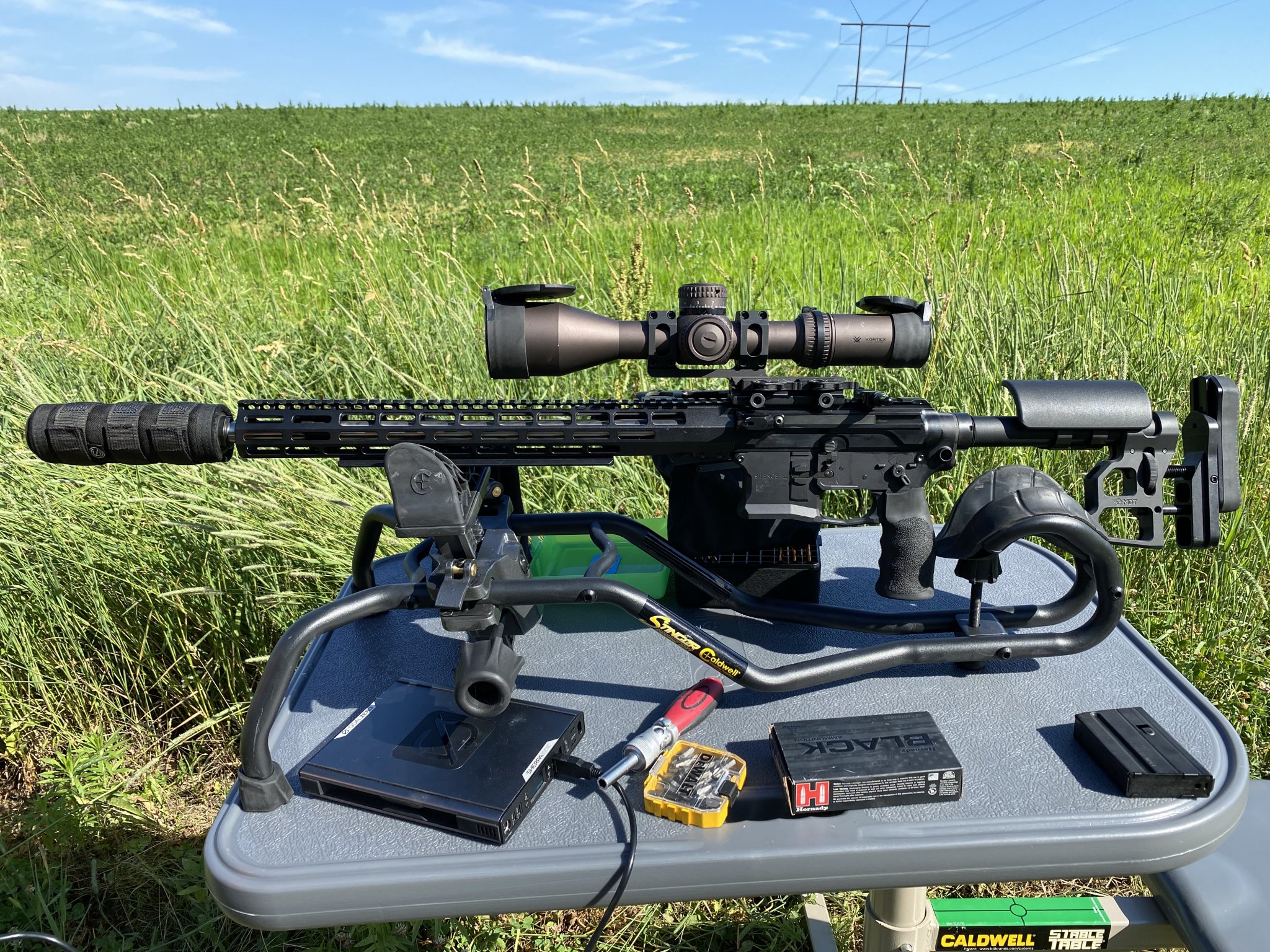

Paul Cradock is the Man, had to start off with that. finally after having this upper since last fall I got out and fired it today. Using factory Black ammo and spending the first ten rounds to zero and adjust the SLR gas block with the tranquilo, the following ten rounds proceeded to print a nice 1.14 group at 100m. I am not one of yawl's amazing shooters and this is the first 20 rnds. thru this barrel, I am stoked.

for you tech folks
Bartlien 5R 20
craddock upper
Aero lower
Larue MB2 trigger and Tranquilo sup
JP silent spring

  • Like
Reactions: Bakwa and LRBuck
1k Match Results posted: lots of wind. I qualified very quickly in the morning. I can see the advantage of funning a semi and the holds on the scope/vs dialing also helped speedily hit targets at 600/750/1k. Scored some hits on the first round and after that went downhill. the wind was ~11 headwind most of the day at the bench, but down-range it was gusting and switching constantly.
next month is back to 600yds but there is another 1k in August.
