ORIGIN Orders

#951

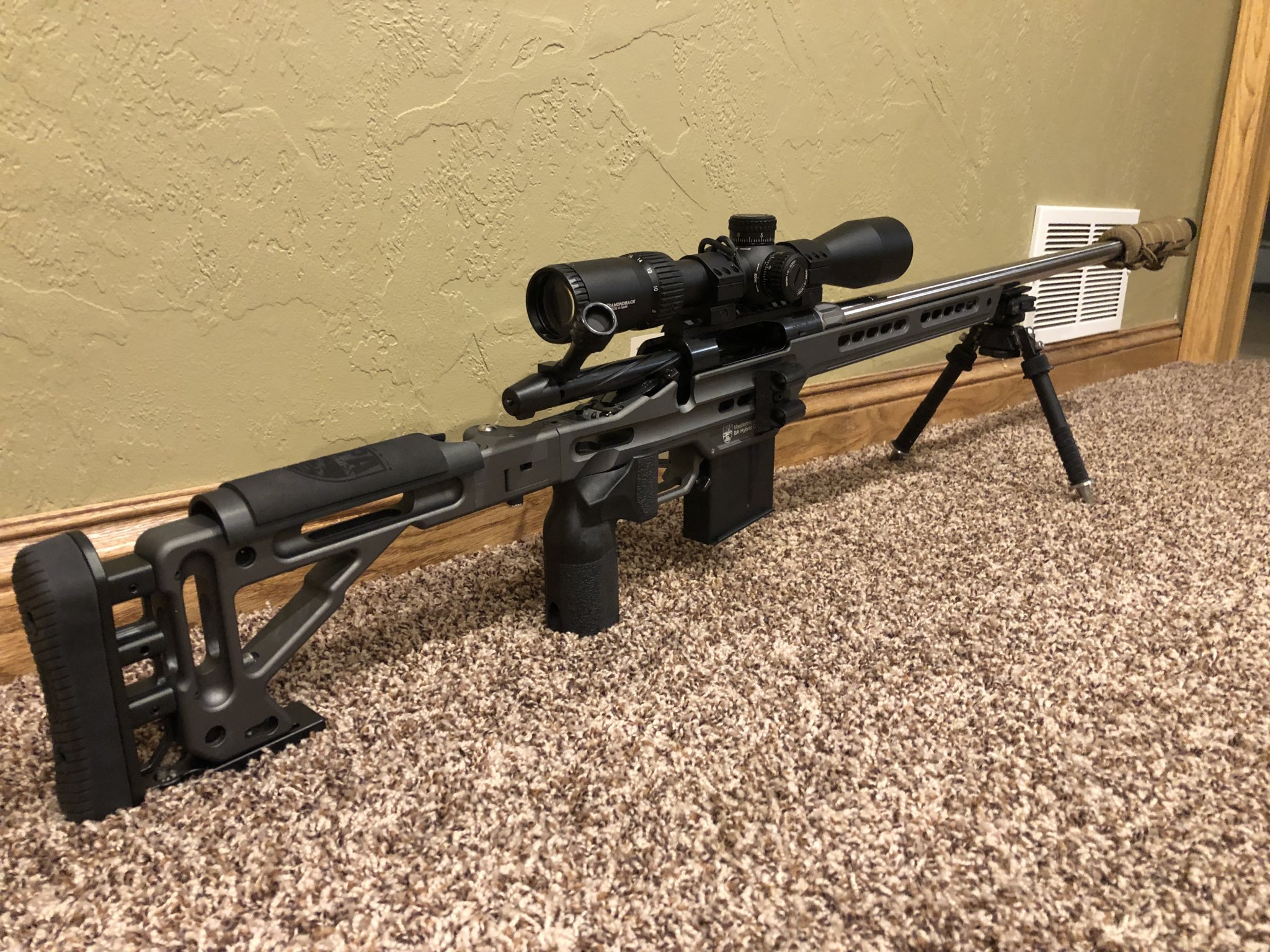

Next is to put it all together



Chad

Last edited:
  • Like
Reactions: JeffLebowski, stereo.pete, Jackomason and 1 other person
#953
Didn’t read through everything to see if it has been mentioned but hunts long range came out with a recoil lug to use with the origin in order to headspace properly using TL3 shouldered prefits. There is a video up on their FB page where they talk about it. Very cool option.

  • Like
Reactions: Codiekfx400
#956
Jackomason said:
What kind of magazines has everyone been running? Are the feed ramps cut at all to allow longer c.o.a.l? Any issues with mags that dont have a binder plate?
Click to expand...
I had to file the lips on my magpul AI to use them if they had pressure of them (Barricade,Bags, ETC.) Thats with a Mcmillan A5 and surgeon bottom metal. I love the MDT 12 round mags! they feel so smooth and feed great!

  • Like
Reactions: Jackomason and Notdylan
#971
savagepc.223 said:
Can someone tell me how to time it myself? I really don’t want to send it back
Click to expand...

Basically file the cocking piece ramp at the SAME ANGLE until it improves. Take off a little at a time and check it by reinserting/cycling the bolt. I did mine and it improved dramatically. Back quite a few pages in this thread there is more discussion and pictures about it from reubenski.

  • Like
Reactions: savagepc.223 and ZEROGUY
#972
RFutch said:
Basically file the cocking piece ramp at the SAME ANGLE until it improves. Take off a little at a time and check it by reinserting/cycling the bolt. I did mine and it improved dramatically. Back quite a few pages in this thread there is more discussion and pictures about it from reubenski.
Click to expand...


Page 15, Post#725 in this thread.

TM6

#980
Morning, will someone that owns an Origin do me a favor and measure the length of the action please?

From the front face of the recoil lug attached to the receiver to the back of tang.

Thanks

#986
I just sent my origin in to John. I have no problem sending the action in to ensure proper fitment. Then he will have my specs and can spin up another perfect fitting barrel.

Another plus is John is very fast at what he does so you won’t have to wait for months like some other shops.

Chad

#987
Triggs75 said:
I just sent my origin in to John. I have no problem sending the action in to ensure proper fitment. Then he will have my specs and can spin up another perfect fitting barrel.
Ready
Another plus is John is very fast at what he does so you won’t have to wait for months like some other shops.

Chad
Click to expand...
Definitely agreed. He spun up my first barrel in less than 2 weeks.
I will probably do the same and have him document the receiver when this one starts heading south.

#988
OK guys, for the timing job, I'm filing until the pin protrusion when cocked and bolt DOWN is 0.090", correct? Currently sticks out about 0.120 on a Jewell trigger

#991
spiche said:

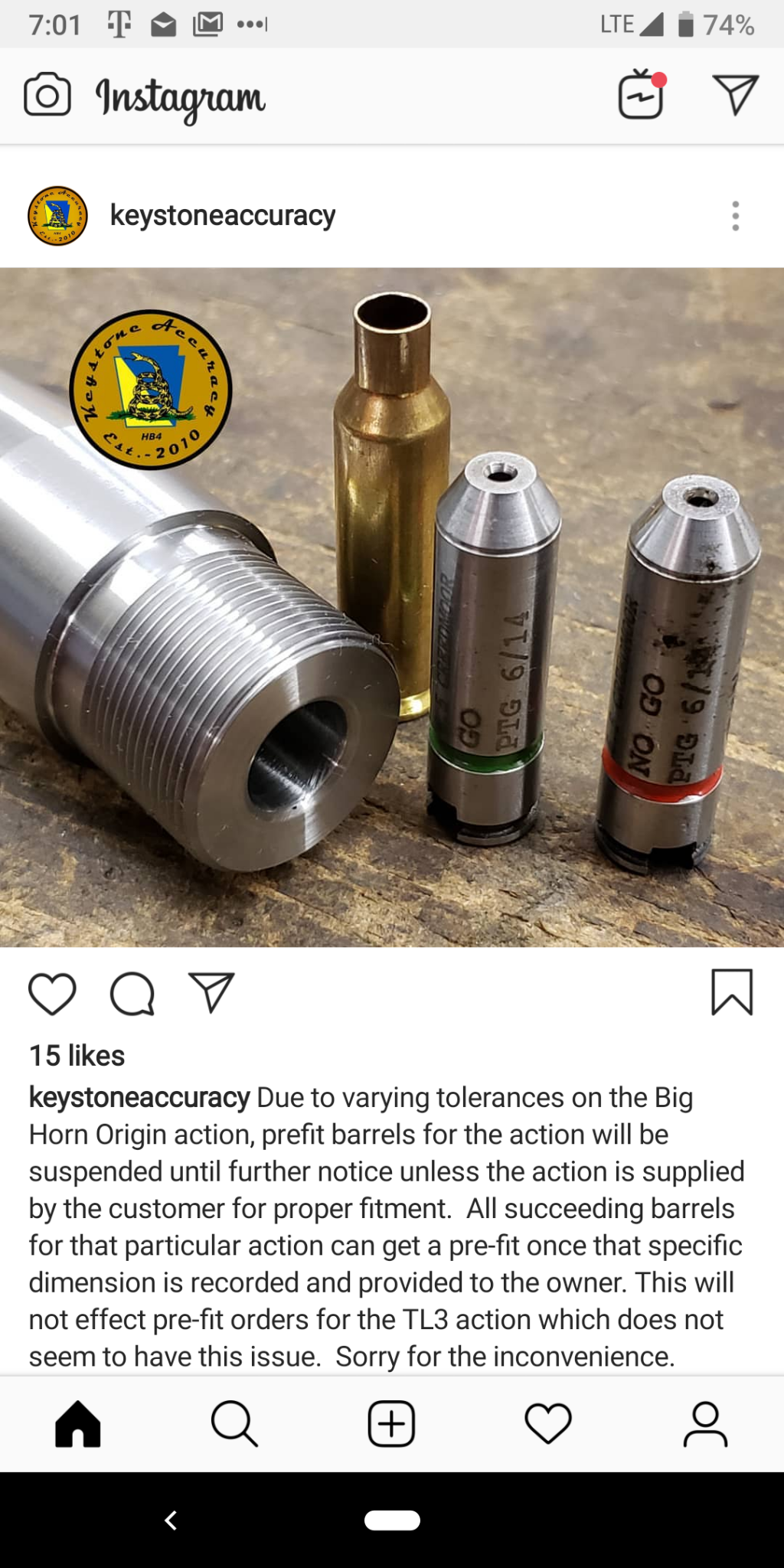

Anyone else see this?
I know mine was a smidge short of closing on a go Gage. I wonder if other vendors are having issues too.

View attachment 7026028
Click to expand...

Well that sucks. One of the reasons I went with this was because of shouldered prefits and not having to send the action everywhere.

Looks like my savage barrel nut is here to stay. Really wanted shouldered prefits though.

#993
reubenski said:
Put your firing pin back in the bolt body. Put the bolt in the rifle. Slide the bolt forward until you can lower the bolt. As you lower the bolt handle you'll feel a click and your firing pin will recede slightly into the shroud. This is the cocking piece centering itself in the small notch just past the ramp in the bolt body. Take this measurement. How much the pin protrudes out the back of the shroud. Lower your bolt handle and watch the pin extend out of the back of the shroud even more. This is the compression you are defeating. Measure this protrusion out the back of the shroud and compare your two measurements. This is how much compression you have. Now remove the entire bolt and file on the cocking piece, careful to maintain the same angle in the cocking piece where it makes contact with the sear. Remove material until the difference in protrusion between these two positions is in the neighborhood of 5 thou.
Click to expand...
Ahhh understood, that's very helpful. Looks like at the click, I'm at 0.070. I'll aim for 0.075!

#996
reubenski said:
What do you mean by firing position
Click to expand...
Just how much the firing pin sticks out. But nope, it doesn't checked. What I noticed though was the "clicked" firing pin protrusion measurement kept reducing the more I filed, so in a way it was as if the measurement with the bolt closed was chasing the measurement of the "clicked" position. Also seemed the like "clicked" position became more pronounced when entering the click. Either way, what I had measured as 0.070 in click, ended up moving down to 0.050 in click. I stopped filing when the closed position was at 0.060. And wow, big difference in feel. Hopefully not light fires!
