Number 0020. Graphite Black cerakote matches almost perfect for anyone that wants to match thier Barrel to the action
What height rings are those?
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
To enter, all you need to do is add an image of yourself at the range below! Subscribers get more entries, check out the plans below for a better chance of winning!
Join the contest SubscribeNumber 0020. Graphite Black cerakote matches almost perfect for anyone that wants to match thier Barrel to the action
Order#24xx po#16xx it’s a lefty action though so that why I might have been bumped up.What's your order and PO #?
ARC 30mm-20mm height. The lowest of the lows. They will clear an NXS 50mm on a bighorn with a varmint taper barrel. By about 2mm. PerfectWhat height rings are those?
They come with trigger pins, and 3 screws in a little bag. Recoil lug and pin in bag. 1 screw in the rail holding the rail on. The two pins are preinstalled in the rail so when you take the rail off to install and headspace action you’ll have to knock it off with the wood end of a hammer. Nice and tight fit. I decided to try the nucleus so this origin is my dads build. Arc rings criterion heavy sporter 6.5 creed barrel. Grayboe terrain stock. Mesa precision bottom metal. Rugged suppressor. All cerakoted graphite black to match the action. Looks sweetDo actions come with action screws? Thanks
Looks like I jumped the gun here. My order is not ready to ship. The email was just a confirmation of my order. I need the "shipment pending" email then I can pay for it. What a tease....
212xSo does anyone know where they're at on the order numbers then?
How many a day do you think they are shipping? 10 to 15 minimum?
They are all the way thru 212X as of 2PM today
Do you know the torque specs for the rail screws?I'd clean, degrease, loctite and torque to spec. But only if using a rear entry action wrench.
If using a traditional type wrench, I'd not loctite.
The rail is pinned tight and requires a bit of english to remove. I pull up on the rear first and then the front.
Pin on the recoil lug should be a tight fit in the slot, but nothing that needs squeezed in.

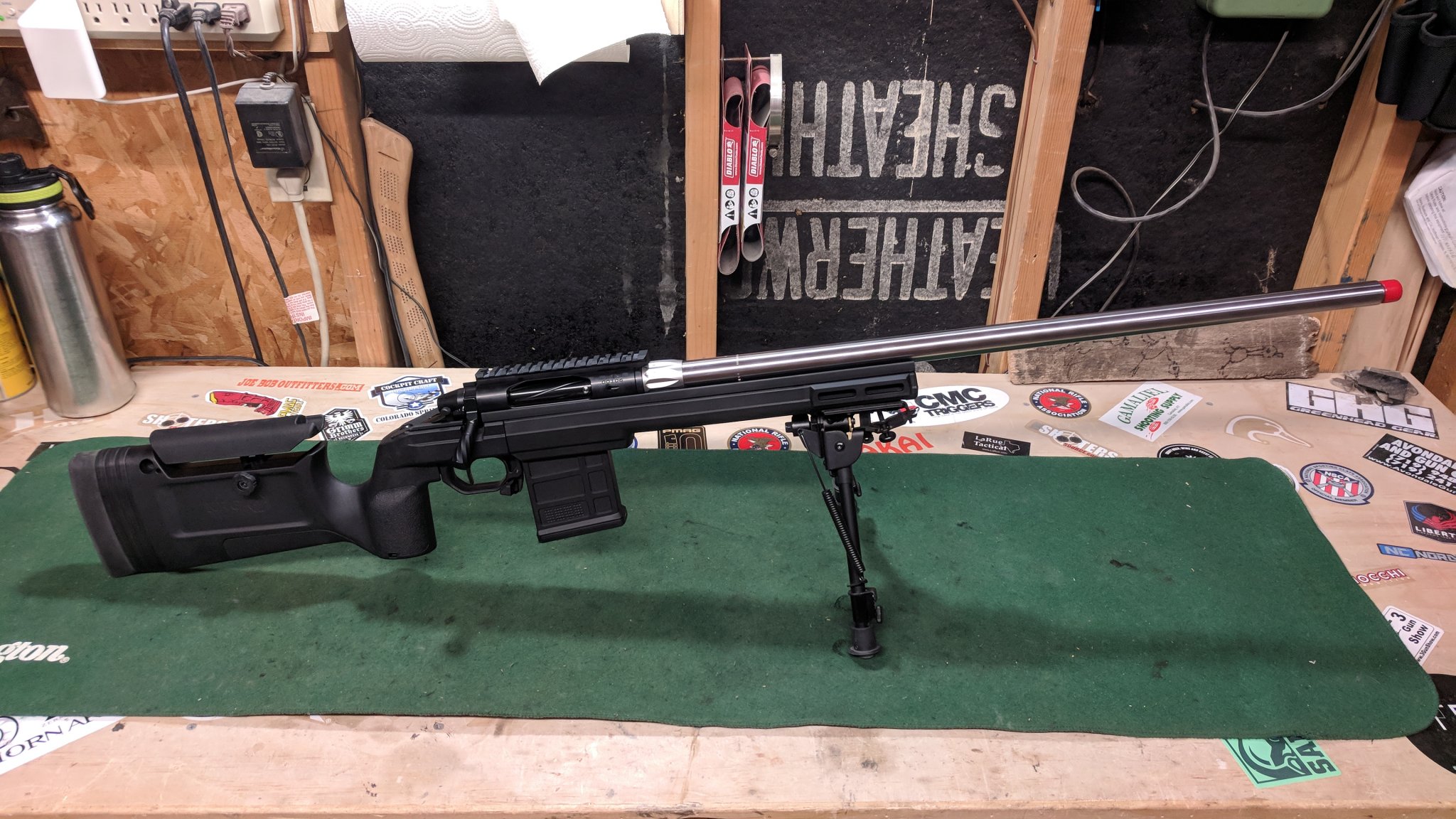

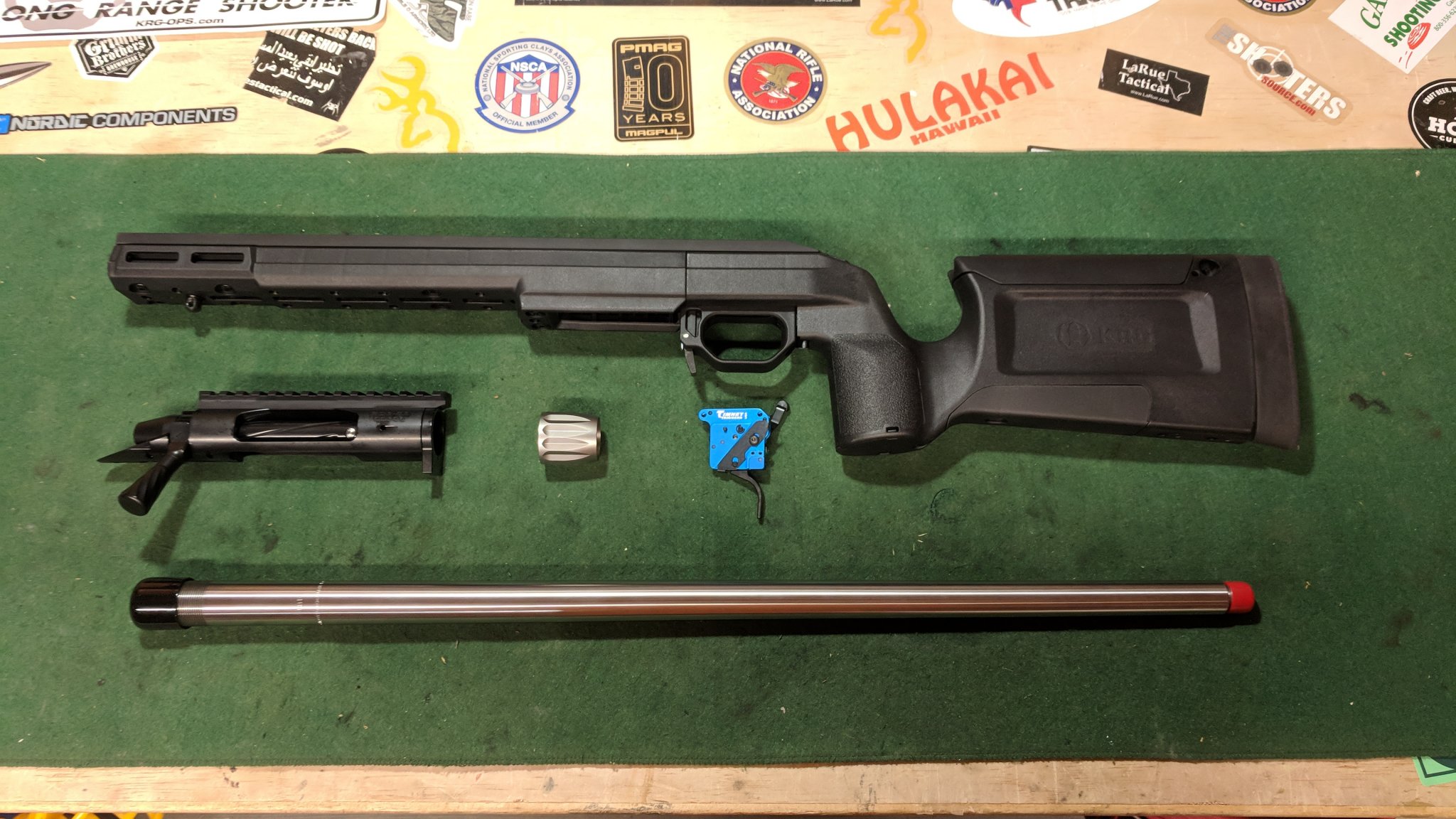

What barrel you using?Just waiting on a scope mount and TBAC brake and I can finally shoot this. Awesome action!
Nice I used criterion on my remage and love it. decided to try hawk hill this timeIt's a Criterion prefit 6 Creed, varmint contour.
Since the dimensions and bolt are the same as the tl3, it should function exactly like a tl3 would. The tl3s work flawlessly with 6br 22br 6 dashers.Is anyone running a 22br or 6mm br on the origin yet? If so how does it feed, extract, and eject?
Nice I used criterion on my remage and love it. decided to try hawk hill this time
www.6mmbr.comDon't mean to hijack thread but have been very interested in 6mmbr for prs use. Can you guys point me in the direction of some threads on 6mmbr. Ether about the advantages/disadvantages, reloading for it. what is needed to for to function in mag fed actions. You know things of that nature.
I assumed that it would work just like a TL3. But I thought maybe someone would have some real world experience. If not I might have to just try one myself.Since the dimensions and bolt are the same as the tl3, it should function exactly like a tl3 would. The tl3s work flawlessly with 6br 22br 6 dashers.
The rail pins are underneath the rail. They are intended to be tight. Mostly because it's not a very common occurrence to remove the rail. We understand some people use a different style action wrench that wraps the outside of the action. That's why it's removable. If you use a rear entry wrench (available on our website), you shouldn't ever find a situation where you need to remove the rail to install a barrel. The pin will be tight to the notch in the action, again, that's intentional.I got my two from FFL today. I have some Assembly questions:
Where is the rail pinned? I unscrewed the one screw that was in from ZAI and the rail was still TIGHT to the action. I just don't see the pins.
I am going to use a drop of blue loc tite on the rail screws. Good idea, right?
I am using shouldered barrels from PVA (when they arrive). I do not have to remove the rail, right?
The round recoil lug pin will "Squeeze" into the square notch upon tightening the barrel down?
I am actually pretty mechanically inclined however, this IS my first CUSTOM so i don't want to mess anything up with my wicked set of tools...
Thanks in advance for any tips.
20-30 in-lbs.Do you know the torque specs for the rail screws?
Can you tell us what your email was titled? I'm thinking I might of been skipped over or I somehow missed the final email.Order number 214X. I received my email on Thursday afternoon. Called and paid on Friday, shipped that afternoon.
I got skipped as well I have a 223 bolt face.Can you tell us what your email was titled? I'm thinking I might of been skipped over or I somehow missed the final email.
Can you tell us what your email was titled? I'm thinking I might of been skipped over or I somehow missed the final email.
Like I said..they're supposed to be back next week. Once they're back, they take priority over everything else at the time in order to get those caught up to the rest.Looks like I’ll be waiting longer. God damn lefties messing things up haha.
Yep, you got it.@BigHorn / ZAI Team
Just curious, why a different tenon length than the TL3? The loss of threads from the non-integral recoil lug?
Got mine in today. Hoping it will loosen up some. Noticeably heavier bolt cocking than my tenacity. But has gotten a little better while just playing with it. So have high hopes.
