Rimfire Rifle Photos Thread

[Frank Green]

Here is an update to the Model 1924 International Match Rifle replica build. I'll make proper action screws for it tomorrow and d&t the barrel for the Unertl Scope blocks. Then I can mount the scope and do some shooting/testing with it before doing anymore finish work.

Later, Frank
Bartlein Barrels



[Nathan11B]

Did some playing with mine. Have a new Fedderson barrel on it, as well as a different scope.




Though with the weather getting crappy up here, I have exactly 0 rounds through it right now. Really hope to change that REAL soon.

What scope is that?



[woogie_man]

It is a Hawke 6-24x50

Was a scope I got for my pellet rifle, but found it looks much better on the .22. Hawke is a European company that has been making scopes for a while from what I have been told. Not at all a bad scope.



[oldlegbone]

woogie_man, that paint job is super clean. Is it all Krylon and gutter guard or what?



[woogie_man]

Used my air brush to do it.

Just a base cost of the tan, used a stencil for the skulls, then used a mesh bag to cover the stock and then sprayed the other colors.



[NewsShooter]

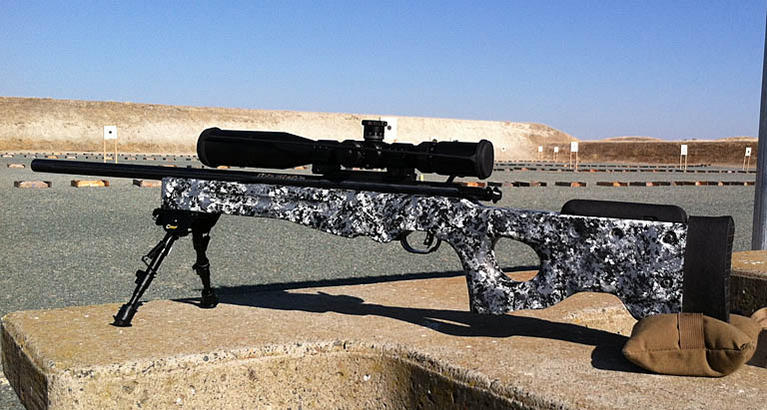

.17 HMR in a leopard stock, painted with a few sponges and black, white, and gray Krylon. Added pillars to the stock, dip metal, BSA 4-14 mil mil midway special.



[russ10x]

SAVAGE 93R 17, BOYDS THUMBHOLE VARMIT, SWFA SS 10X42, EGW 20 M0A BASE, DIP BOTTOM METAL. THIS IS ANOTHER TAC DRIVER....



[Tempest 455]

My Savage TRR-SR posted before. However, rail was removed and 20 MOA base added. HTA can and zeroed for 300 yards.

Pretty much shoot this exclusively at 300. Good practice for long distance .308.



[NewsShooter]

My Savage TRR-SR posted before. However, rail was removed and 20 MOA base added. HTA can and zeroed for 300 yards.

Pretty much shoot this exclusively at 300. Good practice for long distance .308.

Why zero at 300? I'm zero'd at 50 and can dial to 300, or anywhere in between.



[Tempest 455]

Why zero at 300? I'm zero'd at 50 and can dial to 300, or anywhere in between.

Because the range is 300 and 500. I shoot the .22 at 300 and my .308 at 500.



[Layton]

Nuttin special.(edt: Except to me.) Just my first 22 I got 37 years ago Xmas day. Been a lot of squirrels hit the ground over the years with this one.



[TOP PREDATOR]

^ being an american classic is always special



[postban]

A few of mine.
Old 77/22 Boy Scout Training rifle with Rack number still on it and one million scratches. Lots of external wear but thankfully good pipe

Current Favorite RF Bolt, 77/22 All Weather shortened and threaded with an Outback IID. One Holer with 38gr Aguila subs.

My sons favorite fun gun, Henry Lever with a dot. He prefers this over a M&P 15-22. I know it clashes but dang is it fun.



[Rockhopper]

ZKM456 - I did the paintjob, owner is friend of mine...

what colors are on that stock?



[BERTMAN77MK2]

Love them Kimbers and 40X's!!!



[HarryHaD]

what colors are on that stock?

The paint is polyurethan, but those colors - we get some picture from the owner, so we did try our best to match those colors. We did mixed them - sorry, no RAL numbers...



[aspen69]

I'm going to see what kind of accuracy I can get out of the old 10/22 before I invest in a .22 bolt . I have a brick of Wolf match extra to try out . I'll need to pick up some more match ammo to see what it likes .



[The Zebra]



[Jared91]

Waiting on my Kidd Ultra Light Weight threaded barrel, then it'll be shoot-able
sent from Jennifer Lawrence's bedroom



[Slug-O]

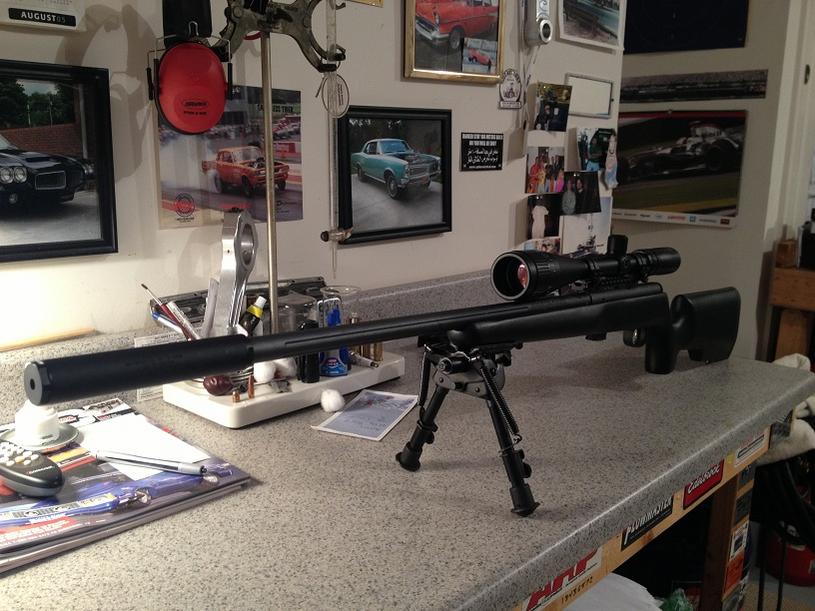

My .22 and I have way too much money tied up in this sucker...



[Frank Green]

Here is a updated pictures and a couple of targets. The gun only has about 50 rounds or less. Been working bugs out of the scope mounts etc...The group on the left was shot at 28 yards. Measured a .135". The group on the right was shot at 114 yards. 4 of the 5 rounds measure right around .800 moa. These are 5 round groups. Shot a couple of 3 round groups at a 100 yards zeroing the scope and had one at .503" and another at like .821". Think the gun will be a hammer. Wish I had better shooting weather. Over the last week our average high has been around 15-20 degrees.

Later, Frank
Bartlein Barrels



[JMGlasgow]

Here is my Russian Tula T03-99 semi auto. Very reliable and as accurate as I need it to be.



[Assault116]

Just finished up my Savage MKII FVSR, set in a rhineland stock (bedded as best I can) DIP bottom metal, trigger guard, and 25MOA rail, then painted and topped with an SWFA SS fixed 16X, I'm a magnification whore and this rifle is pretty much purpose built for a LR trainer counterpart to my Rem 700 in 260 set in an AICS.



[Frank Green]

Here is a updated pictures and a couple of targets. The gun only has about 50 rounds or less. Been working bugs out of the scope mounts etc...The group on the left was shot at 28 yards. Measured a .135". The group on the right was shot at 114 yards. 4 of the 5 rounds measure right around .800 moa. These are 5 round groups. Shot a couple of 3 round groups at a 100 yards zeroing the scope and had one at .503" and another at like .821". Think the gun will be a hammer. Wish I had better shooting weather. Over the last week our average high has been around 15-20 degrees.

Later, Frank
Bartlein Barrels

Here are some updated pictures. I had made a feed ramp/loading block several years back. Beats trying to stick the round into the chamber each time. I'll use this set up until I get the gun converted over to take a factory 5 round mag.

Later, Frank
Bartlein Barrels



[bunsen27]

I had some of the toys out to the range yesterday and while cleaning them up I pulled the rest out of the safe for a photo and a fresh coat of oil:



[NewsShooter]

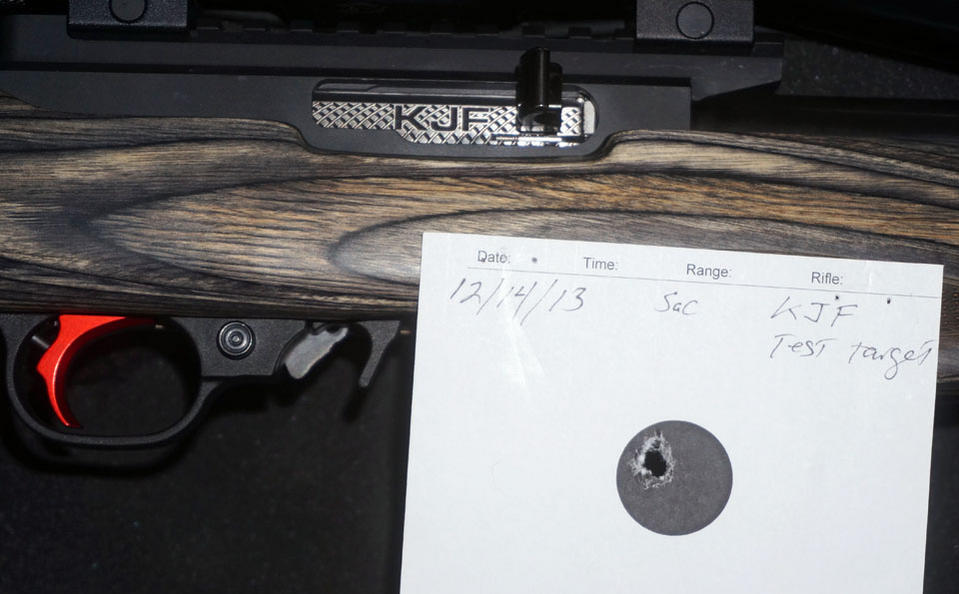

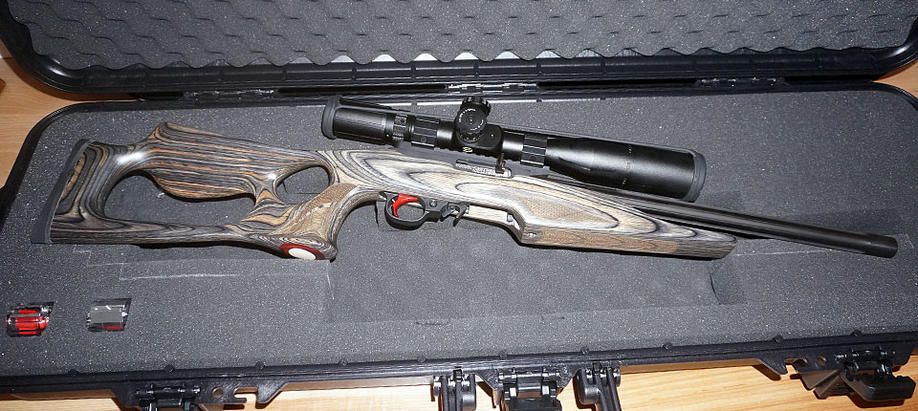

Built a couple matching 10/22's for my nephews first rifles, the only difference between the two is the initials on the bolts. Test targets included in the case that I shot after zeroing the scopes yesterday. Need to shoot the first one over again, didn't concentrate as much as this one, 5 shots, fifty yards.



[bkincaid]

Built a couple matching 10/22's for my nephews first rifles, the only difference between the two is the initials on the bolts. Test targets included in the case that I shot after zeroing the scopes yesterday. Need to shoot the first one over again, didn't concentrate as much as this one, 5 shots, fifty yards.

Me thinks you are going to have some seriously happy nephews.



[jbell]

Built a couple matching 10/22's for my nephews first rifles, the only difference between the two is the initials on the bolts. Test targets included in the case that I shot after zeroing the scopes yesterday. Need to shoot the first one over again, didn't concentrate as much as this one, 5 shots, fifty yards.

That is getting it done! What are the details on the build?



[mr2.0]

My .22 and I have way too much money tied up in this sucker...

Spec on the built please



[TOP PREDATOR]

^ and on that rail



[TOP PREDATOR]

cz



[hatidua]

Quad & Kidd



[BenY 2013]

It's a CZ 452 American in a Manners stock, he posted it on AR15.com a while back and I asked about it, he told me about the rail, but I forgot. I might could look it up. Seems it was custom made.

Ben



[Tanman]

Put together a lightweight offhand plinker.
-PWS T3 tension barrel
-PWS mag release
-Superior Concepts charging handle
-Houge overmold stock
-Primary Arms MD-07 red dot

I have a Nodak Spud front sight, still need the rear sight/rail.
Probably put a better trigger in eventually too.



[NewsShooter]

That is getting it done! What are the details on the build?

Well it all started when I picked up three tactical machining receivers pretty cheaply, of course I made up for that later. I'd taken the nephews out a couple times and they really enjoyed shooting. I'm the only one in the family that shoots. Got approval from the wife to build them rifles for Christmas. It was a lot of fun and a couple vendors gave me a discount when I told them I was building them for my nephews first rifle. I think they'll be really excited Christmas morning, not so sure their mom will be all that happy.
Anyway here's the specs, tactical machining receiver, JWH bolt with their initials on them, it came in a kit with the charging handle. It's very nice stuff, and they were great to deal with on ordering what I wanted. Altamont Barracuda stock, which the kids will love, they're very cool looking, the inlettting is very good, I also added a brass screw that indexes on the receiver cleaning hole and helps as a second hold down. I may put in a pillar some time in the future. Factory triggers that have been cleaned up by a local smith. They're about 3 1/2 lbs but break clean, the red trigger is just for a little bling. Green Mountain barrels, 16 inches, Gunsmither block and a Midway special BSA 4-14 mil mil scope with cheaper vortex rings that were on sale at Midway. I lapped the rings but didn't take much off with the lapping just a little anodizing on one edge. I think that's everything, the other rifle shot almost as well, not one hole more of a clover leaf but that was probably me.



[jbell]

That is a very cool way to start them off right. Nicely done.



[Rockhopper]

The paint is polyurethan, but those colors - we get some picture from the owner, so we did try our best to match those colors. We did mixed them - sorry, no RAL numbers...

a close guess? light tan, fde, grey?



[Rockhopper]

My 455 in its new Plano case

image by usmcchet92_96, on Flickr


image by usmcchet92_96, on Flickr

where did you get the mag caddy side saddle that is on the reciever?



[HarryHaD]

a close guess? light tan, fde, grey?

Can not say... Not because I do not want

We are preparing the colors by our own. We have some base (usually some neutral tan, grey or green) and than we use pigments (white, black, red, yellow, blue, light and dark green, brown...) to make color tone we want. When we have all colors we need, than we take 5-8% of each, mix them together and than give back to each color that mix. This way they are not in contrast too much (the contrast is not that bright)... This is no secret, it is pretty common

As You can see on the picture, I only had some sketch I did by hand and those notes about colors are: "light, green, dark" Color of the action is FDE and I wanted some contrast between action and the stock.

And this is the result. I found this picture (with some luck, I do not take pictures - usually...) so You may see those colors next to something You know...

Sorry for my English - it is much easyer to tell, than write



[usmcchet9296]

where did you get the mag caddy side saddle that is on the reciever?

it was a removable 6 round centerfire carrier I converted to 3 rimfire carrier



[djdilliodon]

CZ455 with straight .900" lilja barrel with eps match chamber, single shot adapter, J&P firing pin spring, dip aluminum mag well, trigger shimmed and spring swapped, stock refinished to a color I prefer, stock pillar and glass bedded, soon to be added bushnell banner 6-24x40.



[rwest309]

This one I put together for my son. He wrote to Santa and requested a "camo gun". Santa knocked it out of the park. Its overkill for a 5 year old kid I know but maybe he will pass this on to his son someday. Special Thanks to Branden (Shortbus) at Custom Gun Coatings. He did a fantastic job on this for me and a speedy one as well. Made sure it was done before Christmas. If you need a stock painted...you should probably send it to Branden.

Sako Quad Built by APA
Lilja Barrel EPS Match Chamber 22lr
1/2X28 threaded with Silencerco Sparrow SS
Graphite Black Cerakote
Manners Quad Stock
Desert Multicam by Branden (Shortbus)
US Optics Base
US Optics Rings
US Optics ST-10

Now for the good part......



[djdilliodon]

This one I put together for my son. He wrote to Santa and requested a "camo gun". Santa knocked it out of the park. Its overkill for a 5 year old kid I know but maybe he will pass this on to his son someday. Special Thanks to Branden (Shortbus) at Custom Gun Coatings. He did a fantastic job on this for me and a speedy one as well. Made sure it was done before Christmas. If you need a stock painted...you should probably send it to Branden.

Sako Quad Built by APA
Lilja Barrel EPS Match Chamber 22lr
1/2X28 threaded with Silencerco Sparrow SS
Graphite Black Cerakote
Manners Quad Stock
Desert Multicam by Branden (Shortbus)
US Optics Base
US Optics Rings
US Optics ST-10

Now for the good part......

For a 5 year old?! You can adopt me anytime you like! Those Sakos with the lilja drop ins shoot extremely well!



[terrible tim]

Guess we'll have to wait for 11 years when it's a car next....



[jbell]

This one I put together for my son. He wrote to Santa and requested a "camo gun". Santa knocked it out of the park. Its overkill for a 5 year old kid I know but maybe he will pass this on to his son someday. Special Thanks to Branden (Shortbus) at Custom Gun Coatings. He did a fantastic job on this for me and a speedy one as well. Made sure it was done before Christmas. If you need a stock painted...you should probably send it to Branden.

Sako Quad Built by APA
Lilja Barrel EPS Match Chamber 22lr
1/2X28 threaded with Silencerco Sparrow SS
Graphite Black Cerakote
Manners Quad Stock
Desert Multicam by Branden (Shortbus)
US Optics Base
US Optics Rings
US Optics ST-10

Now for the good part......

Home run for sure...



[NewsShooter]

And I thought I went overboard for my nephew's 10/22's



[BenY 2013]

I would gladly let you adopt me! Or trade me scopes, whichever is easier! lol

In all seriousness awesome build! Very lucky kid!

Ben



[rwest309]

Thanks guys. Can't wait to see his reaction. It will be worth every penny. Plus me and grandpa may have to "help" shoot it a little too. Just until he gets the hang of it.

I Got him an m&p 15-22 for his 4th birthday. Clamp that thing in my hogsaddle and he will keep me loading mags all day. Now if only the 22lr ammo would come back.



[malaga2]

Cz452 Varmint...favorite rifle!! Eric Brooks trigger kit...trigger shoe...almost exclusively shooting subsonic or standard velocity ammo...lot of gun for the $$



[jbell]

I just realized that I have not posted a pic of my latest 22lr. It is an Anschutz 54 MS repeater, I have not had any good weather to see how it shoots but I am happy so far.
