Rimfire Rifle Photos Thread
- Thread starter keith jones
- Start date
Not sure how to answer this, I didn't buy it to shoot close. I got a semi zero at 200, and started testing at 200 and then 300 yards on a couple nice days. It grouped a certain lot of Lapua Long range rather well. I didn't have a tuner on, then one windy day I took it to 5-600 yards. Gusty full value winds from 9 o'clock, a 3-4mph gust, coupled with the spin drift generated from the barrel, made chasing a miss w/o 20 wind flags futile. We're talking feet here, like 3-4, you could make corrections, but if you failed to pick up the wind dropping, now you were 4 feet left.
9tw wasn't for me, I pulled the barrel and it is in the county landfill today. Today, I wish I had tried it in a stiff right wind, and maybe should have invested more time in the thing. Ammo was slow coming out, think 1065-1070, and I didn't want to stick more money in it cutting the barrel off, so multitude of reasons went into the decision. I sold the action too, as I had 3.
Action # 2 was at Modacam, and here it is in the same stock. 25" Mullerworks, 13tw, I am working on it and one lot of RWS R100 looks promising. Wind hasn't let up here since March 1st to make any test substantial. I'm no expert, but PM if you want my take on twist rates, I do pay attn to detail.
Attachments

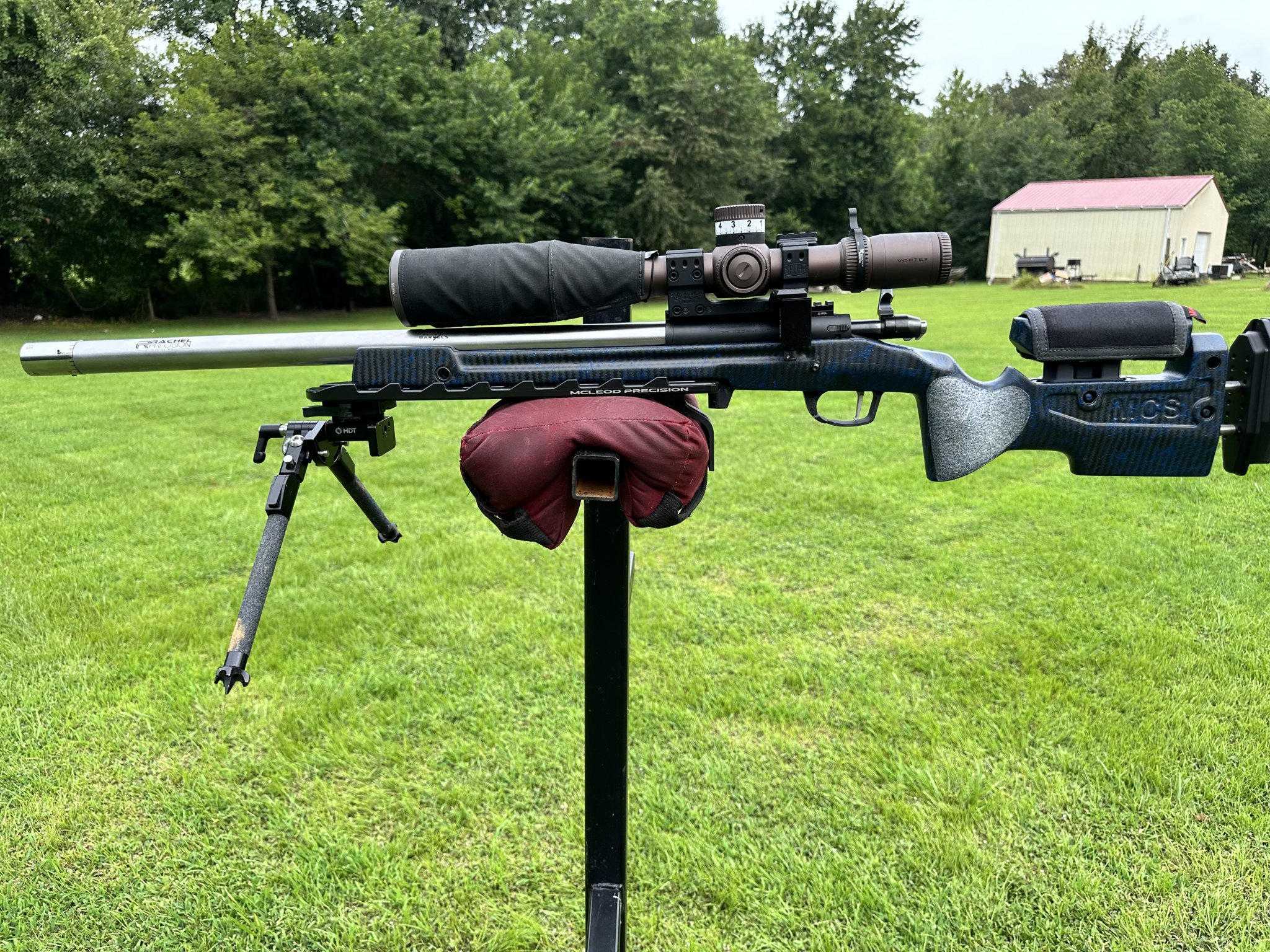

- RimX Action
- MPA Matrix Pro II w/competition buttstock
- ACE 26" 1.20 Straight Contour Cut Barrel

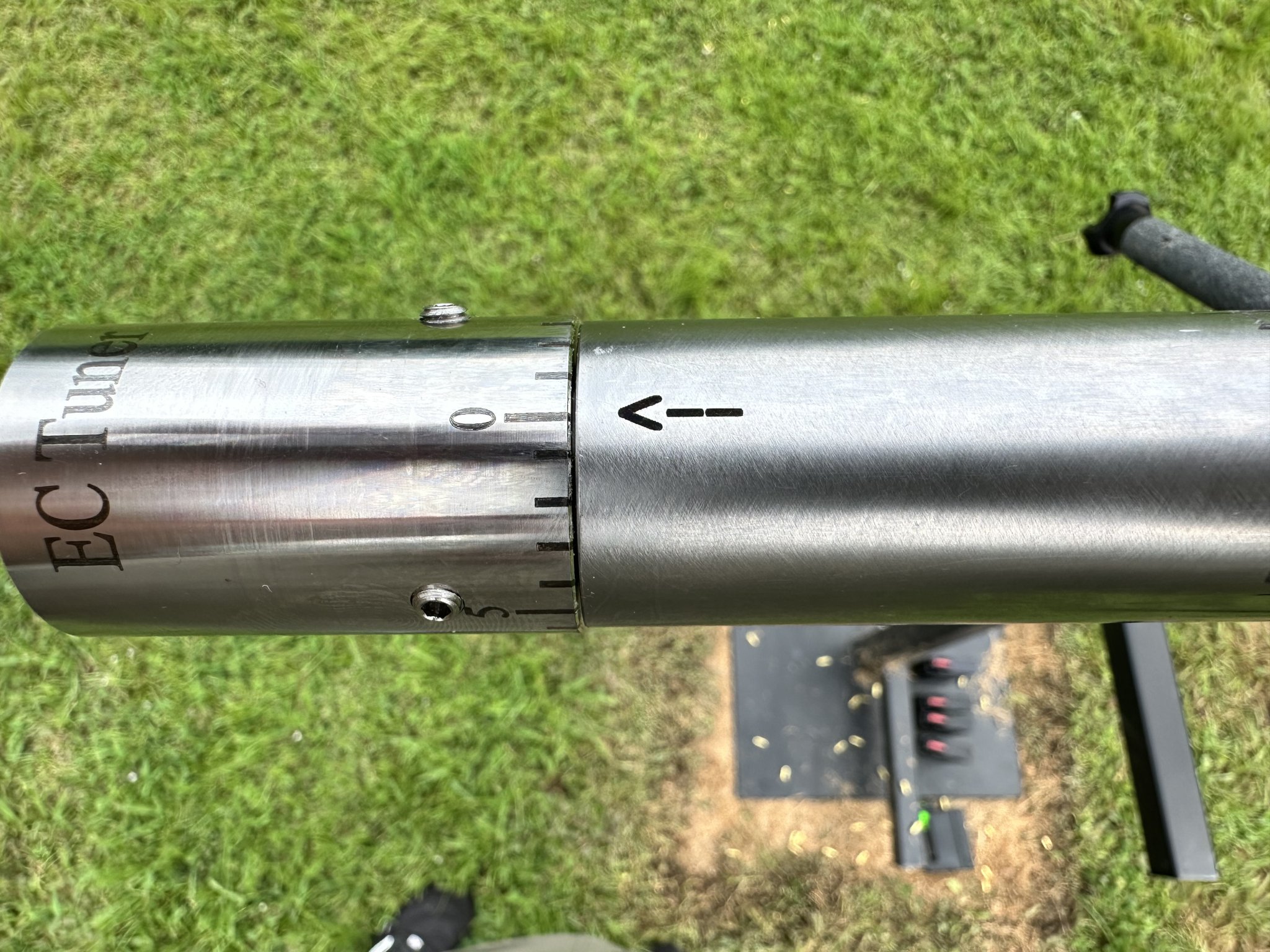

- EC V2 Tuner
- Trigger Tech Diamond Single Stage Trigger
- MPA BA Comp Mount
- Vortex RZR Gen III 6-36x56 in black
- Send-It Level w/Brandt Built Ocular Housing
Rifle easily balances at about 2.5" infront of the mag.
Attachments
Nice! Just curious, does the TT Diamond work without issues with the RimX? Do you have to do anything special?
Nope sear height is fine, totally a non-issue. Months ago I called Zermatt directly to ask this question and they said no worries with Trigger Tech.
I’ve been running the TT diamond in my RimX for awhile now and haven’t had any issues. I have it set to 8oz.
I called yesterday and asked about trigger tech diamonds and bix n Andy tacsport and they said no issues with the rimx
Bergara B14-R
ORYX chassis weighted inside and out
My custom bag rider
Midas Tac 5-25X56
Monstrum rings
EGW 20 MOA Rail
Remington 3 lever trigger @ 8oz (adjusts down to 2 oz)
CV Life tilt bipod with my custom adapter to ARCA
Total weight weight bare 17 lbs
Balance point 2 1/2" forward of mag
6/19/24 Replaced the Remington 3 lever trigger with a TT Diamond Pro curve set at 8 oz. Reason was some competitors had issue with no safety on the Remington
ORYX chassis weighted inside and out
My custom bag rider
Midas Tac 5-25X56
Monstrum rings
EGW 20 MOA Rail
Remington 3 lever trigger @ 8oz (adjusts down to 2 oz)
CV Life tilt bipod with my custom adapter to ARCA
Total weight weight bare 17 lbs
Balance point 2 1/2" forward of mag
6/19/24 Replaced the Remington 3 lever trigger with a TT Diamond Pro curve set at 8 oz. Reason was some competitors had issue with no safety on the Remington
Attachments
Last edited:
My early Vudoo V22. MPA BA comp, Jewel HVR trigger, Lowey Tuner, 40 MOA rail, Gen 2 Razor, lots of weights. It's an awesome little rifle.
Newly acquired rim40x action i put in a christensen arms mpr stock. 5-20x razor he on top

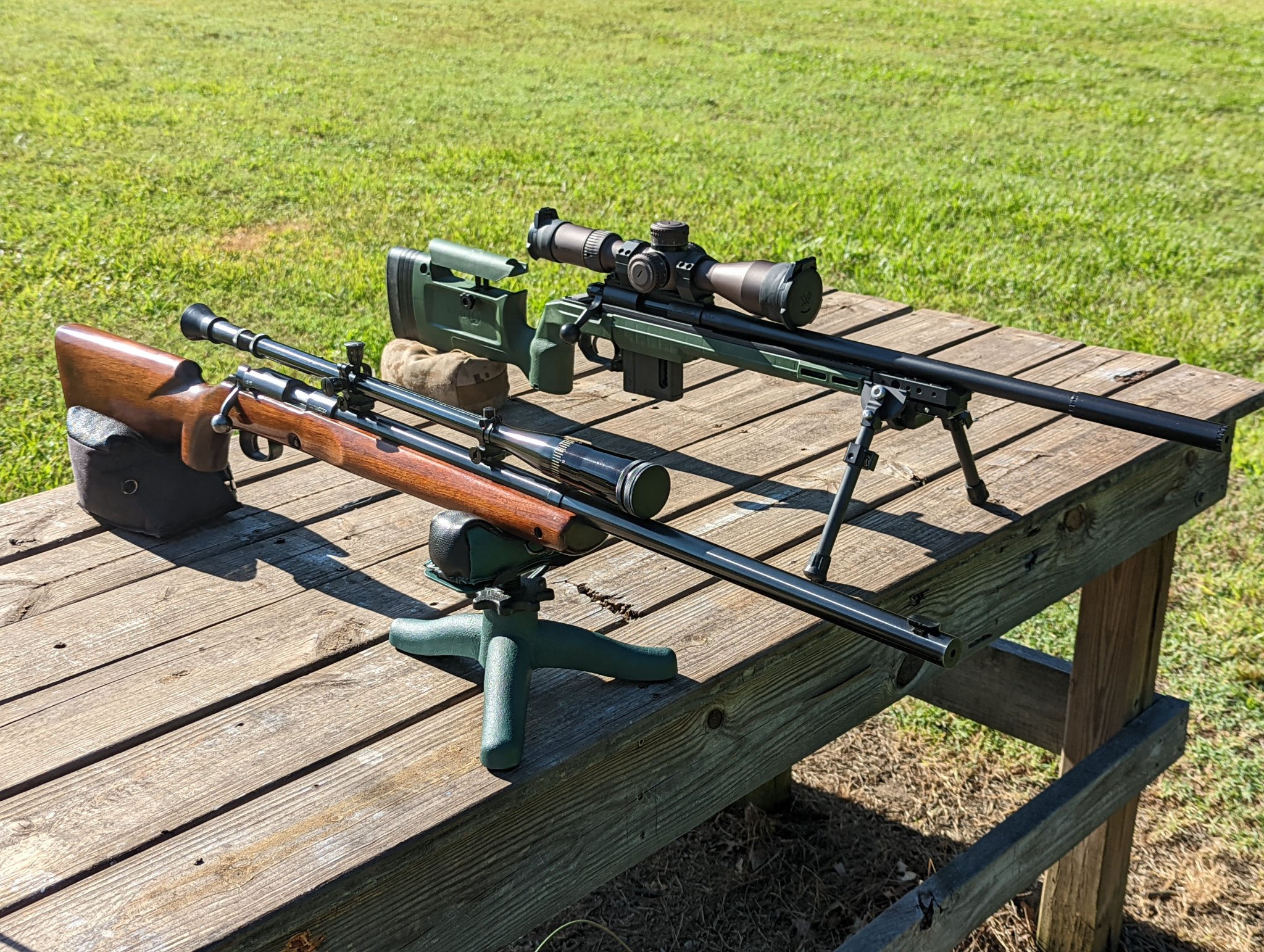

Old school vs new school... Winchester 52B with Lyman Super Targetspot 15X & Vudoo 360 with Razor Gen 2 3-18 and TacSol Axiom can
@oldrifleman I love the classic target scopes... Sure the new glass coatings and stuff are better but nothing fits an old target rifle like period correct glass!
Yeah,they just look right and many a great score was shot using them.
I have 12tw Lothar Walther barrels that I can supply for someone if they want it fitted by Vudoo.

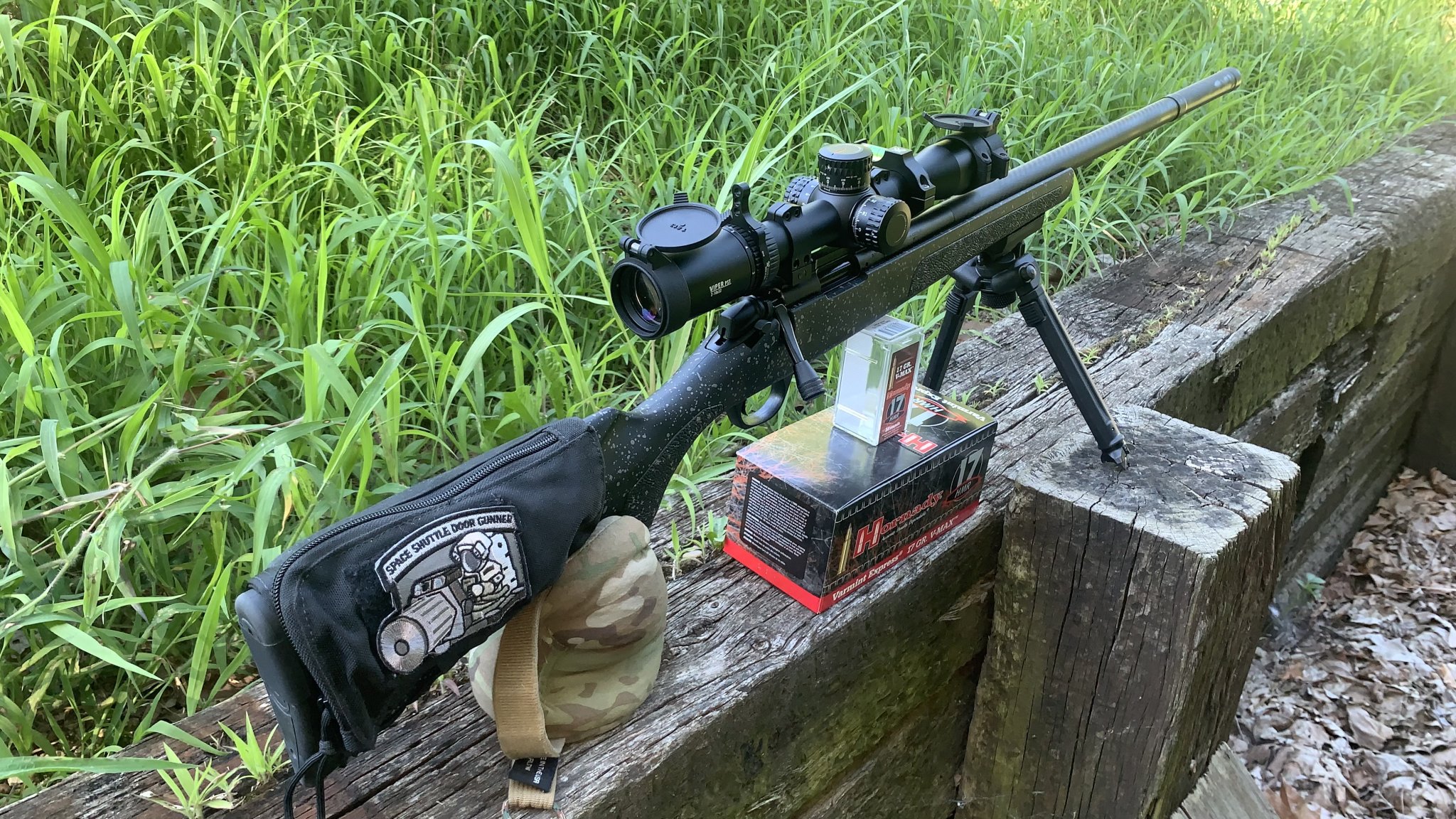

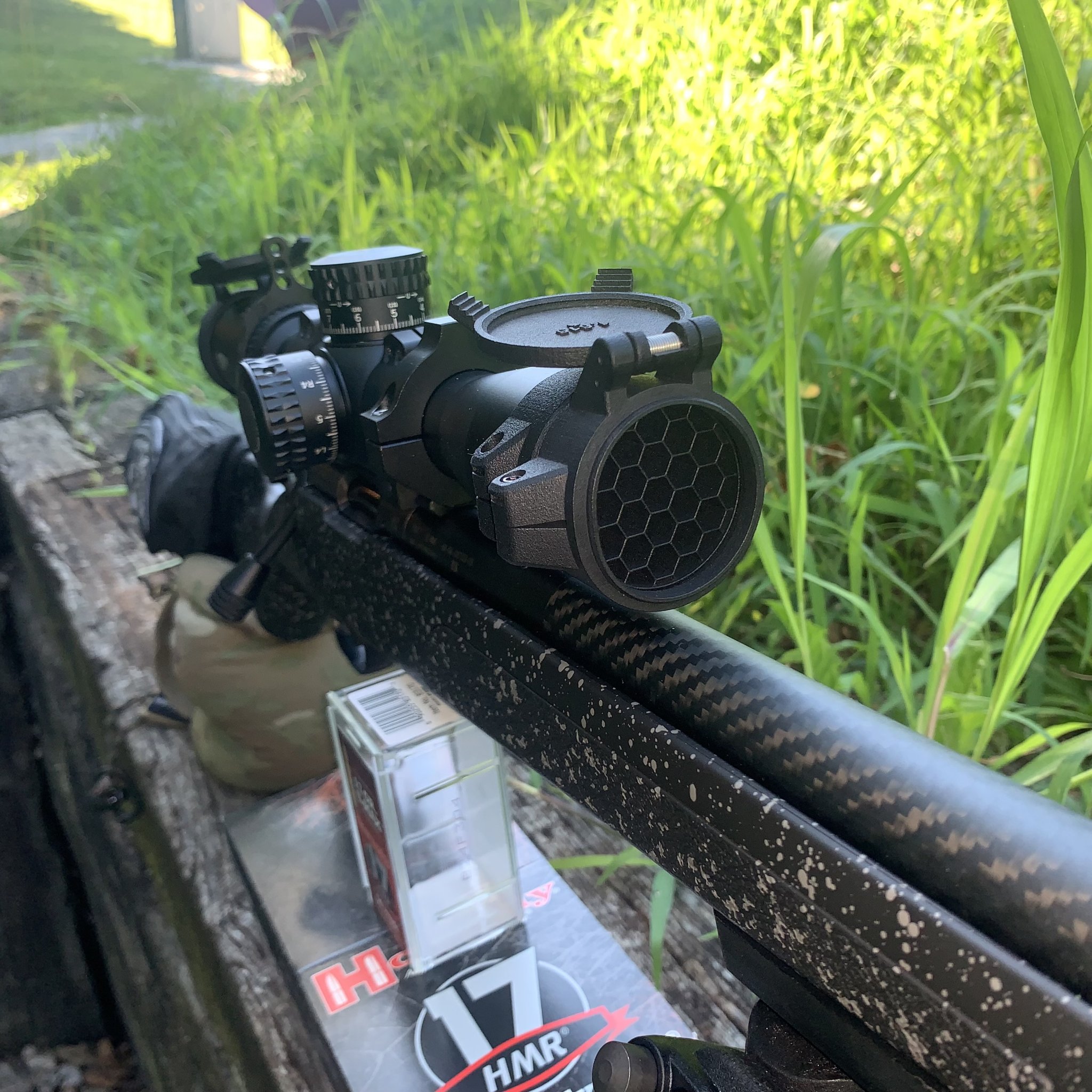

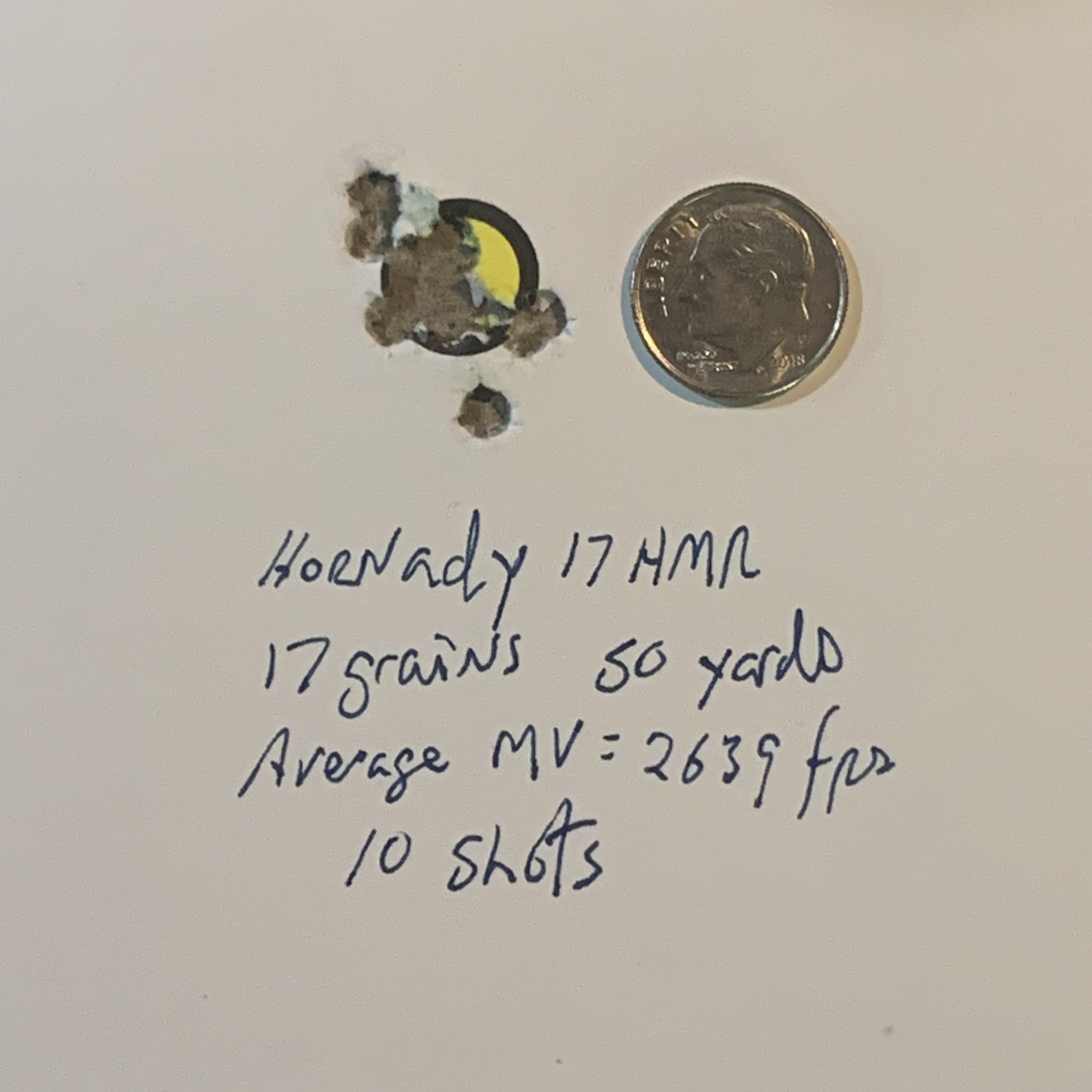

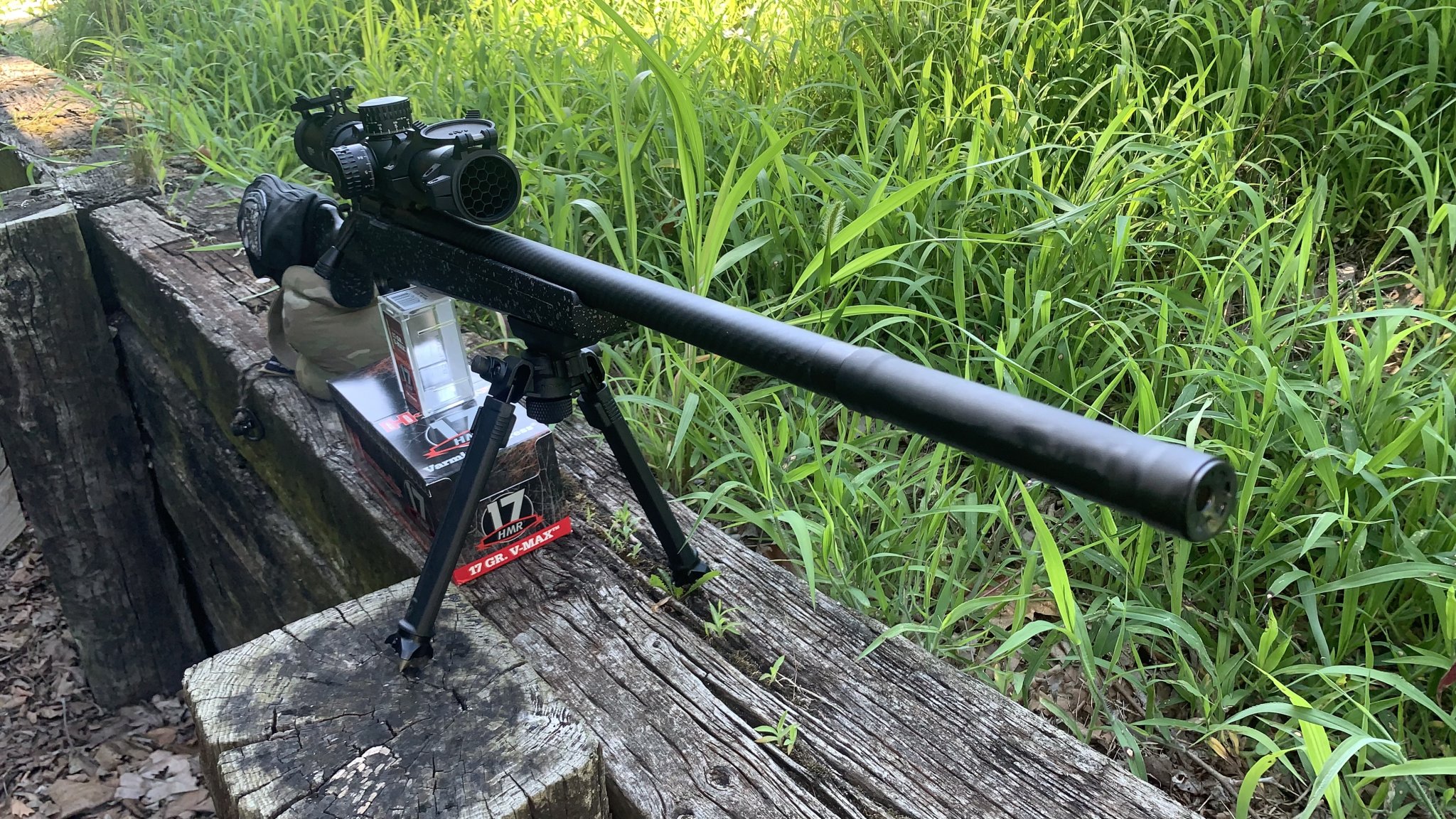

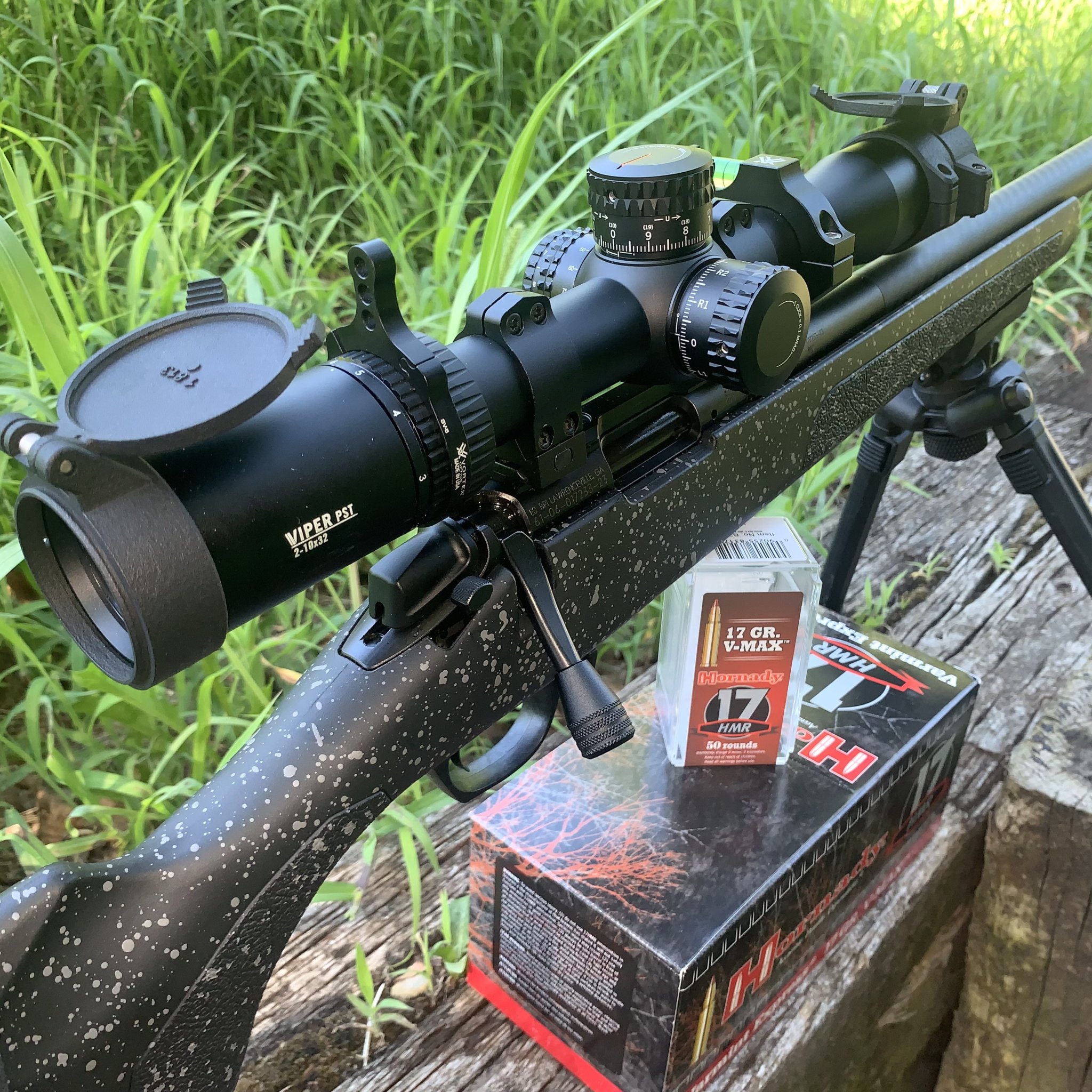

Just got this a few days ago and took it to the range on Sunday. Bergara BMR in 17 HMR.
The fliers are my fault. Still, I won't complain for a 10 shot group.
The fliers are my fault. Still, I won't complain for a 10 shot group.
| Range | Velocity | Energy | Trajectory | Come Up (MOA) | Come Up (MILS) | Wind Drift | Wind Drift (MOA) | Wind Drift (MILS) |
| 0 | 2642 | 263.0 | -1.6 | 0.0 | 0.0 | 0 | 0 | 0 |
| 25 | 2481 | 232.0 | -0.6 | 2.3 | 0.7 | 0 | 1 | 0 |
| 50 | 2327 | 204.0 | 0.0 | 0.0 | 0.0 | 1 | 1 | 0 |
| 75 | 2179 | 179.0 | 0.2 | -0.2 | -0.1 | 2 | 2 | 1 |
| 100 | 2036 | 156.0 | -0.1 | 0.1 | 0.0 | 3 | 3 | 1 |
| 125 | 1898 | 136.0 | -0.9 | 0.7 | 0.2 | 5 | 4 | 1 |
| 150 | 1767 | 118.0 | -2.3 | 1.4 | 0.4 | 7 | 4 | 1 |
| 175 | 1643 | 102.0 | -4.4 | 2.4 | 0.7 | 10 | 5 | 2 |
| 200 | 1526 | 88.0 | -7.3 | 3.5 | 1.0 | 13 | 6 | 2 |
| 225 | 1417 | 76.0 | -11.1 | 4.7 | 1.4 | 17 | 7 | 2 |
| 250 | 1319 | 66.0 | -16.0 | 6.1 | 1.8 | 22 | 8 | 2 |

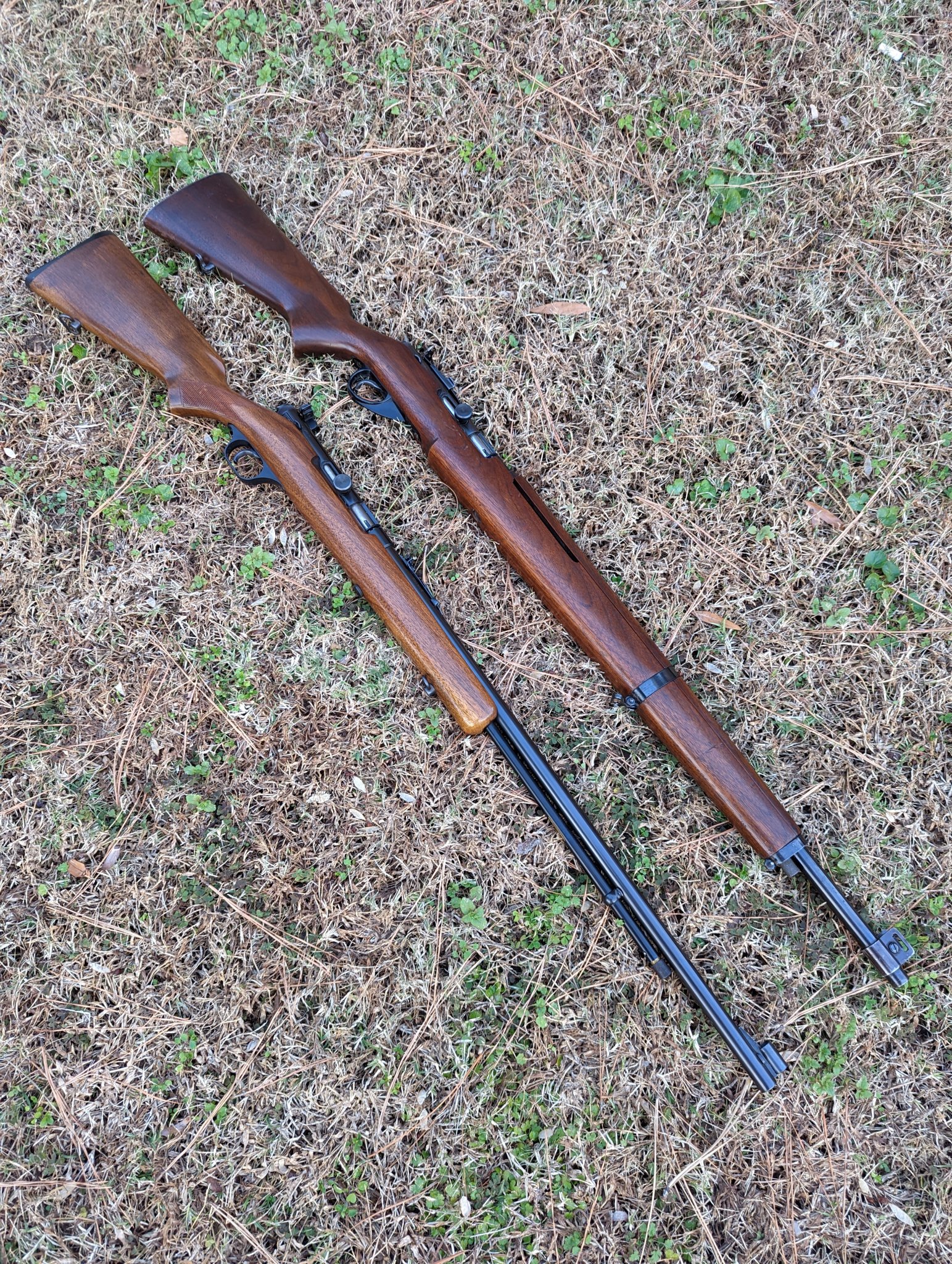

Not really precision rimfires but here's a couple you might not see everyday...

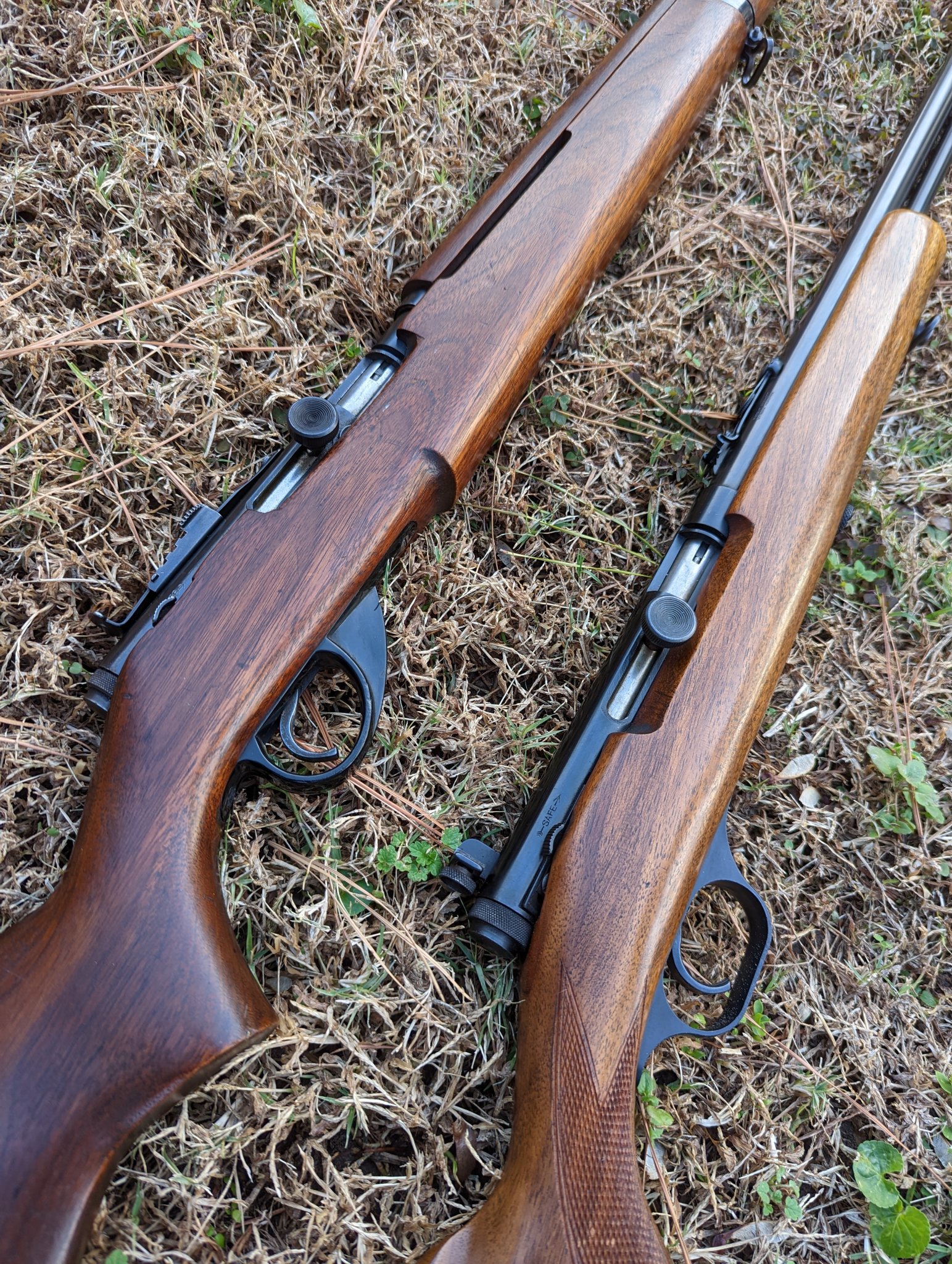

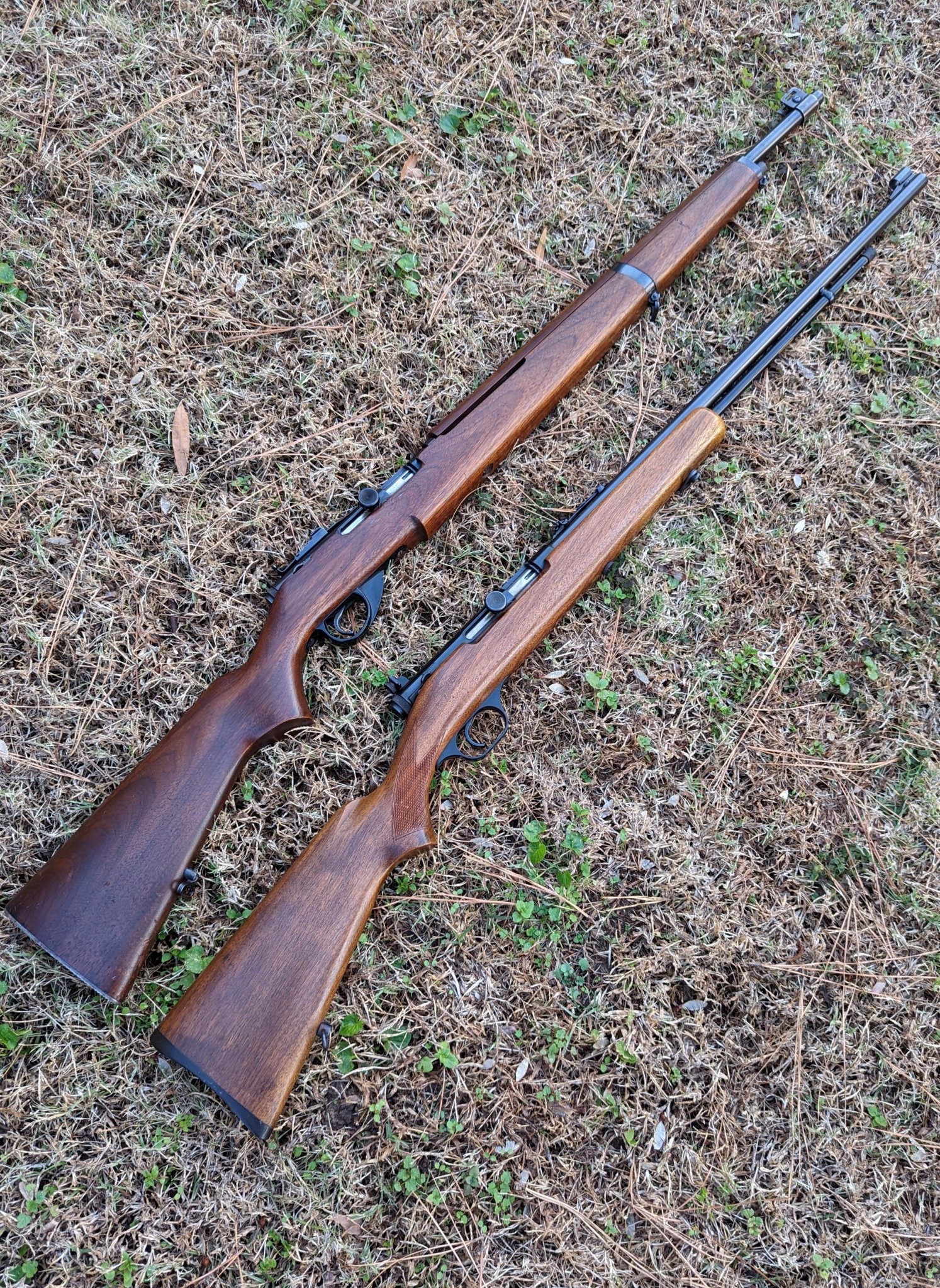

Ranger 101.22 (aka Springfield 87M) "the Garand trainer that could've been" lol
Pre War Savage model 6S (factory peep sight model)
Ranger 101.22 (aka Springfield 87M) "the Garand trainer that could've been" lol
Pre War Savage model 6S (factory peep sight model)
Attachments

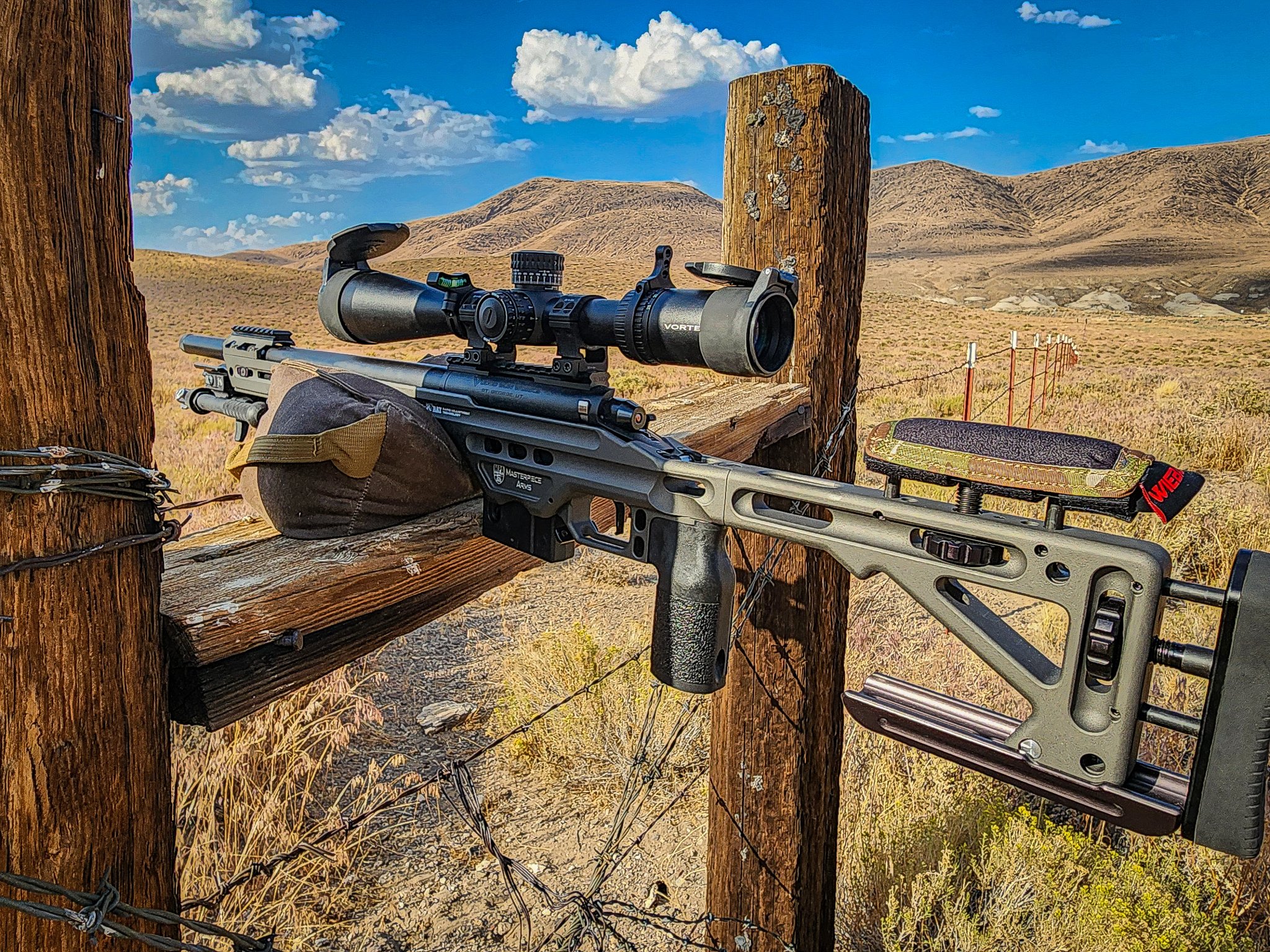

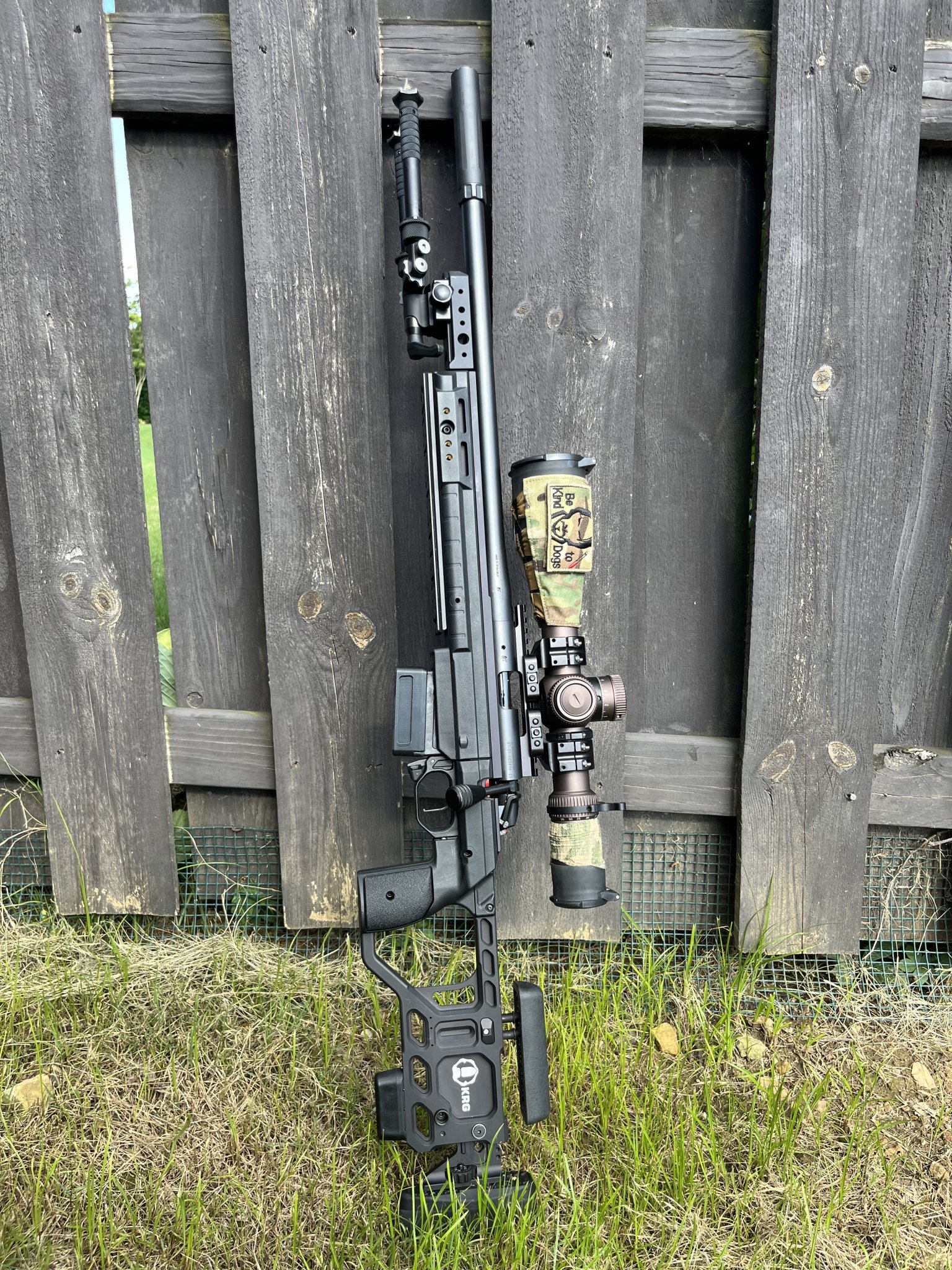

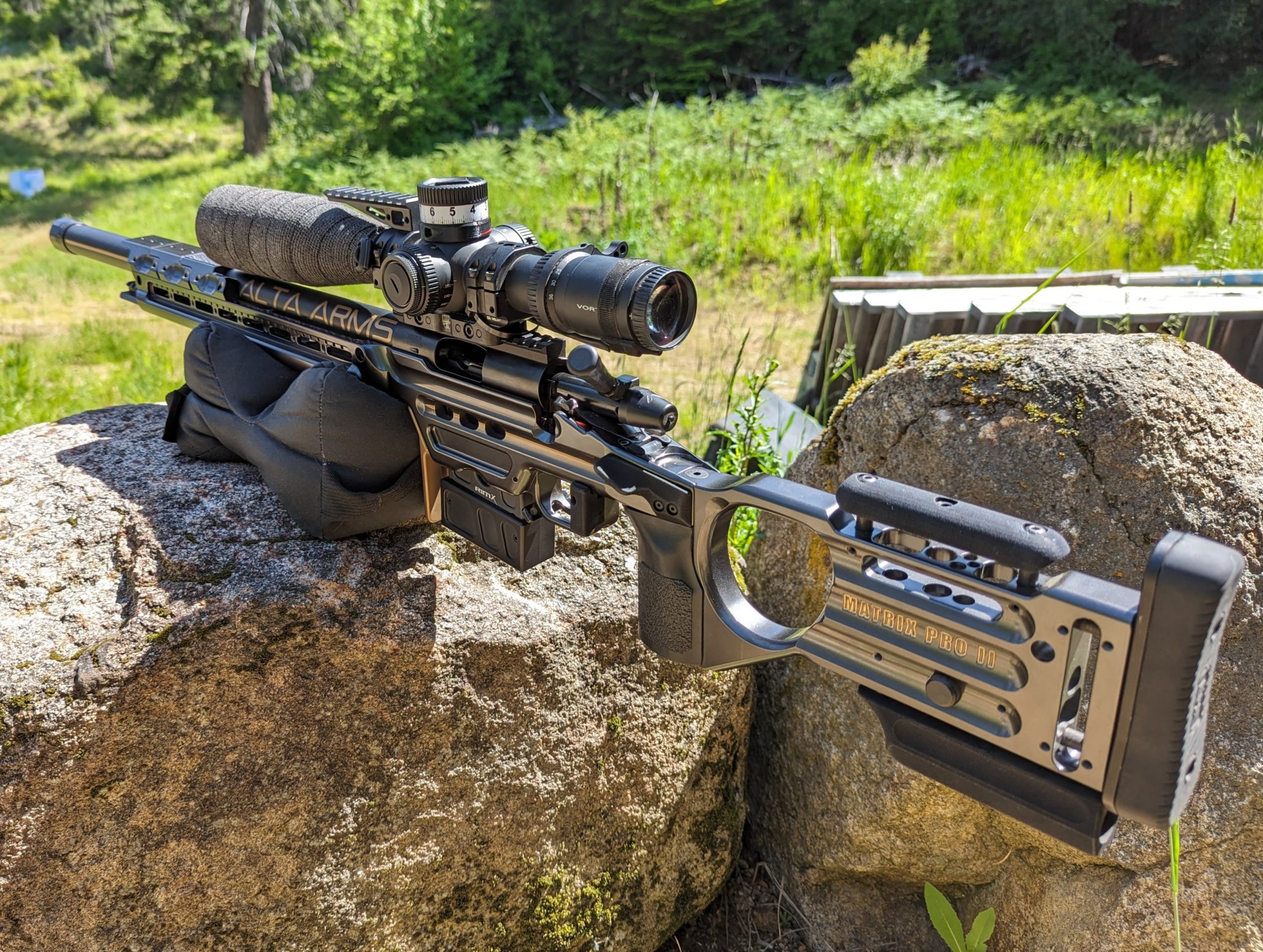

New MPA rimfire elite in a matrix pro 2 chassis and a Zeiss lrp s3 6-36x56
It does the job for a 22 or a low recoiling rifle but coming from using accu-tac on my other rifles. Its definitely a step down.

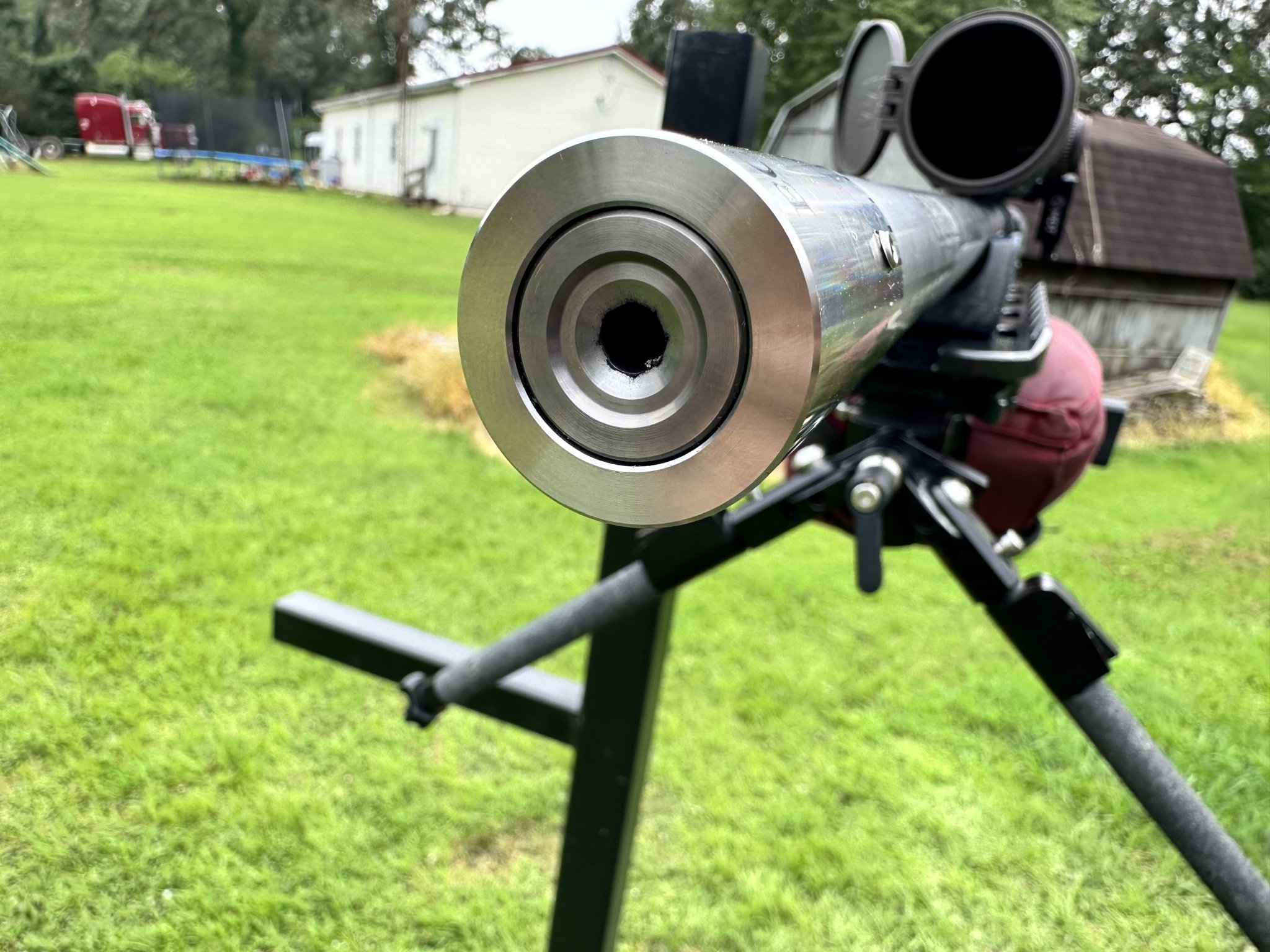

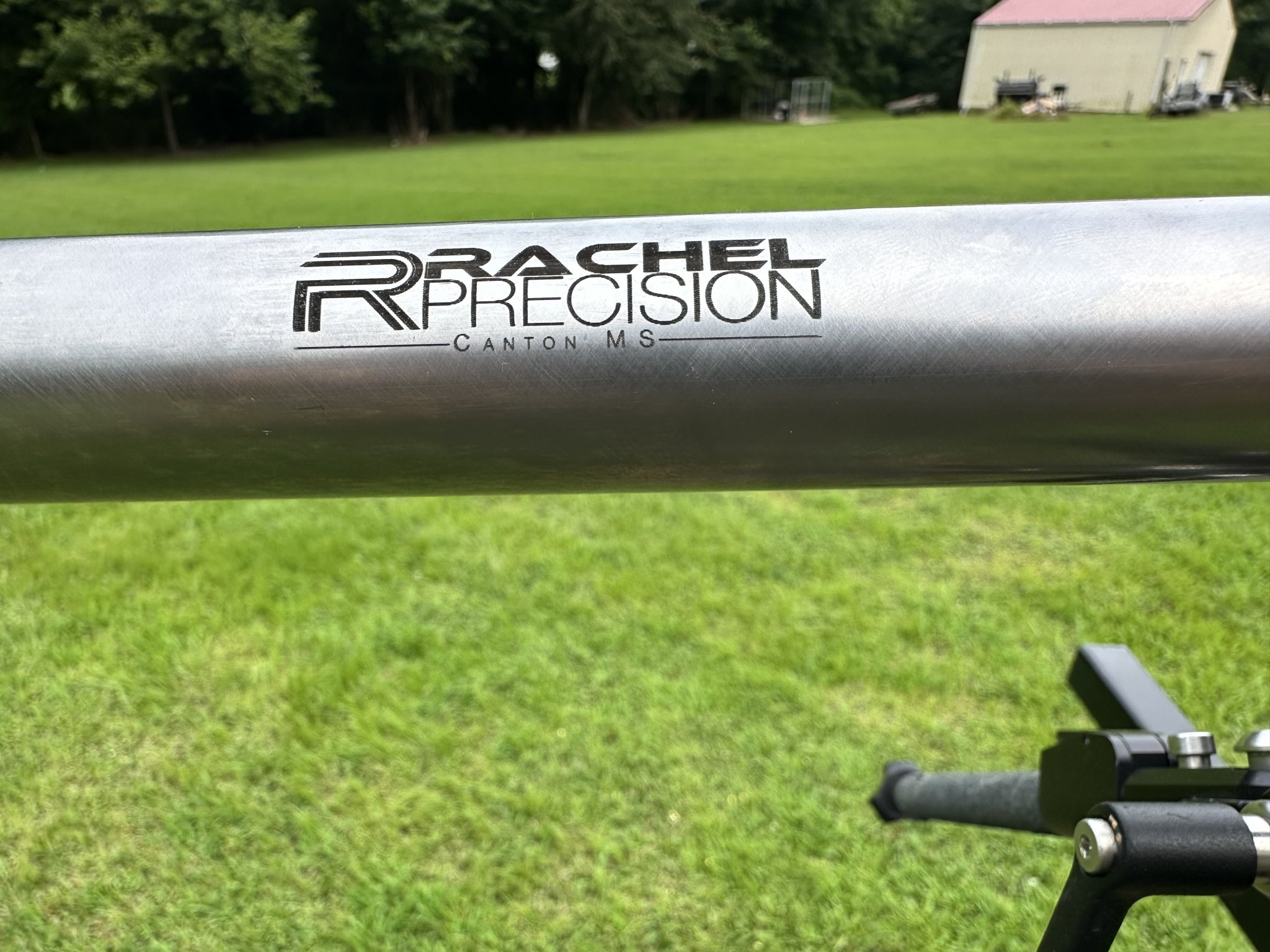

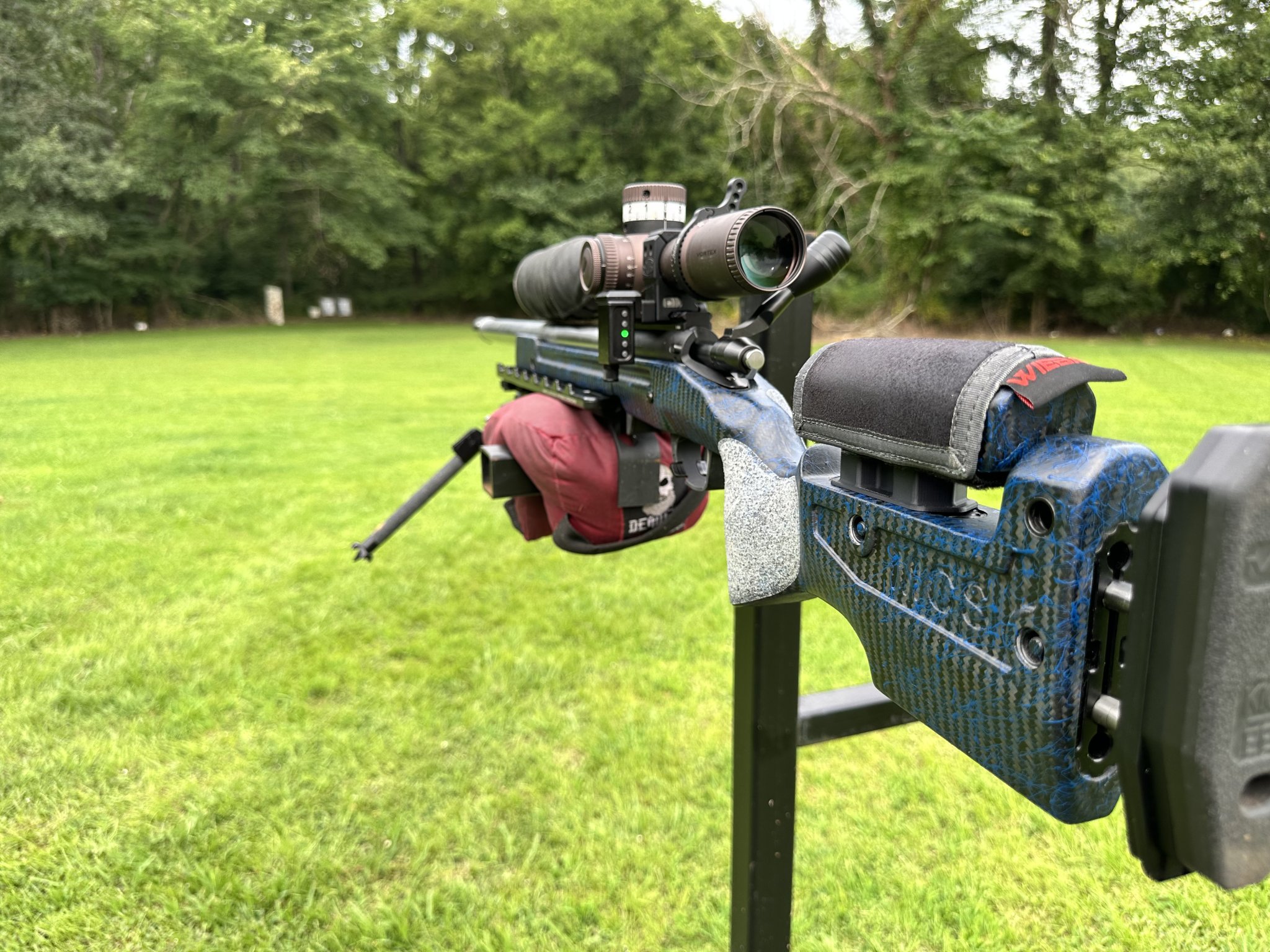

Just had a Gen1 Vudoo built by Rachel Precision. This thing is beautiful and shoots amazing with just random lots of ammo I had at the house.
Build Info
Gen 1 Vudoo Action

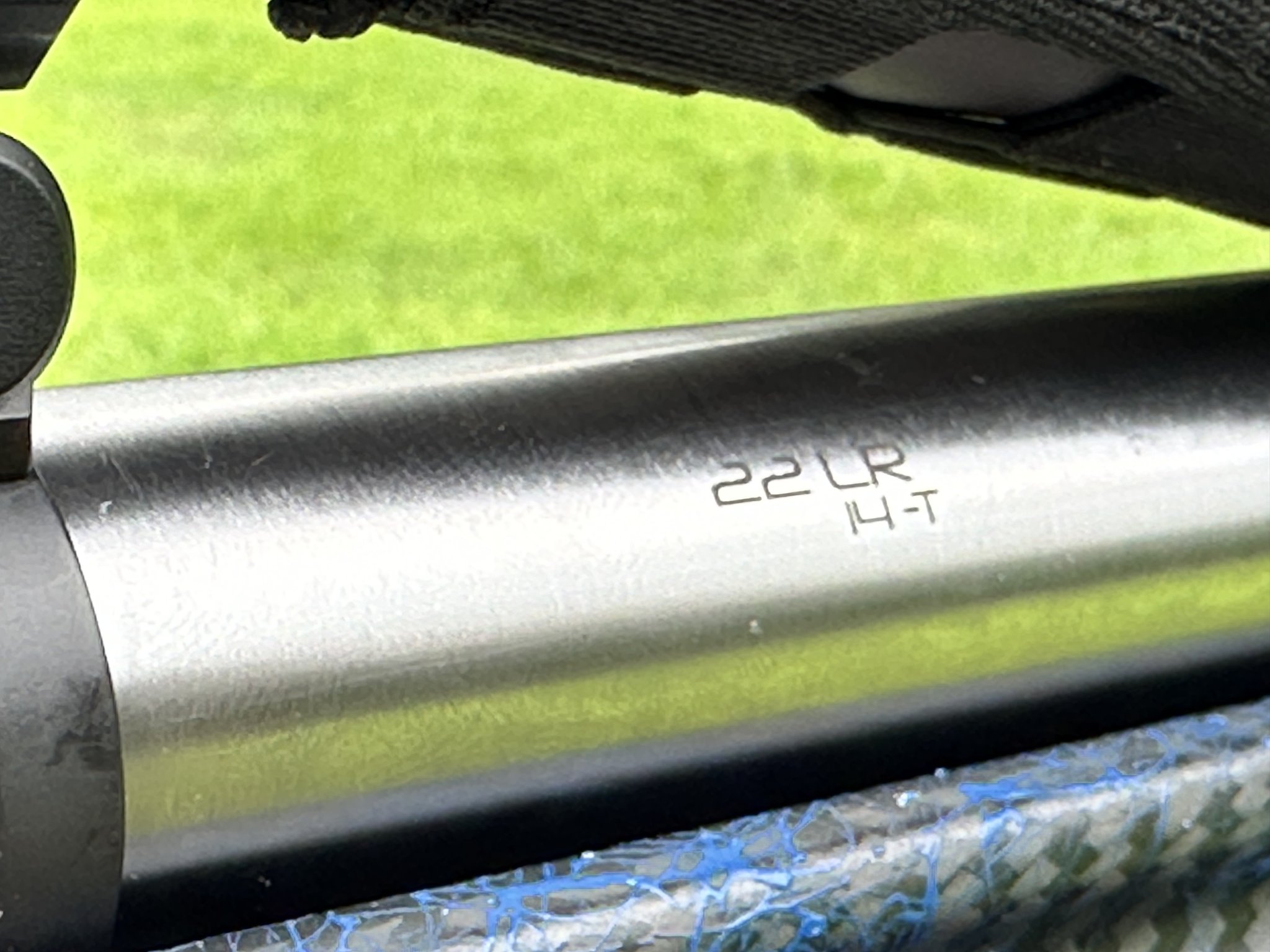

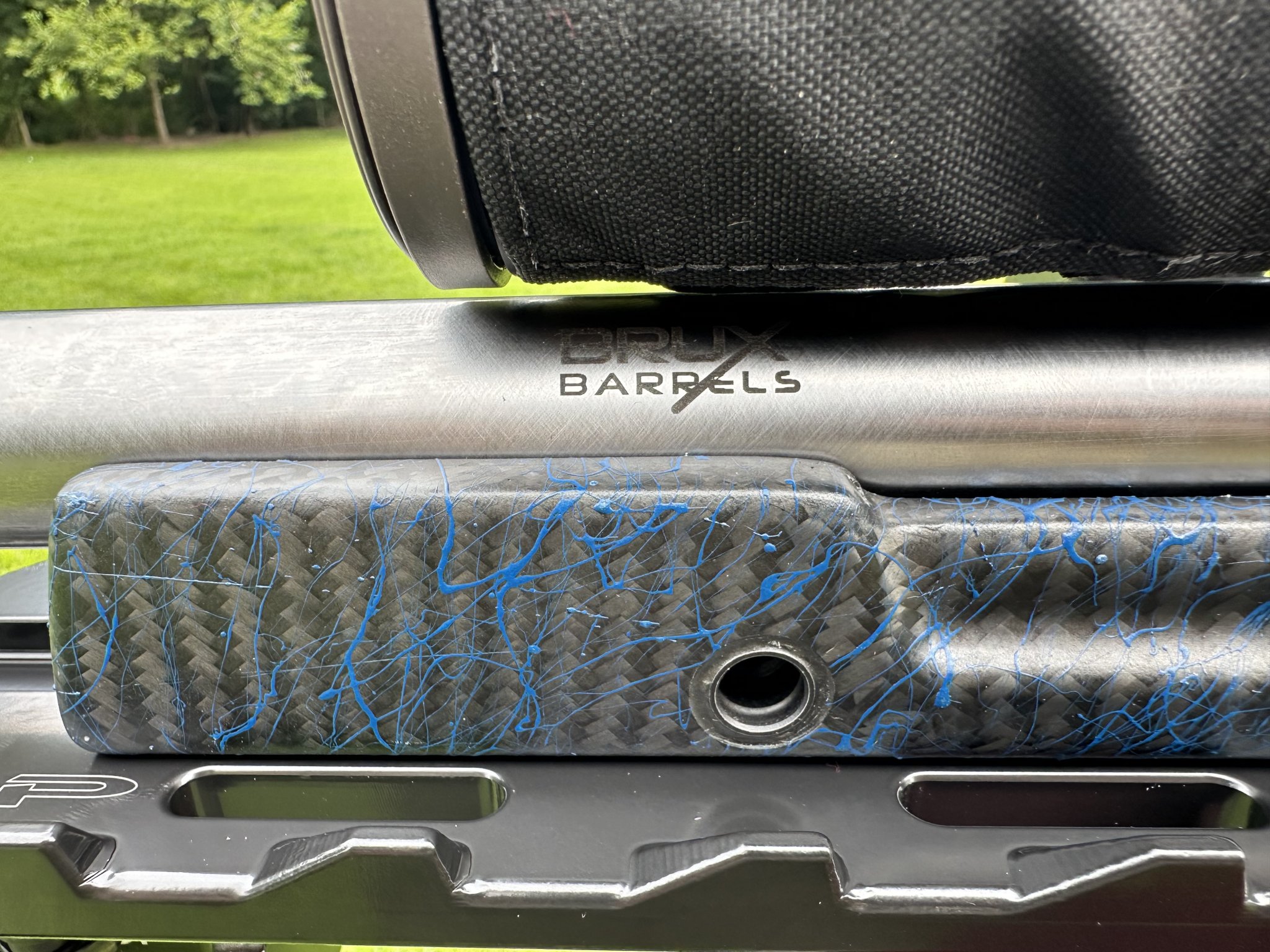

25" Brux 14 twist barrel
Gen 1 Straight EC Tuner
Build Info
Gen 1 Vudoo Action
25" Brux 14 twist barrel
Gen 1 Straight EC Tuner
Yes Sir groups are at 50y. I will get to stretch it out Friday afternoon while setting up for my club match.

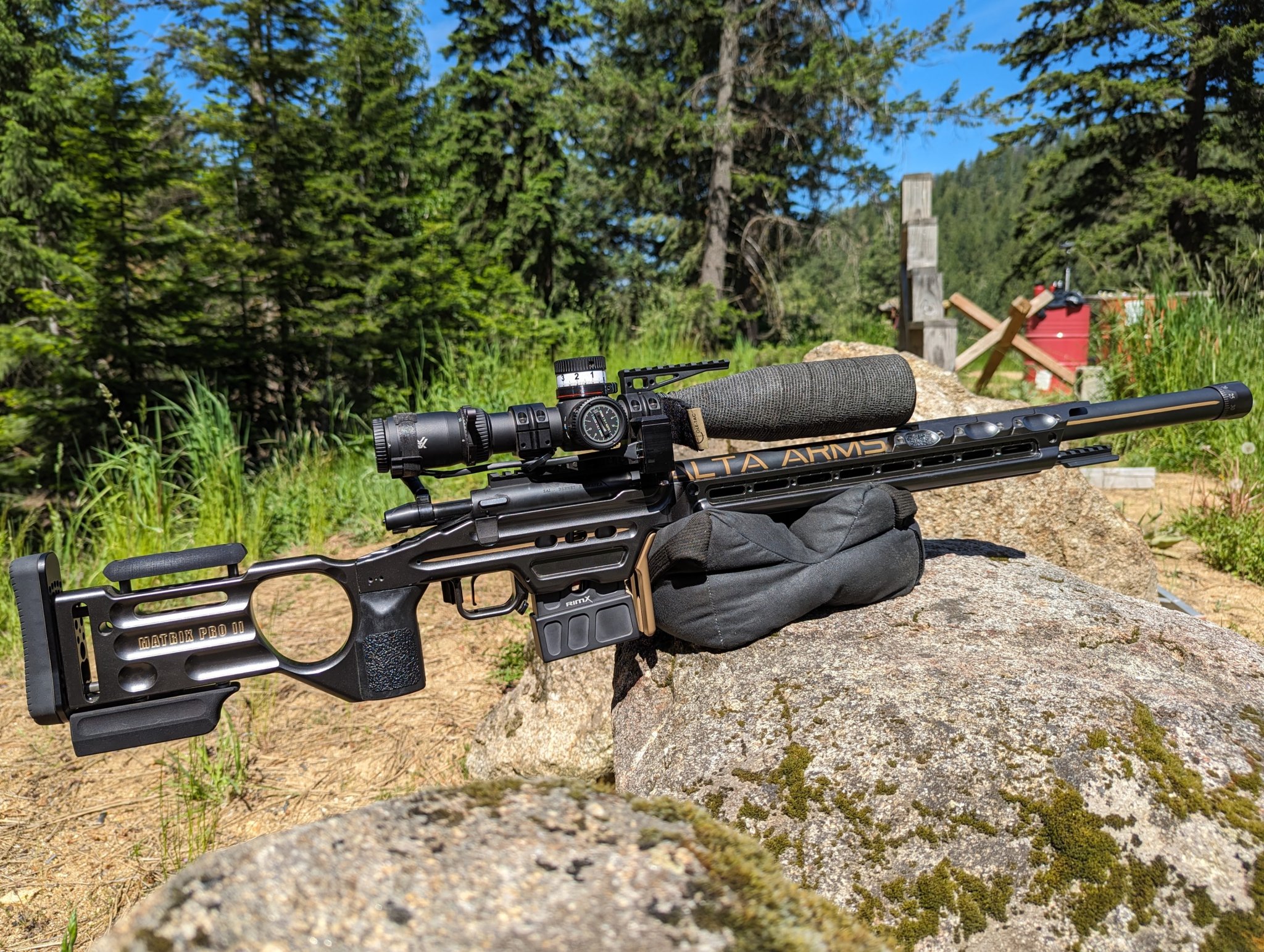

Alexander Arms .17hmr. This thing is an absolute blast to shoot!
It would be fun to have a pair like this and shoot both in practice matches against each other. However, I would be afraid I would put a mark on the Winchester.
@Overwatch260 ’s rilfles
Attachments
Nice! Please tell me a little more about your rifle. What is the barrel length and profile?
Had to break out the 40X Build last night and shoot a few small groups.
The Newely Built ModX from @jelrod1 . She is a dream to shoot as well.
The Newely Built ModX from @jelrod1 . She is a dream to shoot as well.

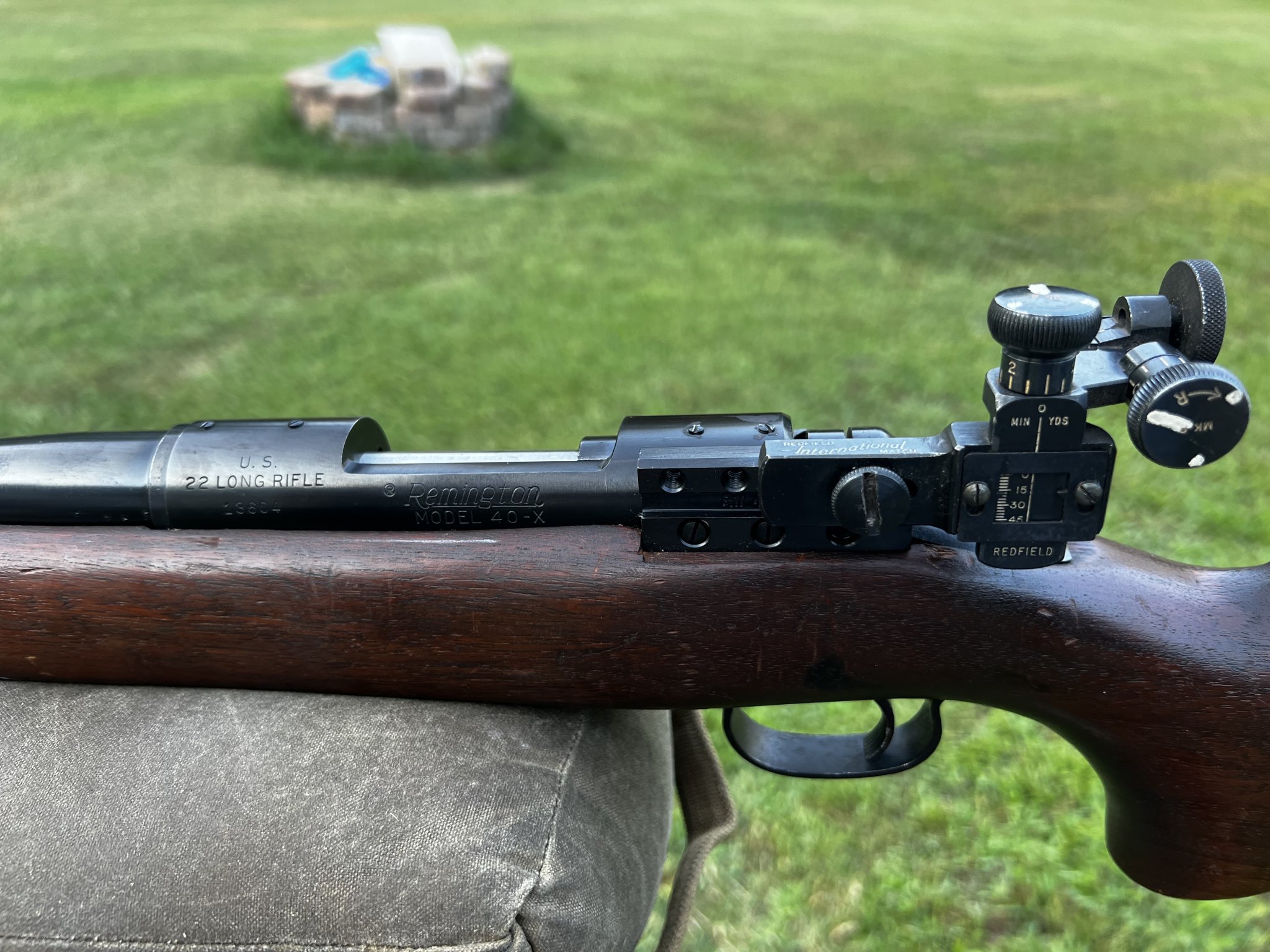

The Pacific Tool & Gauge has their own Remington 40X copied actions. They are fairly nice and work well. Mine above is a TRUE Remington 40X (722) Navy trainer from 1964 converted to repeater and using the PT&G Bolt assembly. Here is a picture of it before the conversion.

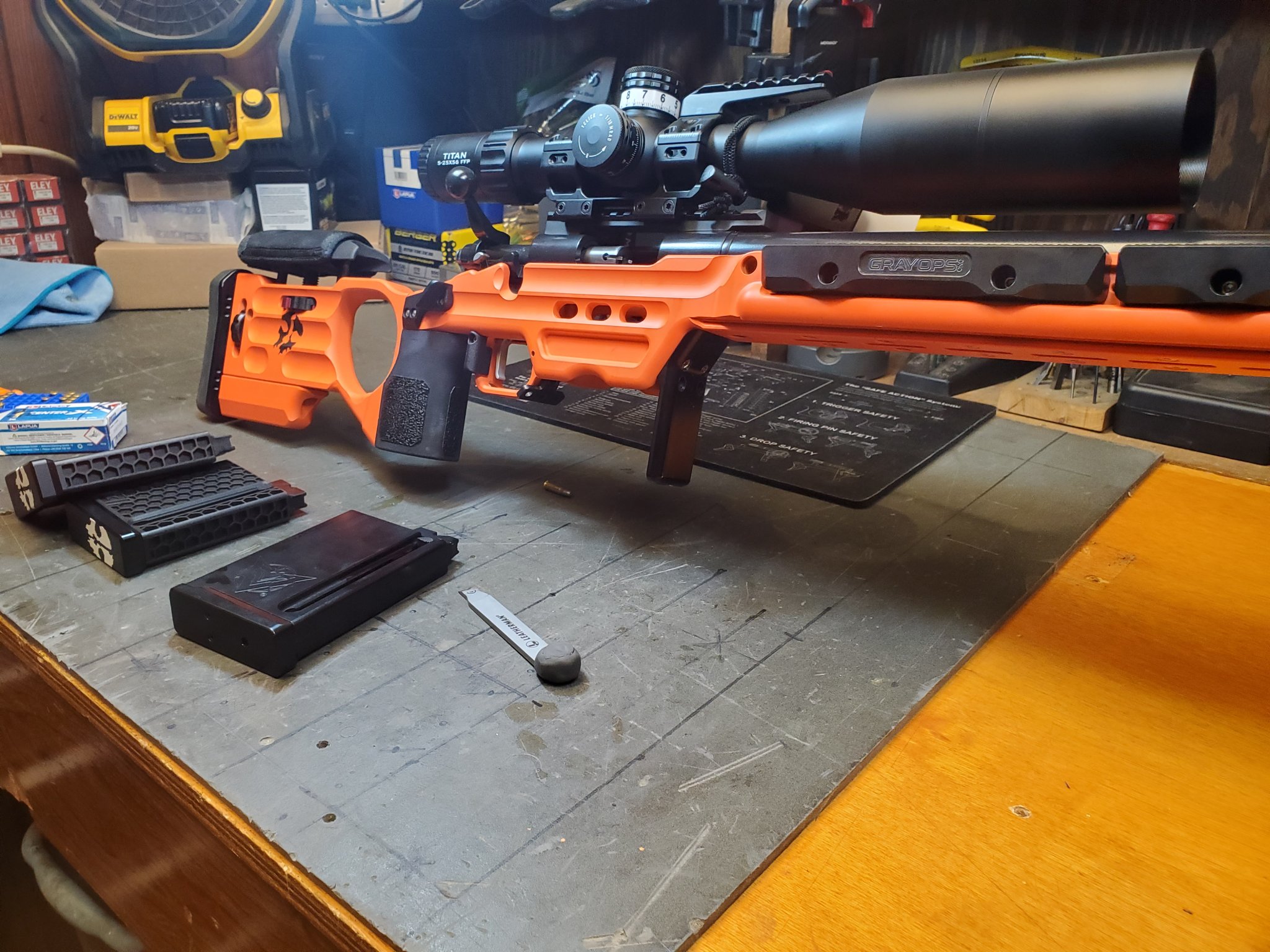

This is my first 40x fresh from modcam for his repeater magic and added a 13T MW barrel, the chassis is just back from shortbus for the paint.
Got it all put together and the scope level out and off to do some test shooting. I must say the first batch of center x was a hit. Modcam and shortbus are 2 of the best in there fields..

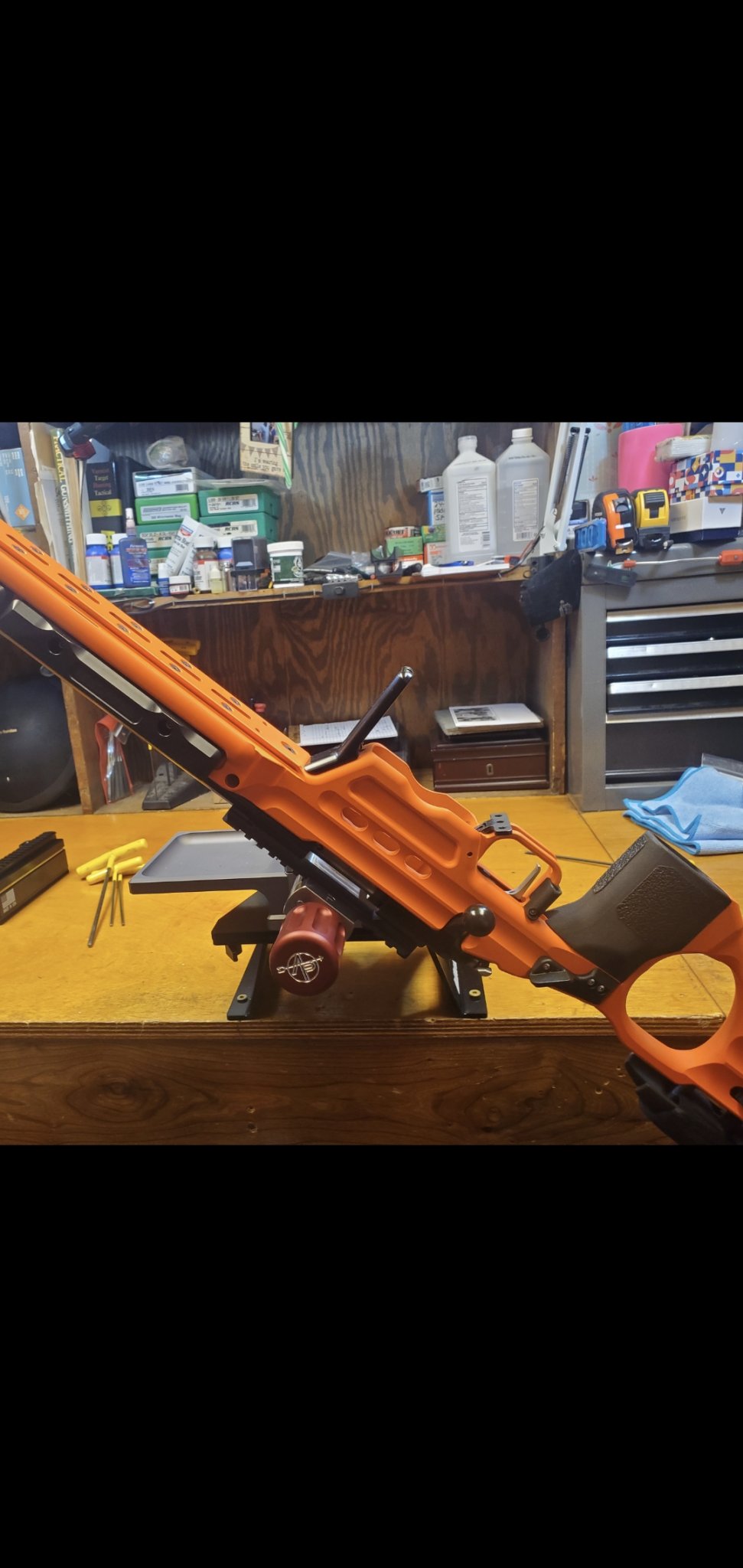

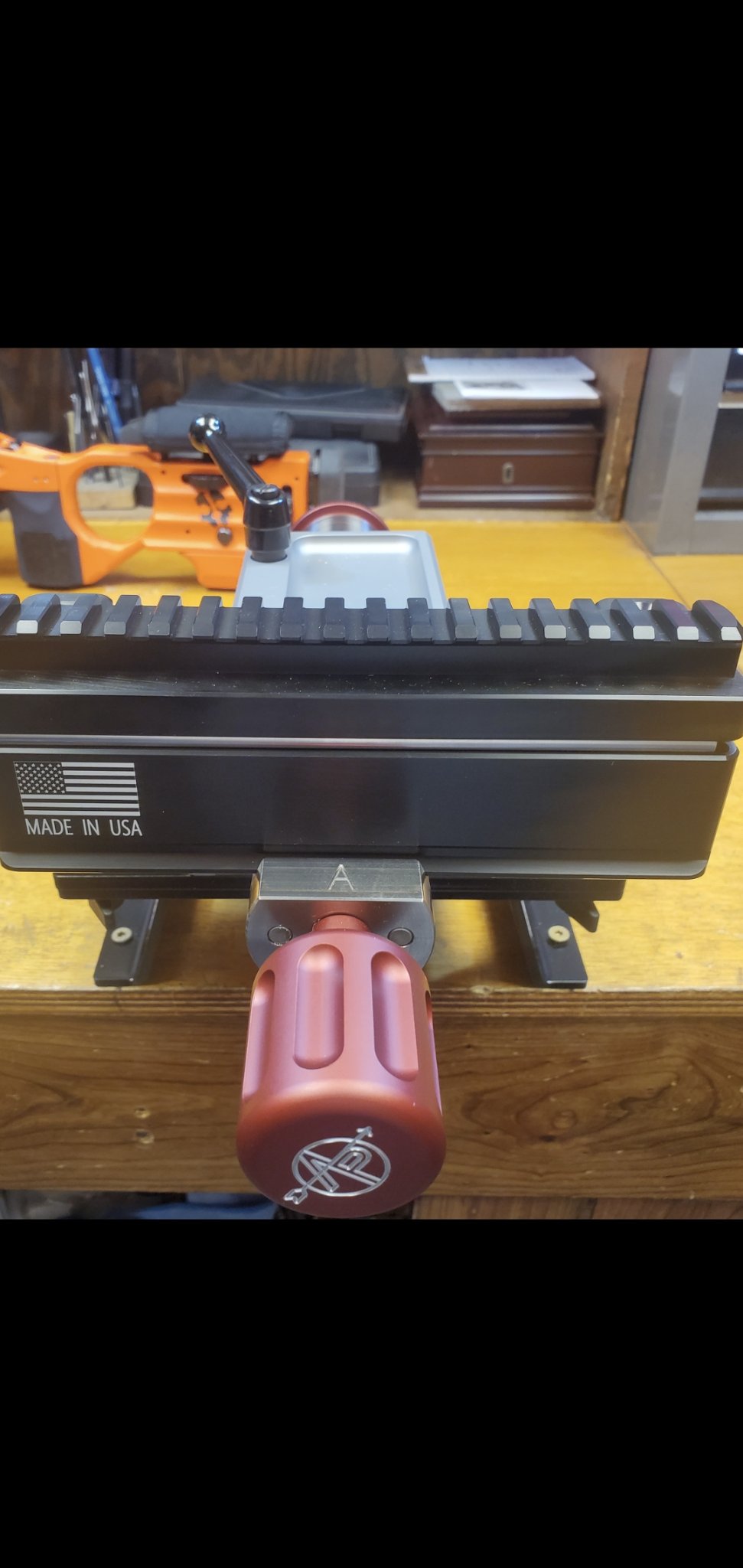

I do love the rock vise from arrow products. This is a very very nice bench vise.. It locks tight and holds the 26 pound rifle with ease. Then when I wanted to find the balance point I could just loosen it up and move rifle in the chuck until the sweet spot was found..

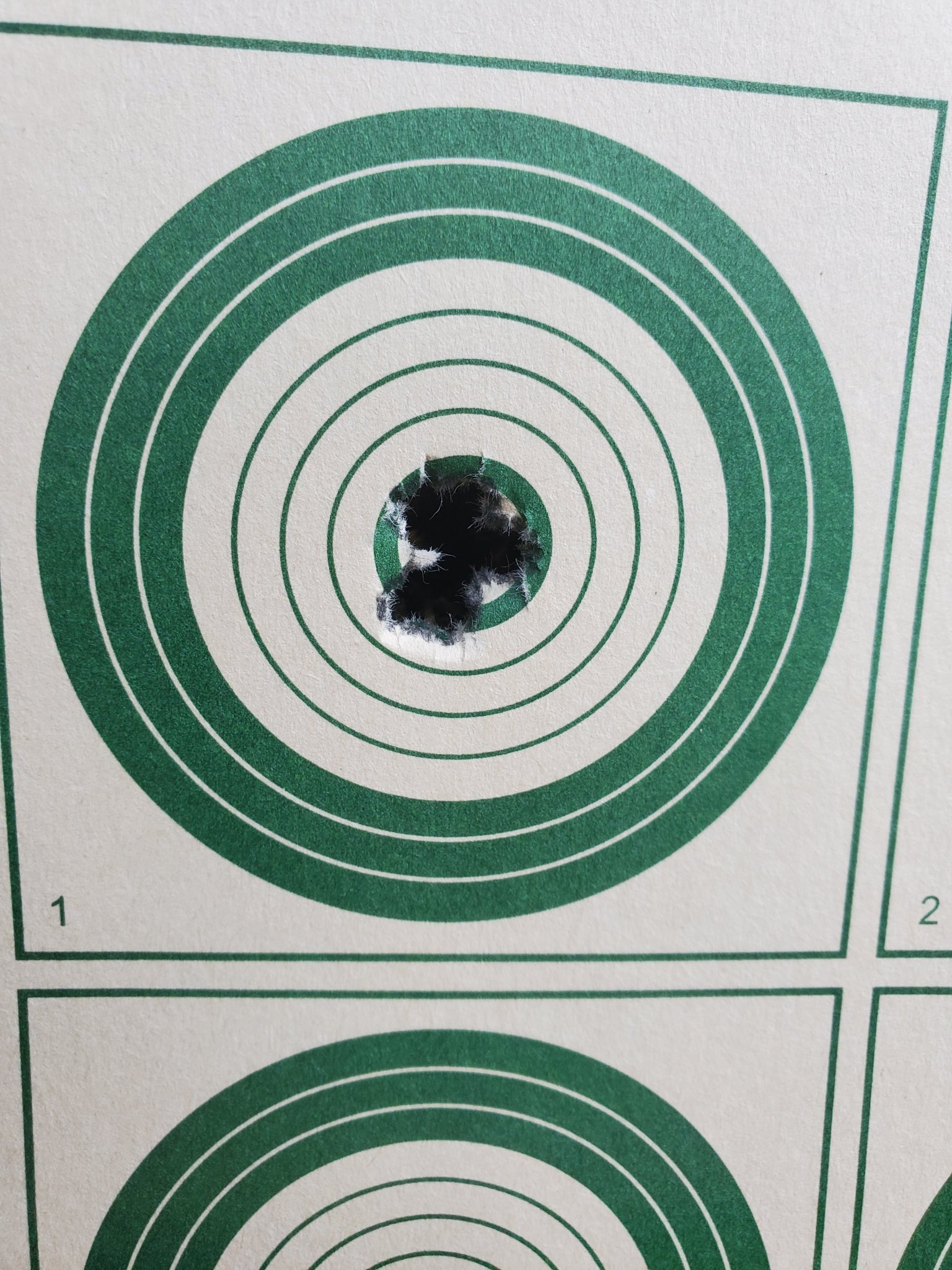

These was shot of a porch rail with a GC @50.
Got it all put together and the scope level out and off to do some test shooting. I must say the first batch of center x was a hit. Modcam and shortbus are 2 of the best in there fields..
I do love the rock vise from arrow products. This is a very very nice bench vise.. It locks tight and holds the 26 pound rifle with ease. Then when I wanted to find the balance point I could just loosen it up and move rifle in the chuck until the sweet spot was found..
These was shot of a porch rail with a GC @50.
Last edited:
Awesome Build Dude!! Johnathan is a wizard with the 40X's. Buy some LONG magazine springs for those metal vudoo mags from Hoz & Shield. It will make them 100% reliable.
Dont be afraid to run some hotter Eley out of it!!
On another note I need a link to that vice!!.
10-4, the metal mags would not work, the feed lips was to short. That is the only mags I had troubles with so went with the L3i and hope I can get some of the new L3I mags that's close to market.. I hope...
This vise rocks.. one of the top 3 gun related items I use
www.arrowproductsusa.com
This vise rocks.. one of the top 3 gun related items I use
Rock Vise Precision Firearm Vise
The one and only Rock Vise! Made in the USA! The Rock Vise (patent-pending) is a compact gun vise made from premium components and designed for the discerning buyer. Combine a full 360 degree rotation with zero movement and rock solid stability. See our "Why Rock Vise" page for what makes...
www.arrowproductsusa.com
Last edited:
Yes. Thank you for the lecture. Rim40x is a shortened term for rimfire 40x.
Call it whatever you like but PT&G calls it a Remington 40X rimfire action repeater...nowhere is it called a Rim40X
Bergara B14R
IBI barrel
TT Diamond
Athlon Cronus
IBI barrel
TT Diamond
Athlon Cronus
LOL, I saw this and immediately bought one. pretty slick10-4, the metal mags would not work, the feed lips was to short. That is the only mags I had troubles with so went with the L3i and hope I can get some of the new L3I mags that's close to market.. I hope...
This vise rocks.. one of the top 3 gun related items I use
Rock Vise Precision Firearm Vise
The one and only Rock Vise! Made in the USA! The Rock Vise (patent-pending) is a compact gun vise made from premium components and designed for the discerning buyer. Combine a full 360 degree rotation with zero movement and rock solid stability. See our "Why Rock Vise" page for what makes...
I have one of these. Pretty nice for not a lot of money.
Wish they made more aftermarket stuff, like stocks with adjustable cheek pieces.
Wish they made more aftermarket stuff, like stocks with adjustable cheek pieces.
My 9 year old son’s plinker.
The inside weights are cast lead in a custom mold that fits inside the fore end cutouts. Two of the screws that attach the arca rail are changed to longer screws and then threaded into the lead weight with a jam nut in a counter bore on top.
The side weights are drilled to match the front screw side panel spacing, counter sunk, covered with heat shrink and attached using longer flat head screws.
If I remember correctly, side weights are 10 oz, each and internal weight is 2 1/2 lbs. I can look up exact weight for internal if you need that info.
Hope this answers your question.
