What did you do in the reloading room today?

I have seen it written that 450 primers are slightly hotter, thicker and have less fliers?

I have only used 400's.
Any truth to those claims?
I have found lower SD's with 450's than the 400's. If you are shooting a larger capacity (over 35 grains of powder) SRP case, the 450's are definitely a better option. I use 450 primers for my 6 CM and 308 with Lapua SRP cases. My smaller 6BR variant cases all get BR4's.
Cheers

  • Like
Reactions: Snuby642

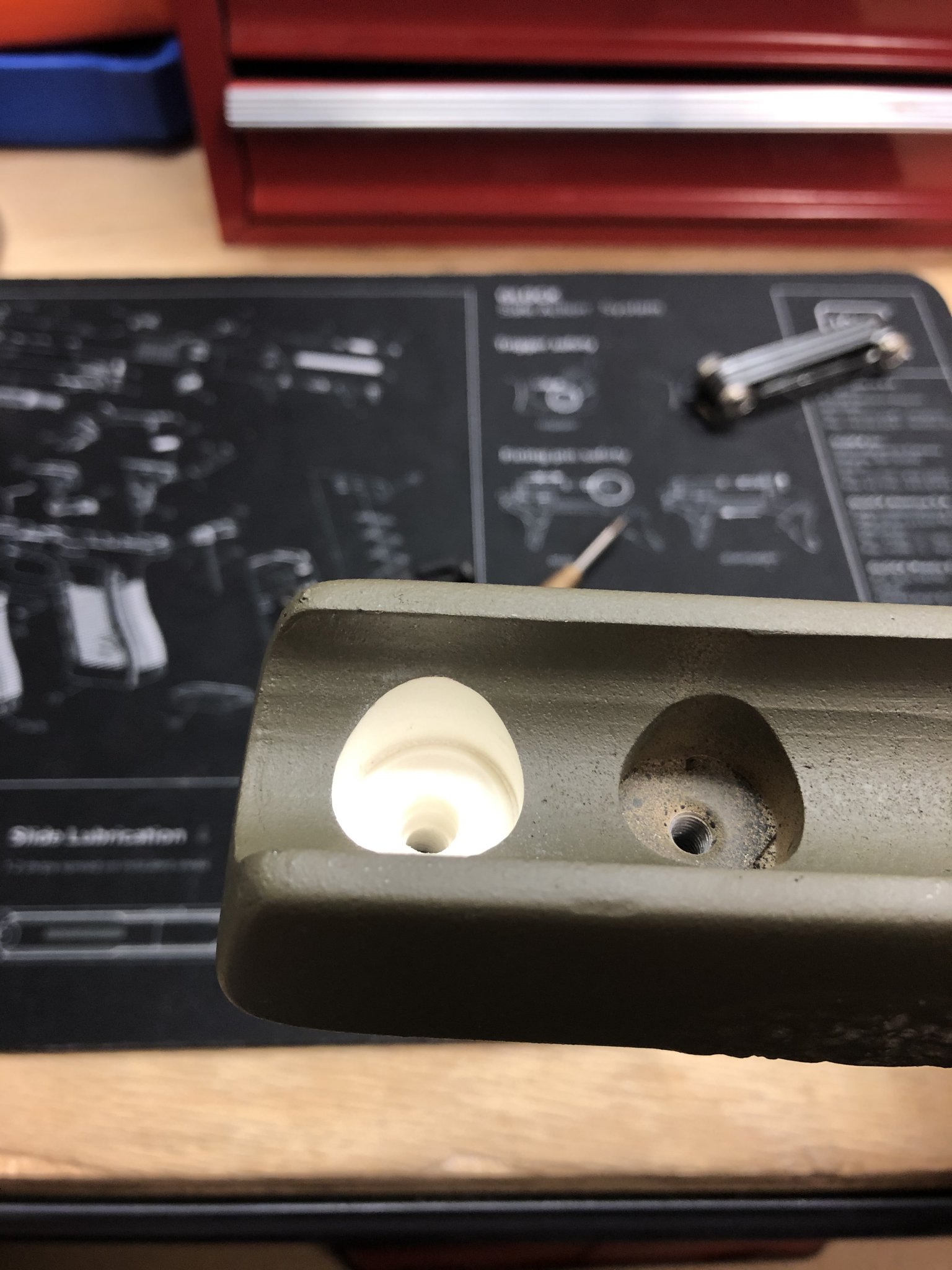

Adding a B&T rail to my new MCS EH-4. Got it mocked up, drilled, and realized I didn’t have any usable epoxy to set the T-nut, so it’ll have to be a 2-day project.

Now on to figuring out what caliber I want to fill it with. Thinking hard about a 20” 7mm-08 in #3B or Light Palma contour.

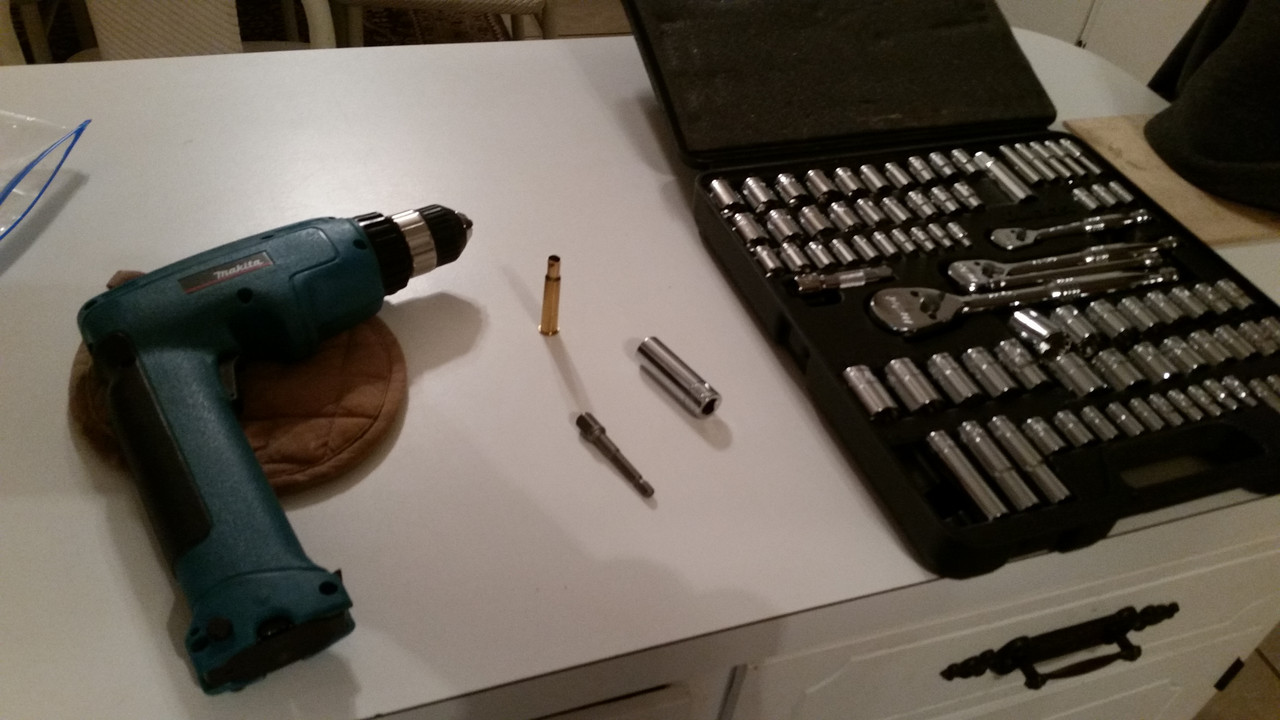

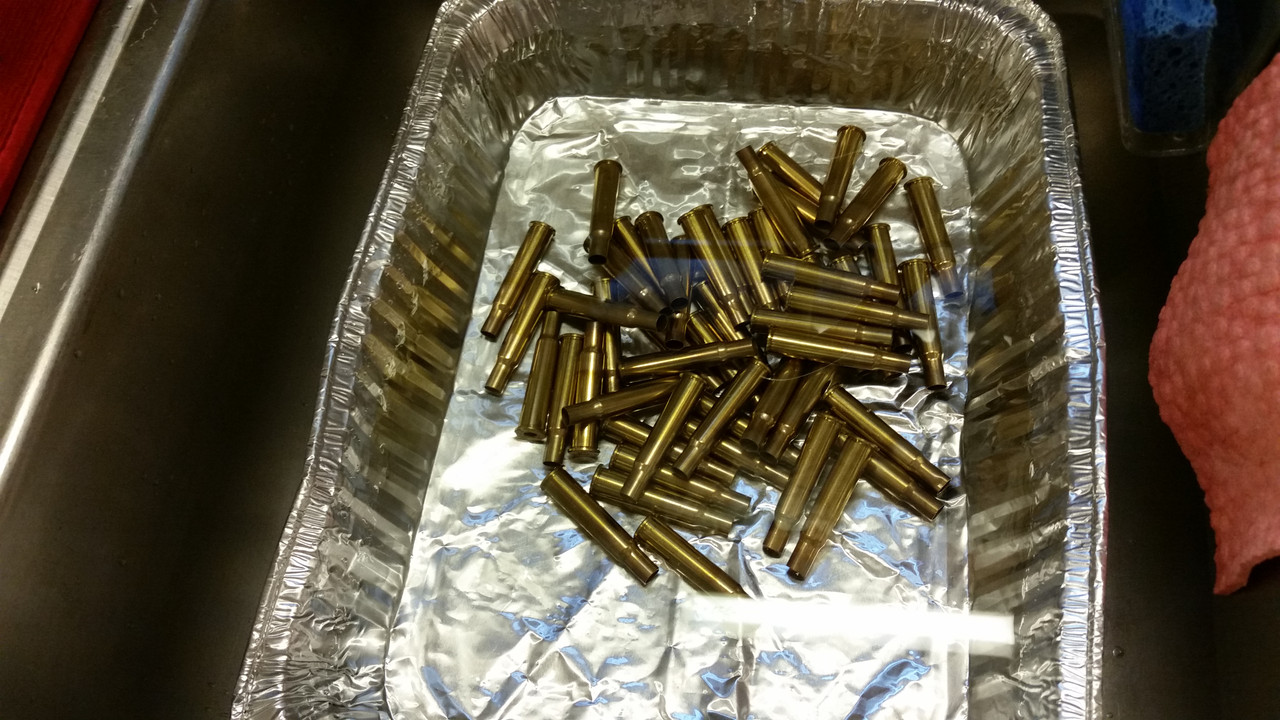

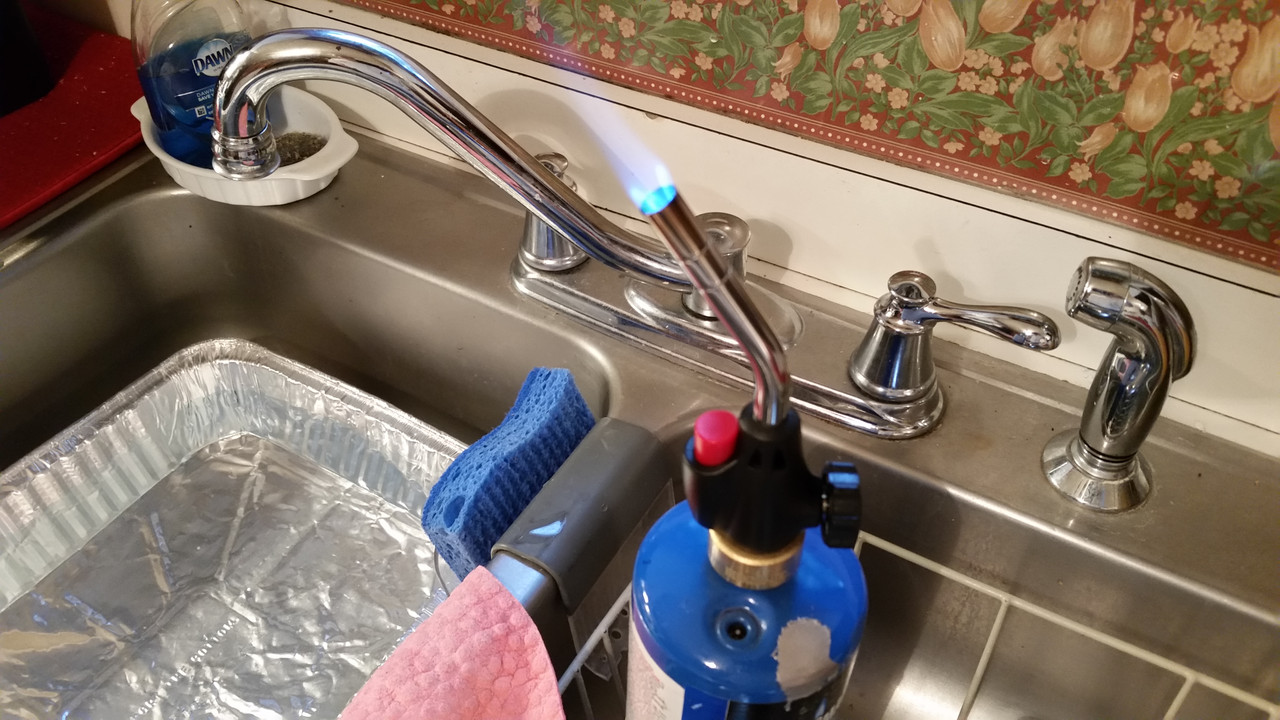

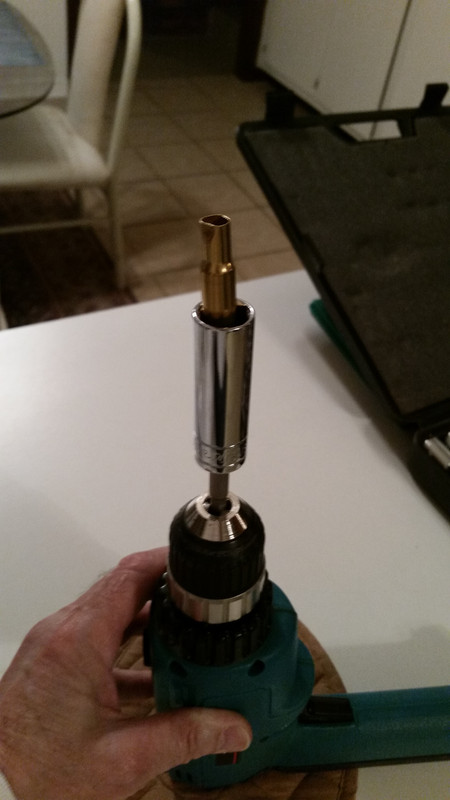

Started on getting the brass I'm using to form 40-70 Sharps Straight cartridges processed. I am using 30-40 Krag for the donor brass, I just got the dies in yesterday so time to anneal the necks and shoulders for fire forming so as to remove the bottleneck shoulder, and to resize the base down to the size of the sharps. I use a cordless drill and a socket to spin the case in front of a torch and then dump the case into a water bath. Then I dry them in the oven at 235 for one hour, I then lube and run them through the sizing die to get the base of the case sized to the dimensions of the Sharps case, then I'm forced to wait, which I hate. I will not be able to do the fire forming for the shoulder removal until I get the rifle back with the new chamber cut to the Sharps cartridge. Oh how I hate waiting for this type of work to be finished, I'm always so in a hurry to have these projects finished so I can go play with a new shooter.


Attachments

  • 20190713_091836.jpg
    157 KB · Views: 61
  • 20190713_091936.jpg
    58.5 KB · Views: 67
  • 20190713_092029.jpg
    244.2 KB · Views: 58
  • 20190713_093056.jpg
    264.7 KB · Views: 68
  • Like
Reactions: camocorvette

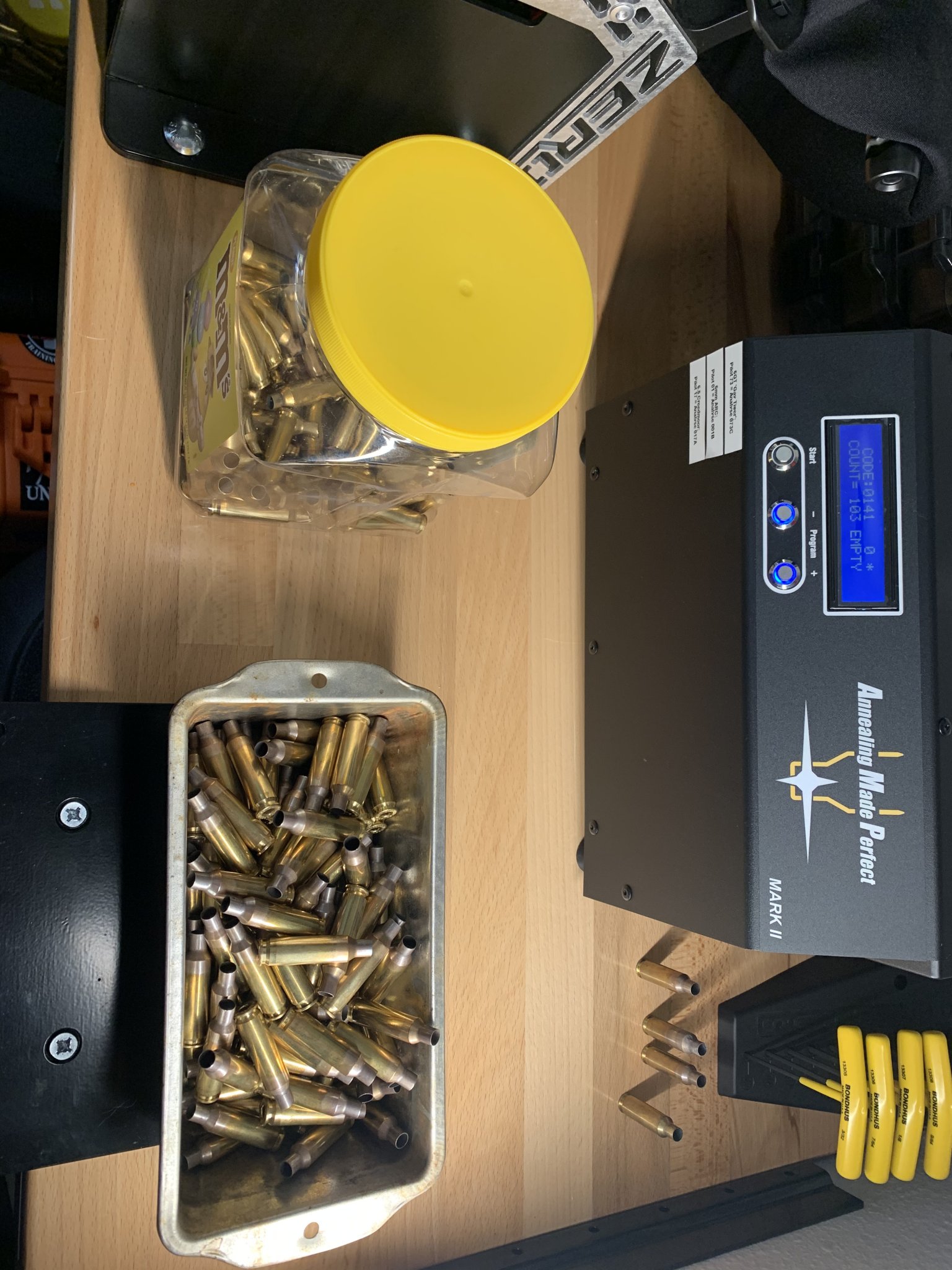

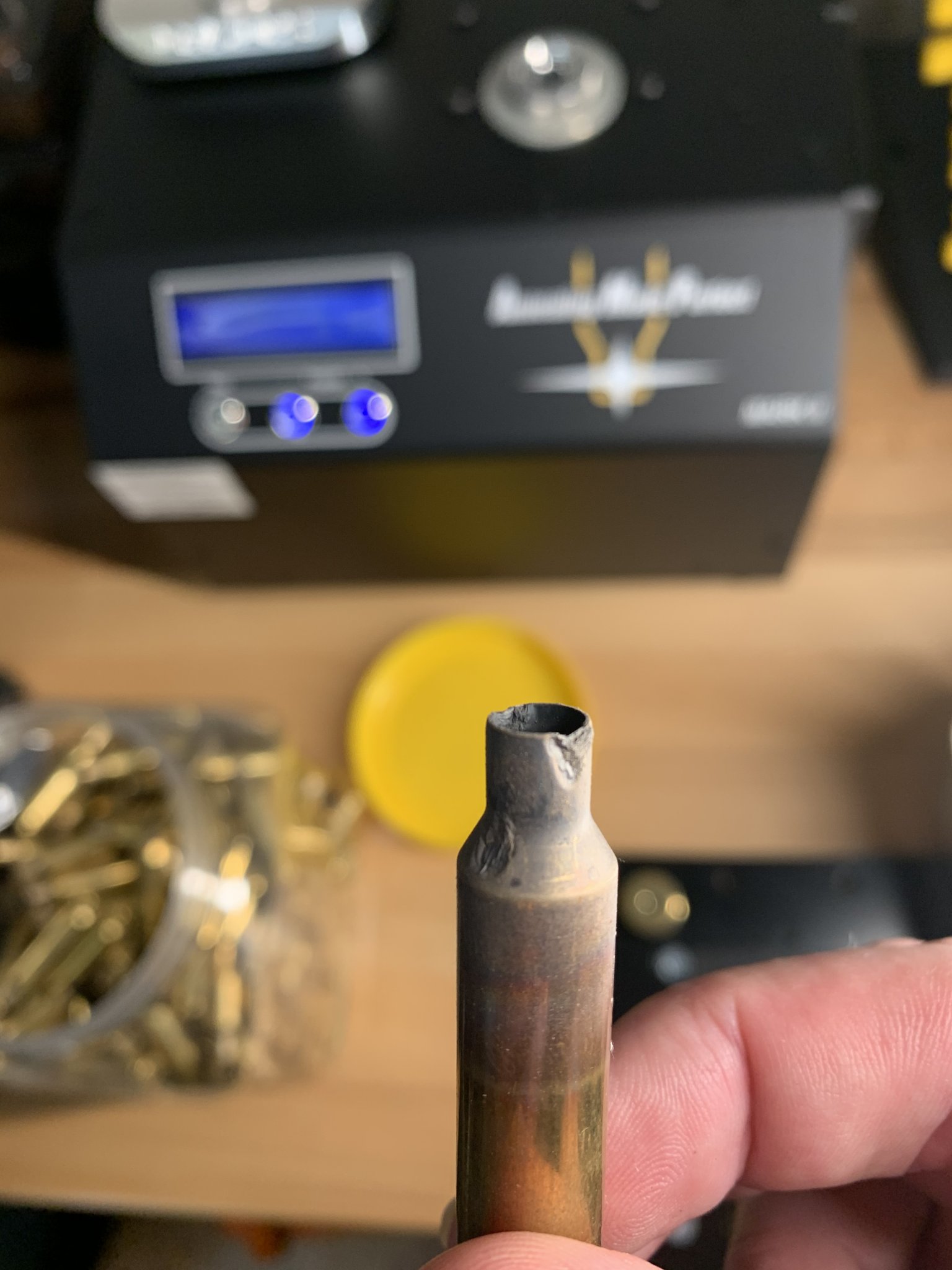

Was finally able to anneal the 1st hundred rounds of Hornady 6.5 ELDM’s after unboxing over a week ago. Between in-laws visiting, work and other family obligations I had to put the initial run on hold till after 🕛 tonight.

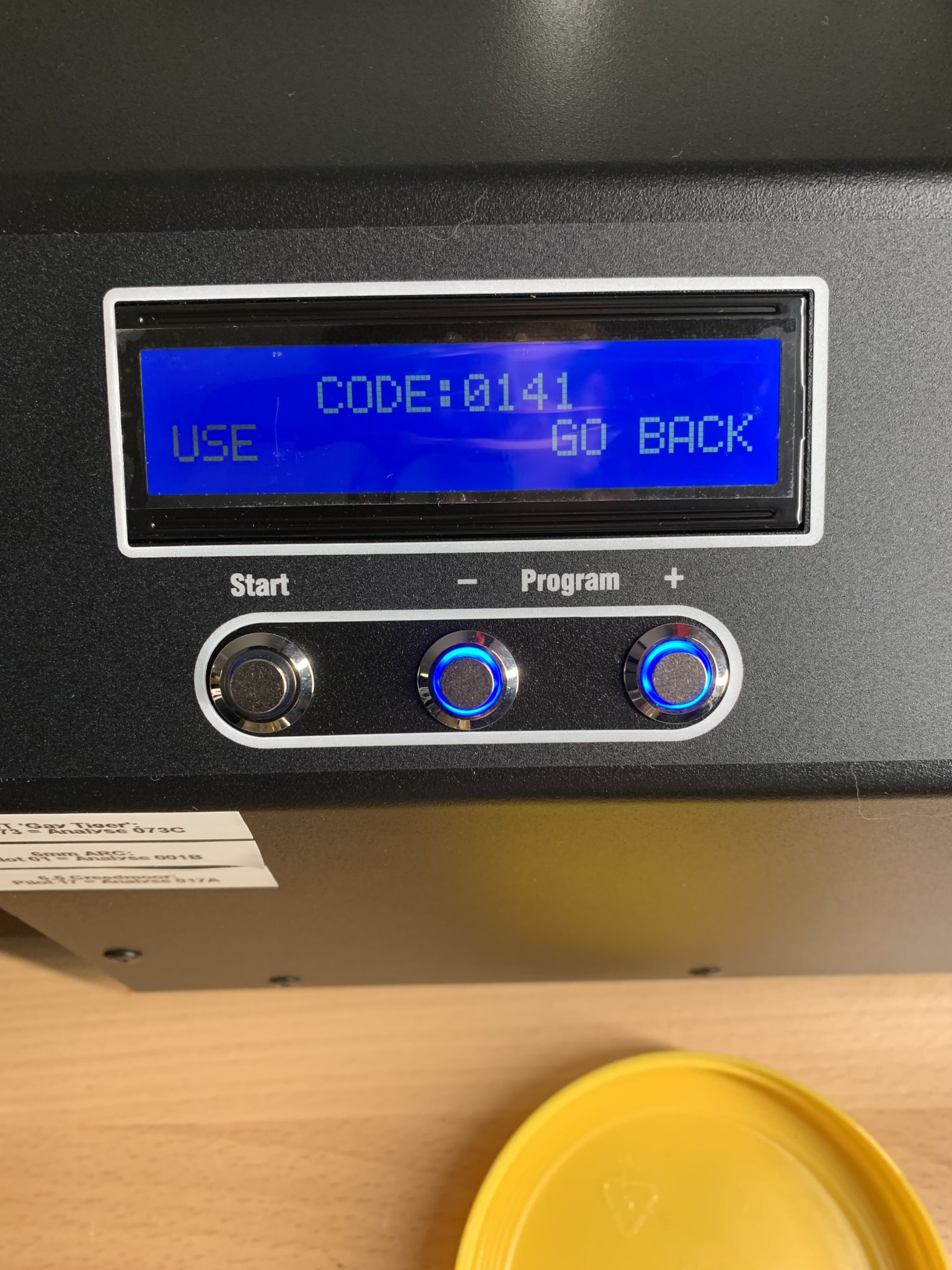

This AMP Mark II is definitely sweet and very quick. I can only imagine this with an auto feeder.

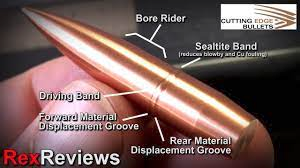

I finally found out where my malfunction was when pressing solid copper rounds my die has what the company called a guide that is supposed to guide the bullet straight into what ever the seating stem well it does not guide very well most of the rounds hit the top of the copper round pushing it further than desired while the alignment sleeve blocks the view window i removed the sleeve and pressed 30 all of them ended up perfect height to the gas collar on the bullet . So yea for not giving up even when I wanted to .

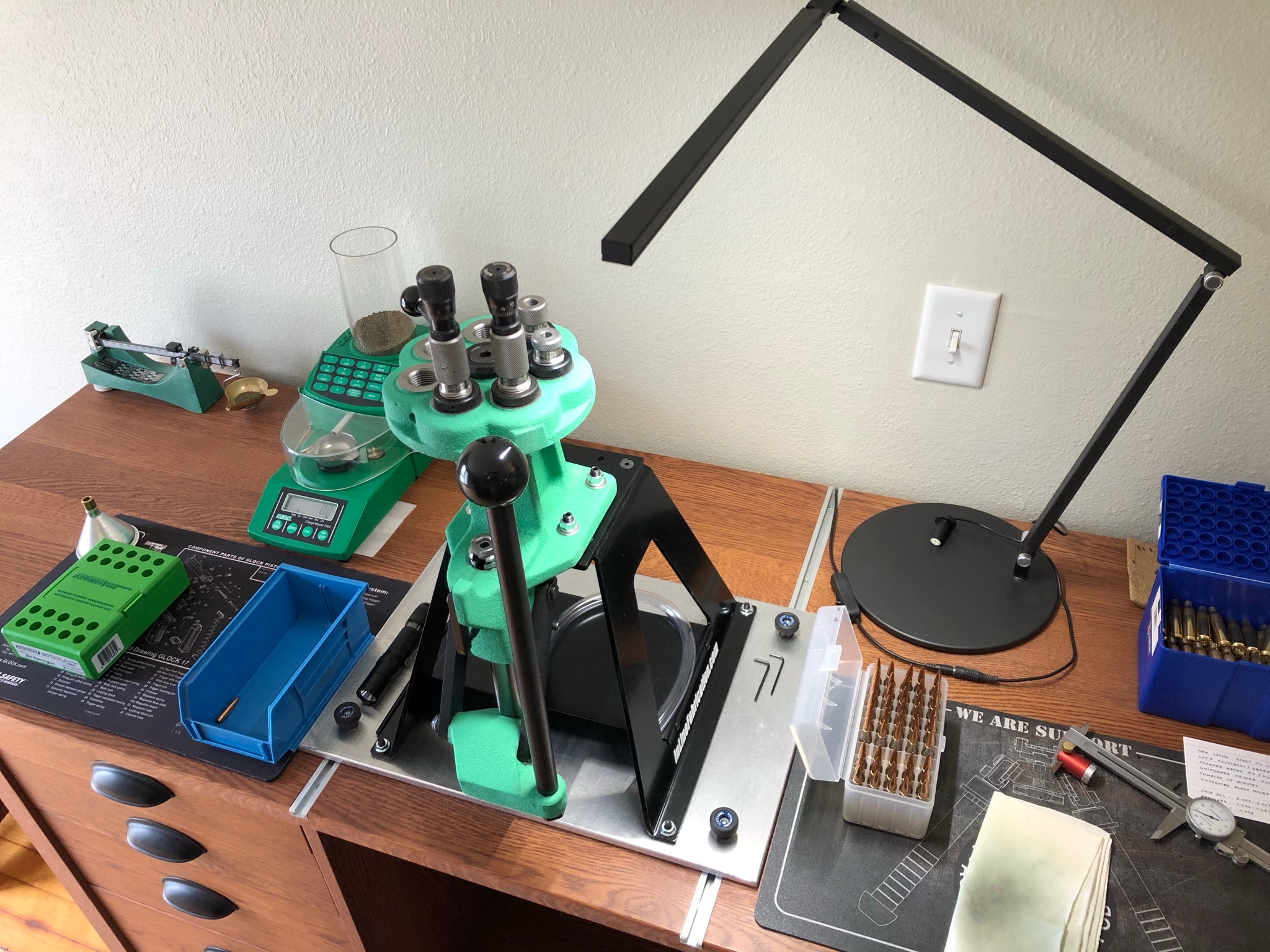

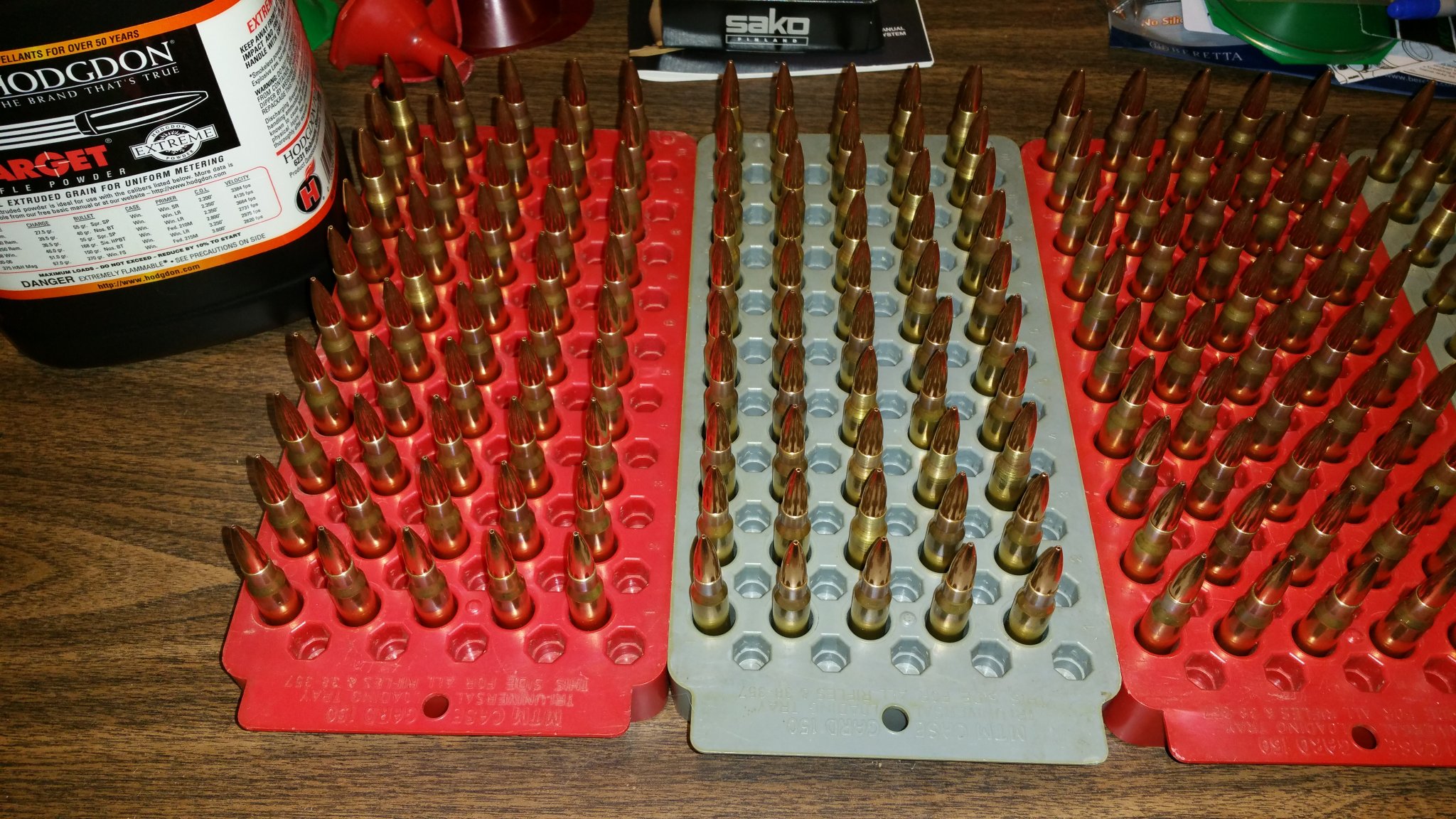

Primed, powdered, and seated some 260 Rem today.
View attachment 7609013
Wow, I really like how you set up your press on the plate and rails. I'm guessing that you counter sunk the bolts holding the Inline to the plate?

And what rail is that, please.

I'm hard mounted to the bench but I hate perm mounting stuff....I only so much bench space. Saw a vid where a fella reviewing Henderson trimmer put threaded inserts into his bench...I think they are often called furniture screws maybe....and then had nob handled bolts for hold down.

Cheers

Wow, I really like how you set up your press on the plate and rails. I'm guessing that you counter sunk the bolts holding the Inline to the plate?

And what rail is that, please.

I'm hard mounted to the bench but I hate perm mounting stuff....I only so much bench space. Saw a vid where a fella reviewing Henderson trimmer put threaded inserts into his bench...I think they are often called furniture screws maybe....and then had nob handled bolts for hold down.

Cheers
Correct, counter sink for the Inline to plate interface. I posted pics while I was doing this plate not too long ago, but don't recall if I posted them on this thread or "What's Your View" over in Maggie's. I'll see if I still have them and post them if I do. I went this route as I have limited space as well. I have 2 Dillon 550's also on plates.

The track is Rockler T track if I remember correctly. It's commonly used in hobby wood working circles.

  • Like
Reactions: Baron23
Wow, I really like how you set up your press on the plate and rails. I'm guessing that you counter sunk the bolts holding the Inline to the plate?

And what rail is that, please.

I'm hard mounted to the bench but I hate perm mounting stuff....I only so much bench space. Saw a vid where a fella reviewing Henderson trimmer put threaded inserts into his bench...I think they are often called furniture screws maybe....and then had nob handled bolts for hold down.

Cheers
Post #1,390 on March 30, 2021 in this thread.

  • Like
Reactions: Baron23

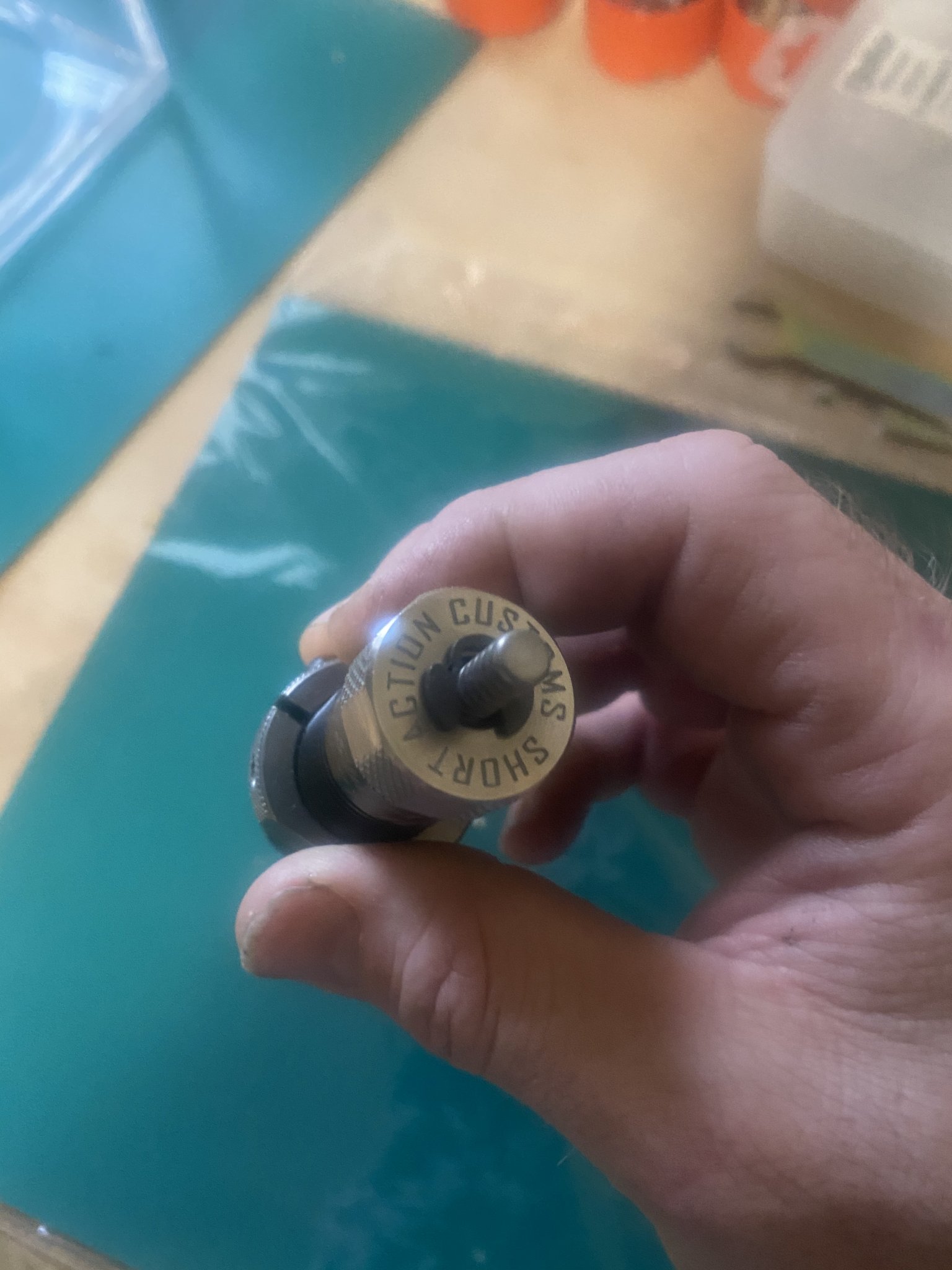

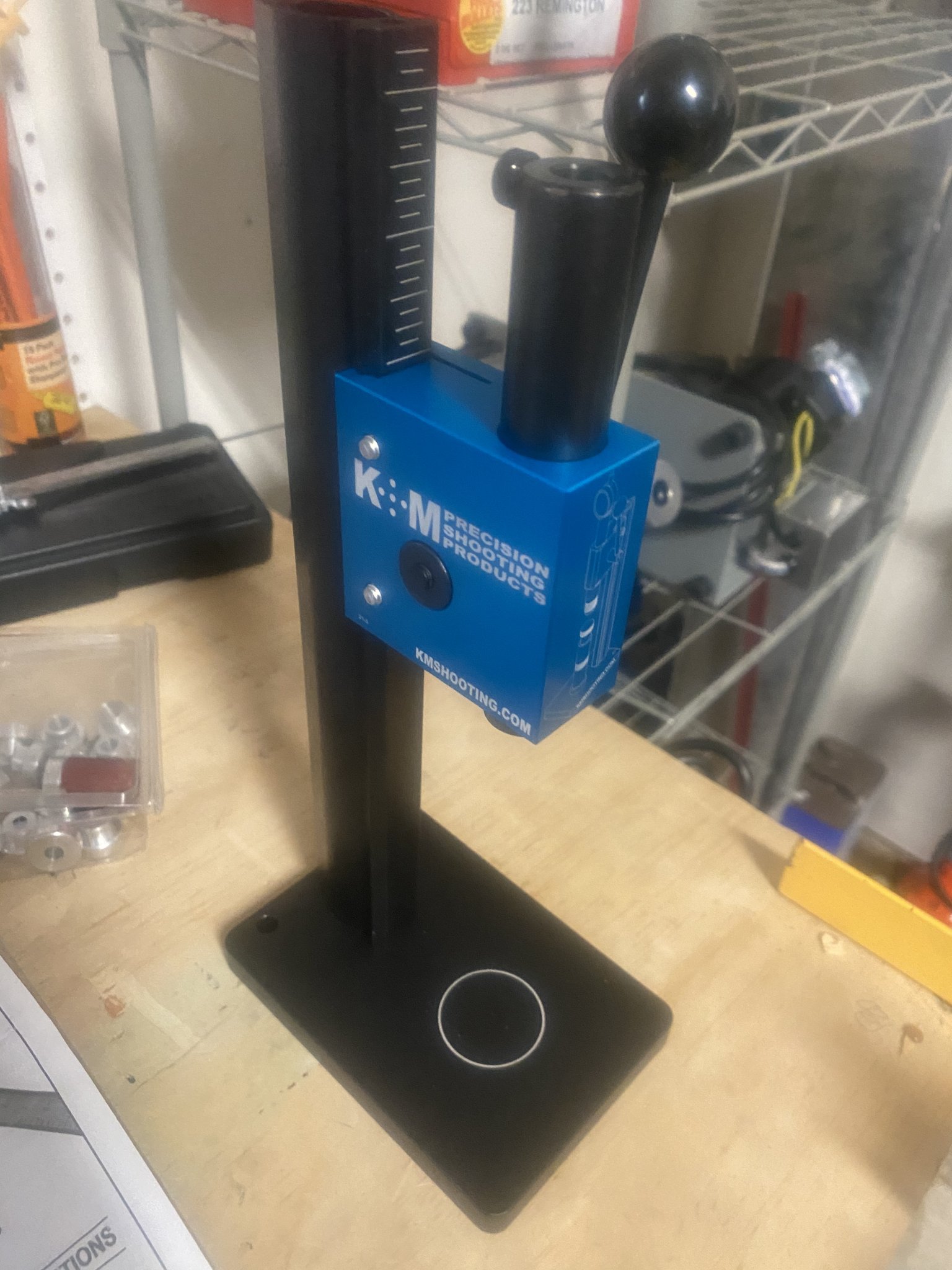

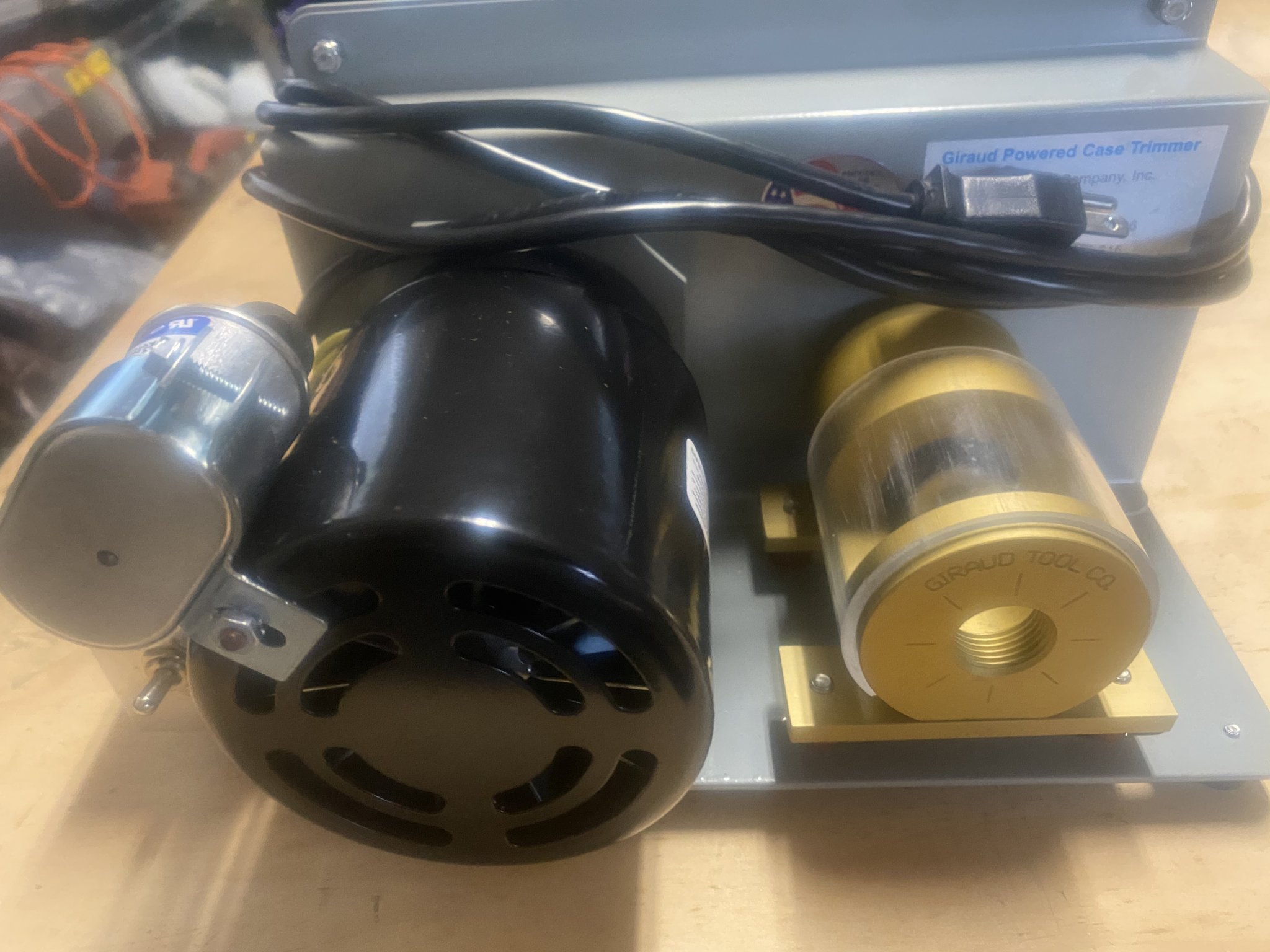

Getting into precision reloading, haven’t setup my room yet but a couple toys showed up!


Attachments

  • 9DB777DF-8B07-469A-B87D-25CA09254A40.jpeg
    325.4 KB · Views: 98
  • E6539A70-BE22-4C83-A3C6-5467A2FD501A.jpeg
    398.2 KB · Views: 70
  • 890B1B41-C8EF-4DE2-A01E-3F30D2BC91EA.jpeg
    350.6 KB · Views: 76
  • 8F342E4A-676A-4E64-A23E-B01FB30C1573.jpeg
    381.3 KB · Views: 97
  • 1FC6388C-EBF5-40CF-AD81-E1F10A2FCFD5.jpeg
    302.4 KB · Views: 96
Correct, counter sink for the Inline to plate interface. I posted pics while I was doing this plate not too long ago, but don't recall if I posted them on this thread or "What's Your View" over in Maggie's. I'll see if I still have them and post them if I do. I went this route as I have limited space as well. I have 2 Dillon 550's also on plates.

The track is Rockler T track if I remember correctly. It's commonly used in hobby wood working circles.
I also used the T-tracks in my bench. I combined them with the Inline Fabrication plate so I can quick change presses, and templates to quick change tools.








Last edited:

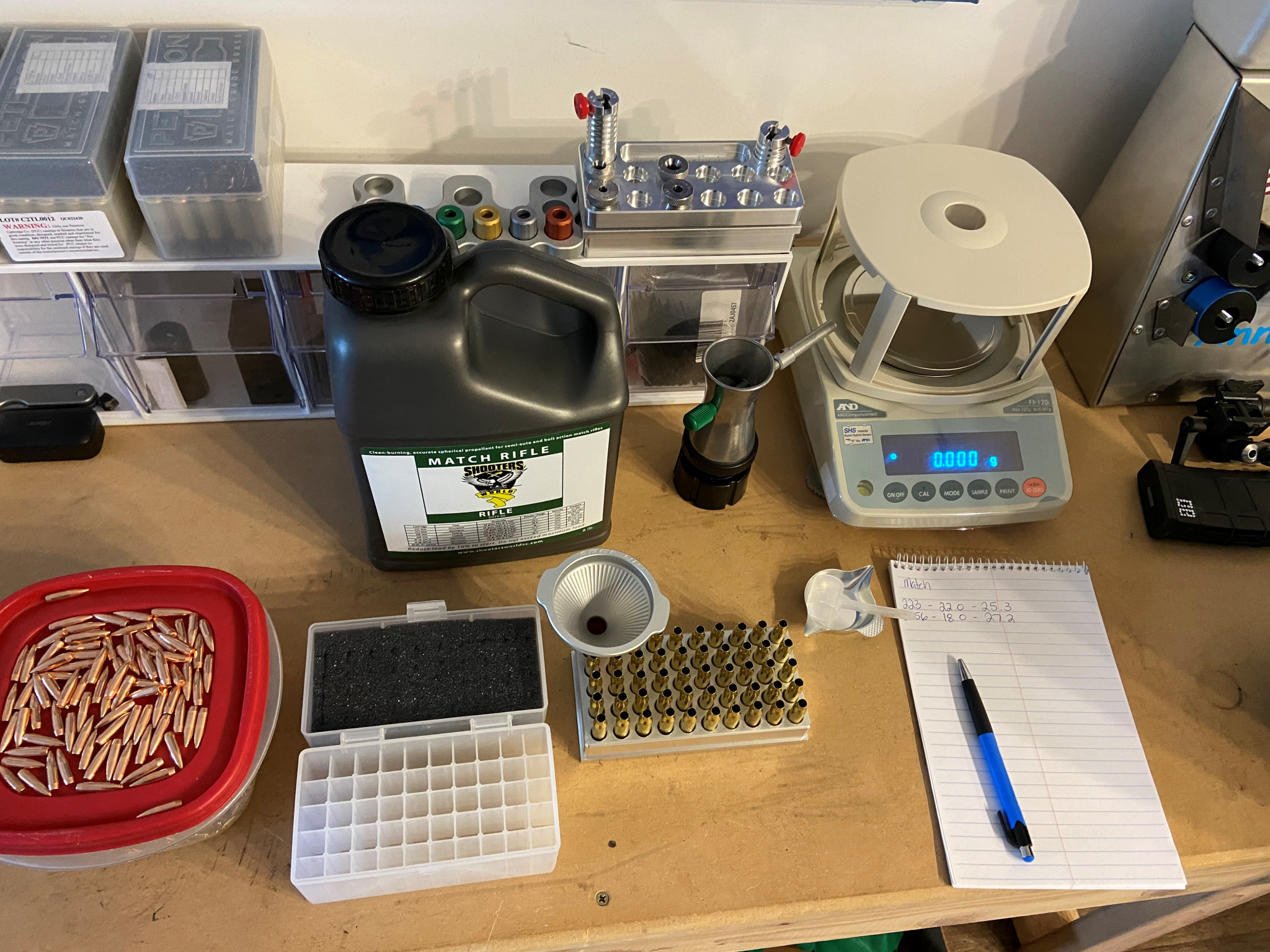

Waiting on the V4 so... using a small scoop and powder trickler... :(

From the look of it, SW "Match" is a ball powder. For a small investment, while you're waiting for the AT V4, an RCBS Uniflo measure (or similar) will net you very repeatable powder drops, with little need to trickle. I will say that how you manipulate the lever can affect charge weight, but you have the scale to figure out how to be consistent.



For me, I drew a cow elk tag. I'm re-researching 7mm projectiles I might use. Probably a Berger 168 HVLD at about 2900-3000fps. I might have to spin up a new barrel though, the old one's not grouping too well anymore. Who knows, I might be able to find one in stock and not wait 12 months... :D If I can't find a barrel I might have to use a .338.

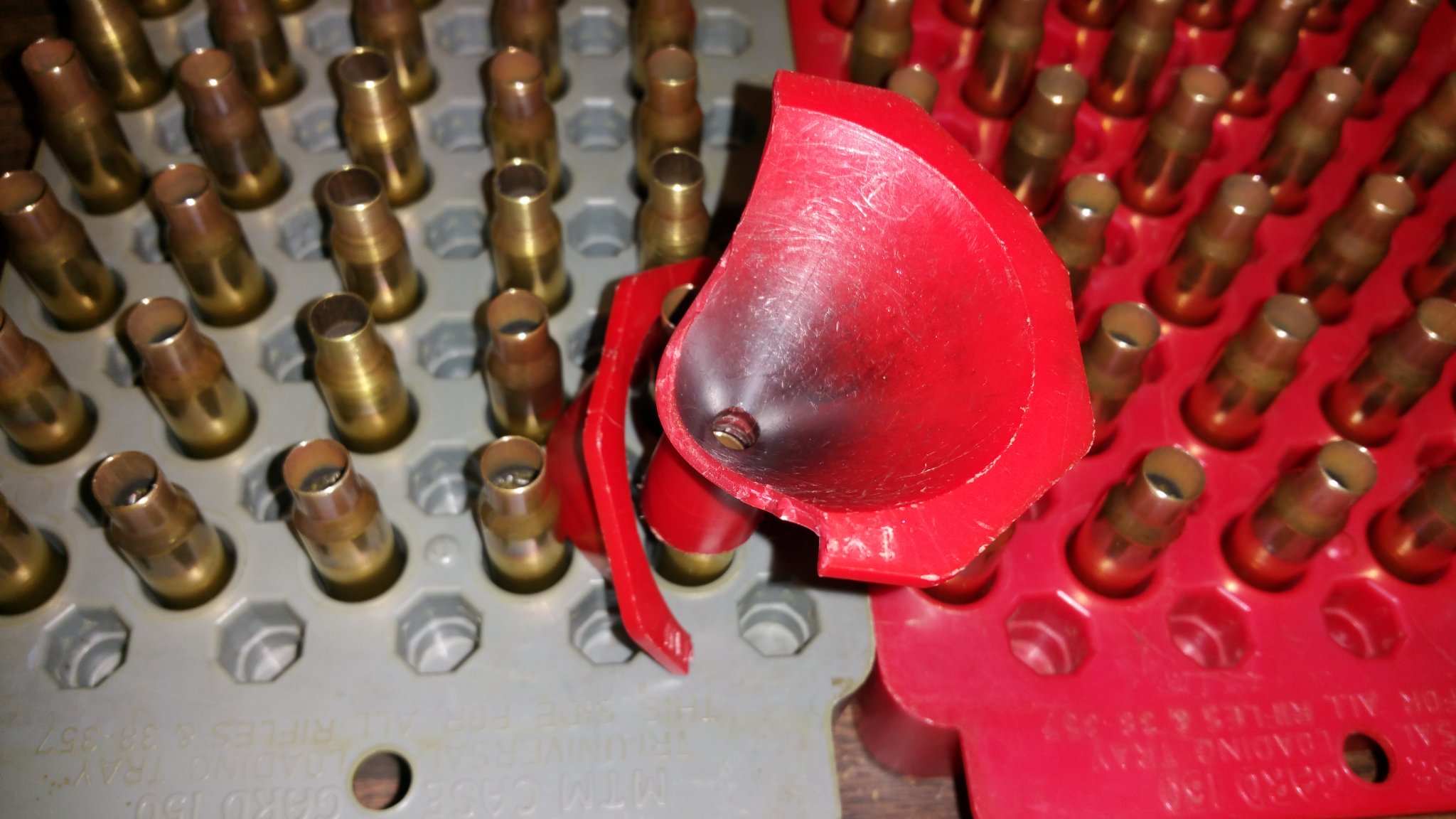

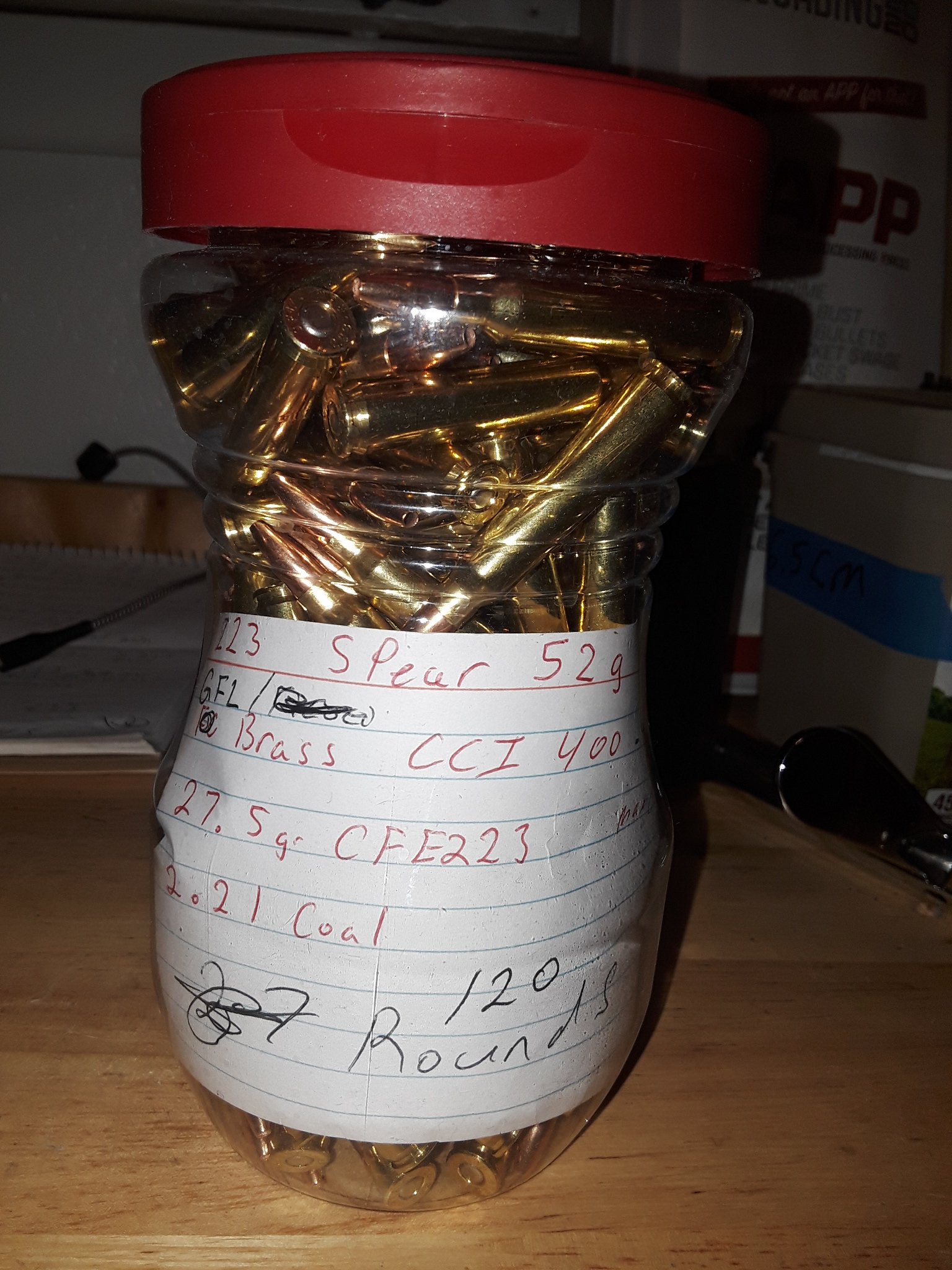

I had a day stressing on exactly which powder, checking a new shoulder bump (ar) mesuring ogives and cannelure shutting off cealing fan ect.

I forgot one thing.
Can you guess?

View attachment 7602408
I had a day stressing on exactly which powder, checking a new shoulder bump (ar) mesuring ogives and cannelure shutting off cealing fan ect.

I forgot one thing.
Can you guess?

View attachment 7602408
Don’t worry man, I did the same thing the other day.

My fingers were numb this morning from trimming 200 cases on the Giraud. I used a light weight glove but it's not cutting it. Think I need something made of leather to protect my fingers better. It's from pushing a case in then rotating it a few times.

Sized 300 peice of 223 and started trimming. Man that Giraud trimmer is looking nicer and nicer...

  • Like
Reactions: camocorvette
My fingers were numb this morning from trimming 200 cases on the Giraud. I used a light weight glove but it's not cutting it. Think I need something made of leather to protect my fingers better. It's from pushing a case in then rotating it a few times.

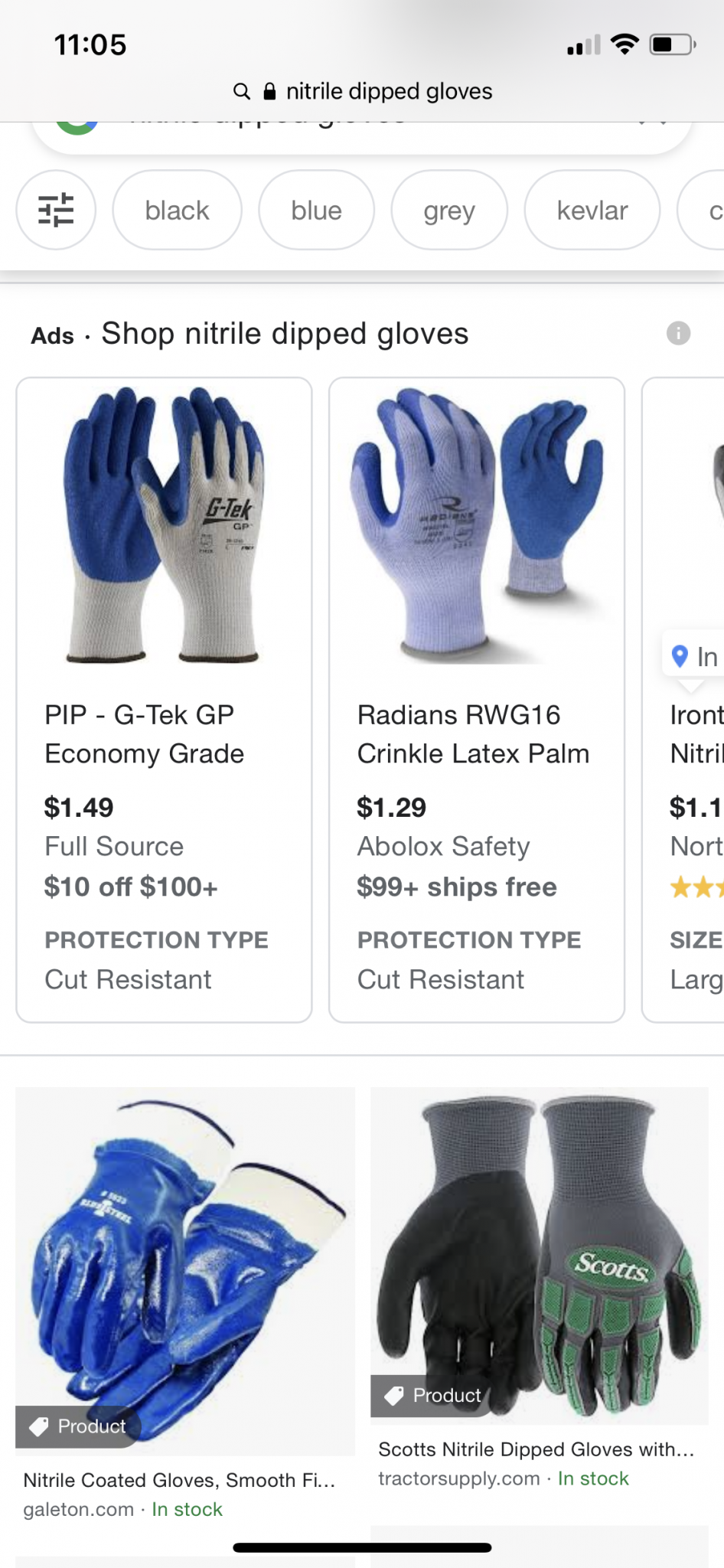

I find the cheap nitrile dipped cotton gloves are the best for it. Like the little ones they sell 5 pairs of for 3 bucks on the end cap of an aisle at Lowe’s. They are thick enough under the nitrile to where the little 300bo cases that can only be held by the very end don’t dig into the fingers too much but the cases aren’t slick in them like with my leather gloves and they are flexible and breath so your hands don’t get all sweaty like with a rubber glove.

Last edited:
My opinion on AMP: meh. Lots of BR and LR records were set with analog scales and no chronographs. Plenty of ways to apply heat to brass necks if you feel annealing's a requirement.

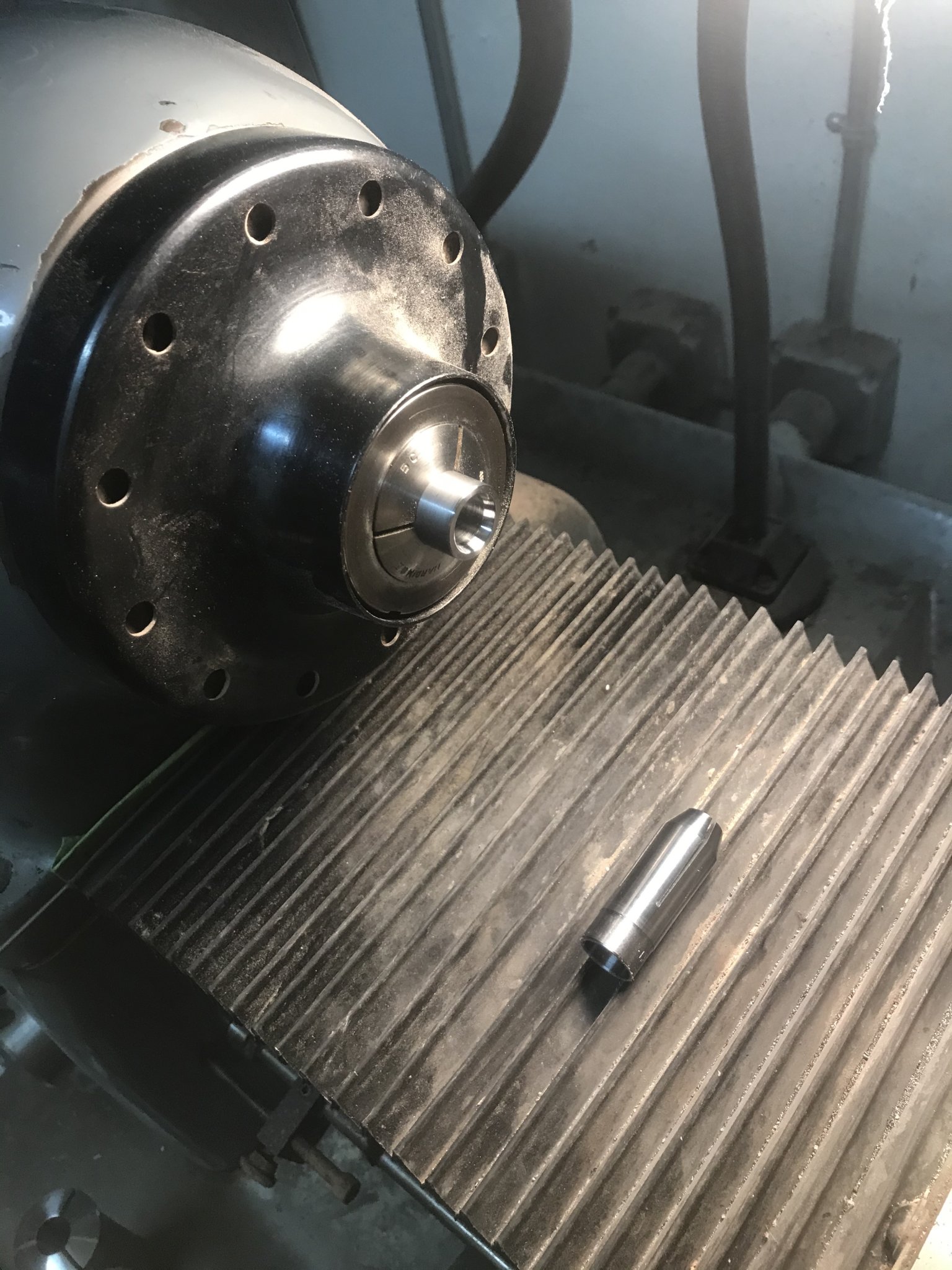

Today I rebarreled a friend's .223, threaded the muzzle, cut him a thread protector, and re-inlet the stock's barrel channel for a fatter contour.

  • Like
Reactions: Graye2 and joemusso
My fingers were numb this morning from trimming 200 cases on the Giraud. I used a light weight glove but it's not cutting it. Think I need something made of leather to protect my fingers better. It's from pushing a case in then rotating it a few times.

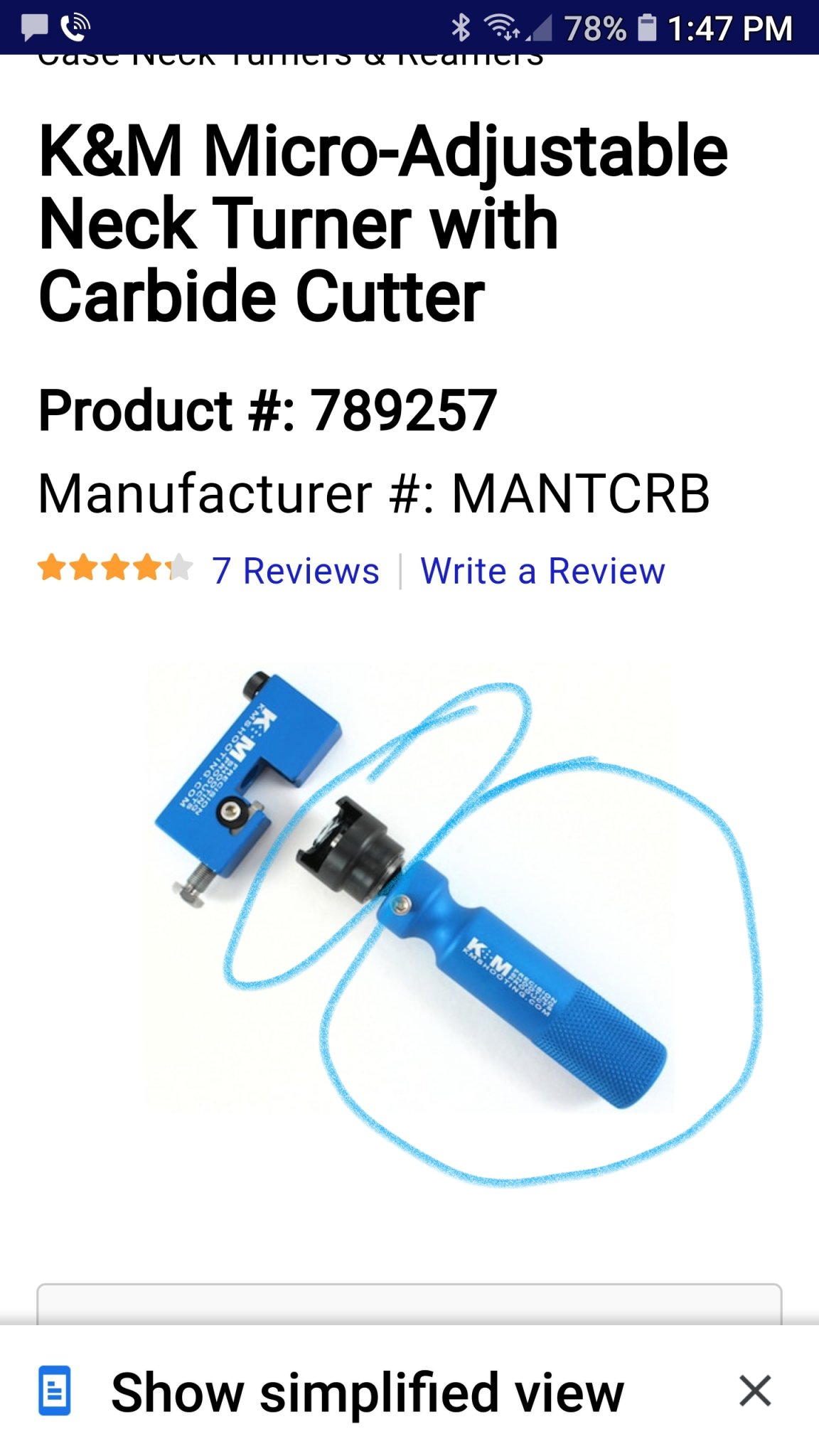

Buy these two products and the shell holder.
Keeps my hands from hurting.

  • Like
Reactions: BuLLet and joemusso

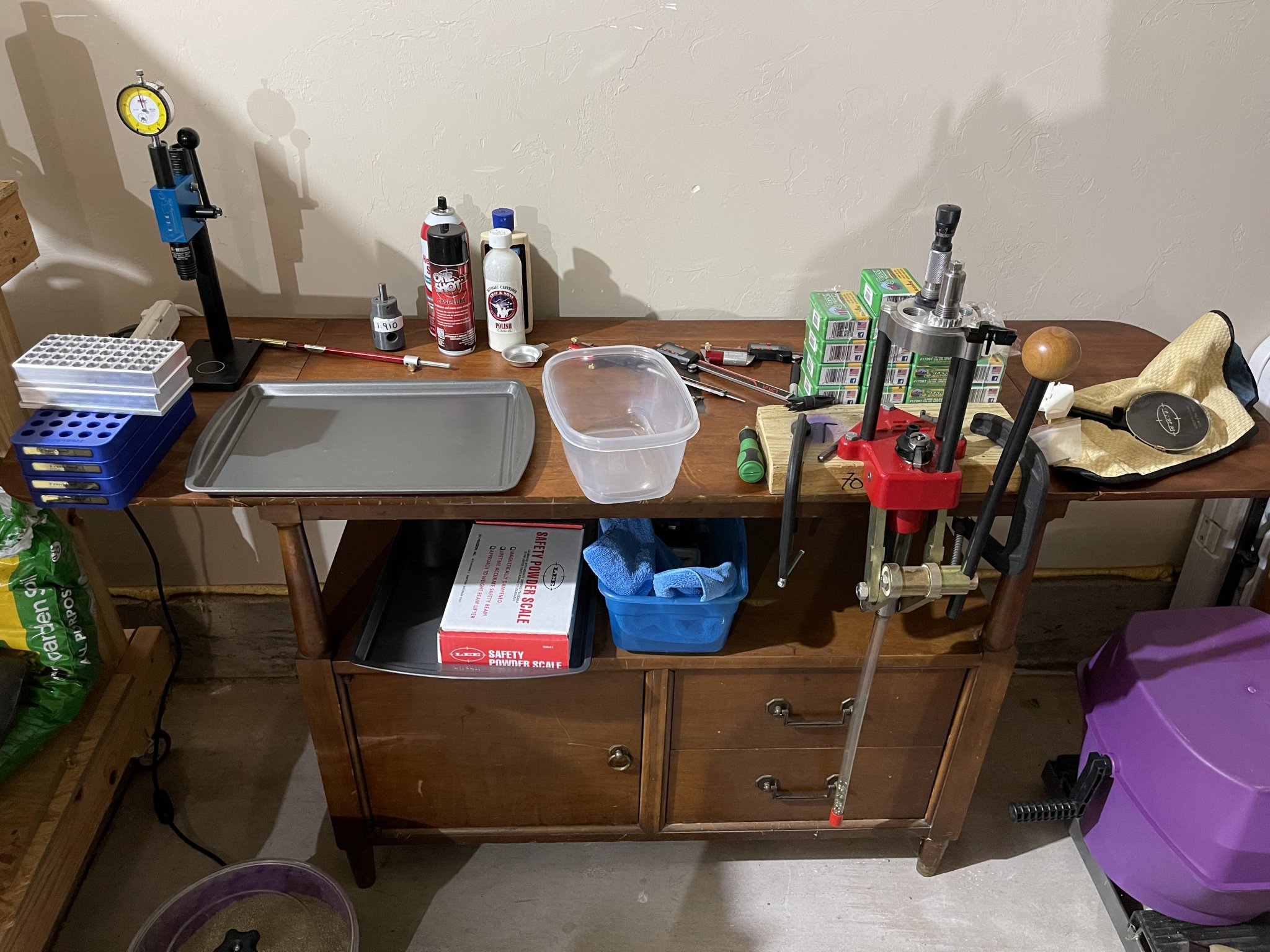

I went from this crappy old microwave or tv stand (whatever the hell it is, and wherever the hell I got it from) in the garage...

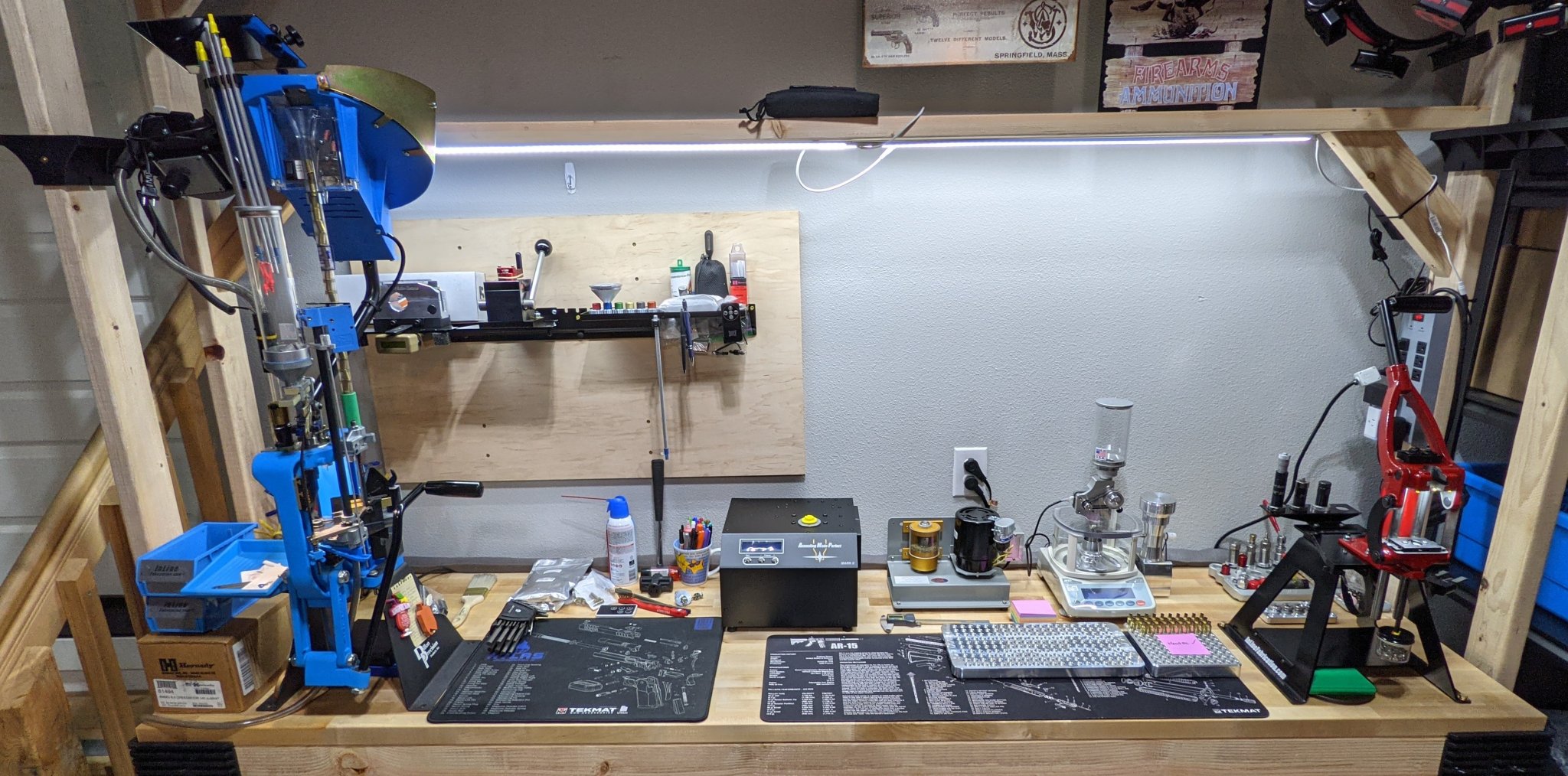

To a halfway legitimate setup on one side of a spare bedroom. The other side of this room is my amateur radio room. Still not finished (will it ever be?) But pretty proud of myself, heh.

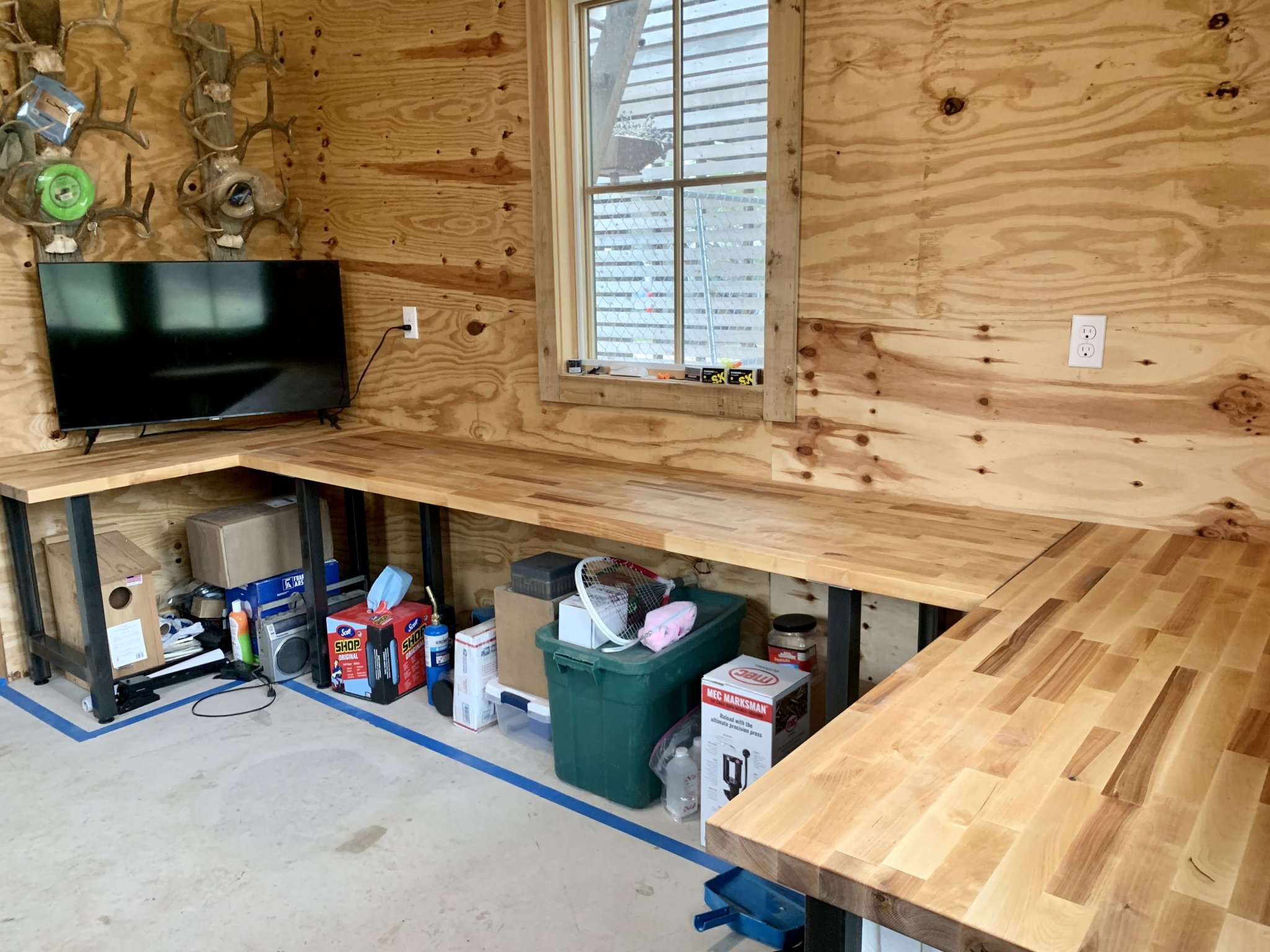

Does anyone want to offer layout suggestions on my new reload bench?

I have a U-shaped area to work with. 3 tables. In this photo, L to R they are: 4ft short side, 8ft long side, 5ft short side.

I’ve got 2 presses with Inline quick release plates on a 9” riser. A&D scale. Tumbler. Henderson trimmer. Torch annealer.
Pretty well want spots for everything to be out since I have the room.

Note: TV will be mounted to the wall, not on table top

Layout thoughts?


Does anyone want to offer layout suggestions on my new reload bench?

I have a U-shaped area to work with. 3 tables. In this photo, L to R they are: 4ft short side, 8ft long side, 5ft short side.

I’ve got 2 presses with Inline quick release plates on a 9” riser. A&D scale. Tumbler. Henderson trimmer. Torch annealer.
Pretty well want spots for everything to be out since I have the room.

Note: TV will be mounted to the wall, not on table top

Layout thoughts?

View attachment 7616008
I’d just set stuff up on bench’s and move around to your liking. Once u like start drilling!

Everyone seems to have little different workflow.
