ARC Coup de Grace Builds

[AZ_Artilleryman]

Would a two stage TT Diamond be less prone to slam fires using the pivoting handle(at light settings) ?

I have 2-stage diamonds in both of my CDGs. They're set nearly as light as they go and I haven't had any issues with them.

Purely anecdotal, sample size of two.



[wbbh]

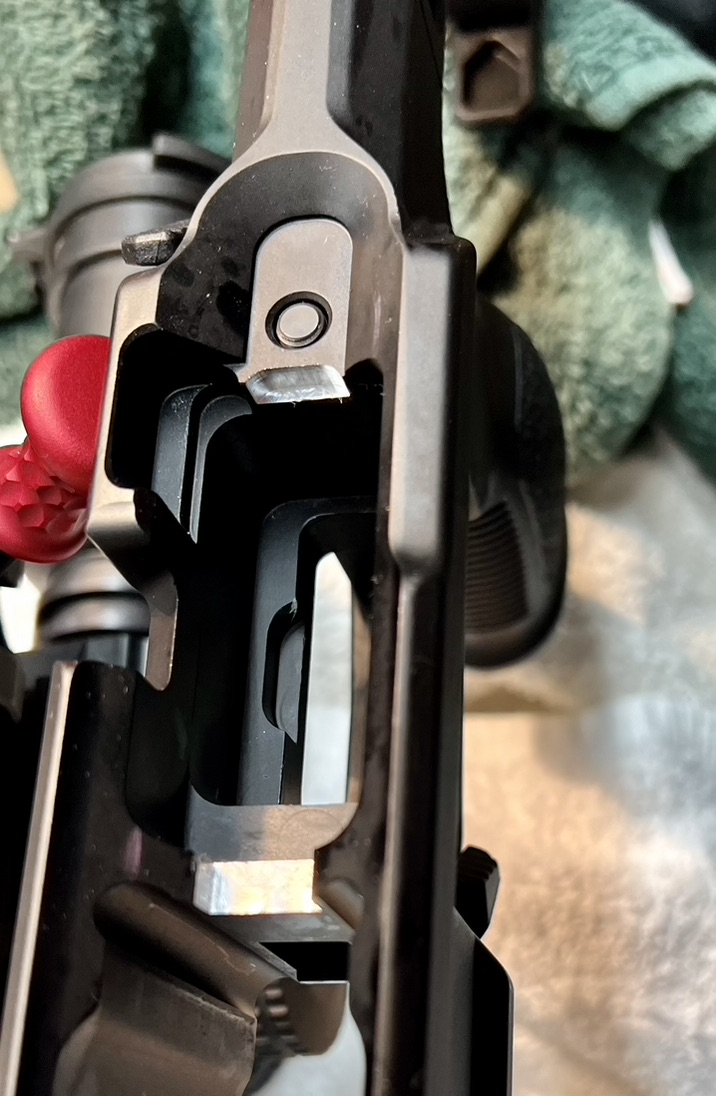

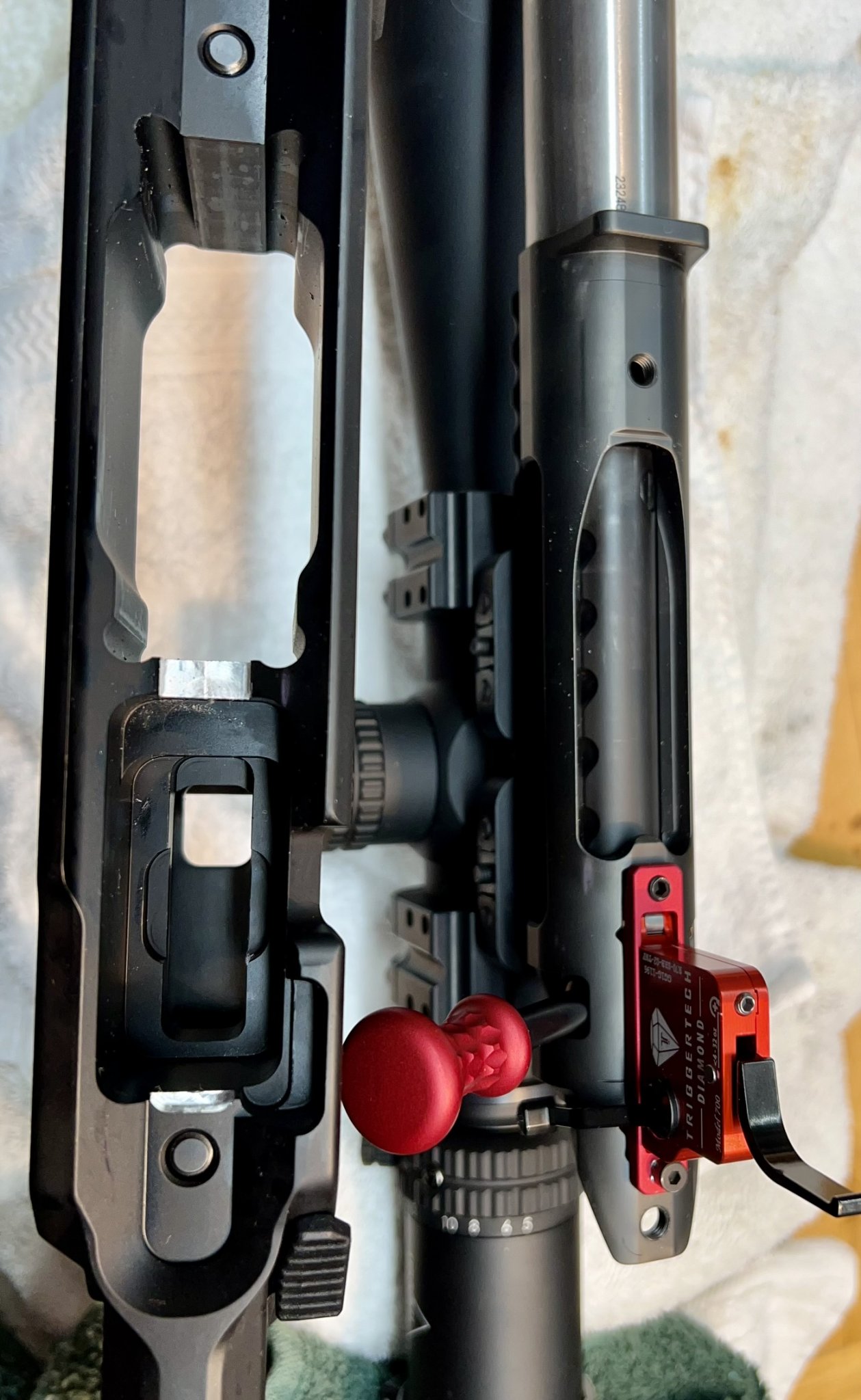

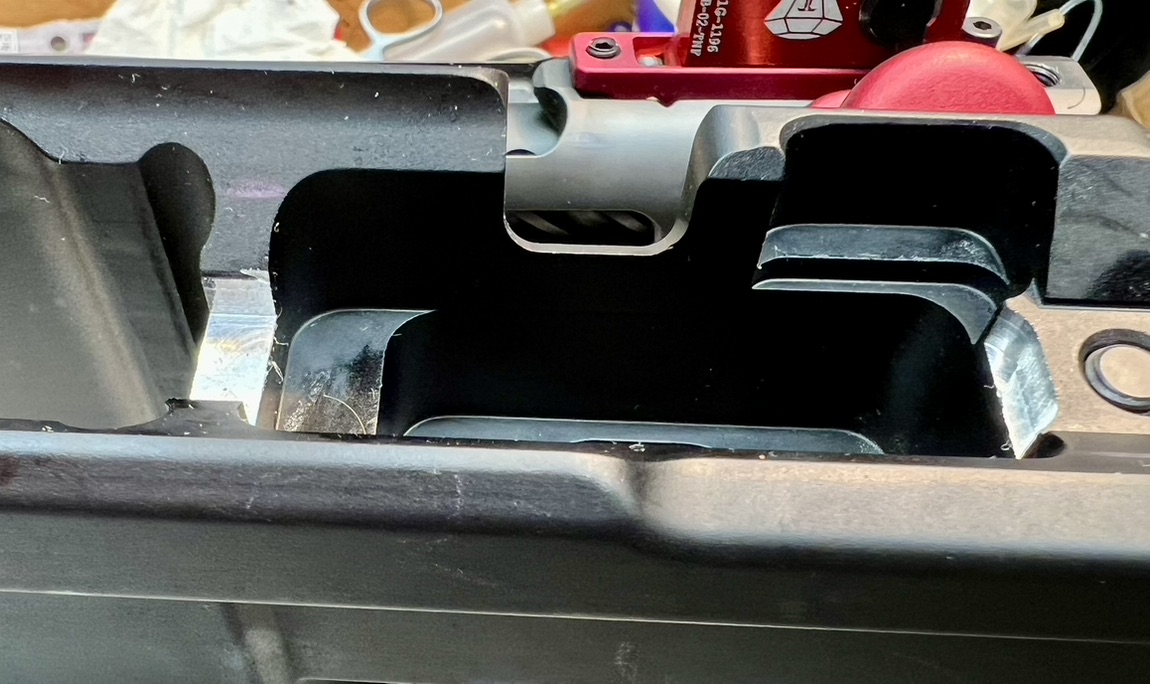

Decided to put my 6BR CDG in an Aero chassis. The trigger hanger required some relief cuts, see pictures below. I'm still working on magazines. The AICS feed fine, but cannot be locked in even with full adjustment of the magazine latch. I am currently looking for an in-stock AIAW magazine.



[Islander]

I was able to get a mag about a month ago, just sign up for notifications on every website that carries them, sooner or later you’ll get an emai, then buy quick!



[Jackomason]

Here's My nearly complete CDG build.

My goal was a Sako M10 "At home". Still needs paint.

CDG Long action with 30 MOA pic rail
30" bartlien 1:9T 30 call barrel chambered in 300 Norma Mag
KRG W3 (still waiting for Next shot precision to release the LA Alpha forend)
Trigger Tech Special
Atlas Cal



[Hennig]

Looks good mate



[Jackie_Daytona]

Here's My nearly complete CDG build.

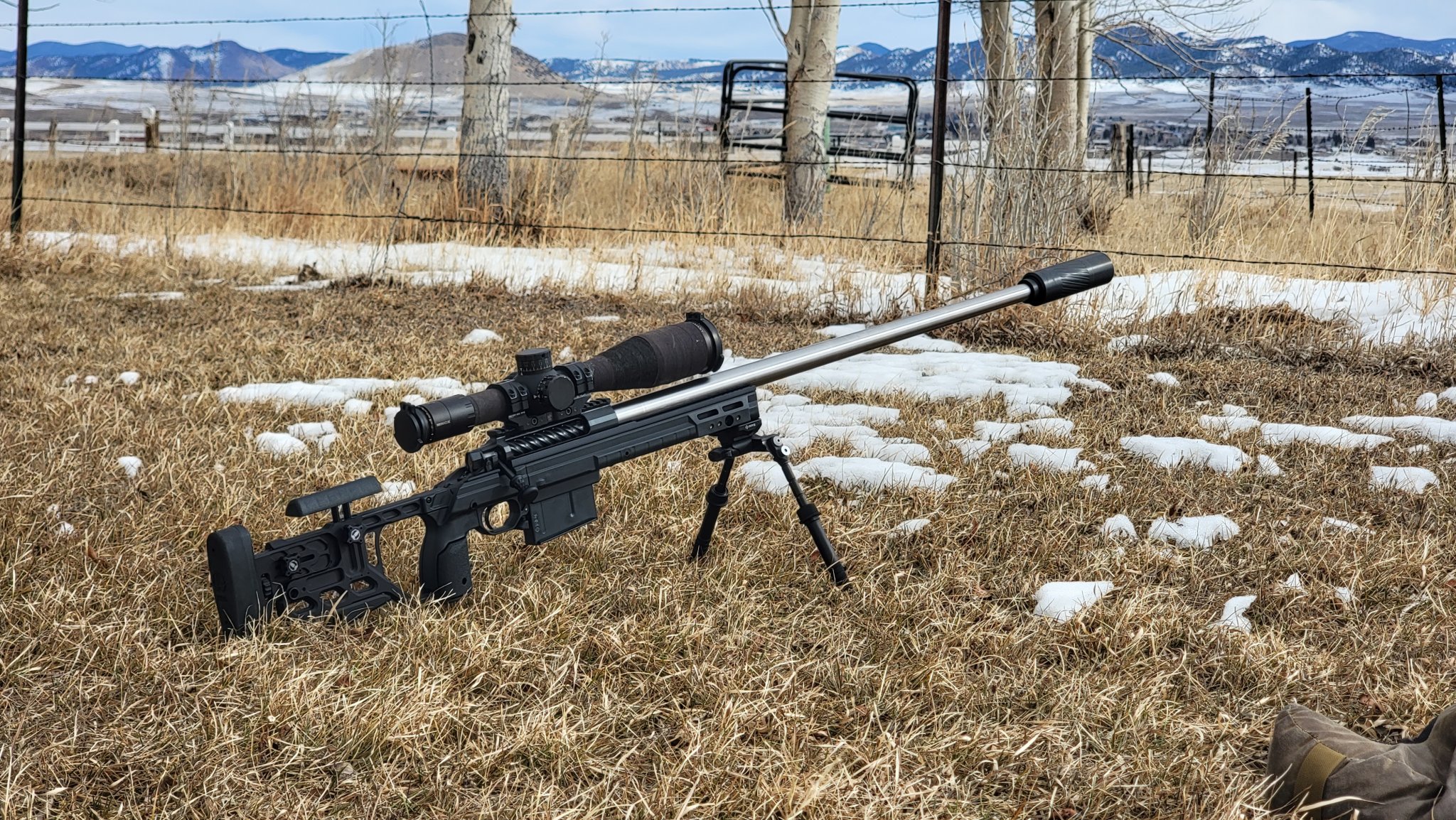

My goal was a Sako M10 "At home". Still needs paint. View attachment 8325663

CDG Long action with 30 MOA pic rail
30" bartlien 1:9T 30 call barrel chambered in 300 Norma Mag
KRG W3 (still waiting for Next shot precision to release the LA Alpha forend)
Trigger Tech Special
Atlas Cal

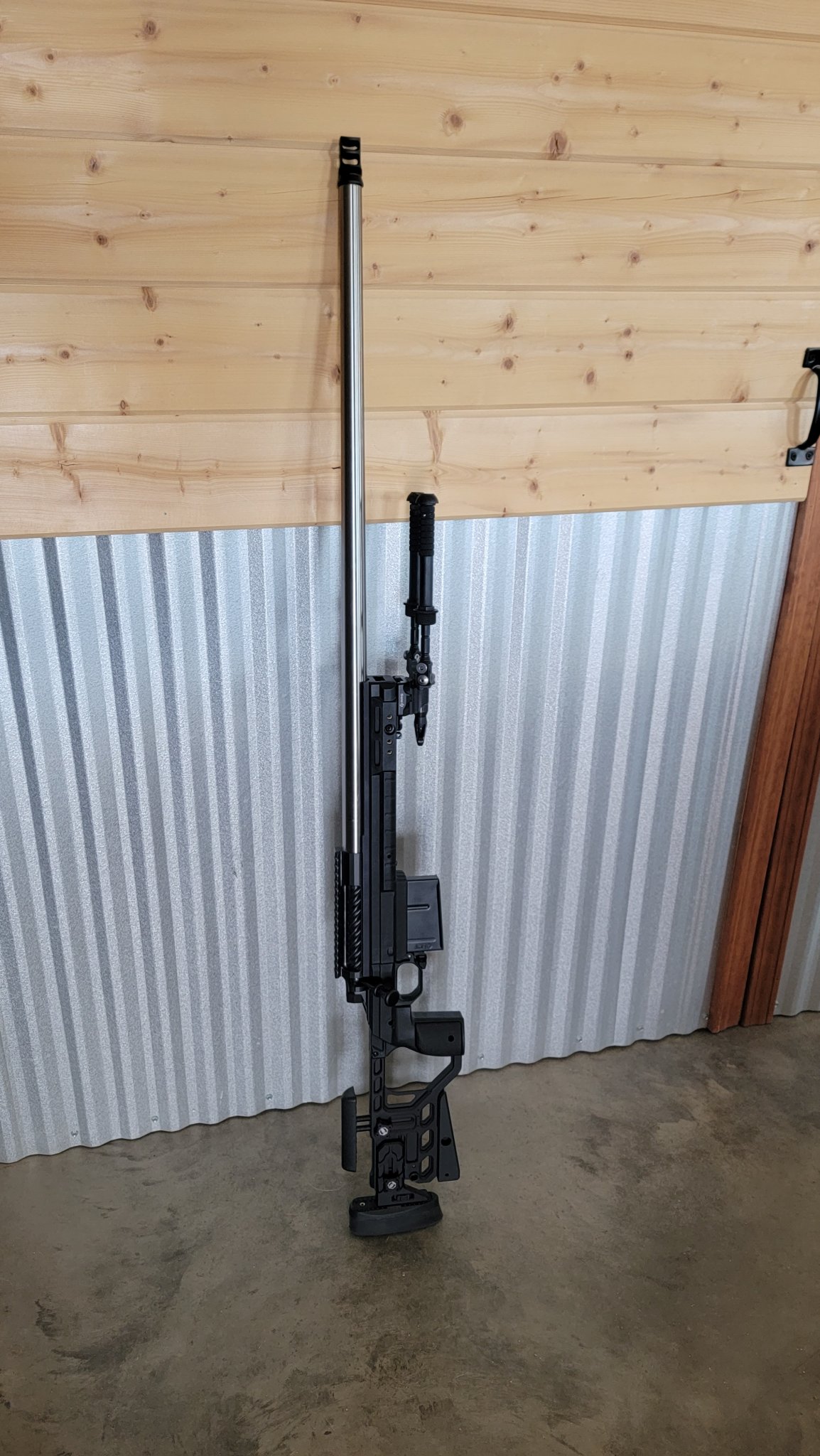

View attachment 8325660

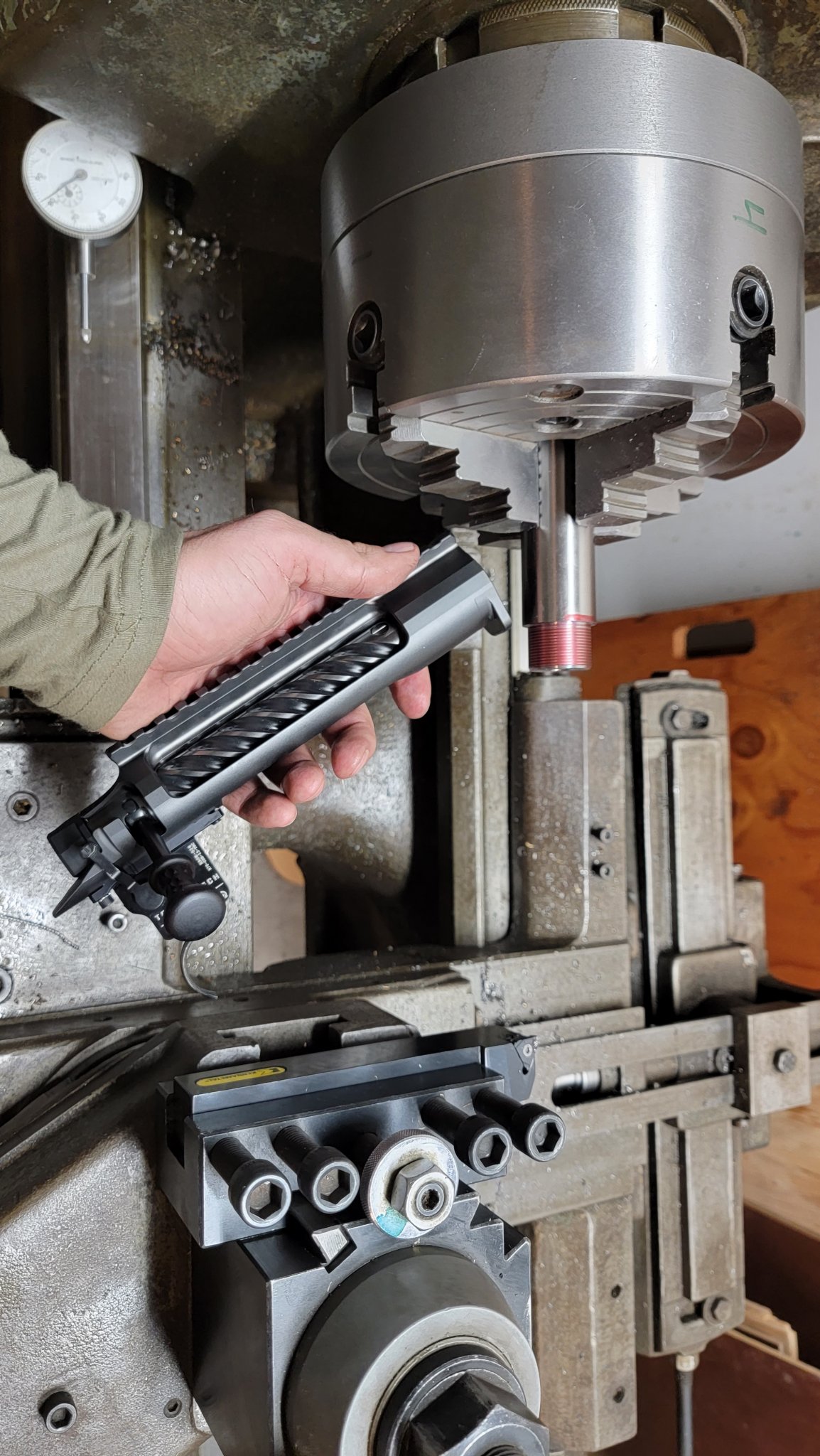

View attachment 8325664View attachment 8325661

How does she feel/cycle.

I’m looking to do the same thing.



[Jackomason]

How does she feel/cycle.

I’m looking to do the same thing.

Simplest way I can say it: the action feels a lot like a Seekins PH rifle, Absolutely zero cock on close which makes it feel much more expensive. The travel is more "creamy" than "buttery". It's a little odd running the bolt all the way back waiting for the hard stop but it never happens.

I'll shoot it tonight. But feeds great out of the mag. I coned the breach face so I'm sure that helps...



[DubfromGA]

Question for the weekend folks here…..do you think ARC will allow a Xylo to be ordered with the large grip installed….or is it an additional part to be added to the order ?


Figured I check in with ya’ll and see if anyone had done so.



[kindabitey]

Question for the weekend folks here…..do you think the ARC will allow a Xylo to be ordered with the large grip installed….or is it an additional part to be added to the order ?


Figured I check in with ya’ll and see if anyone had done so.

You should probably be able to do that. Might have to call them when you make the order.



[DubfromGA]

You should probably be able to do that. Might have to call them when you make the order.

Thanks.

I will ask ‘em Monday.



[468shot]

Question for the weekend folks here…..do you think ARC will allow a Xylo to be ordered with the large grip installed….or is it an additional part to be added to the order ?


Figured I check in with ya’ll and see if anyone had done so.

They will. I called them after I ordered my chassis online and had them swap out the standard grip for the large.



[DubfromGA]

They will. I called them after I ordered my chassis online and had them swap out the standard grip for the large.

Thank you.

That is encouraging.


I’m assuming the large is what I’ll prefer.
Usually wear XL gloves ( size 11 gloves).



[st1650]

I love my Xylo large grip. Worth every penny.



[468shot]

Thank you.

That is encouraging.


I’m assuming the large is what I’ll prefer.
Usually wear XL gloves ( size 11 gloves).

I wear the same size glove. I think you will like the large grip.



[cypriss32]

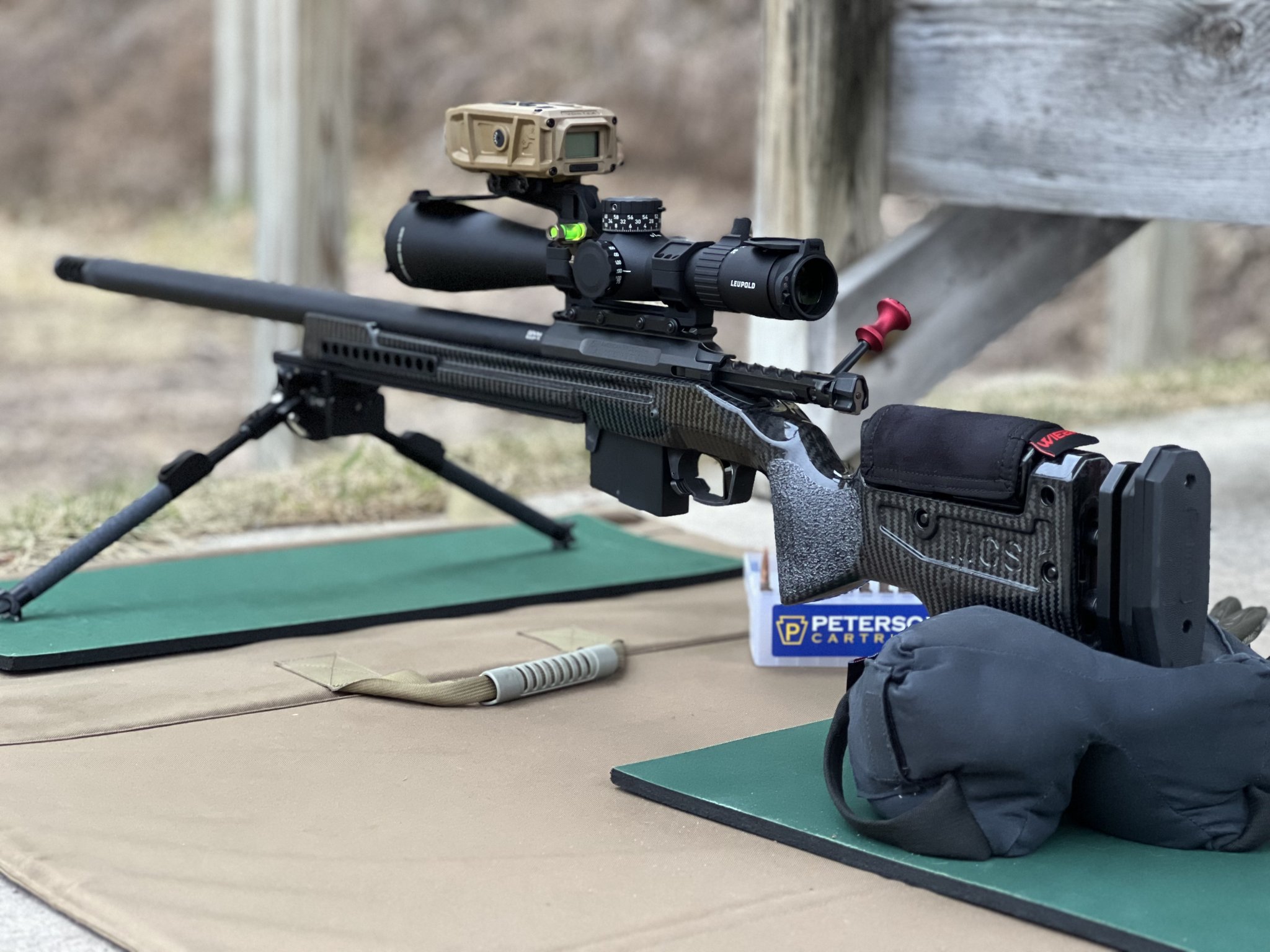

Anyone shooting their CDG in a manners TCS PRS? Any issues you see with triggers or fitment needed?



[Hennig]

You’re good to go.



[cypriss32]

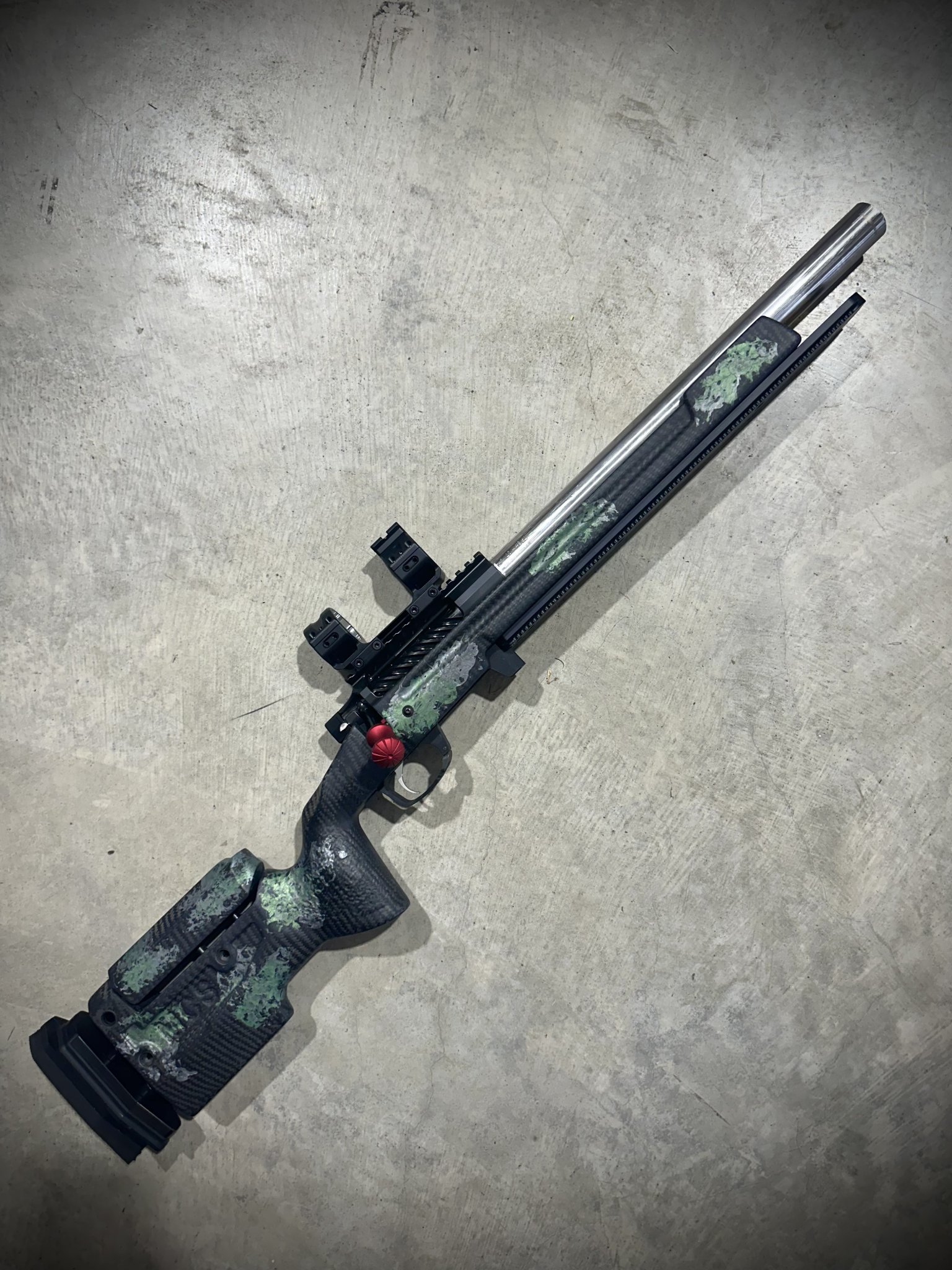

View attachment 8329558


You’re good to go.

What trigger are you running?



[shootertom]

Anyone shooting their CDG in a manners TCS PRS? Any issues you see with triggers or fitment needed?



[DubfromGA]

You should probably be able to do that. Might have to call them when you make the order.

Thanks.

They will. I called them after I ordered my chassis online and had them swap out the standard grip for the large.

Thank you.


A.R.C. was super accommodating.

They took care of me first thing this morning and have a big gripped Xylo headed my way.

Superpumped about getting this one up & running.

I love my Xylo large grip. Worth every penny.

I think it's going to be a great fit....probably ruin me for my other rifle's grips.



[DubfromGA]

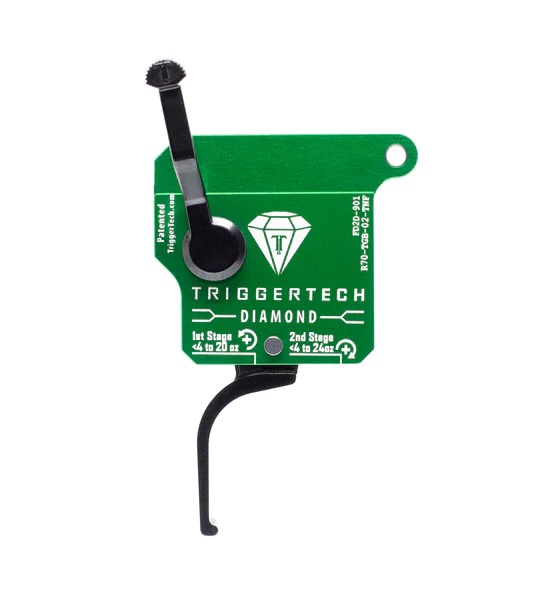

the two stage TT Diamond works great with the pivoting handle.

Thanks. I was hoping that would be the case.

I have 2-stage diamonds in both of my CDGs. They're set nearly as light as they go and I haven't had any issues with them.

Purely anecdotal, sample size of two.

I appreciate the insight.


Another Diamond now on the way. This will be my first two-stage, however.



[UpSideDown]

Are two-stage Diamonds working better than single-stage with the pivoting handle? I don't know if that would make any difference?



[DubfromGA]

Just assembled my CDG in a MPA BA Comp chassis with a PVA MTU contour 223 barrel. I just finished cycling some 77gr factory ammo through the action. I ran 50 rds through it very slowly where it would just pop up out of the feed lips and then slowly push round into chamber. I had zero issues with all different speeds of cycling the bolt. I ran a few so slow that i watch the bullet slowly go up the feed ramp, pop out of the mag and then slowly into the chamber. Had to adjust the mag latch to get the accurate mag to seat, and also the night vision bridge will not fit with the MTU barrel, but has clearance in forend.

Good to know about the bridge & MTU profile.

I'd be interested in seeing pics of your rifle if you had time to post them.



[Islander]

Good to know about the bridge & MTU profile.

I'd be interested in seeing pics of your rifle if you had time to post them.

My MPA BA chassis with a MTU barrel has clearance with the night vision bridge. Less than the chassis, but about .050 worth of clearance.

Edit: went and rechecked my barrel. It’s a M24 not a MTU, which would explain the clearance. Being a tad smaller at the muzzle and starting the taper a bit closer to the action allows it to clear.



[Zetlock]

Got the barrel for CDG #1 spun up and coated today. 24" Proof Heavy Palma in the Solus chassis until I decide what it's going to live in. Did have to clearance for the front and rear of the trigger hanger.

Do you have any pictures of the work you did to clear up the trigger hangar? Currently, trying to figure out which chassis I want to go with.



[ram2940]

This is the only picture i had.



[ram2940]

I went a got the NV bridge out and tried to put it on, i could probably use a .005 shim and it would fit. Touches on the rear of the bridge. slightly clears on the front



[Islander]

I went a got the NV bridge out and tried to put it on, i could probably use a .005 shim and it would fit. Touches on the rear of the bridge. slightly clears on the front

I was incorrect in my post (did an edit) mine is a M24. I recall now the guy I talked to at Preferred Barrels asked me what chassis I was going to use and recommended the M24 over the MTU. It was a while back, senior moment!



[DubfromGA]

View attachment 8329558


You’re good to go.

Damnitman.......that's a serious pipe.



[DubfromGA]

They are fine. As are the thousands of other barrels out there. My point was rather than spend so much time looking for " the best " barrel as you have in so many threads, buy one and be done.

I bought this Preferred barrel from the px but did have one proof barrel turned for me by Fisher TC and the turnaround time was quick.

You should probably be able to do that. Might have to call them when you make the order.

They will. I called them after I ordered my chassis online and had them swap out the standard grip for the large.

I love my Xylo large grip. Worth every penny.

I wear the same size glove. I think you will like the large grip.

Just wanted to thank each of you again.

The Xylo arrived this afternoon and the large grip is excellent.


Really pleased.

Now, waiting on CDG action & barrel.



[WhiteDingo]

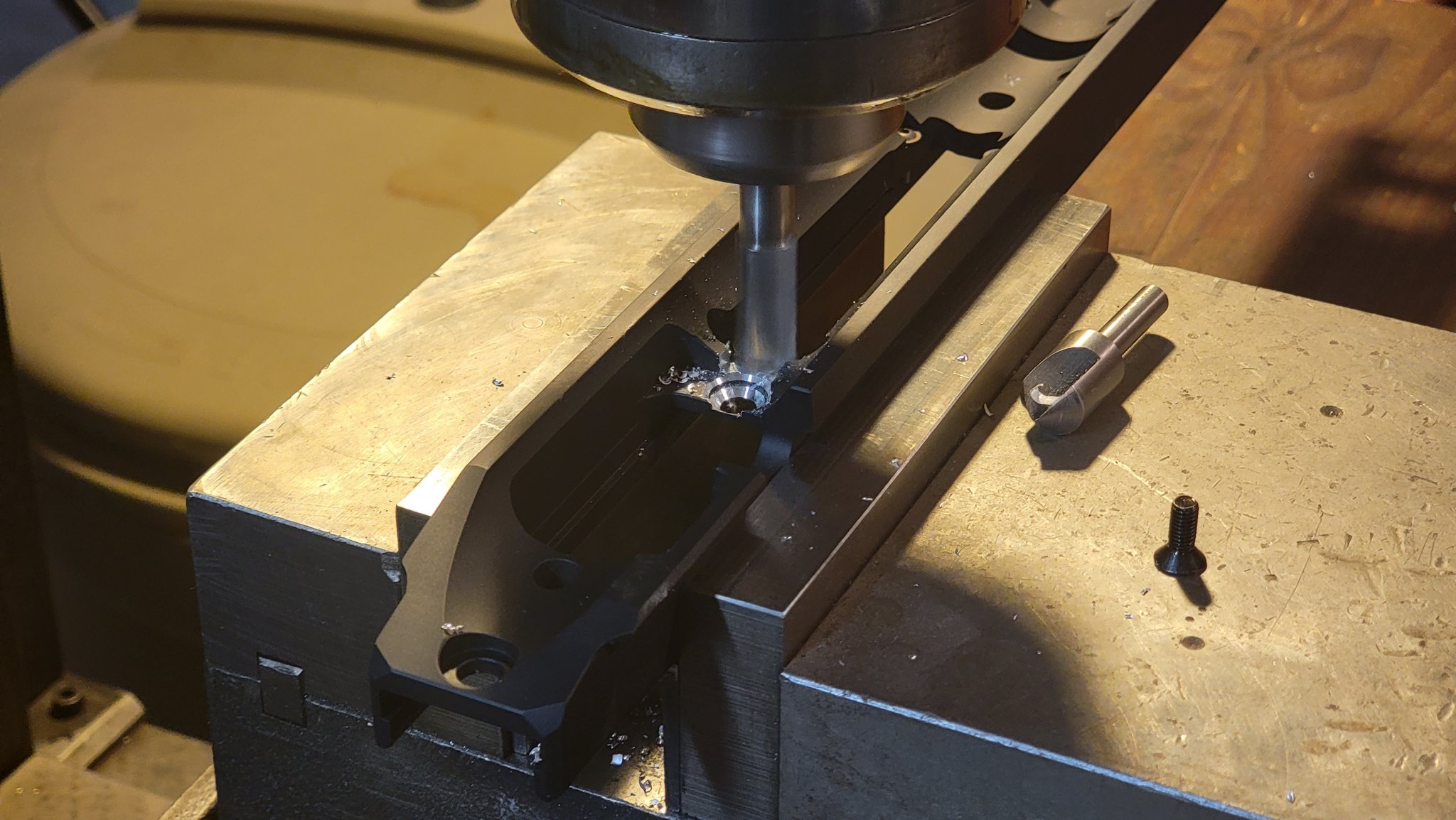

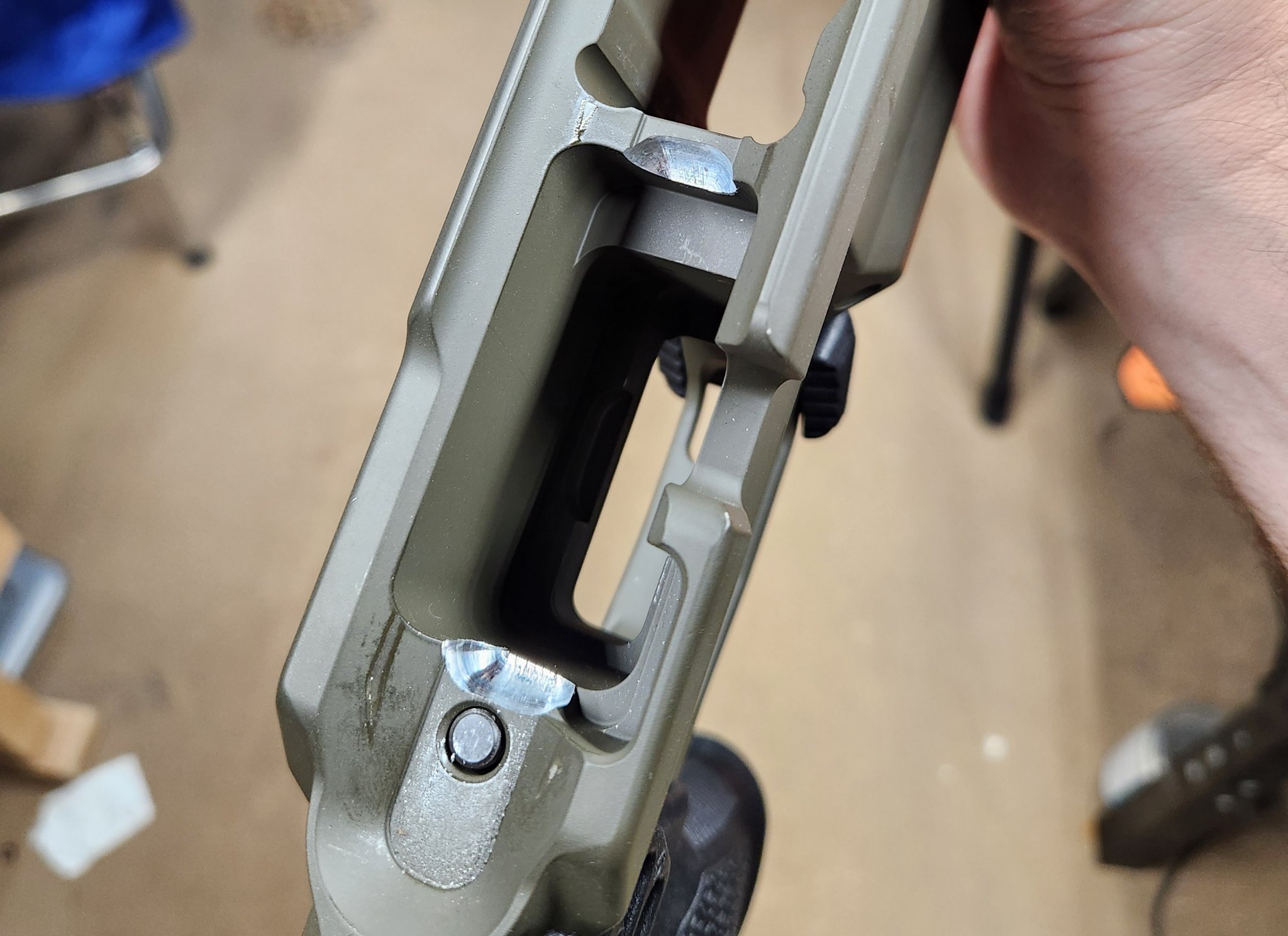

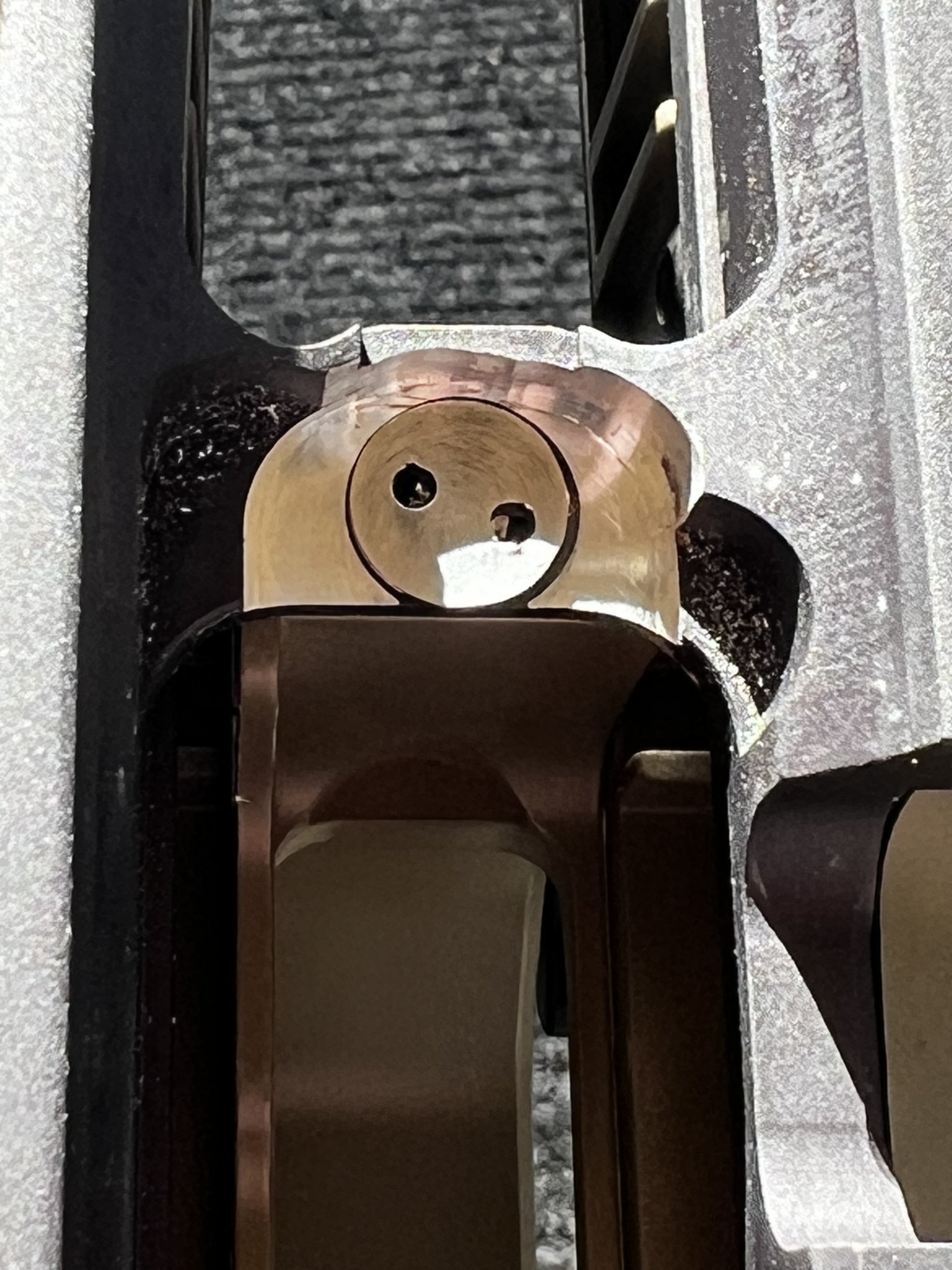

Here's a quick picture. It was a 3/8 ball mill in the machine at the time, if I remember.

Do you have any pictures of the work you did to clear up the trigger hangar? Currently, trying to figure out which chassis I want to go with.



[monkeypunch]

Ordered a new part for my build today. MPA finally came out with a NV bridge for the Ultra Lite chassis. Will be interesting to see what it will take to get the optic lined up with my thermal.



[Sweetteamobster7]

Finally got the action in.
Preferred barrel blanks 22 in 7mm PRC, TT special, Grayboe Phoenix.
Still waiting on scope.View attachment 8211793

Any mods to the Phoenix for the action to fit with the trigger hanger?



[RedBreast21]

View attachment 8151388

I know this place.



[aquasales]

Any mods to the Phoenix for the action to fit with the trigger hanger?

Yes, I had to dremel a little off the back for it to fit. Took 30 seconds.



[mwd92870]

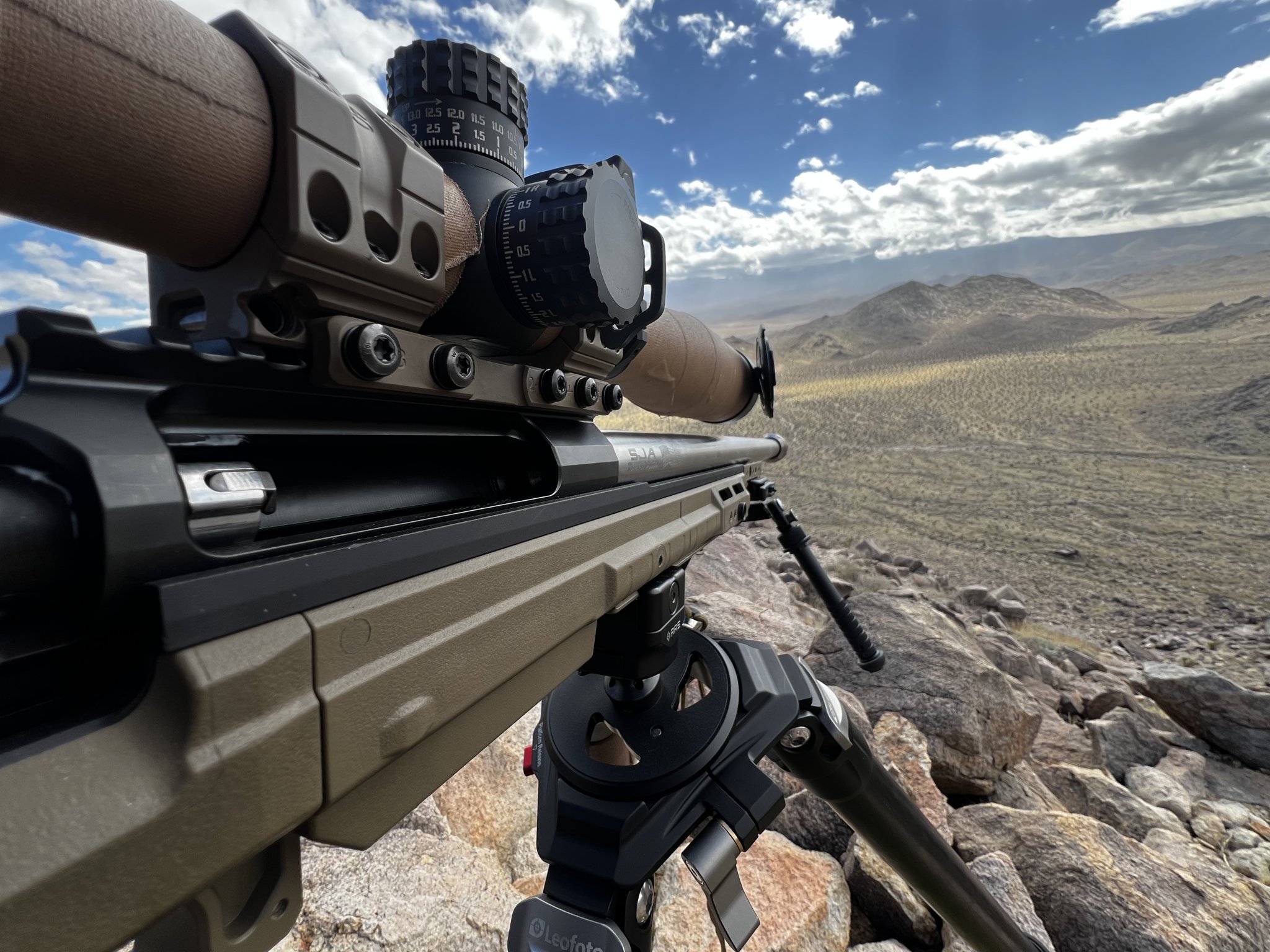

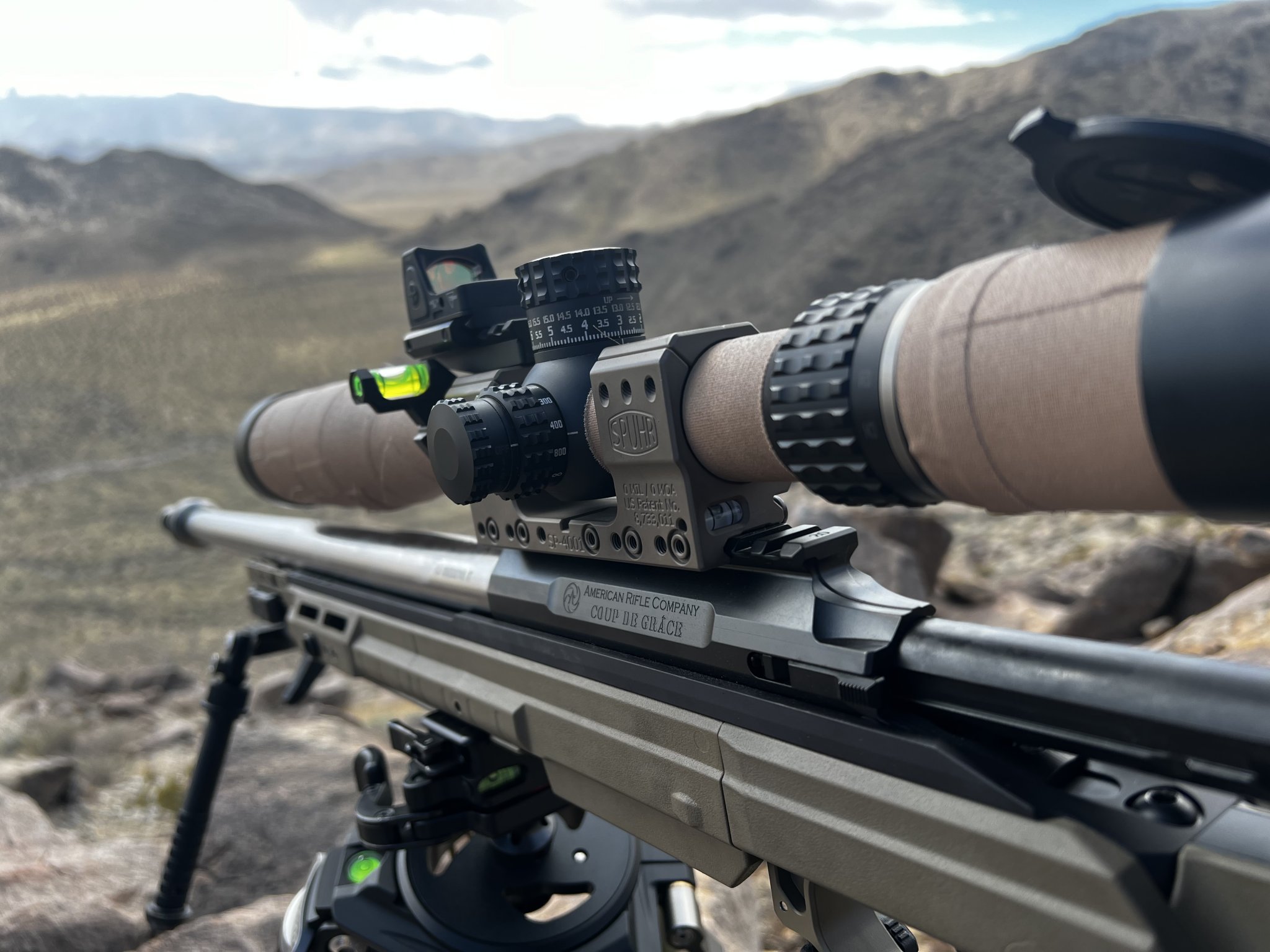

CDG in Whiskey 3 with SJA barrel



[Zetlock]

CDG in Whiskey 3 with SJA barrel

Beautiful range....Where's that at?



[mwd92870]

Beautiful range....Where's that at?

Max Ordinate Academy. CA



[Thebiglebowski]

OK, got back to the hanger tuning. I tuned it so it would barely be off contact on the uplift. I was able to set the trigger to 14oz with no fire. Added a couple more ounces to make my 1lbs pull and all is well. So, there is a correlation between setting the hanger and trigger pull. OK, just need my barrel from those pirates at PVA! (Benchmark 26" burnt bronze metallic cerakote, 6 straight flute, 708AI)

Still have the same opinion? My Diamond single stage just over 16oz will cycle fine with my running it like a gorilla, and then 1 will slam fire. Curious if I need to make it heavier cock on bolt open.



[TimResin]

well finally all together
26” Bartlein MTU 1-10 .308 winchester
chambered and built by GA Precision
area 419 match
barrel cerakote black
triggertech special 2lbs
ARC mount
Zeiss S3 6-36
MPA Comp green chassis



[goatsie]

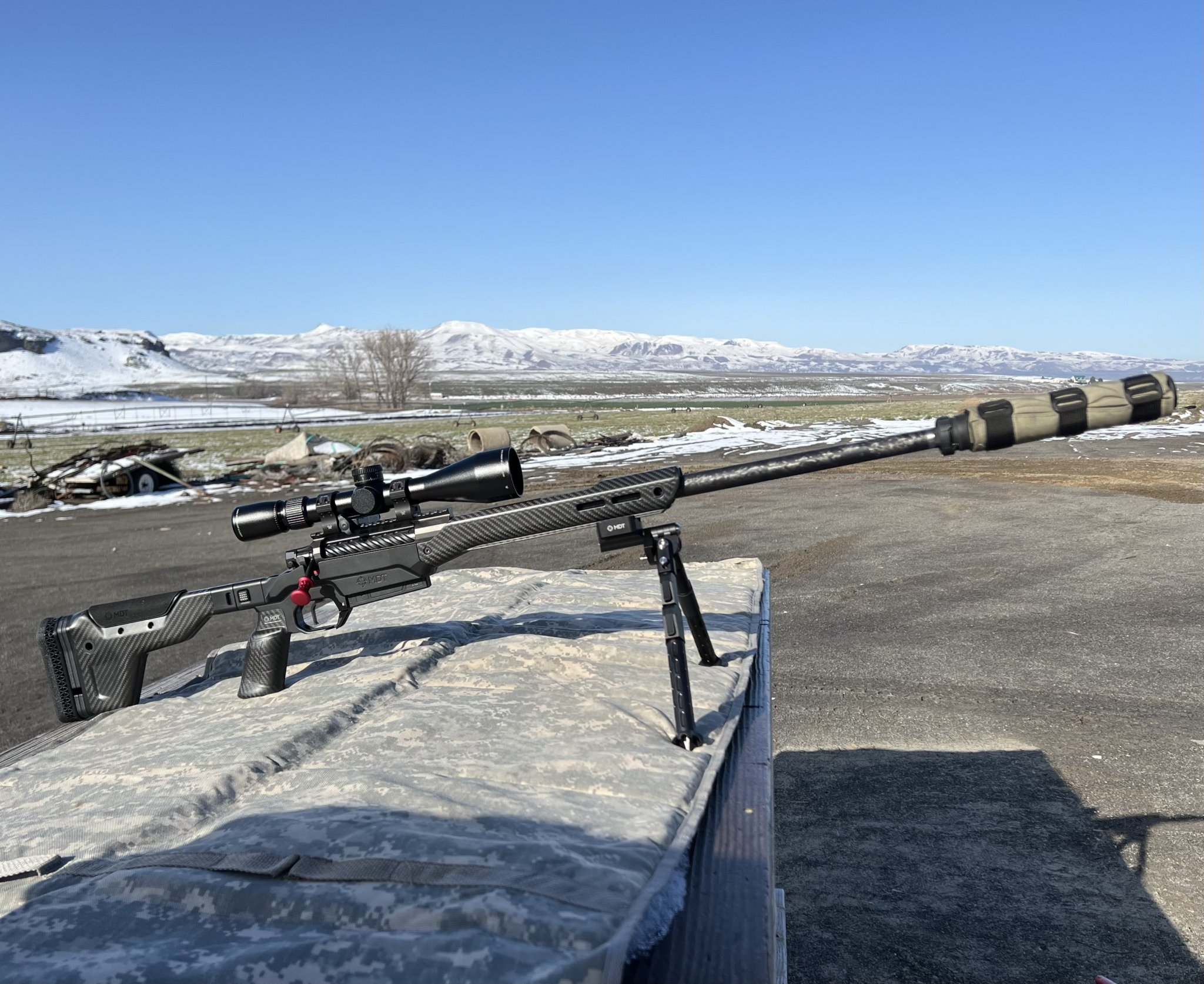

Ready to smoke some Idaho bears! 7PRC from spartan precision.



[Hennig]

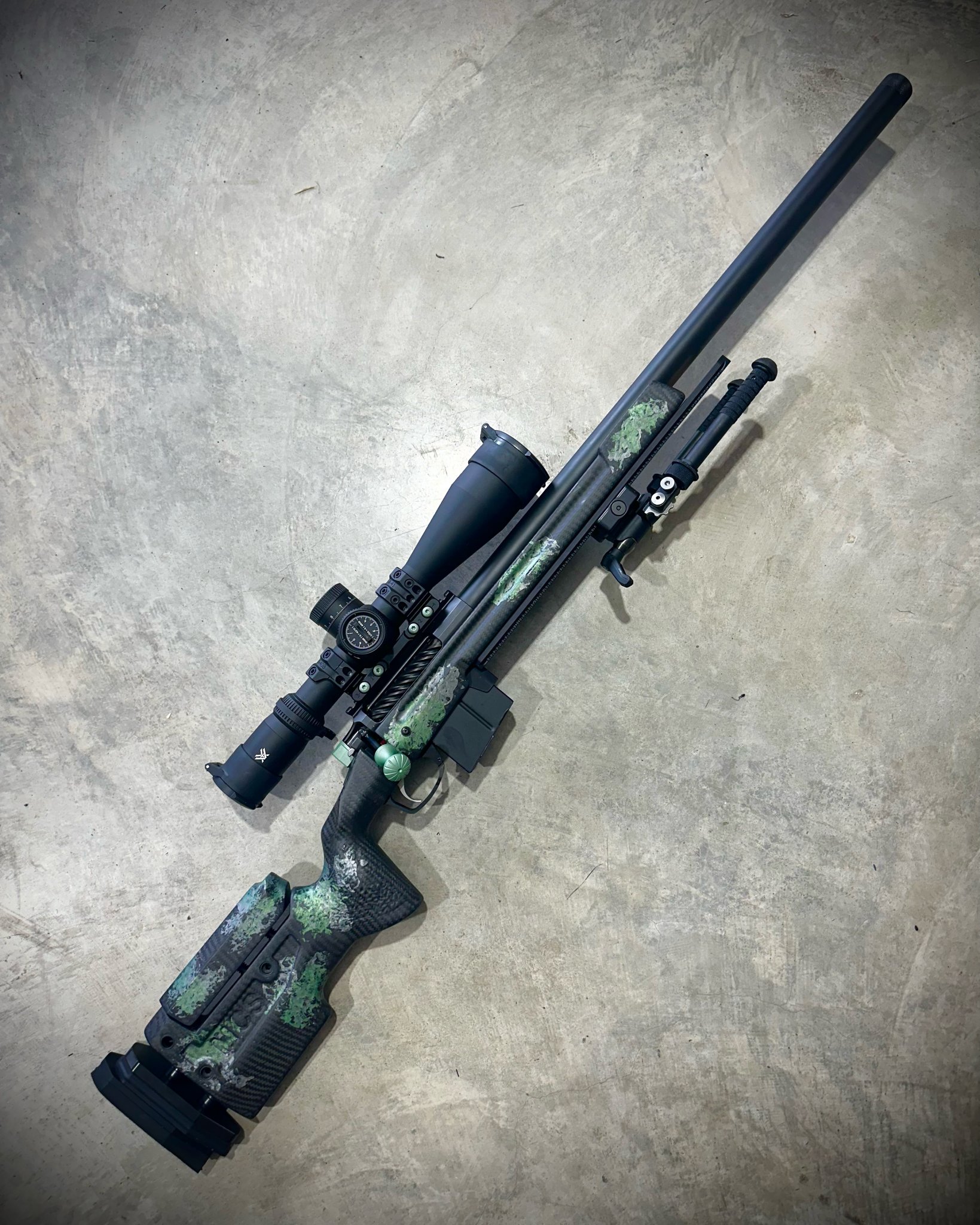

6dasher online!



[themightytimmah]

View attachment 8368381

6dasher online!

I like the green knob - color scheme is just in time for St. Patrick’s day!



[Boatninja]

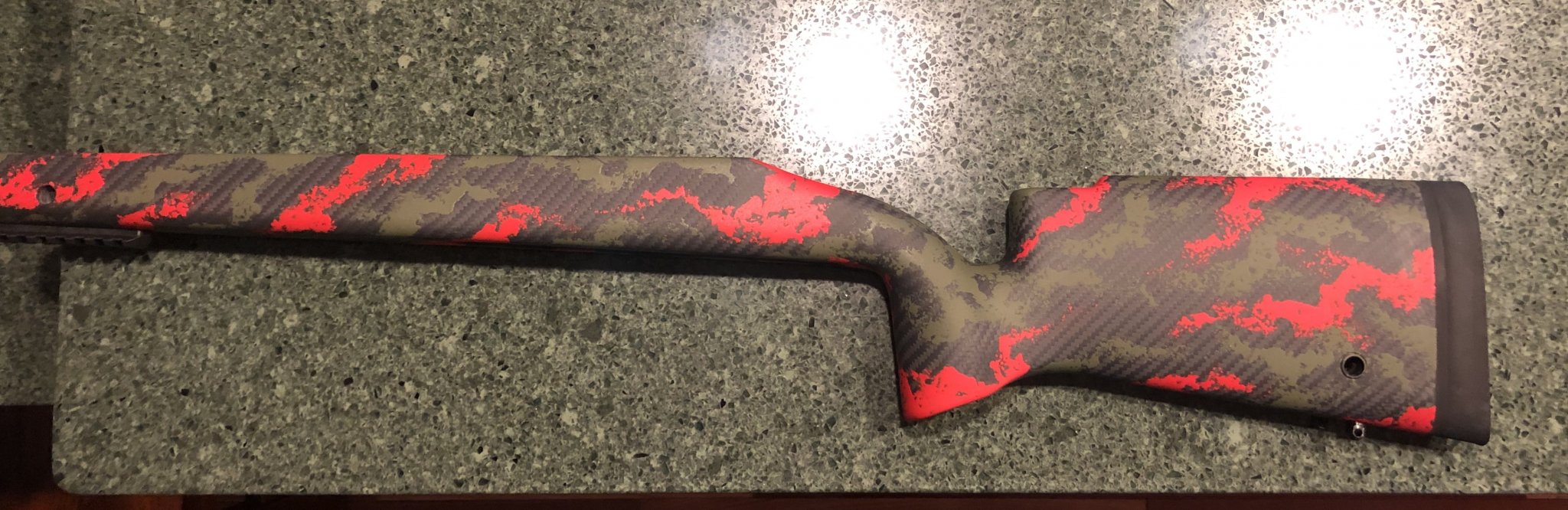

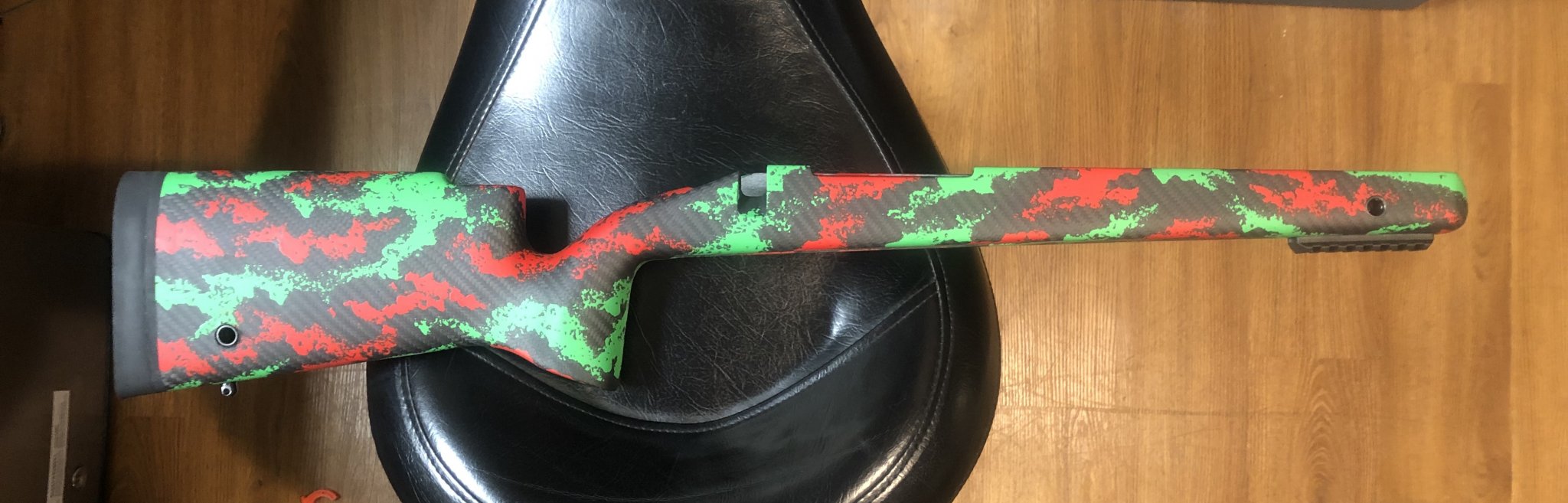

I had an AG Composites stock that was supposed to be red and OD green but came in with the bright green instead, a bit much for my tastes so I sent it back and got it redone. This post also still counts as there is a 50/50 chance it’s getting put on a CDG.

View attachment 8135627View attachment 8135628

What did you tell AG regarding inlet.



[CMP70306]

What did you tell AG regarding inlet.

It is a standard Remington 700 LA I bought back in 2019, I just repurposed it for this build.



[Hennig]

Time to bust out the Dremel!



[Golfnut721]

Ive got an MPA Matrix Pro 2 build that will arrive next week. It will be chambered in 6br. Any 12 round mag possibilities?



[4O6shootist]

Ive got an MPA Matrix Pro 2 build that will arrive next week. It will be chambered in 6br. Any 12 round mag possibilities?

Yeah you take a aw mag and window the bottom for the follower spring to drop through freely. Then install an Altus 2rd extension. This will require you to grind down the wings on the side the aw mag a bit. Once the spring has room to compress more, you can fit 12 rounds in the aw. I can fit 11 rounds in my 10rd aw mags as they ship from AI.



[Golfnut721]

Yeah you take a aw mag and window the bottom for the follower spring to drop through freely. Then install an Altus 2rd extension. This will require you to grind down the wings on the side the aw mag a bit. Once the spring has room to compress more, you can fit 12 rounds in the aw. I can fit 11 rounds in my 10rd aw mags as they ship from AI.

Well was hoping someone would say the mdt 12 round br mags worked well.



[357Max]

Well was hoping someone would say the mdt 12 round br mags worked well.

You could ask MPA to set it up to run AICS instead of AW. Would need the tab that ships with action installed in the chassis. That way you could run the MDT BR or whatever AICS.



[7mmShooter]

CDG LA 20Moa, currently a .22” 223 Rem but also have a 24” 300WM barrel for it. Ultradyne UD7 chassis with XLR TR-2 buttstock. Arken EP5 5-25

Anybody opened up a 3.715” AICS magwell for the 3.850” CIP AICS mags? That’s the only real change I want to make and it sounds as simple as filing 0.135” off the front edge of the magwell?
