ORIGIN Orders

[kriller134]

Bfh and a chisel



[stevenlgts]

Okay, mines on there pretty tight and now I wonder if the smith I used tread lock on mine.

My bolt handle spun off my Origin fairly easily.



[DGD6MM]

Following this thread.



[CHADPEZZLE]

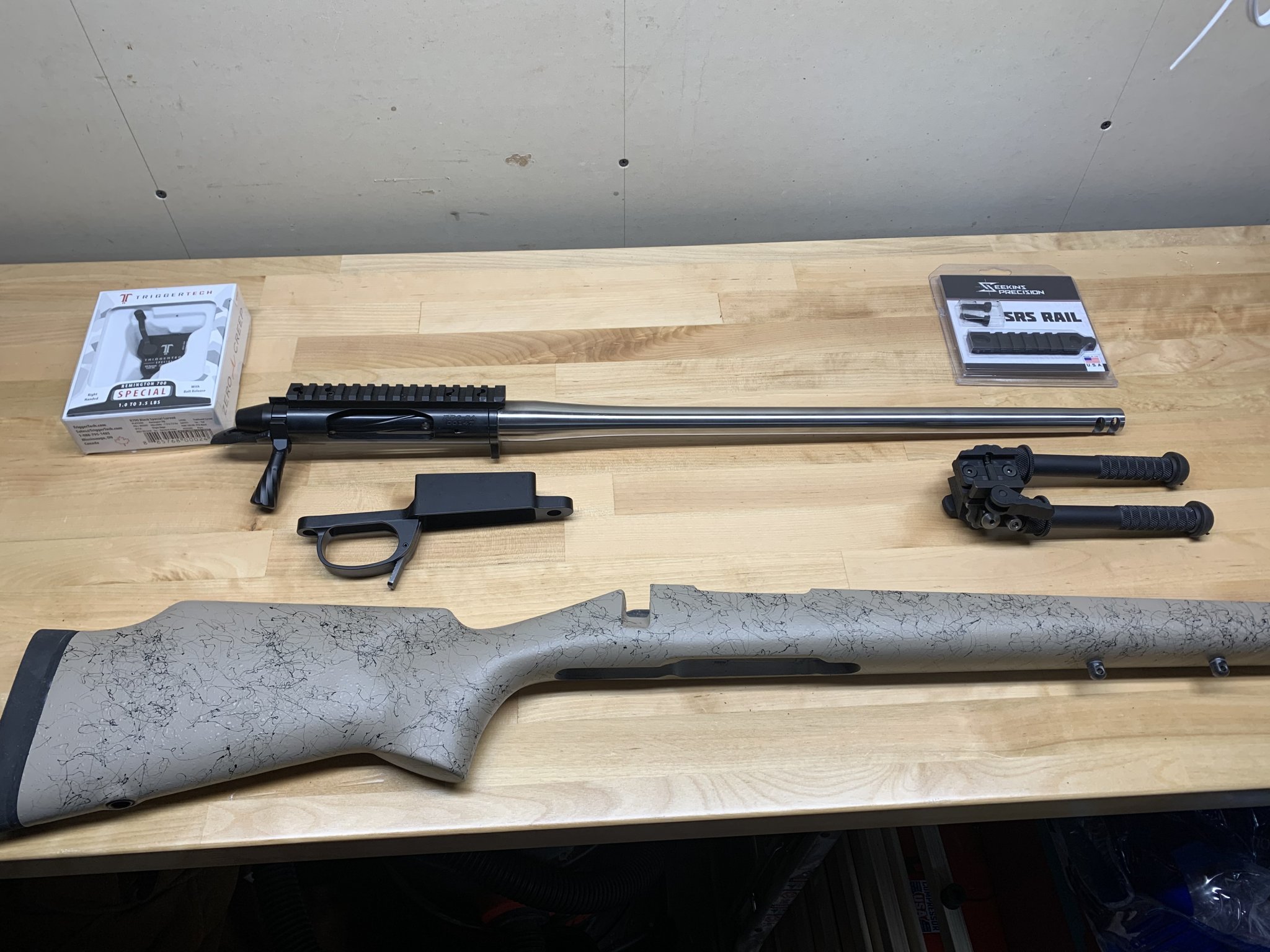

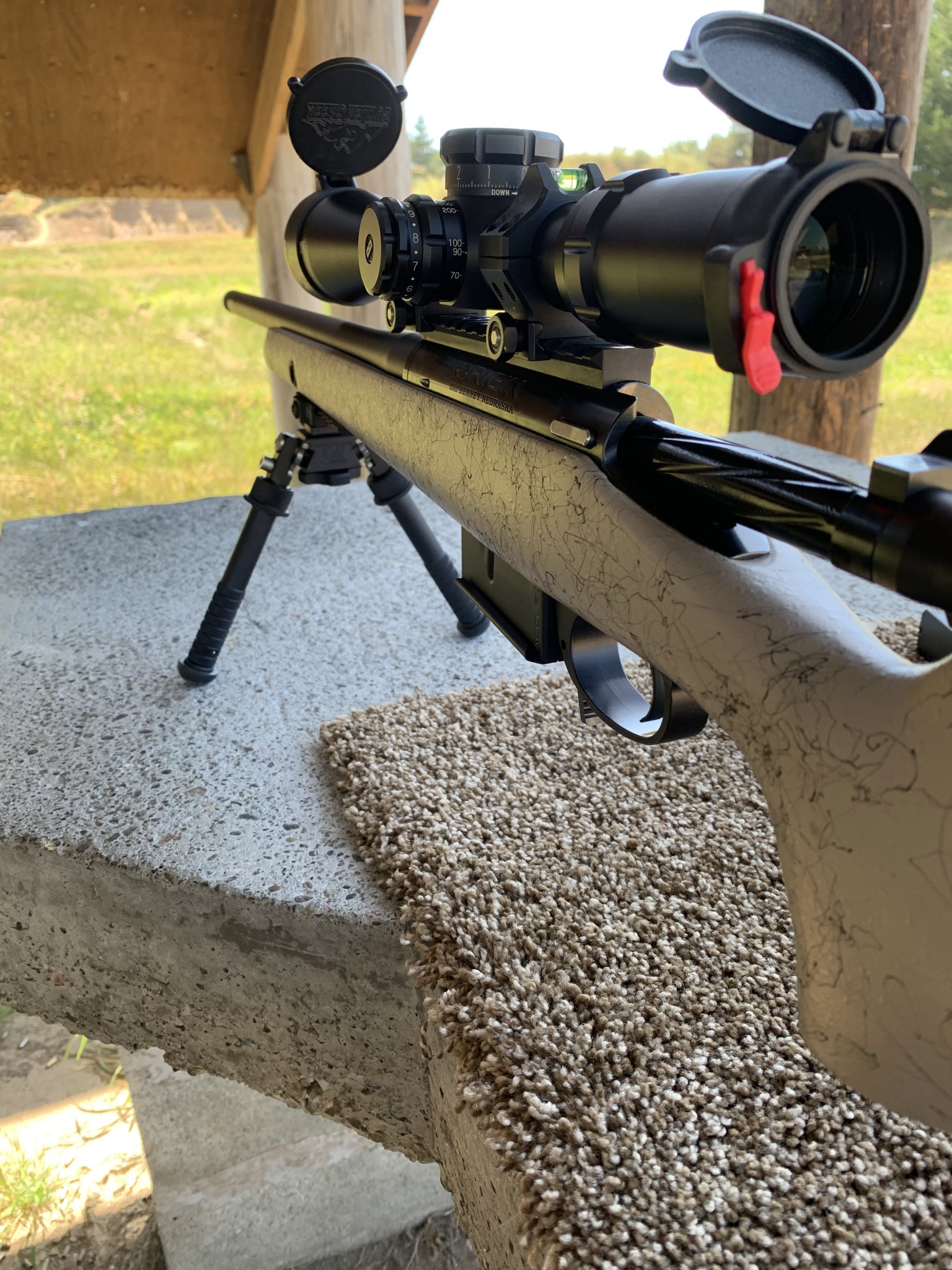

Finally got my Origin all together and took it to the range this weekend. Pretty stoked how things turned out. Ran 60 rounds through it without a hiccup.



[Nathan11B]

How does the Origin work with the Bix n’ Andy tacsport?



[drwood96]

Anyone in the thread interested in a Area419 Bolt Knob group by? They currently do not thread for the Origin (1/4"-28) but willing to for minimum of 25 orders. I'm just gauging interest and will setup an official group by to the correct section if there is enough interest.



[DRichardson]

Anyone in the thread interested in a Area419 Bolt Knob group by? They currently do not thread for the Origin (1/4"-28) but willing to for minimum of 25 orders. I'm just gauging interest and will setup an official group by to the correct section if there is enough interest.

Would the extension needed be machined into the knob? Any ideas on price?



[drwood96]

Yes, similar to their Remington 700 knob with longer extension. I did not discuss pricing yet but i would expect it to be a little more then their standard knob which is $25.



[King_beardsly]

Anyone in the thread interested in a Area419 Bolt Knob group by? They currently do not thread for the Origin (1/4"-28) but willing to for minimum of 25 orders. I'm just gauging interest and will setup an official group by to the correct section if there is enough interest.

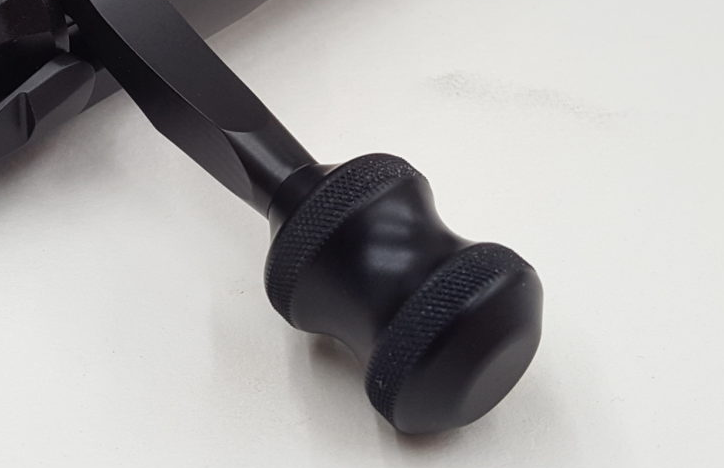

View attachment 7100574

I could probably get down with one of these



[DRichardson]

Put me down for one



[spife7980]

How does the Origin work with the Bix n’ Andy tacsport?

Just fine. Get the low 3.6 sear for the bighorn.



[evtschromd]

Will this action feed a dasher with a standard aics magazine?



[Triggs75]

Will this action feed a dasher with a standard aics magazine?

That is what I am running in my origin. I ran at first without the mag spacer kit and did not have a problem but I still got the spacer kit for a couple of mags. Also used the arc mags just fine. But I was not doing any competition shooting just prone or off bench.



[b6graham]

Will this action feed a dasher with a standard aics magazine?

guy i shoot with shoot straight BR. havent seen an issue



[Nathan11B]

Anyone run a Bravo Chassis with their Origin? If so, what are the positives and negatives? Also did KRG come out with a weight system for their chassis?



[RFutch]

Anyone run a Bravo Chassis with their Origin? If so, what are the positives and negatives? Also did KRG come out with a weight system for their chassis?

I do. All positives from my view. Not sure on the weights but I have added weight to mine with some cheap lead roundballs. Just stuff them in the buttstock and remove when needed.



[dirtbiker250]

Finally got my Origin all together and took it to the range this weekend. Pretty stoked how things turned out. Ran 60 rounds through it without a hiccup.

the ole' grayboe terrain/ origin combo!! i like it! have a couple myself!



[dirtbiker250]

Anyone in the thread interested in a Area419 Bolt Knob group by? They currently do not thread for the Origin (1/4"-28) but willing to for minimum of 25 orders. I'm just gauging interest and will setup an official group by to the correct section if there is enough interest.

View attachment 7100574

ill try one!



[DRichardson]

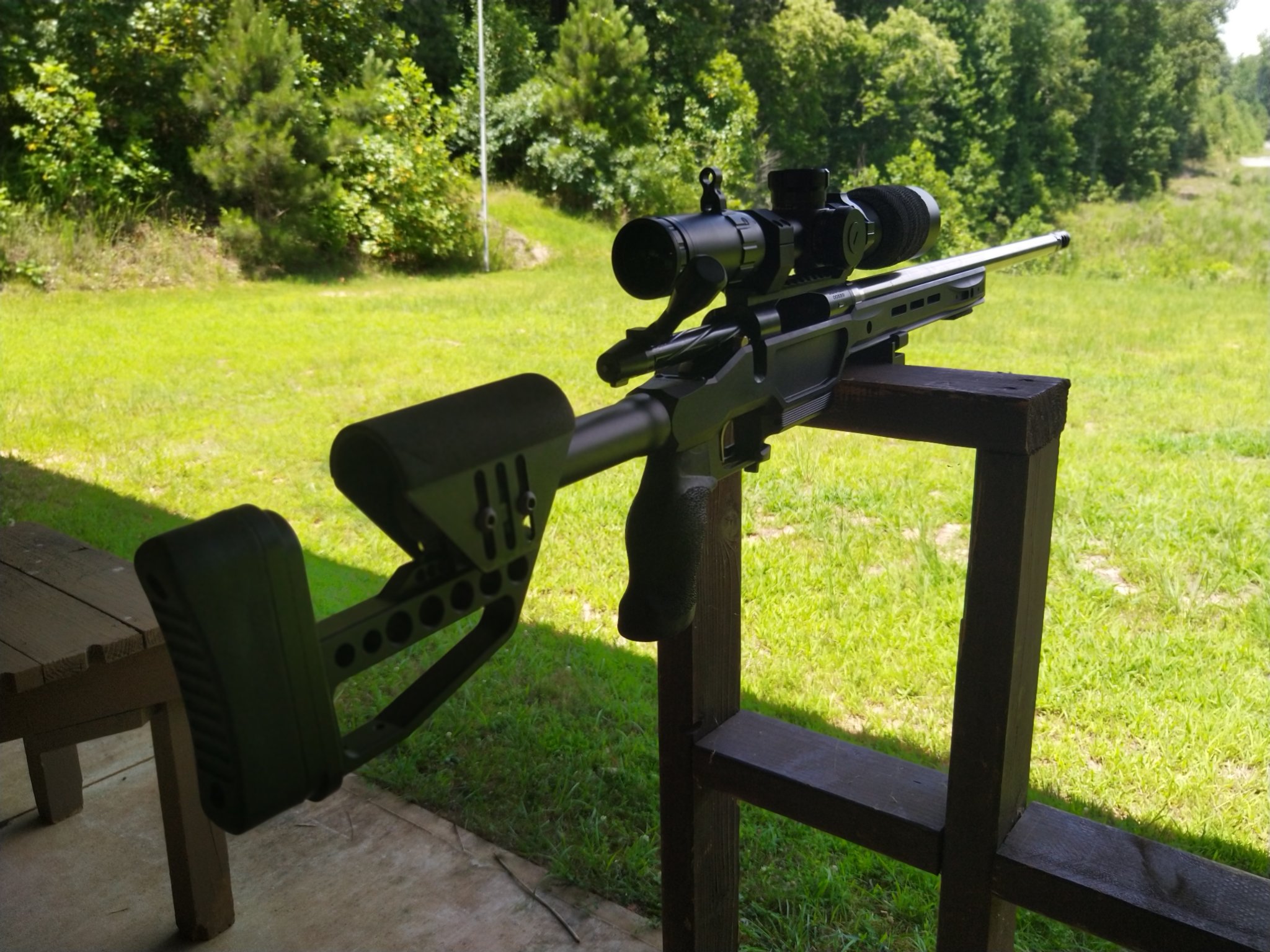

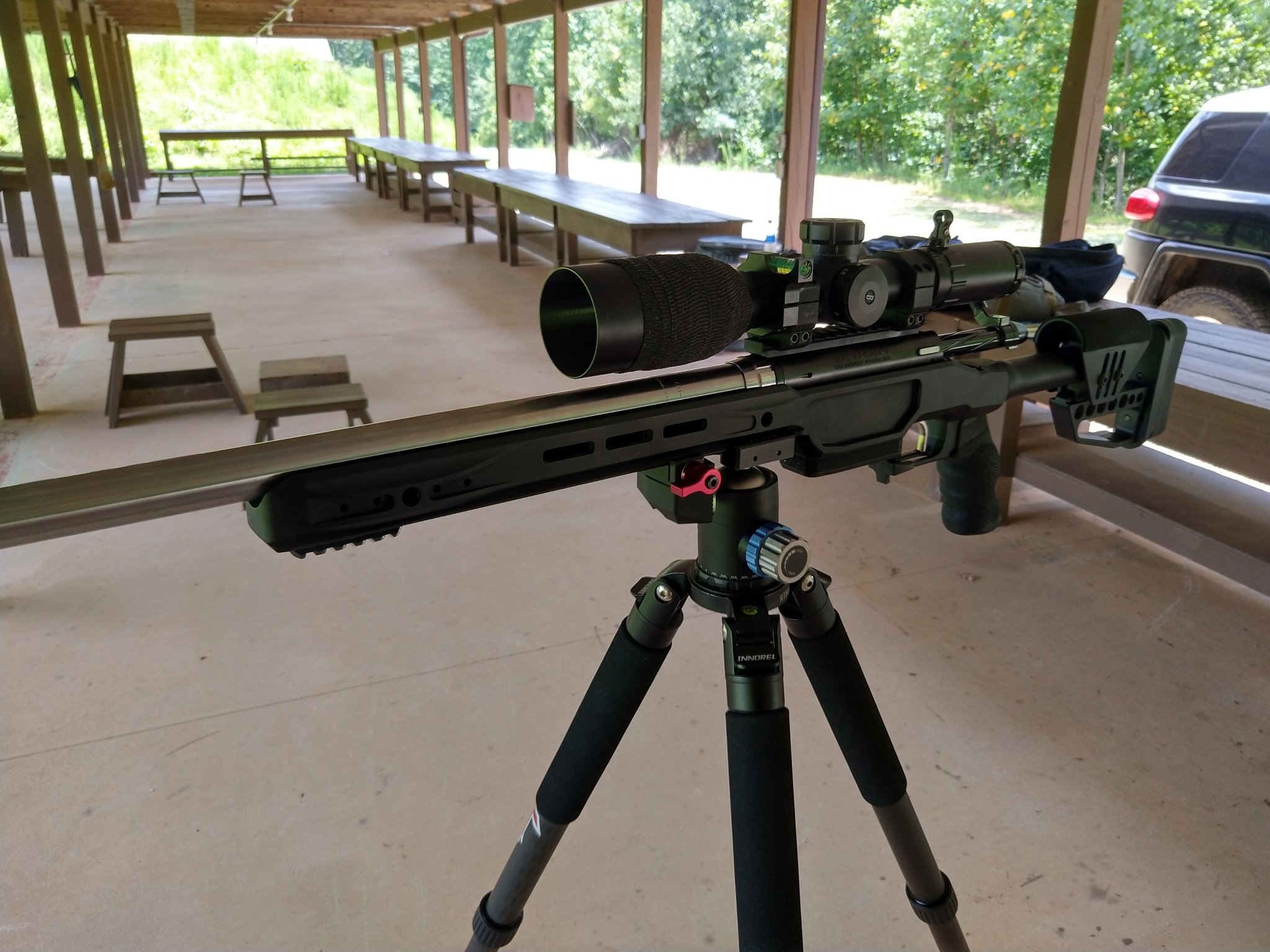

I finally got my origin put together and shot it today. I'm loving this action it's smooth and feeds, extracts, and ejects great. The criterion barrel is everything I was expecting and then some.

Build list:
Gen 1 XLR envy chassis
Origin action
26 inch Criterion 6mm creedmoor MTU contour barrel
Timney Calvin elite 2 stage flat trigger
Bushnell HDMR 2 scope.



[drwood96]

Anyone in the thread interested in a Area419 Bolt Knob group by? They currently do not thread for the Origin (1/4"-28) but willing to for minimum of 25 orders. I'm just gauging interest and will setup an official group by to the correct section if there is enough interest.

View attachment 7100574

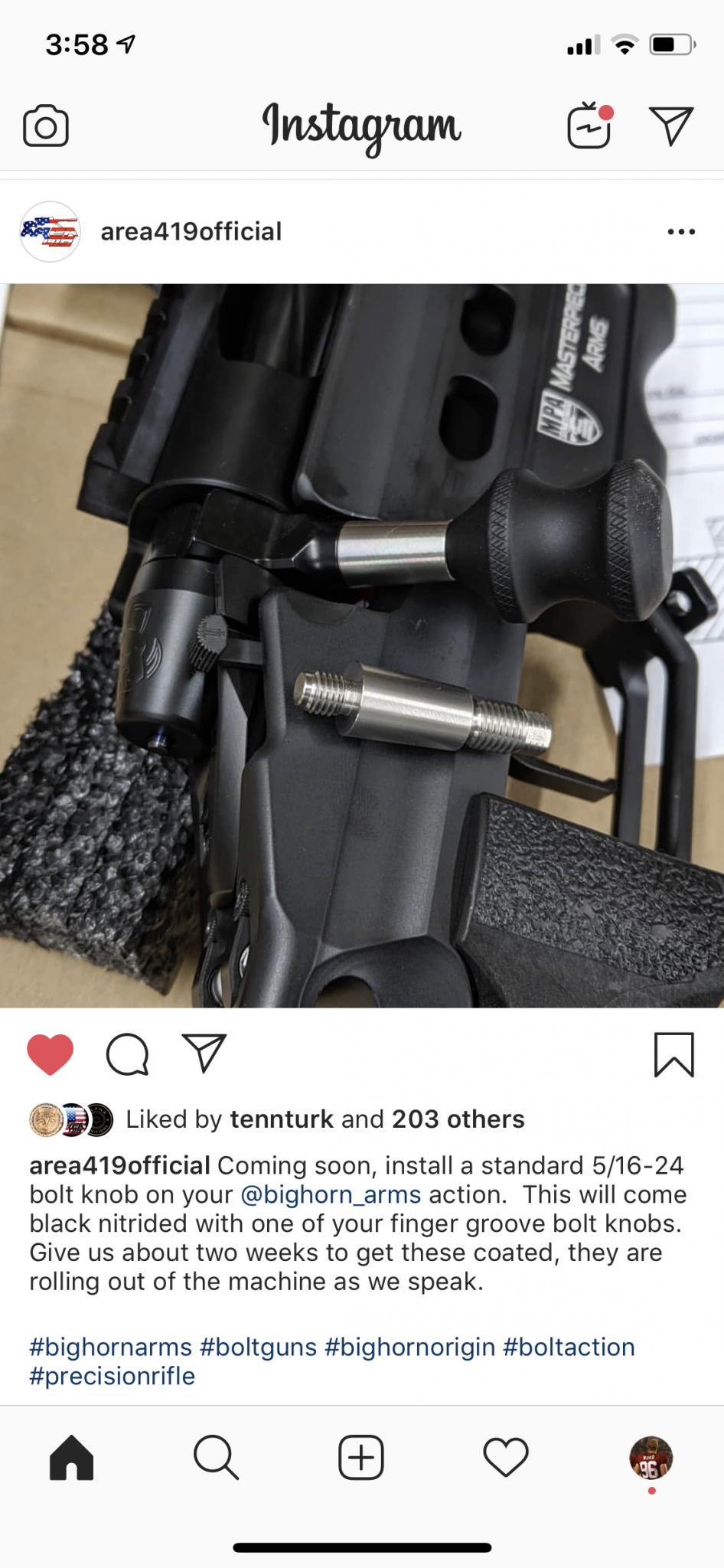

This didn’t get a lot of interest but it looks like Area419 still followed thru. Man they are a great company.



[King_beardsly]

I just saw that and I'm going to grab one once they are released



[b6graham]

I just saw that and I'm going to grab one once they are released

Same.



[Tx_Aggie]

I just saw that and I'm going to grab one once they are released

Me also



[spiche]

A419 keeps on getting great stuff out for us shooters. Another thing to add to my next order.
Thanks for the heads up.

Steve



[drwood96]

Pre order is live! $35(Regular $40) for the adaptor and can add the knob for $15. Expected ship date of 8/5.

https://www.area419.com/product/steel-5-16x24-bolt-knob-adapters/



[King_beardsly]

Just ordered mine



[DRichardson]

I'm going to need area 419 to calm down with the cool stuff! Just bought a arca mount atlas Cal during their 4th sale now this.



[DRichardson]

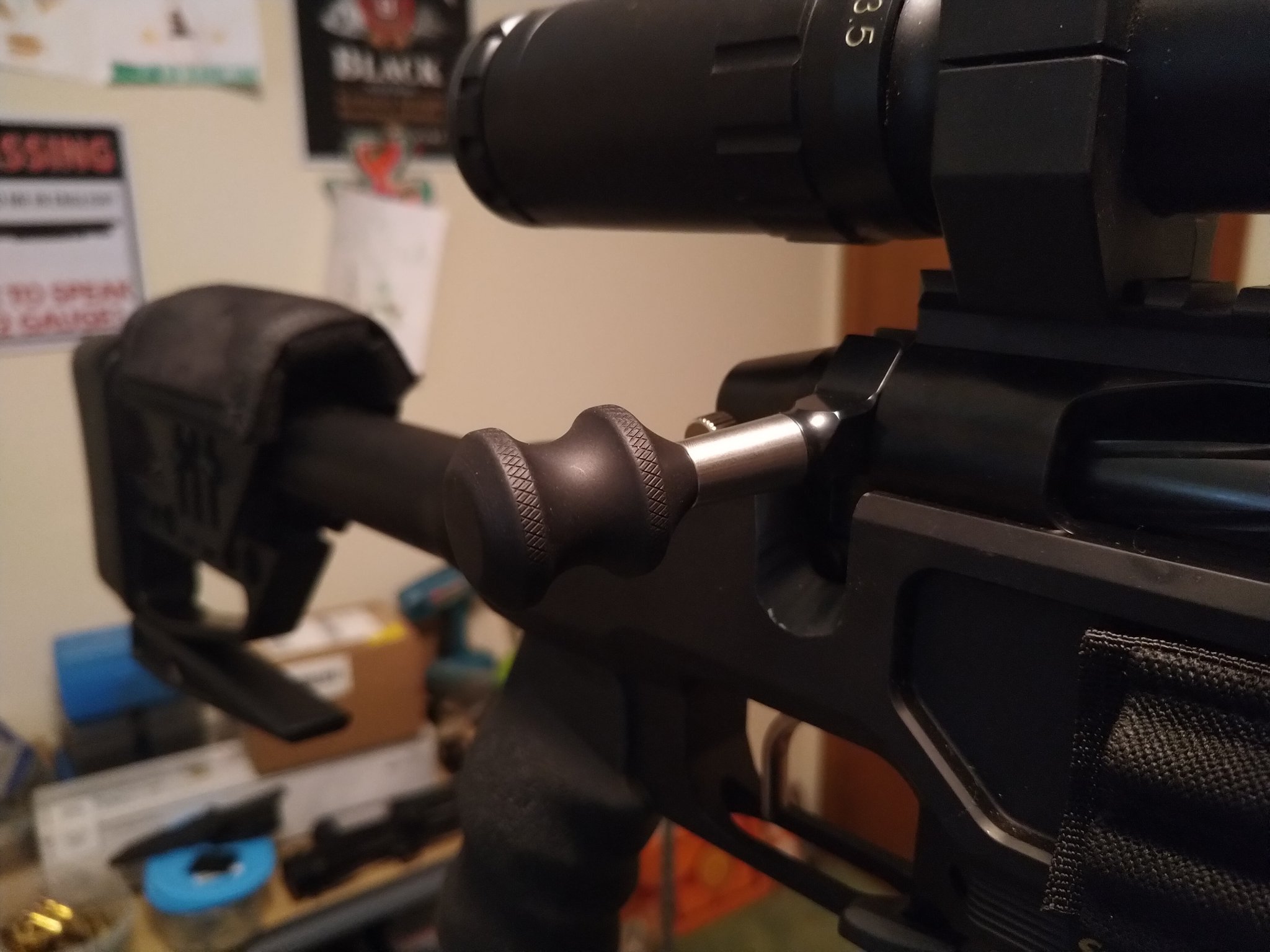

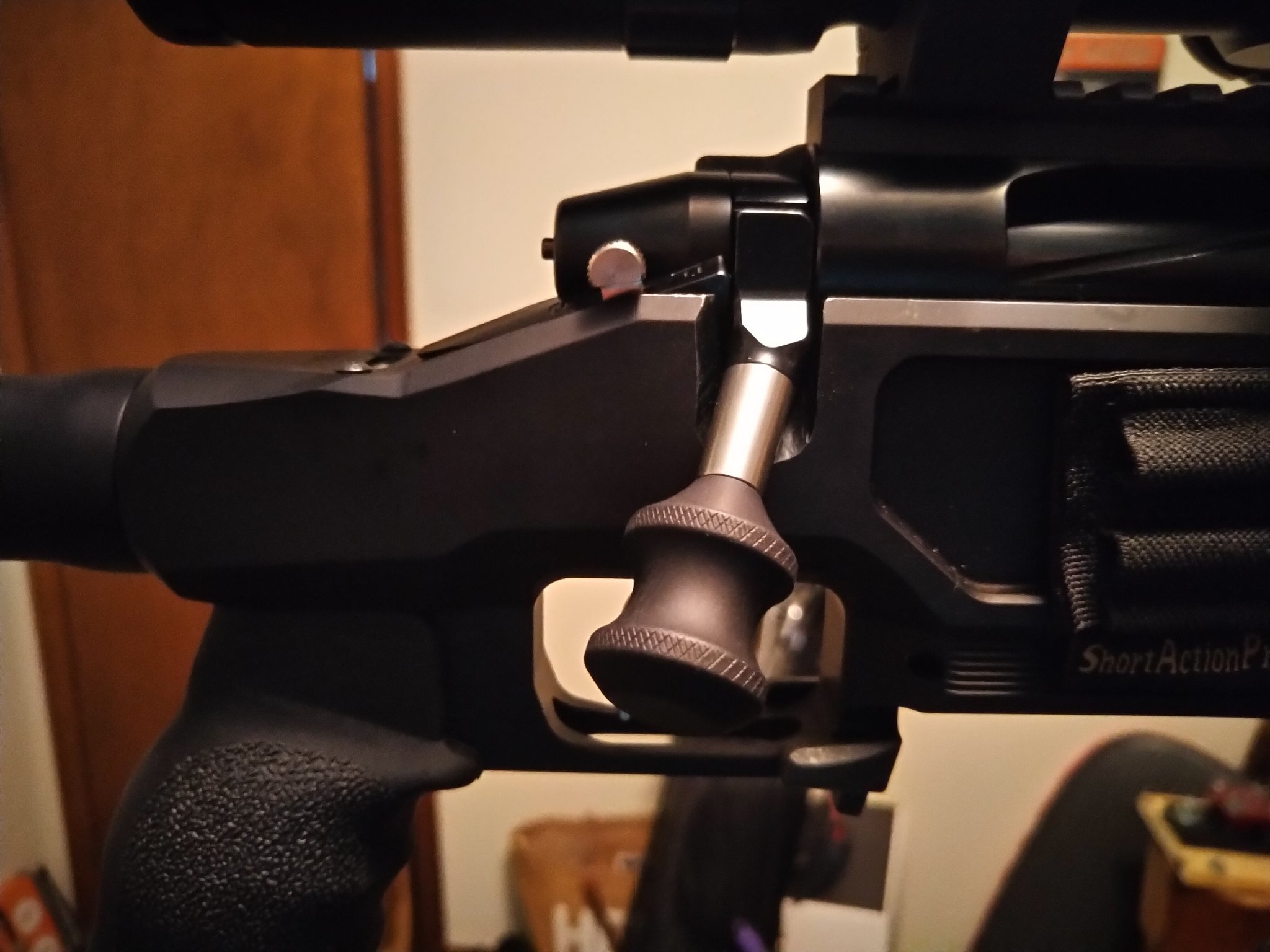

Got the bolt knob and adapter for Area 419 today. As with everything I've got from them the fit and finish is excellent. These make what is already a great action even better. I had the tactical knob, which is smooth, and this knob with the finger notch makes running the bolt quickly much more sure and consistent. It isn't any longer than the original so it doesn't stick out any further if that matters to you.



[King_beardsly]

I wonder when mine will show up, I ordered it they day the pre order went up



[DRichardson]

I wonder when mine will show up, I ordered it they day the pre order went up

I guess since I ordered the adapter raw stainless they had those ready to go. I ordered on Friday and got the shipping confirmation monday.



[King_beardsly]

I emailed them and they are shipping them out as they come back, but they are apparently ahead of schedule



[Brazo]

I wonder if other bolt knobs will screw on and look OK at the knob / handle junction or if they are made specifically for the Area 419 knob to have the diameter of both match.



[King_beardsly]

Should accept any knob with the same thread pattern



[drwood96]

I emailed them and they are shipping them out as they come back, but they are apparently ahead of schedule

The raw adapters shipped and the black nitride should ship next week.



[DGD6MM]

Where can I find the torque specs for this action?

Thanks
Don Dunlap



[b6graham]

Where can I find the torque specs for this action?

Thanks
Don Dunlap

for? rail? action screws?



[kriller134]

Has anyone had issues with light primer strikes? I went to the range this past weekend and had a lot of light strikes. Had the problem with factory and hand loads. I've never had an issue until this past weekend. Thought I'd ask here first before I email big horn.



[mi223]

Has anyone had issues with light primer strikes? I went to the range this past weekend and had a lot of light strikes. Had the problem with factory and hand loads. I've never had an issue until this past weekend. Thought I'd ask here first before I email big horn.

What trigger? I would bet it is a trigger compatibility issue



[Zermatt Arms]

Has anyone had issues with light primer strikes? I went to the range this past weekend and had a lot of light strikes. Had the problem with factory and hand loads. I've never had an issue until this past weekend. Thought I'd ask here first before I email big horn.

First thing to check is that the cocking piece hasn't backed out on the threaded section of the firing pin. Is the firing pin indicator sticking out of the back of the shroud when the bolt is open and cocked over the trigger?



[padom]

Has anyone had issues with light primer strikes? I went to the range this past weekend and had a lot of light strikes. Had the problem with factory and hand loads. I've never had an issue until this past weekend. Thought I'd ask here first before I email big horn.

Nope



[DGD6MM]

for? rail? action screws?

Action screws and rail.



[kriller134]

First thing to check is that the cocking piece hasn't backed out on the threaded section of the firing pin. Is the firing pin indicator sticking out of the back of the shroud when the bolt is open and cocked over the trigger?

It’s barely sticking out.



[Zermatt Arms]

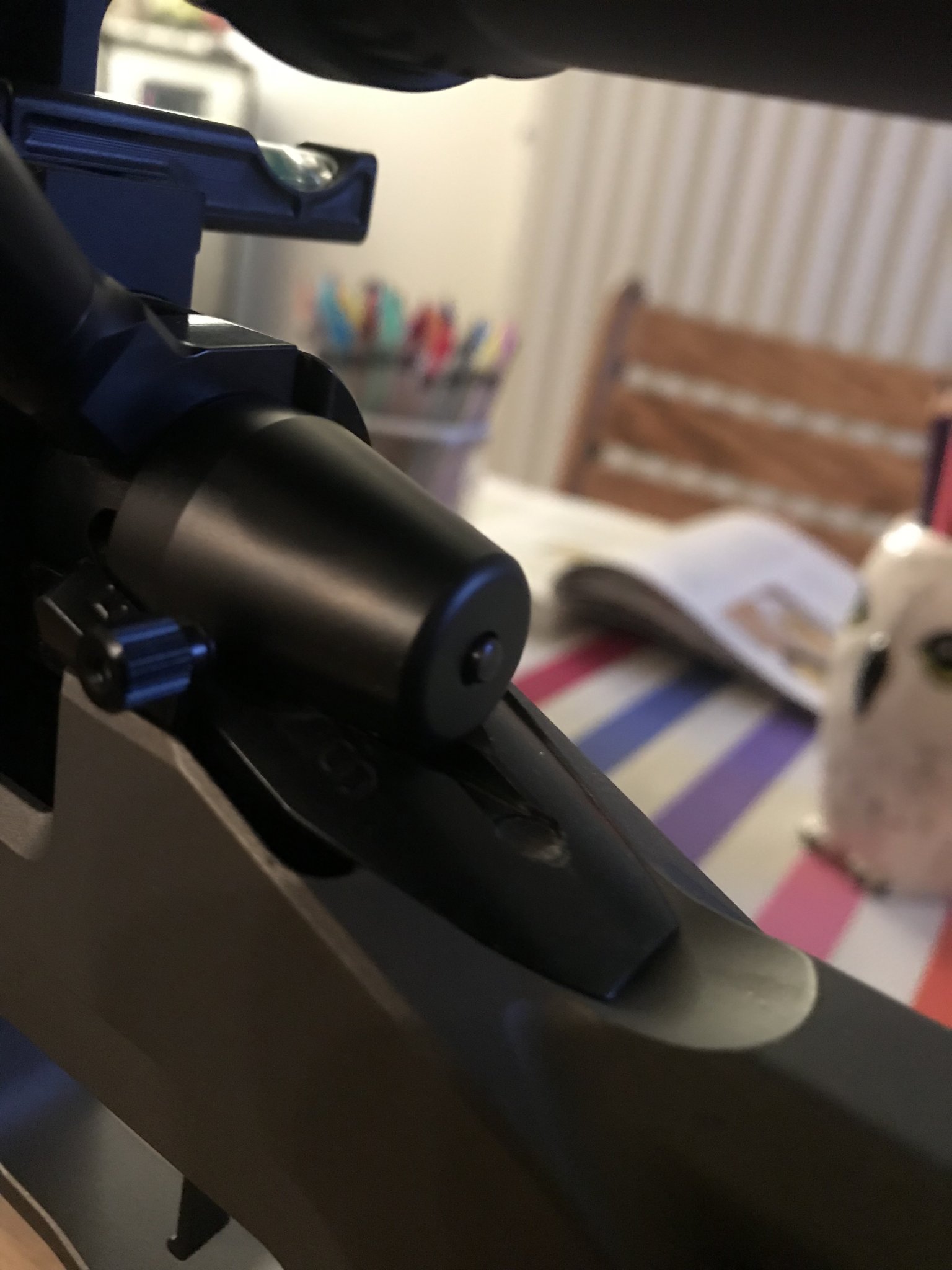

It’s barely sticking out. View attachment 7125909

It looks like it's starting to back out. Pull the firing pin out, then pull the two set screws (1/16" Allen head) out of the cocking piece. When you have that done, turn the cocking piece on the firing pin as if your tightening a nut on a bolt. Run it to the shoulder and back it off 1/2 to 3/4 of a turn. Replace the set screws when you've done that with a little bit of blue Loctite and you're back in business.

If you run into any issues, let us know. We'll be happy to help you out.

Thanks - Ray



[kriller134]

It looks like it's starting to back out. Pull the firing pin out, then pull the two set screws (1/16" Allen head) out of the cocking piece. When you have that done, turn the cocking piece on the firing pin as if your tightening a nut on a bolt. Run it to the shoulder and back it off 1/2 to 3/4 of a turn. Replace the set screws when you've done that with a little bit of blue Loctite and you're back in business.

If you run into any issues, let us know. We'll be happy to help you out.

Thanks - Ray

Thanks Ray I’ll give it a go!



[kriller134]

Thank you @BigHorn / ZAI Team it looks a lot better now. Gonna test it out when I get some time.



[Zermatt Arms]

Thank you @BigHorn / ZAI Team it looks a lot better now. Gonna test it out when I get some time.

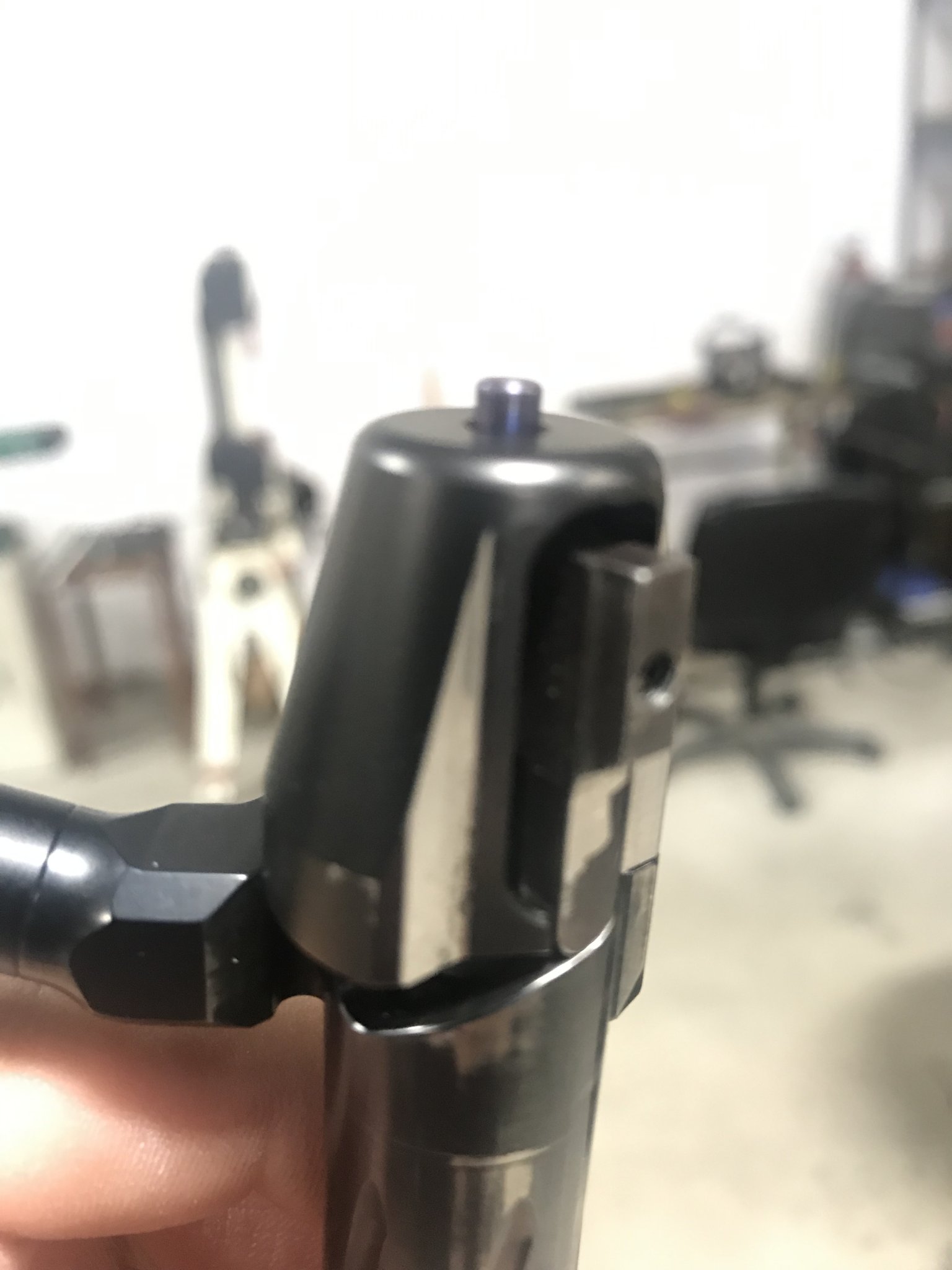

View attachment 7126226

That looks much better! - Ray



[Bandit31]

@BigHorn / ZAI Team

Will we be seeing an available long action Origin in the near future?

An XL TL3 would be pretty slick too.



[Marksman]

I really hope we see a long action. I'm in need of a long action that will fit Rem 700 accessories, but with savage barrel threads.



[Zermatt Arms]

@BigHorn / ZAI Team

Will we be seeing an available long action Origin in the near future?

An XL TL3 would be pretty slick too.

Stay tuned.



[Bandit31]

Stay tuned.
