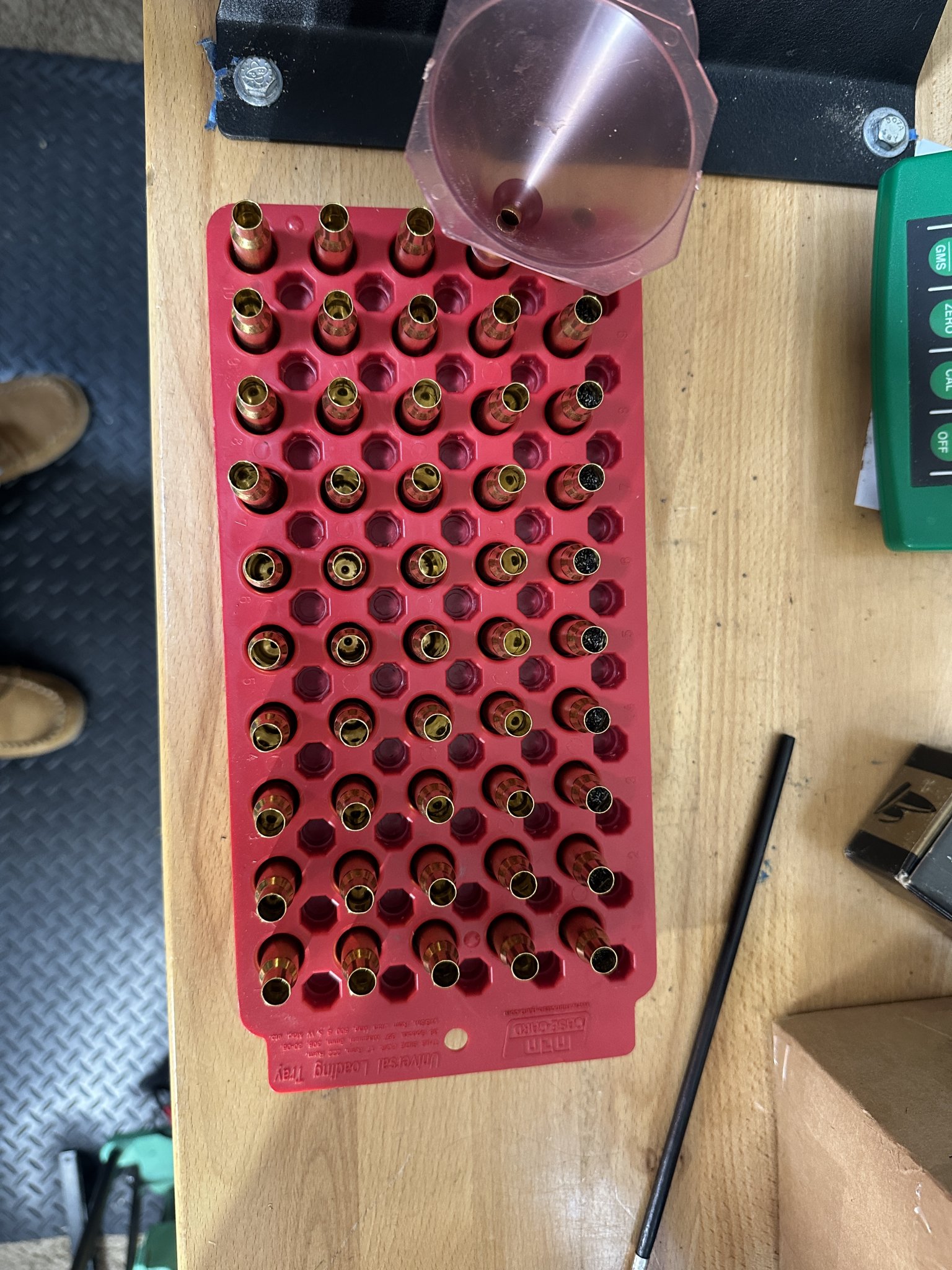

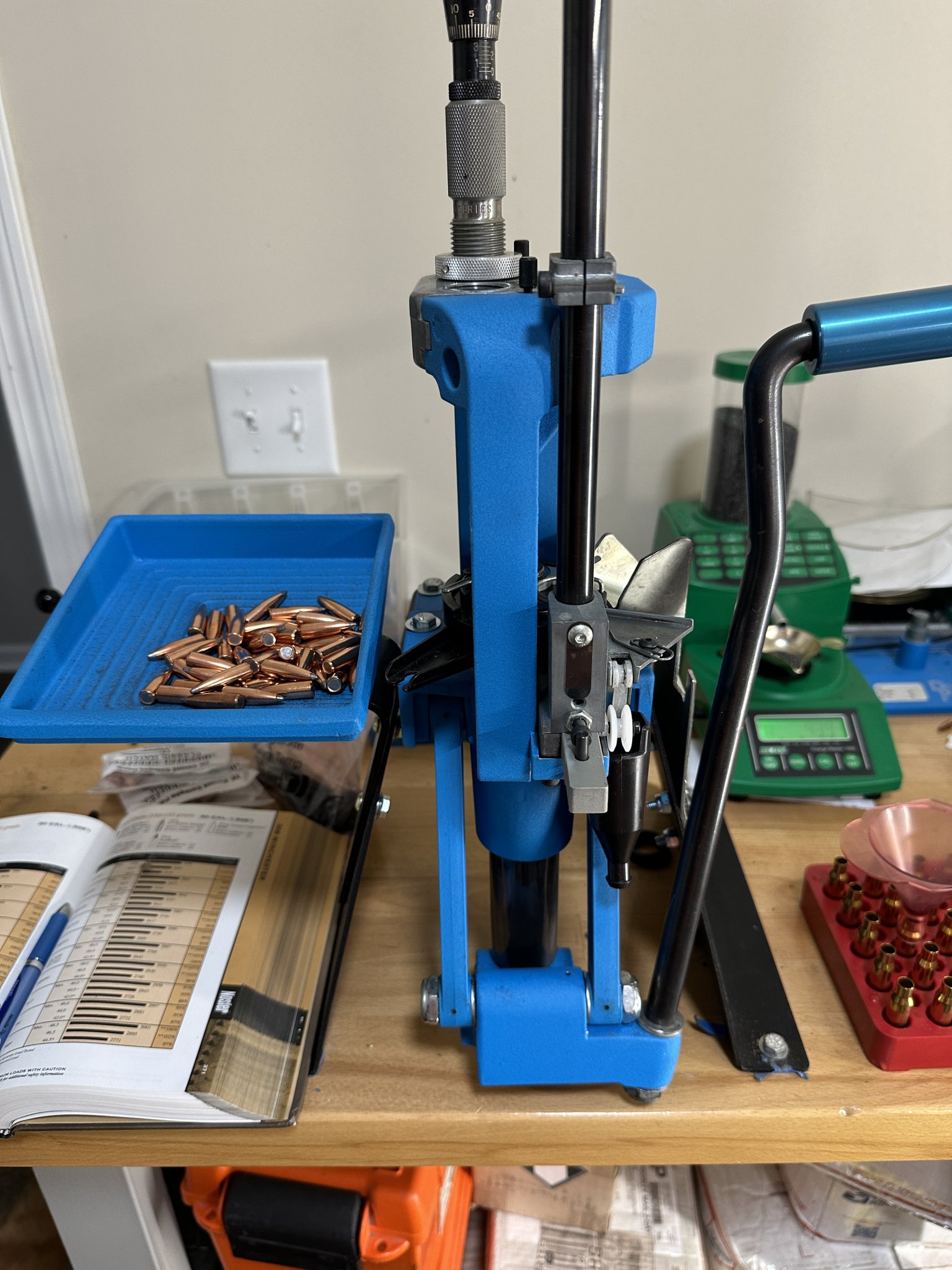

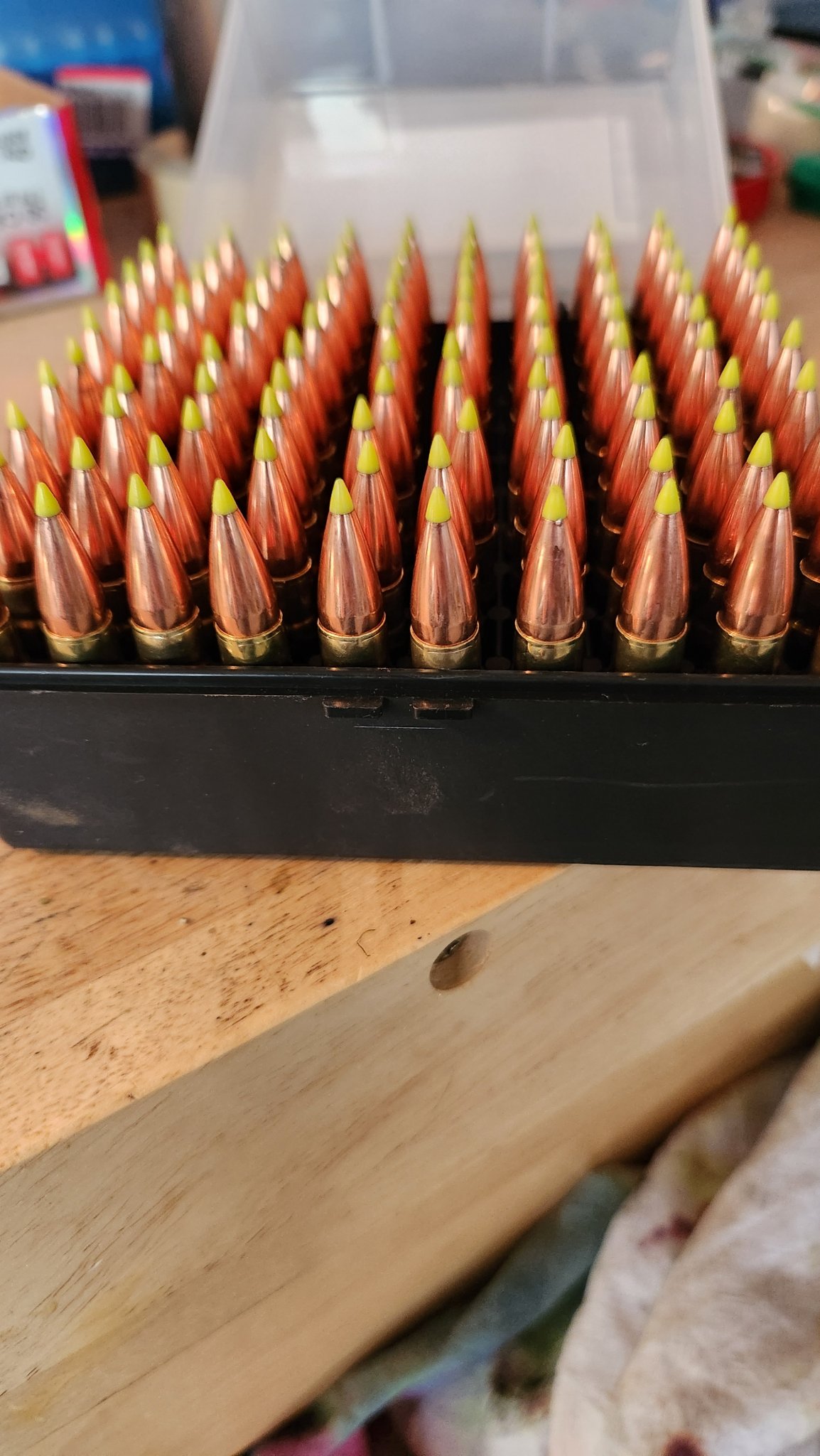

Photos, or it didn't happen.Just finished getting the 221 Fireball set for the first round of load development. 3 bullets and two powders all new to me. I forgot how small those cases are!
The nice thing is that the max loads from Hodgdon top out just over 20 grains, so I’ll get some good mileage out of a keg.
The hard part is the fact that I’m having to treat the first two bullets like a unique wildcat because of the lack of load data.
Today I loaded some supersonic 8.6 Blackout loads in both brass and hybrid cases...for the 6.5 twist bolt gun, both lead and copper machined bullets. A lotta powder crammed into that small case...especially the hybrid has a bit more capacity. We'll see, the proof is in the shooting.

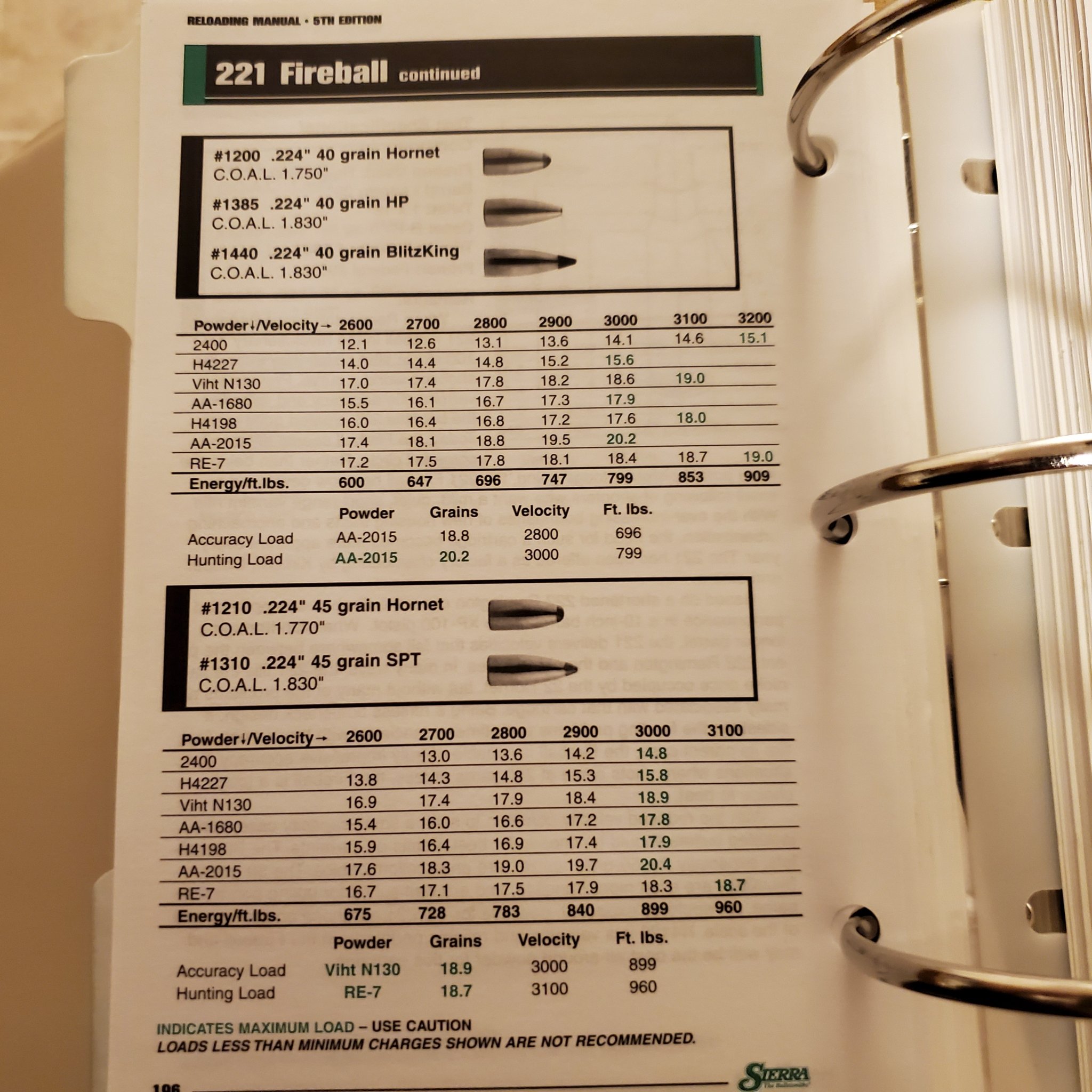

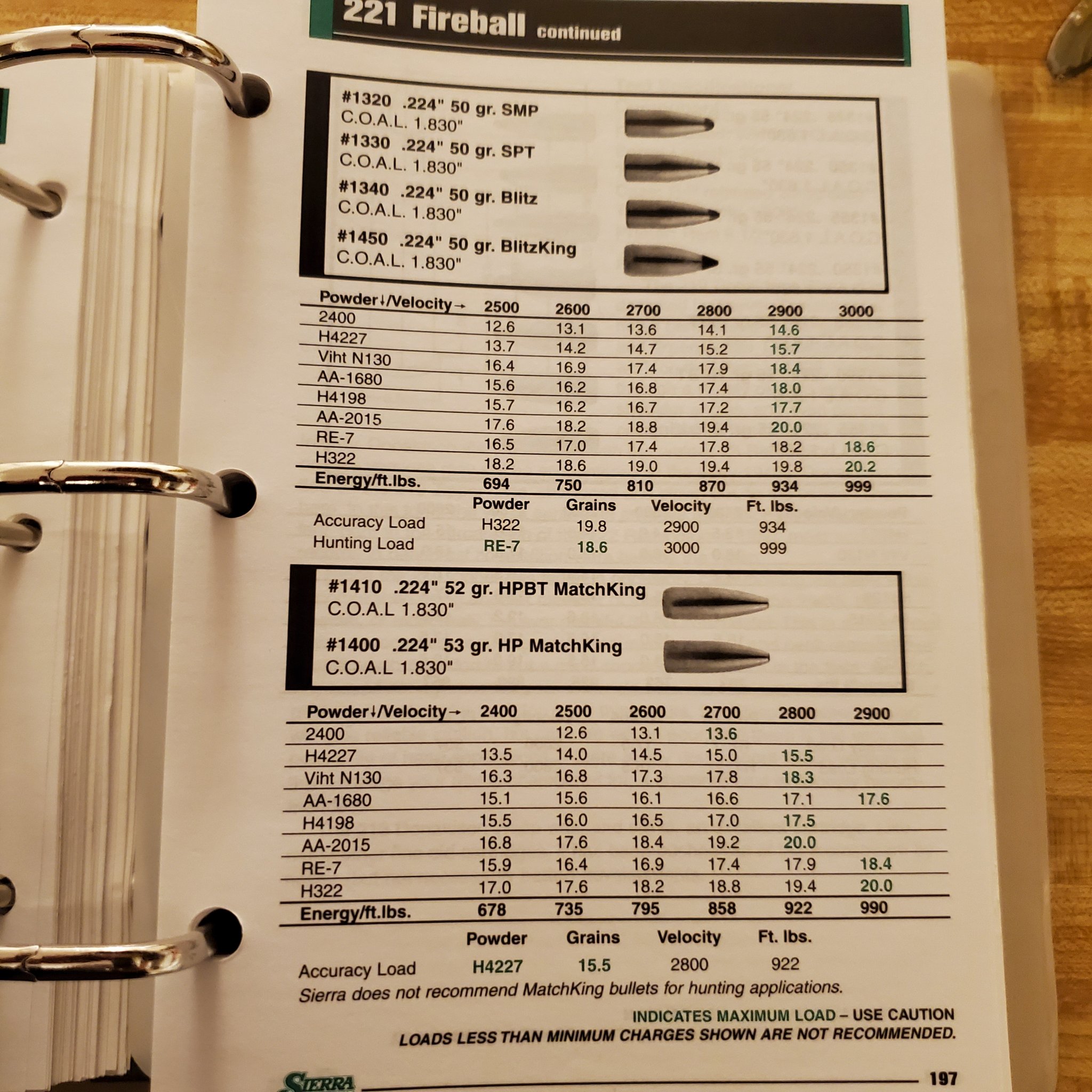

Here ya go... 221 fireball 20" barrel Sierra load data.Just finished getting the 221 Fireball set for the first round of load development. 3 bullets and two powders all new to me. I forgot how small those cases are!
The nice thing is that the max loads from Hodgdon top out just over 20 grains, so I’ll get some good mileage out of a keg.
The hard part is the fact that I’m having to treat the first two bullets like a unique wildcat because of the lack of load data.
Attachments

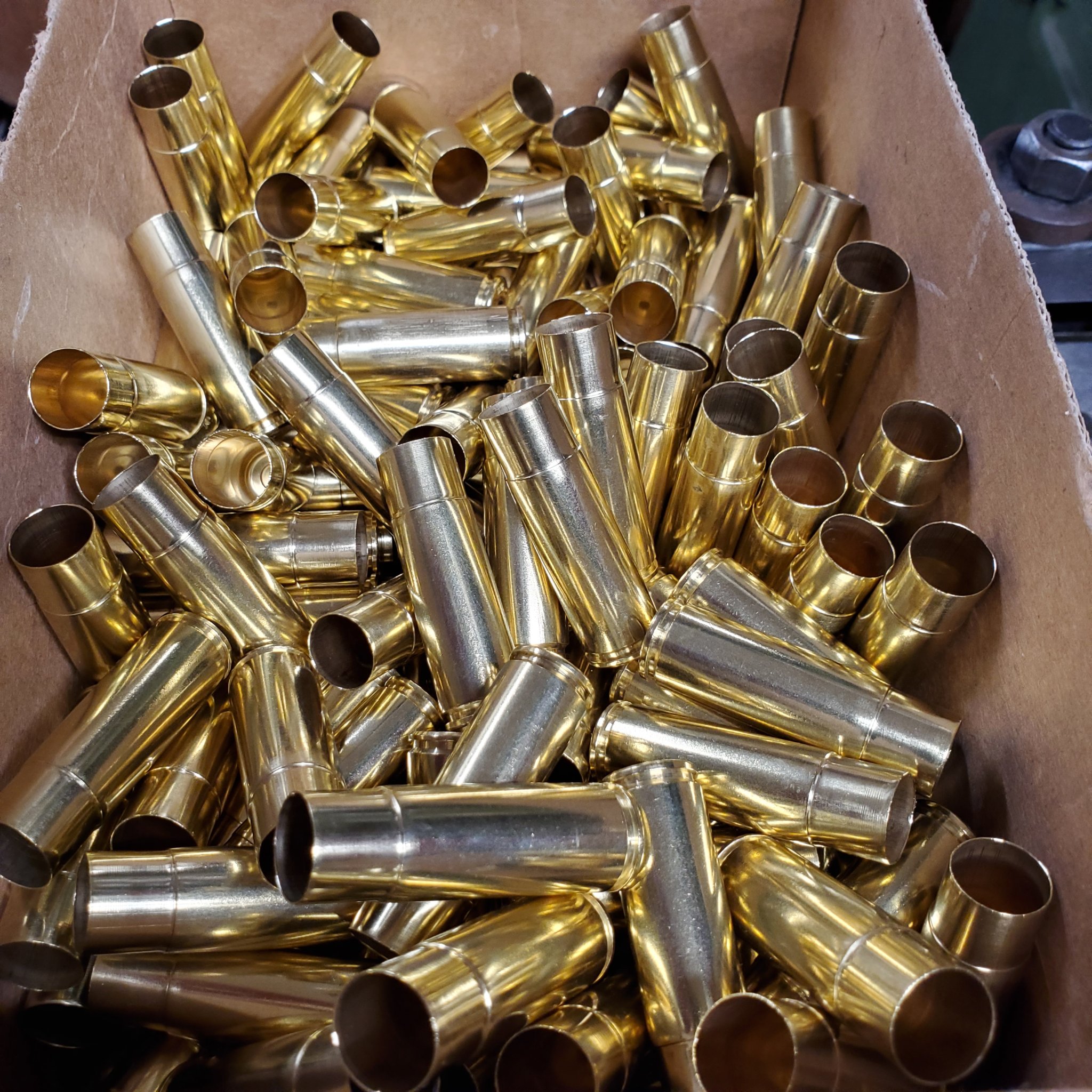

I use a Bridgeport mill and collet fixtures to cut to length, in one second...and neck turn in a Hardinge lathe with collets...lots easier than by hand. Made the cartridge gauge with the finish .510 whisper reamer.
Bought a barrel blank 510 1-10 twist, and a .510 whisper reamer
Attachments
I appreciate the photos, but none of my powders are listed.
. The wildcatting is for working with a newer lead free bullet that no one has admitted to using in the Fireball. I’m following the bullet manufacturer’s recommended procedures and see where the trail leads.
Hornady has some load dataI appreciate the photos, but none of my powders are listed.
Yeah I been machining for a lifetime, as a job and a hobby, and machine tools are expensive and takes a while to acquire.
Always wish they would put more of the trades education in high-schools, like they used to, to give everyone the basics, who want to learn.
Because its much easier, when precision power tool are used.
I post those how to photos for informational purposes, and for those who might have access to machine tools.
Sorry ya got to do it the hard way.
So you have secret bullets and secret powders for the 221 Fireball?I appreciate the photos, but none of my powders are listed.
What is the bullet and what powders do you have? Are they appropriate for this cartridge?
Doesn't the manufacturers have load data for it?
You can use lead bullet data as a guideline, but start low and work up, copper bullets have a higher start pressure, and are longer for the same weight, reducing case capacity in such a tiny case causing pressures to spike, just .2 tenths of a grain can put you over pressure.
Have fun, be careful.
Chamfered and debured 1000 cases of new Starline 223. Now I just need to run them all through the mandrel. I have been trying to get a load with 77smk for all 3 of my main AR's, but I think it's time to just call it on that one. I'm going to try the 73gr and 75gr Hornady hpbt and see how that shoots in my CLE precision AR and my new Craddock done Bart barrel with CLE chamber and see if I can get a load that both of them like a lot. My smk load was poping primers in my new barrel and I left my cleaning stuff at home so I didn't want to shoot too much without cleaning it to start out with anyway so, gonna take it down a half grain and try some other bullets while I'm at it.

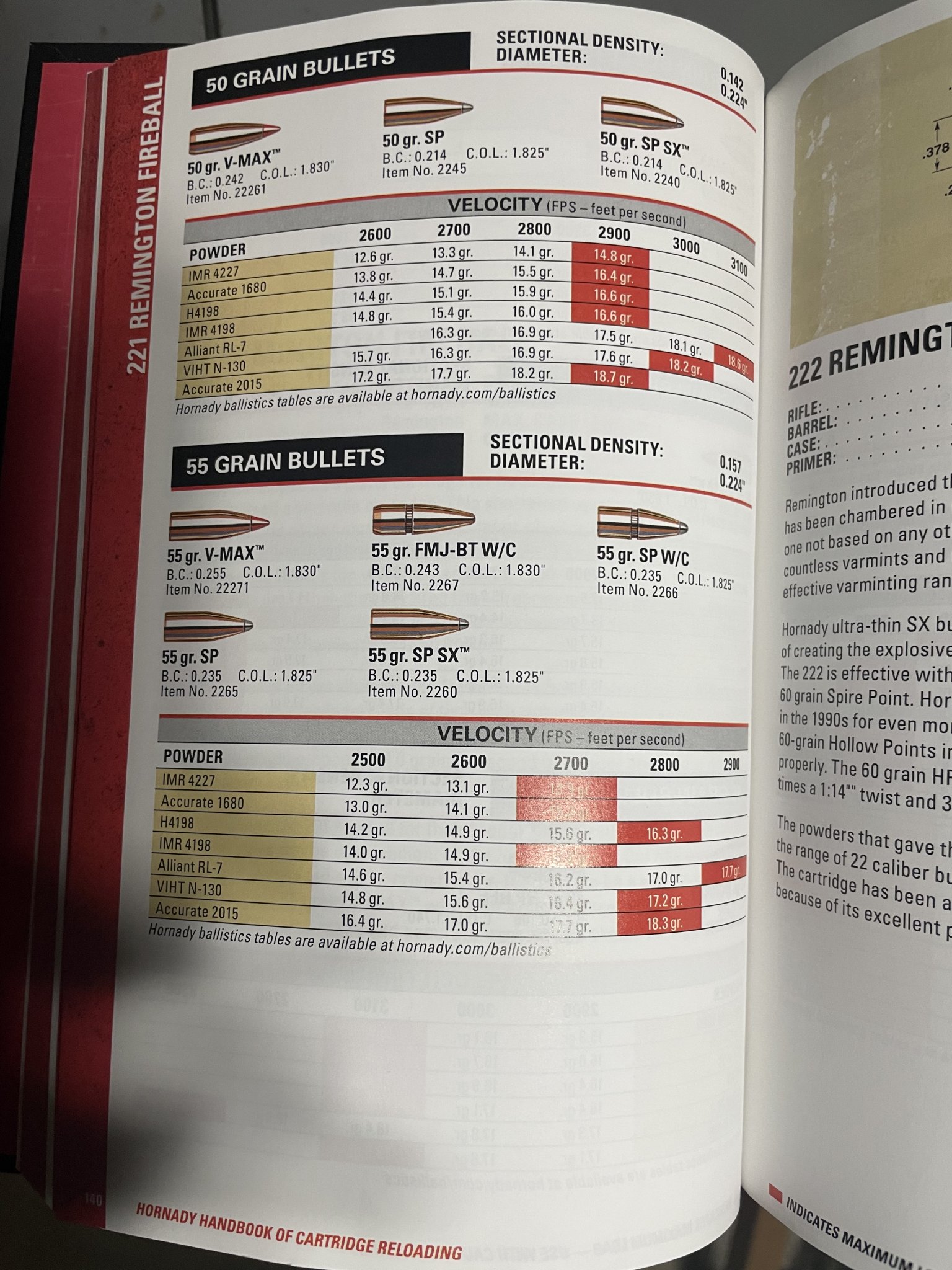

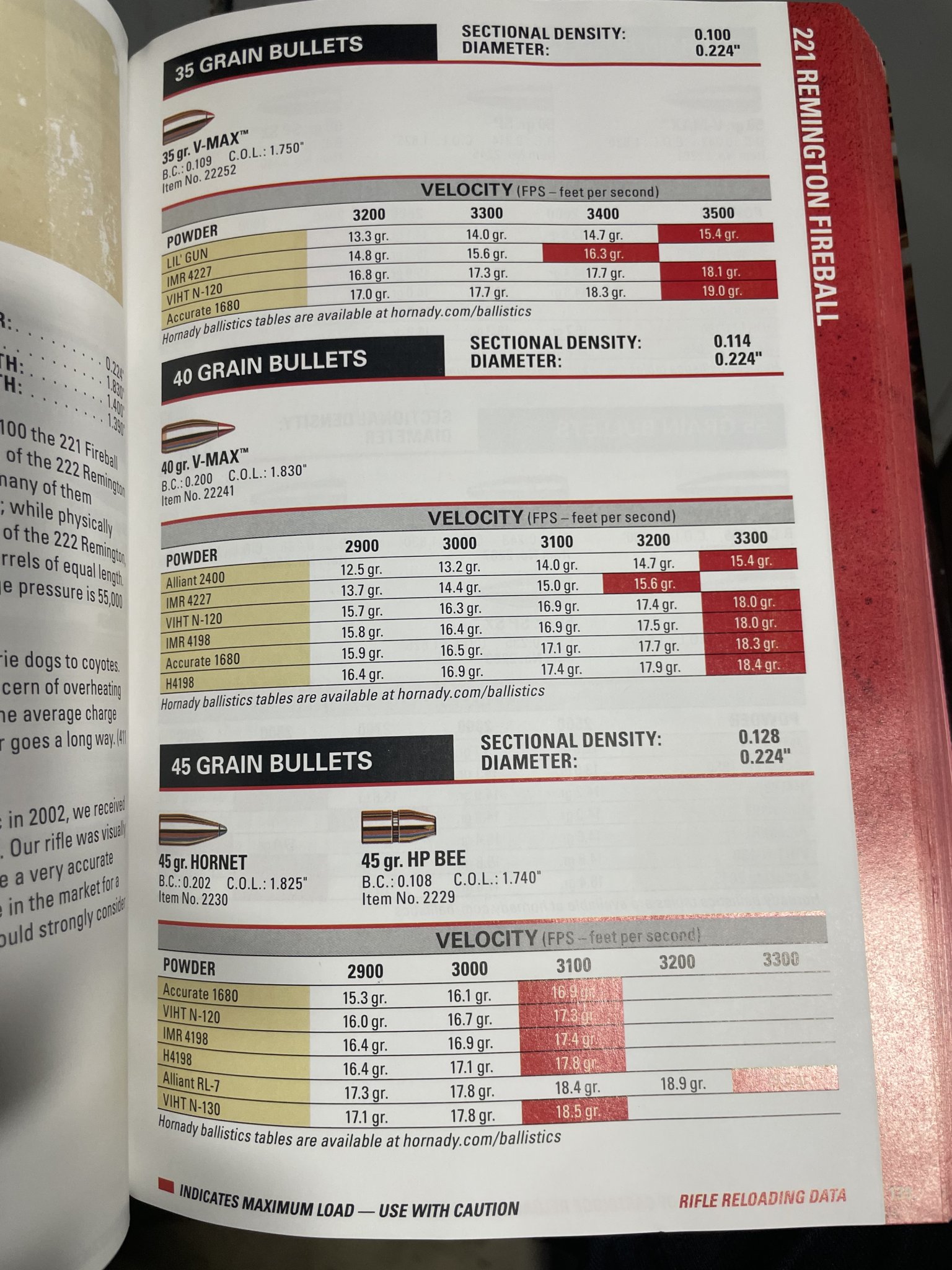

Hornady Data for further extrapolation;I appreciate the photos, but none of my powders are listed.
@JerkyFreak, this is for you.Photos, or it didn't happen.

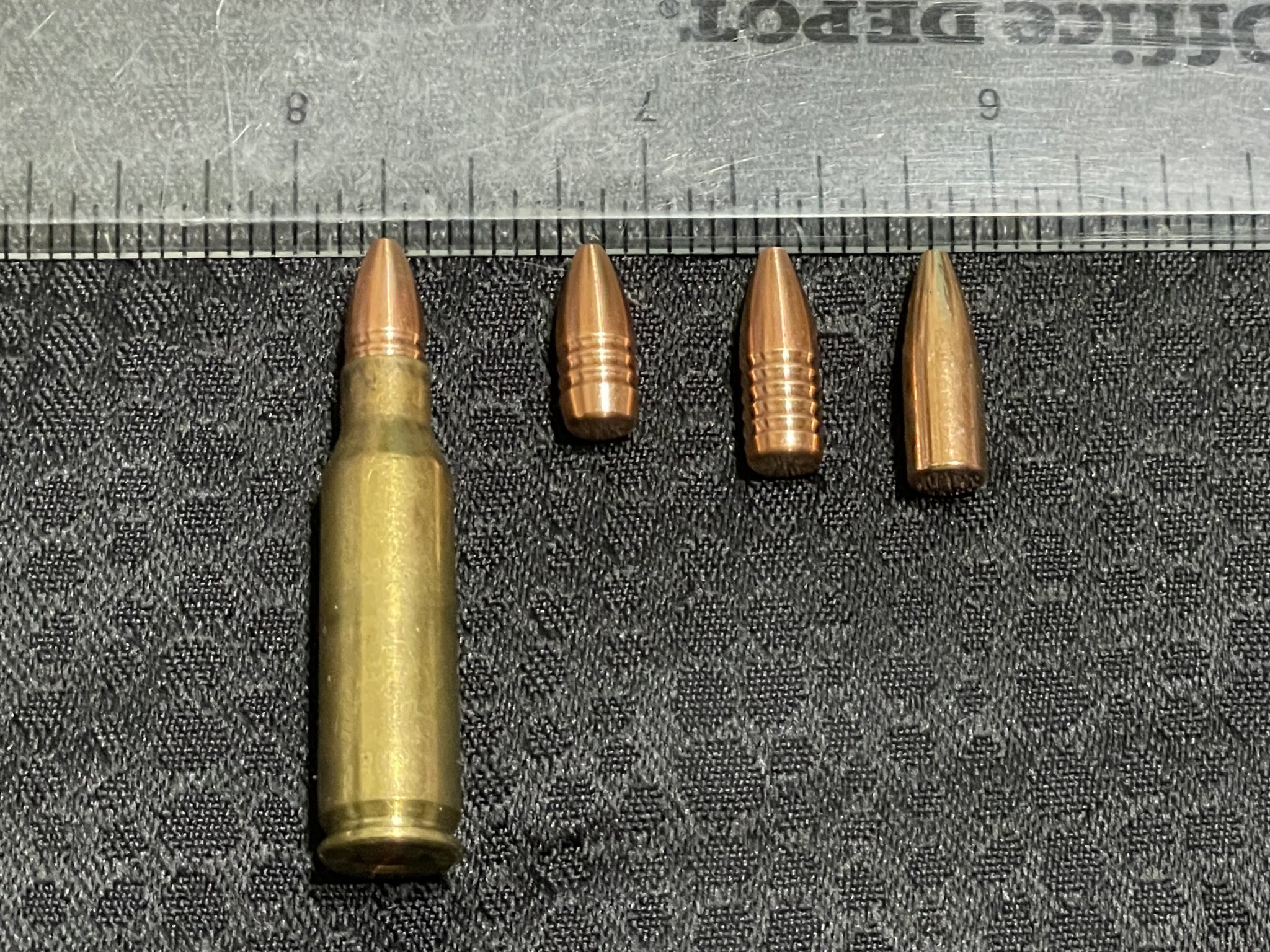

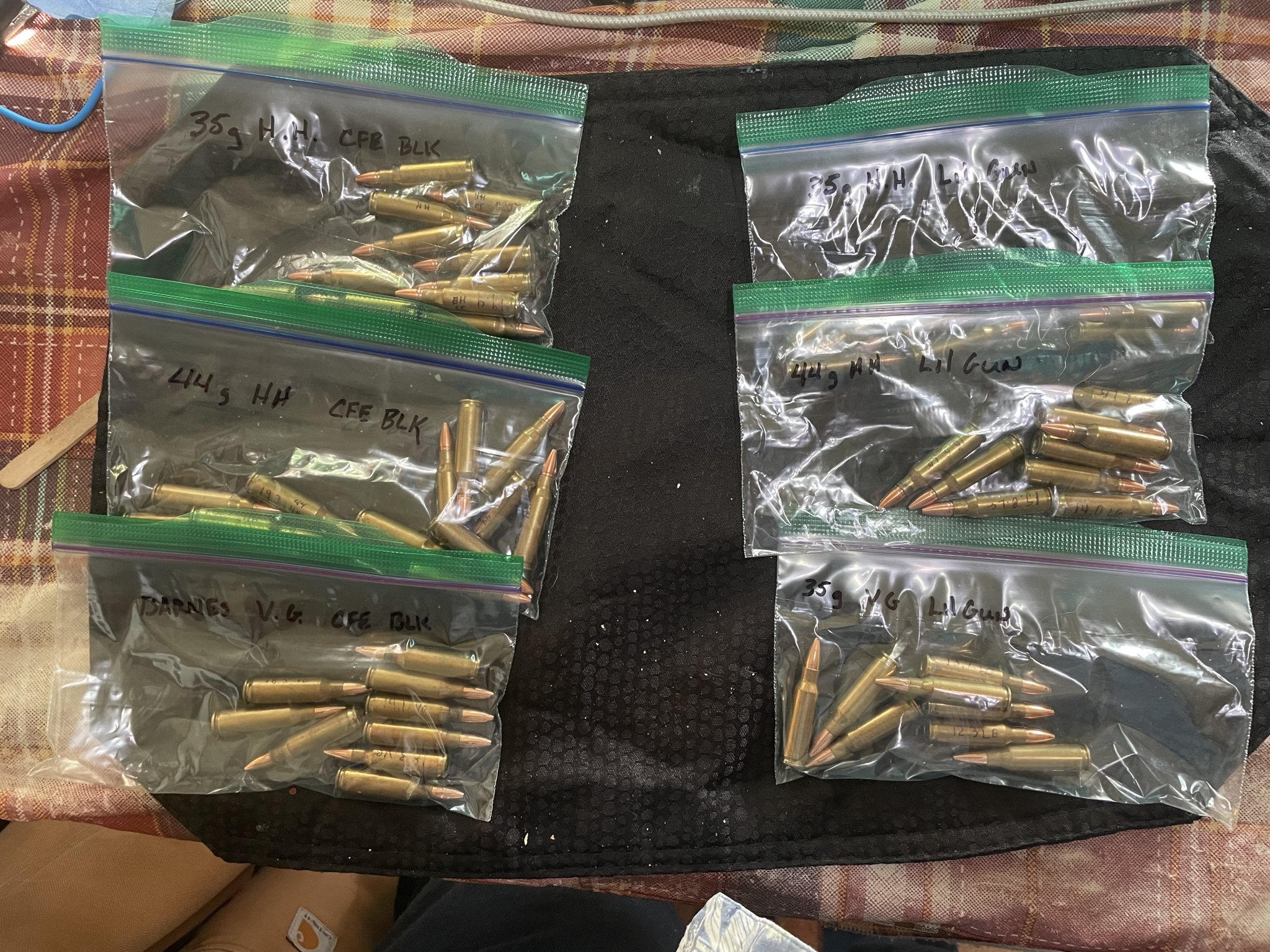

The three pills. 35g, 44g, and 36g Varmint Grenade.
I ended up using Hodgdon’s data because my manuals only included Lil Gun. If things work out, the CFE BLK is supposed to top out at about 3600 fps with a 35 grainer.
Are you using Starline 223 or 5.56 brass? The 223 line of brass has a lot less volume than the 5.56 (which is the same as Lapua).
Yeah it's 223. It is a decent amount reduced from lapua for that reason(my load that is). I will probably get the 556 next time but I bought 1000 of these a while back and had a bunch of FC I was going to use for AR for a while before getting into the starline 223, (similar to starline 223 capacity), but the FC brass sucks so bad I'm just going to use it as hunting brass and only ever fire it once more and not police it. I hate that stuff.
I didn't know the 556 had the same capacity as lapua. That's good to know
Loaded 3 test batches of 454 Casull. 5 each pf 25gr, 25.5gr and 26grs of N110.
Loaded yesterday fired today.

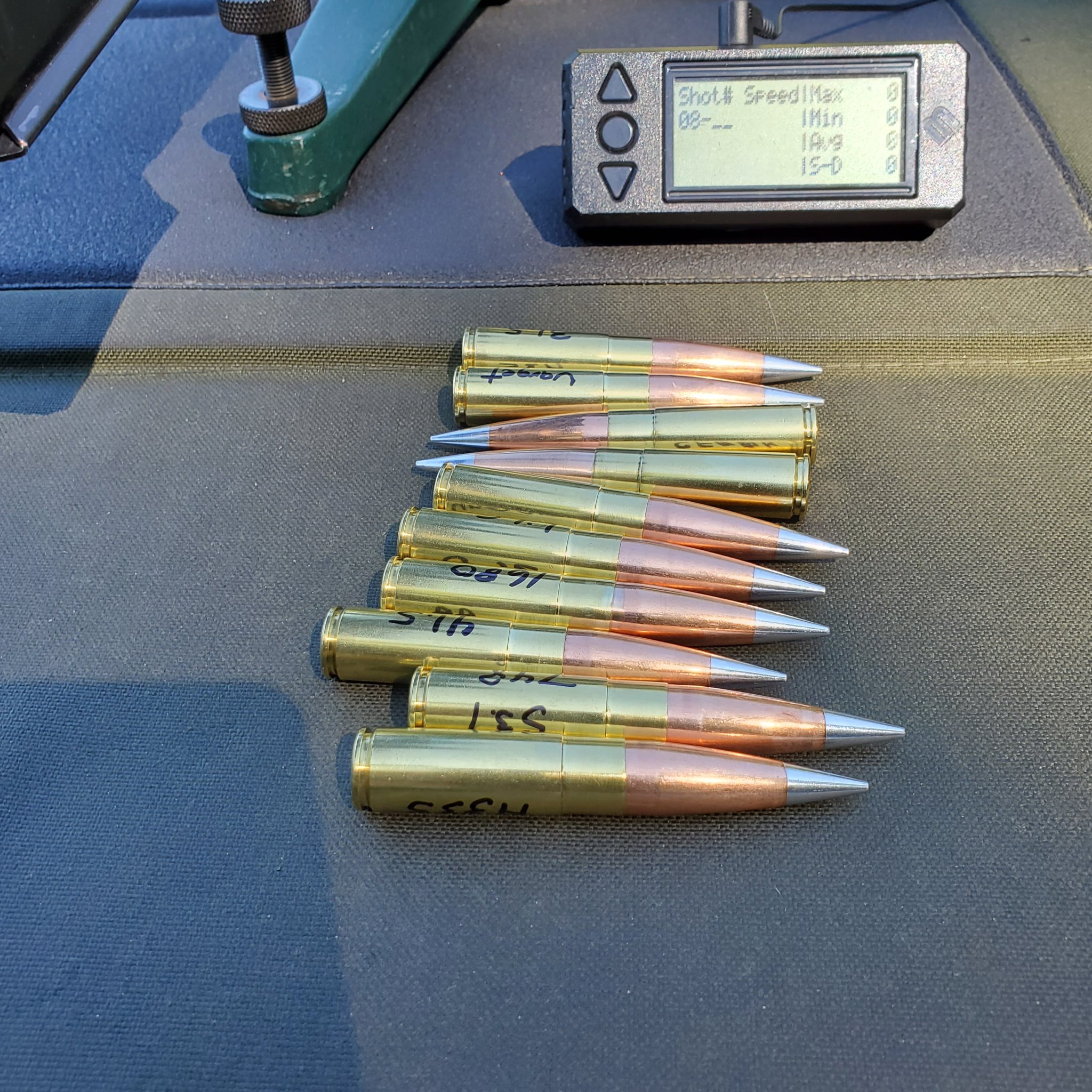

High velocity 8.6 Blackout loads from a 6.5 twist barrel rather than three limiting 3 twist Faxon.

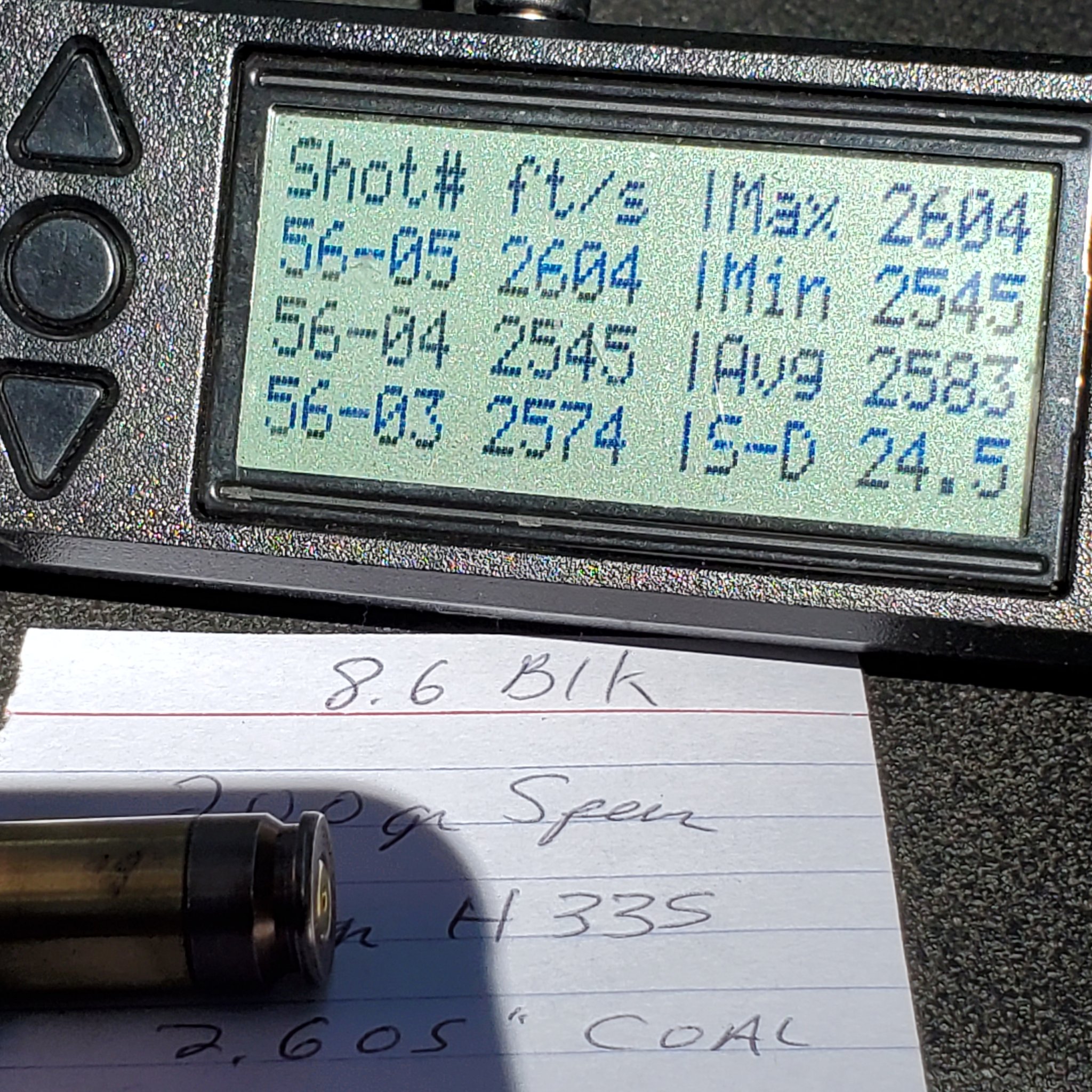

Results 200 gr Speer with H335 reached 2604 fps.
Also tried with the 200 gr Speer 338 hot core.
AA 2495= 2451 fps
CFE223= 2572 fps
IMR 4198 = 2433 fps
2000MR = 2494 fps

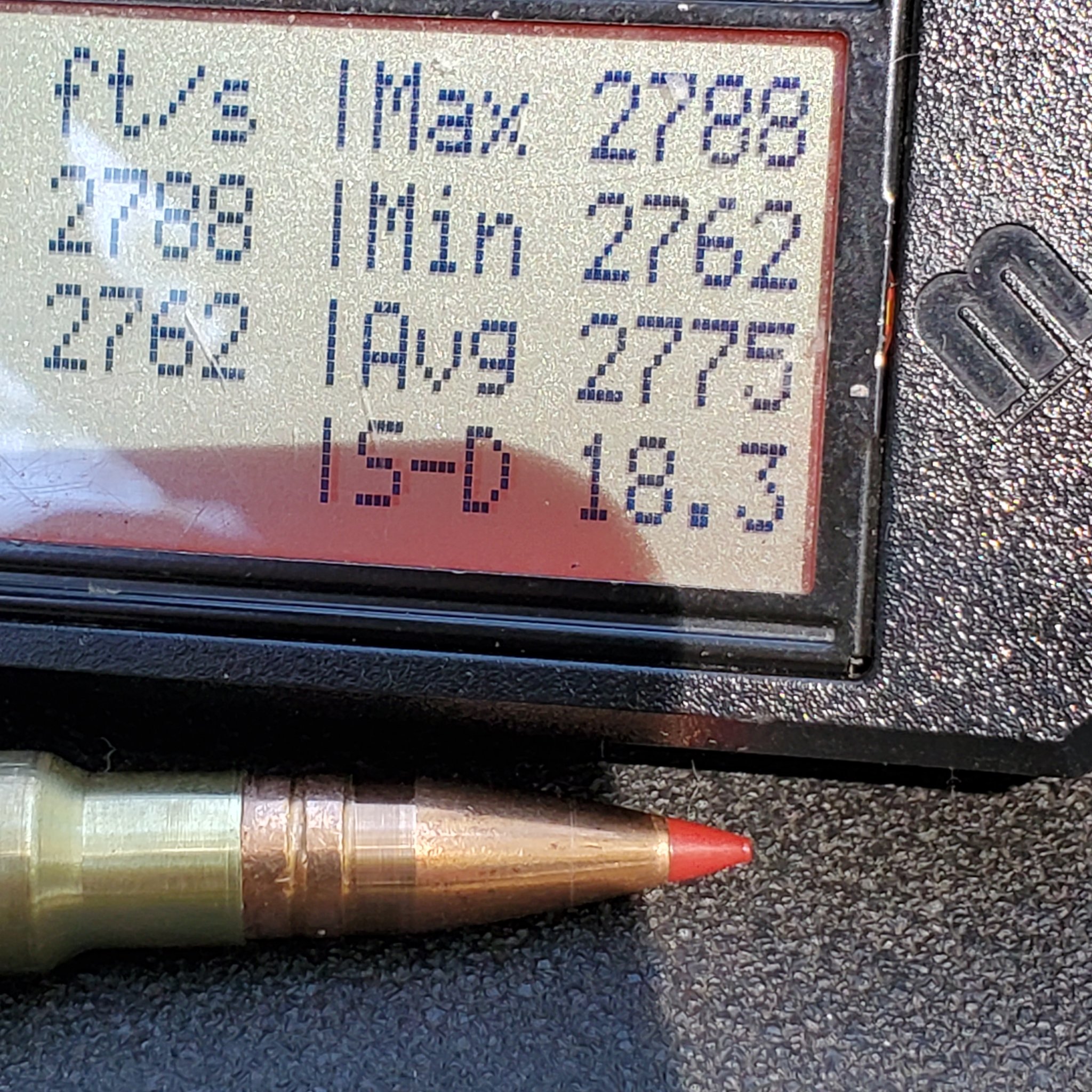

Copper hornady GMX 225 gr cut down to 154 gr in lathe with collets.
H335 = 2788 fps.

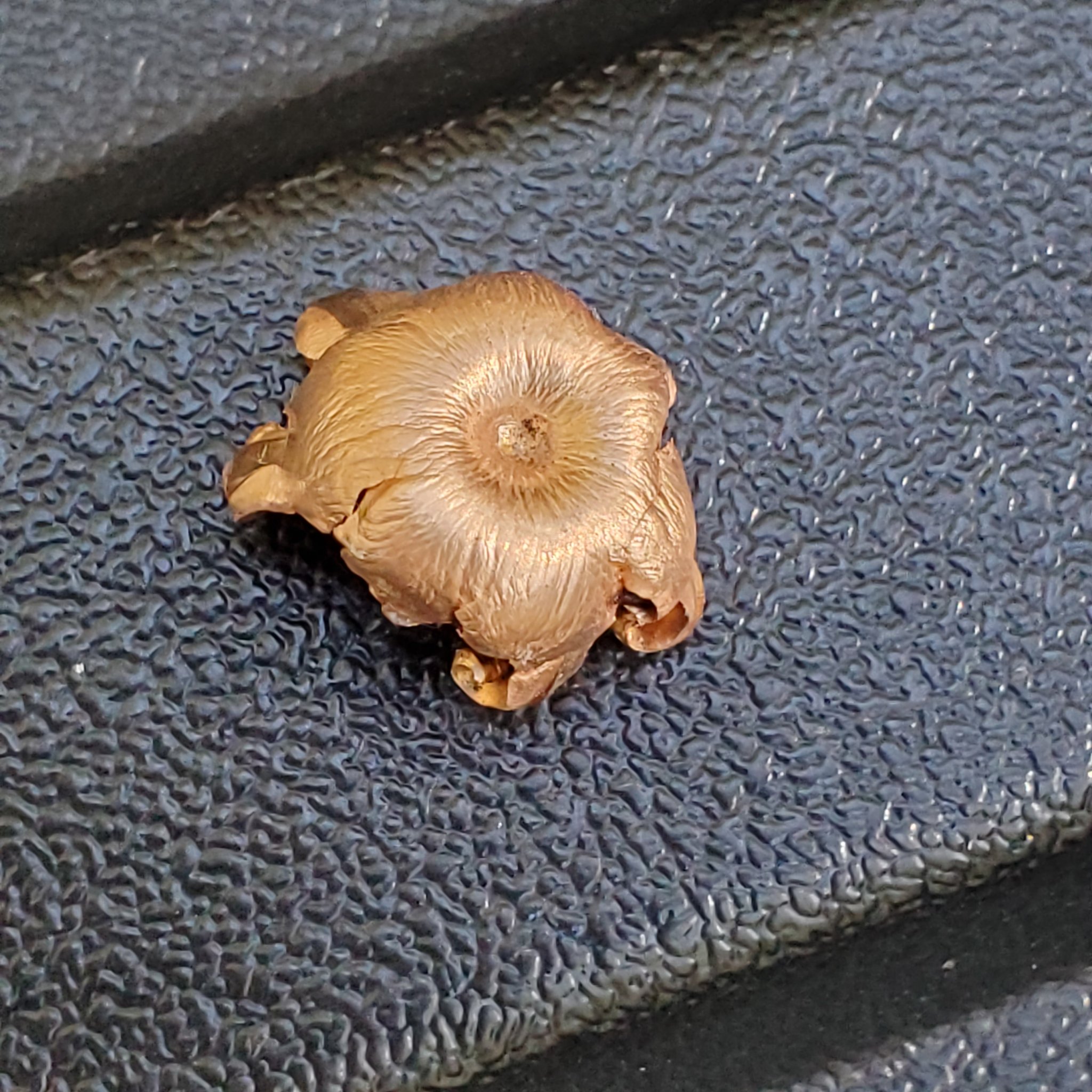

One copper slug caught in plastic water jugs...it mushroomed nicely at that velocity.
Also fired some subs 300 berger 989 fps, with imr 4198 about 1.1" for 5 shots round group. 300 gr SMK with AA 1680 a vertical string, large velocity veriation at 100 yds.
High velocity 8.6 Blackout loads from a 6.5 twist barrel rather than three limiting 3 twist Faxon.
Results 200 gr Speer with H335 reached 2604 fps.
Also tried with the 200 gr Speer 338 hot core.
AA 2495= 2451 fps
CFE223= 2572 fps
IMR 4198 = 2433 fps
2000MR = 2494 fps
Copper hornady GMX 225 gr cut down to 154 gr in lathe with collets.
H335 = 2788 fps.
One copper slug caught in plastic water jugs...it mushroomed nicely at that velocity.
Also fired some subs 300 berger 989 fps, with imr 4198 about 1.1" for 5 shots round group. 300 gr SMK with AA 1680 a vertical string, large velocity veriation at 100 yds.
Attachments
I appreciate the photos, but none of my powders are listed.
AA-2200 is really good in the Fireball.
I'm still using Lil' Gun in mine with the 40 V-Max.
Cleaning my dies out of the accumulated lube and metal shavings with my new ultrasonic Christmas gift! Getting ready for another batch of .45ACP and 5.56 soon in the new year. Gotta get my ammo levels up for the Spring '21 Big Sandy.
Sorting through the 7600 pieces of 7.62x51 lake city primed brass I just got and the 13500 pieces of virgin lake city brass. I’m still drooling.

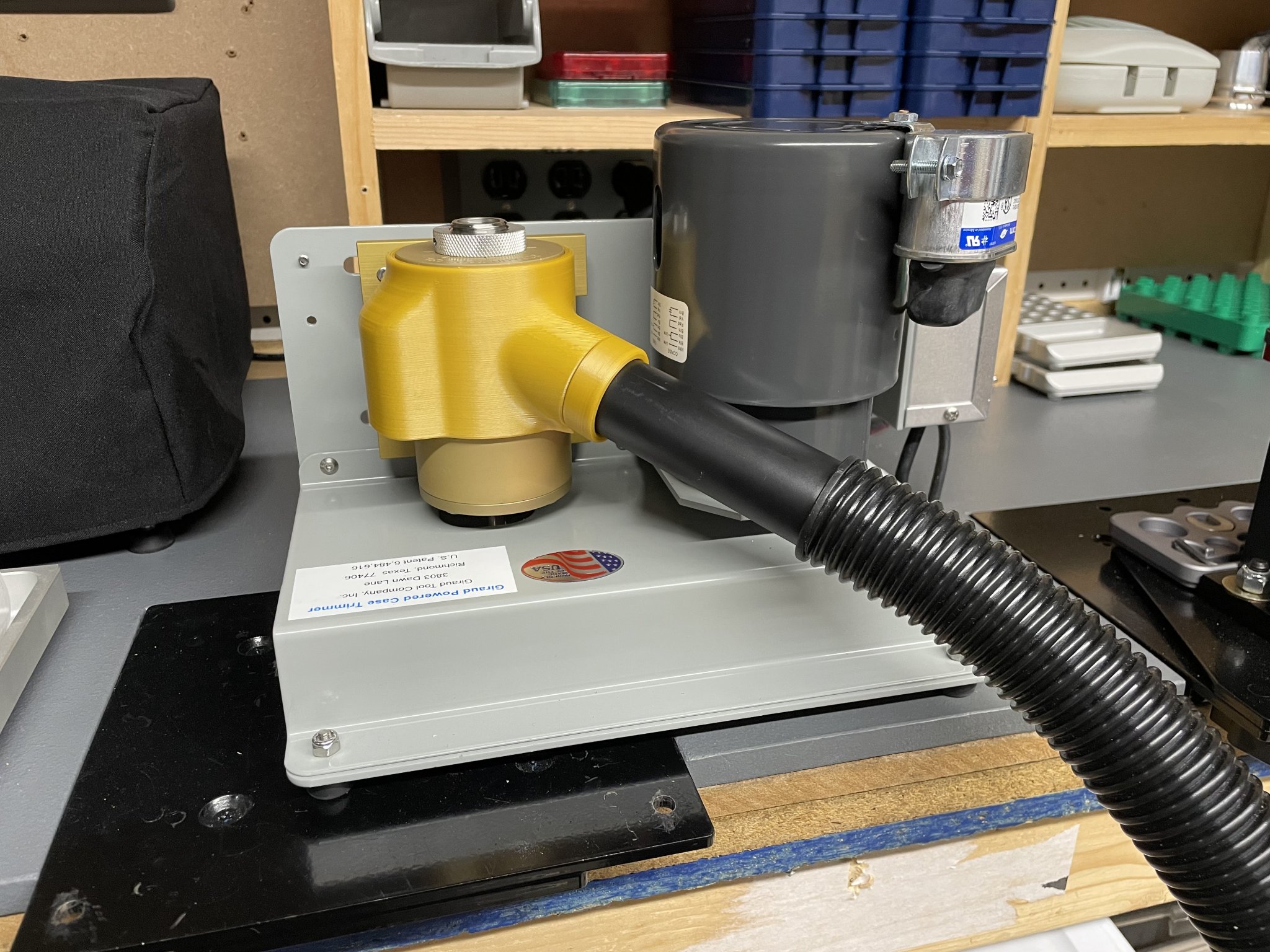

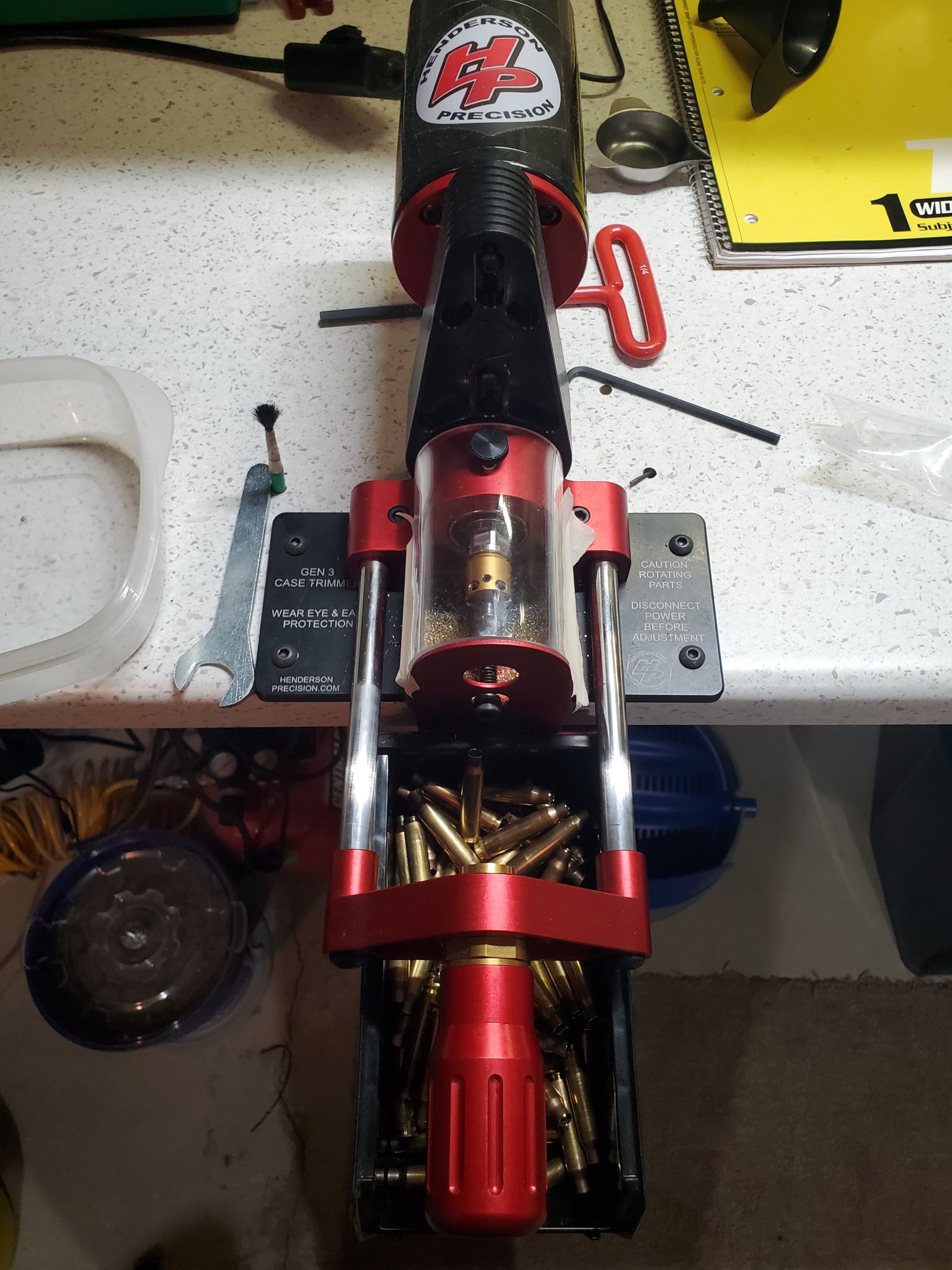

Ran a quick batch of 6.5 Creedmoor brass. Only 50 rounds, but it’s all I have time for right now. The upside, it works. Not a spec of brass shavings in the unit. There were some in there before I started. All gone. I have it hooked to the cheapest, smallest Bauer shop vacuum that Harbor Freight has to offer and it worked fine. Now for the downside. It is really loud. You have the noise from the trimmer, the vacuum, and the high pitched sound of the air rushing into the trimmer. It will absolutely require hearing protection.
Picture is after trimming the 50 rounds:
Been shooting groups, 6BR with Berger 108's and VVN540 about 2775 ft/sec at 500 meters (547 yards) from prone, atlas, TAB rear bag. LP Fuzion, Bartlein 1-7", TT Diamond, in a AICS AXSR.
This target got blitzed from bullets hitting and exploding against the steel rail right behind the target--lesson learned--place target higher.
This was a target also from last week. This was the rainiest I've ever seen it at this range. Walking back from 500, the wind was blowing so hard at my back, my pants were completely soaked when I got back, like I sat down in a water puddle. It was awesome!
Shot this a couple days ago. Colored the tips of each round to see where each one hit. For the first four groups, I took some advice from Ryan Cleckner (spelling?) from Erik Cortina's podcast. Dry fire five perfect shots before shooting a group. I did that before each group and I think it helps.
This target got blitzed from bullets hitting and exploding against the steel rail right behind the target--lesson learned--place target higher.
This was a target also from last week. This was the rainiest I've ever seen it at this range. Walking back from 500, the wind was blowing so hard at my back, my pants were completely soaked when I got back, like I sat down in a water puddle. It was awesome!
Shot this a couple days ago. Colored the tips of each round to see where each one hit. For the first four groups, I took some advice from Ryan Cleckner (spelling?) from Erik Cortina's podcast. Dry fire five perfect shots before shooting a group. I did that before each group and I think it helps.

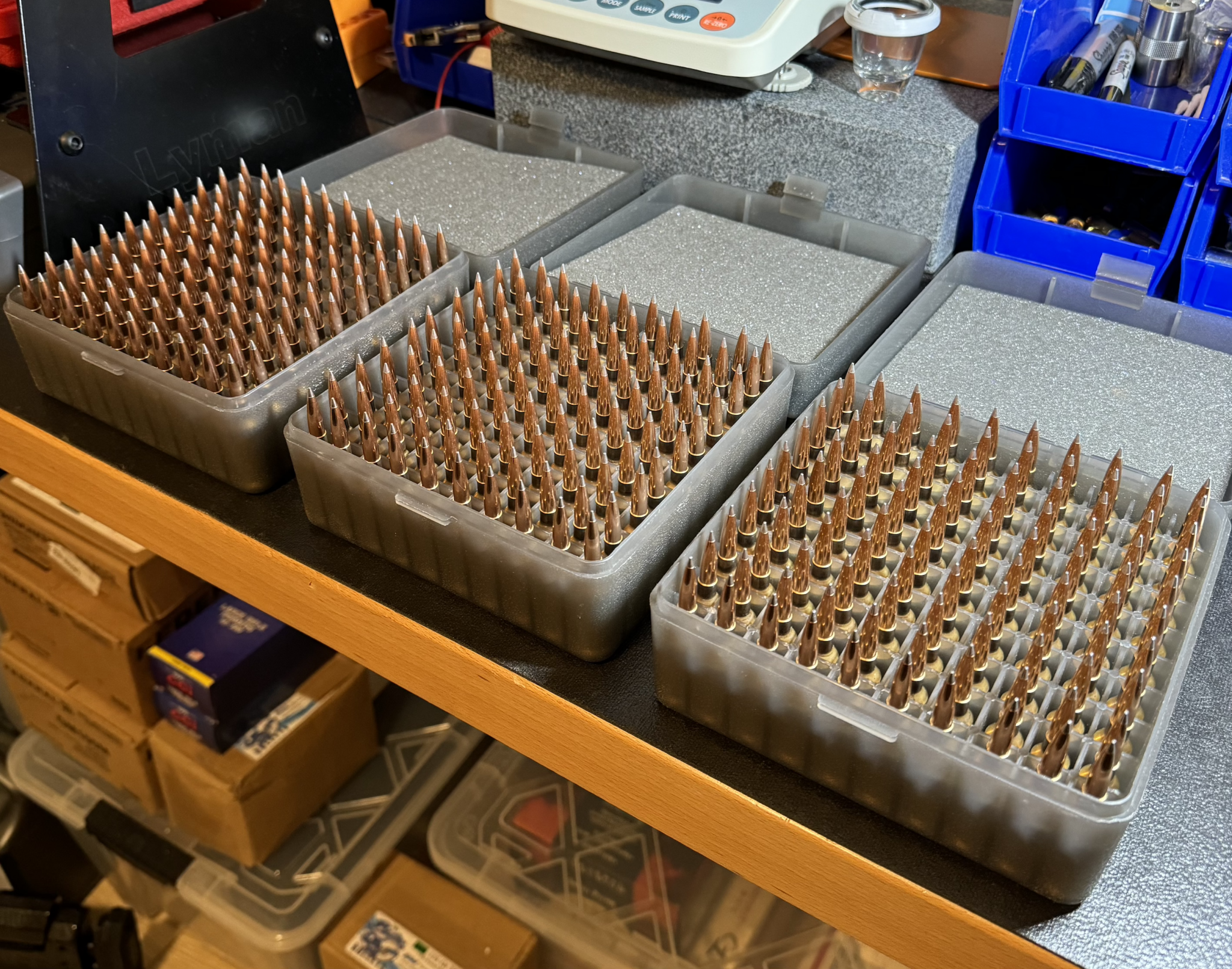

1200rnds 708 for the M5. All 308 brass reduced to 708 single stage press hand primer…
Wow. That's a lot of hand priming! Might want to check out the ugly reloading primer. It's great and will give your hands a break. Though I do live my hand primers too.
Deprimed and resized 350 spent 223 cases. Wet tumbled w/steel pins & dried, and then primed. All my reloads have been 55gr for my ARs and now going to begin reloading for my new bolt gun.
Will visit LGS tomorrow and look at their selection of larger grain bullets and start this learning journey of shooting heavier ammo.
Will visit LGS tomorrow and look at their selection of larger grain bullets and start this learning journey of shooting heavier ammo.

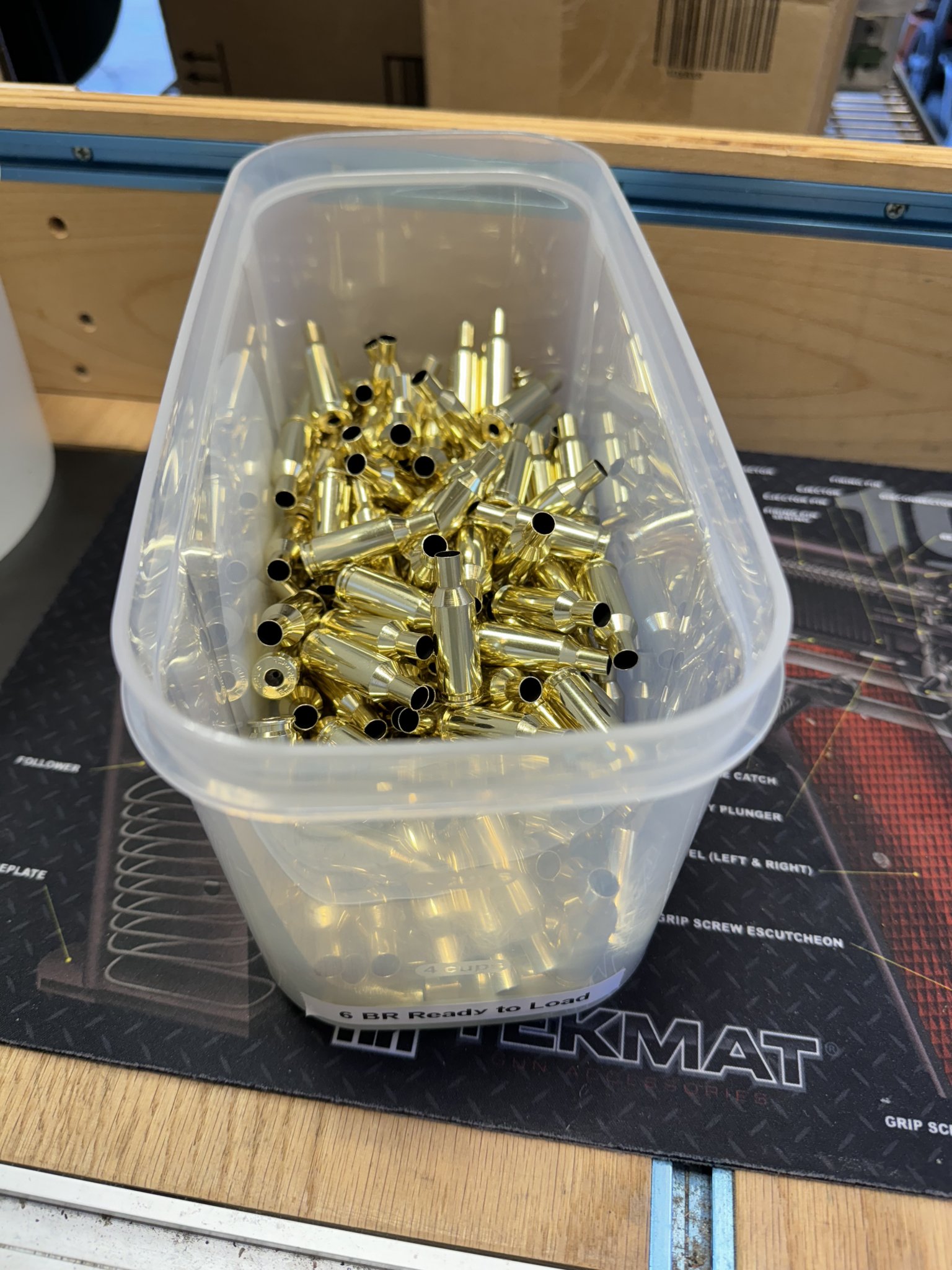

Prepped about 200 pieces of 6br last night.
I found Federal Gold Medal Match Large Rifle primers. Going to load some Sierra 168 MK In .308.

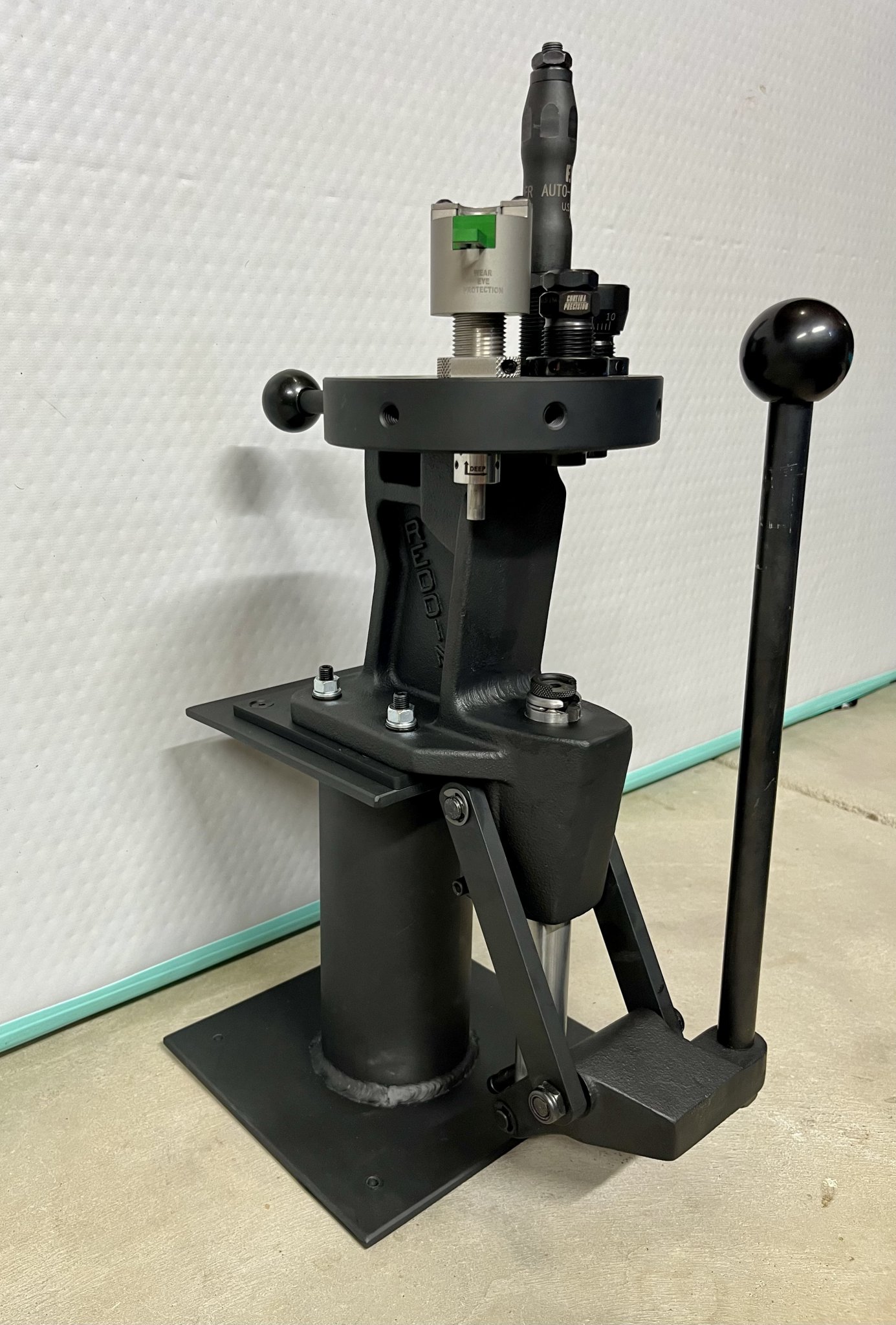

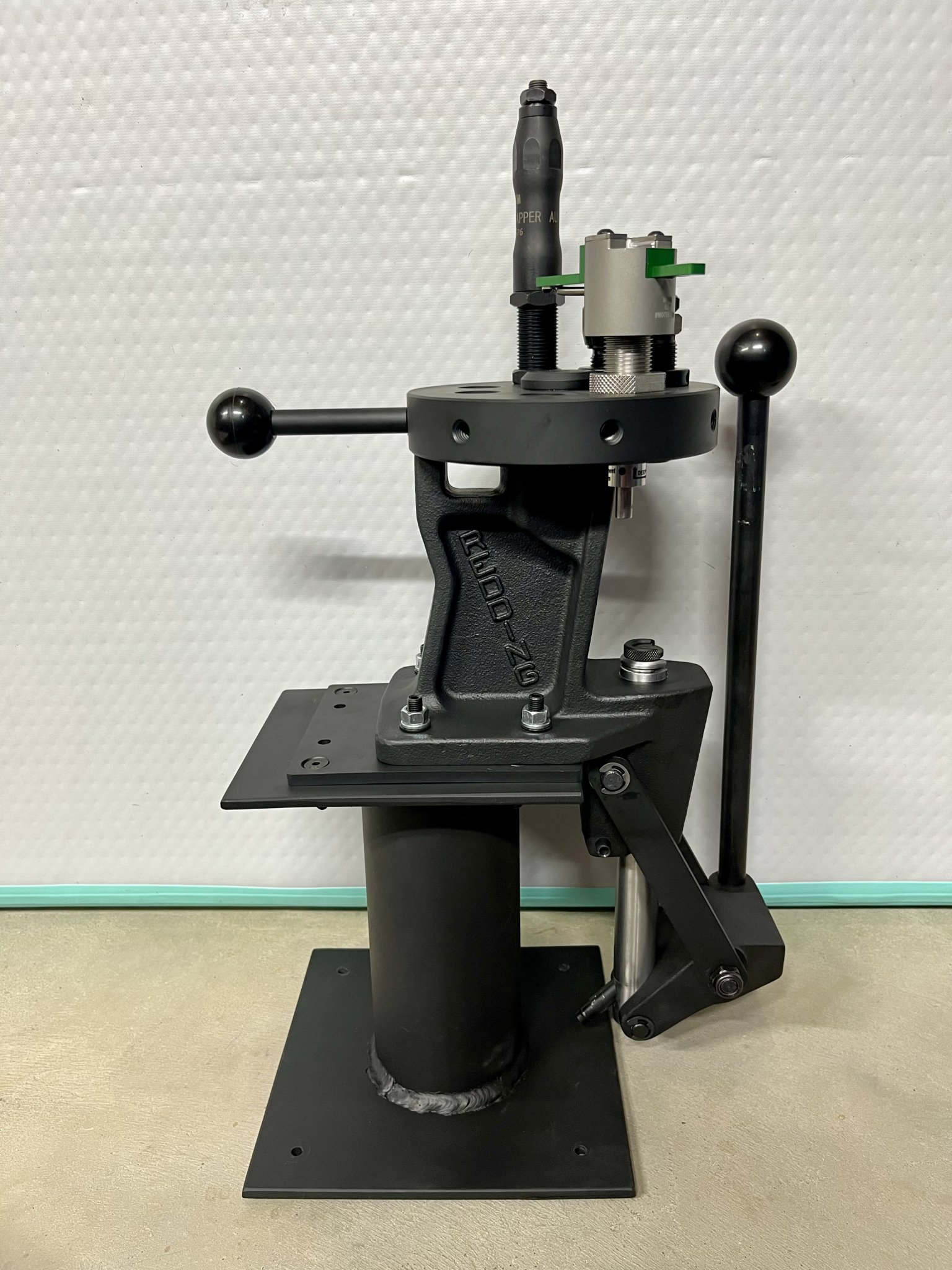

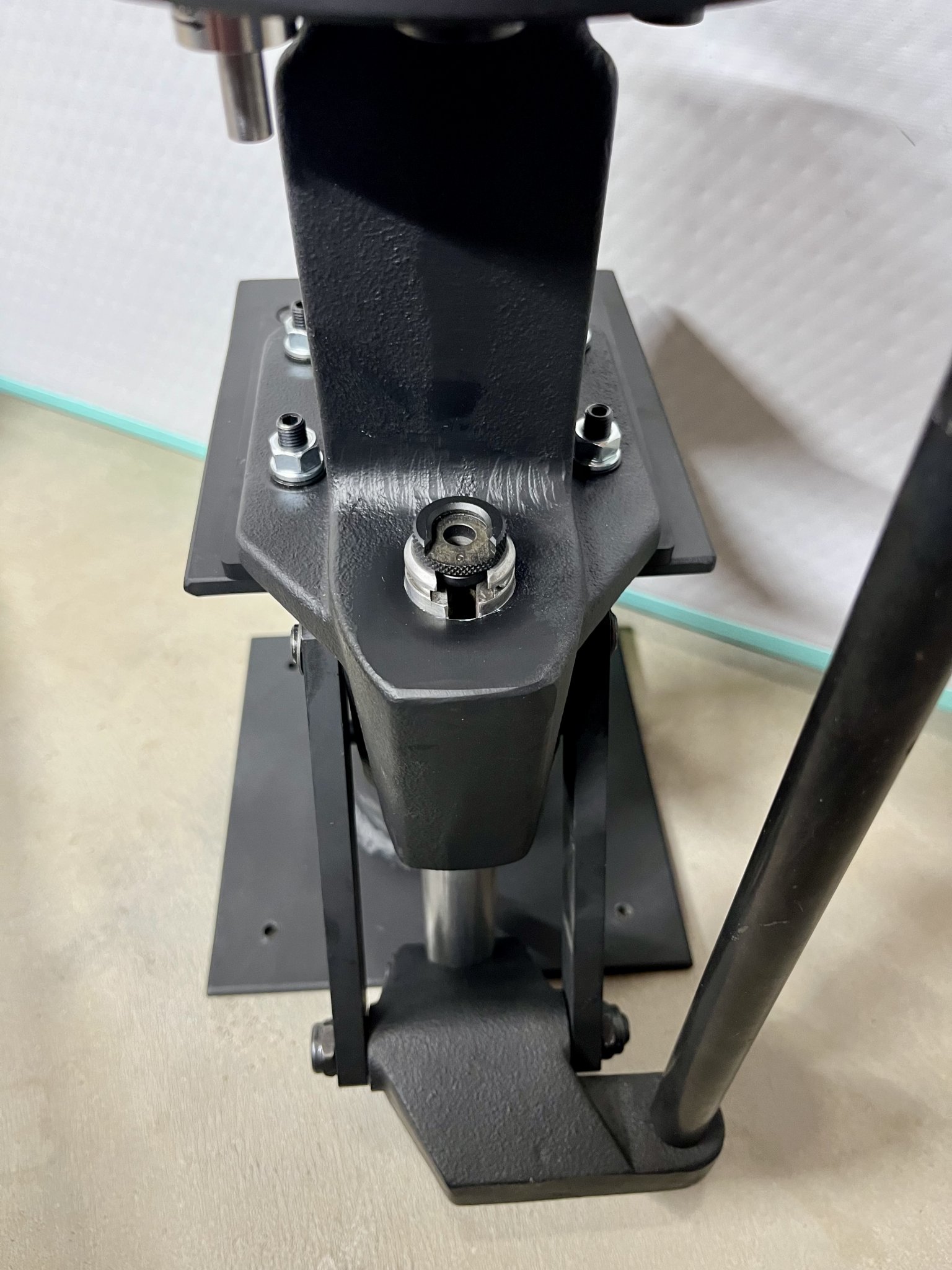

Went kinda nuts on my Redding t7 project. Fabbed up a mount for it, added the Creedmoor sports turret head, and bushing kit, lobbed off the factory priming arm and re profiled/blended the front. Stripped all the powder coat and cerakoted everything graphite black
Attachments

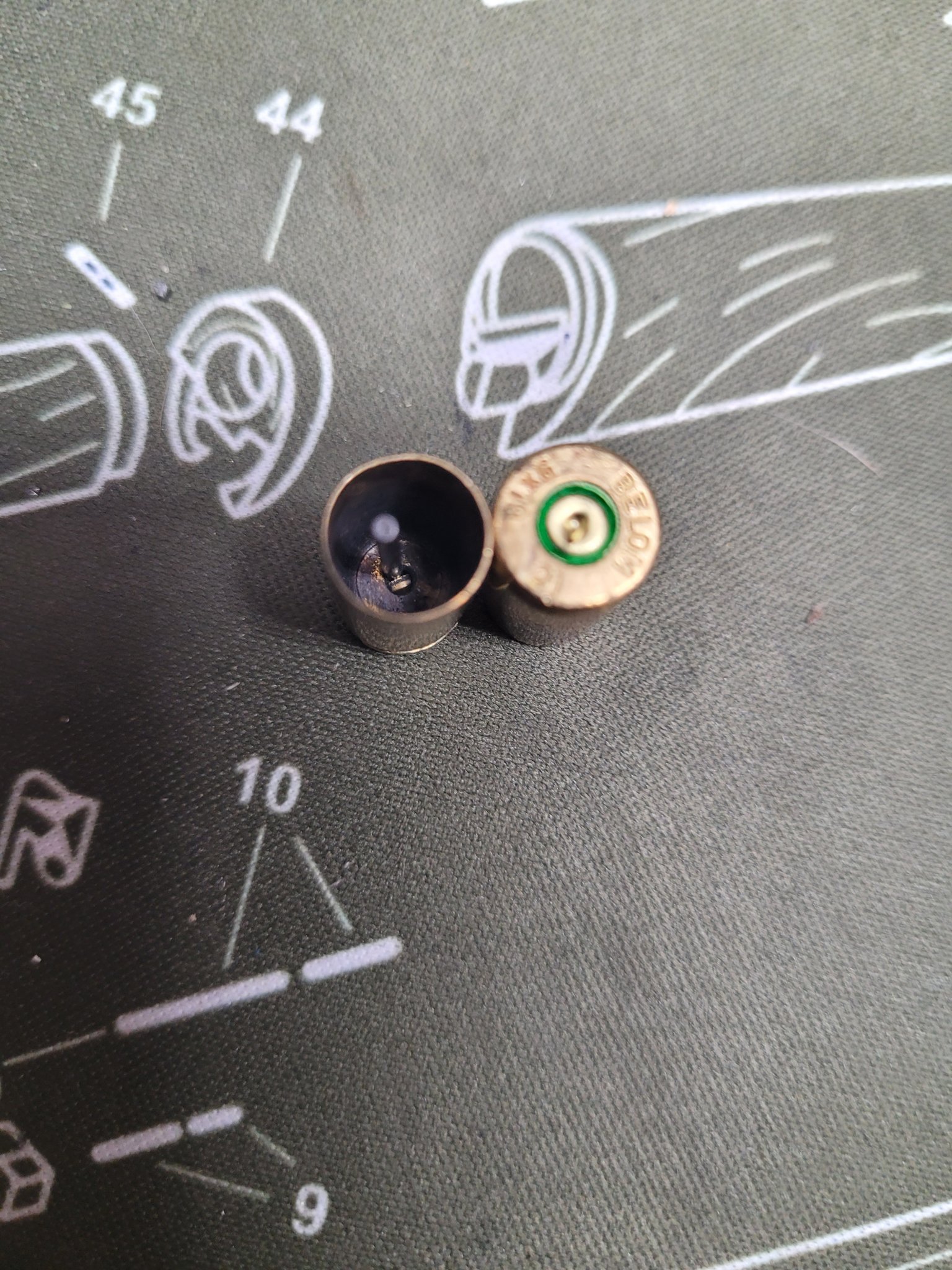

Belom evidently crimps and seals thier 9mm primers.
This is why I deprime (or attempt too) on the Lee Processing press before putting them on the 550. I've never seen a primer stretch so far and not come out. I had to remove the shell holder and use a punch to flaten it back out to get the cases out of the shell holder. Then sort them all out.
The factory Belom shot well, but I'll be using the rest where it's a lost brass event. Not worth the headache.
400 practice rounds done. 4.0 gr Titegroup under 124gr FMJ.

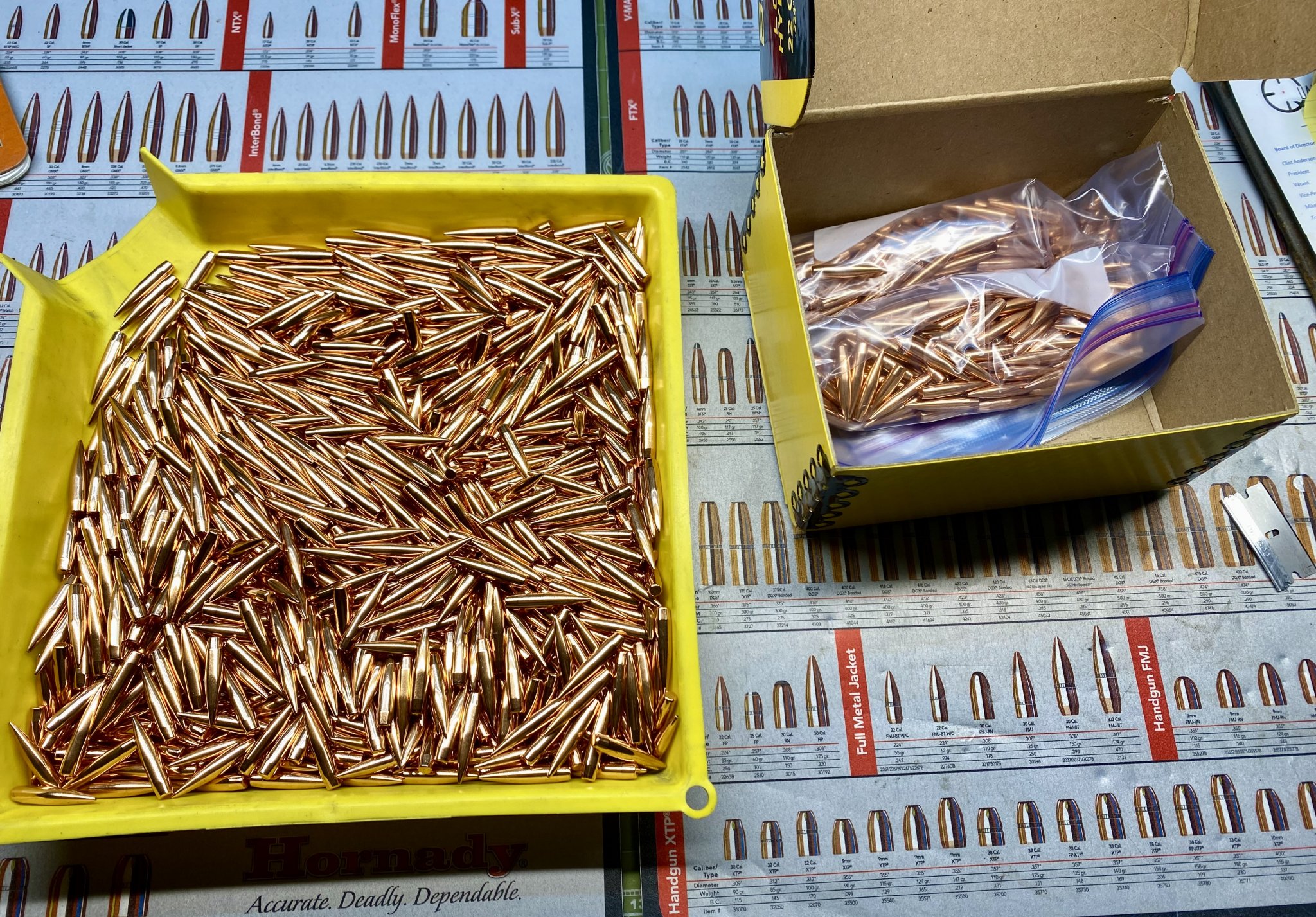

Opened a new box of 1K .224 85.5 Berger Hybrids. They’re easier to manage in bags of 100….
Any idea of expansion you get? Not that it probably matters with 750 gr projectile lol
No haven't tested it in anything.
It was strictly, seeing what powders are viable for this caliber, and where they are on the velocity scale, I order to develope some good loads, for subs and supers.
But this .510, 350 gr segmented copper hollow point only needs 900 fps to expand ...I ran them at 2450 fps and 4700 ft/lbs of energy with good accuracy.
For a good hog or bear load, that will definitely expand, as its designed for that.
Also available for full expansion at sub velocities is a Maker 750 gr segmented copper hollow point, I believe it expands down to 750 fps. With huge expansion, probably a 2.5" or 3" dia circle.
Lots of options today in .510 dia. As sub hunting becomes popular.
I also have the 8.6 Blackout, with a 338 diameter 350 gr Maker, pales compared to the .510 Whisper with a 750 gr Amax.
But a Maker 750 gr segmented hp is available for the .510 Whisper too.
Attachments
- Nov 3, 2010
- 10,240
- 22,121

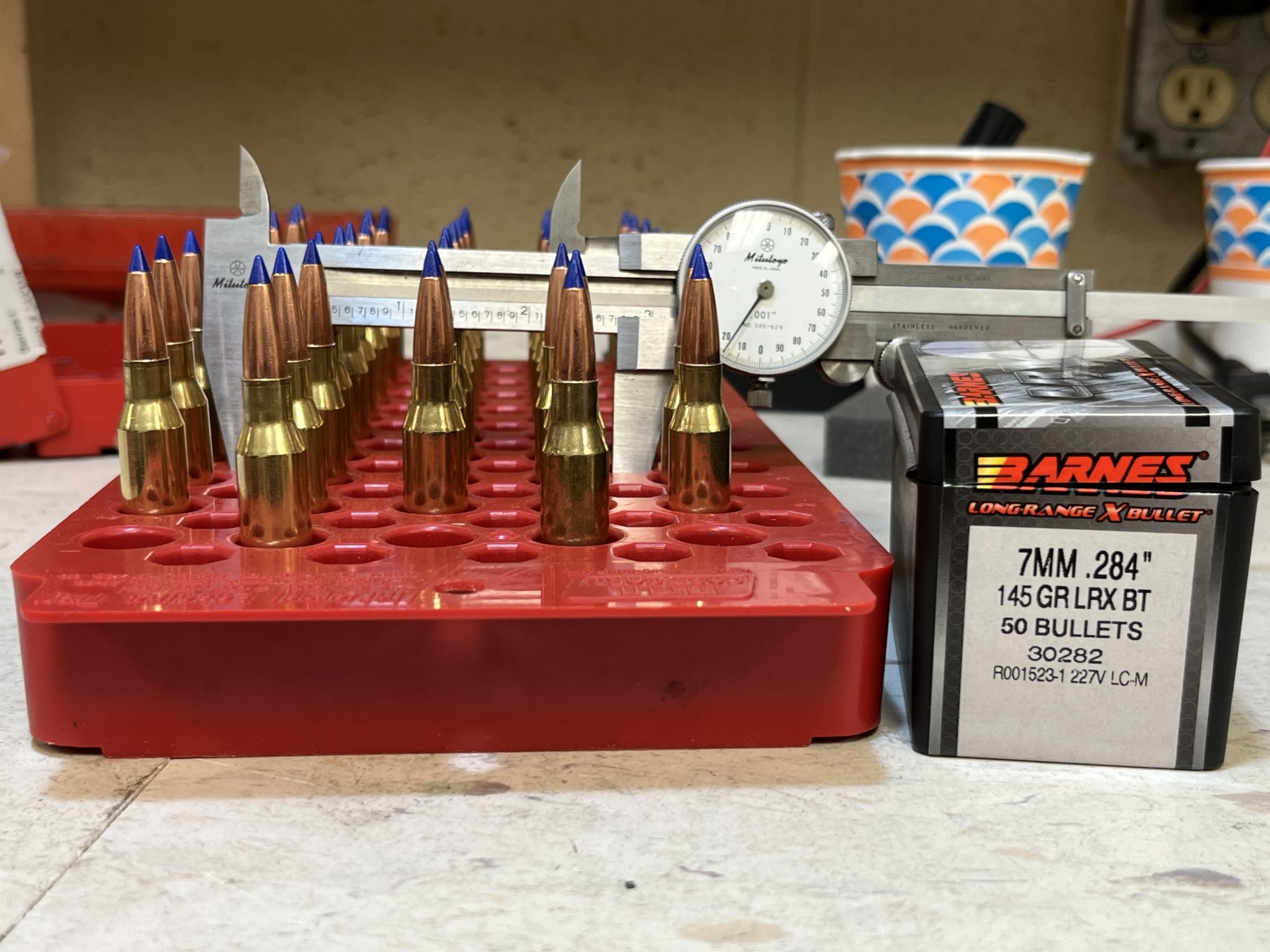

Loaded a few 7-08 to play around with.
145g Barnes LRX
40g RL15
145g Barnes LRX
40g RL15
