CZ 457

You can always sell the HMR stock, lots of people looking for one. The usually sell for $325-350 from what I have seen. There is a guy looking for one now on one of the forums.

Oh man, my rifle is in a BA Comp now, and I just sold my HMR stock in here for $275, lol. Without derailing the thread further, I think a B-14R in an XLR chassis would be a good fit for my son.

Hope to have my new 457 MDT ACC next week!

What are you PRS/NRL guys using for magazines and magazine holders? I know some COF require a mag change and I’d rather not be fumbling in my pocket.


Hope to have my new 457 MDT ACC next week!

What are you PRS/NRL guys using for magazines and magazine holders? I know some COF require a mag change and I’d rather not be fumbling in my pocket.
I've been using a SAP AICS mag pouch with a 3D printed insert that fits CZ mags, but now that I have couplers available, I can have a spare on the gun at the ready and do mandatory mag changes in only a few seconds.

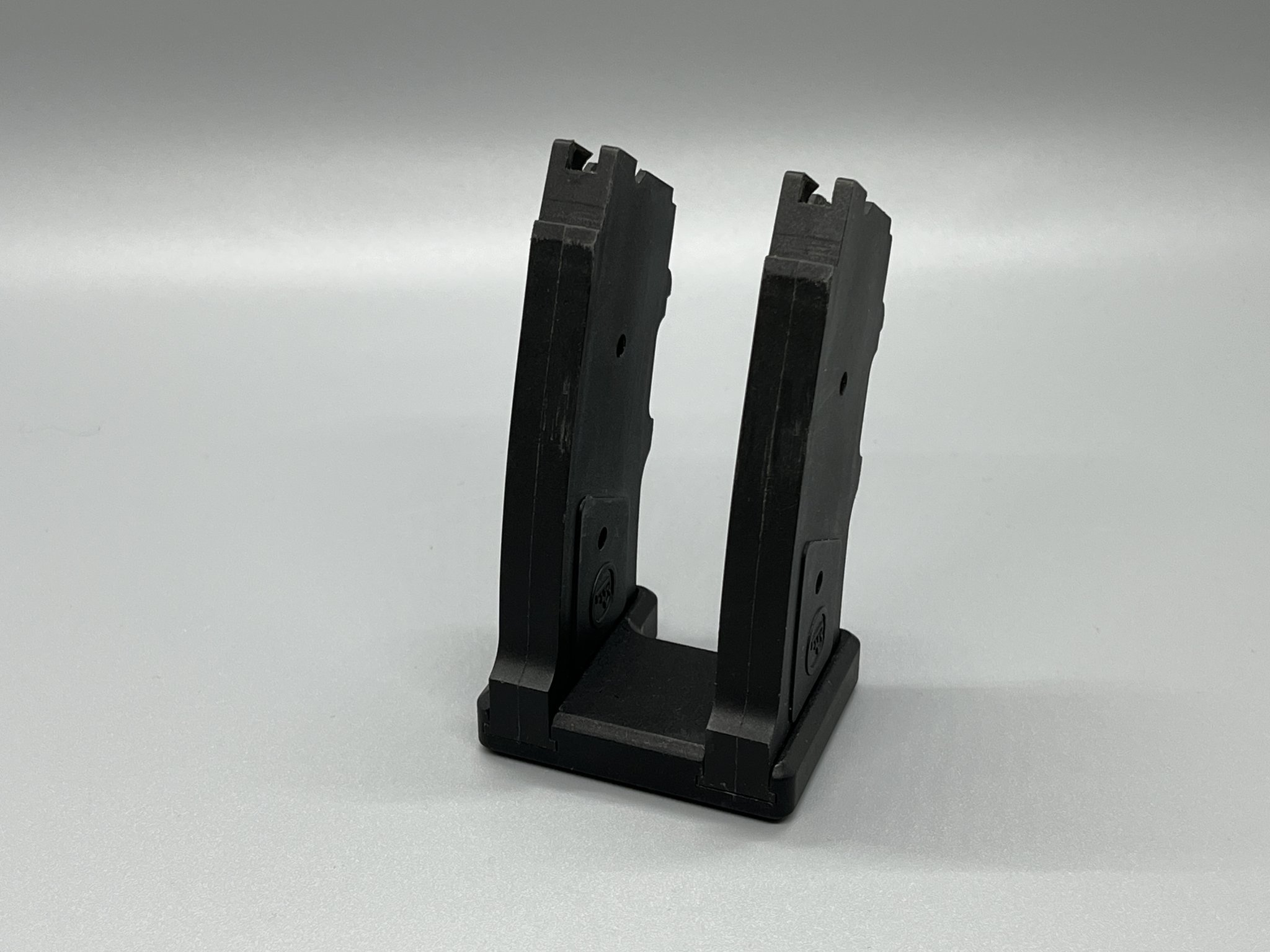

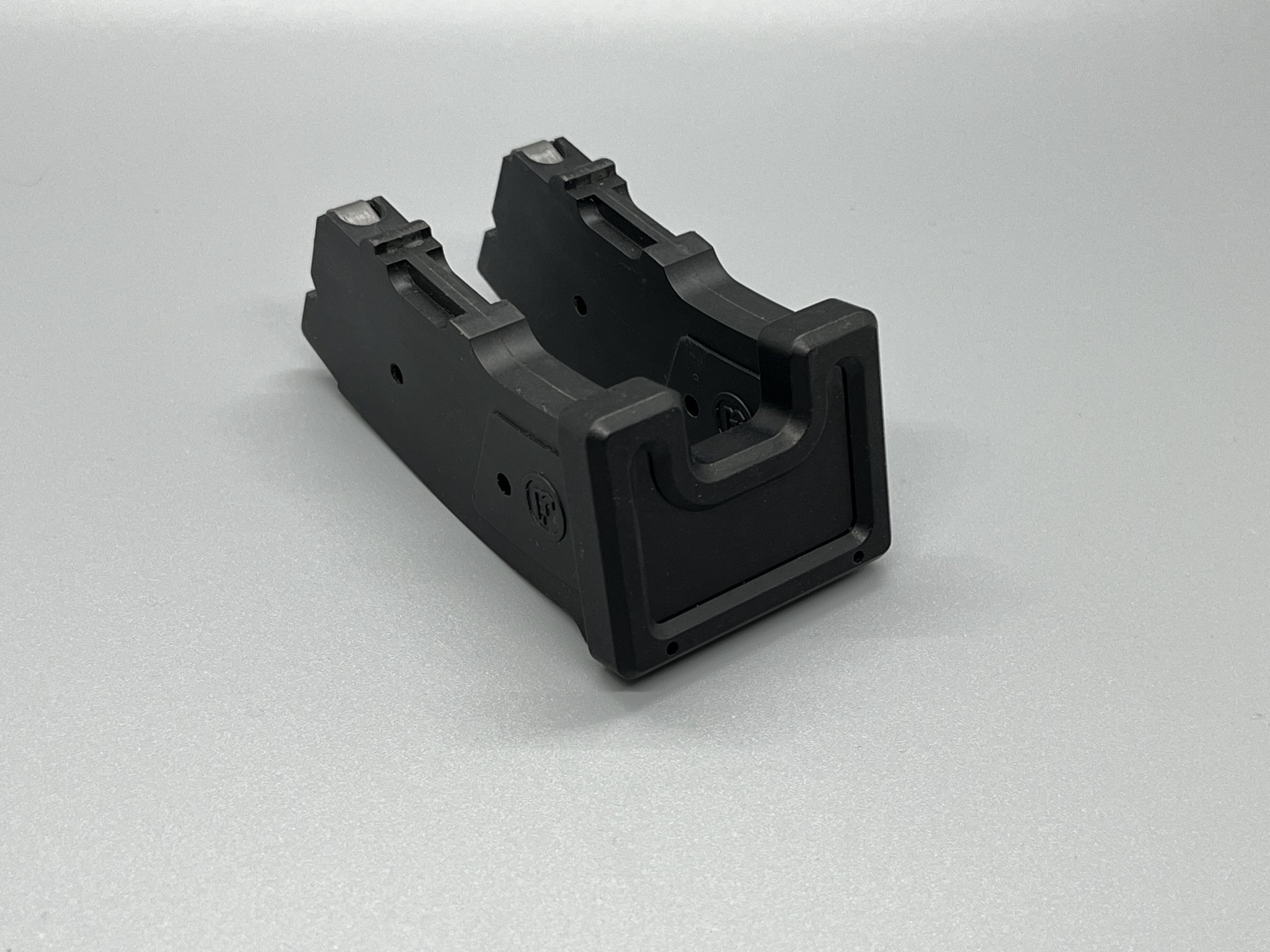

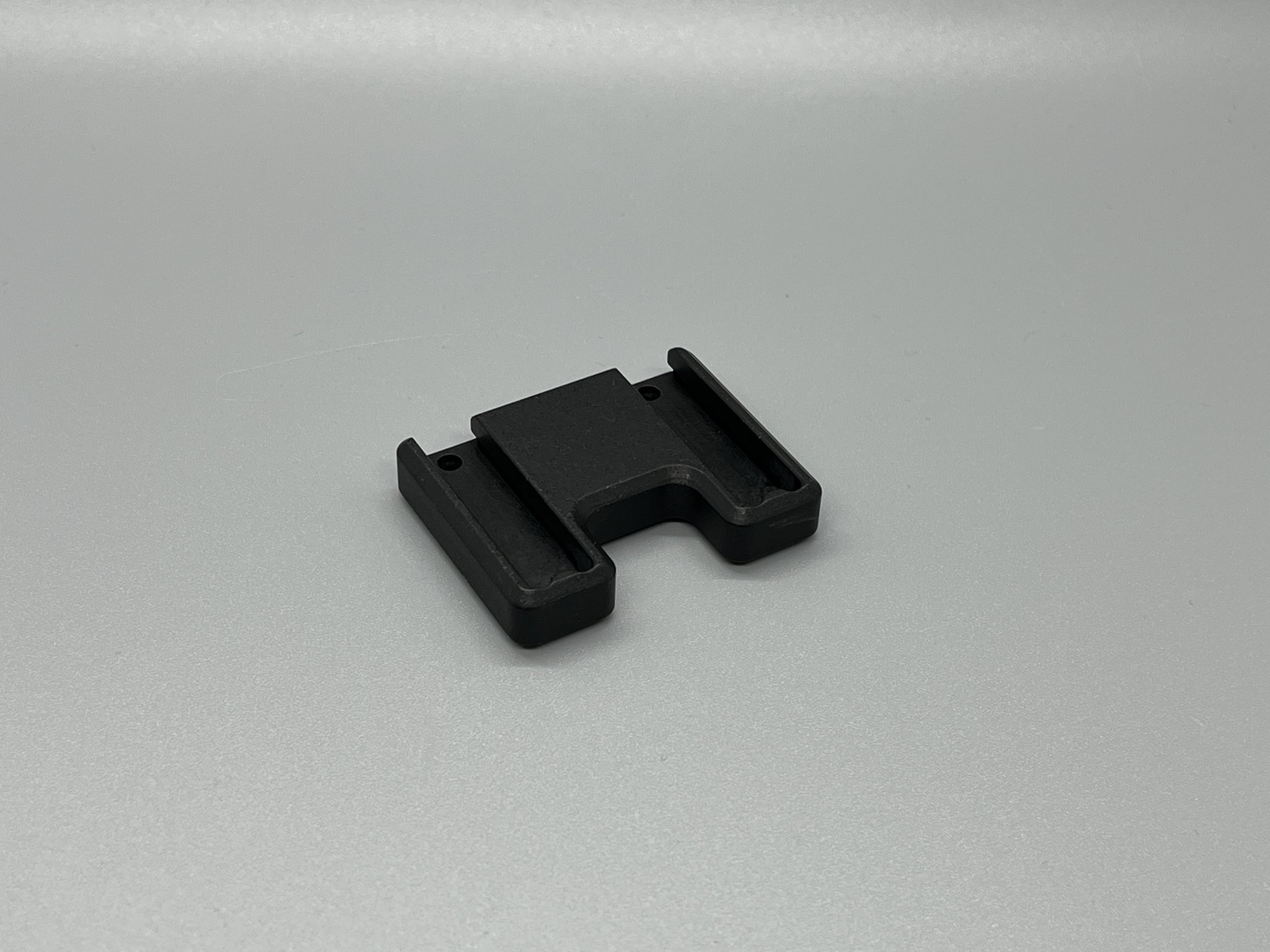

Aluminum couplers are back from hard anodizing and ready to ship! PM me if you’re interested! $50 for the aluminum version, $15 for 3D printed, free US shipping. 100% Minnesota made.

I got to give them a good test a 2 day NRL-X and a few regular matches with no issues. I’ll have them at NRL22 Nationals as well - there might even be one going with a prize gun 🤘

View attachment 8420562
View attachment 8420564
View attachment 8420565


So here is the @1911Shootist assembly mounted up and installed on a vpt. Fits good with about 1/8" of clearance between the stock and mag body. Haven't had a chance to run it yet, but so far looks good. The top of the mag is below receiver height and it is level with the stock, so I don't see it interfering with ejection. Also a good view of the Area 419 barricade stop for USMC22.

^^^Looks good! If I had to do it all over, that is the route that I would take. When I bought my vpt , A419 was out of the MTRs. I should have called them and found out how much wait there was. Nice rig you got there.
Thanks! I’ve got the manners mtr with the adjustable cheek piece and length of pull waiting on the scope. Area 419 sold out of their mtr’s quick! Not sure how often they get them but they go quick.

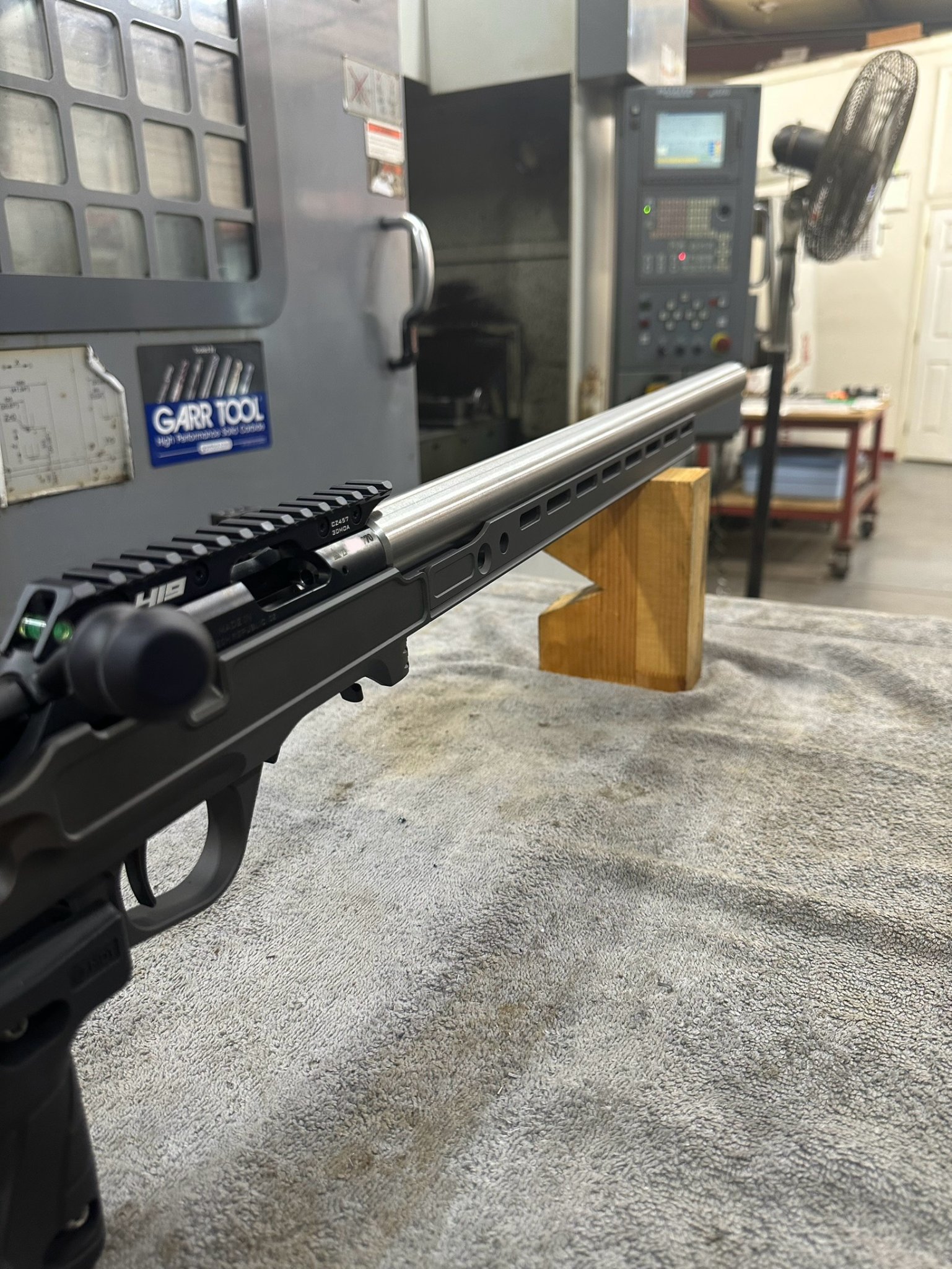

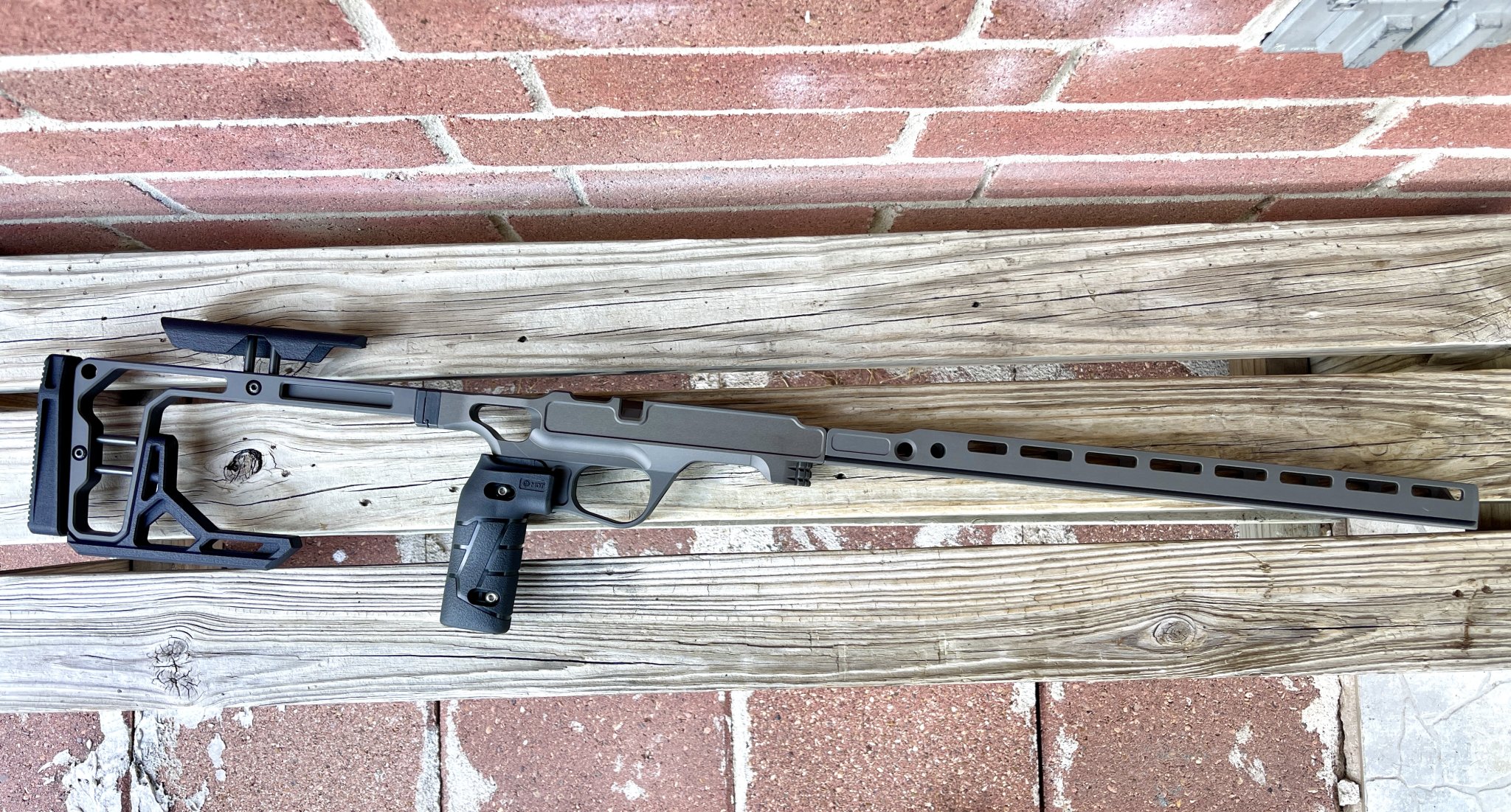

Finally got the La Chassis in after 2 weeks. I currently don’t have the action to drop in since it’s at MCR. Initial impressions just handling it seems well built. It’s not substantial like an ACC but appears to be solid enough. As pictured it’s exactly 2 lbs 14 oz on my scale. A member on RFC said the forend was flexy but manipulating it by hand so far doesn’t appear so. Again I’ll have to wait until I get the barreled action in to verify.
Grey Birch said that the chassis can fit 1.25” barrel but I’m going to send it to MCR so he can verify himself and modify if needed.

  • Like
Reactions: IamAxel and USMC22
Great news. Shared info much appreciated

I thought that I had read that Kenny guarantees his rifles to shoot .3’s at 50yds for 5 shot groups, so threaded action mated to the barrel must have potential.

Love the versatility of this platform.
Cheers!

Both of my CZ457s with 20" Proof prefits shoot .3 MOA at 50 for 5 shot groups with Tenex. So I think the benefit may be negligible.

Monkeying around this morning with a newly installed ATS tuner on the CZ 457 VPT, 16" stock barrel and SK Rifle Match. Going to verify "11, 11.5, 12" and explore around "18" next time. Just picked up the Garmin also, what is considered "good" with .22 in regards to ES/SD?
full paper pic

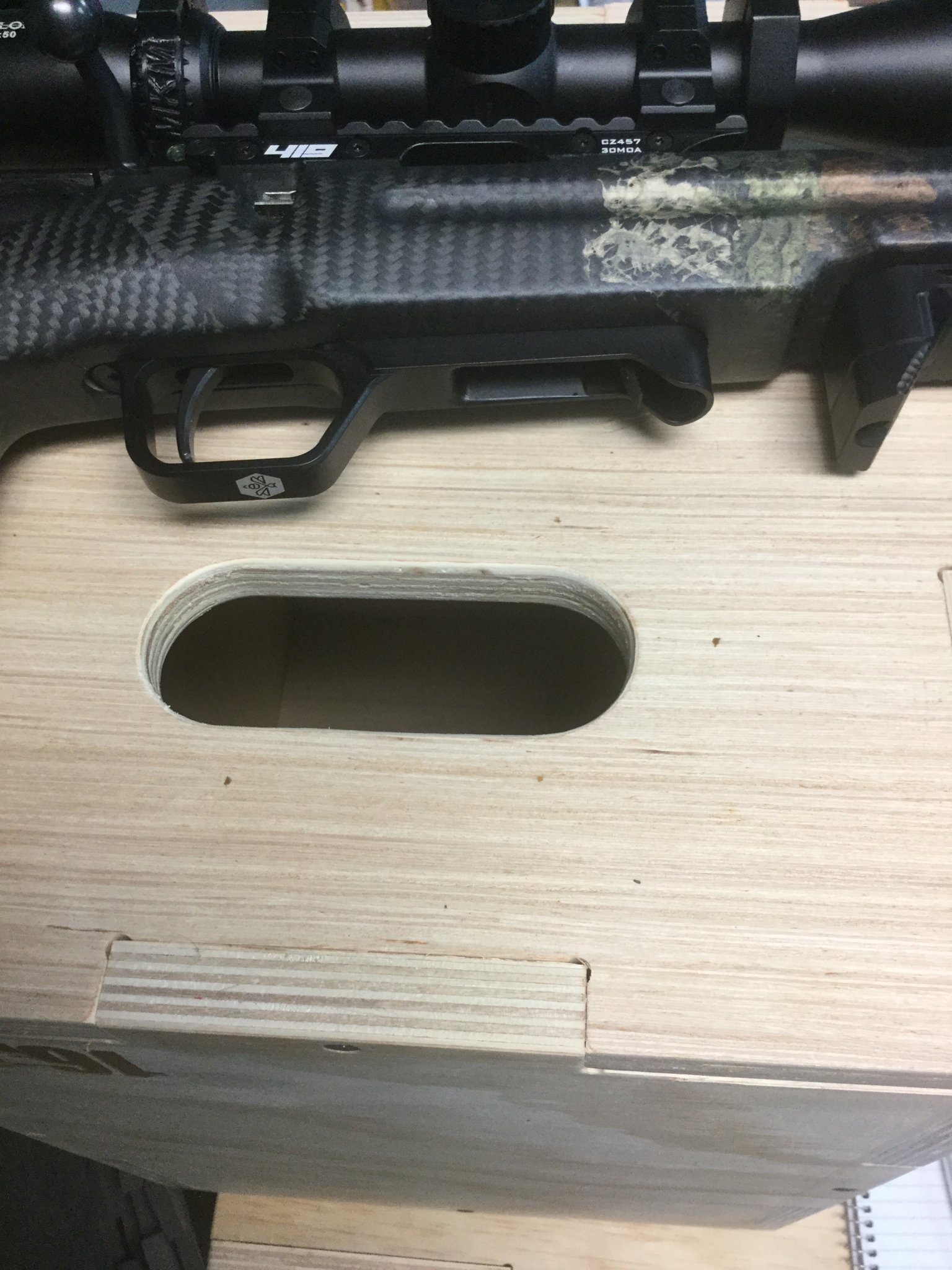

Just received and installed this bottom metal from @Thesepaperwings at L3i. The part is well made and really helps with mag insertion. It also comes with an extended mag release, which you will need once the metal is installed. I will say that I struggled with the release installation, not because of the part, but because of my ham fisted fingers, and I knew I was going to loose that stupid little spring. Simple installation, but like a lot of gun stuff, a little spring going into a blind hole and line it all up under spring tension and insert the pin. After getting frustrated, I put it down and thought about it, then installed the lever without the spring. Easy peasy. I took a silver sharpie and made a dot, half and half on the lever and bottom metal. Disassembled the lever, put a blob of grease on the spring to hold it in the hole, reassembled it, lined up the dot halves and slid the pin in. Why didn’t I think of that first. Anyway, it is so much better, and is so much easier to load. Thanks L3i for a great part, and maybe I helped some of you home smiths out there.

Thanks so much for the support! We're an extremely small company ( 3 people) with very limited resources (most things are packaged on the kitchen table). We absolutely love this sport and hobby so it's awesome to be able to contribute to it.

Definitely going to look into your bottom metal!

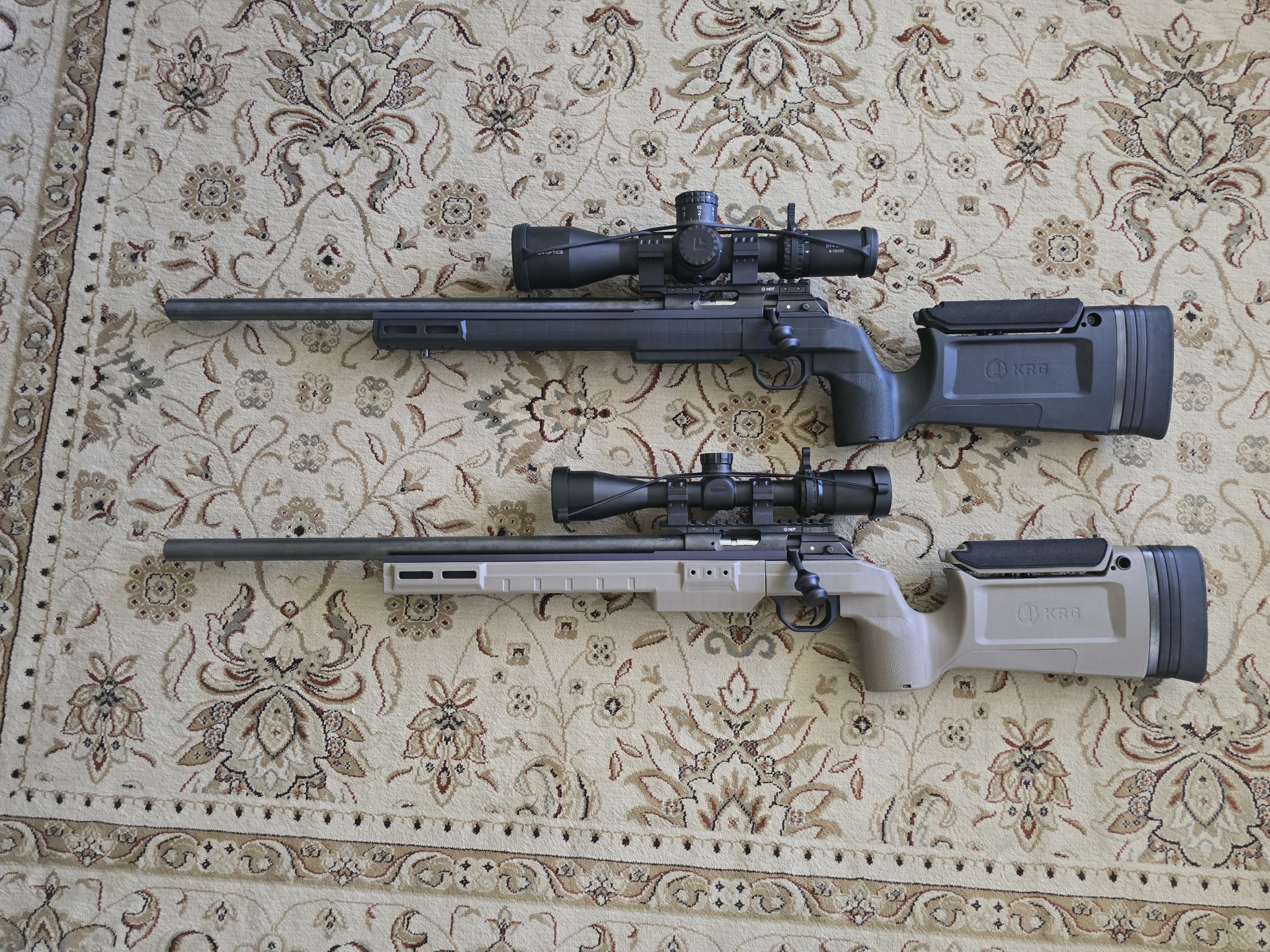

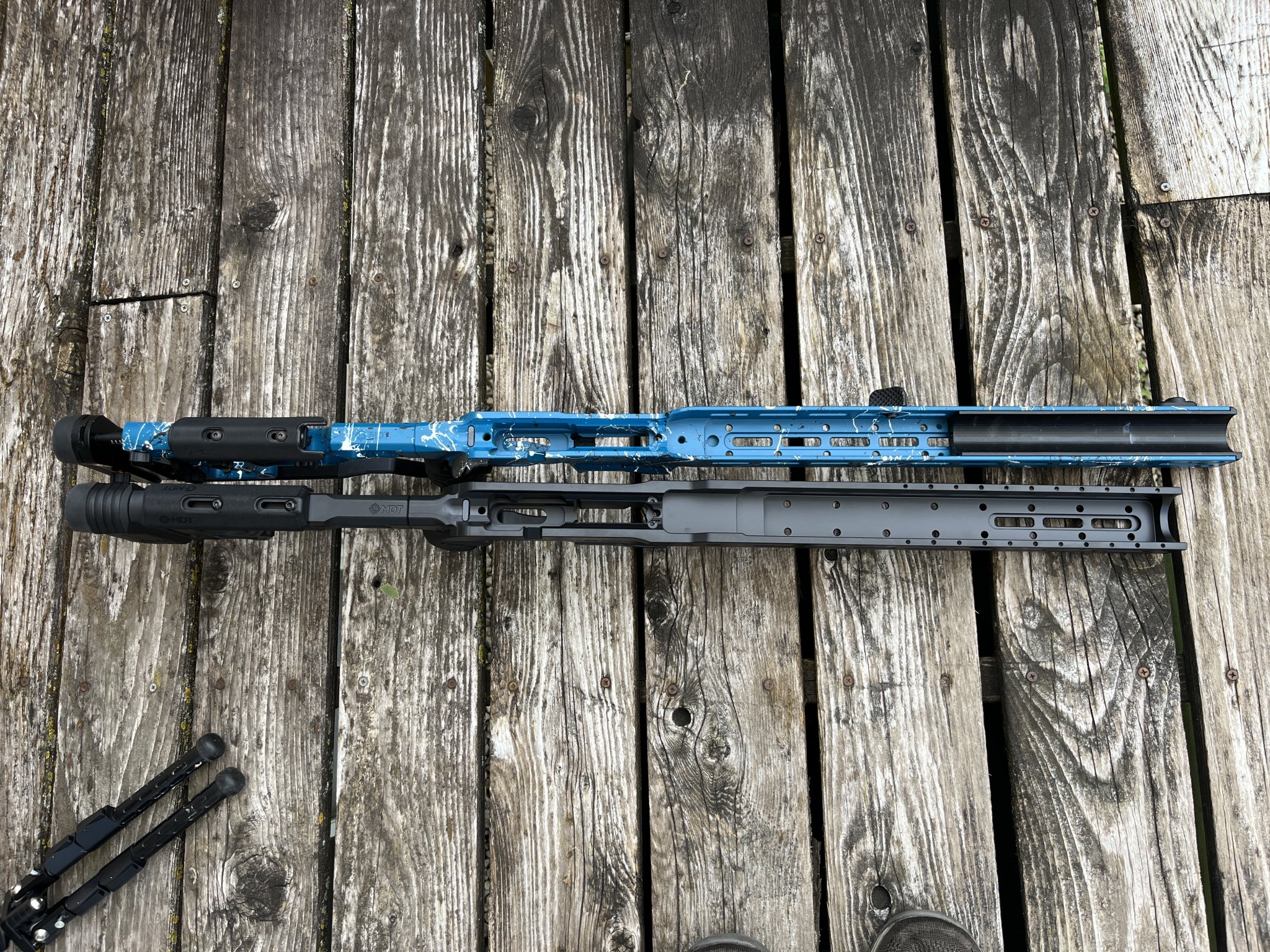

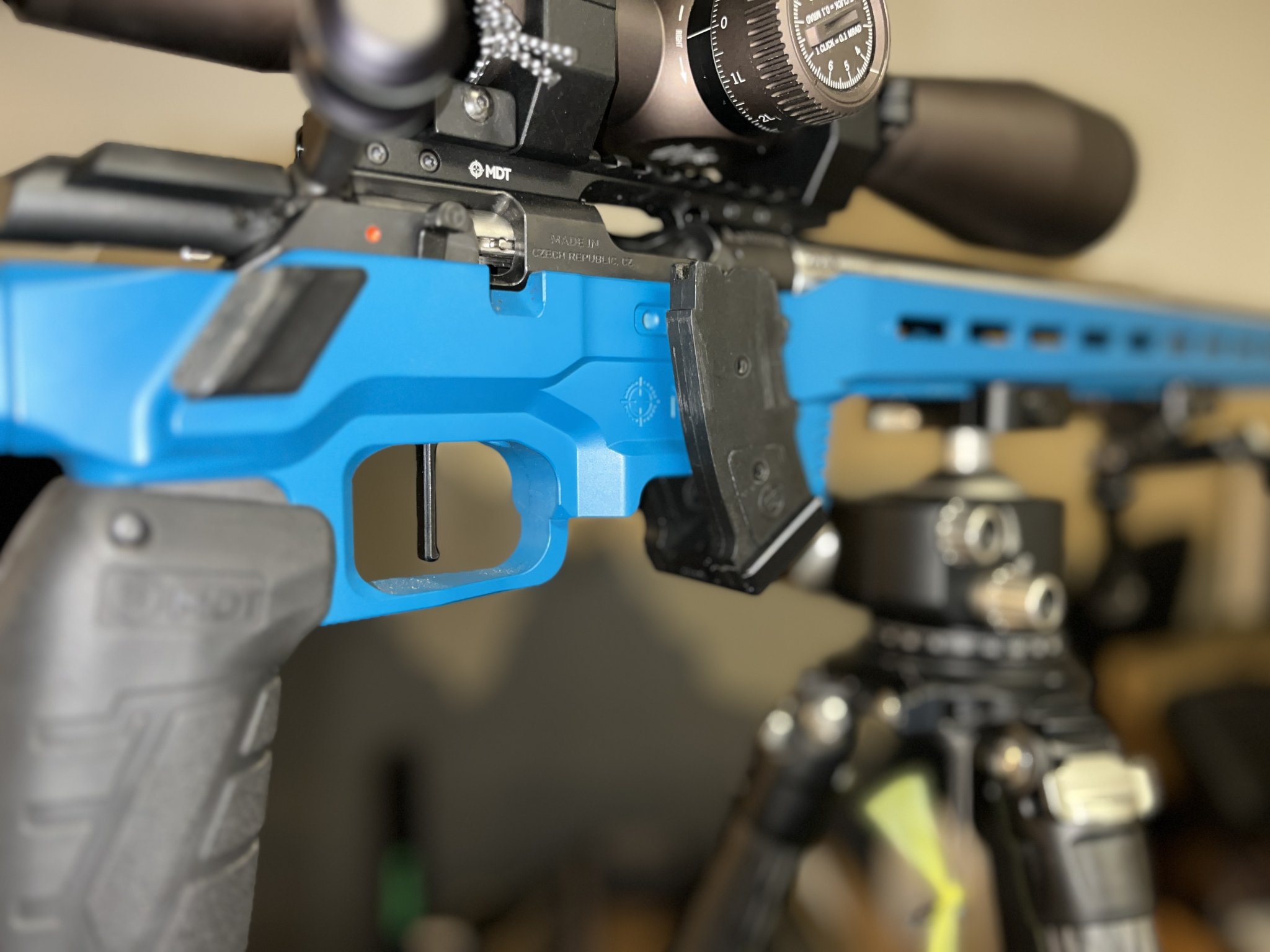

Finally got out to shoot both rifles at the same time in the same conditions. Had to steal the scope of my centerfire rig, but I’m into rimfire mode now anyway.

Independent review, but I’ll try to not let my massive appreciation for @jelrod1 @ MCR-rifles.com for donating this barreled action & trigger and MDT for donating the pre-release chassis to the NRL22 National Championship match bias my comments. You folks make some kickass, quality stuff and your support of the sport is hugely appreciated!

Blue rifle: DPG thermal fit 24 x 1.10”, ACC gen1 w/1.5 lbs up front & aluminum butt plate, Razor gen3 on an MDT 40 MOA rail, Timney flat trigger. ~1k down the tube if I had to guess.

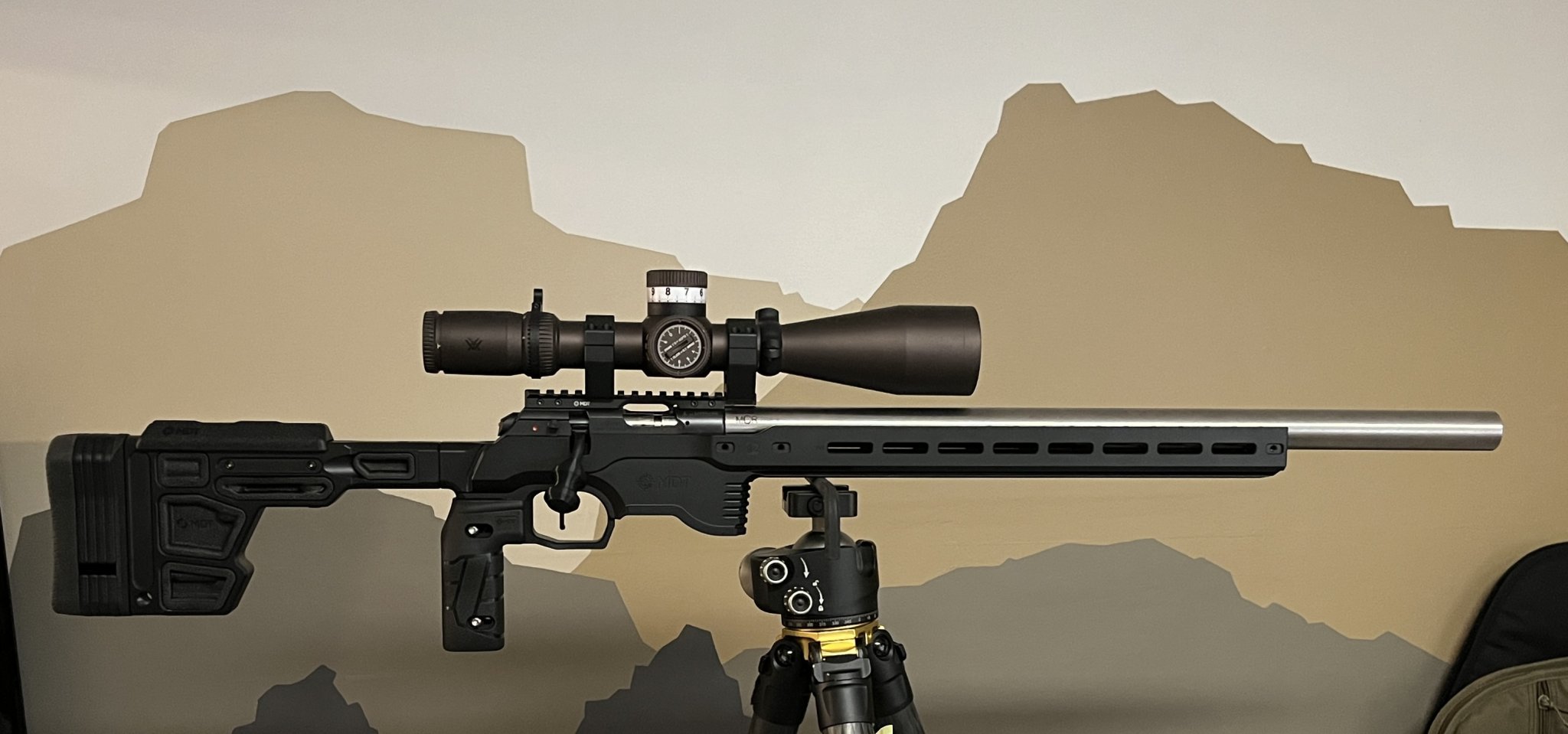

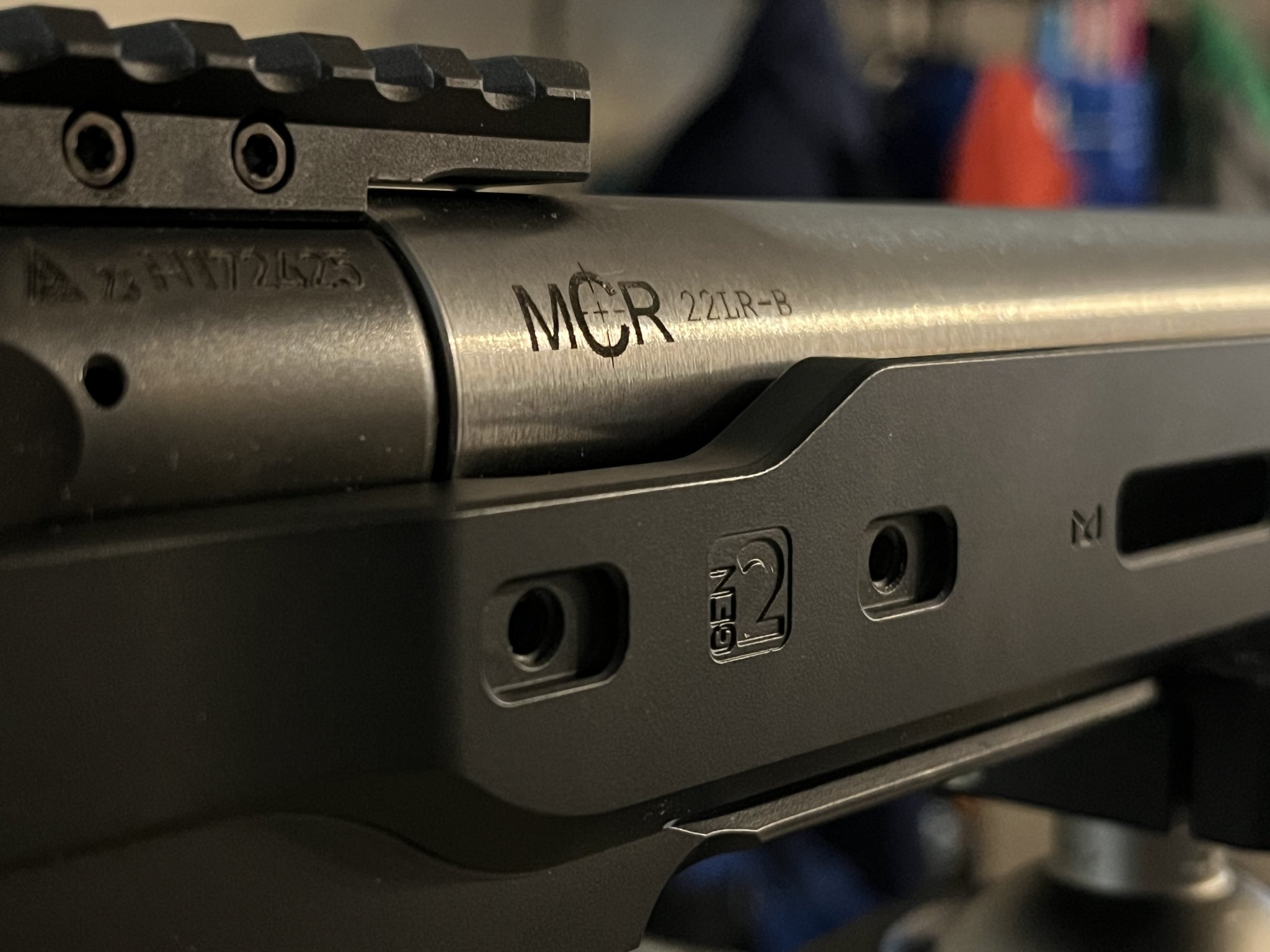

Black rifle: MCR built barreled action Muellerworks 24 x 1.18”, ACC gen2, Razor gen3 on an MDT 20 MOA rail, Timney flat trigger. Brand spanking new.

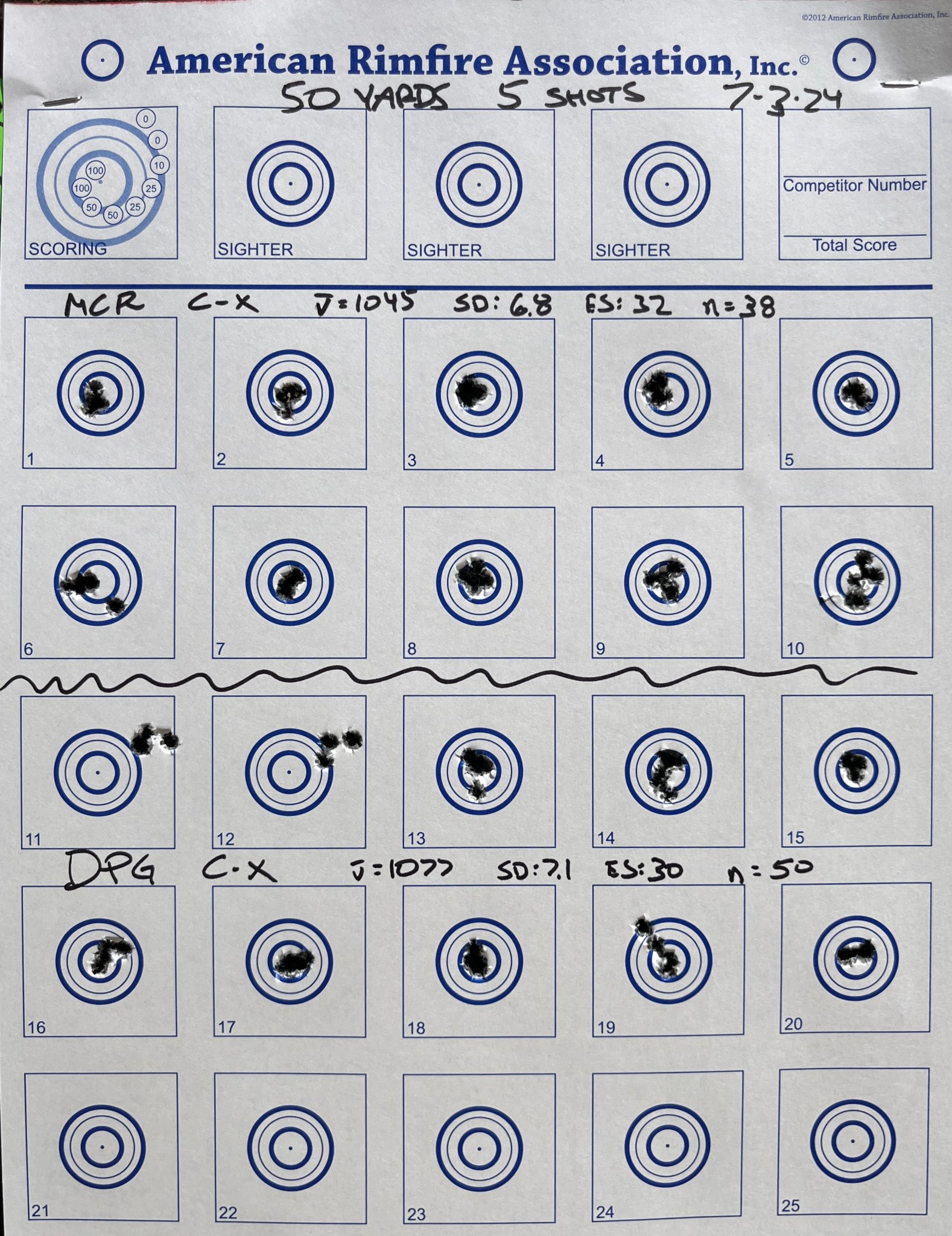

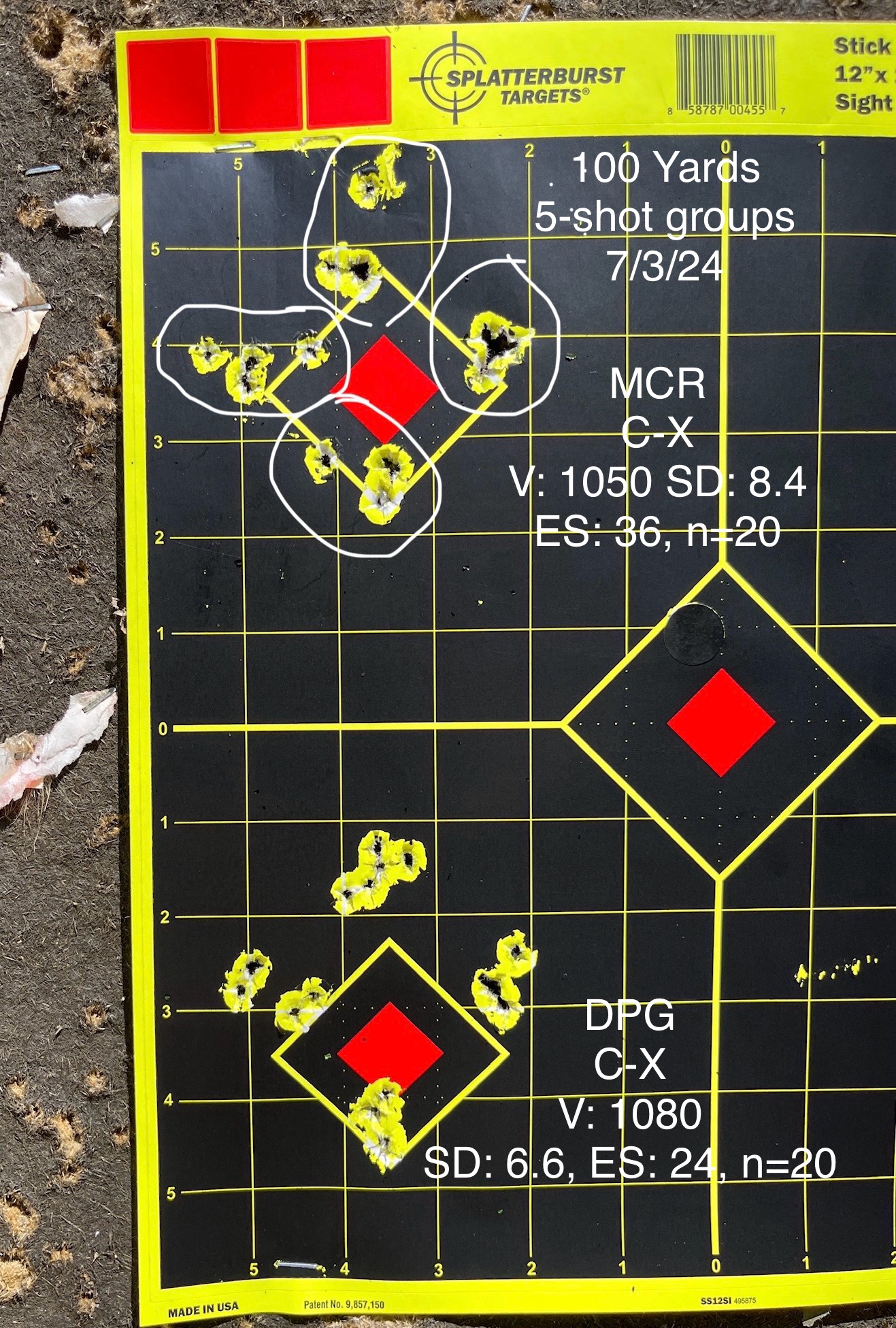

Both shot off a ckye pod (LW double) and heavy Schmedium rear bag. Same lot of Center-X, only a few minutes apart. I’m not a benchrest shooter, just an NRL/PRS shooter and was cracking out 5 shot groups as soon as I got stable. No adjustments for wind.

Both shot well. Only had a few shots out of each that wasn’t my fault at each distance. Further ammo testing and lot testing might be able to tighten things up a smidge, but either are super good enough for my needs. The MCR might get even better after some more seasoning. Pretty awesome to see a slip fit heavy barrel shoot this well.

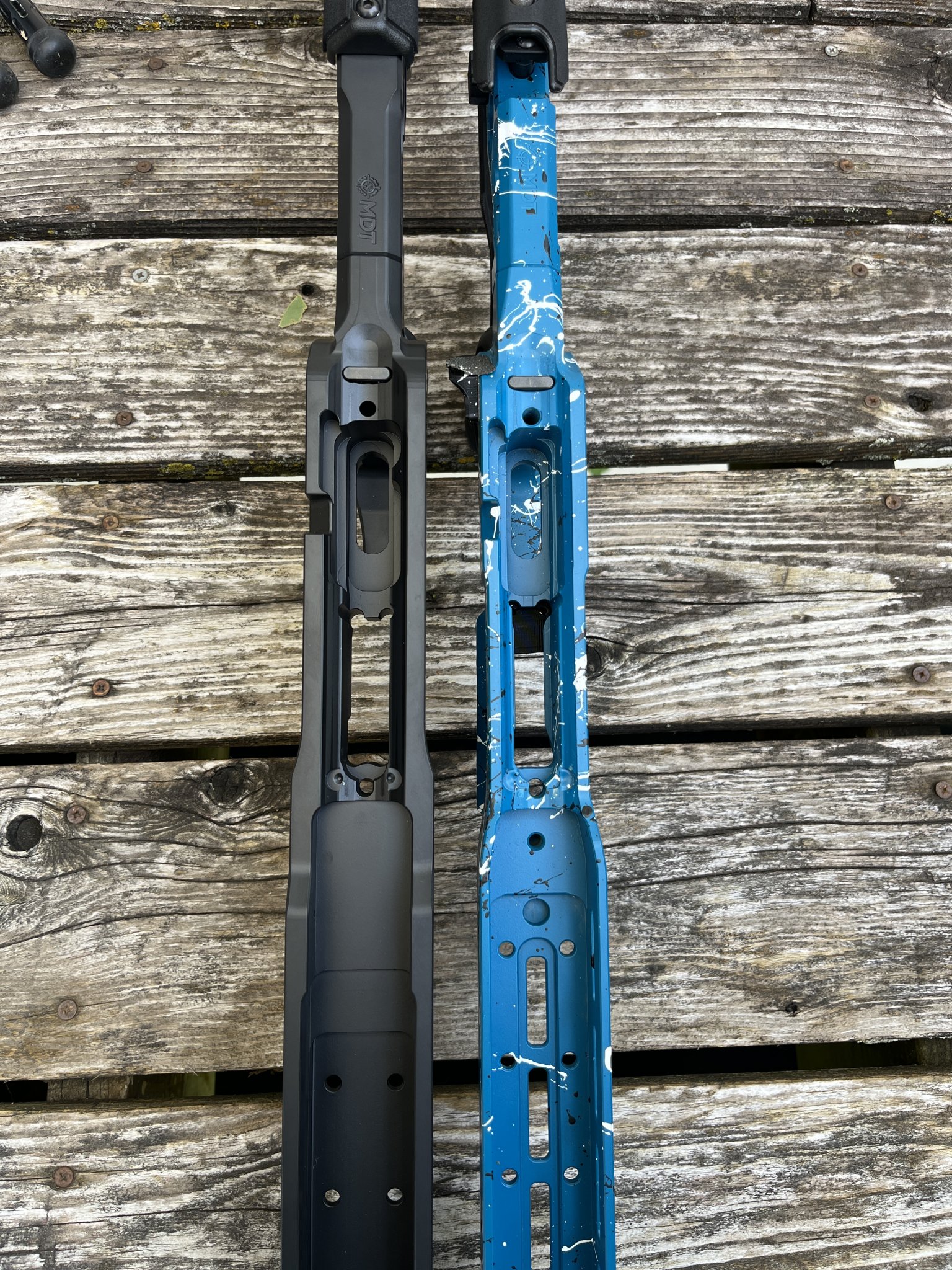

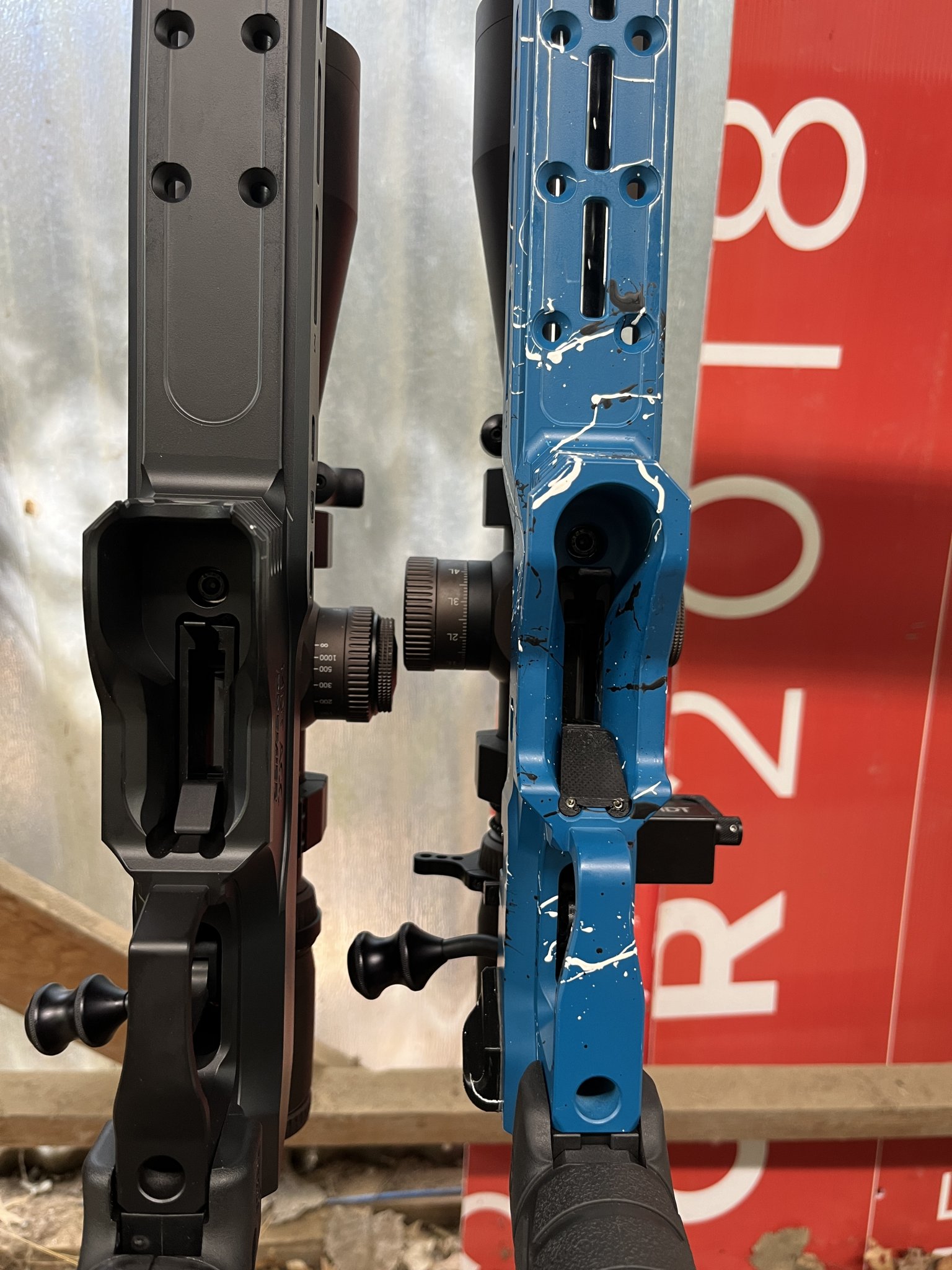

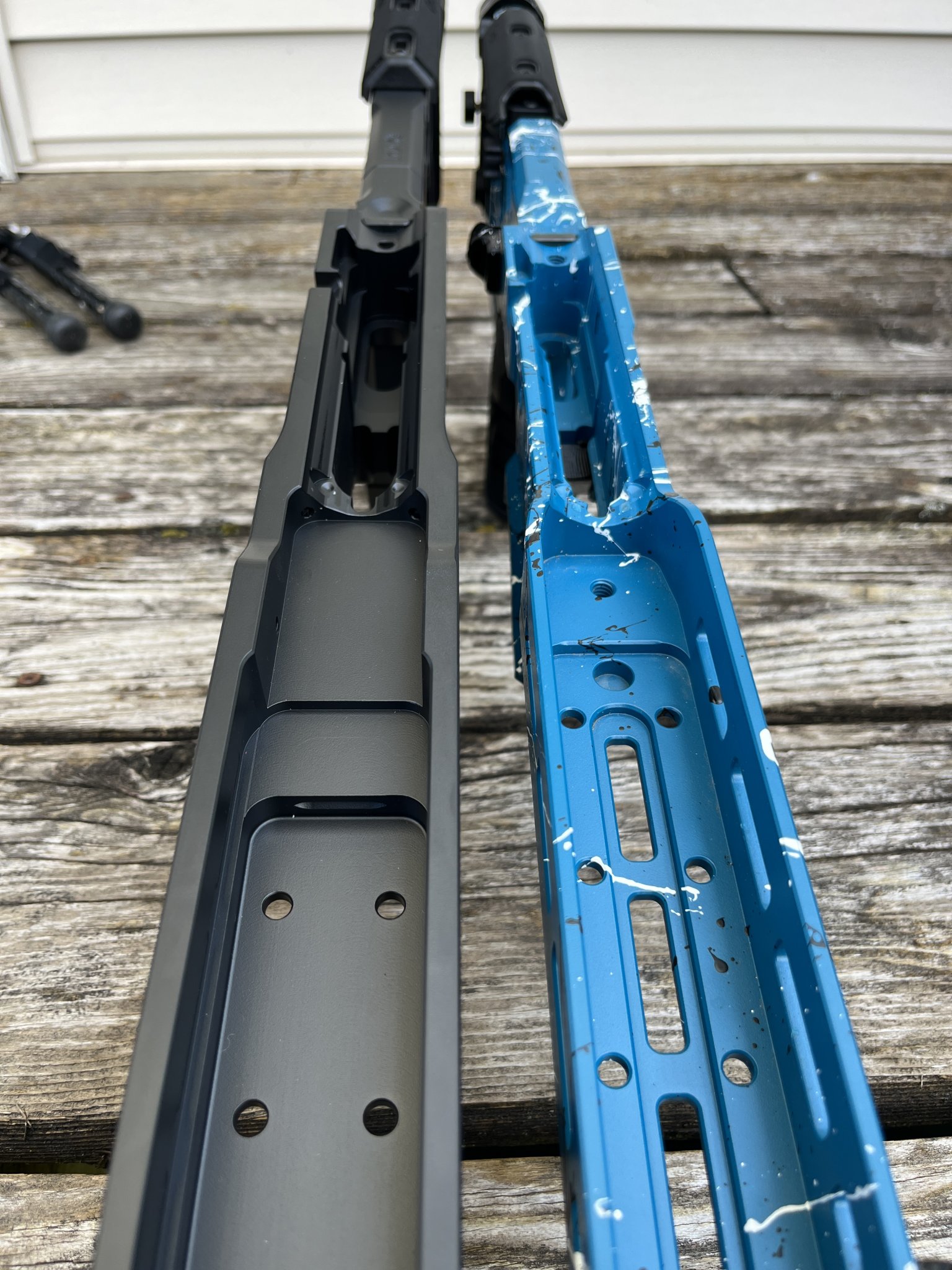

MDT ACC Chassis comparison:

Gen1
Pros:
• Longer forend = easier to balance
• Magwell covers edges of factory magwell, making it a direct funnel
• Tool-less adjustments

Cons:
• Heavier buttstock = more weight needed up front for balance
• More flexible forend
• Rear magwell filler needed for easier/faster reloads (I have a 3D printed wedge in mine)
• Snug access to mag release

Gen2:
Pros:
• Super stiff forend
• Lighter buttstock
• Barricade stop cutout for sausage finger access to mag release
• Extended mag release and rear magwell guide included

Cons:
• Short LOP - maxes out at ~13.5” out of the box, had to make a 1/2” spacer and get longer 3” 10-32 screws to fit me
• Shorter forend is harder to balance, but now that we can get proper heavy barrels, little to no weight is needed.
• Magwell spacer required some filing to allow clearance for L3i billet mags
• Magwell sides don’t cover factory magwell, making a catch for mags while inserting them.
• Grip is tiny and has lots of sharp edges. Feels like it’ll be a throwaway for most. MDT’s good grips are $$$.

I’m not sure which chassis I’ll run moving forward. Both have some solid pros and cons to them. Would love to see an Elite inlet for the CZ. I’d pay the premium to get R-Lock, better adjustments, a fully dialed magwell, the better grip and stay.

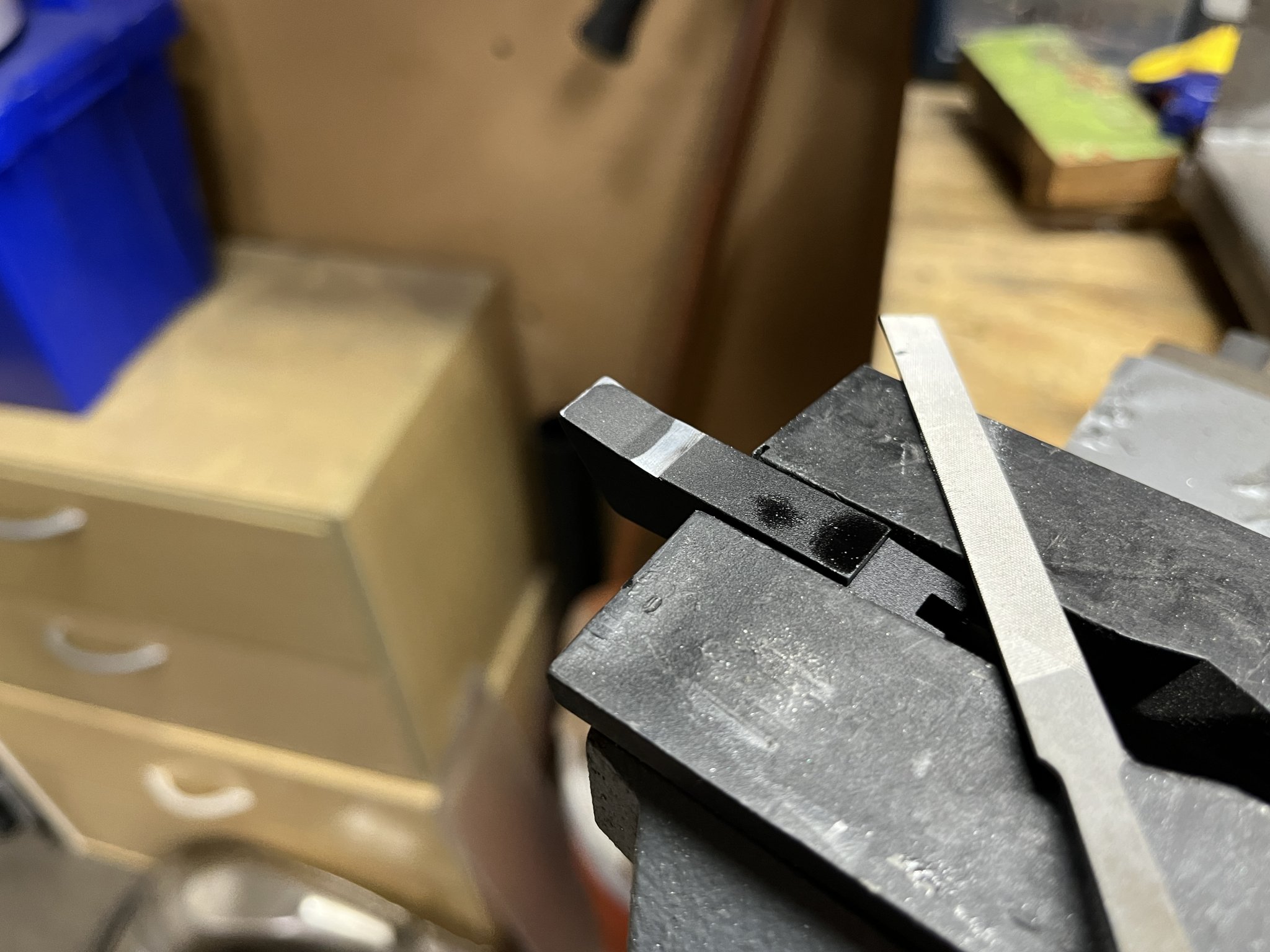

Little bit of material removed from magwell filler to allow clearance for L3i mags. This is off the back side, where the chassis makes contact with the filler piece.

Here is a CZ 457 Jaguar I set up with iron sights, my best group at 50 yards is .308. I did shoot a 198/200 with 8X. S-K Rifle Match

That's what I'm shooting as well. What are you using for a trigger? I adjusted mine but it still too heavy and I want a sub 1 lb option.
I just added a Boyd AT1 stock and was wondering about bedding it. Any advice?

total noob here, if i had a cz 457 and my gunsmith squared and threaded the reciever and put a krieger on there, would I be giving up anything over a vudoo/rimx as far as accuracy, SD, feeding, etc

total noob here, if i had a cz 457 and my gunsmith squared and threaded the reciever and put a krieger on there, would I be giving up anything over a vudoo/rimx as far as accuracy, SD, feeding, etc

Lots of people have tested and proved that a CZ with a good barrel can keep with Vudoo and RimX. The CZ 457 action quality is top notch and even slip fit match barrels like from places like Modacam or Lilja (an others) are on par with the best rimfires out there. The main reason to go Vudoo, RimX, or B14R is if you want a Remington 700 footprint. There are more options for chassis/stocks, triggers, and bolt knobs for that platform. Also, it can be used as a trainer for centerfire a little more effectively.

DPG does what you're talking about with truing up the receiver and threading a barrel onto it. I've only heard good things about Kenny's CZ 457 builds like this and most will agree that there's no loss in precision/accuracy going this route.

Last edited:
Lots of people have tested and proved that a CZ with a good barrel can keep with Vudoo and RimX. The CZ 457 action quality is top notch and even slip fit match barrels like from places like Modacam or Lilja (an others) are on par with the best rimfires out there. The main reason to go Vudoo, RimX, or B14R is if you want a Remington 700 footprint. There are more options for chassis/stocks, triggers, and bolt knobs for that platform. Also, it can be used as a trainer for centerfire a little more effectively.

DPG does what you're talking about with truing up the receiver and threading a barrel onto it. I've only heard good things about Kenny's CZ 457 builds like this and most will agree that there's not loss in precision/accuracy going this route.
I really want the 457 in a manners and I know a guy who will thread it and rebarrel and open up the stock. it may save me a couple thousand over a custom and be exactly what I want.
just mainly was making sure it would feed and eject as good as the big boys, plus not cause me any accuracy problems.
my savage b22 precision gives some pretty gnarly SD and ES with all ammo so I'm wary now, dunno if it's the crappy barrel or the super crappy action. super fun toy though.

The cool thing about the cz is that you don't have to thread to rebarrel. It is a pretty simple process to swap out a barrel if you have some basic tools. Put a Timney on and bottom metal from L3i for nice improvements while you have it apart. I have the vpt, and the original 16" barrel shoots good, but doesn't balance well on barricades and stuff, so I have one on order from L3i. Was a 12 week lead time so now we wait. I may have to open my barrel channel a little, but we will wait and see.

@Cody S , the stock CZ457 feeds and ejects generally better than many of the RimX and Voodoo action/magazine combinations until you fiddle with them.

The only time I’ve seen them have issues on the line is if the stock plastic bottom metal and magazine well starts to fail. If you replace that up front, feeding and ejection are money.

I really want the 457 in a manners and I know a guy who will thread it and rebarrel and open up the stock. it may save me a couple thousand over a custom and be exactly what I want.
just mainly was making sure it would feed and eject as good as the big boys, plus not cause me any accuracy problems.

I'm a big fan of the Manners CZ stocks. We have the older version without the adjustable butt stock and will be doing the something similar with opening the barrel channel and dropping in a heavy barrel (going with the L3i 1.180 barrel). Unless you mess with something within the action you won't have any issues with feeding or ejecting. One thing to note though is your chamber might affect how easily you can chamber some rounds. My vudoo is really hard to chamber cheap ammo in. Not a big deal, but something worth noting as I was using cheap Fiocchi ammo for the initial 1000 round "seasoning". It chambers Norma and SK just fine though so no complaints.

Like @502Chevelle said, you don't really need to have the barrel threaded to get great results. But it probably won't hurt. However if you're trying to keep the budget down a little more you could get great results with a lot of drop-in options. You can also have one thermal fitted - shank slightly oversized where the action is heated to expand the metal while fitting the barrel. This makes for a really solid lockup and is common practice on 10/22s.

my savage b22 precision gives some pretty gnarly SD and ES with all ammo so I'm wary now, dunno if it's the crappy barrel or the super crappy action. super fun toy though.

There are a lot of reasons you could be seeing large numbers on SD and ES. Cheaper ammo, lower tolerance chamber, shorter barrel, firing pin design, headspace, etc will all factor into this. What ammo were you using on the B22?

I really want the 457 in a manners and I know a guy who will thread it and rebarrel and open up the stock. it may save me a couple thousand over a custom and be exactly what I want.
just mainly was making sure it would feed and eject as good as the big boys, plus not cause me any accuracy problems.
my savage b22 precision gives some pretty gnarly SD and ES with all ammo so I'm wary now, dunno if it's the crappy barrel or the super crappy action. super fun toy though.
CZ action donor rifle: $550
Krieger barrel blank: $400+
Barrel profile, chamber & crown: $300+

Can your guy cut threads in the hardened steel action and finish the tenon for less than $400? If not, you're money ahead just going for a DPG, and if they can, you're within a few hundred bucks of a known and proven package.

I've never had a CZ not feed (sample size 5). I've had one with weak ejection - swapping extractor & ejector with OEM parts solved that one. I've had aftermarket barrels (Lilja) cause major extraction issues. Chamber is critical for extraction performance in any rimfire.

The wait time sucks, but I'd buy a DPG all over again.

I'm a big fan of the Manners CZ stocks. We have the older version without the adjustable butt stock and will be doing the something similar with opening the barrel channel and dropping in a heavy barrel (going with the L3i 1.180 barrel). Unless you mess with something within the action you won't have any issues with feeding or ejecting. One thing to note though is your chamber might affect how easily you can chamber some rounds. My vudoo is really hard to chamber cheap ammo in. Not a big deal, but something worth noting as I was using cheap Fiocchi ammo for the initial 1000 round "seasoning". It chambers Norma and SK just fine though so no complaints.

Like @502Chevelle said, you don't really need to have the barrel threaded to get great results. But it probably won't hurt. However if you're trying to keep the budget down a little more you could get great results with a lot of drop-in options. You can also have one thermal fitted - shank slightly oversized where the action is heated to expand the metal while fitting the barrel. This makes for a really solid lockup and is common practice on 10/22s.



There are a lot of reasons you could be seeing large numbers on SD and ES. Cheaper ammo, lower tolerance chamber, shorter barrel, firing pin design, headspace, etc will all factor into this. What ammo were you using on the B22?
I've tried some lot tested(for other guns) Midas+ I've got, also some lapua long range and some RWS R50 that is a known performer. definitely rulled out ammo with the rws.
it grouped super well with the RWS r50 and decently well with the midas+
but other known barrels are getting an SD of 5 and I'm getting an SD of like 18 with the rws.
I have not touched the firing pin yet, will look into that next week thanks.
