Imported carbon fiber tripod (RT90C)

Is there anyone here that has used the TA-2U-SC leveling base with the RT-90c? Really debating forking out the money to get one for shooting, or to just get a decent ball head to use for everything (shooting, spotting, photography, etc...). I have had the tripod legs for awhile now and used the included bowl to spot with binos quite a bit, just now getting around to putting arca rails on a couple rifles...

Is there anyone here that has used the TA-2U-SC leveling base with the RT-90c? Really debating forking out the money to get one for shooting, or to just get a decent ball head to use for everything (shooting, spotting, photography, etc...). I have had the tripod legs for awhile now and used the included bowl to spot with binos quite a bit, just now getting around to putting arca rails on a couple rifles...
Get an anvil30. Versatile. Works for arca and picatinny also.

Get an anvil30. Versatile. Works for arca and picatinny also.

My only concern with that was how to make sure it didn't come loose from the threaded stud. Loctite is only a temporary option IMO... does the anvil have a set screw or something as well to help secure it to the flat mounting plate? The adapter Midwest is looking at making is intriguing, but I'm kind of wanting something within a week or two if possible. One of the benefits of the TA-2U-SC is that it can also clamp onto a pic rail, and RRS has it in stock right now...

My only concern with that was how to make sure it didn't come loose from the threaded stud. Loctite is only a temporary option IMO... does the anvil have a set screw or something as well to help secure it to the flat mounting plate? The adapter Midwest is looking at making is intriguing, but I'm kind of wanting something within a week or two if possible. One of the benefits of the TA-2U-SC is that it can also clamp onto a pic rail, and RRS has it in stock right now...


All you're losing to the Anvil 30 is angle. This new leveling head addresses some of that compared to the previous version. It should also be a bit better at panning than the Anvil 30.

  • Like
Reactions: Arrow22
All you're losing to the Anvil 30 is angle. This new leveling head addresses some of that compared to the previous version. It should also be a bit better at panning than the Anvil 30.

That's exactly what I was thinking. I'm not gonna be shooting any angles I can't shoot with the TA-2U I don't believe, and I can kick a leg out to add angle if I need it. I think I'll like the tension ring as well, but that's just speculation on my part. I really like that they put 3 "tabs" on the ring so they will be in the same position in relation to all 3 tripod legs...

  • Like
Reactions: Jefe's Dope
My only concern with that was how to make sure it didn't come loose from the threaded stud. Loctite is only a temporary option IMO... does the anvil have a set screw or something as well to help secure it to the flat mounting plate? The adapter Midwest is looking at making is intriguing, but I'm kind of wanting something within a week or two if possible. One of the benefits of the TA-2U-SC is that it can also clamp onto a pic rail, and RRS has it in stock right now...


So if both look At the mounting stub portion of the Anvil it actually has a taper to it and then there is four tapped holes and then four non-tapped holes and then there's the center 3/8 screw . Like a snowmobile clutch the center bolt along with the taper should lock into place and adding any 1-4 of the cap screws,will prevent the stub from rotating so you have 5 points of fasting from RRS.

That s were using there plate keeps that integrity.

My first mock up I milled the center cap screw like a star so I could use the 4 other screws yet and they will prevent the 3/8 screw from .rotation. ideally a complete adapter with the tapered bore would be the best but I only get 1 hour of free time to work on stuff a week. . So I try to sub up a few At a time. .

  • Like
Reactions: Rexwagon

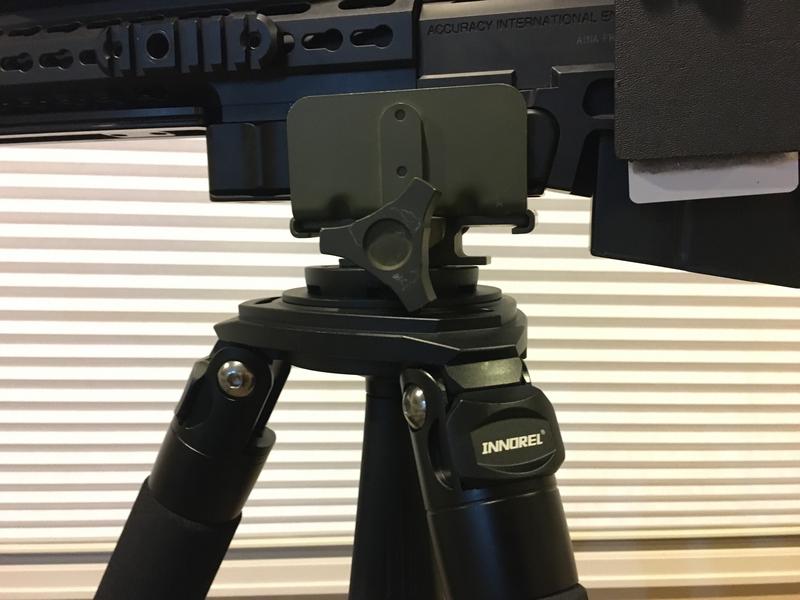

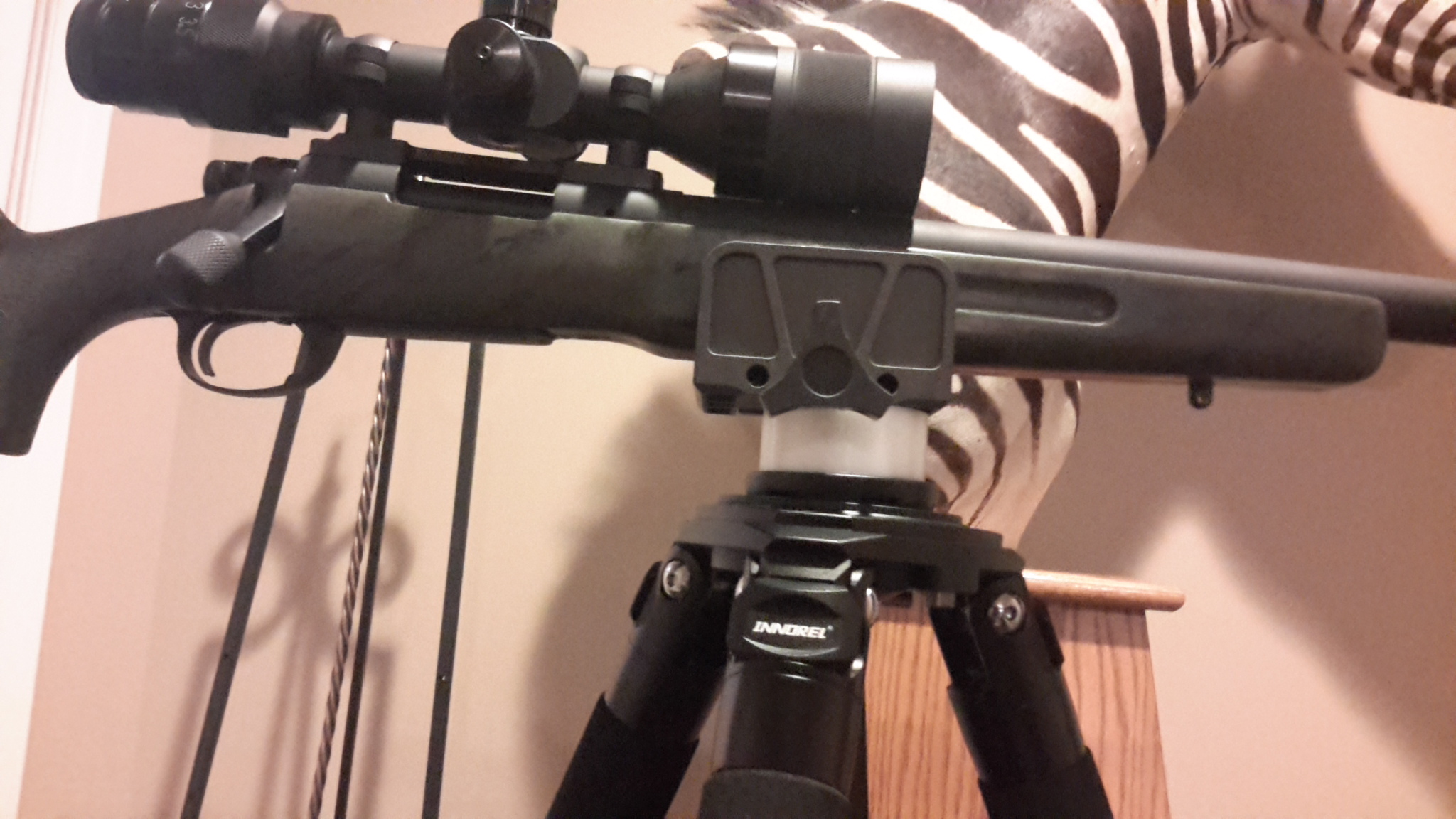

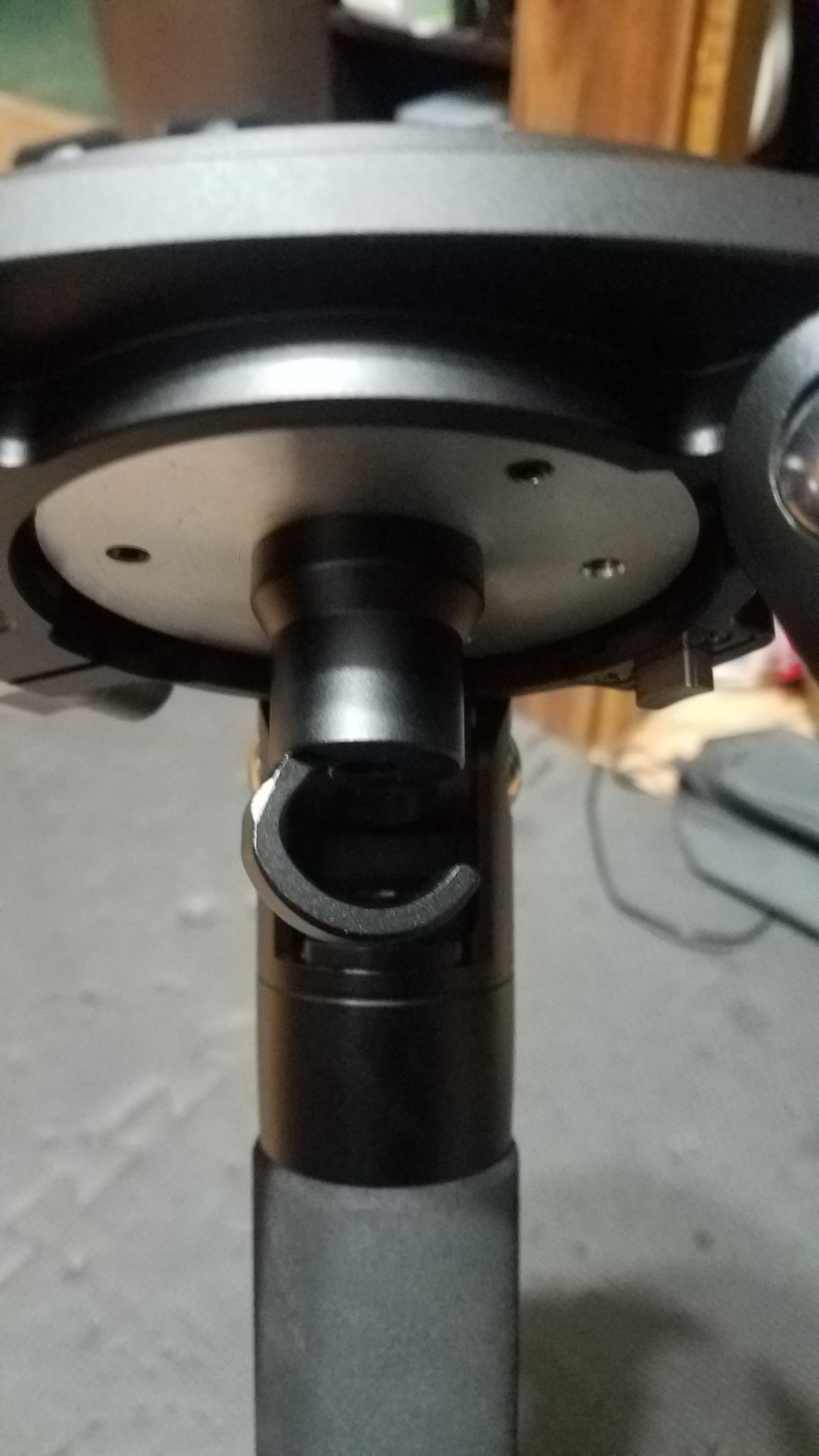

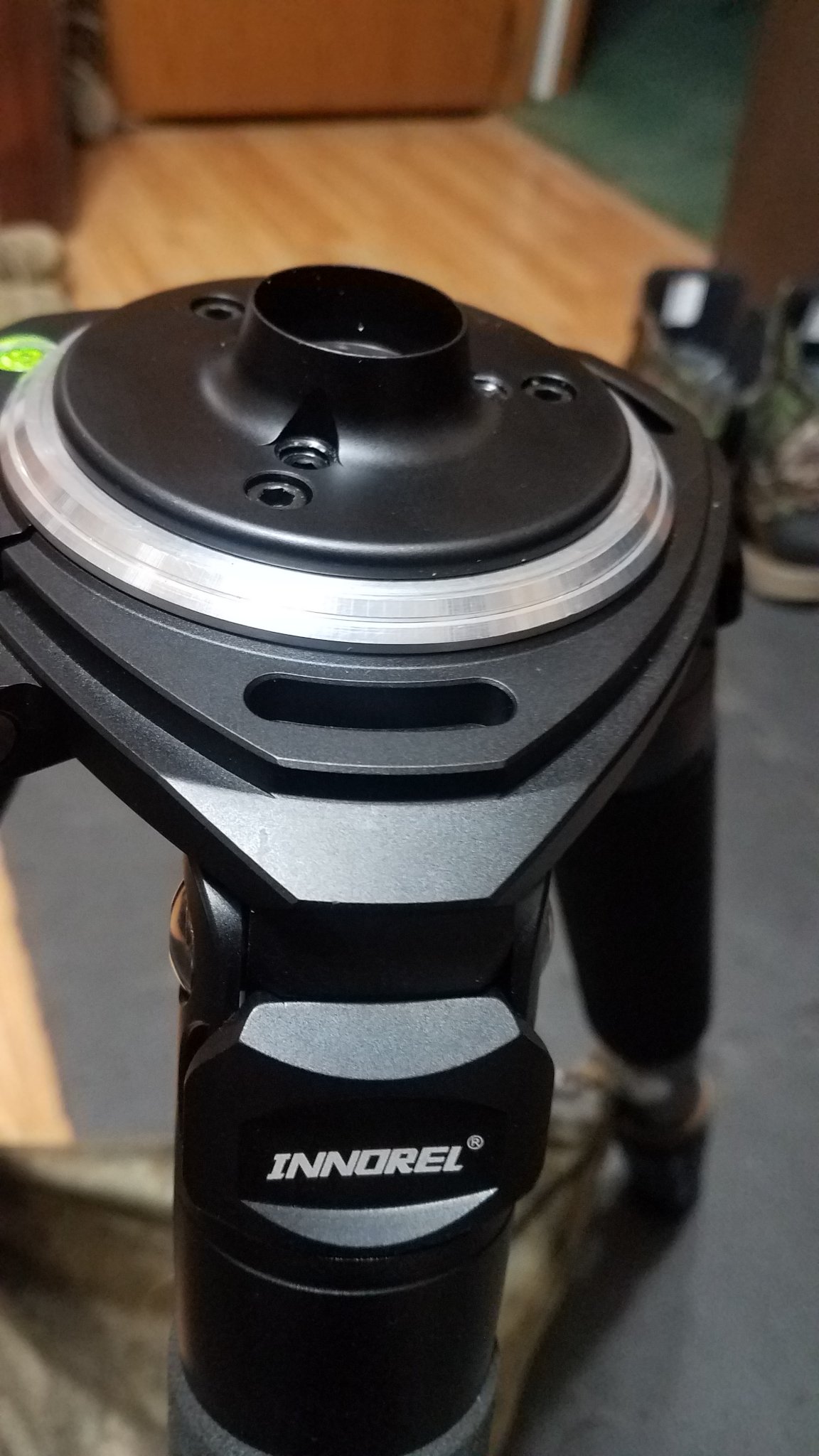

A few pics


Attachments

  • 15791548633628120273059706873015.jpg
    268.1 KB · Views: 227
  • 15791548818177237577569679739763.jpg
    235.3 KB · Views: 220
Just got this tripod in the mail a couple hours ago. Initial impressions are great, this thing is a tank.
Standing dry fire with an anvil-30 on top is easily as stable as any other RRS tripod I've used in the past. I'm using the direct thread anvil, so hopefully some red loctite on the provided base will do the trick. I mounted a pig saddle to the 75mm adapter/leveling base that's included, and it is useable, but the adjustment wheel of the saddle hits the top of the tripod unless you cant the rifle/base while tightening it. Not a huge issue, but an issue nonetheless.

I'll try and get some pictures/video of some positional stuff at the local match this weekend.

Just got this tripod in the mail a couple hours ago. Initial impressions are great, this thing is a tank.
Standing dry fire with an anvil-30 on top is easily as stable as any other RRS tripod I've used in the past. I'm using the direct thread anvil, so hopefully some red loctite on the provided base will do the trick. I mounted a pig saddle to the 75mm adapter/leveling base that's included, and it is useable, but the adjustment wheel of the saddle hits the top of the tripod unless you cant the rifle/base while tightening it. Not a huge issue, but an issue nonetheless.

I'll try and get some pictures/video of some positional stuff at the local match this weekend.


Any living room pics? :geek:

Just got this tripod in the mail a couple hours ago. Initial impressions are great, this thing is a tank.
Standing dry fire with an anvil-30 on top is easily as stable as any other RRS tripod I've used in the past. I'm using the direct thread anvil, so hopefully some red loctite on the provided base will do the trick. I mounted a pig saddle to the 75mm adapter/leveling base that's included, and it is useable, but the adjustment wheel of the saddle hits the top of the tripod unless you cant the rifle/base while tightening it. Not a huge issue, but an issue nonetheless.

I'll try and get some pictures/video of some positional stuff at the local match this weekend.
If you notice a few posts above , there is a solution to mounting the anvil30 if you don’t want to rely on red loctite.

  • Like
Reactions: SuperBoot
SuperBoot-

Buddy made me a spacer with some scrap Delrin he had in the shop 2.5'' diameter .75'' thick. You will have to replace the existing stud with a longer one, but I took a standard 5'' stainless steel carriage bolt and cut the head off. Working like a champ.

  • Like
Reactions: TACC and SuperBoot
Next week for these after that might be awhile. I've got ammo to test ?

Ah, what the heck, count me in for one... I just ordered one of the innorel ball heads to start with but I want an anvil eventually, might as well get this while I can. I use mine just as much to spot with so a ball head will be easier for that. And I understand completely, waiting on ADG brass to come back in stock myself.

Just got this tripod in the mail a couple hours ago. Initial impressions are great, this thing is a tank.
Standing dry fire with an anvil-30 on top is easily as stable as any other RRS tripod I've used in the past. I'm using the direct thread anvil, so hopefully some red loctite on the provided base will do the trick. I mounted a pig saddle to the 75mm adapter/leveling base that's included, and it is useable, but the adjustment wheel of the saddle hits the top of the tripod unless you cant the rifle/base while tightening it. Not a huge issue, but an issue nonetheless.

I'll try and get some pictures/video of some positional stuff at the local match this weekend.

How’s the leg stiffness? I currently run an Anvil 30 on a Manfrotto aluminum tripod and the only real wobble zone is in the legs flexing. I’ve got some time on a 3 series RRS which has basically zero wobble from the legs. I’m assuming this one should be closer to the RRS just due to the stiffness of the CF.

  • Like
Reactions: TACC
How’s the leg stiffness? I currently run an Anvil 30 on a Manfrotto aluminum tripod and the only real wobble zone is in the legs flexing. I’ve got some time on a 3 series RRS which has basically zero wobble from the legs. I’m assuming this one should be closer to the RRS just due to the stiffness of the CF.

I had a Manfrotto aluminum tripod originally.... the RT90C is much more stable.

  • Like
Reactions: TACC
How’s the leg stiffness? I currently run an Anvil 30 on a Manfrotto aluminum tripod and the only real wobble zone is in the legs flexing. I’ve got some time on a 3 series RRS which has basically zero wobble from the legs. I’m assuming this one should be closer to the RRS just due to the stiffness of the CF.

I was pretty much in the same camp, using a Slik 700dx and the anvil.
The rt90c still has a little leg flex if you look for it (i.e. wiggle the gun side to side while the legs are extended), but when you’re actually behind the gun, none of that flex/movement is apparent. On the aluminum tripod, trying to shoot off of it standing with no sling was almost impossible due to the wobble zone induced by the legs. I’d be surprised if I ever have to use a sling with this innorel.

Ah, what the heck, count me in for one... I just ordered one of the innorel ball heads to start with but I want an anvil eventually, might as well get this while I can. I use mine just as much to spot with so a ball head will be easier for that. And I understand completely, waiting on ADG brass to come back in stock myself.


I use the leaving base for everything. On the RT90 .

I have a Desmond 52mm ball head I leave on my slik700. But when at matches the less moving parts the better if s one one jumps on my spotter.

I use the leaving base for everything. On the RT90 .

I have a Desmond 52mm ball head I leave on my slik700. But when at matches the less moving parts the better if s one one jumps on my spotter.

Makes sense. The other reason for a ball head for myself is photography, particularly through a phone skope.

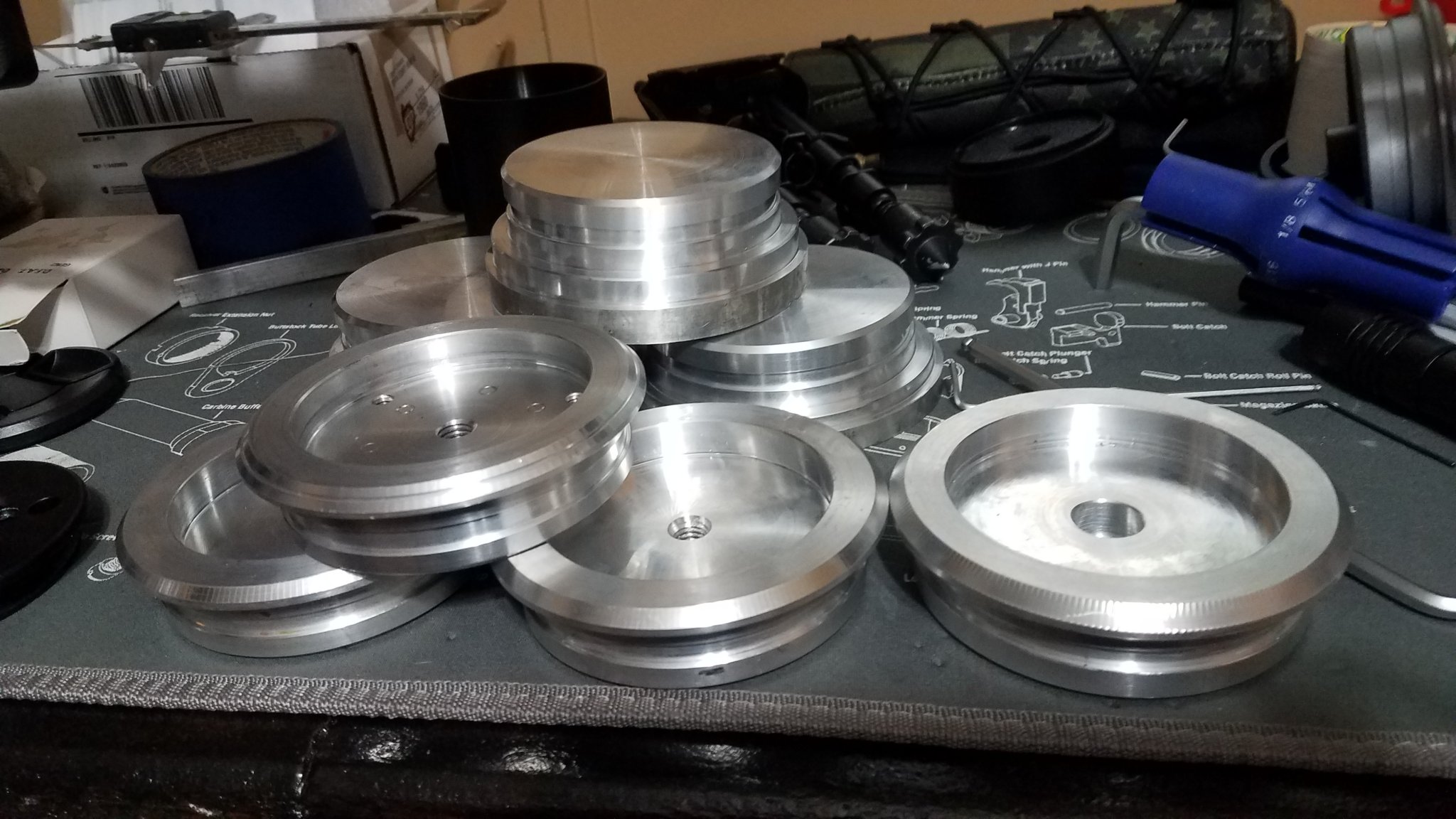

I have 3 that will use the RRS plate I just need to drill and tap .

the other 3 are only finished on the tripod, side so there whichever I need to make . .

I would want one that uses the plate, PM me once you are ready to get more info.

  • Like
Reactions: midwestoffroad
So how are we doing this? Deposit first come first serve?
As of right now I have reserved what I have interest from
kriller134 stud mount
* Itleknots plate mount
86Alaskan
* Jefes dope plate mount
Arrow22 plate mount
CavReconScout
I will have the plate mount ones ready Tuesday to ship and krillers by the end of the week .

So no rush on PayPal till there ready unless you want to. But I don't have plans on more till I source materials and have time after these initial 6

Last edited:
As of right now I have reserved what I have interest from
kriller134 stud mount
Itleknots plate mount
86Alaskan
Jefes dope plate mount
Arrow plate mount

I will have the plate mount ones ready Tuesday to ship and krillers by the end of the week .

So no rush on PayPal till there ready unless you want to. But I don't have plans on more till I source materials and have time after these initial 6
Awesome thanks so much for making this happen!

  • Like
Reactions: midwestoffroad
Before I get e-buttfvcked by you guys has anyone tried the Innorel RT90C tripod? It's carbon fiber with 40mm tubes. Max height is about 63" and low about 7" and can support 80+ pounds. They are going for $290 or so imported from China.
Yes I'm all about supporting vendors and keeping money state side but if any vendor can sell me a similarly spec'ed tripod for the same price I'm game. Two Vets sells a similar one (40 Mike Mike) and no offense but $200 difference can buy me a shit load of other stuff. Yes yes.. RRS buy once cry once. I honestly I think I'll be fine with a $300 tripod for now.

wanted to thank you for pointing out this option, I appreciate it. Saved me money and time.

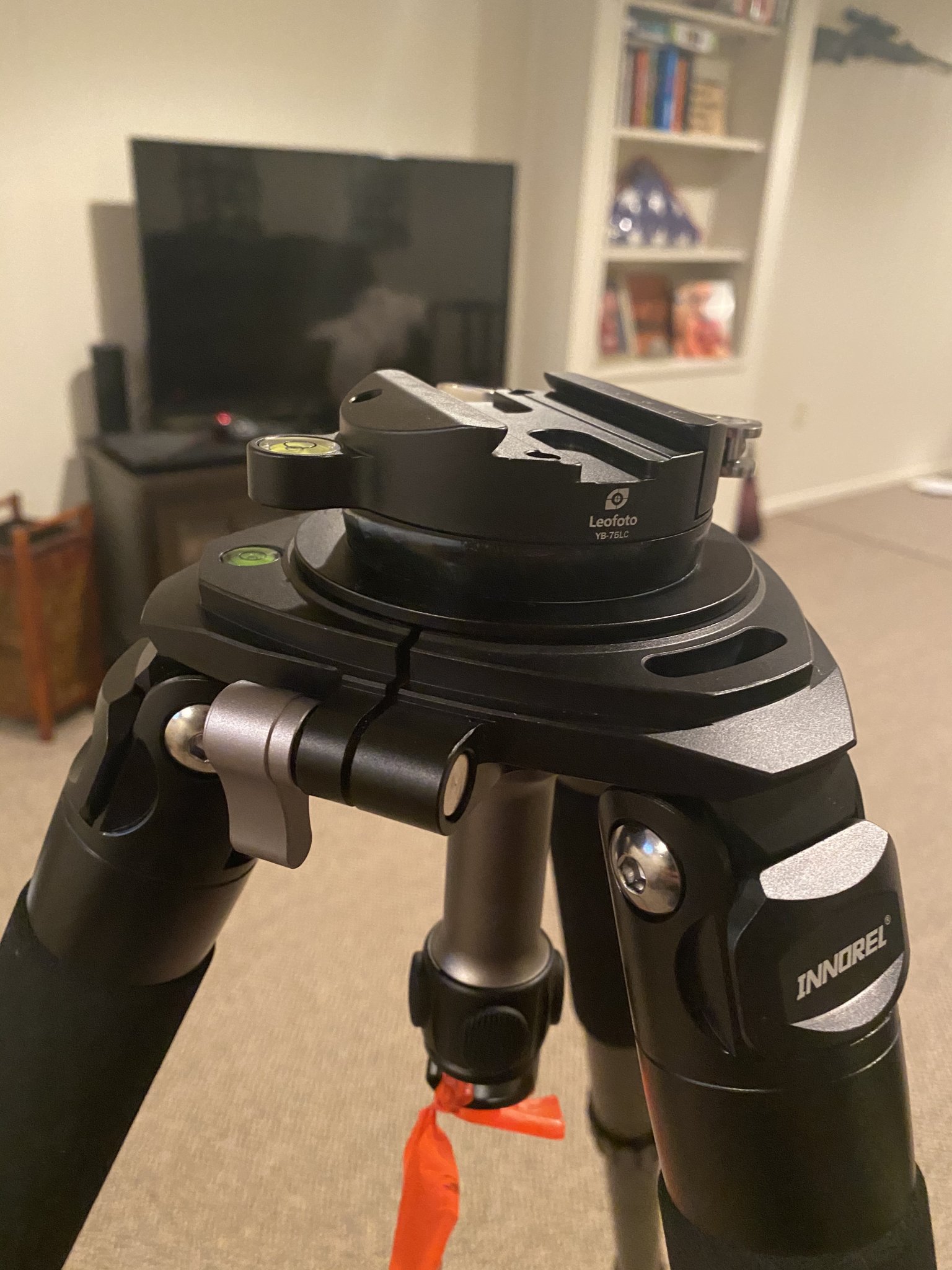

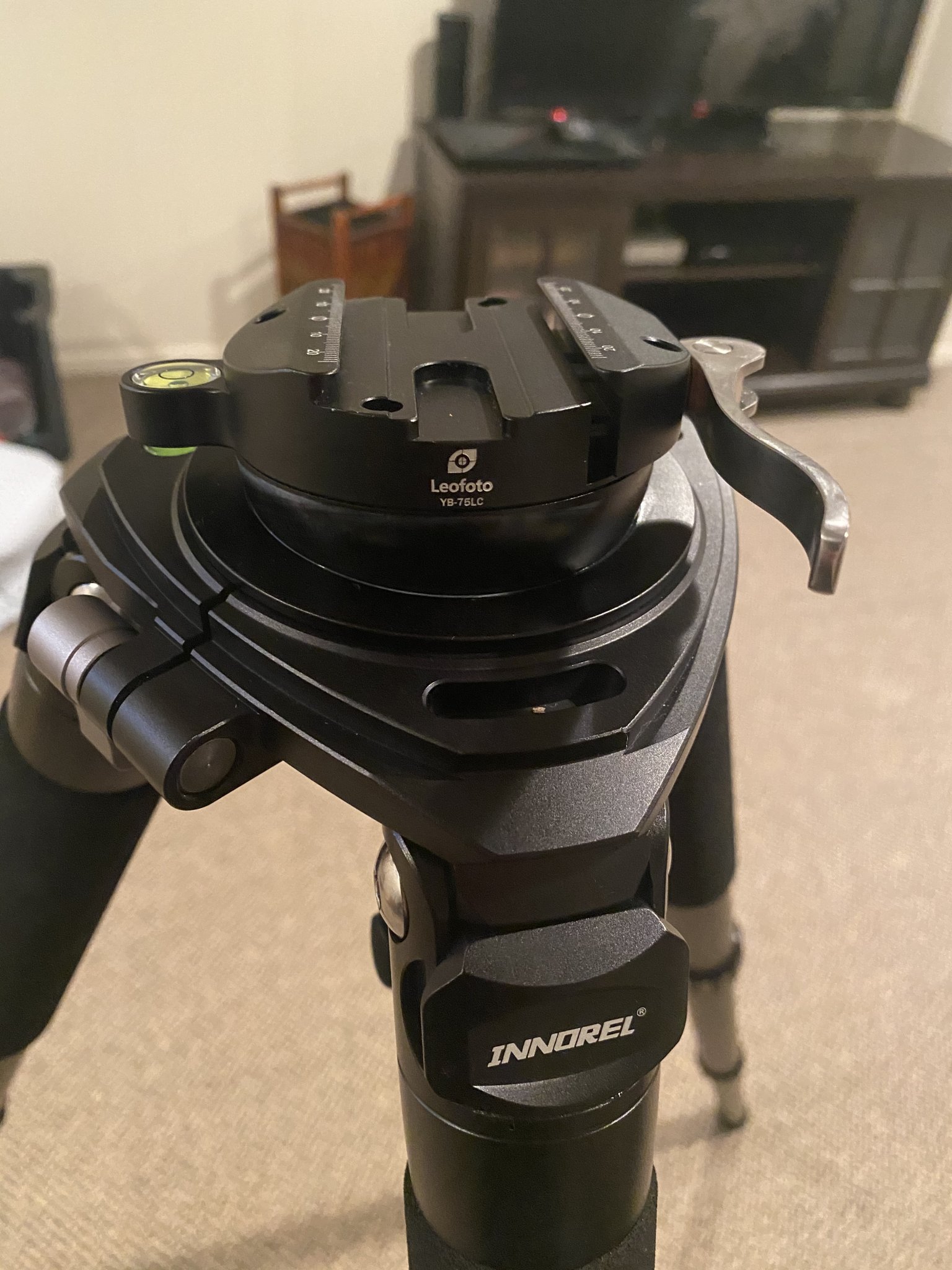

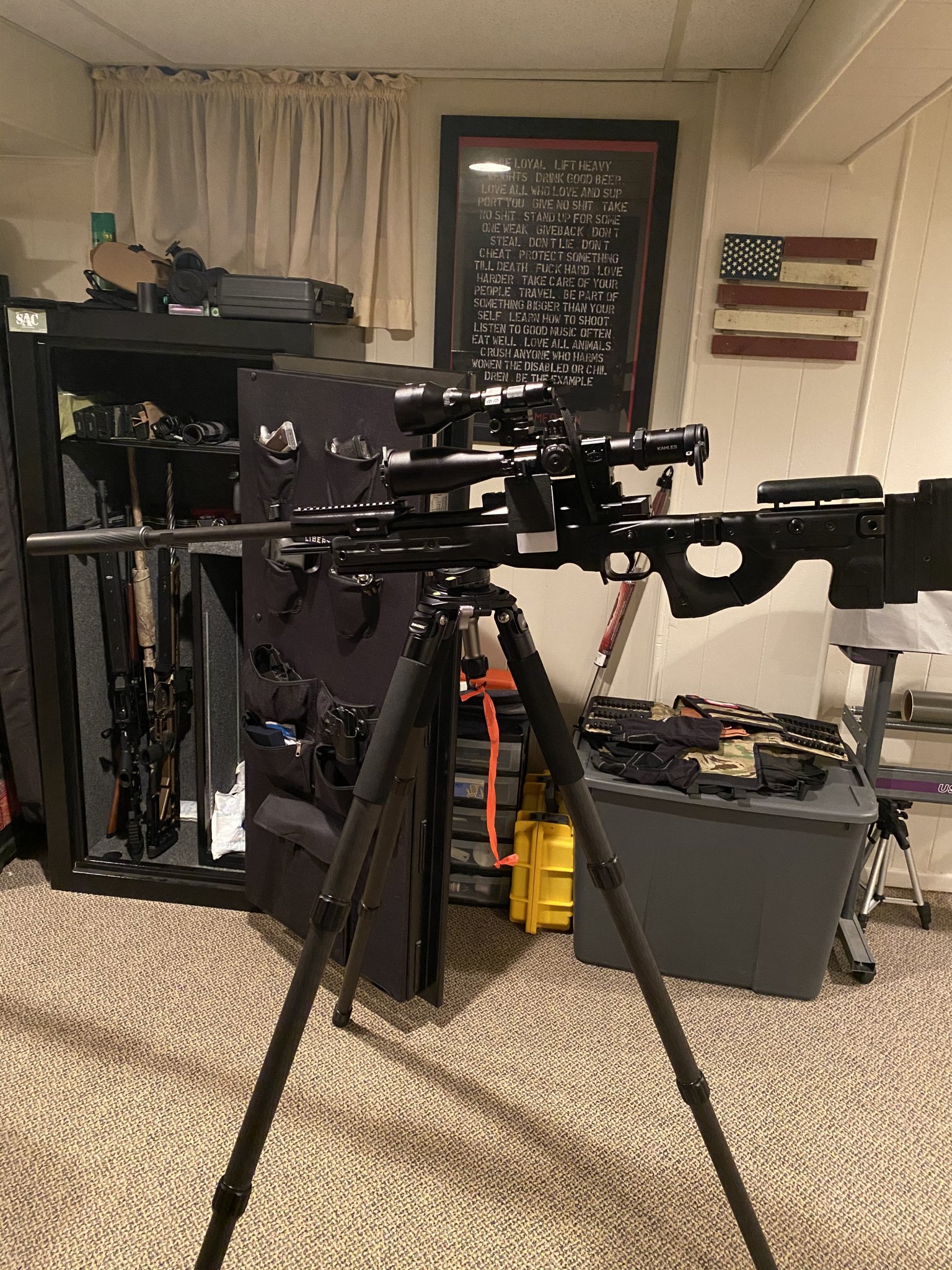

i added the leofoto long handle w/hook to my rt90c. Figured were so many people trying to fit numerous leveling bases. This one fits & functions great. Pics should show exact model number if anyone is interested.


Attachments

  • 7FEDDB19-8626-4A92-B94B-364A100351BC.jpeg
    780 KB · Views: 326
  • 7DEA4A8C-ABB4-464A-9EA4-F32CF30570E7.jpeg
    434.5 KB · Views: 331
  • D901B0A9-26EC-42E5-935B-1E0B43AD0AE0.jpeg
    415.1 KB · Views: 332
Funny I was asked to make some weights for a AI lol

So on mine I just added a lever clamp to the included leveling base. Any reason you want to the lefhoto vs a 30$- lever plate

not at all. After having all pieces in hand I wish I would have saved the $120 and just purchased a lever “qd” lock plate. I assumed the included leveling base would be plastic or cheap substrate. I had seen the leofoto bases and knew were CNC and nice quality. So ordered at same time as tripod. When everything arrived was very impressed with the Tripod and leveling base. Two days later leofoto base arrived and short of the clamp included- its same material and quality. The base is a little larger height wise but does not seem to add any more stability as they both lock down super solid.

not at all. After having all pieces in hand I wish I would have saved the $120 and just purchased a lever “qd” lock plate. I assumed the included leveling base would be plastic or cheap substrate. I had seen the leofoto bases and knew were CNC and nice quality. So ordered at same time as tripod. When everything arrived was very impressed with the Tripod and leveling base. Two days later leofoto base arrived and short of the clamp included- its same material and quality. The base is a little larger height wise but does not seem to add any more stability as they both lock down super solid.

Good to know. After adding the clamp.plate I did make a,steel knurled handle to replace the triangular plastic one .

  • Like
Reactions: Guiseppe83
