Rimfire Rifle Photos Thread
- Thread starter keith jones
- Start date
Probably depends on how each state handles it. In Marylandistan all stripped receivers are treated as "pistol" since they could be put together as a pistol...so background check and waiting period. Barreled action (rifle/carbine barrel installed) is treated as a rifle here when you pick it up from the FFL...get a green light for the background check, pay the FFL and take it home.
yet another reason why i hate living here... although i was just told by my FFL that bare bolt action receivers do not require a 77R so we have that going for us.
I'm not from here originally, but chose to stay when I retired from the USAF...this is the only state my wife and daughters have lived in...in the States.

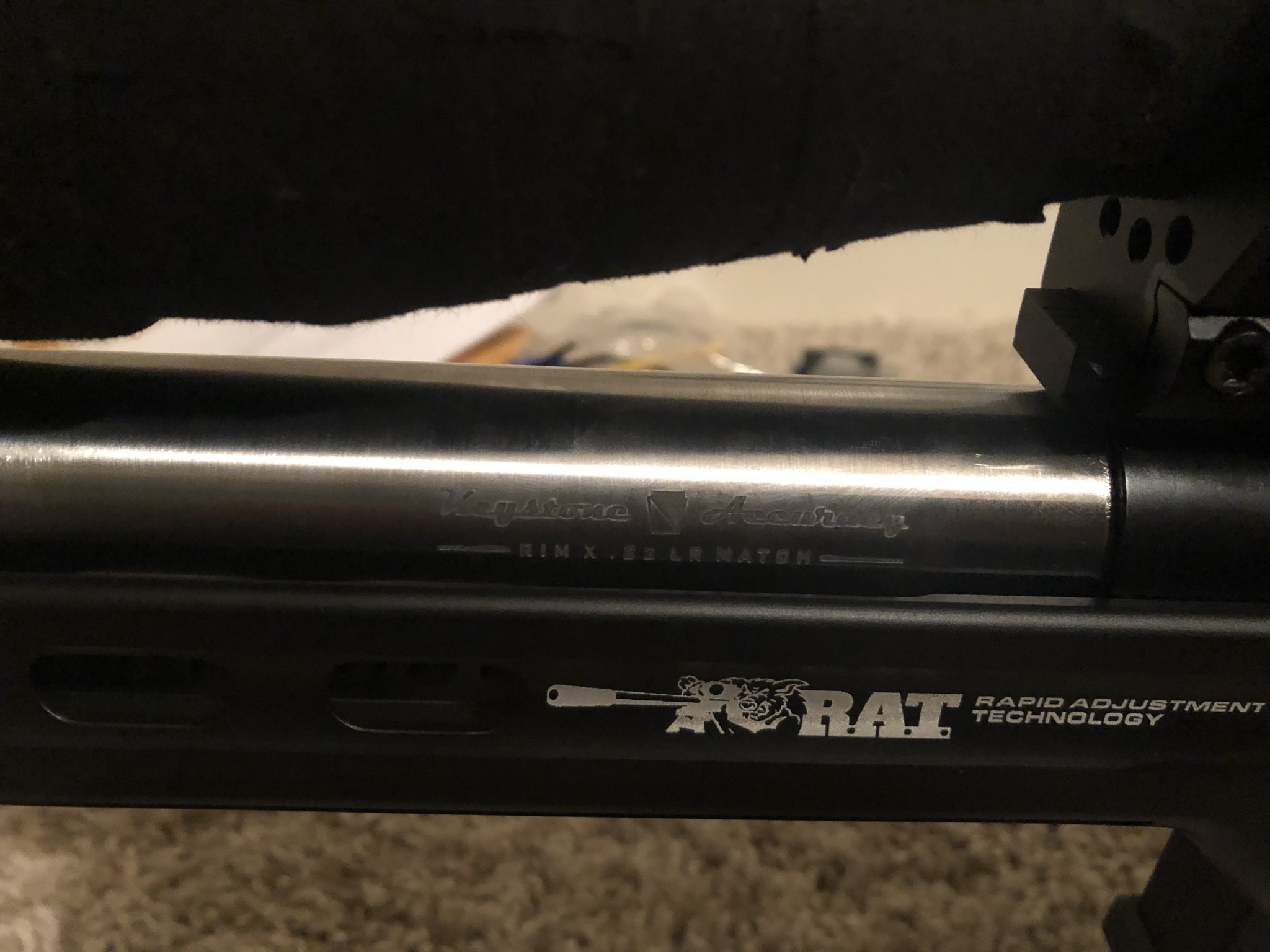

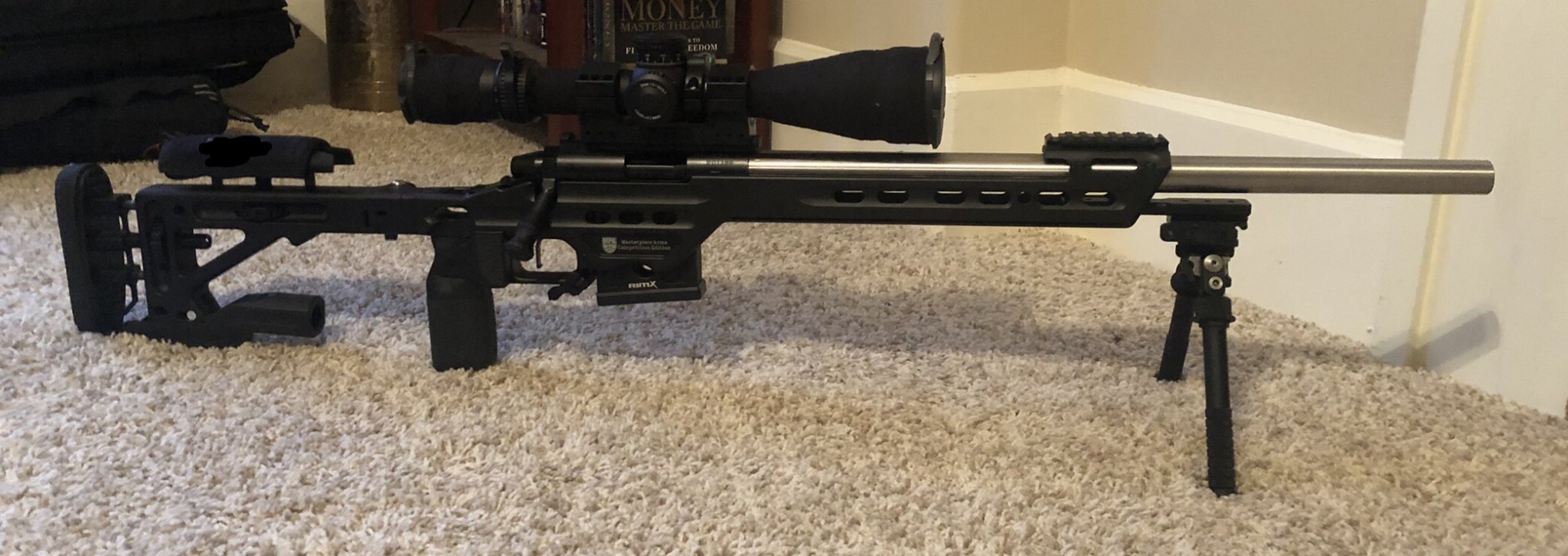

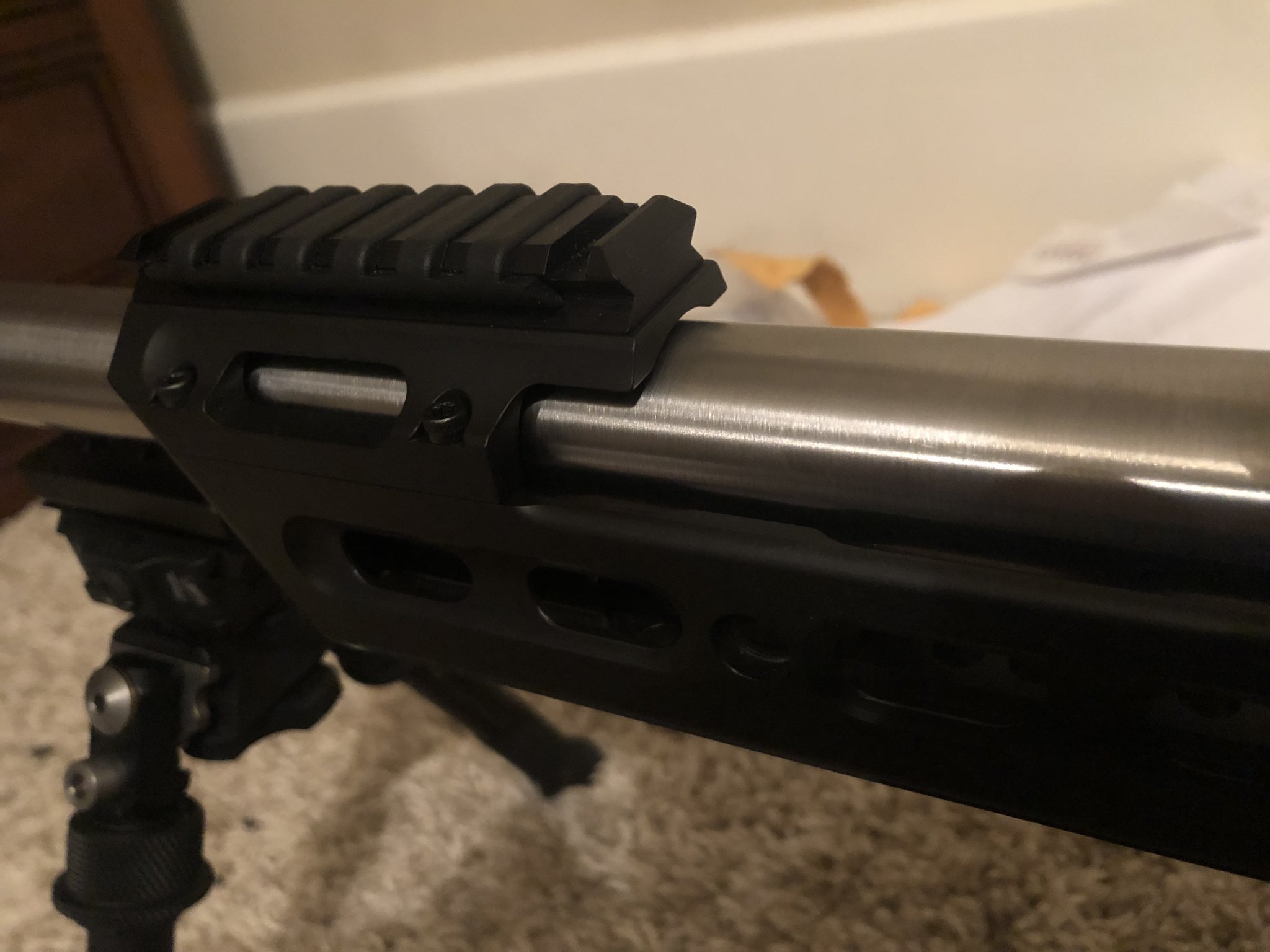

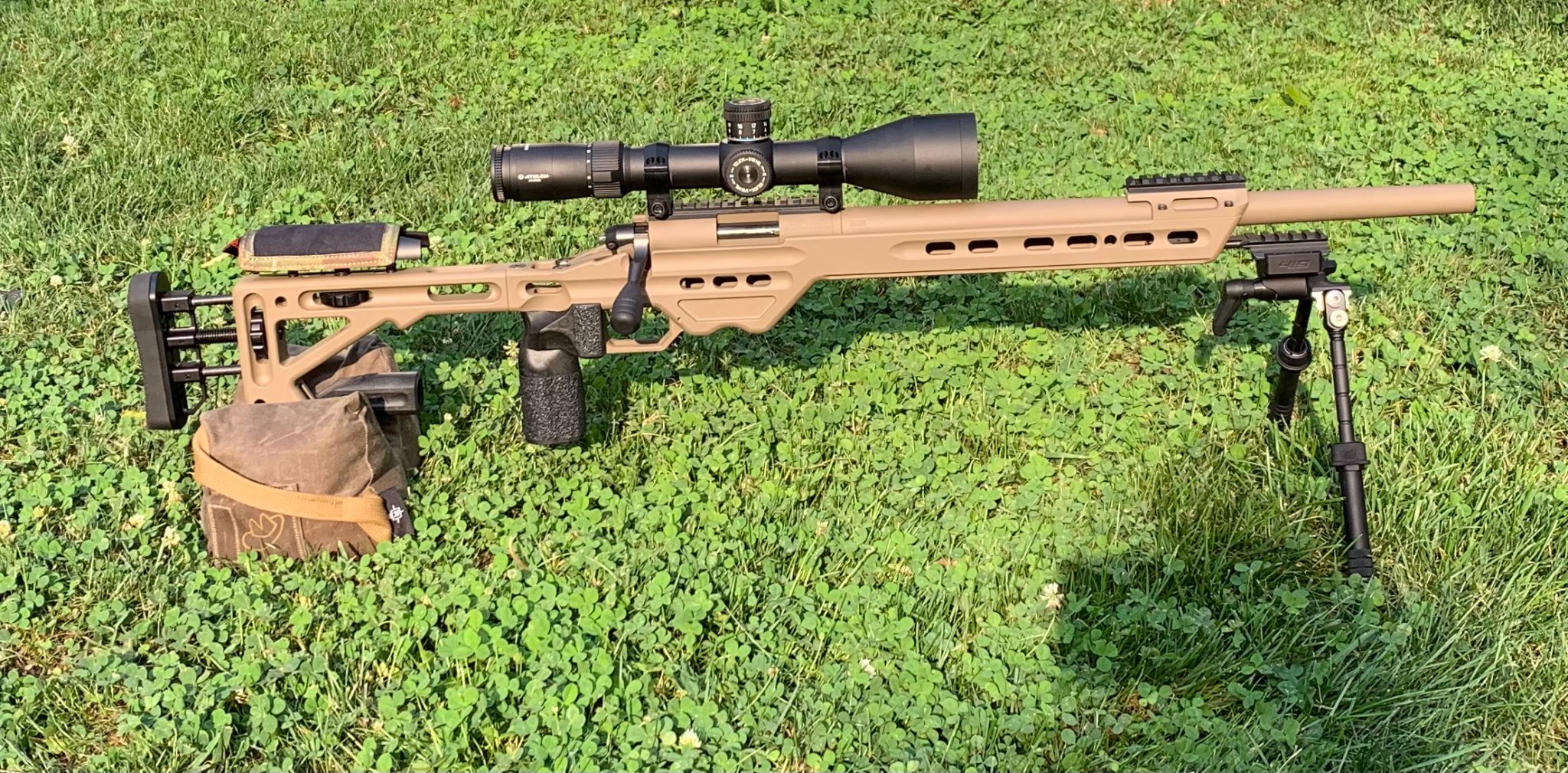

My new RimX barreled action from Keystone. Great guys to work with. Outstanding in helping me out and very friendly. The 1.2” barely clears the MPA chassis. Still going to add some weight out front though.

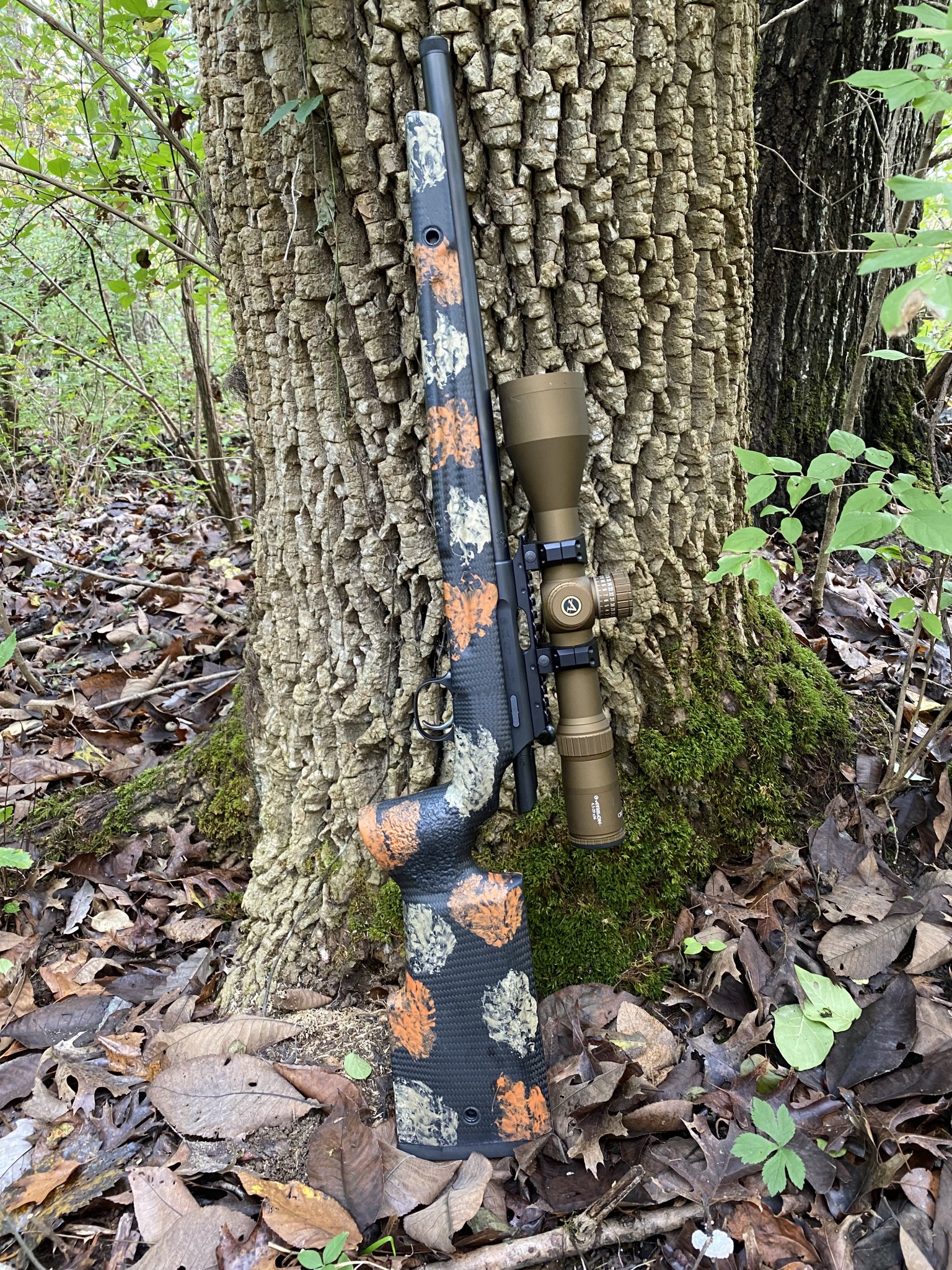

I guess I’m just a basic batch now. Pumpkin Spice
Last edited:

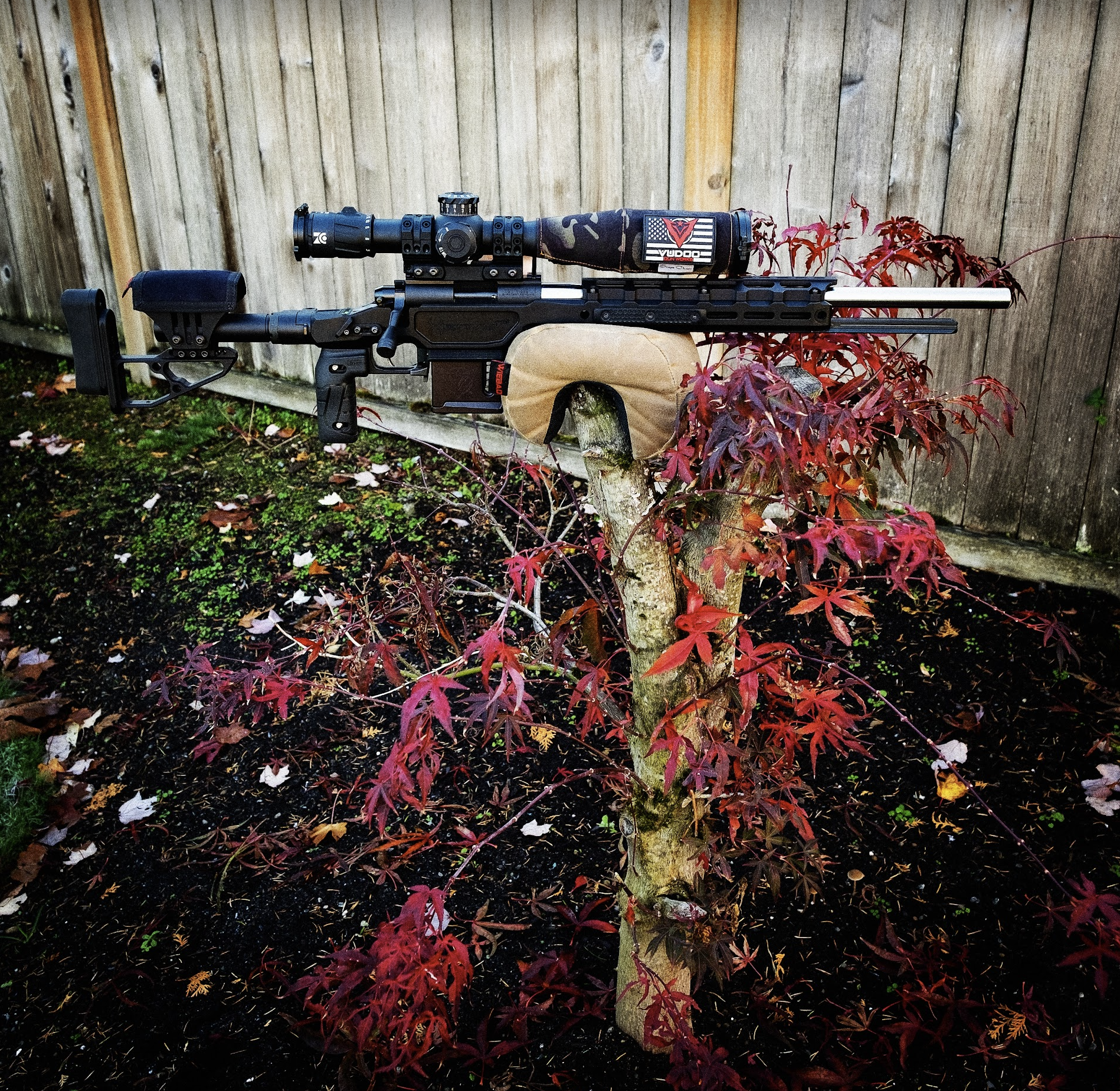

Vudoo V22 360 with a 22" Benchmark Barrel
XLR Envy Pro
ZCO 5-27
Balances as shown at 16.7 lbs.
XLR Envy Pro
ZCO 5-27
Balances as shown at 16.7 lbs.
Last edited:

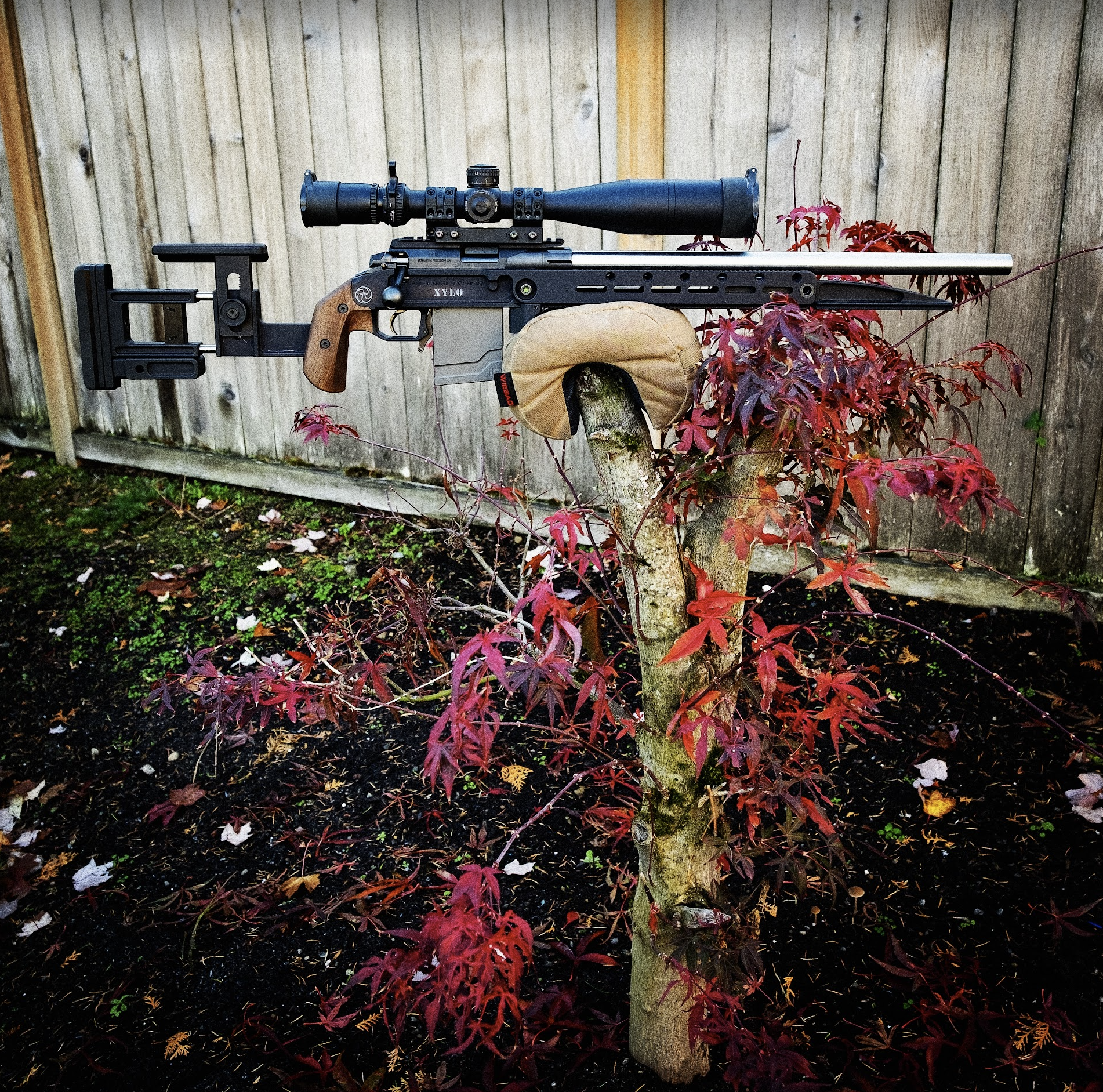

Ultimatum Deuce w/ a 21.75" IBI 12T Competition Contour
ARC Xylo
Razor HD AMG
Balances as shown at 16.7 lbs
ARC Xylo
Razor HD AMG
Balances as shown at 16.7 lbs
Last edited:
I
. It balances on the magwell so I just need a little more weight up front. I think it’s because I added the hinge to the chassis which I like. I ordered internal weights from MPA. That should do the trick I hope.
It’s actually 22”
. It balances on the magwell so I just need a little more weight up front. I think it’s because I added the hinge to the chassis which I like. I ordered internal weights from MPA. That should do the trick I hope.
Thanks for the compliment.
I don’t have any pics without the can and tuner.
I also haven’t weighed it exactly as is. But I would guess around 17lbs. I’ll try and get you accurate number sometime today. As for balance point it’s approx 2-3” in front of the mag well. So it balances near the center of a schmedium GC bag pressed up to the mag well. If that makes sense.

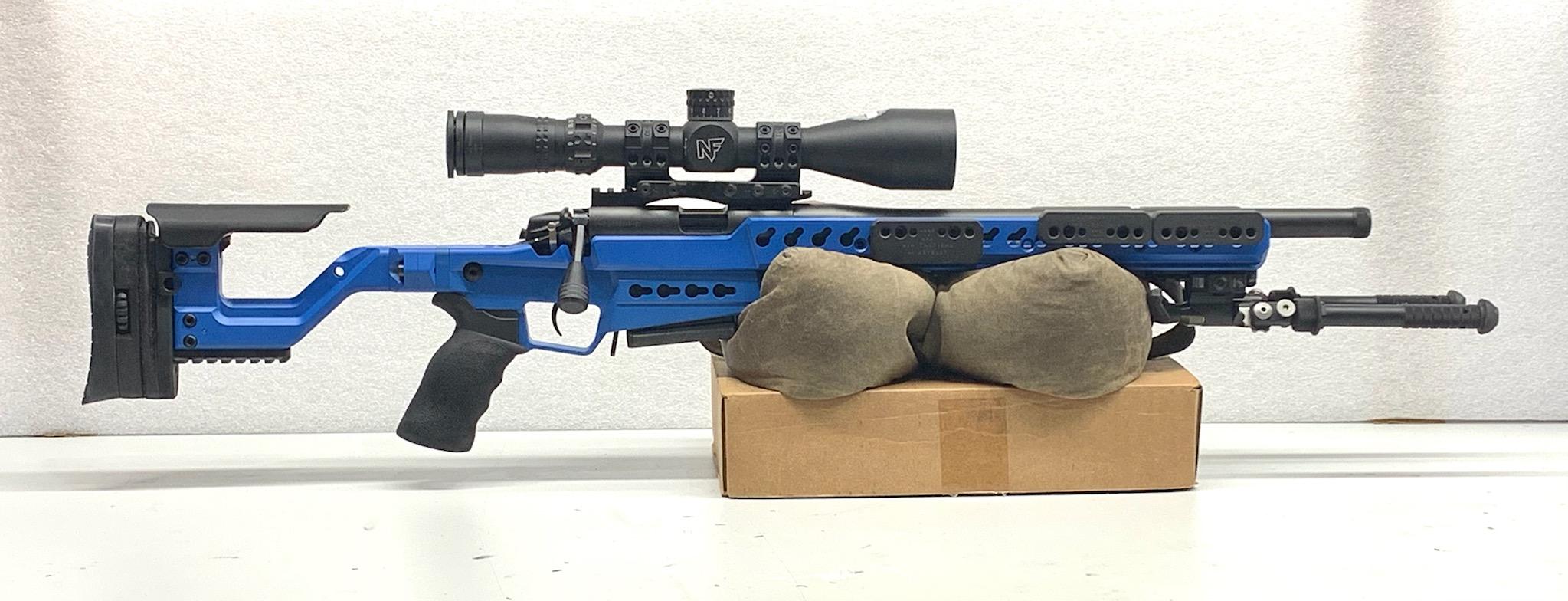

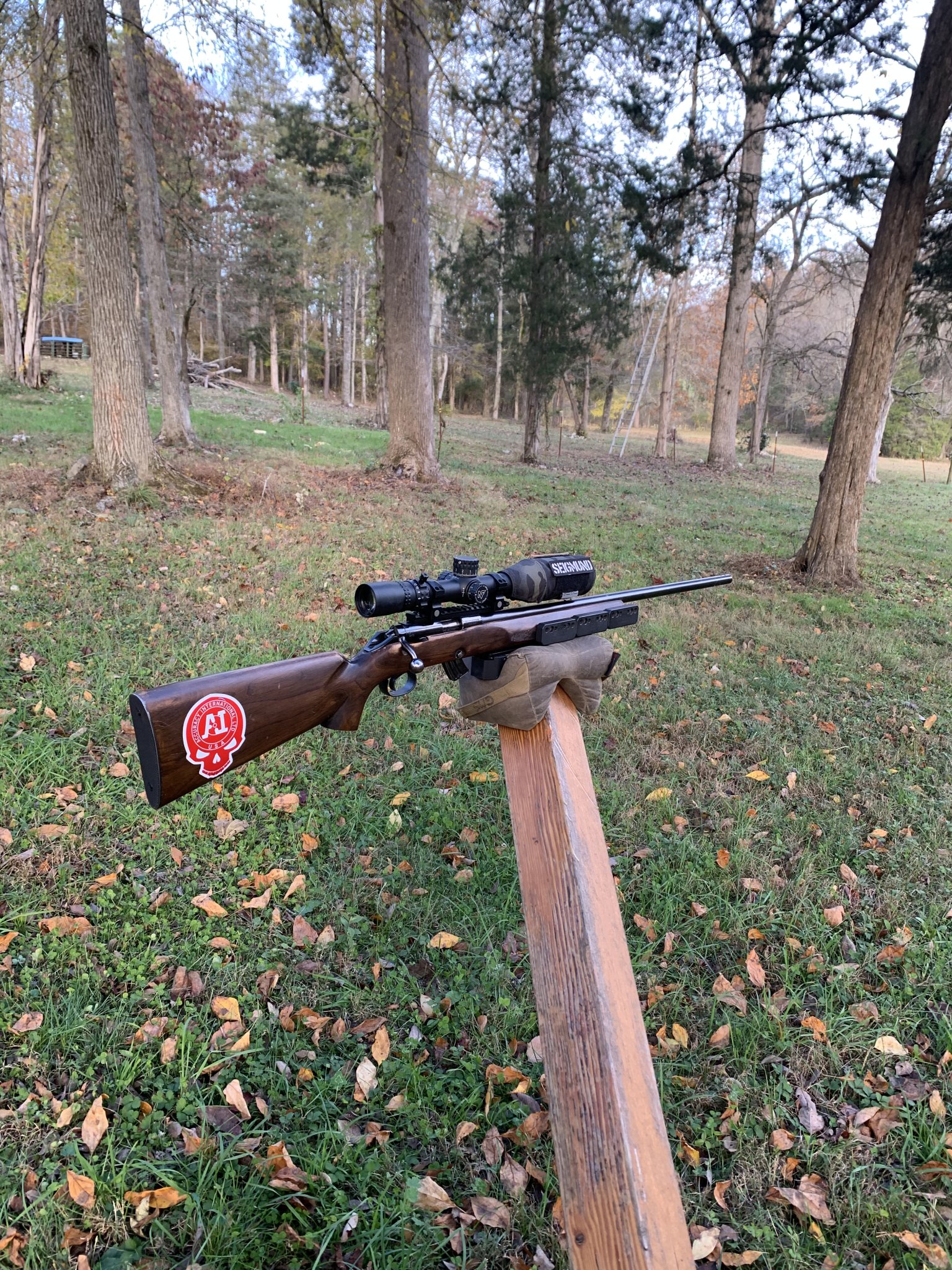

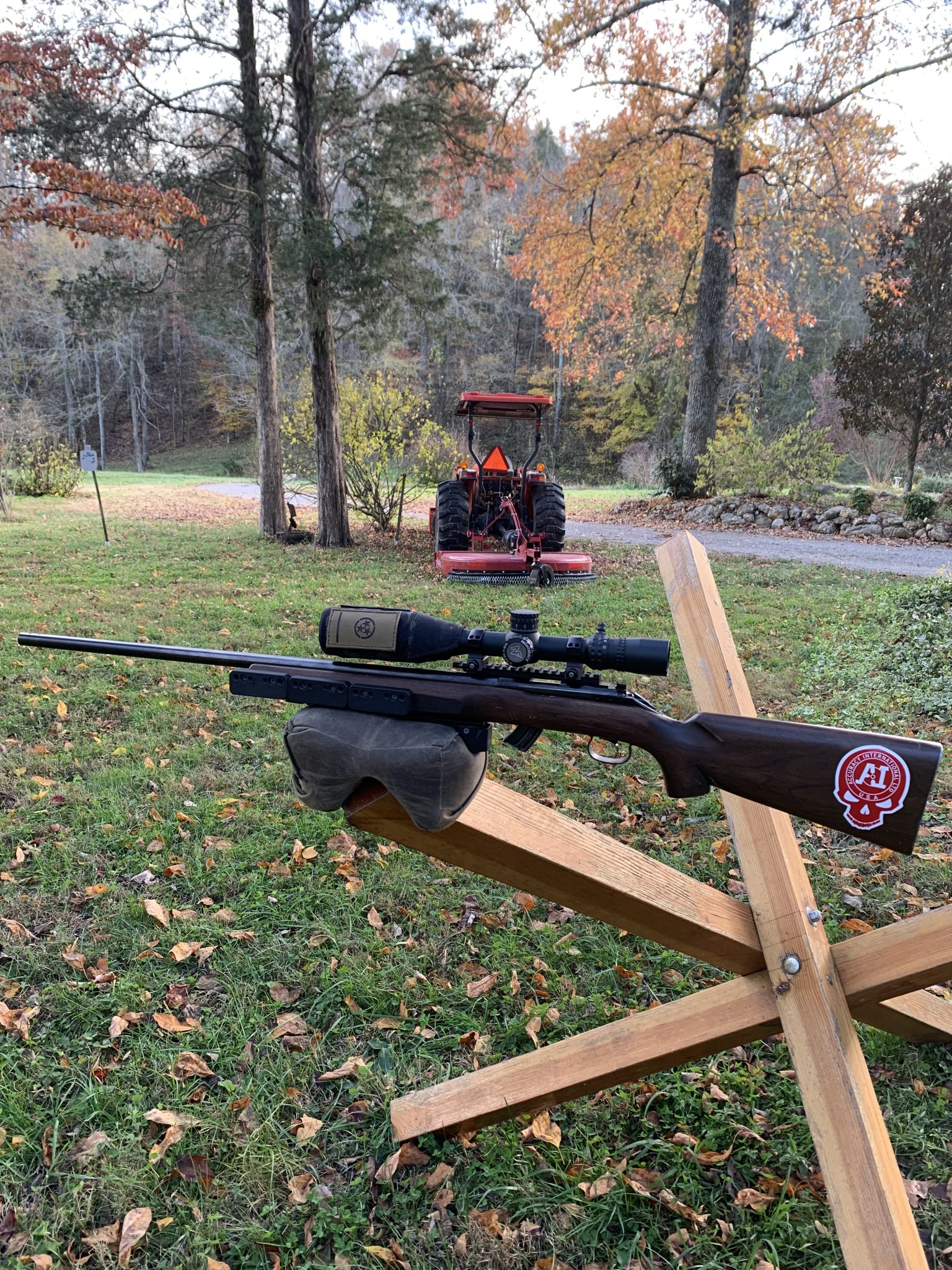

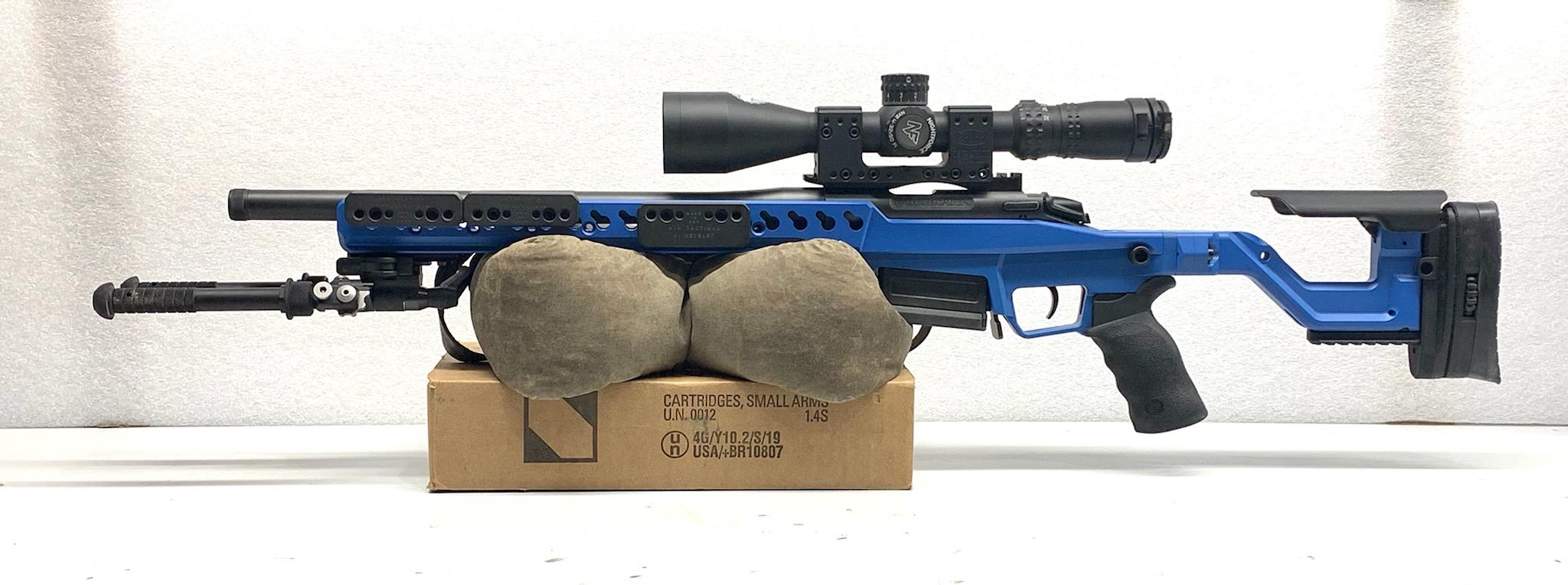

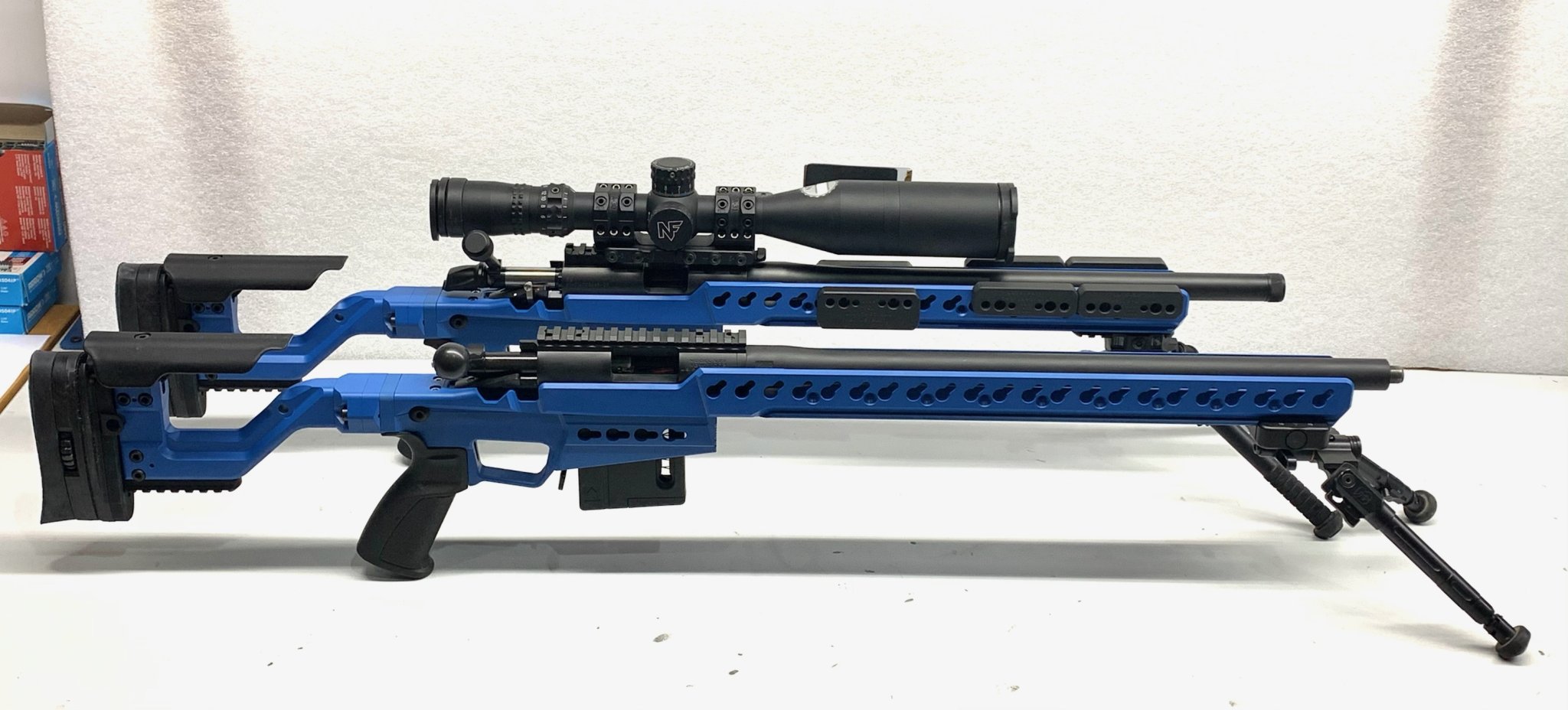

Bergera B14R, Accuracy International pre-production prototype AT-X AICS short version. Vudoo 360, Accuracy International pre-production prototype AT-X AICS long version

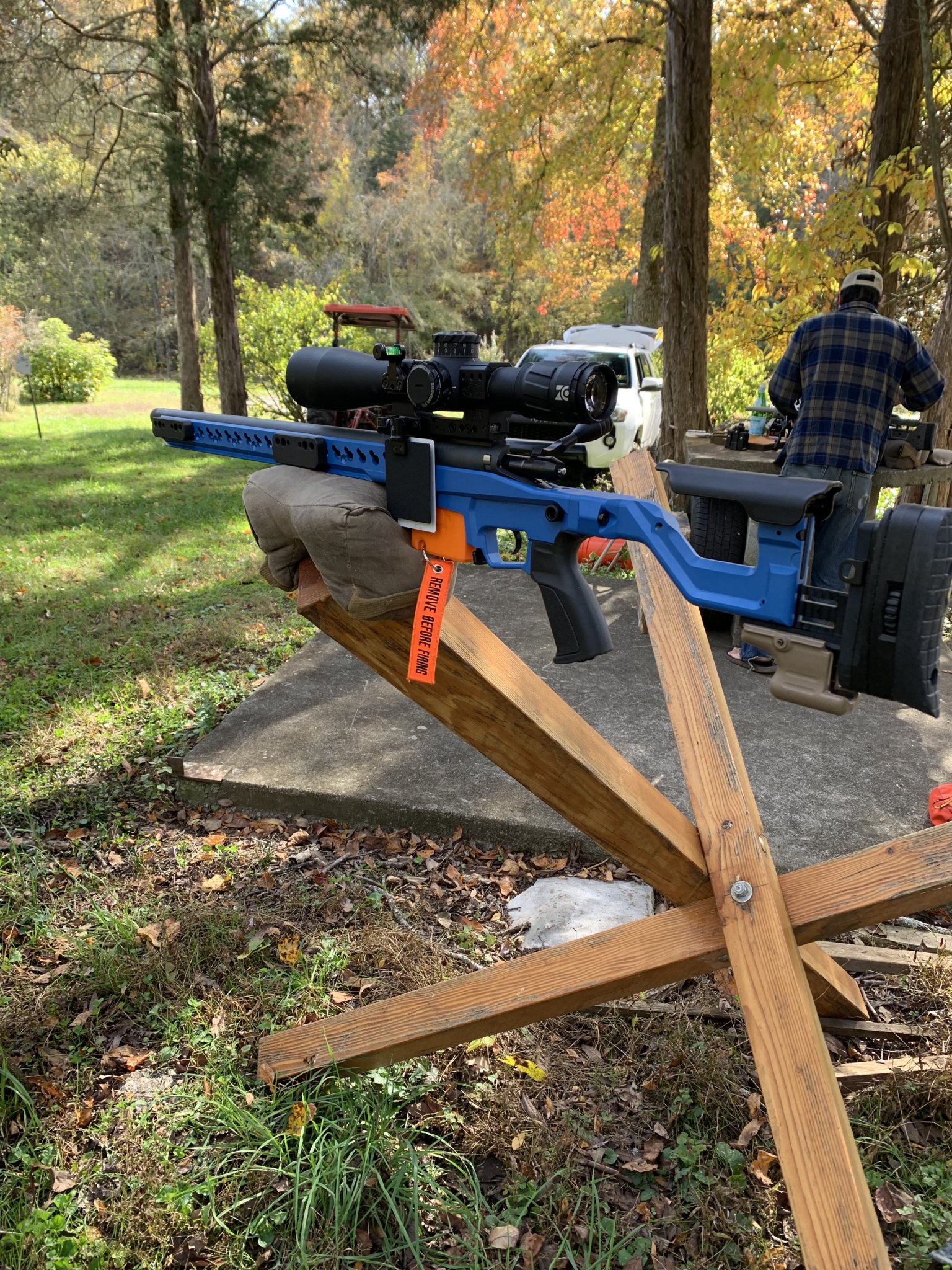

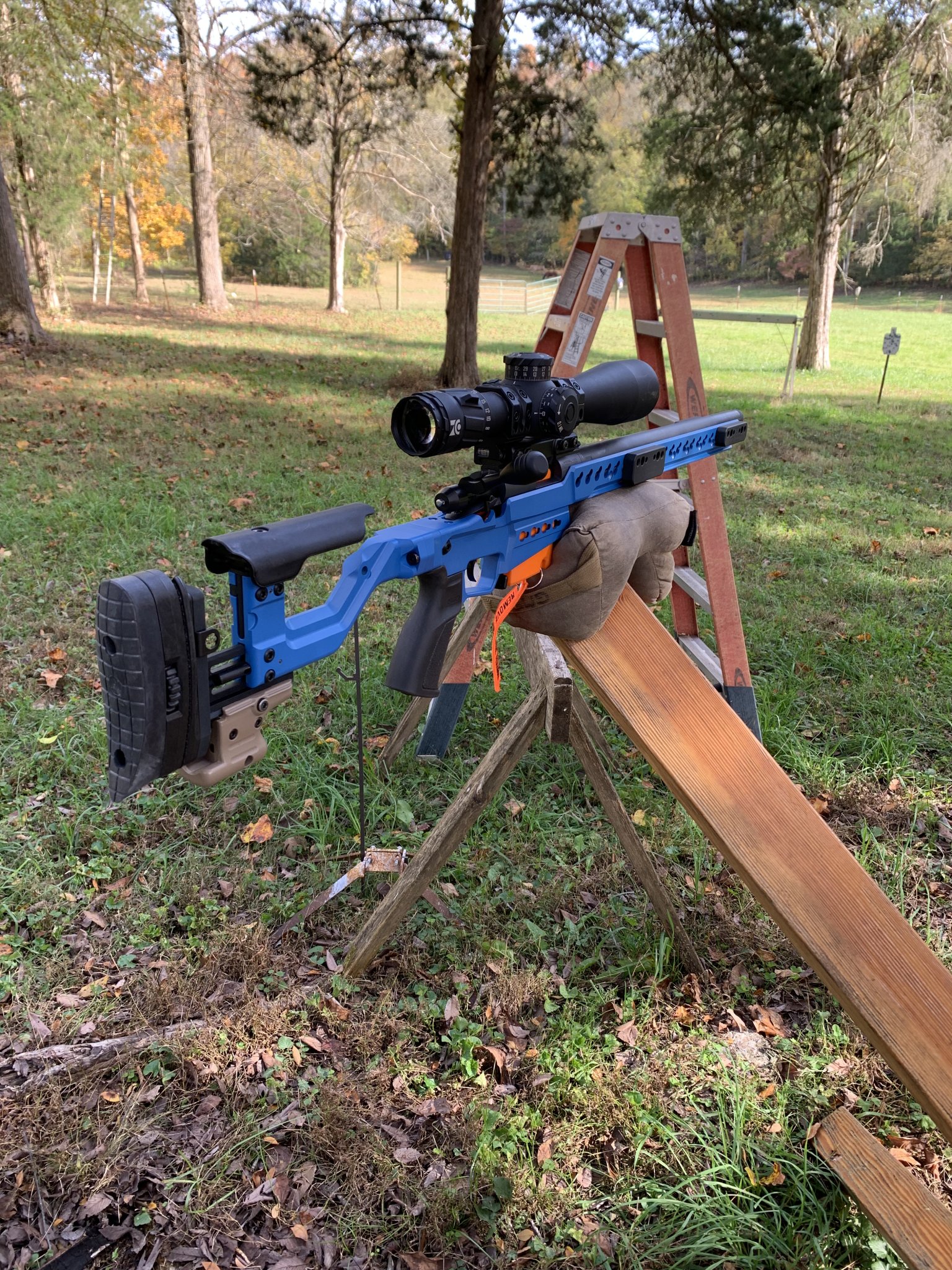

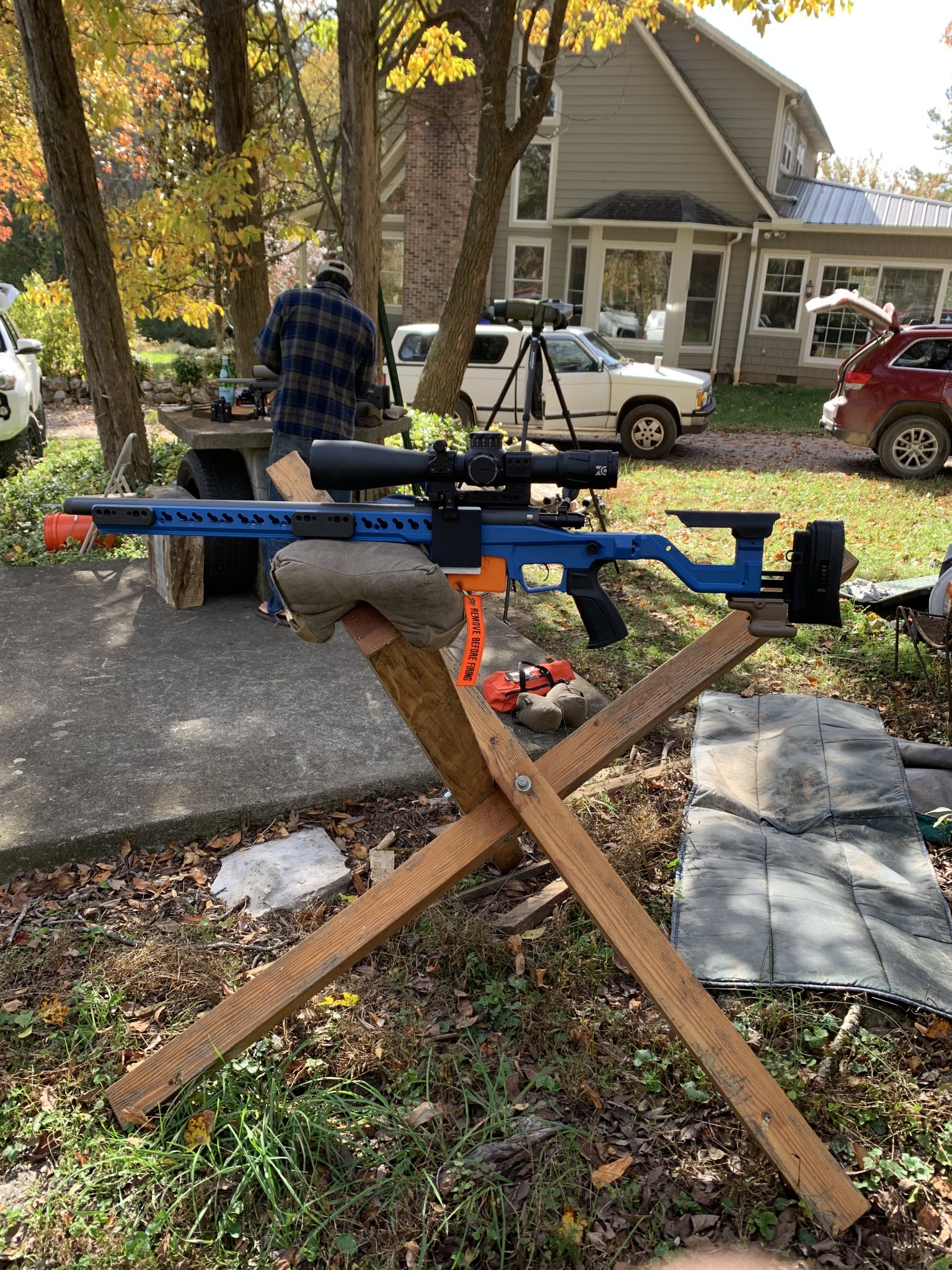

Accuracy International pre-production prototype AT-X AICS long version, Vudoo 360, undisclosed location in East Tennessee for a little T&E. AI knocked it out of the park
Accuracy International pre-production prototype AT-X AICS long version, Vudoo 360, undisclosed location in East Tennessee for a little T&E. AI knocked it out of the park
Bergera B14R, Accuracy International pre-production prototype AT-X AICS short version. Vudoo 360, Accuracy International pre-production prototype AT-X AICS long version
View attachment 7735669
View attachment 7735670
View attachment 7735671
Accuracy International pre-production prototype AT-X AICS long version, Vudoo 360, undisclosed location in East Tennessee for a little T&E. AI knocked it out of the park
View attachment 7735672
View attachment 7735674
View attachment 7735675
View attachment 7735676
View attachment 7735677
Very nice. It looks like they weren't able to modify it to unblock the terminus zeus QC screws
What are you talking about?Very nice. It looks like they weren't able to modify it to unblock the terminus zeus QC screws

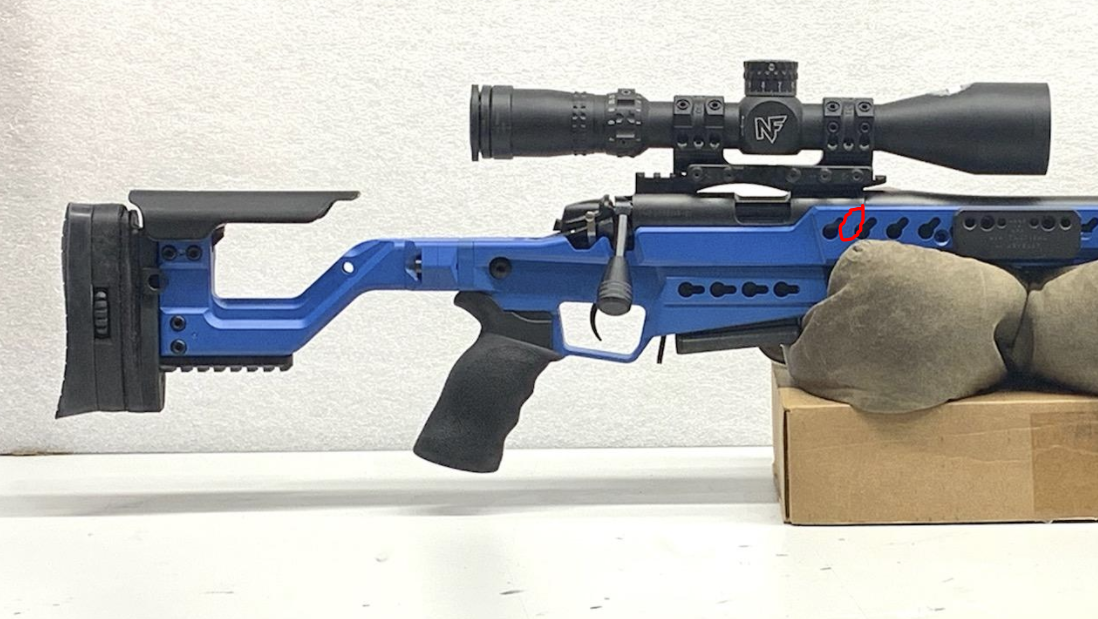

I talked to them a few months ago about possibly opening up the fore-end area to not block the barrel QC screws on the Zeus for the R700 version of the AT-X chassis.
Though maybe I can fit an allen wrench through that keyslot hole.

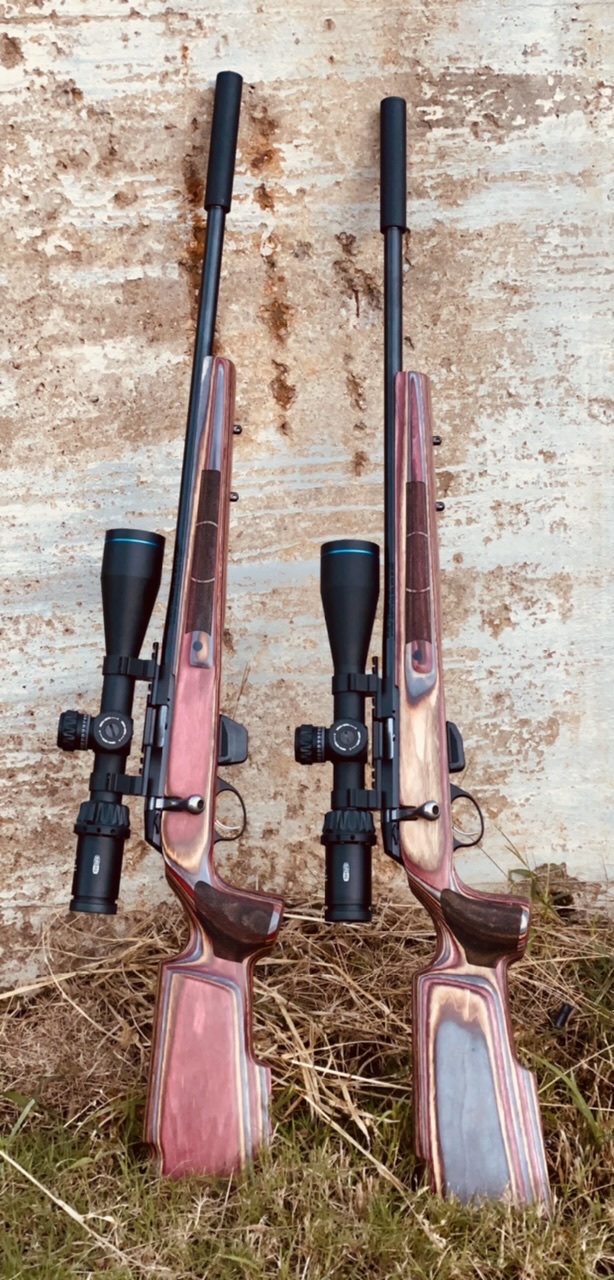

My humble submission, Tikka T1Xs in 17HMR and 22LR, Meopta Optika 6 4x27 scopes, YHM cans
Neither actually. Unfortunately, I live in a state where suppressors aren't legal. What you see is a Kaw Valley Modular Linier Comp. It's a 5 piece design that screws together so it might be tweaked somewhat for tuning. ( Haven't got there yet.) It does push a bit of sound down range.

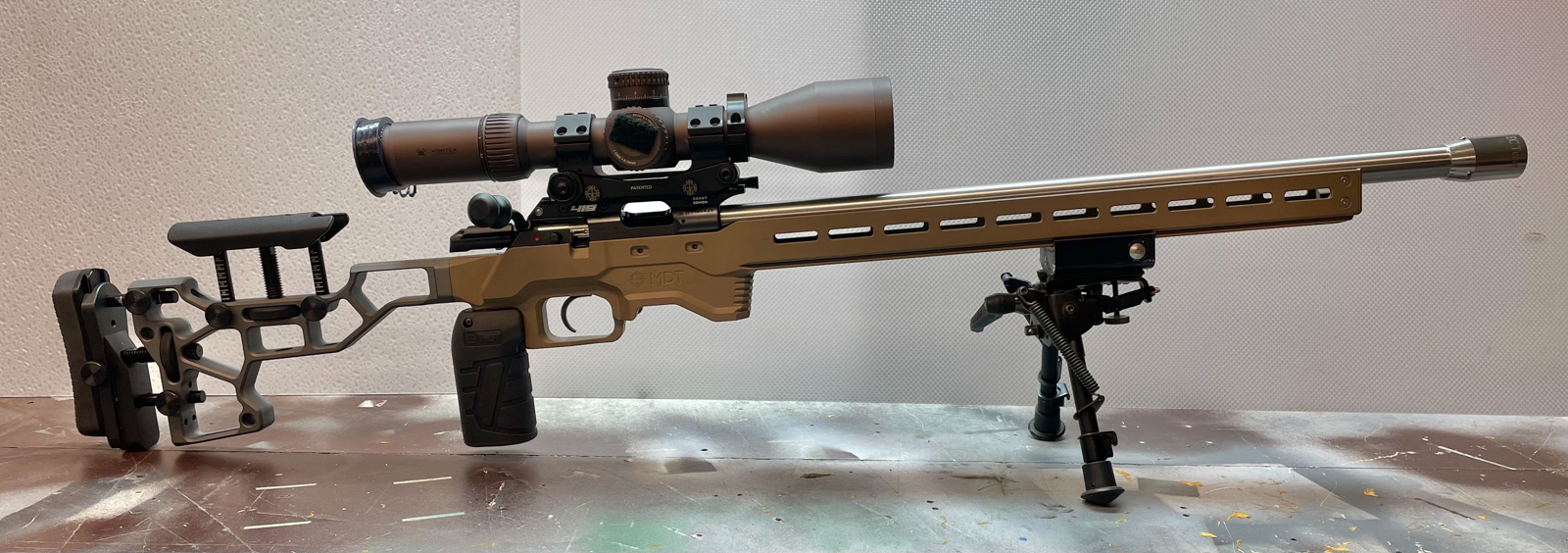

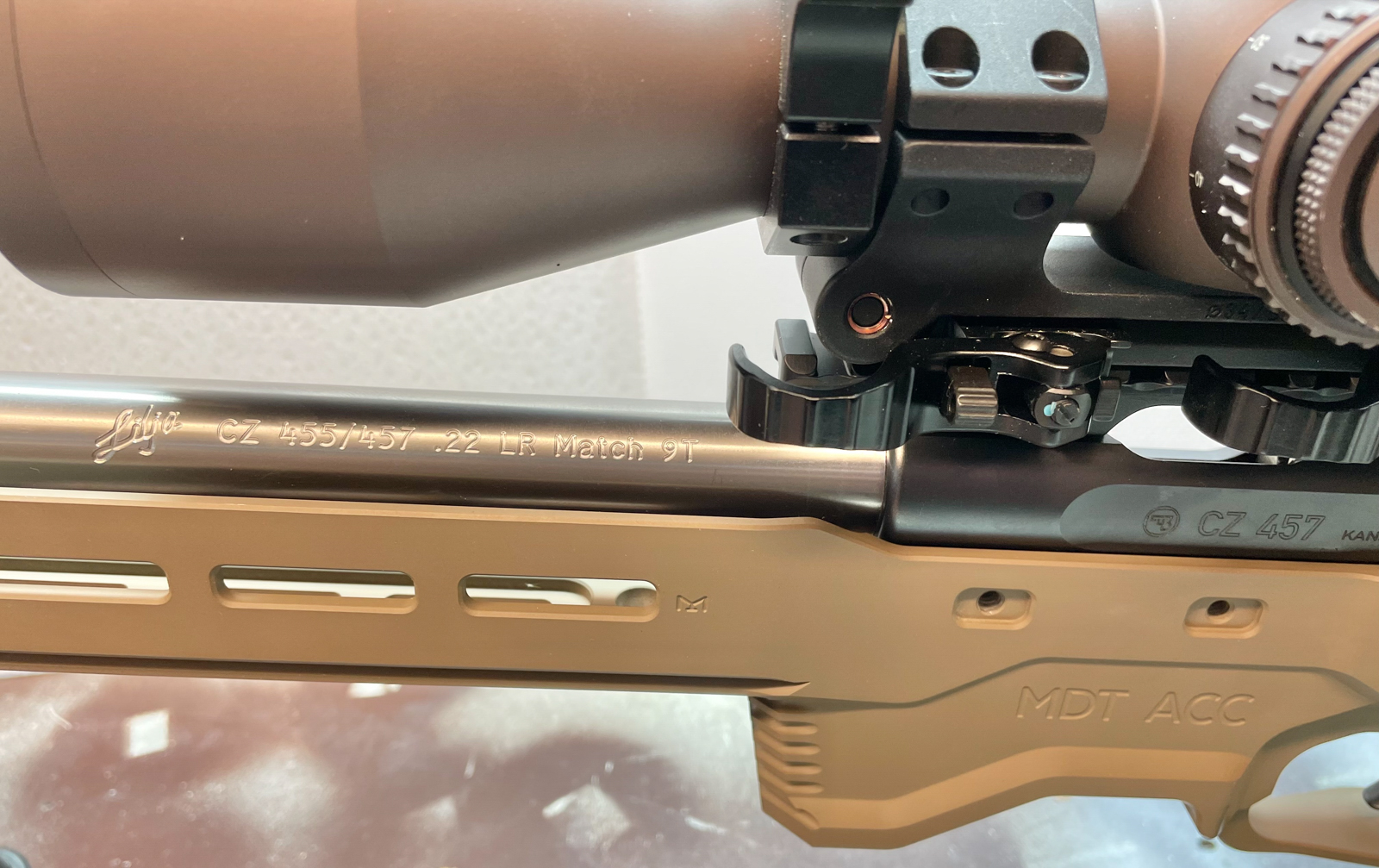

CZ457, stock trigger

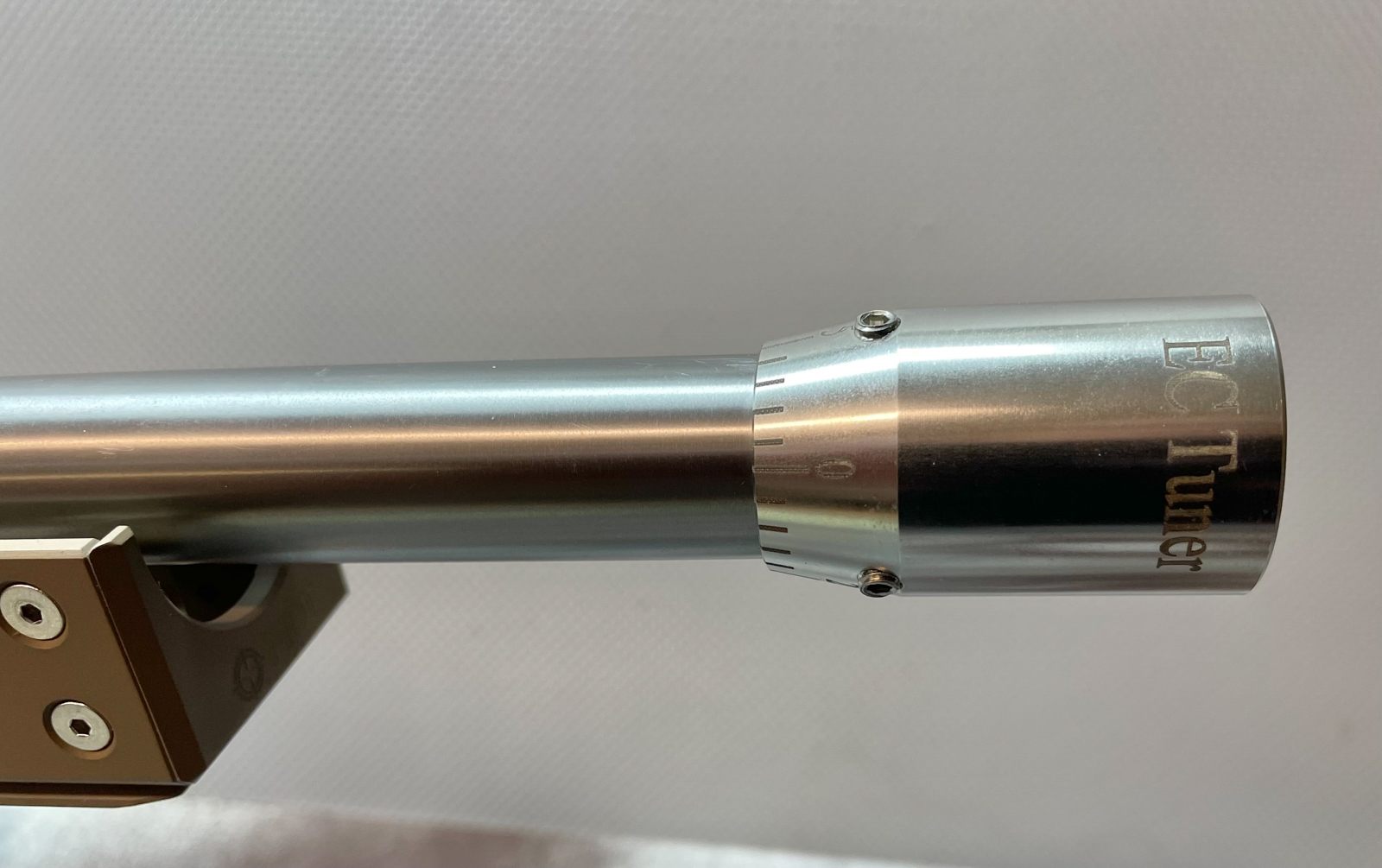

Lilja 1x9 22in Threaded barrel, with EC Tuner

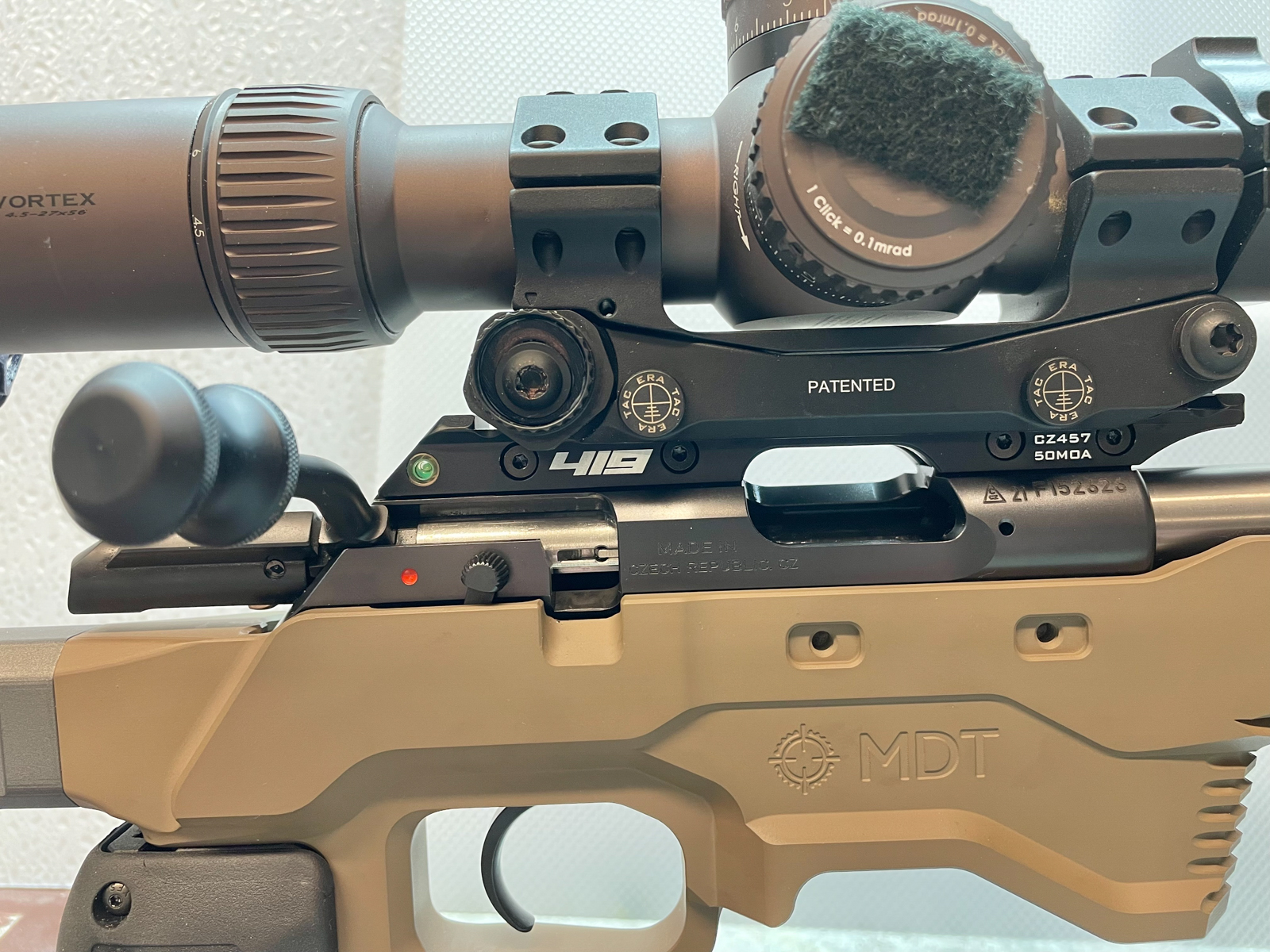

Area 419 50MOA Base, ERTAC MIL Rings, Razor2HD
MDT ACC chassis, midget stock, 3D printed rail adaptor, Harris bipod.
50 yards in 10-18mph winds. Didn't tune it yet. Last time had it out with groups 2x as big. Reduced shims for barrel by 0.002 and put the tuner on. Runs like a champ now. Chrono'd it with my Labradar. Looking forward to the match tomorrow.
Lilja 1x9 22in Threaded barrel, with EC Tuner
Area 419 50MOA Base, ERTAC MIL Rings, Razor2HD
MDT ACC chassis, midget stock, 3D printed rail adaptor, Harris bipod.
50 yards in 10-18mph winds. Didn't tune it yet. Last time had it out with groups 2x as big. Reduced shims for barrel by 0.002 and put the tuner on. Runs like a champ now. Chrono'd it with my Labradar. Looking forward to the match tomorrow.

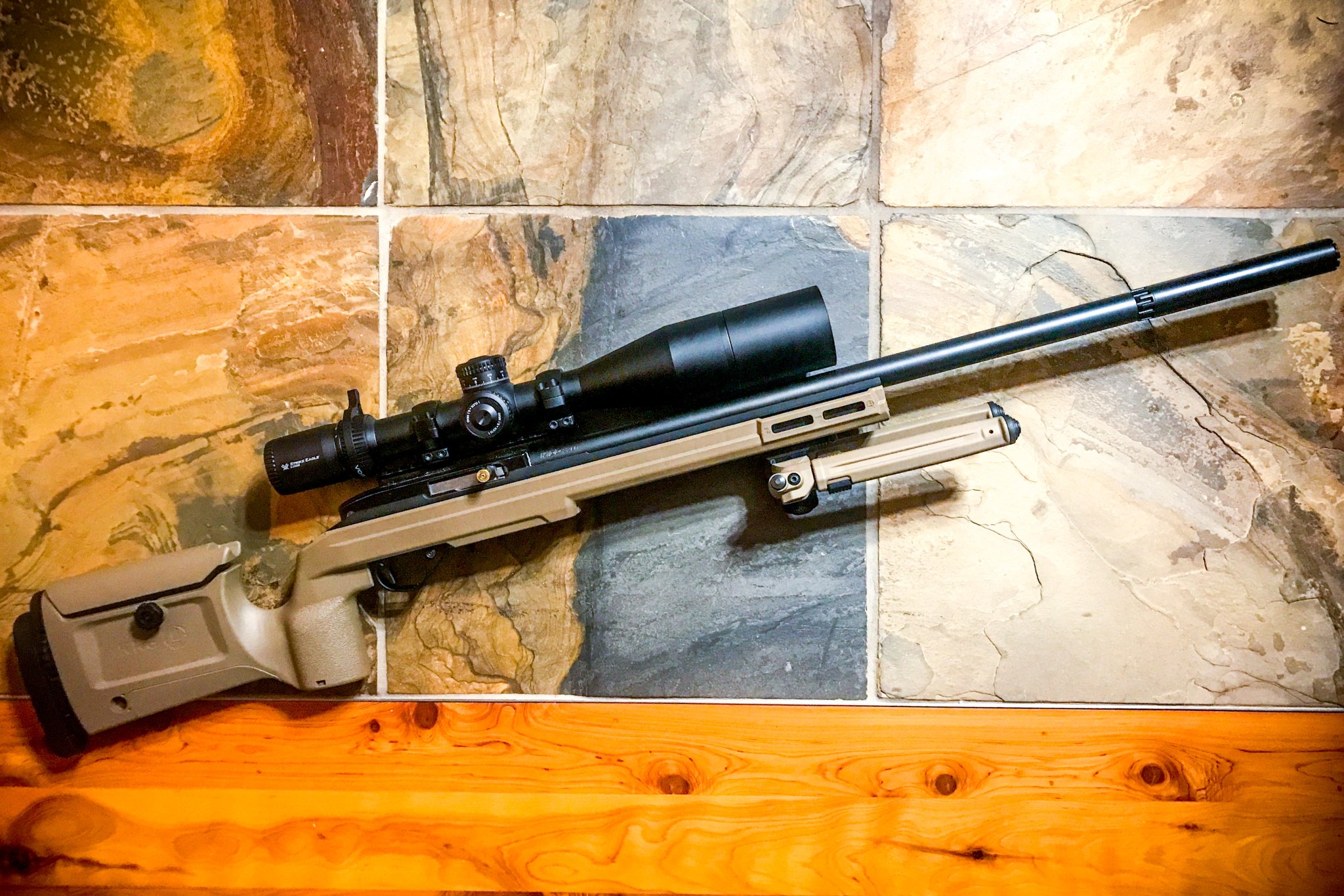

I think this is as close to final as I’m gonna get on this thing.
Kidd 20” bbl
Kidd bolt
Kidd trigger
Krg bravo
Stock receiver
Egw 20moa base
Arken low rings
Vortex strike eagle
Magpul bipod
Kidd 20” bbl
Kidd bolt
Kidd trigger
Krg bravo
Stock receiver
Egw 20moa base
Arken low rings
Vortex strike eagle
Magpul bipod

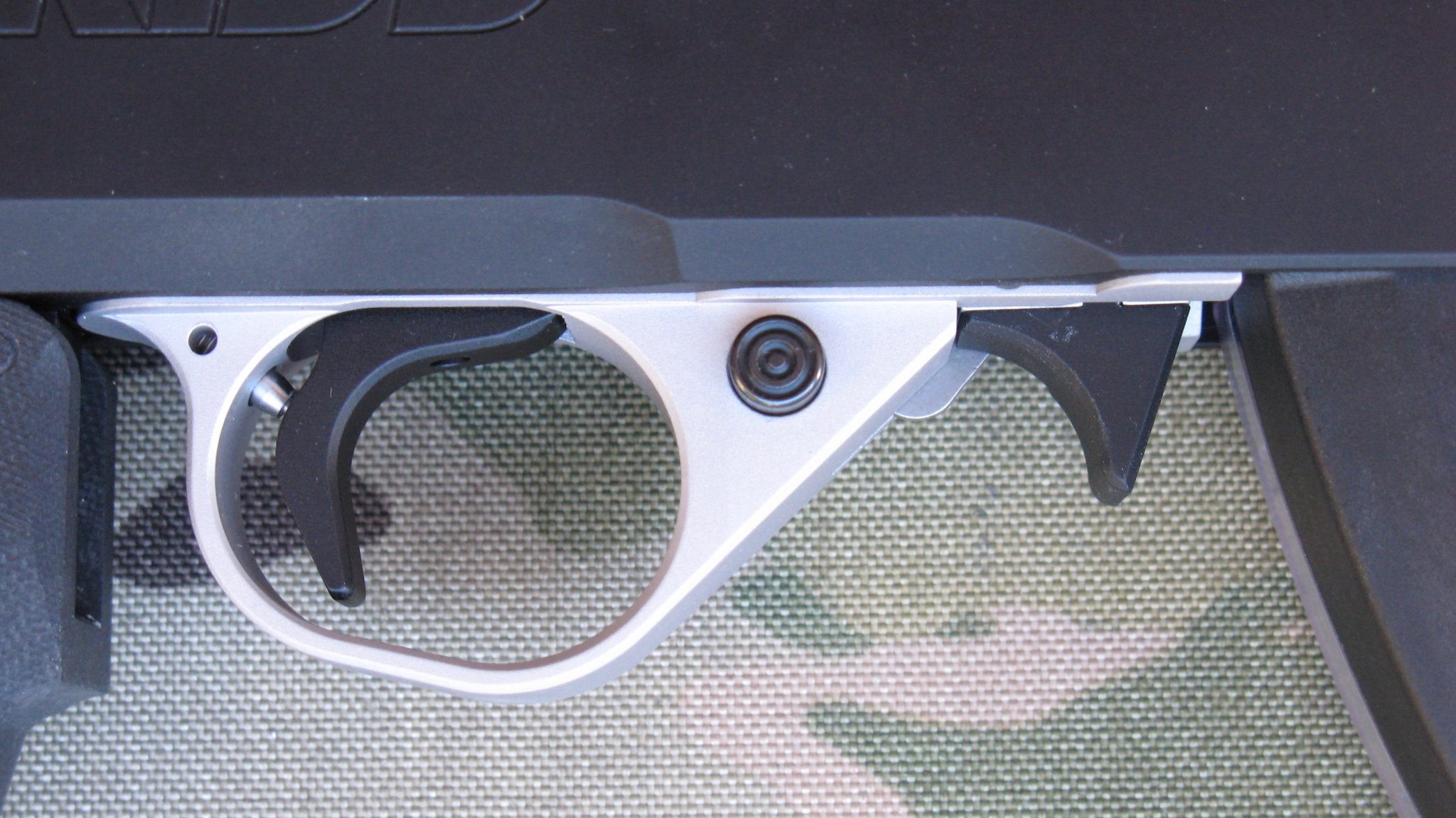

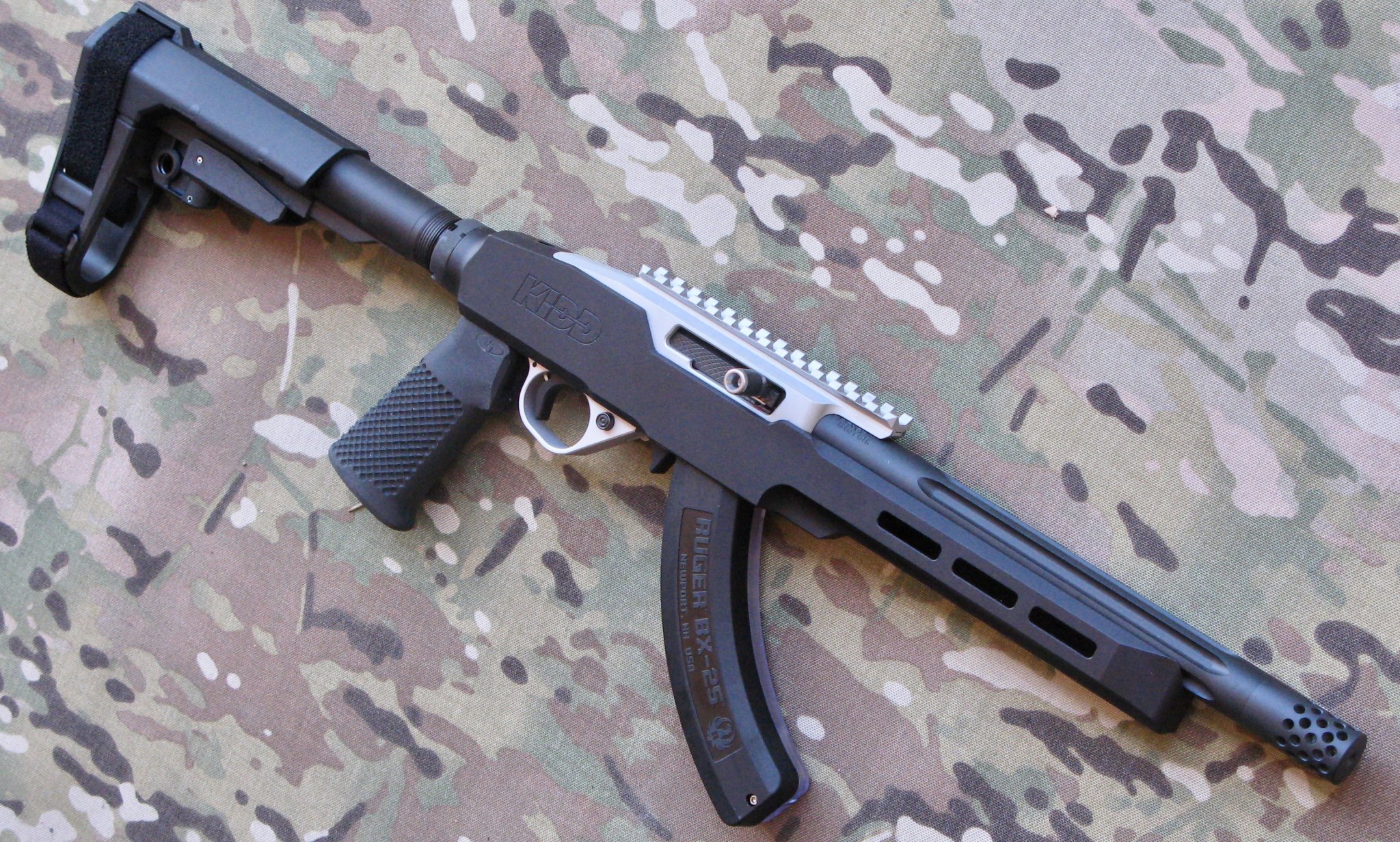

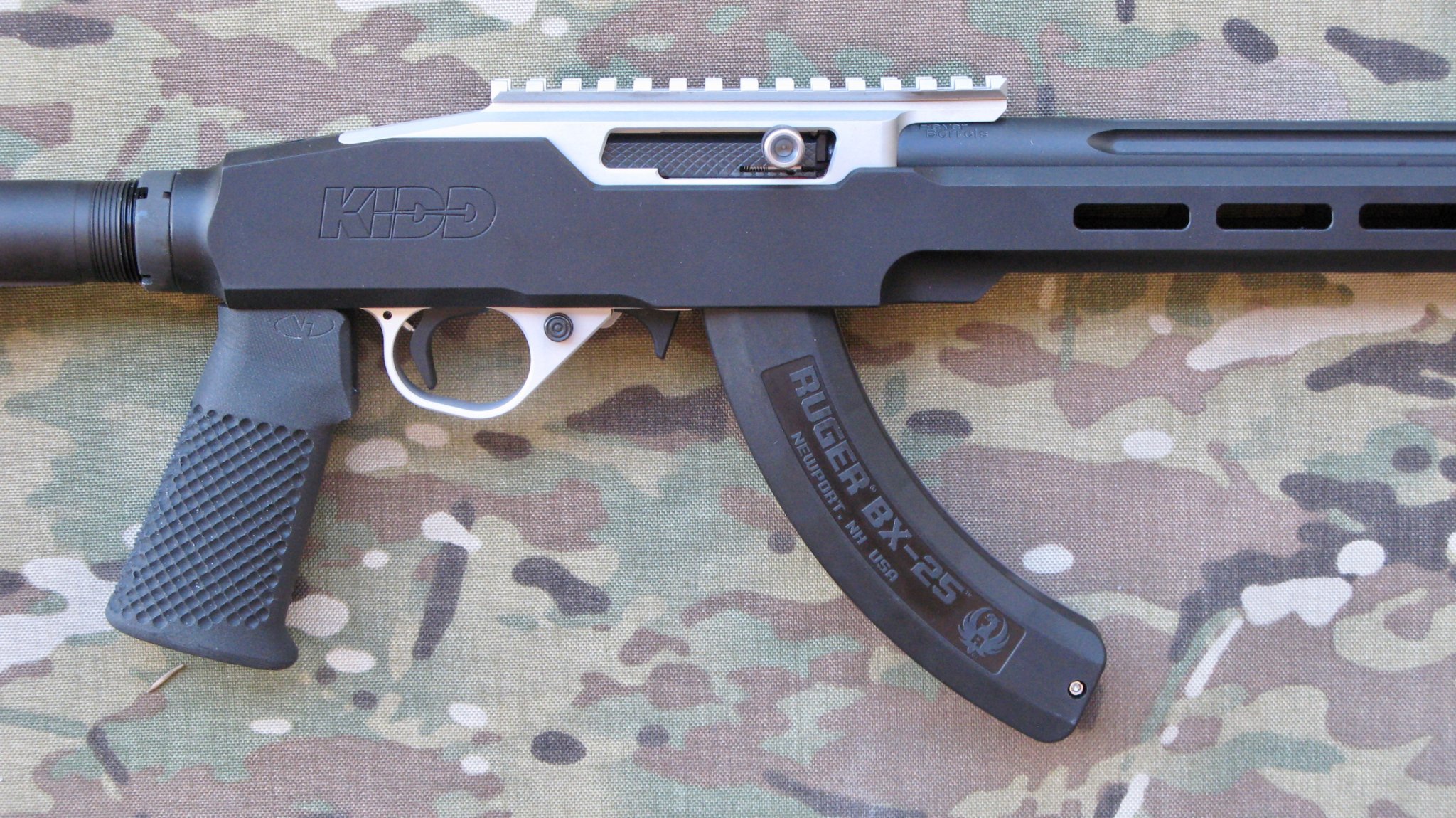

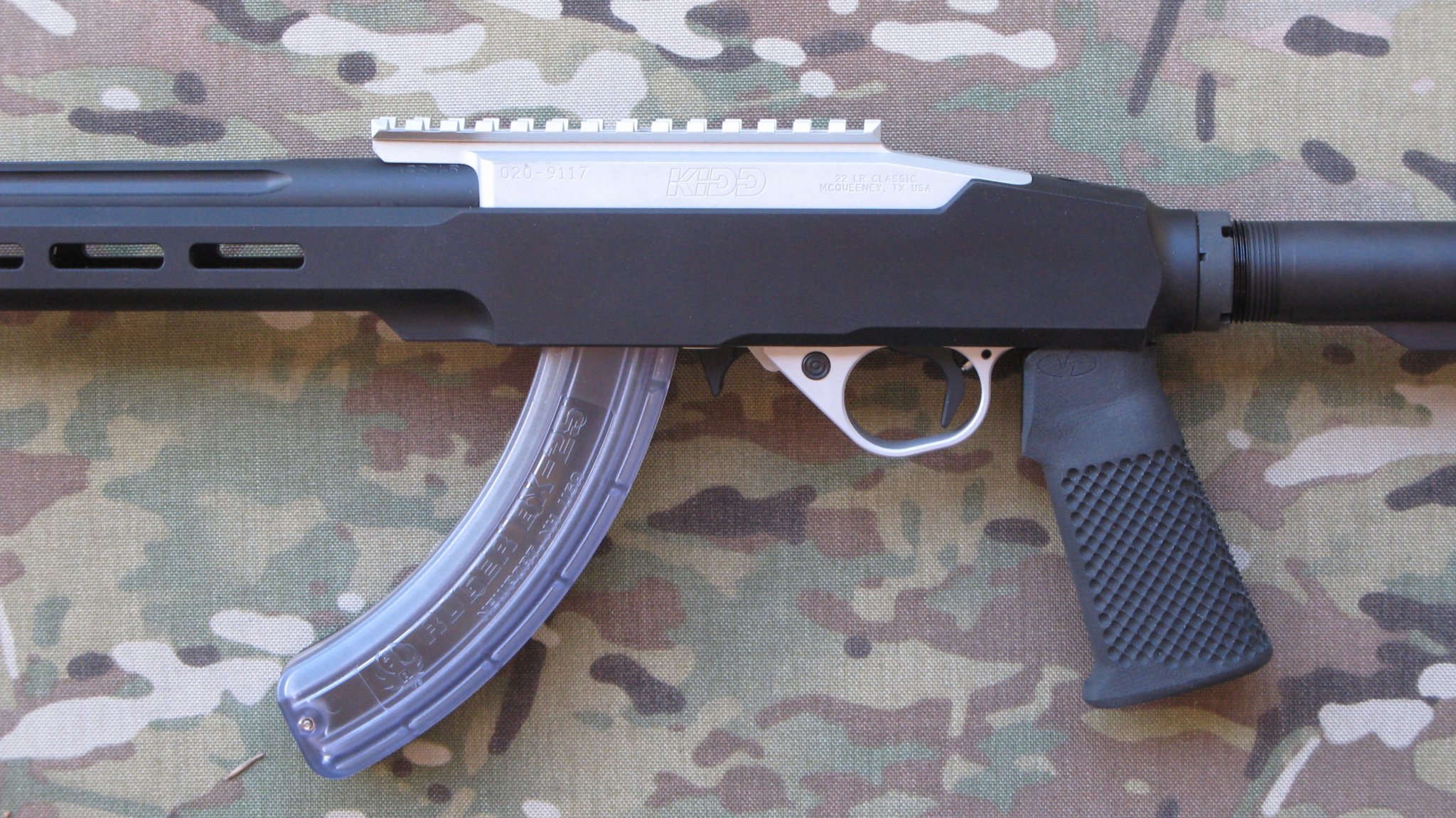

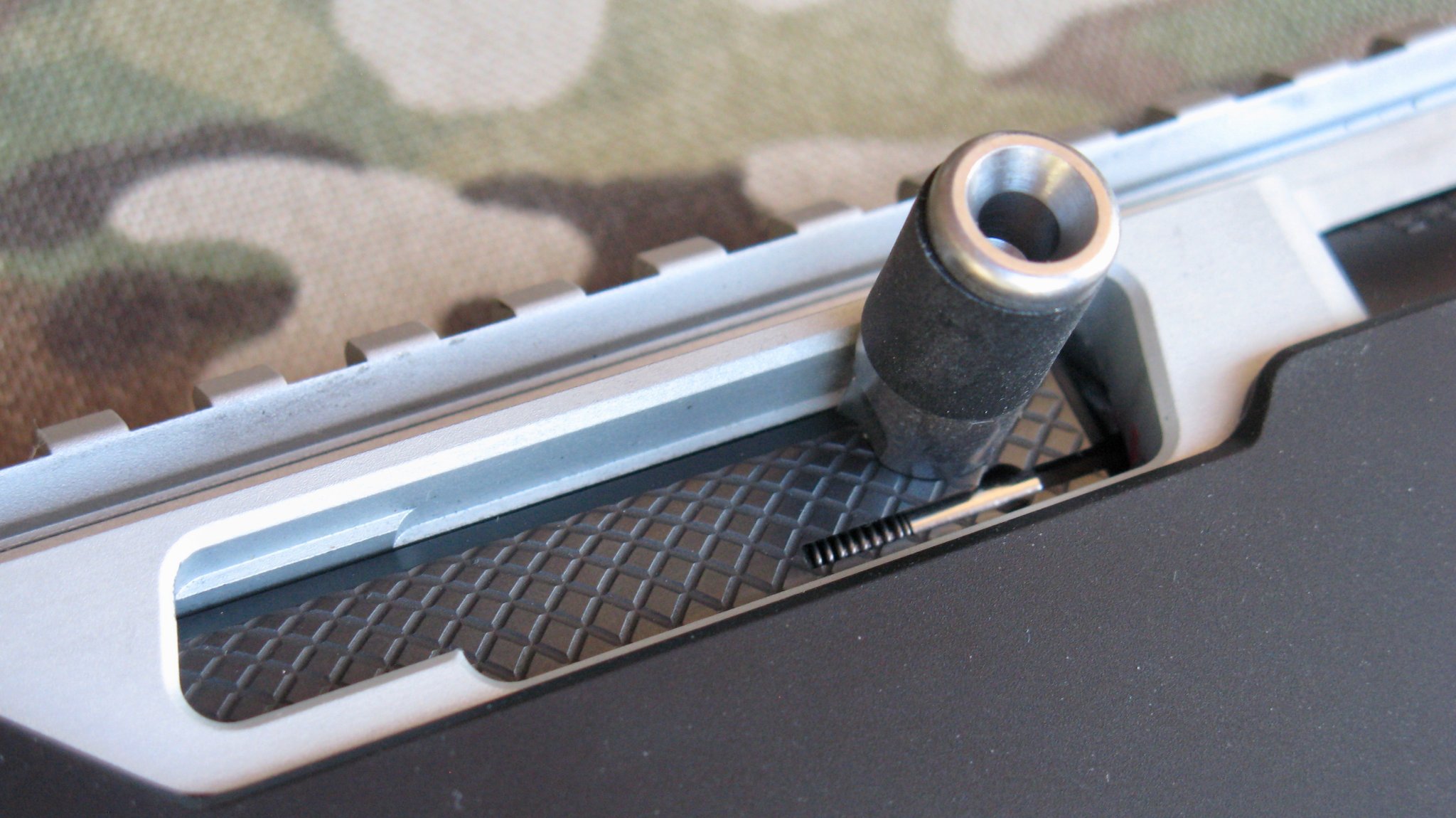

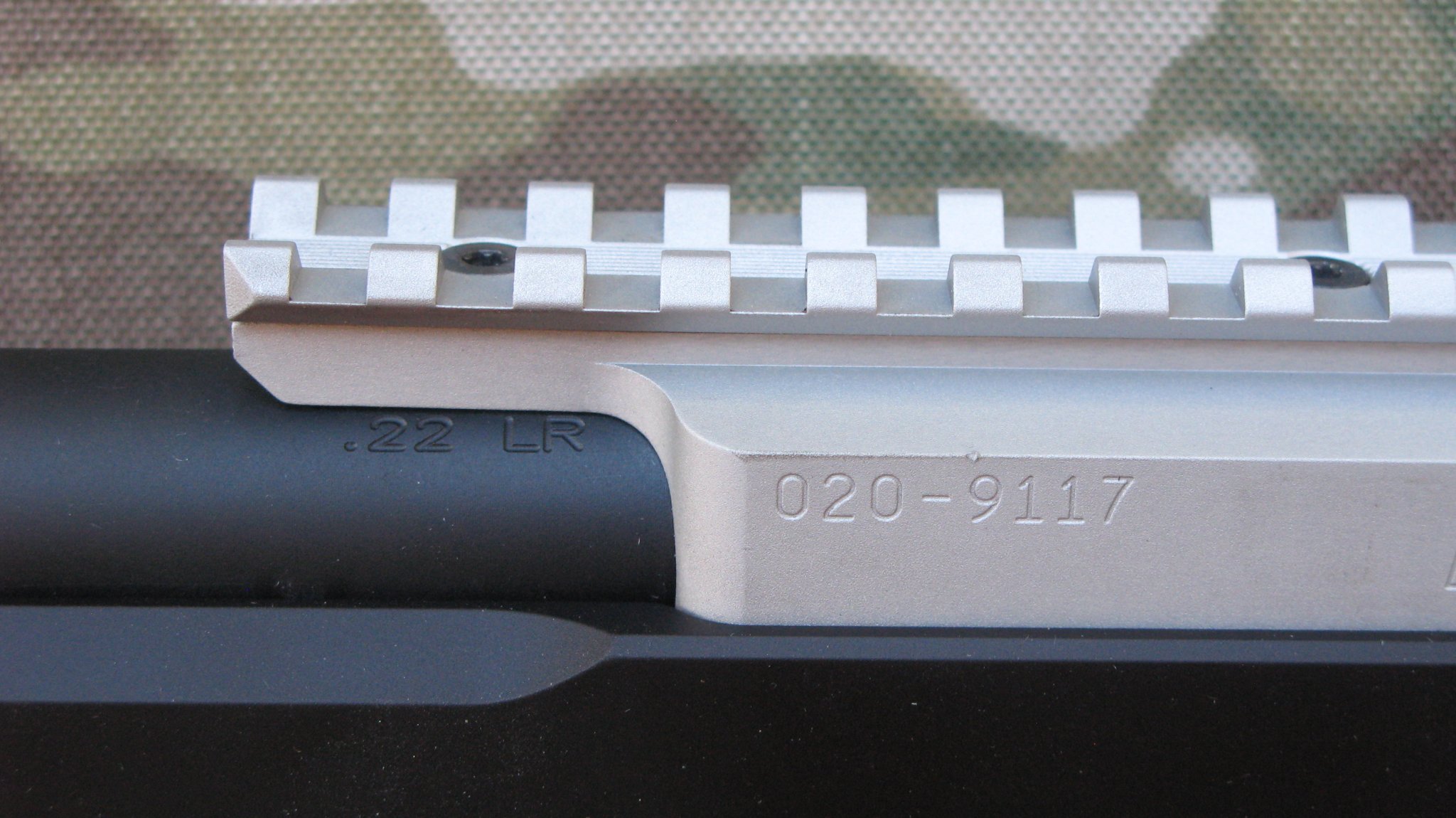

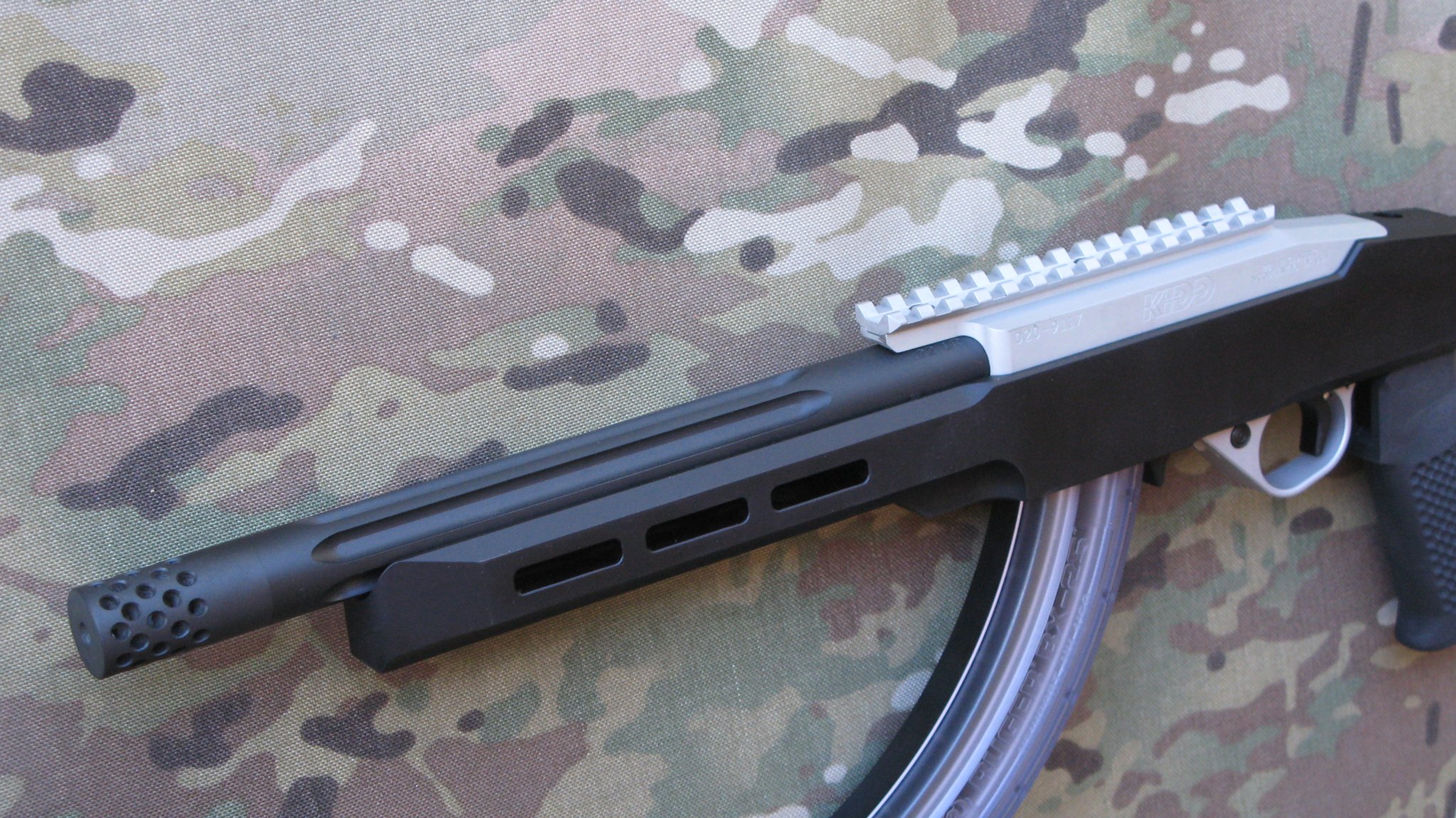

Have you ever just wanted to go crazy building a 10/22 Challenger clone? That's what I did here. It took months just to accumulate all of the components. I started with the best receiver for the task, the Kidd 10/22 Classic Slip Fit Model, complete with Kidd Bolt Buffer, receiver pins, Kidd V-Block, Kidd Takedown Screw, and Kidd Rear Tang. To it, I added the Kidd 10/22 .22LR bolt in Black with scalloped sides, Kidd Bolt Handle with Viton rubber insert, plus the Kidd Guide Rod & Recoil Spring Kit. For a trigger I selected the Kidd Single Stage Trigger in silver with contrasting black trigger and extended target magazine release. The trigger breaks at an amazingly crisp 2.5 pounds. Beyer Barrels spun up a 10" fluted aluminum barrel with rifled steel sleeve and their linear muzzle brake out front. I dropped this all in the Kidd Tactical Chassis with VZ pistol grip machined from G10 and an SB Tactical Brace.
Bergara B14R, MAnners MCST3 with mini chassis, NF SHV

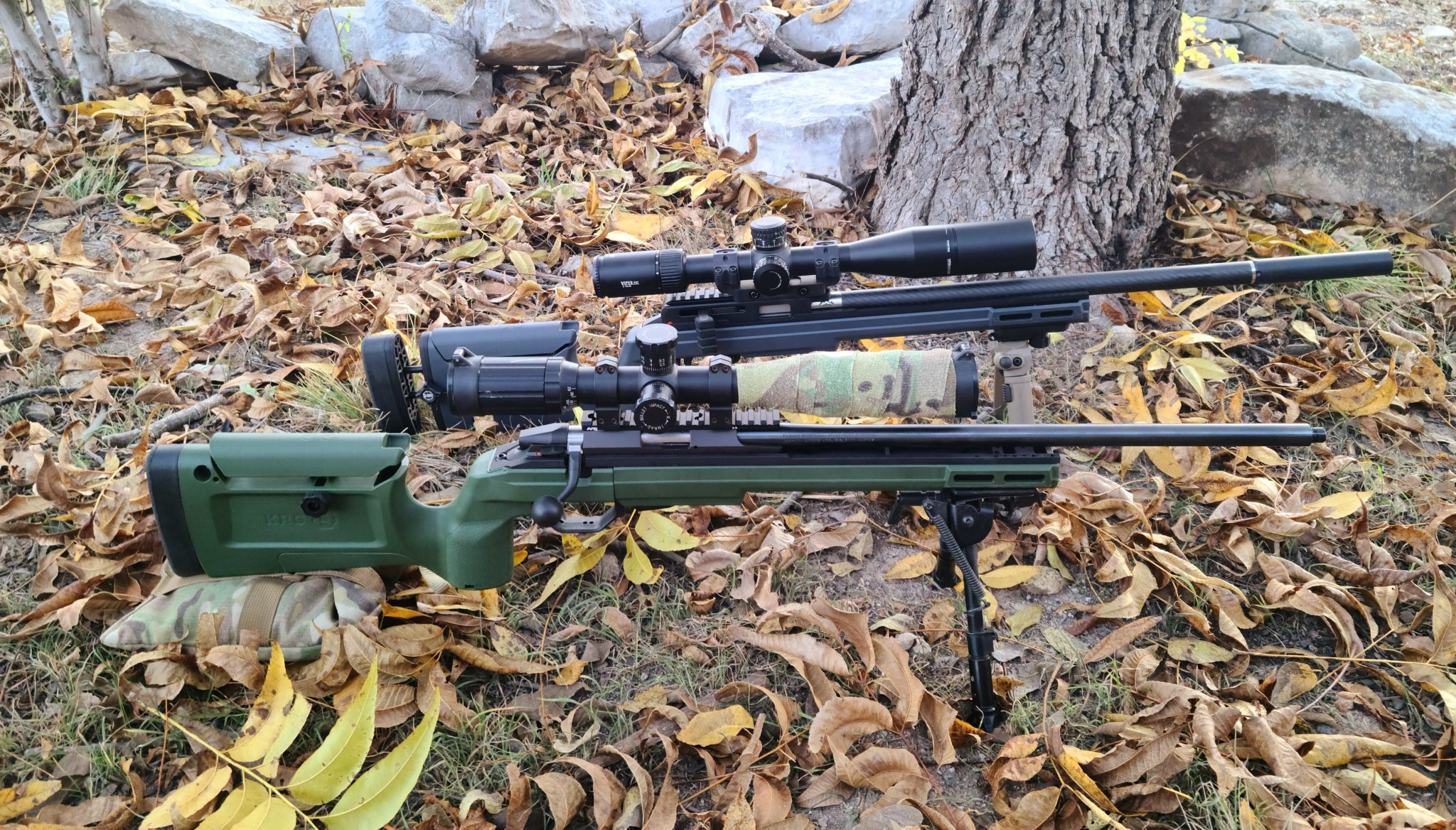

PWS Summit build in .22lr with a Tikka T1x in .17hmr I just put together. Both need to be fitted to me, scopes leveled, and zeroed.

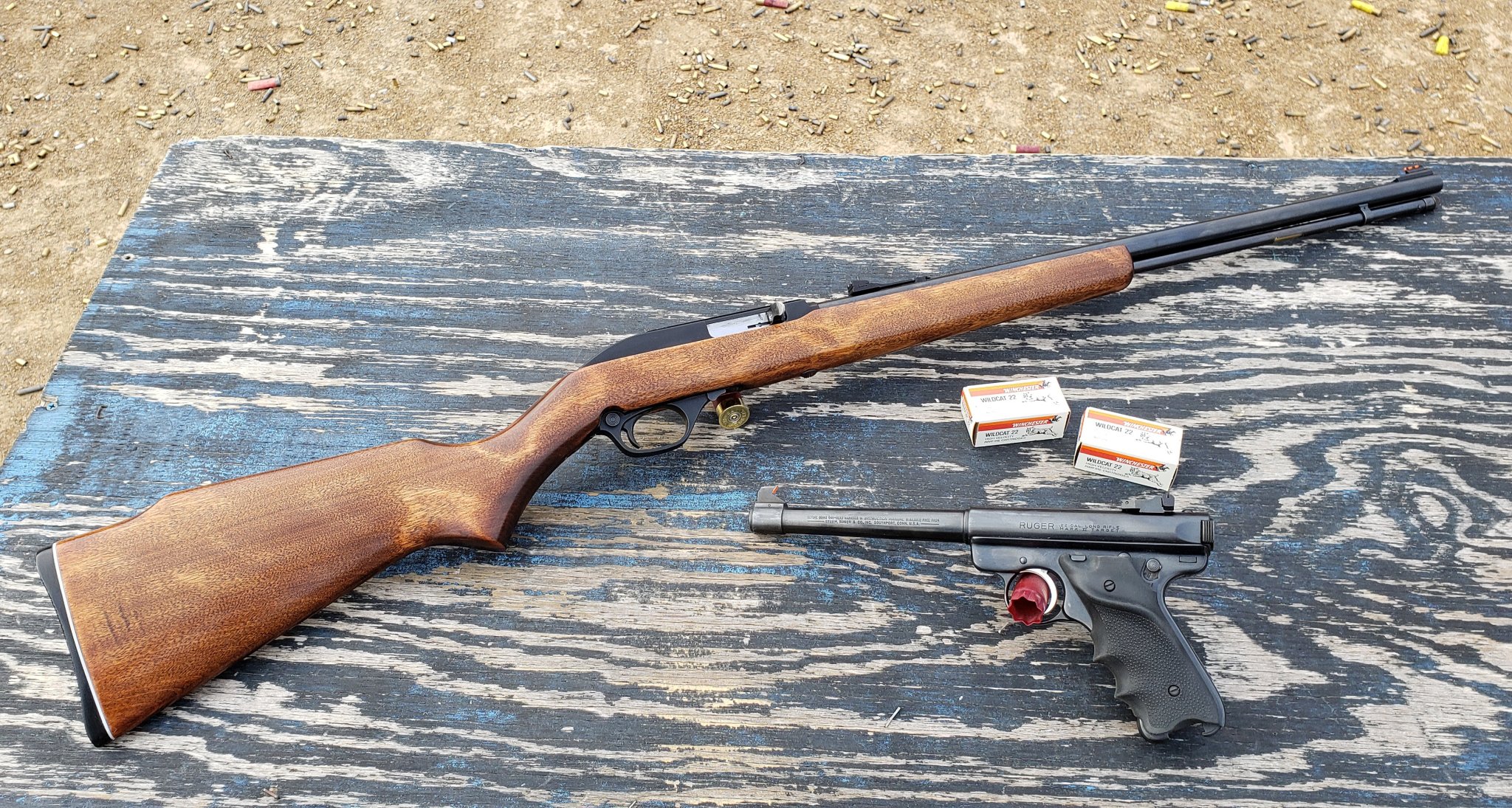

I decided to do some good old fashioned plinking today with my Marlin Model 60 and Ruger Mk II Target. It was nice to shoot for fun and not worry too much about groups or any of that, just shooting some steel plates and shotgun shells.
Wait wut?The ACC is designed so you can cut down. I have two cut back 3.5 inches for 16” & 18” barrels
Pics of cut ACC?
Curious on this as my Bergara B14R was transplanted to a new chassis because of this. Stock barrel is 1.5" shy of the forend.
Bergara B14R in a PDC Custom Chassis with full weight kit. Weighs in at a tic under 18 lbs.
Last edited:
Yessiir! Looks good. So I went down and looked at one of my ACC chassis, and I guess I never noticed that you could pretty easily do that. Run it through the band saw, drill/countersink the holes and re-install that cap that closes the front.
Never heard of anyone doing this, but I'm likely on the struggle bus for fresh information
Appreciate you sharing it.
Yep. I agree. Craig can be a little tough to reach at times, but he's basically a one man operation, so persistence is key sometimes. I think he makes a great product for the price and he's very generous in supporting shooters with products on prize tables.

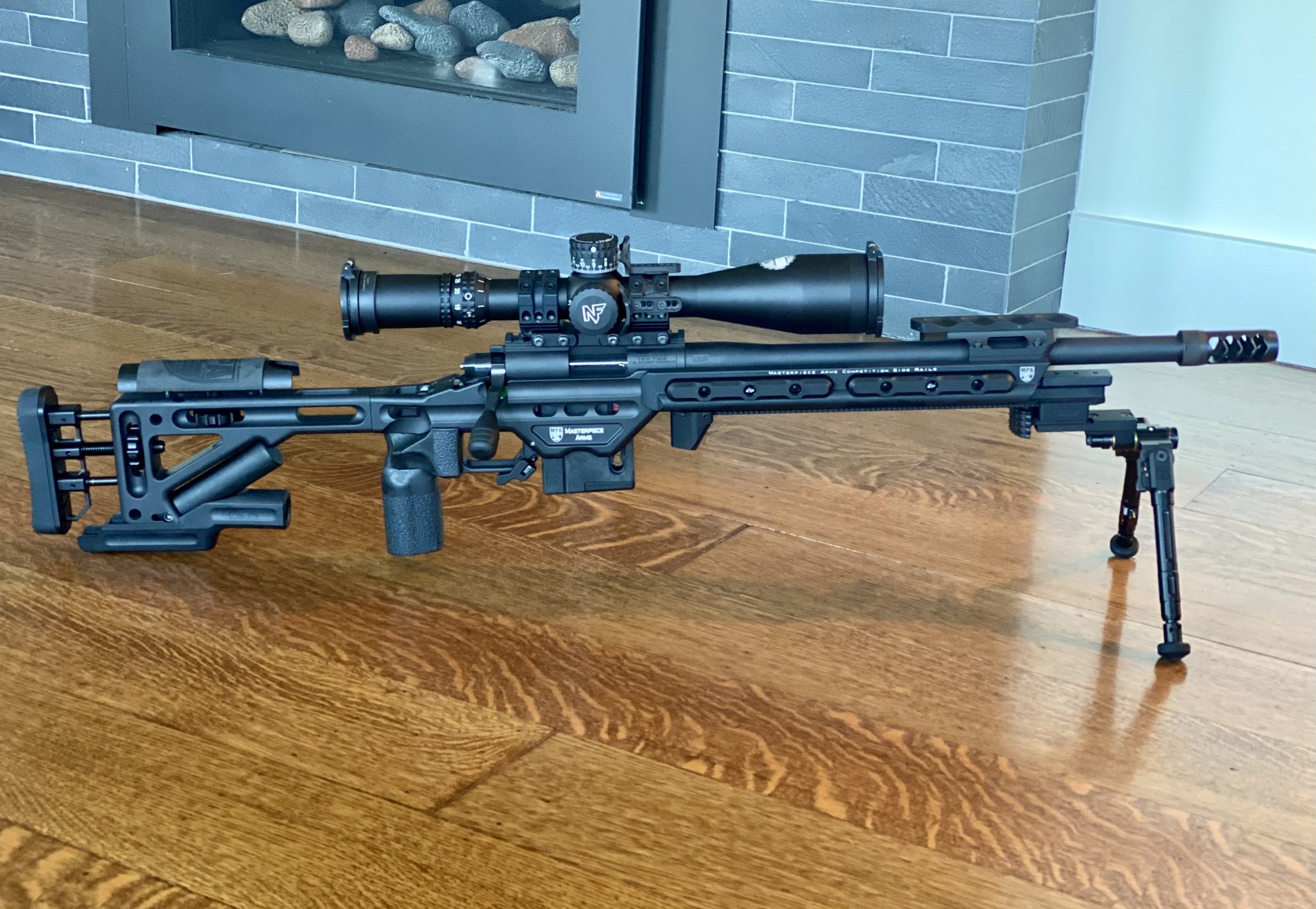

First post here and first pics of my recently built rifle for NRL22…
- Vudoo V-22 - 18” Kukri profile barrel with Hellfire Match comp
- MPA BA Comp chassis
- Nightforce 7-35x56mm ATACR
- TBAC Bipod
- MPA Siderails + GreyOps Weight kit
Finally got a chance to start breaking it in this week, and I’ll be damned if I wasn’t grinning from ear-to-ear after I dialed it up and shot the first couple of strings at 100 yds (50yd zero) - if it can produce groups like this right out of the gate, I can hardly wait to see how well this thing can shoot once it’s broken in.
- Vudoo V-22 - 18” Kukri profile barrel with Hellfire Match comp
- MPA BA Comp chassis
- Nightforce 7-35x56mm ATACR
- TBAC Bipod
- MPA Siderails + GreyOps Weight kit
Finally got a chance to start breaking it in this week, and I’ll be damned if I wasn’t grinning from ear-to-ear after I dialed it up and shot the first couple of strings at 100 yds (50yd zero) - if it can produce groups like this right out of the gate, I can hardly wait to see how well this thing can shoot once it’s broken in.
Still have my Model 60 from when I was a teen back in the late 70's . The gun is worn out and inoperable .
I keep anyway !
