Yeah cnc work doesn’t always require a lot of hands on skill. But this was a large piece that turned out pretty nice.

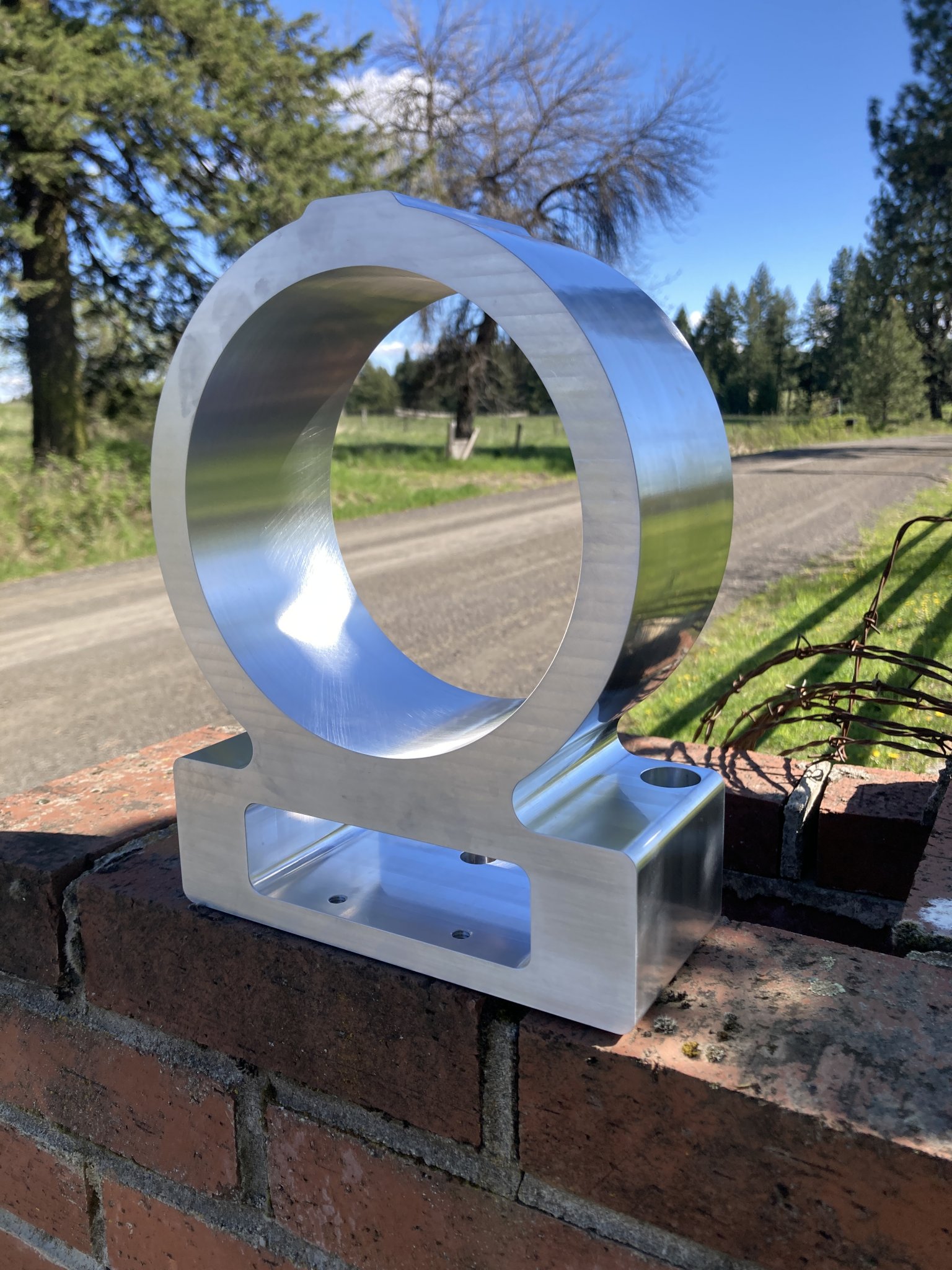

Started with a 43lb, 10”x12”x4” block of 6061.
Ended at 9.5lbs

World’s largest scope ring?
Bricks for scale.



[Sean the Nailer]

I'm curious as to what that'll be, in the end.



[iceng]

Worlds largest scope ?



[Makinchips208]

All I know is it’s something for a large manufacturing plant.



[Hobo Hilton]

In the end, it is always blamed on the welder who has his hood down and is being productive.
The lowest guy on the Totem Pole.

Fatal fire at popular Swedish theme park was caused by welding operation, report says

A welding operation at a water park under construction in Sweden's Goteborg led to a massive fire in February, resulting in one fatality, according to a report.

www.foxnews.com



[ZiaHunter]

Wonder if there was a hot permit and a fire watch. Pretty much SOP on our jobs if any combustible materials are near by. Have set little fires while welding and you don't notice it when you are under the hood until you sense a different smell or feel heat.



[Hobo Hilton]

Wonder if there was a hot permit and a fire watch. Pretty much SOP on our jobs if any combustible materials are near by. Have set little fires while welding and you don't notice it when you are under the hood until you sense a different smell or feel heat.

And in the time it takes to burn one rod a spark in the cuff of a pair of Carhartt bibs can burn a sizeable hole in the leg material.



[ZiaHunter]

And in the time it takes to burn one rod a spark in the cuff of a pair of Carhartt bibs can burn a sizeable hole in the leg material.

Not a good idea to weld with strike anywhere stick matches in your breast pocket either. Don't ask me how I know.



[fpgt72]

Being a "farmer welder" I have done quite a bit of welding in the field. If I am alone I have made it a point to stop quite often and look around. If I have someone with me they can keep their back to the work as best they can and holler if the grass starts on fire. I have started fires just grinding to clean things up to start to weld.



[Bullfrog08]

Yeah cnc work doesn’t always require a lot of hands on skill. But this was a large piece that turned out pretty nice.
Started with a 43lb, 10”x12”x4” block of 6061.
Ended at 9.5lbs

World’s largest scope ring?
Bricks for scale.

View attachment 8414498

That is the biggest ohm casing I've even seen.



[iceng]

We can post CNC stuff as metal working ? Well then.. ill have something next week for a big job im about to do.



[lariat]

We can post CNC stuff as metal working ? Well then.. ill have something next week for a big job im about to do.

Post it. I do like seeing what others are working on, machined parts, all of it. There is something very cool about things that are made from a block of material.



[fpgt72]

I am not likely to start building this till mid-end of June. But I do plan on doing a run down on when I build my plasma table.

I have already printed all the 3d parts, just waiting on my retirement at the start of June to get here and me to get settled in to my new life before starting on it.



[LeftyJason]

Post it. I do like seeing what others are working on, machined parts, all of it. There is something very cool about things that are made from a block of material.

* As long as you are allowed to post it.

I can't show the stuff I make at work. I use internet pictures only or things that are in a public place.



[lariat]

* As long as you are allowed to post it.

I can't show the stuff I make at work. I use internet pictures only or things that are in a public place.

Yes. I have the same conditions here. I would hope everyone knows what they can and cannot post. But still a good reminder.



[Makinchips208]

Yes. I have the same conditions here. I would hope everyone knows what they can and cannot post. But still a good reminder.

Exactly. I’m sure we all have segments of our life or career that are not allowed to be shared.
Share what you can. Don’t cross the line.



[LeftyJason]

What I can share.

I run one of these. Internet pic.

Making these. Front half spins 17k and back spins 30k. Used to turn the back rotors. Have ground them as well. These pics taken at the Leonardo museum a few years ago.

Now I grind fuel slingers. Top arrow points to the back where I grind a thread. I also grind the labby tips both pre and post clad. There is also a diameter I grind to +/-0.0001". 85% of what I grind is inconel. Rest is Mar m 247 or 15-5.

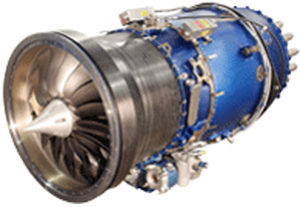

End product. Fj44-4a-qpm

Pilatus pc24

Same engine. future Honda jet echelon

Different versions go into these.

Cessna citation cj1 through cj4

Kratos xq58

Cirrus sf50

Smaller engine. Engine now blue. 60k rpm.

Hill afb

Darpa gremlin

Also do stuff for these
Taures kepd350

Aero L39ng

Bqm74



[P-Squared]

I'm in a totally different sector, but I tell kids that all my life people have paid me to have fun. Those look like some awesome toys to play with all day.



[Sean the Nailer]

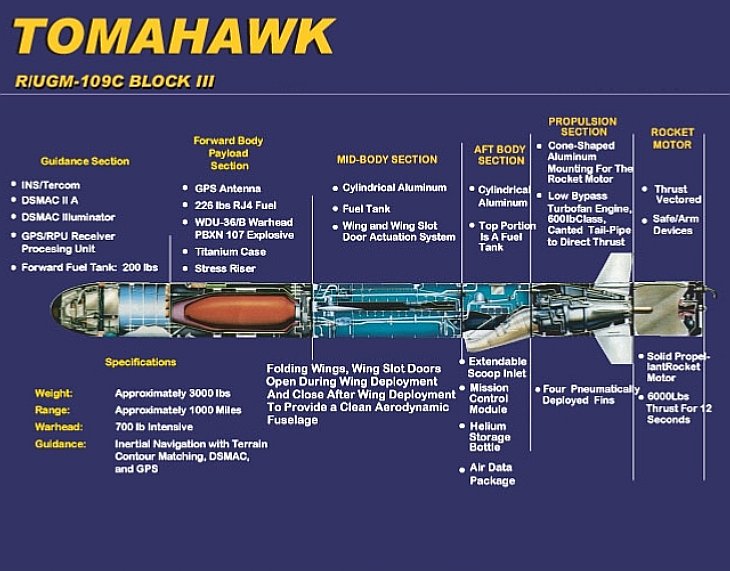

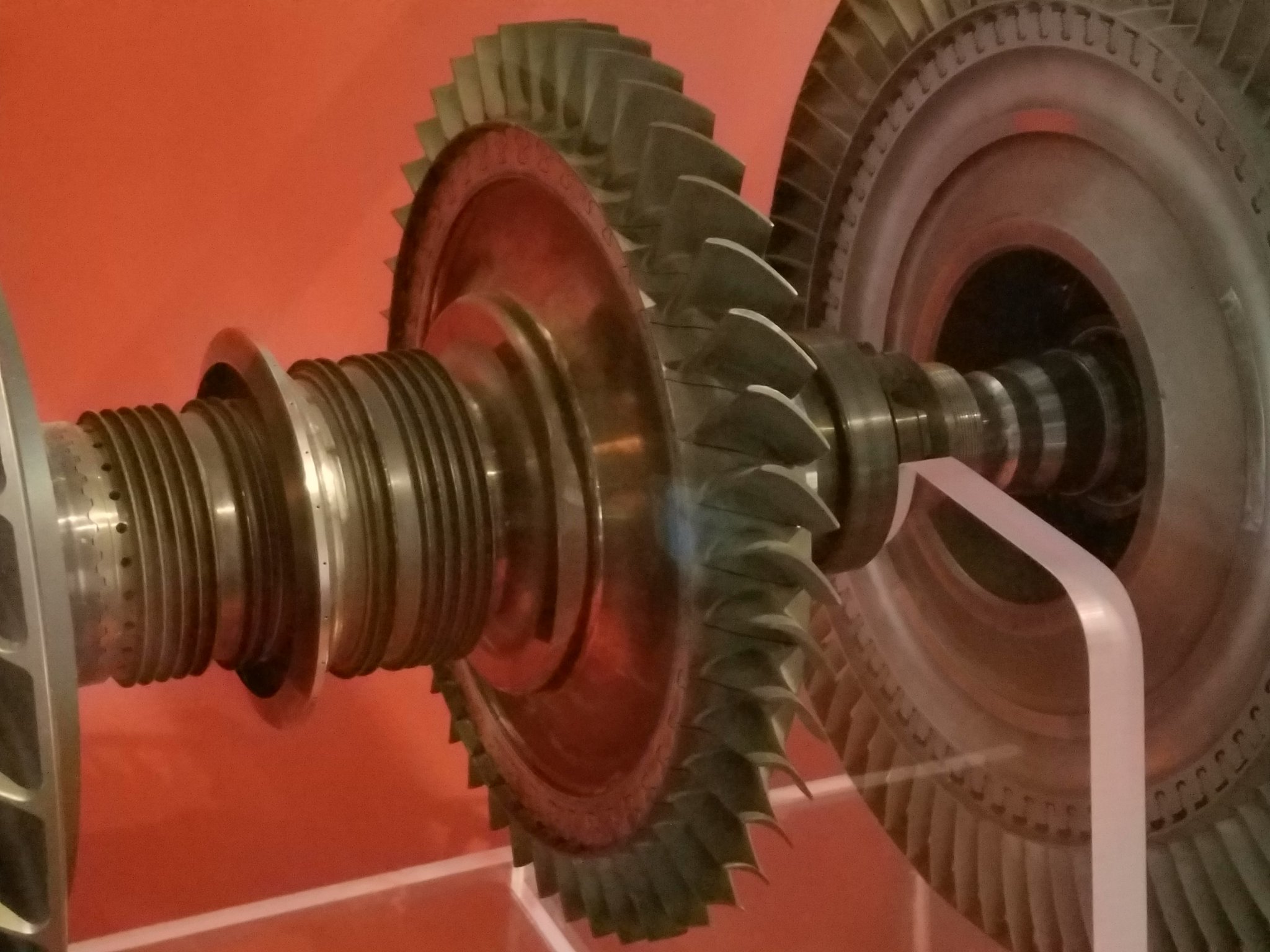

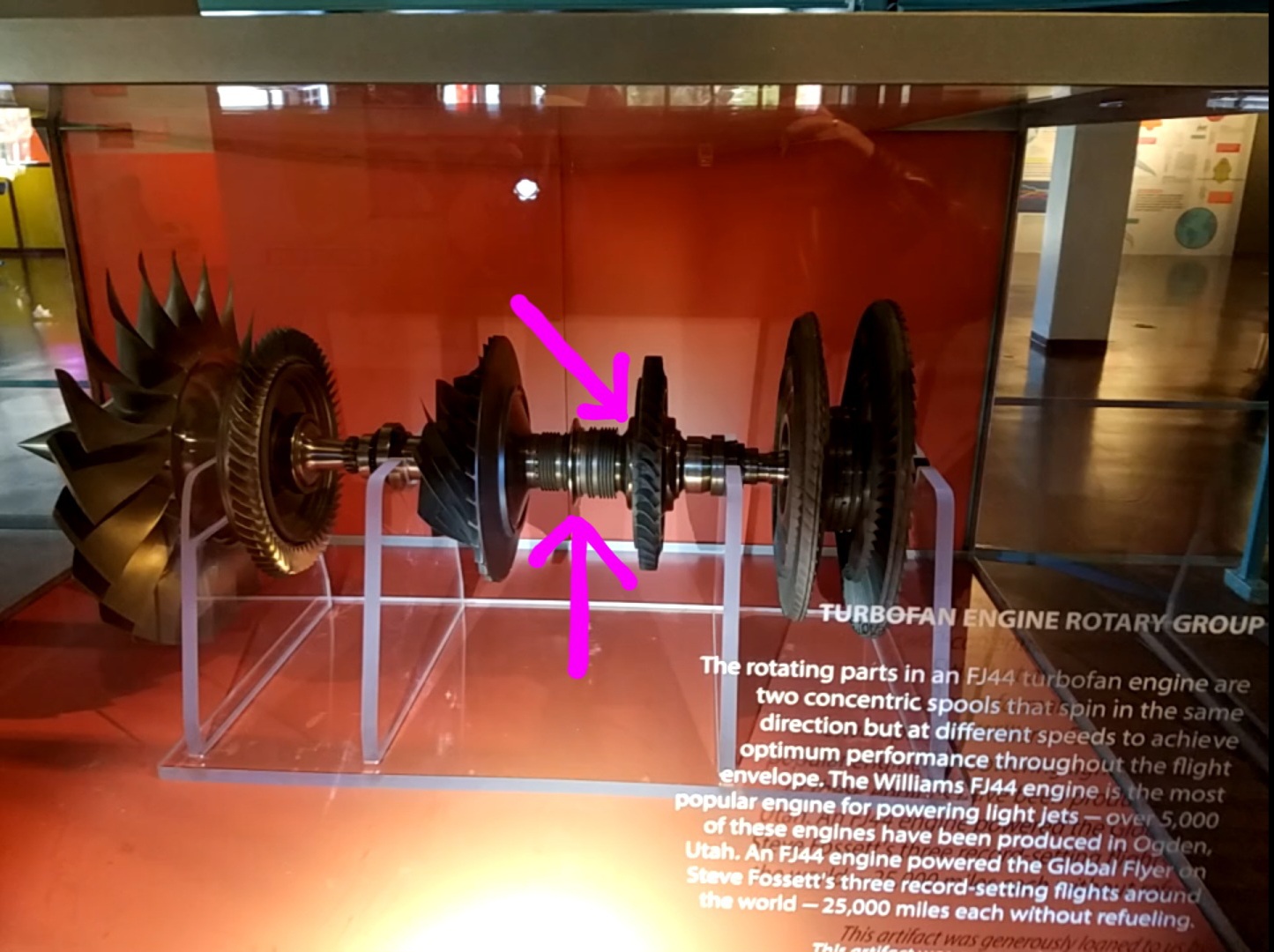

Call me slow, and behind the times, but how does a turbine have two different inlet and outlet speeds, if they're the same shaft and the back powering the front? (and vicey-versey?)



[Threadcutter308]

Call me slow, and behind the times, but how does a turbine have two different inlet and outlet speeds, if they're the same shaft and the back powering the front? (and vicey-versey?)

Eg; Pratt & Whitney PT-6 series of turbo shaft engines are "free turbines" in that they have seperate compressor and hot section shafts.

Pratt & Whitney Canada PT6 - Wikipedia

en.wikipedia.org



[Mike Casselton]

Call me slow, and behind the times, but how does a turbine have two different inlet and outlet speeds, if they're the same shaft and the back powering the front? (and vicey-versey?)

TLDR: it's a secret and if I tell you, I gotta kill you.




Volume of air in front vs rear.

Imagine a cone with the wide end being the inlet. The skinny end is the outlet/nozzle.
It's diameter/volume is, let's say 10x
what the outlet/nozzle of the cone is.
Compress that large front volume and the velocity going through the narrow end increases.

Brass musical instruments are another example of this, only reversed. The volume is tuned via the keys, which change the volume and pitch of the air movement.



Ammunition cartridges work on a very similar principle to the jet engine.
6BR vs 30BR.
Both have nearly the same case capacity. Stick 30gr of Varget and a 108 projectile into either one and the 6 will produce more pressure at the case mouth and on the transducer.
Since the 30 has a larger "nozzle" it takes more powder to get equal pressure.
In fact, most 30-BRs are shot with 34.8-35.5 gr of a faster burning powder than used in the 6-BR.



[Mike Casselton]

Lots of combat aircraft that use P&W engines have adjustable nozzle sections.
The turkey feathers at the back end can expand and contract to change the nozzle pressure and air volume going out the back end.



[LeftyJason]

Call me slow, and behind the times, but how does a turbine have two different inlet and outlet speeds, if they're the same shaft and the back powering the front? (and vicey-versey?)

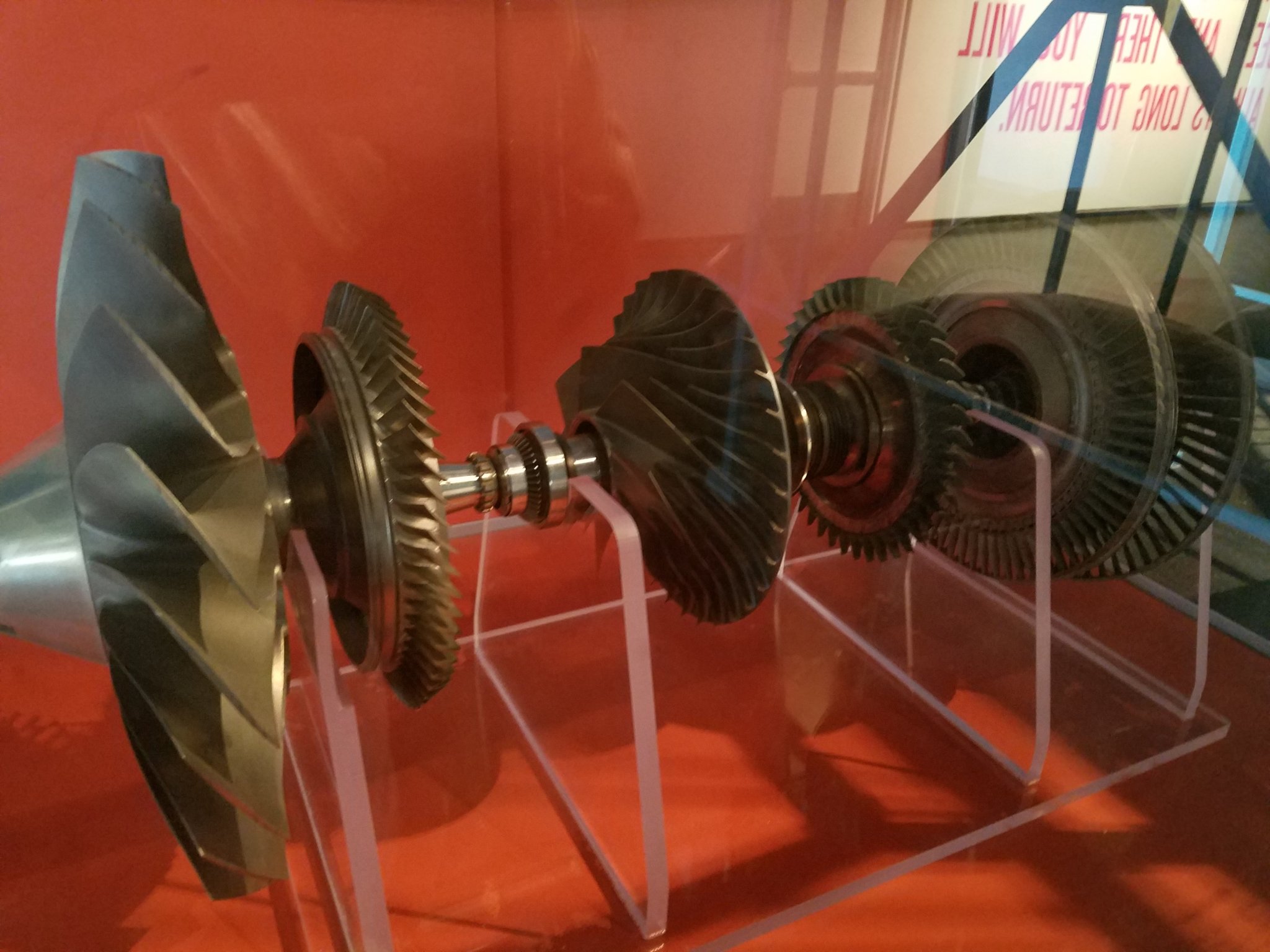

Low pressure shaft with low pressure rotors and high pressure shaft with high pressure rotors. Lp inside of hp. How it all works beyond that idk.



[Lawless]

Ok I bought a new inverter MIG/TIG/Spool/Stick machine (same brand as my plasma torch) and it is “synergic” in that it adjusts wire speed and power (based on material thickness) up and down in sync.

My old MIG was separate controls.

There is a “fine” adjustment on it to allow +-3v to fine tune to your style/needs.

This is actually adjusting voltage up or down independently from wire speed right? To be slightly hotter or cooler depending on how you like it?

If this is correct I will start with zero trim and see how it is. May not need to move anything for mild steel.



[ironpony52]

I operate CNC grinders to make linear motion blocks. I work to .007 microns daily. Our parts are used inside CNC machines for accuracy.
We manufacture our own "Mother" machines in house, which are capable of making parts so accurate that you can make your parts on a CNC machine.



[Sean the Nailer]

Thanks guys. Until this point, I was under the impression that it was all one shaft, and that the 'powered expansion/spinning' of the output end is what drove the input end to 'grab' more air and compress it down.

Exponentially, to the point of diminishing returns. (That's the very short version, of what principle I had in my head.)

Again, appreciate the clarification.



[kindabitey]

Ok I bought a new inverter MIG/TIG/Spool/Stick machine (same brand as my plasma torch) and it is “synergic” in that it adjusts wire speed and power (based on material thickness) up and down in sync.

My old MIG was separate controls.

There is a “fine” adjustment on it to allow +-3v to fine tune to your style/needs.

This is actually adjusting voltage up or down independently from wire speed right? To be slightly hotter or cooler depending on how you like it?

If this is correct I will start with zero trim and see how it is. May not need to move anything for mild steel.

That sounds about right. If the machine is red, the synergic settings were created to make setting up voltage/ wire speed easier for novice
welders. Since it's been nearly impossible to find experienced production welders in the past 20 years they had to make it as easy as possibly to set
up a machine.



[LeftyJason]

Thanks guys. Until this point, I was under the impression that it was all one shaft, and that the 'powered expansion/spinning' of the output end is what drove the input end to 'grab' more air and compress it down.

Exponentially, to the point of diminishing returns. (That's the very short version, of what principle I had in my head.)

Again, appreciate the clarification.

Been a while since I watched this but shows how some engines work. The ones I make have fewer stages, aren't as big, and spin faster.



[iceng]

2 days free hosting... whatever. Need a better way to host rambling videos.



[hukset402]

Ok I bought a new inverter MIG/TIG/Spool/Stick machine (same brand as my plasma torch) and it is “synergic” in that it adjusts wire speed and power (based on material thickness) up and down in sync.

My old MIG was separate controls.

There is a “fine” adjustment on it to allow +-3v to fine tune to your style/needs.

This is actually adjusting voltage up or down independently from wire speed right? To be slightly hotter or cooler depending on how you like it?

If this is correct I will start with zero trim and see how it is. May not need to move anything for mild steel.

A lot of times ypu can turn the synergic stuff ooff.my blue machines have "auto" setting where you give it the details and it "sets" it's self. But I can turn it off and do things the right way as well. Try to teach my kids to be able to adjust off sound for MIG. Most places they are gonna work don't have fanceyvread outs on the machines. Just some dials.



[ZiaHunter]

A lot of times ypu can turn the synergic stuff ooff.my blue machines have "auto" setting where you give it the details and it "sets" it's self. But I can turn it off and do things the right way as well. Try to teach my kids to be able to adjust off sound for MIG. Most places they are gonna work don't have fanceyvread outs on the machines. Just some dials.

The autoset function on my Millermatic 255 gets you pretty close for flat and horizontal work but doesn't work for thicker material when you run uphill. Went through several coupons until I found the right settings.



[ZiaHunter]

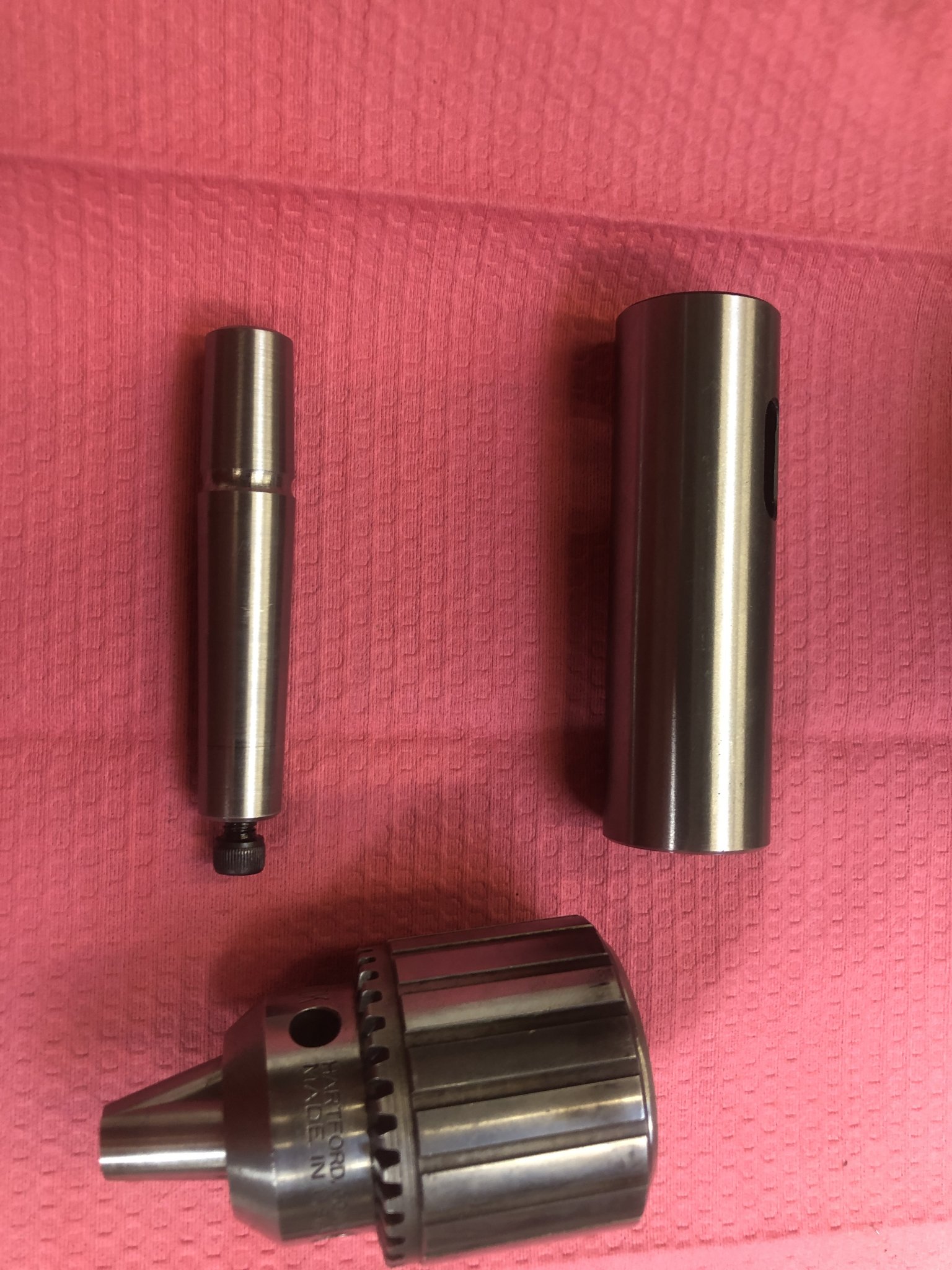

The SBL 10L came with an old Jacobs 34 chuck that was in excellent condition but filthy so I disassembled cleaned and reassembled. Needed a 33JT to 2MT arbor so turned one on the lathe using 1144 bar. Used a socket to hold the MT when turning the JT. Tapers set using two indicator method on the taper attachment.



[sandhiller]

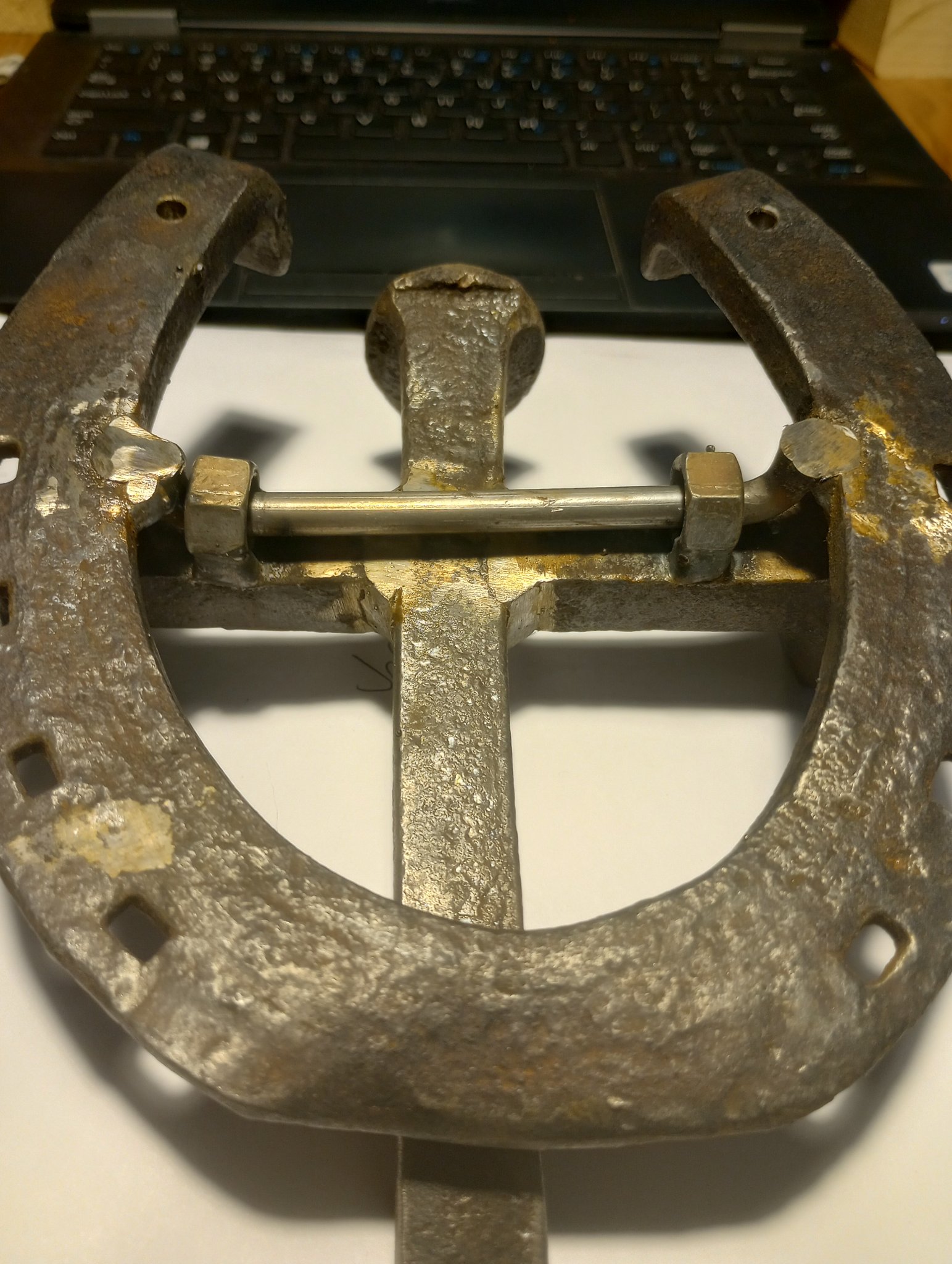

Ranch owner who my son works for bought him and his family a new modular.

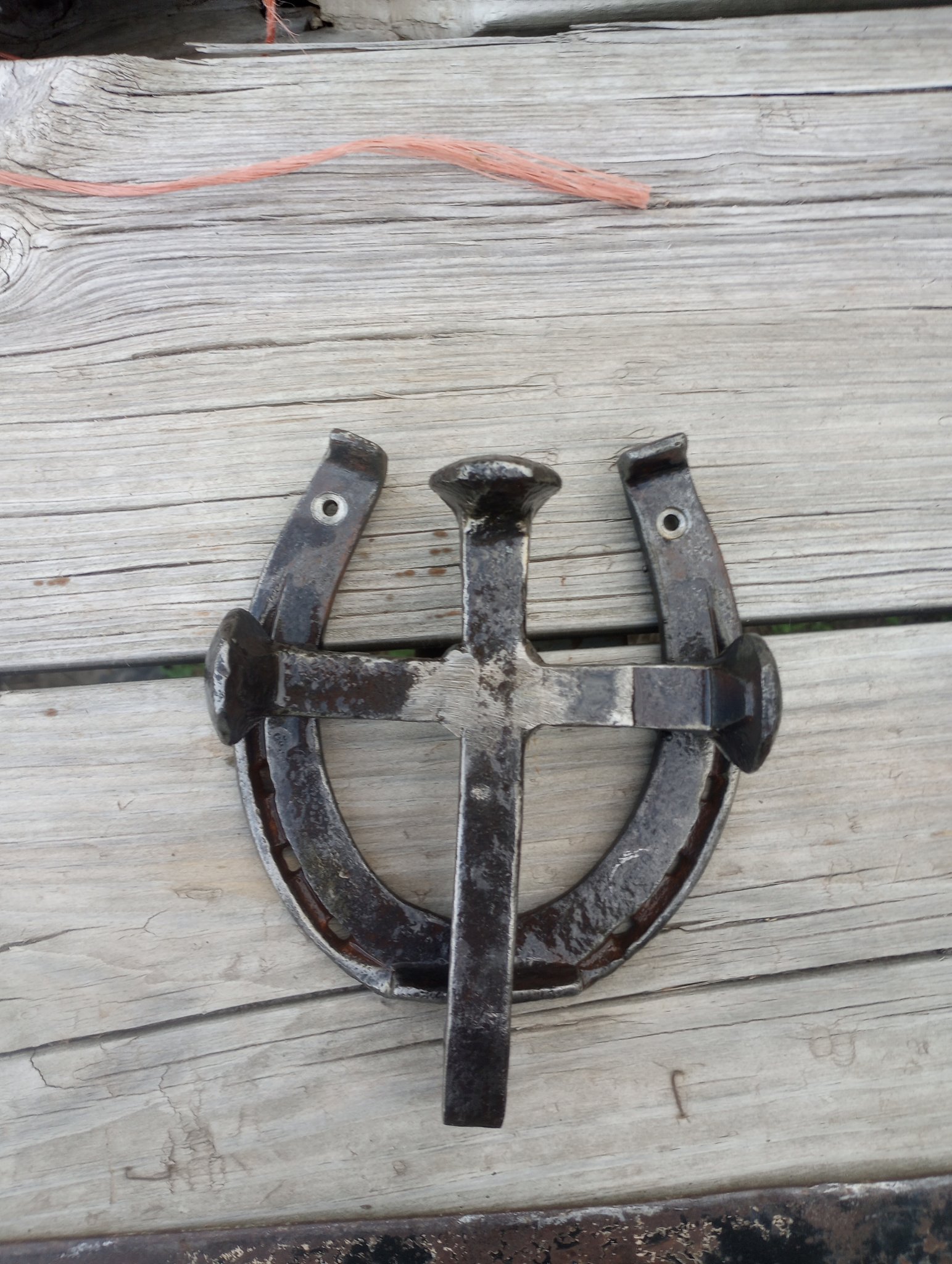

I made this for them as a house warming gift.

It's a door knocker.



[Makinchips208]

Ranch owner who my son works for bought him and his family a new modular.

I made this for them as a house warming gift.

It's a door knocker.

View attachment 8431477

Super cool!
How did you get it to hinge?



[sandhiller]

Super cool!
How did you get it to hinge?

Looking back, the nuts look out of place, would do that different next time

For the most part they are hidden luckily



[Makinchips208]

Looking back, the nuts look out of place, would do that different next time
View attachment 8431517
For the most part they are hidden luckily

Yeah can’t see em anyways. And it looks robust. Very nice!



[fpgt72]

I think they are perfect and go with the over all style of the door knocker. I guess you could have used some shoe nails and bent them into a U, but like was said before you don't see them, and with them being so thin they would likely wear faster.

You made a good choice.



[packratt]

Round the corners so they don't look like nuts



[sandhiller]

Round the corners so they don't look like nuts

If I make another one, I'll just use small ID pipe or tubing/ steel brake line might fit the bill



[ironman56]

Wonder if there was a hot permit and a fire watch. Pretty much SOP on our jobs if any combustible materials are near by. Have set little fires while welding and you don't notice it when you are under the hood until you sense a different smell or feel heat.

I was in the steel erection industry for 45yrs before I retired , started many fires accidentally in that time , fire watches are a damn good thing ,and we didn't always have the personal to to have one ,luckily never killed anyone or burned down anything big but had some close calls , working by yourself is the worse gotta constantly stop and look around and keep water or fire extinguisher close .



[RPN]

I was doing a vertical up test for a 4711 ticket when I started having trouble seeing - turned out I'd set fire to my (somewhat greasy) overalls, and my helmet was full of smoke.

Put out fire, grabbed 2 new tokens, redid weld, passed.



[JJMoody]

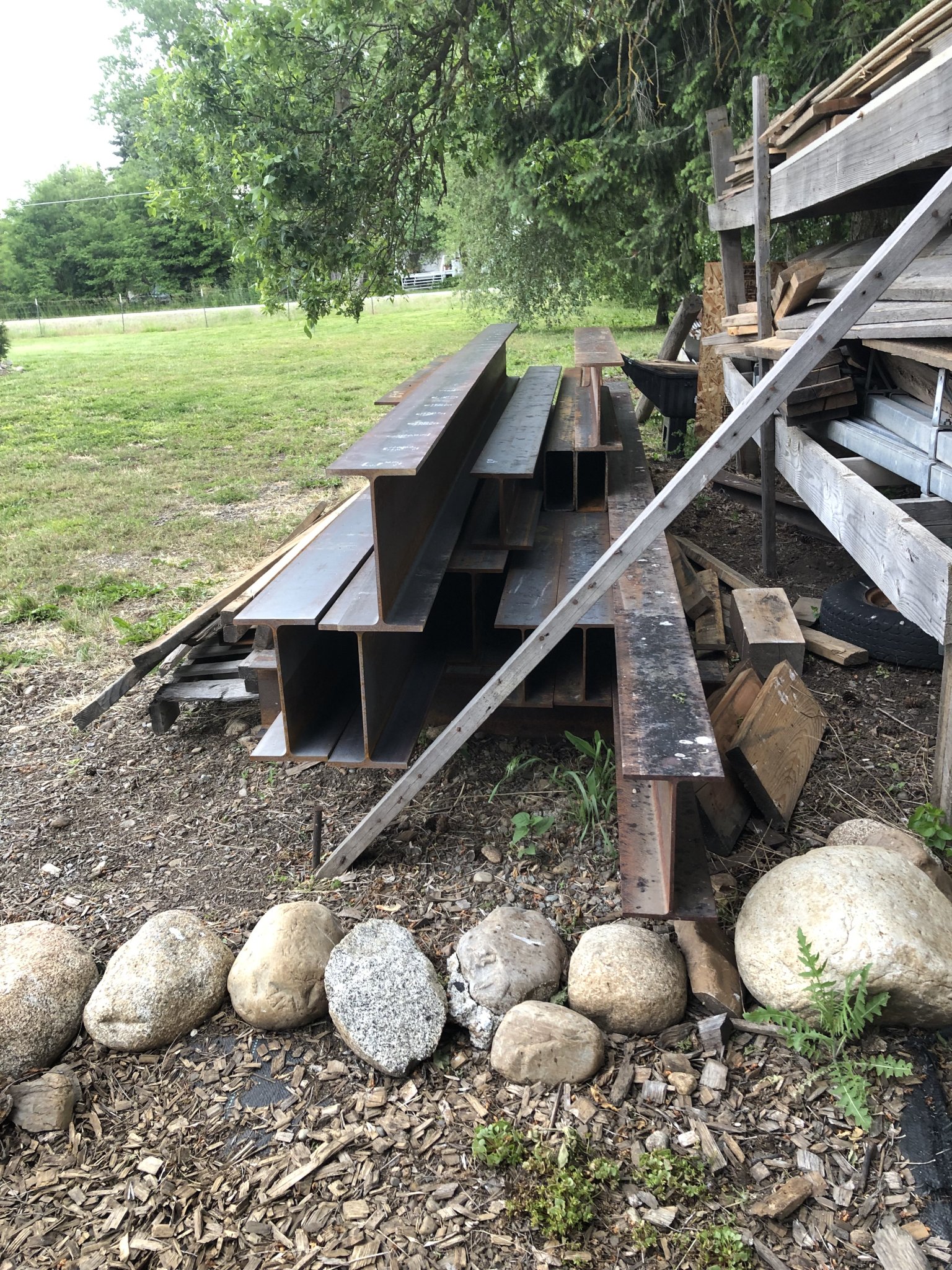

Might’ve gotten a little excited at an auction this week.
3 W12x30x15’
2 W8x21x15’
W10x22x16’ &12’
Couple miscellaneous sticks 4-8’. Now trying to make up a project…
Ya think $625 was fair?



[Makinchips208]

Might’ve gotten a little excited at an auction this week.
3 W12x30x15’
2 W8x21x15’
W10x22x16’ &12’
Couple miscellaneous sticks 4-8’. Now trying to make up a project…
Ya think $625 was fair?

You got enough to build a bridge there. Referring to another thread about that. Lol



[hlee]

So, my son failed his first professional weld test today. He said they gave him the most disgusting piece of rusted shit he could imagine, then said he could only use a wire brush and a chipping hammer to prep the material.

I guess that’s the difference between a ship yard and an oil patch. Welding school seems to have been pretty focused on welding pipe- relatively structurally sound pipe, using modern power tools.



[ZiaHunter]

So, my son failed his first professional weld test today. He said they gave him the most disgusting piece of rusted shit he could imagine, then said he could only use a wire brush and a chipping hammer to prep the material.

I guess that’s the difference between a ship yard and an oil patch. Welding school seems to have been pretty focused on welding pipe- relatively structurally sound pipe, using modern power tools.

There will be other tests and he shouldn't get discouraged. Hobo should chime in and give him some sound professional advice.



[JJMoody]

You got enough to build a bridge there. Referring to another thread about that. Lol

So, I have this crick a-runnin threw mah place…



[hlee]

There will be other tests and he shouldn't get discouraged. Hobo should chime in and give him some sound professional advice.

He can retake the test, then try again in 6 weeks if he fails a second time. Welding school allows him to practice with their equipment; he just needs to show up. I think the failure was a good thing, as it was a reality check and deflated his ego a bit. He’s headed up to the school on Monday to practice on the rustiest material he can find.



[JJMoody]

In all honesty, three ideas with the I beams-
2nd floor for one of the silos. Weld the 12x30s together to clear span 26’ and the others to do the sides, I joists etc over that.

Save for the house/church/something something
Or just re sell.



[Ann Ominous]

Shop crane



[Ann Ominous]

Weld tests are set up to fail you. That way you find the best. Give it time. I thought I was hot shit when I first started and walked away with a ton of pressure pipe certs then reality smacked the fuck outa me. But now look at me. I’m still retarded and big headed but I make a lot of money.
