Tikka T3 Thread

They're really not that hard to pull I'd never removed a bolt gun barrel before doing Tikkas and I've done three without an issue. My local smith said the same thing yours did I don't know if they just say that to prepare you for worst case or just don't want to do it. Barrel vise and action wrench are like $175 and you could sell them after you're done if you want. Plus you will have a barrel to sell or keep for another use.

So I got the damn thing off! Read all of the posts on there, got a mechforce barrel vise from amazon and the Wheeler #1. Let the barrel soak with Kroil Oil for a few days, barrel pointed down to allow the oil to penetrate. Synched down the barrel in the vise with drywall tape and resin, synched the wrench down on the action and two good hits with my impact hammer and she spun off... took all of 5 minutes! (Post the soak, of course!).

You wouldn't happen to know how much the barrel weighs would you? How bad is the percussion without the suppressor? Some guys have told me anything under 20" is brutal and others say it's fine.

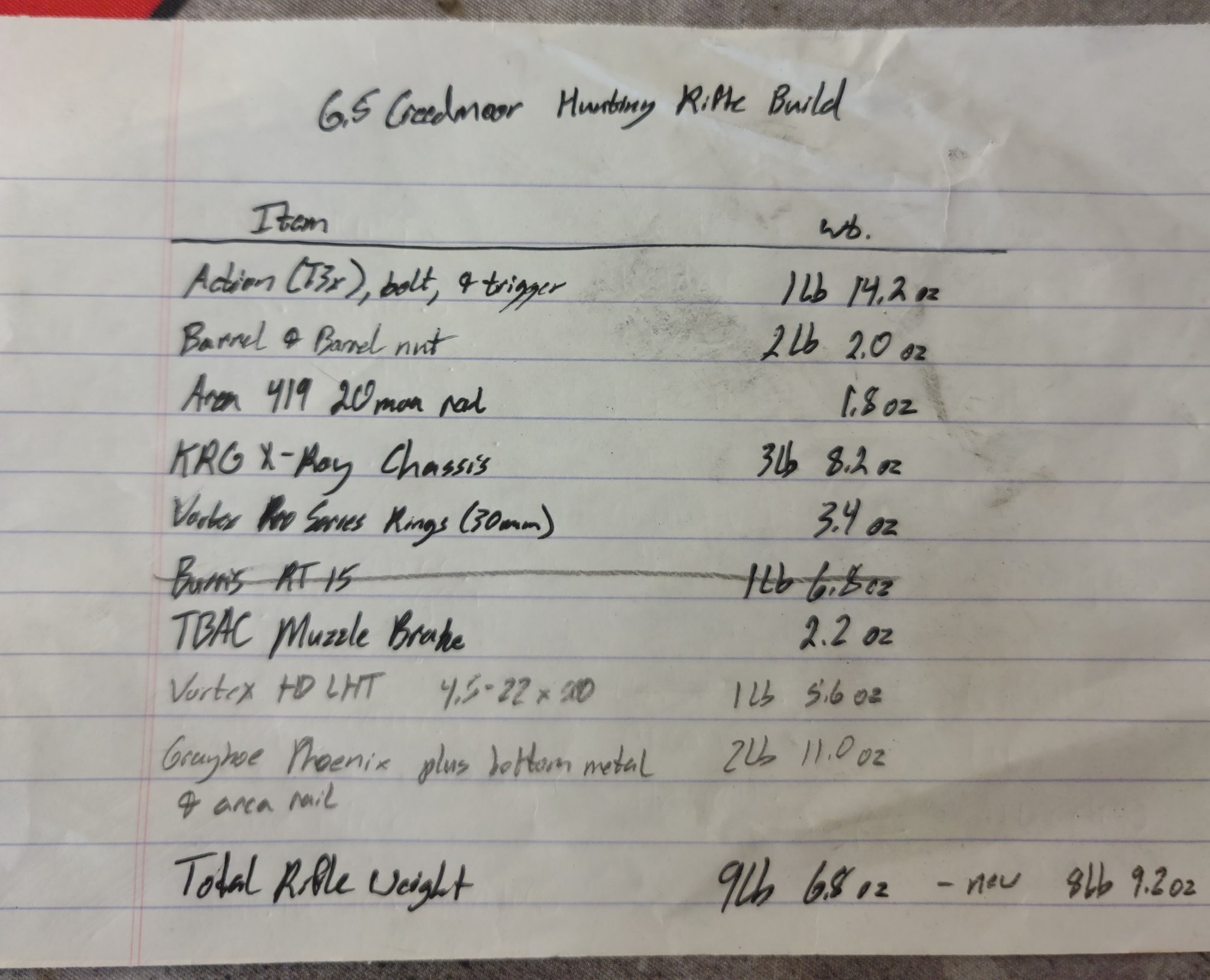

The barrel & barrel nut is 2lbs - 2oz. I actually did weigh it individually. I'll attach my list of parts, I apologize its a little convoluted now since I've changed a few things. Honestly, I've only shot it once without the suppressor as a test fire when I put the new barrel on. It's certainly loud, with earplugs it's ok, I wouldn't want to shoot it lot. But I refuse to shoot un-suppressed anymore lol.

  • Like
Reactions: PBWalsh
Doing it Friday. I’ll post experiences, I’m lazy so I’m guessing a relief cut is in my future.

I just took mine off. It was actually super easy with a little prep.

1. I stripped the entire receiver down, trigger and all.
2. I put the barrel in a bench vise pointed barrel downward and hit the inside of the receiver where it meets the chamber threads w Kroil oil (downward so the oil flowed towards the threads).
3. I did this periodically for 3 days. Just keep the barrel in the vise and hit it with the oil every so often….

4. Then put the barrel in a proper barrel vise.
5. Synched the living fck out of it but first wrapping it dry way tape and using resin to increase grip…..
6. mounted up the wheeler #1 wrench to the receiver and hit it with an impact hammer.

Popped off first hit!

Now I have a perfectly good 20” barrel for hunting or a lighter weight rig and a new 26” tikka pre fit!

After everything I had read I was expecting a war… it was over before I could even document…

Last edited:
I just took mine off. It was actually super easy with a little prep.

1. I stripped the entire receiver down, trigger and all.
2. I put the barrel in a bench vise pointed barrel downward and hit the inside of the receiver where it meets the chamber threads w Kroil oil (downward so the oil flowed towards the threads).
3. I did this periodically for 3 days. Just keep the barrel in the vise and hit it with the oil every so often….

4. Then put the barrel in a proper barrel vise.
5. Synched the living fck out of it but first wrapping it dry way tape and using resin to increase grip…..
6. mounted up the wheeler #1 wrench to the receiver and hit it with an impact hammer.

Popper off first hit!

Now I have a perfectly good 20” barrel for hunting or a lighter weight rig and a new 26” tikka pre fit!

After everything I had read I was expecting a war… it was over before I could even document…
Interesting! Maybe worth a try then, I have a Tikka action wrench so it should up to the task.

Barrel landed, very excited.

Last edited:
Interesting! Maybe worth a try then, I have a Tikka action wrench so it should up to the task.

Barrel landed, very excited.
I would not recommend an internal wrench for the initial breaking off of the factory barrel, you might destroy that wrench. Get a wheeler external wrench. Once you get it off, you can use the internal for any future barrel changes. New barrel will be fine between 80-100 ft/lbs. Also get a go-gauge to ensure the new barrel is headspaced properly. Put a piece of scotch tape on the back of the go-gauge to make it a no-go gauge. It's about 2 thou for 1 layer of tape, and 4-5 thou for 2 layers. I used a proof prefit as well.

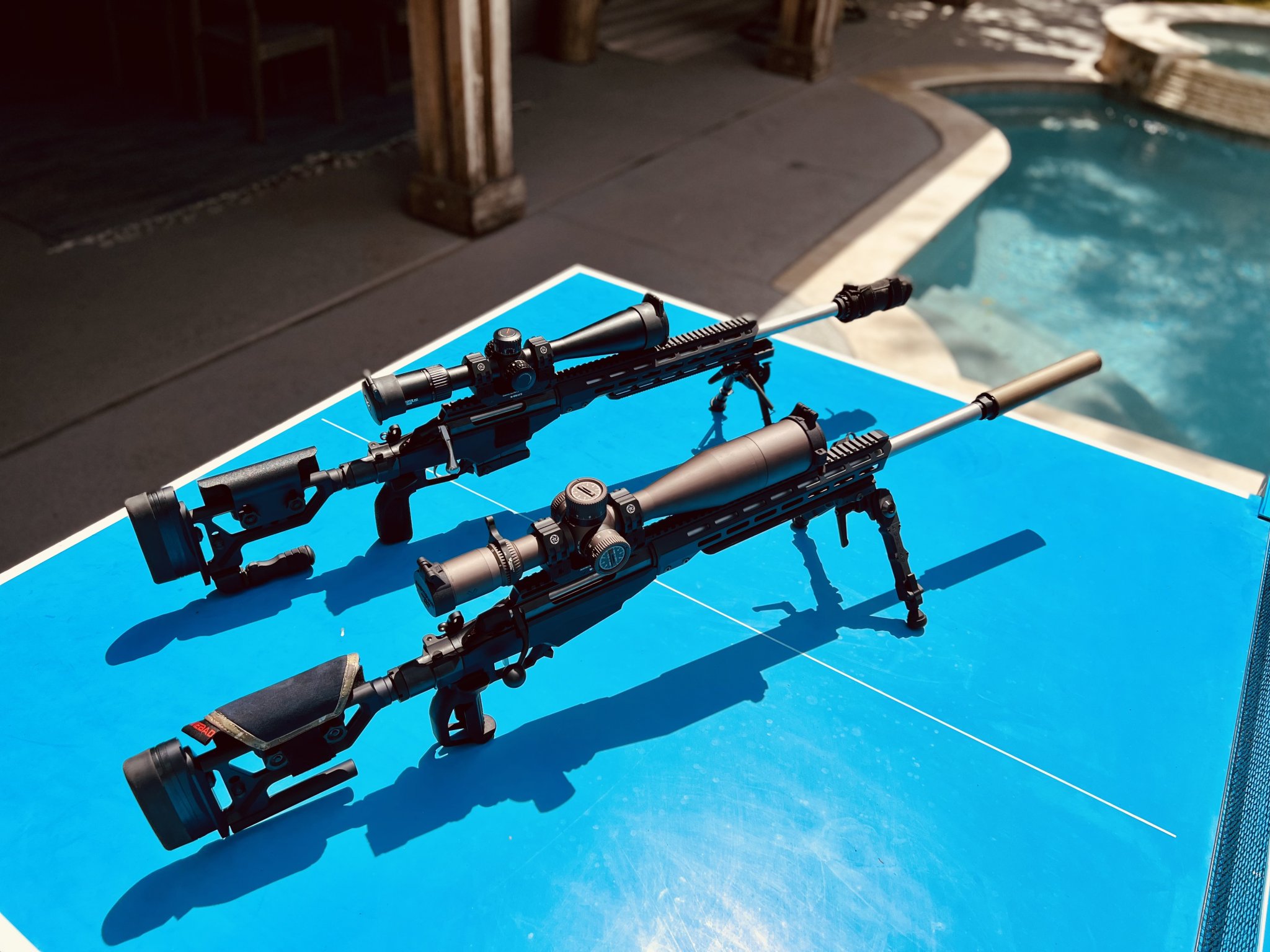

Nice chassis, is that the Spuhr?

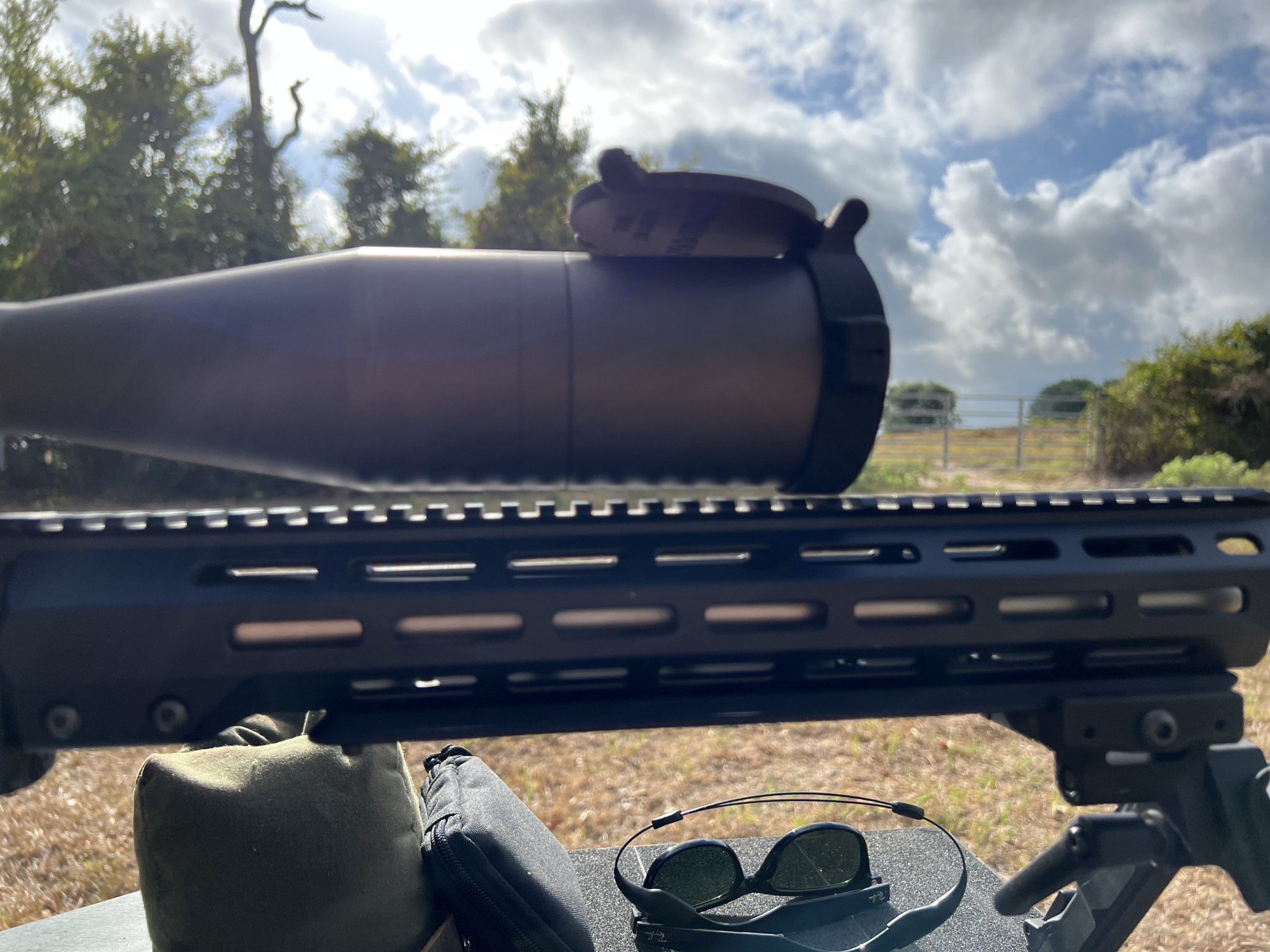

@Bevo Nice. What height ARC mount did you need to clear the handguard with the 50mm bell and caps? On 20moa cant?

Boomer Sooner

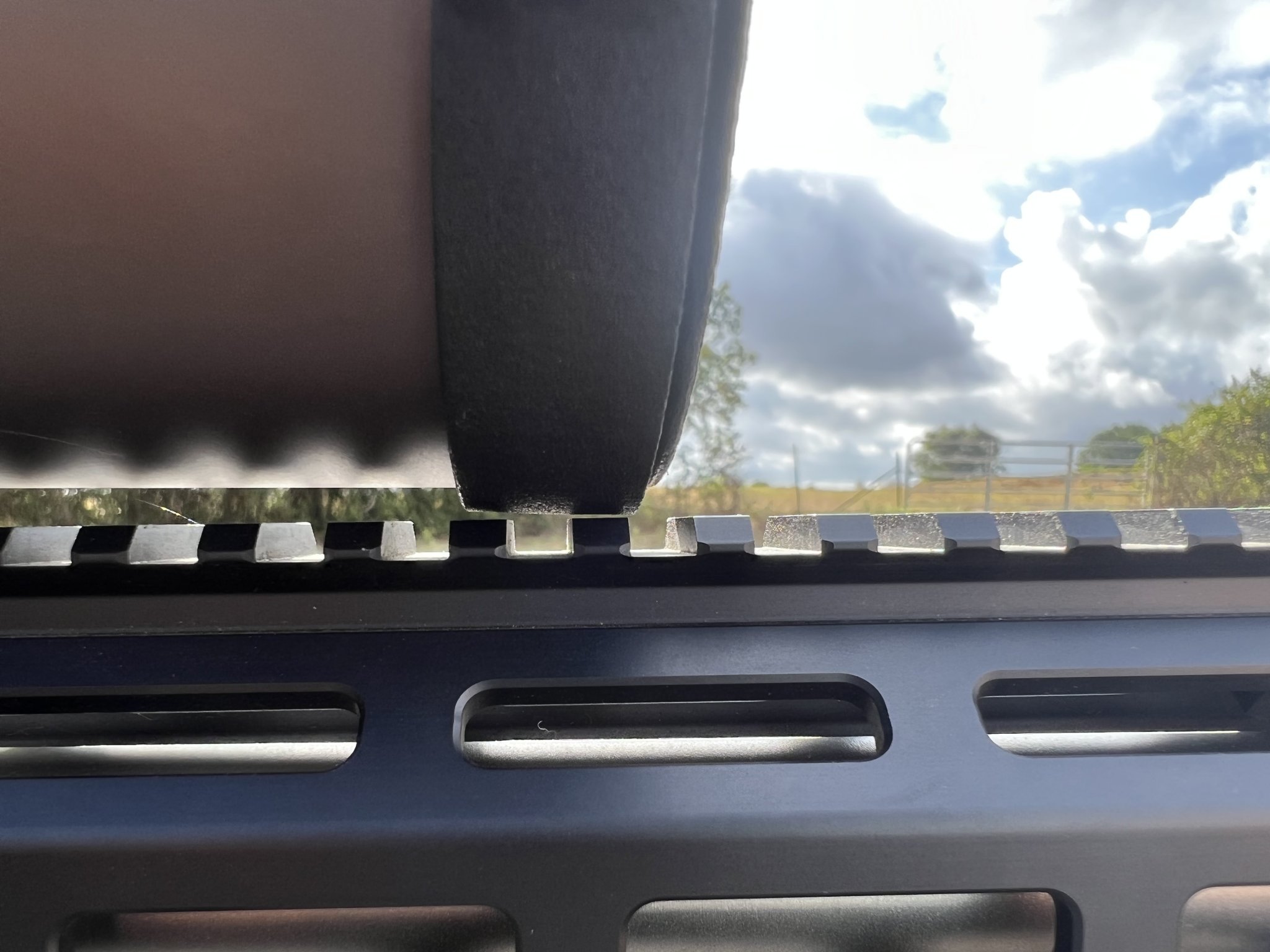

Just of note, I have 50mm obj as well and 1.5 20moa cleared for me on factory chassis but was so tight that I couldn't thread the front cap on (hinge would hit the rail).


I doubt an optic with 56mm would've worked and the 1.5 kinked my neck after 2 full days behind the gun. Definitely happier with the 1.18 on my new chassis.

  • Like
Reactions: viking78
Just of note, I have 50mm obj as well and 1.5 20moa cleared for me on factory chassis but was so tight that I couldn't thread the front cap on (hinge would hit the rail).

I doubt an optic with 56mm would've worked and the 1.5 kinked my neck after 2 full days behind the gun. Definitely happier with the 1.18 on my new chassis.
Damn that TAC A1 chassis you sold has been haunting me for a month and a half!! Missed it by hours. I digress...

The photo is a 50mm bell and 1.5" height?

  • Like
Reactions: munch520
Quick question for anyone using a McMillan. What torque specs are you using on the action screws. I saw McMillan recommends 45in lbs. I've got a CTR going in an A-5 adjustable (Highland Camo) w/factory installed pillars (I'm not going to bed it). Years ago I had a Rem 700 I put in an A-5 but I can't remember the torque values I used.
Thanks in advance.

Quick question for anyone using a McMillan. What torque specs are you using on the action screws. I saw McMillan recommends 45in lbs. I've got a CTR going in an A-5 adjustable (Highland Camo) w/factory installed pillars (I'm not going to bed it). Years ago I had a Rem 700 I put in an A-5 but I can't remember the torque values I used.
Thanks in advance.
45 here… both my McM A3 and KRG Bravo

This is the way.

Also, tap it one time hard in the tightening direction, and then untighten it. it should come off.

Someone turned me on the that method, and I’m 5 for 5 in taking off factory barrels the first try since.

I used an external wrench to remove it and then a tikka internal to install….

  • Like
Reactions: category_theory
Another Tikka modification.

I have wanted to have the knob on my Sterk swept handle to be titanium. My rail is already a Murphy Precision 20moa titanium rail and I have the titanium Sterk shroud.

Asked @cannoncrossfire (he is Sterk) for details on the shroud April of last year before I bought it and a few other questions about the handle since. 6al4v for the alloy, aluminum balls are red loctited on, and 5/16-24 thread.

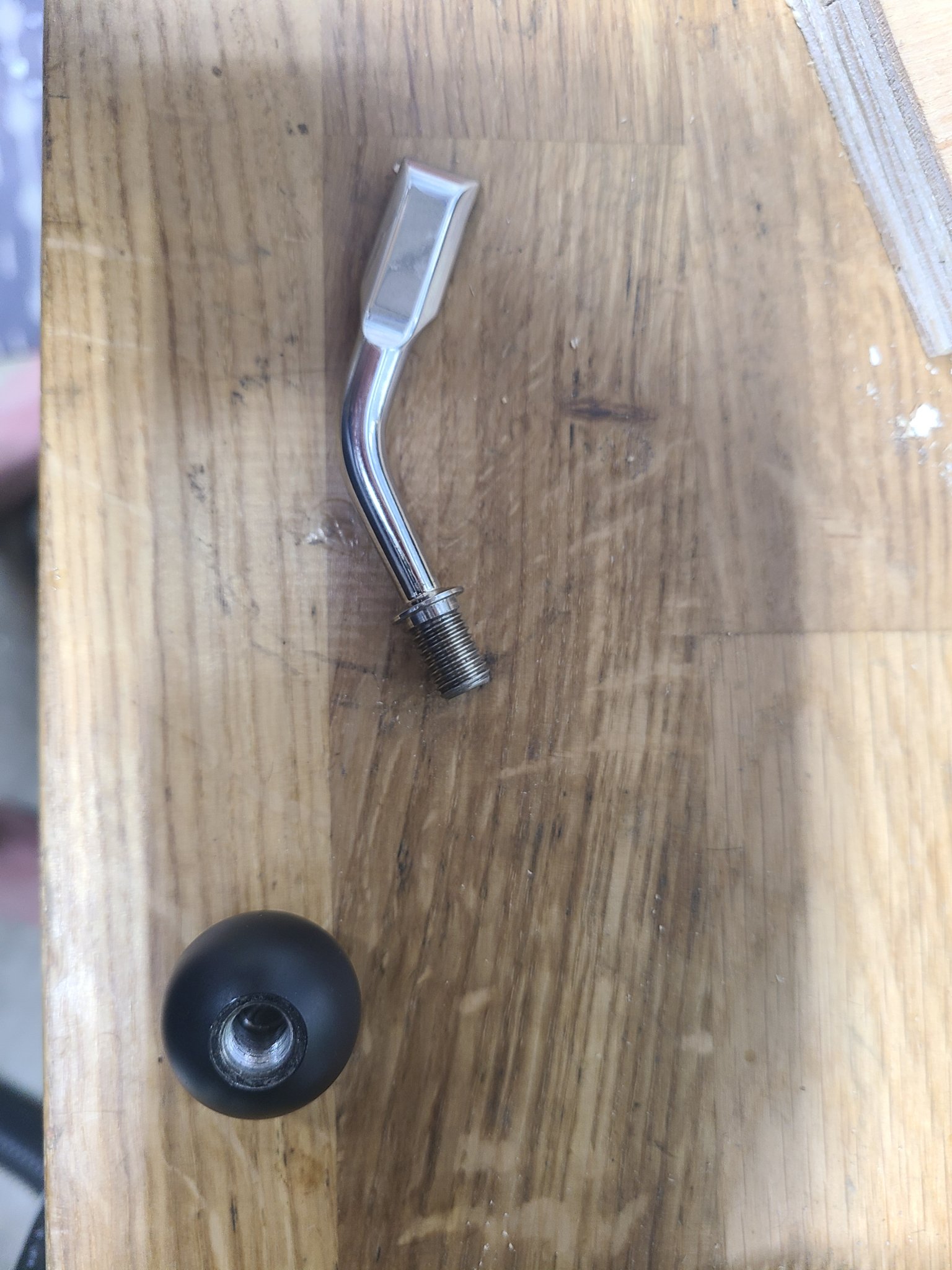

Process of removing.

Heated with a torch to 500°f. Used infrared thermometer to tell.

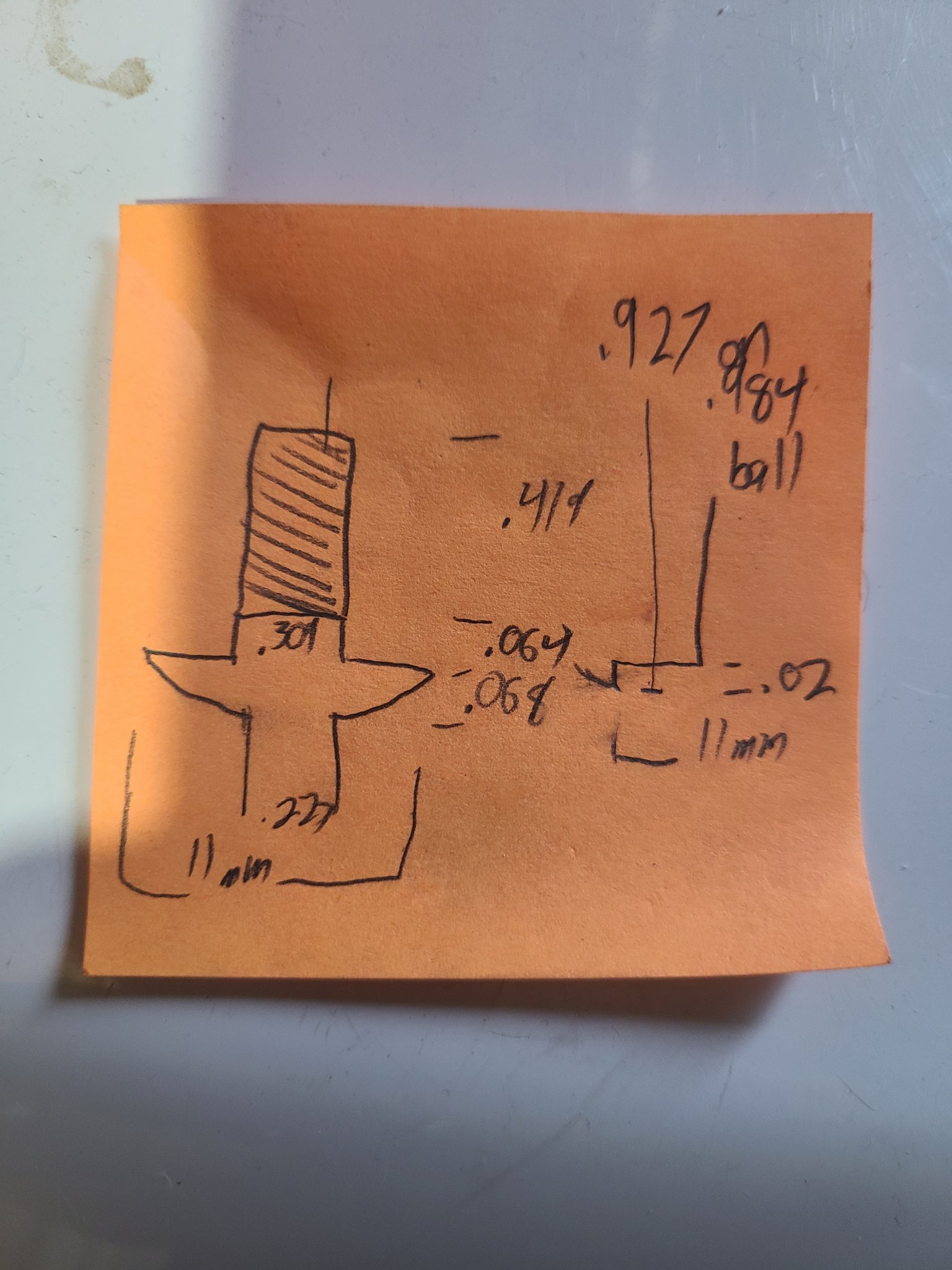

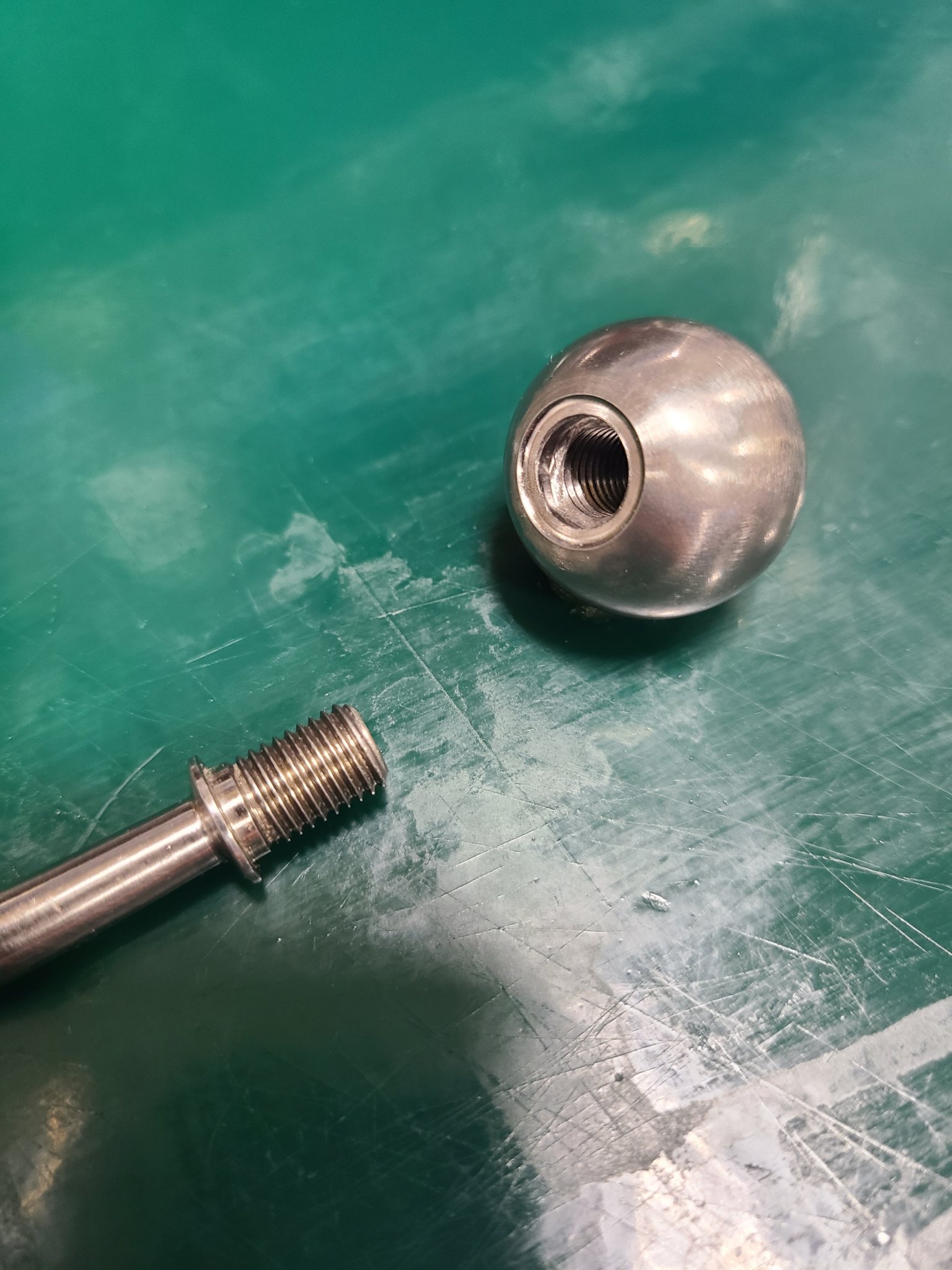

Notes on modifications needed. Relevant info is an 11mm counterbore that is 20 thou or so deep and enough counterbore in the threads to accommodate the unthreaded section under the swell. Not much can be done about that in manufacturing other than a thread relief which takes another tool when it's being made. Sterk bends the handle after it is machined.

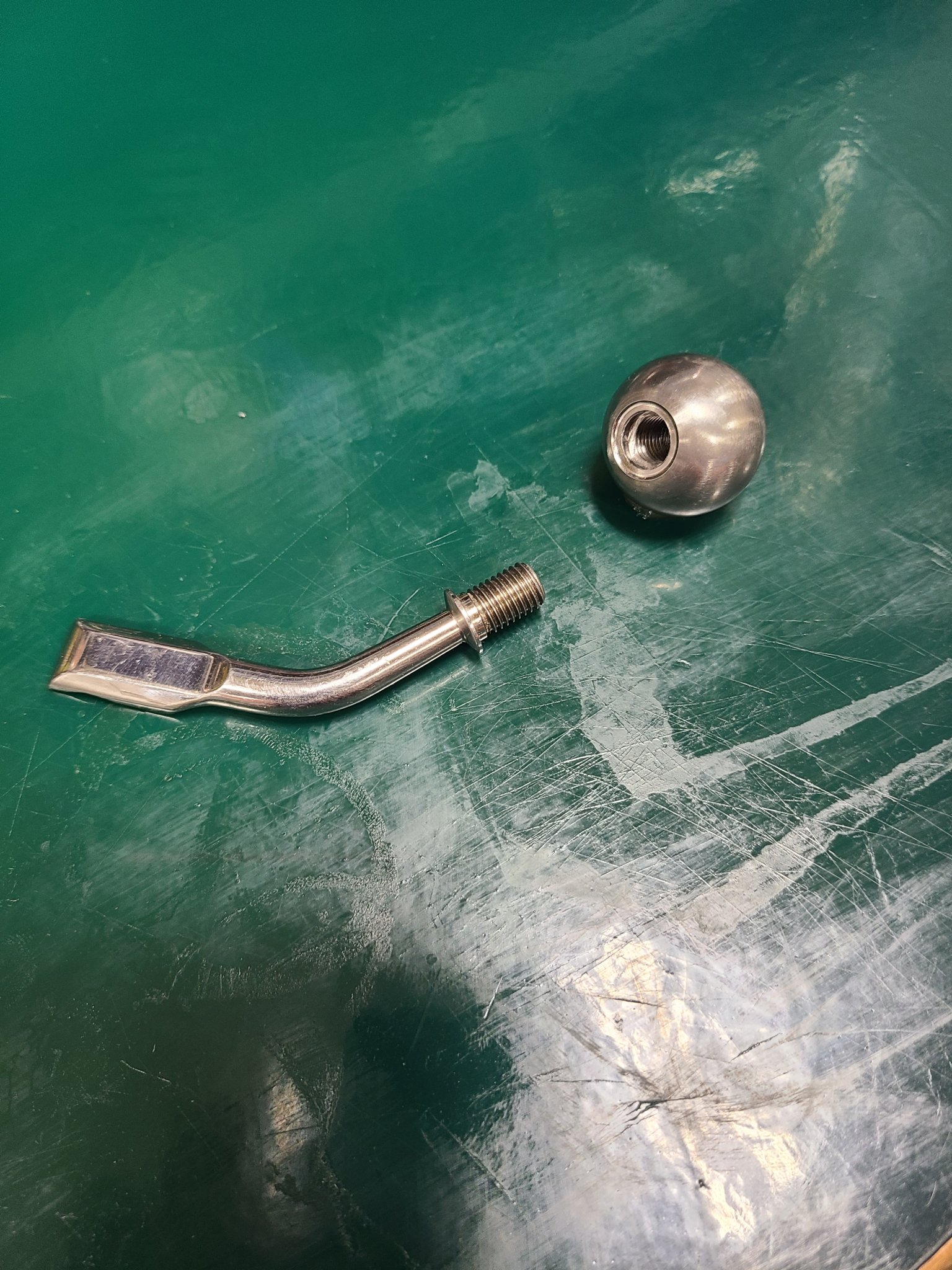

Was able to finally find a 6al4v titanium 1" diameter bolt handle from Anarchy Outdoors. SBK-POL. Upc 791617484610

Needed the 11mm counterbore in it to which I was able to use a lathe (with too big of a boring bar) to cut it. It also didn't have a tailstock chuck to drill out the thread relief.

I used a very very nice NSK Rotus IM301 air grinder with the IH300 head (about $1100 for an air powered 30,000rpm grinder) with a carbide burr to higbee the thread far enough that I was able to get it together. No I don't have one of those at home. Used $450ish.

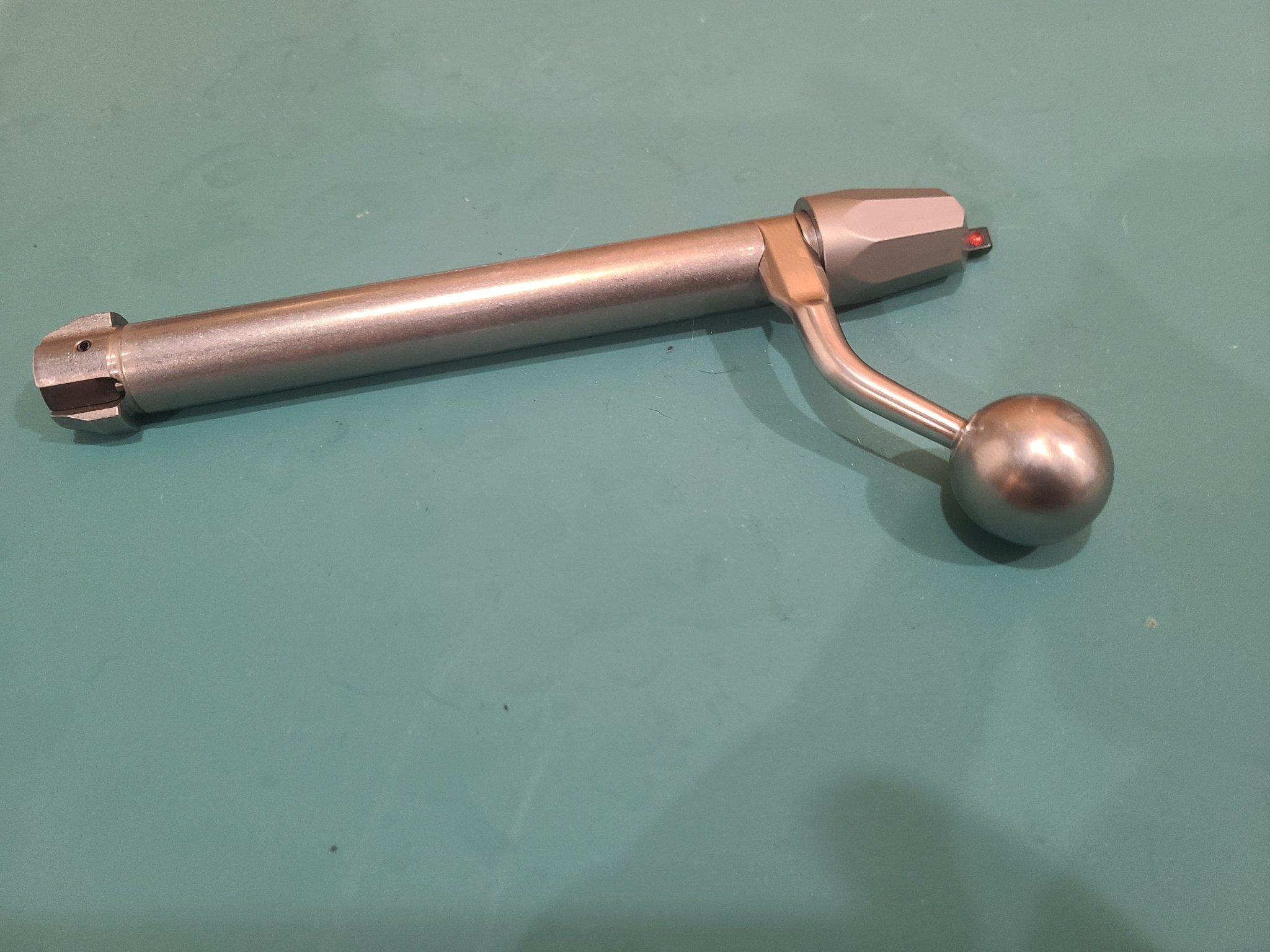

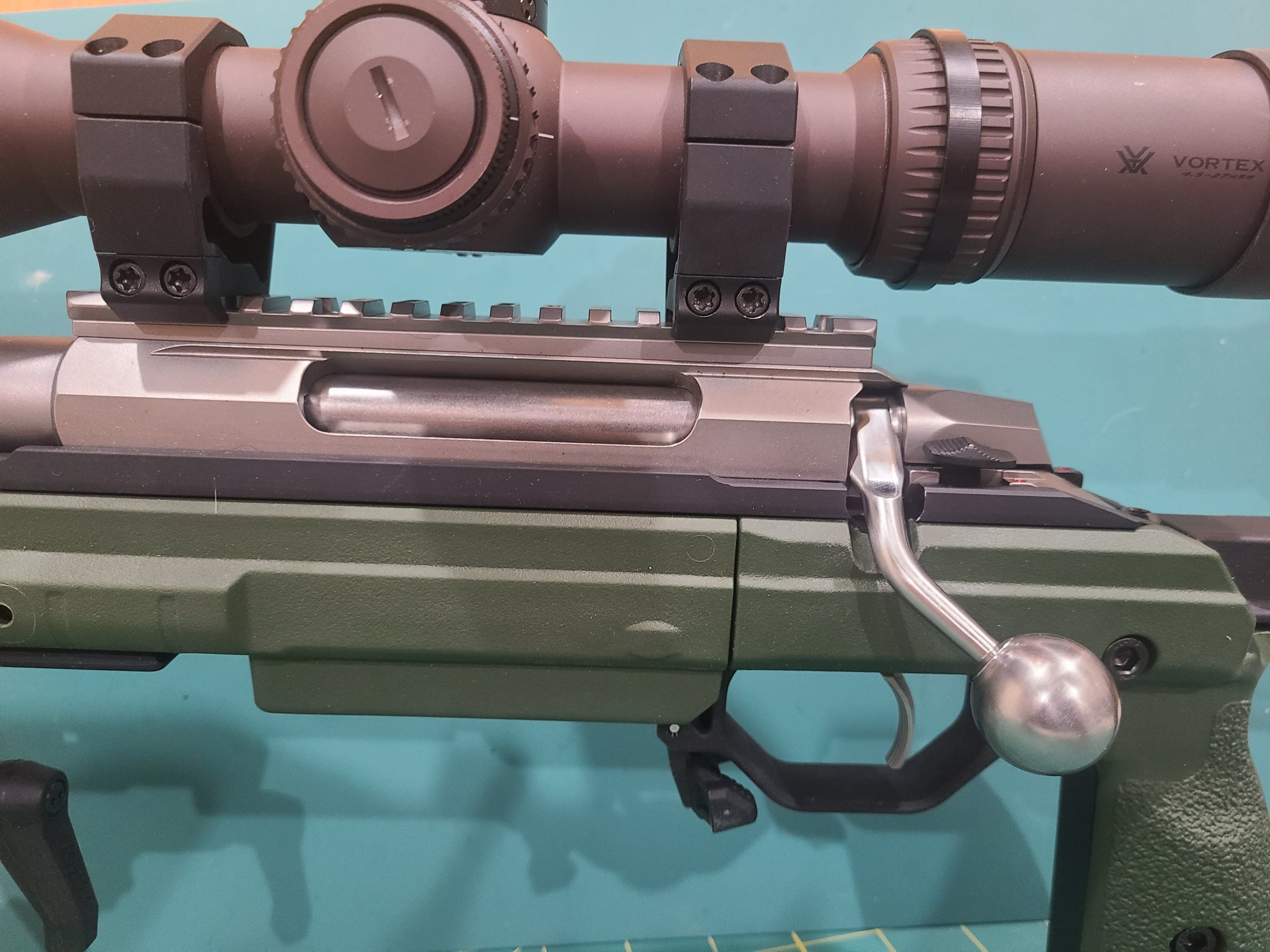

Assembled.



Part of the reason to go for titanium is because of why the heck not? I'm lefthand and left eye and everything has to be modified/ special in some way why not make it unique? Working towards having a one of a kind Tikka. Other reason is that titanium is color anodizable as well. Will send it out to get done at some point but not sure on the color yet. Some possibilities below.

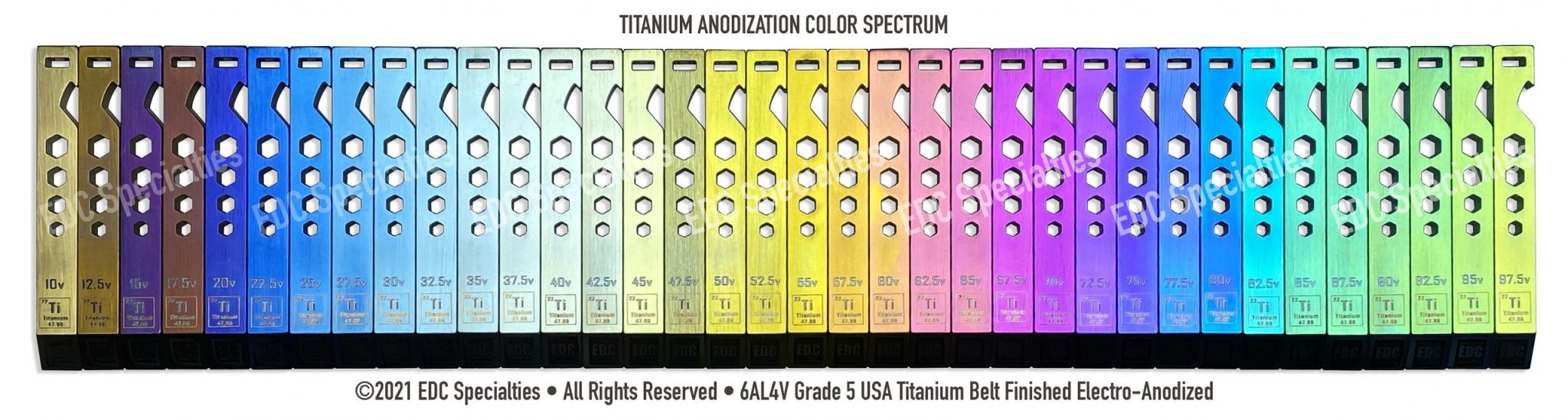

Titanium-Anodization-Chart-copy-2-scaled (2).jpg

Last edited:
Nice work @LeftyJason Titanium is a bugger to machine, so I applaud your work to modify. Don't forget folks that Titanium is still heavier than aluminium, so it's not a 'light weight' option haha. You can also heat Titanium to colour it, but it will go through colours very quickly as you heat it so it can be tricky.
Oh no. I went up less 195 grains in the bolt knob. Now my bolt lift will be so heavy. Not sure how I can lift it. /sarc

Thanks for answering questions and putting out great products.

  • Like
Reactions: cannoncrossfire
If this isn't the right thread to ask, let me know.

Are .223s with a 10 twist still in favor? I came home with a Tikka T3 Varmint for about $400 from pawn shop.
From what I've researched, Tikka stopped making their .223s with the 10 twist.
I have tried factory and hand loads and can't seem to get any groups under 1 inch. The best is right at 1 inch. I've tried M193, M855, Federal 55 grain bulk, 55 grain vmax handloads, 65 grain sierra gamepoint handloads and 69 grain SMK handloads.
Checked torque on all mounts and screws. Shot with clean and fouled barrel.
Should i just give up and get an 8 twist barrel? Or is 1 moa good for this rifle?

stupid n00b with weak google fu question:

Can I stick any Tikka action in a chassis for PRS shooting?

There's a 6.5CM lite in a hunting stock for $600ish out there and I know I'll want/need a chassis.

??

M
T3x actions are all the same. T1x will need some modifications. If the chassis lists t3 it will fit. Some chassis won't fit the KRG midas without slight modifications.

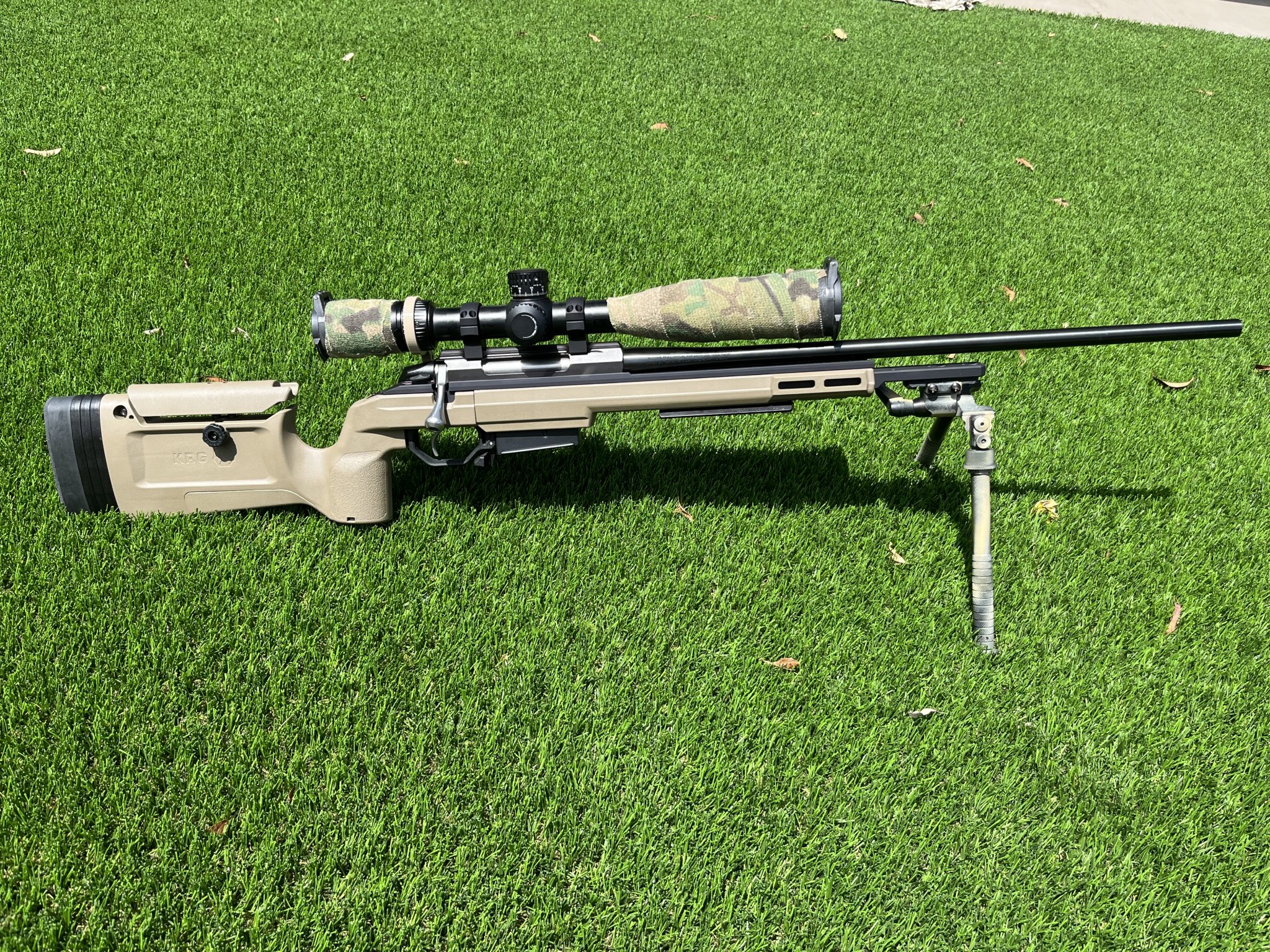

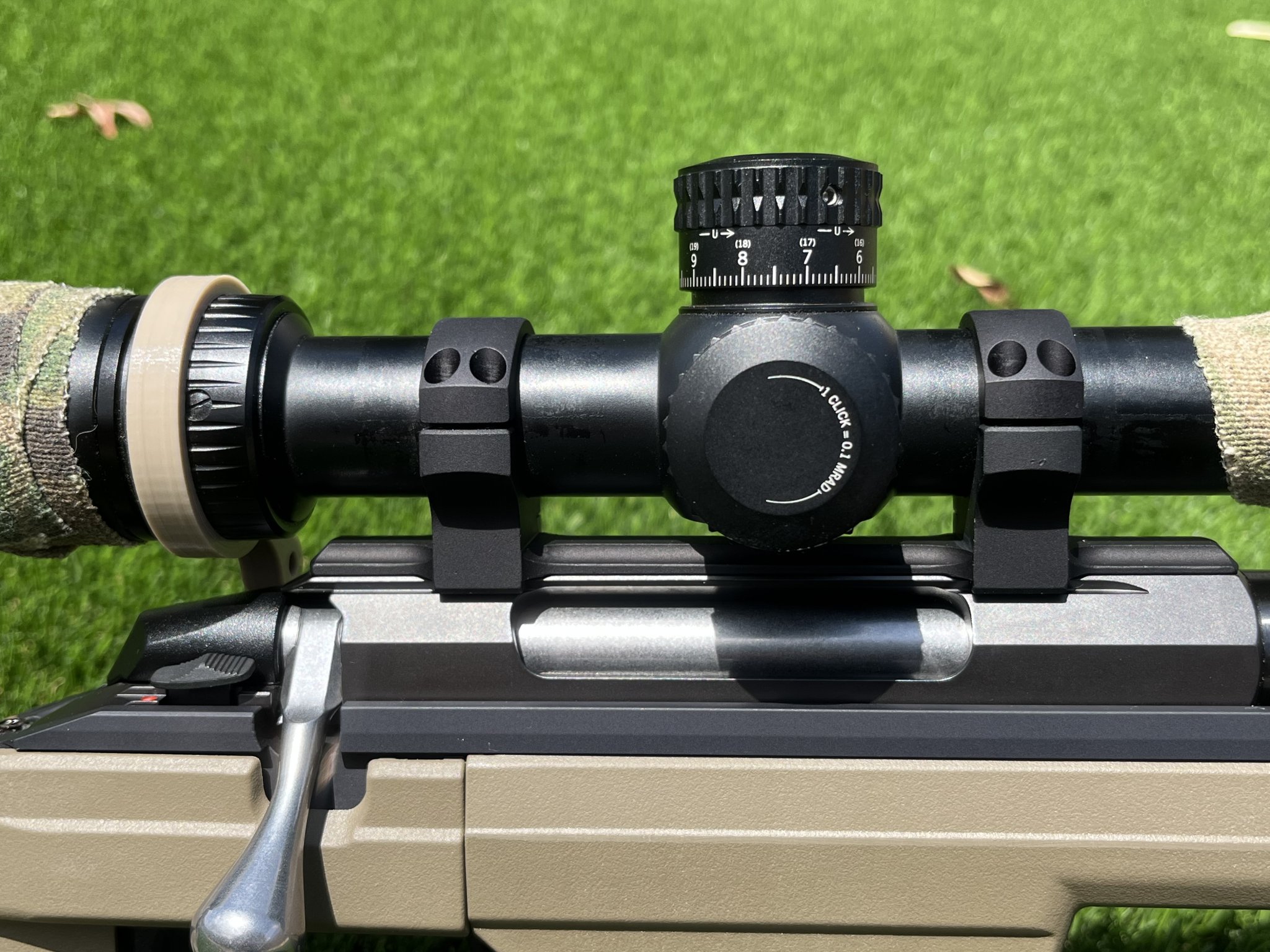

T3x Lite .308 in a KRG Bravo. Mountain Tactical one piece 20MOA scope base, Mountain Tactical trigger spring, set a little to lite for my taste 1.5lbs just wanted to try one out.

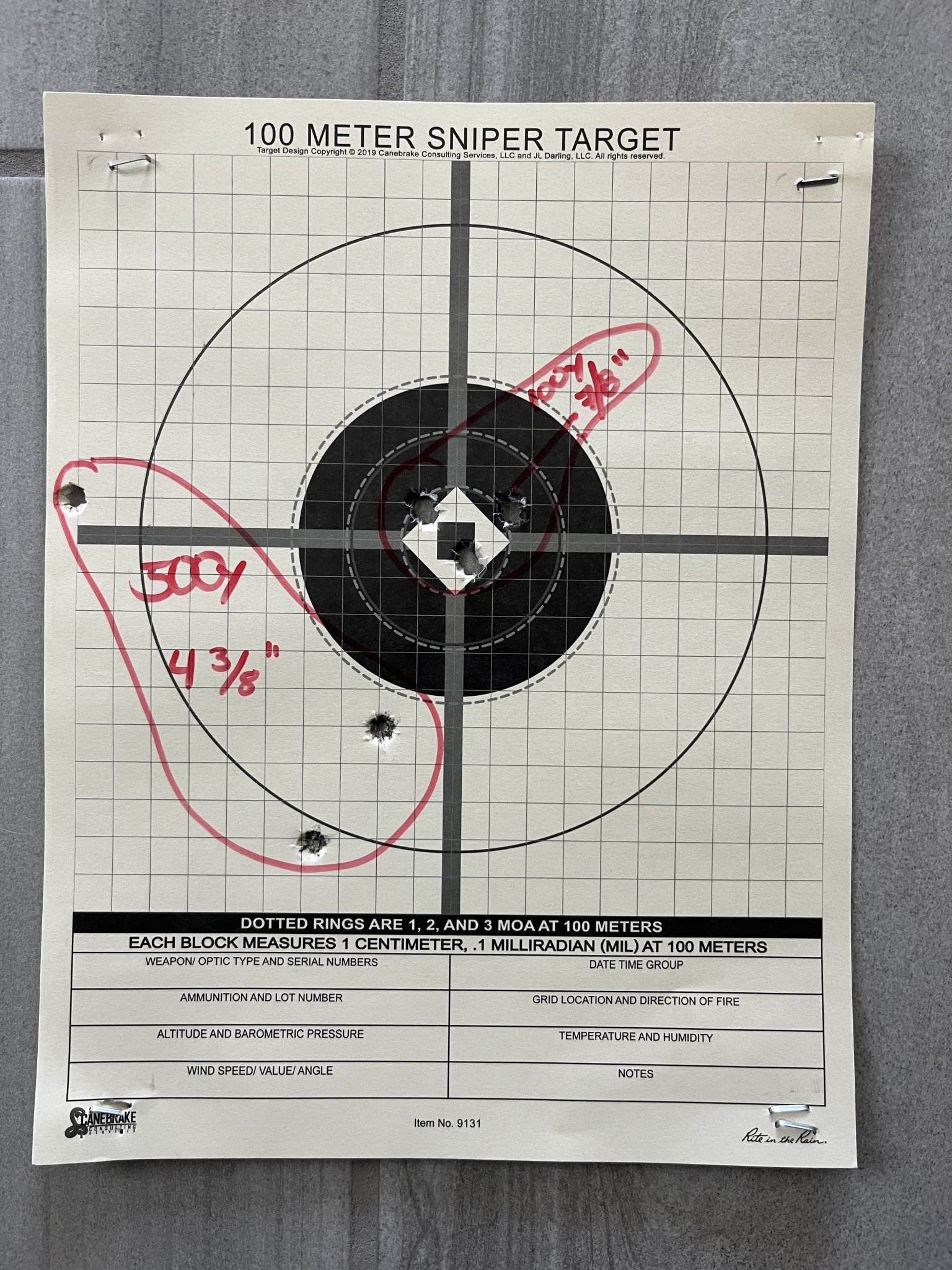

Only shot 168g ELD-M. The 500y group had a little bit of mirage R to L. Should of gone .1-.2R… rookie mistake.

11.02 Lbs on my scale


Attachments

  • AFE5D6EA-F1AA-4E9E-B056-42F692BC9F54.jpeg
    529.9 KB · Views: 204
  • E617782D-BDD1-4DDD-A1BF-879ED9AA836A.jpeg
    1.5 MB · Views: 208
  • 6A9839D7-835F-4A0C-BCFE-518EBC320781.jpeg
    679.6 KB · Views: 217
Last edited:
I tried pretty much everything i had. Just wondering if I'm wasting my time and components.
No worries. I do think the purpose of the rifle comes into play. All the heavier 69-70 stuff is reportedly marginal at 10 inch twist. so it comes down to trying again with 50-55gr or makign a tough call to rebarrel a rifle.

  • Like
Reactions: carbonbased
About to order a T3x TAC A1 in 6.5 Creedmore with a 20"barrel. Does anyone have any experience shooting Hornady factory 140 Gr ELD Match out of this particular setup (I have a bunch I'd like to use)? What has been your most accurate factory ammo? Finally, any suggestions on a good powder/bullet combo for out to 1000 yards.

About to order a T3x TAC A1 in 6.5 Creedmore with a 20"barrel. Does anyone have any experience shooting Hornady factory 140 Gr ELD Match out of this particular setup (I have a bunch I'd like to use)? What has been your most accurate factory ammo? Finally, any suggestions on a good powder/bullet combo for out to 1000 yards.
That’s kind of like asking has anyone tried mustard on a hotdog :). Yes 140gr eldms are great. Kinda one of the standards for factory loads. Also Bergers are great if you can find them. They should shoot great out of the t3x. That said w a 20” barrel don’t expect super fast velocities, the tikkas are known to be slow… but very accurate, sub MOA (.5 if not better).

For 1000, 140 eldms or berger long range at 140 or 144, and h4350 but loaded to and for your chamber. Do you hand load?

That’s kind of like asking has anyone tried mustard on a hotdog :). Yes 140gr eldms are great. Kinda one of the standards for factory loads. Also Bergers are great if you can find them. They should shoot great out of the t3x. That said w a 20” barrel don’t expect super fast velocities, the tikkas are known to be slow… but very accurate, sub MOA (.5 if not better).

For 1000, 140 eldms or berger long range at 140 or 144, and h4350 but loaded to and for your chamber. Do you hand load?
I have a lot of experience handloading 308. I have not loaded 6.5 yet. The Hornady I have stockpiled did shoot well out of my 24" Savage BA Stealth. I was curious if the 140s would shoot sub .75 with the shorter barrel or do better with 130s. I saw a lot of stuff about the 16" sig cross shooting all over the place with factory loads then going Gucci with some hand loads.

If this isn't the right thread to ask, let me know.

Are .223s with a 10 twist still in favor? I came home with a Tikka T3 Varmint for about $400 from pawn shop.
From what I've researched, Tikka stopped making their .223s with the 10 twist.
I have tried factory and hand loads and can't seem to get any groups under 1 inch. The best is right at 1 inch. I've tried M193, M855, Federal 55 grain bulk, 55 grain vmax handloads, 65 grain sierra gamepoint handloads and 69 grain SMK handloads.
Checked torque on all mounts and screws. Shot with clean and fouled barrel.
Should i just give up and get an 8 twist barrel? Or is 1 moa good for this rifle?

My 1-10” T3 Lite Stainless (not T3x) shoots 50 gr V-Max and 50 gr Ballistic Tip Varmint into little bitty groups with a max charge of Benchmark at 2.276” oal. Work up to it. 3400 fps at the muzzle.




P

That’s kind of like asking has anyone tried mustard on a hotdog :). Yes 140gr eldms are great. Kinda one of the standards for factory loads. Also Bergers are great if you can find them. They should shoot great out of the t3x. That said w a 20” barrel don’t expect super fast velocities, the tikkas are known to be slow… but very accurate, sub MOA (.5 if not better).

For 1000, 140 eldms and h4350 but loaded to and for your chamber. Do you hand load?
I have a lot of experience handloading 308. I have not loaded 6.5 yet. The Hornady I have stockpiled did shoot well out of my 24" Savage BA Stealth. I was curious if the 140s would shoot sub .75 with the shorter barrel or do better with 130s. I saw a lot of stuff about the 16" sig cross shooting all over the place with factory loads then going Gucci with some hand loads.
I was shooting factory 140s from my tikka t3x w a 20” at around .5 MOA easily. They’ll do great. I also had them out to a 1000 so much trouble too. You should do great with them. Like I said, they won’t be as fast but they be accurate! Good luck! And if you ever want to go longer check out Patriot Valley Arms for prefit rebarrels! Spin the old 20” off (with some work) and throw on a 26” pre fit at home! Then ya got a hunting barrel and a long range steel ringer :)
